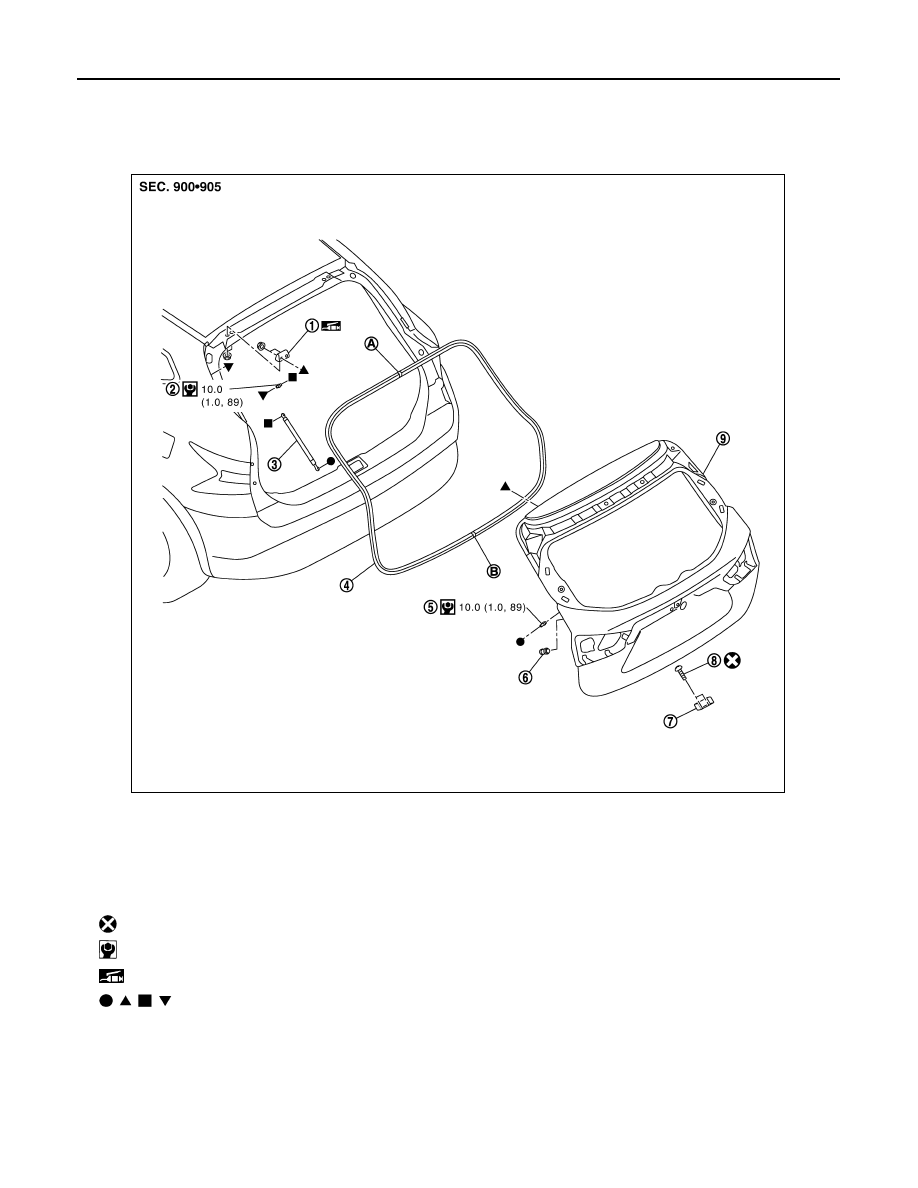

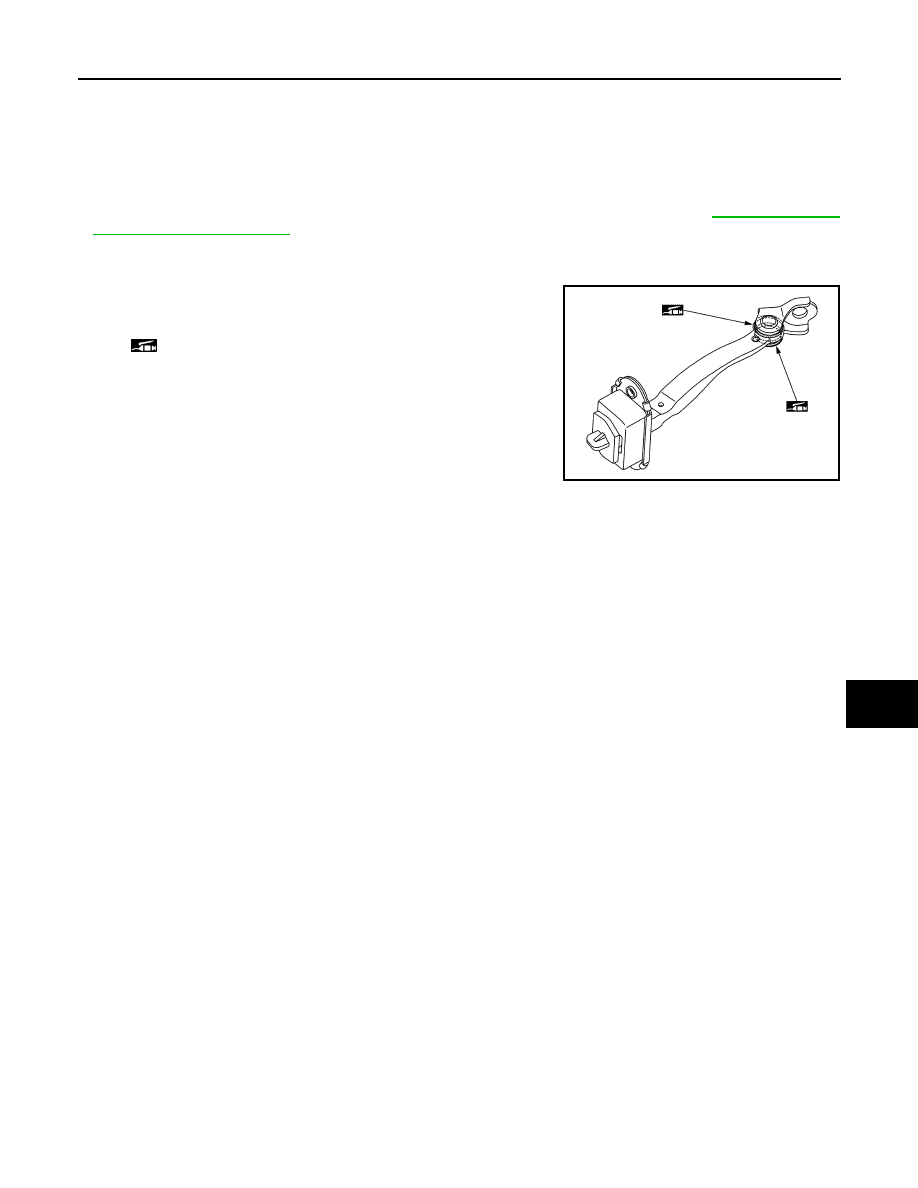

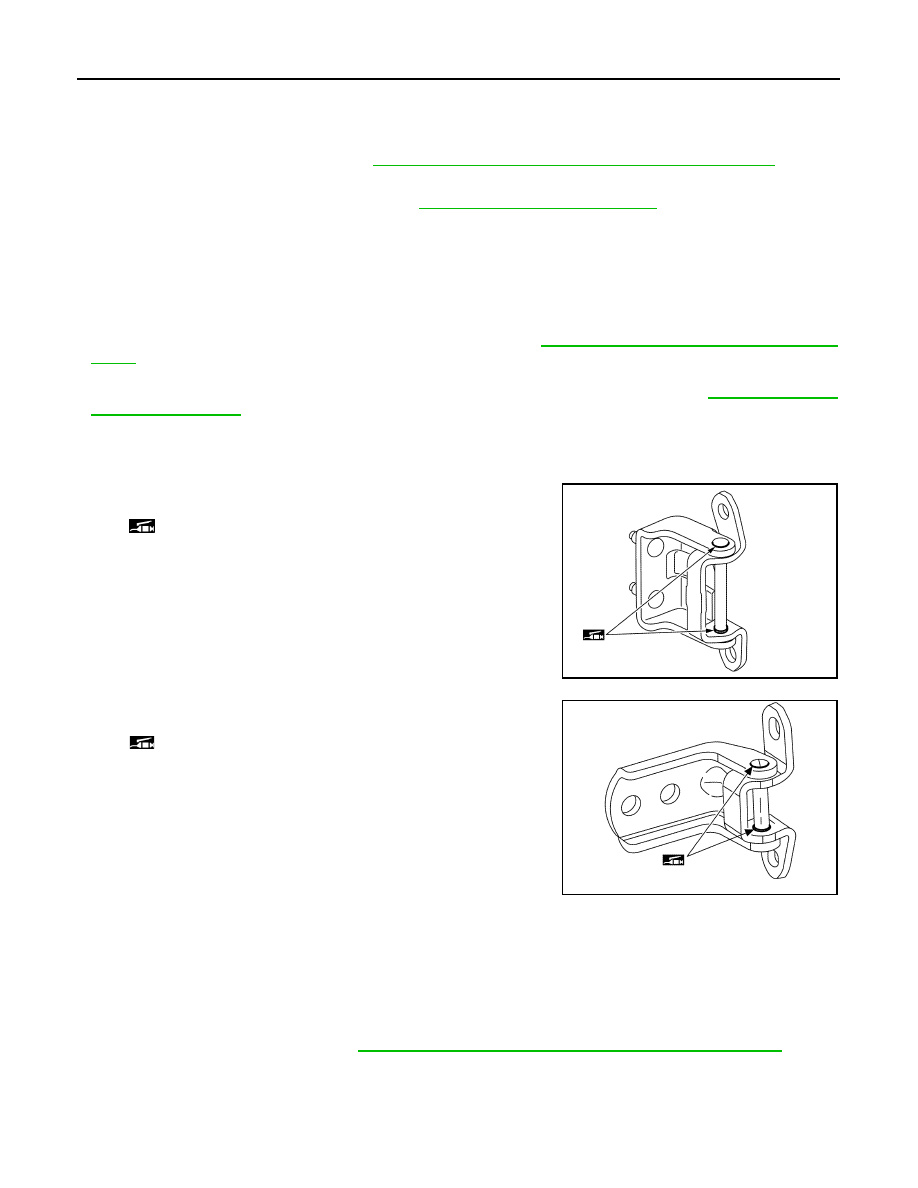

REAR DOOR DLK-801 < REMOVAL AND INSTALLATION > [TYPE 5] C D E F G H I J L M A B DLK N O P Fitting Adjustment Standard Check the clearance and surface height between rear door and each part by visually and touching. Unit: mm [in] Fitting Adjustment Procedure 1. Remove center pillar lower garnish. Refer to INT-18, "Removal and Installation" . 2. Loosen door hinge mounting nuts on door side. 3. Adjust the surface height of rear door according to the fitting standard dimension. 4. Temporarily tighten door hinge mounting nuts on door side. 5. Loosen door hinge mounting nuts and bolts on body side. 6. Raise rear door at rear end to adjust clearance of rear door according to the fitting standard dimension. 7. After adjustment tighten bolts and nuts to the specified torque. CAUTION: • After installation, apply touch-up paint (the body color) onto the head of hinge mounting bolts and nuts. • Check door hinge rotating part for poor lubrication. Refer to DLK-797, "DOOR HINGE : Inspec- 8. Install center pillar lower garnish. Refer to INT-18, "Removal and Installation" DOOR STRIKER ADJUSTMENT Adjust door striker so that it becomes parallel with door lock insertion direction. DOOR STRIKER DOOR STRIKER : Removal and Installation INFOID:0000000010678802 REMOVAL Remove TORX bolts, and then remove door striker. INSTALLATION Note the following items, and install in the reverse order of removal. CAUTION: • Never reuse mounting TORX bolt. Always replace it with a new one when it is removed. DOOR HINGE DOOR HINGE : Removal and Installation INFOID:0000000010678803 CAUTION: • Perform work with 2 workers, because of its heavy weight. : N·m (kg-m, ft-lb) : Body grease Portion Standard Front door – Rear door B – B J Clearance 3.3 – 5.3 [0.130 – 0.209] K Surface height ( − 1.0) – (+1.0) [( − 0.039) – (+0.039)] Rear door – Body side panel C – C L Clearance 3.5 – 5.5 [0.138 – 0.217] M Surface height ( − 1.0) – (+1.0) [( − 0.039) – (+0.039)] |
