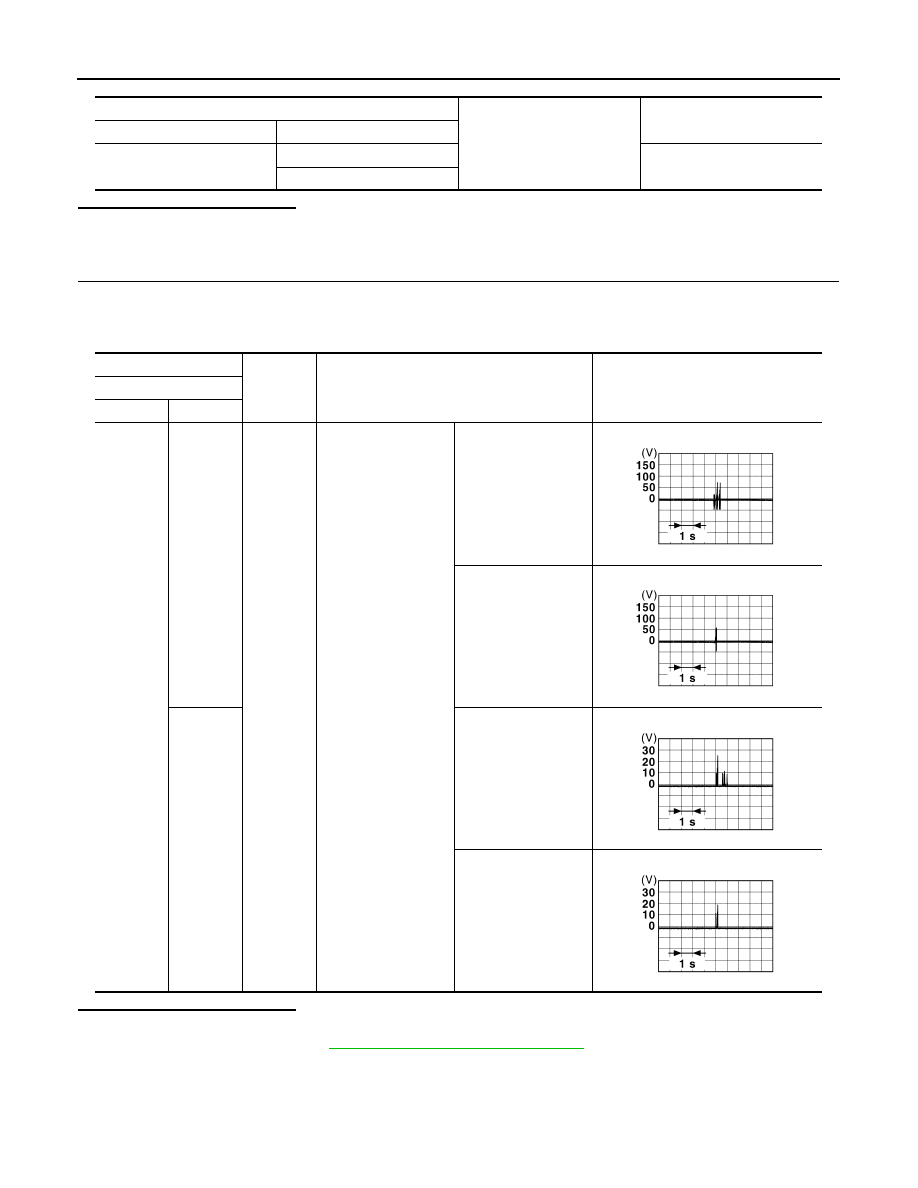

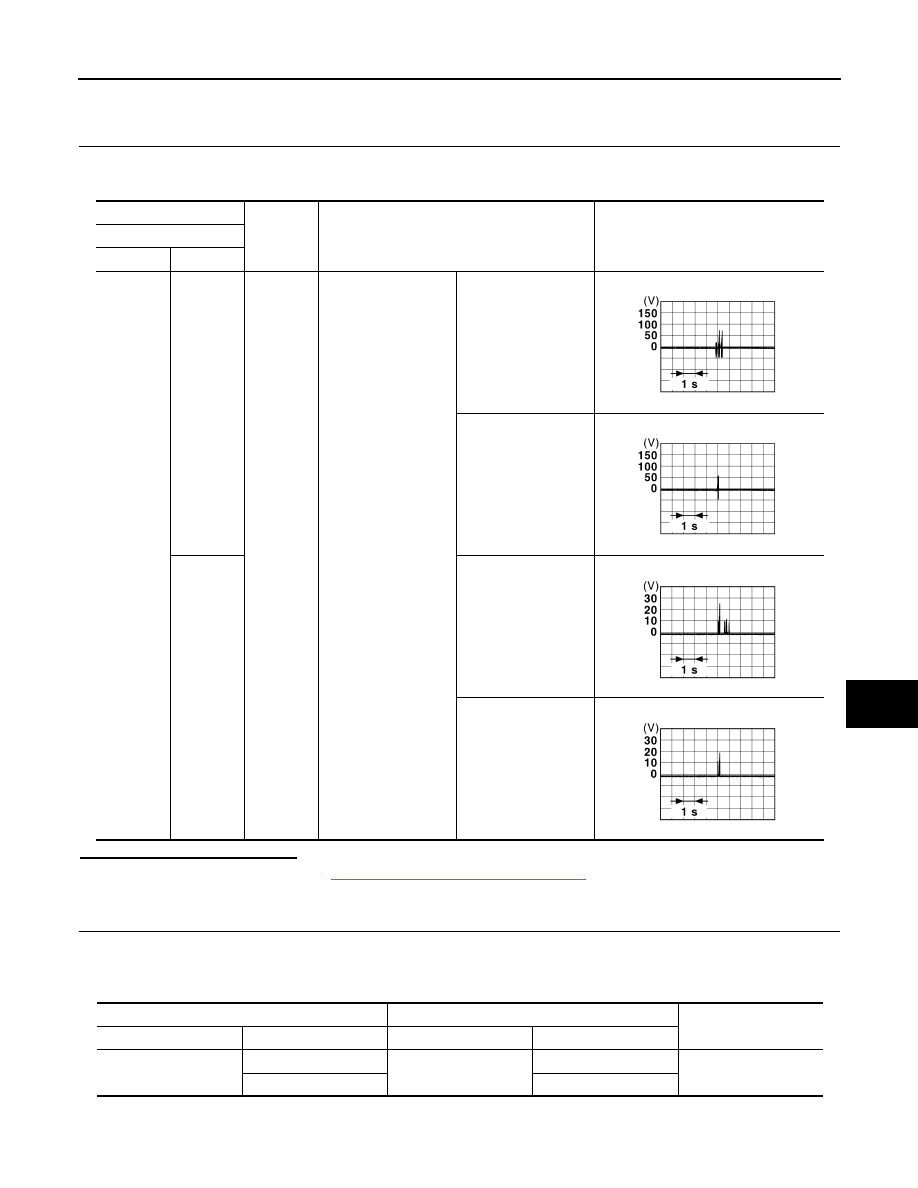

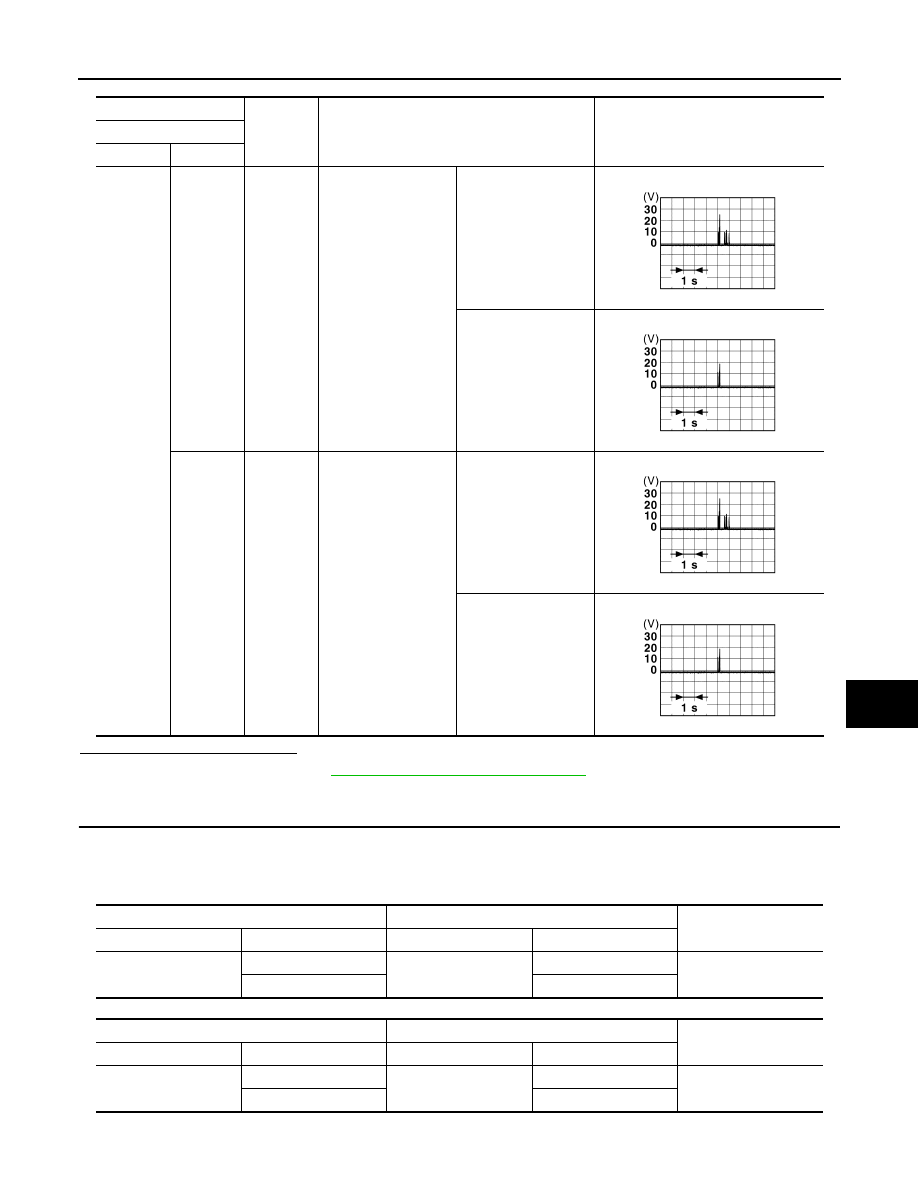

OUTSIDE KEY ANTENNA DLK-297 < DTC/CIRCUIT DIAGNOSIS > [TYPE 2] C D E F G H I J L M A B DLK N O P Is the inspection result normal? YES >> Replace BCM. Refer to BCS-135, "Removal and Installation" . NO >> GO TO 2. 2. CHECK OUTSIDE KEY ANTENNA CIRCUIT 1. Disconnect BCM connector and front outside handle assembly (passenger side) connector. 2. Check continuity between BCM harness connector and front outside handle assembly (passenger side) LHD models RHD models 3. Check continuity between BCM harness connector and ground. (+) (–) Condition Signal (Reference value) BCM Connector Terminal M69 118 Ground When ignition switch When Intelligent Key When Intelligent Key 119 Ground When ignition switch When Intelligent Key When Intelligent Key JSMIA1507GB JSMIA1506GB JSMIA1507GB JSMIA1506GB BCM Front outside handle assembly (passenger side) Continuity Connector Terminal Connector Terminal M69 118 D38 2 Existed 119 1 BCM Front outside handle assembly (passenger side) Continuity Connector Terminal Connector Terminal M69 118 D9 2 Existed 119 1 |
