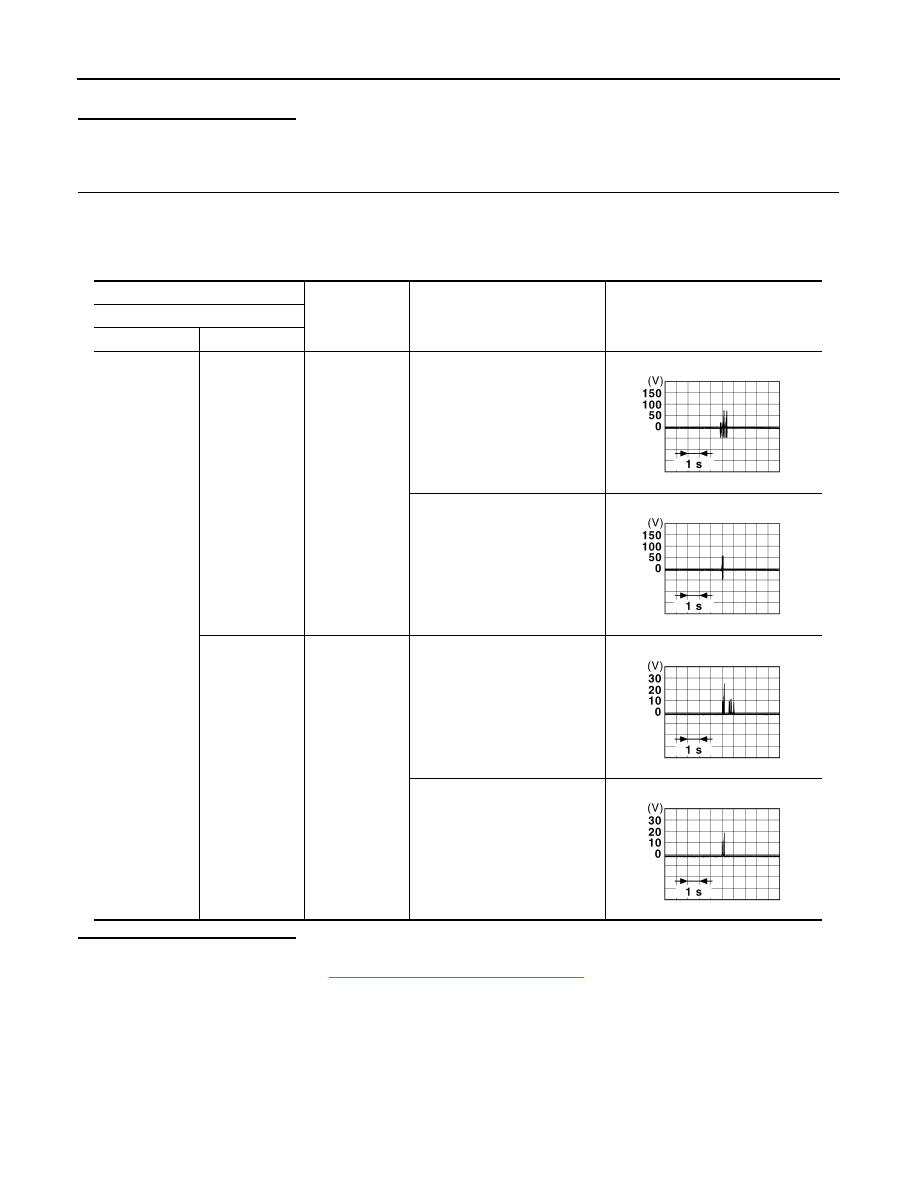

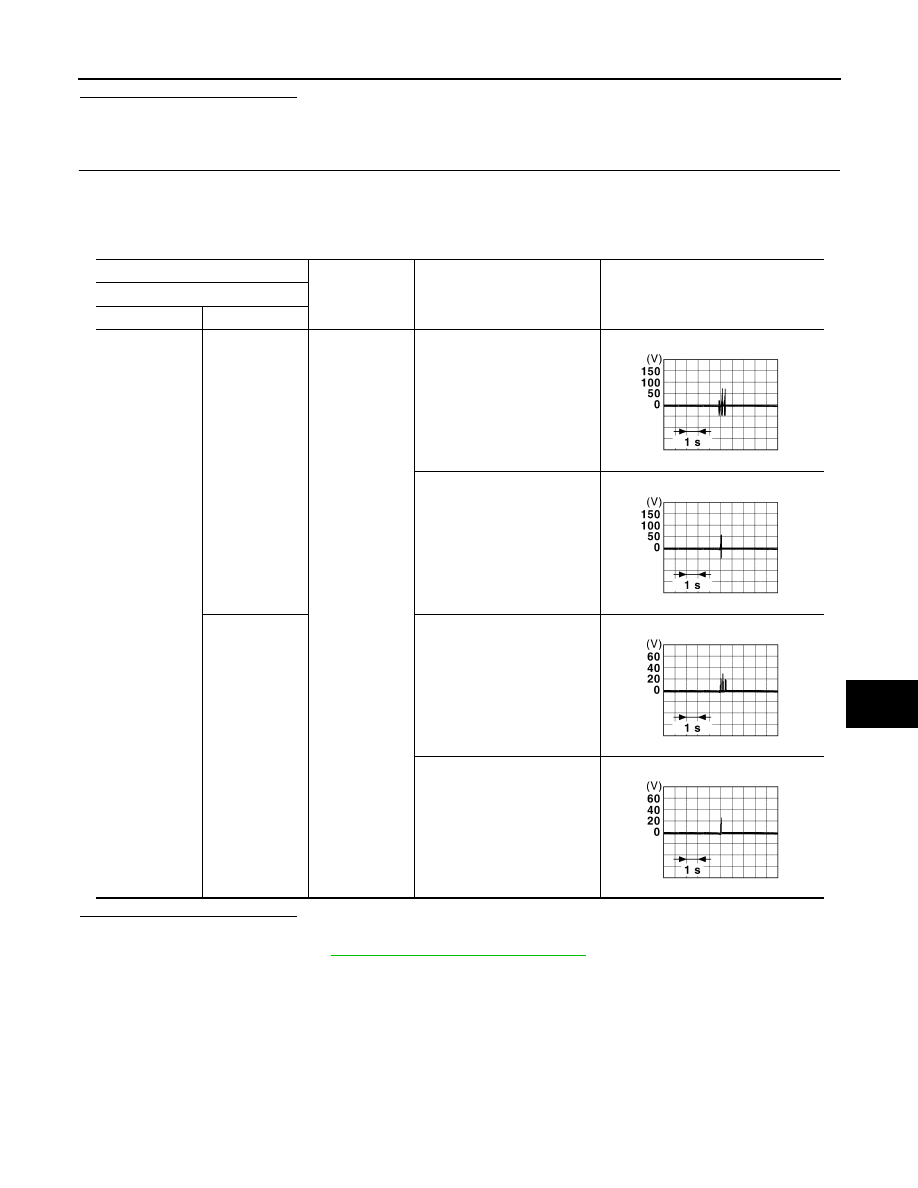

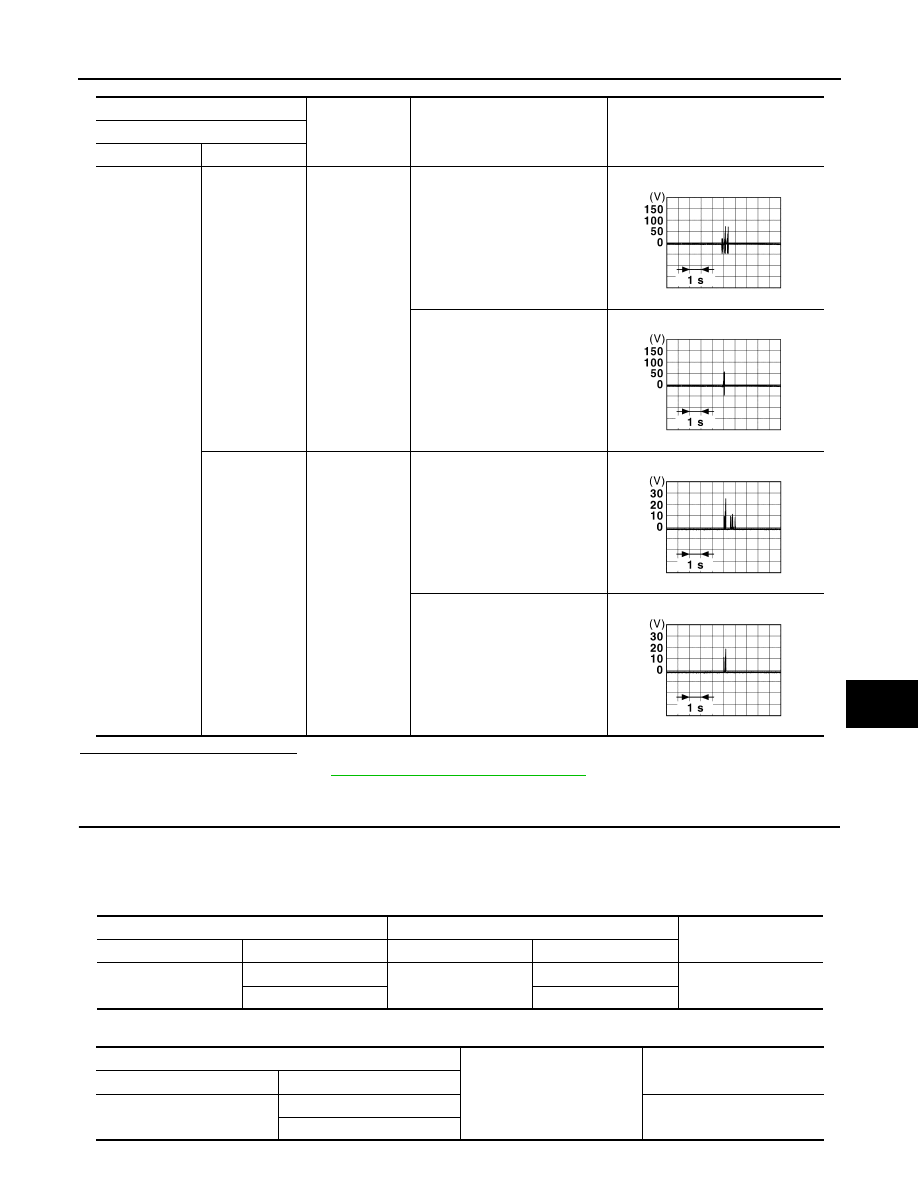

B2621 INSIDE ANTENNA DLK-73 < DTC/CIRCUIT DIAGNOSIS > [TYPE 1] C D E F G H I J L M A B DLK N O P Is the inspection result normal? YES >> GO TO 3. NO >> Repair or replace harness. 3. CHECK INSIDE KEY ANTENNA INPUT SIGNAL 2 1. Replace inside key antenna (console). (New antenna or other antenna) 2. Connect BCM connector and inside key antenna (console) connector. 3. Turn ignition switch ON. 4. Check signal between BCM harness connector and ground using oscilloscope. Is the inspection result normal? YES >> Replace inside key antenna (console). NO >> Replace BCM. Refer to BCS-135, "Removal and Installation" . (+) (–) Condition Signal (Reference value) BCM Connector Terminal M69 116 Ground When Intelligent Key is not in When Intelligent Key is in the 117 When Intelligent Key is not in When Intelligent Key is in the JMMIA1652GB JMMIA1653GB JSMIA1348GB JSMIA1406GB |
