c.

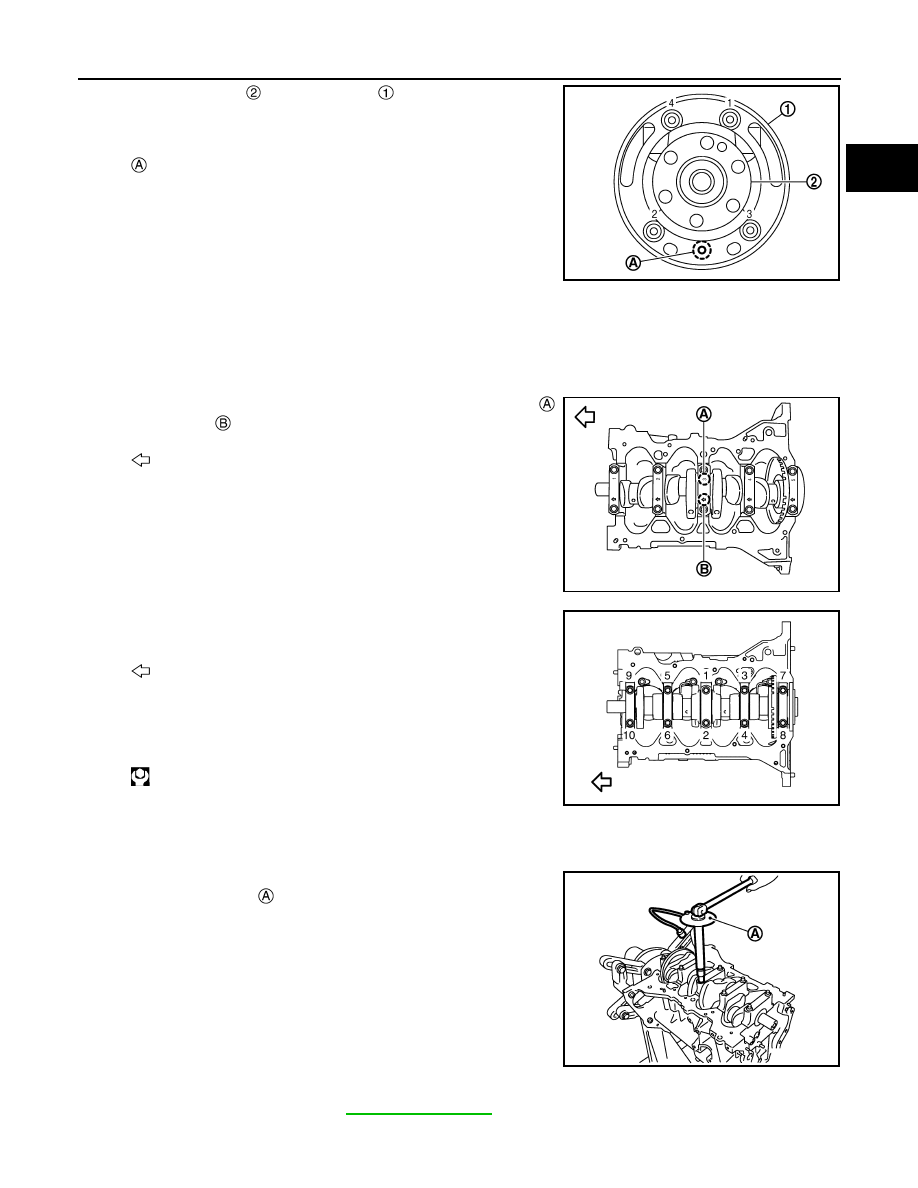

Position crankshaft

 and signal plate

 using a dowel pin (ser-

vice part), and tighten mounting bolts in the order from 1 to 4 as
shown in the figure using TORX socket.

NOTE:
Dowel pin of crankshaft and signal plate is provided as a set for
each.

d.

Tighten mounting bolts in numerical order as shown in the figure
again.

e.

Remove dowel pin. (service parts)

CAUTION:

Be sure to remove dowel pin.

5.

Install crankshaft to cylinder block.
• While turning crankshaft by hand, check that it turns smoothly.

6.

Install main bearing caps with the following procedure:

a.

Install main bearing caps referring to the journal No. stamp
and front mark

 as shown in the figure.

NOTE:
Main bearing cap cannot be replaced as a single part, because it
is machined together with cylinder block.

b.

Tighten main bearing cap bolts in the order from 1 to 10 as
shown in the figure with the following procedure:

i.

Apply new engine oil to threads and seat surfaces of mounting
bolts.

ii.

Tighten main bearing cap bolts.

iii.

Turn main bearing cap bolts 60 degrees clockwise (angle tightening) in order from No. 1 to 10 in the fig-
ure.

CAUTION:

Confirm the tightening angle by using an angle wrench
[SST: KV10112100]

 or protractor. Never judge by visual

inspection without the tool.

• After installing mounting bolts, check that crankshaft can be rotated smoothly by hand.
• Check crankshaft end play. Refer to

EM-231, "Inspection"

.

7.

Install piston to connecting rod with the following procedure:

: Dowel pin hole

: Engine front

PBIC3238J

PBIC3239J

: Engine front

: 34.3 N·m (3.5 kg-m, 25 ft-lb)

JSBIA4604ZZ

PBIC3240J

EM-228

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

CYLINDER BLOCK

a.

Using snap ring pliers, install new snap ring to the groove of the piston rear side.
• Insert it fully into groove to install.

b.

Assemble piston to connecting rod.
• Using an industrial use drier or similar tool, heat the piston until the piston pin can be pushed in by hand

without excess force [approximately 60 to 70

°

C (140 to 158

°

F)]. From the front to the rear, insert piston

pin into piston and connecting rod.

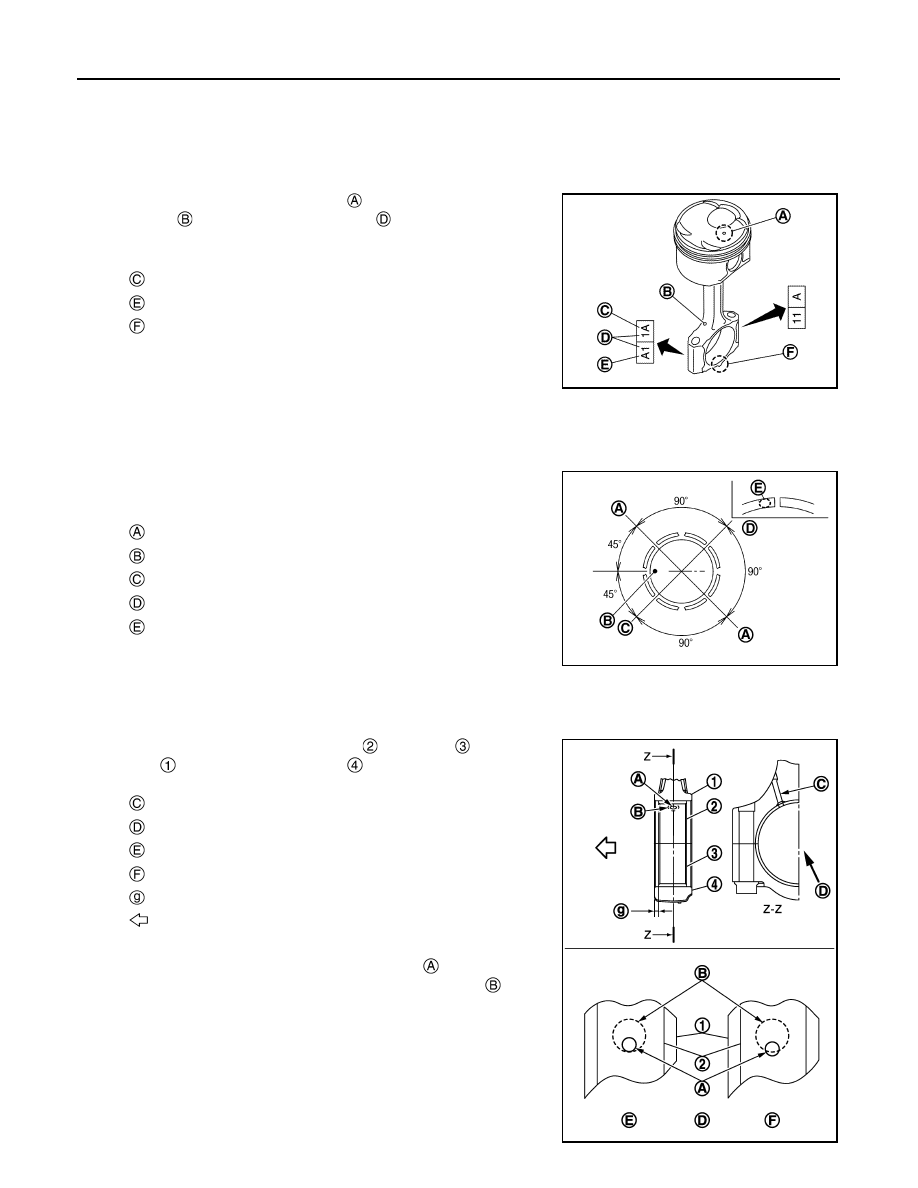

• Assemble so that the front mark

 on the piston head and the

oil hole

 and the cylinder number

 on connecting rod are

positioned as shown in the figure.

c.

Install new snap ring to the groove of the piston front side.
• Insert it fully into groove to install.
• After installing, check that connecting rod moves smoothly.

8.

Using a piston ring expander (commercial service tool), install piston rings.

CAUTION:

• Be careful not to damage piston.
• Be careful not to damage piston rings by expanding them excessively.
• Position each ring with the gap as shown in the figure referring

to the piston front mark.

CAUTION:

Never contact the rail end gap under the oil ring with the
oil drain cast groove of piston.

• Install second ring with the stamped surface facing upward.

9.

Install connecting rod bearing upper

 and lower

 to connect-

ing rod

 and connecting rod cap

.

• Install the connecting rod in the dimension shown in the figure.
• Check that connecting rod bearing oil hole

 is completely in

the inside of connecting rod oil hole chamfered area

.

• When installing connecting rod bearings, apply new engine oil

to the bearing surface (inside). Do not apply new engine oil to
the back surface, but thoroughly clean it.
NOTE:
• There is no positioning tab.

: Management code

: Big end diameter grade

: Front mark (connecting rod cap)

: Oil ring upper or lower rail gap

: Front mark

: Second ring and oil ring spacer gap

: Top ring gap

: Stamped mark

JPBIA4434ZZ

PBIC3242J

: Oil hole (connecting rod)

: View D

: OK

: NG

: 2.55 - 2.95 mm (0.1004 - 0.1161 in)

: Engine front

JPBIA2155ZZ

CYLINDER BLOCK

EM-229

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Install the connecting rod bearings in the center of connecting rod and connecting rod cap as shown in

the figure. For service operation, the center position can be checked, visually.

10. Install piston and connecting rod assembly to crankshaft.

• Position crankshaft pin corresponding to connecting rod to be installed onto the bottom dead center.
• Apply new engine oil sufficiently to the cylinder bore, piston and crankshaft pin.

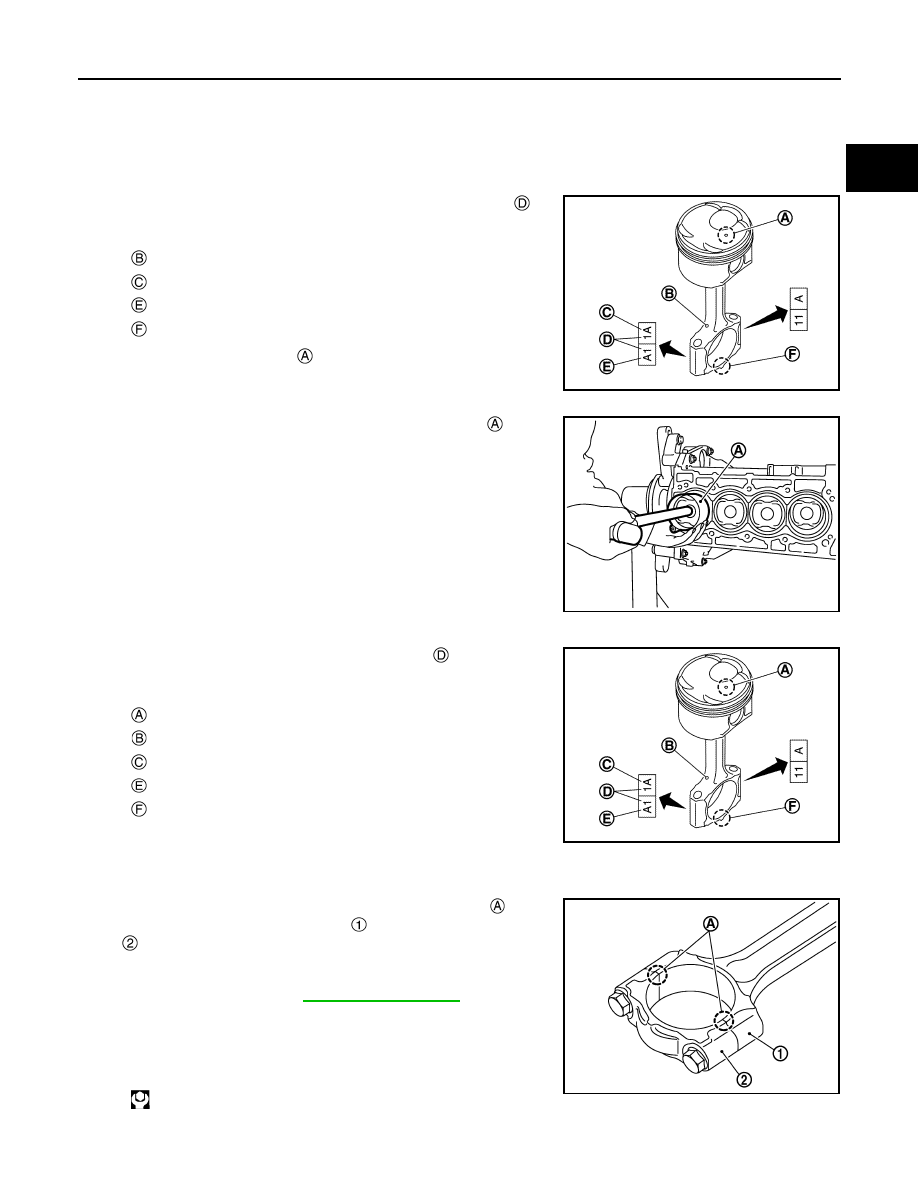

• Match the cylinder position with the cylinder number

 on

connecting rod to install.

• Install so that front mark

 on the piston head faces the front

of engine.

• Using a piston ring compressor [SST: EM03470000]

 or suit-

able tool, install piston with the front mark on the piston head
facing the front of the engine.

CAUTION:

Be careful not to damage the cylinder wall and crankshaft
pin, resulting from an interference of the connecting rod
big end.

11. Install connecting rod cap.

• Match the stamped cylinder number marks

 on connecting

rod with those on connecting rod cap to install.

12. Tighten connecting rod cap bolt with the following procedure:

CAUTION:

• Check that there is no gap in the thrust surface

 of the

joint between connecting rod

 and connecting rod cap

 and that these parts are in the correct position. And

then, tighten the connecting rod cap bolts.

• If the connecting rod cap bolts are reused, measure the

outer diameter. Refer to

EM-231, "Inspection"

.

a.

Apply new engine oil to the threads and seats of connecting rod
cap bolts.

b.

Tighten connecting rod cap bolts.

c.

Completely loosen connecting rod cap bolts.

: Oil hole

: Management code

: Big end diameter grade

: Front mark (connecting rod cap)

JPBIA4434ZZ

PBIC3244J

: Front mark (piston)

: Oil hole

: Management code

: Big end diameter grade

: Front mark (connecting rod cap)

JPBIA4434ZZ

: 27.5 N·m (2.8 kg-m, 20 ft-lb)

PBIC3510J

EM-230

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

CYLINDER BLOCK

d.

Tighten connecting rod cap bolts.

e.

Then turn all connecting rod cap bolts 60 degrees clockwise (angle tightening).

CAUTION:

Check and confirm the tightening angle by using an angle
wrench [SST: KV10112100]

 or protractor. Never judge by

visual inspection without the tool.

• After tightening connecting rod cap bolt, check that crankshaft rotates smoothly.
• Check the connecting rod side clearance. Refer to

EM-231, "Inspection"

.

13. Install oil pan (upper). Refer to

EM-218, "Exploded View"

.

NOTE:
Install the rear oil seal after installing the oil pan (upper).

14. Install rear oil seal. Refer to

EM-206, "REAR OIL SEAL : Removal and Installation"

.

15. Install drive plate. Refer to

EM-181, "Removal and Installation"

16. Install knock sensor.

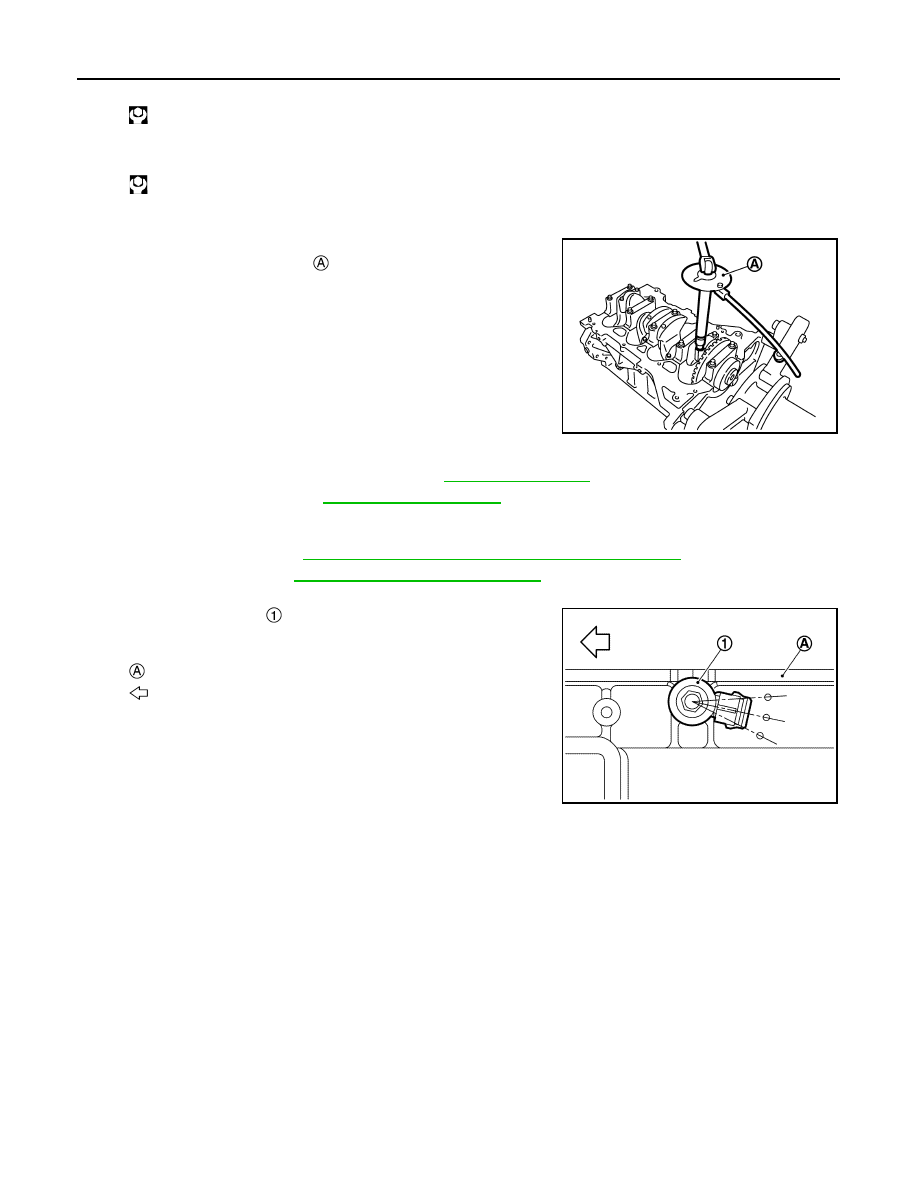

• Install knock sensor

 with harness connector facing toward

the rear of engine.

CAUTION:

• Never tighten mounting bolts while holding the harness

connector.

• If any impact by dropping is applied to knock sensor,

replace it with a new one.

NOTE:
• Check that there is no foreign material on the cylinder block mating surface and the back surface of

knock sensor.

• Check that knock sensor does not interfere with other parts.

17. Install crankshaft position sensor (POS) and crankshaft position sensor (POS) cover.

CAUTION:

• Handle crankshaft position sensor (POS) carefully and avoid impacts.
• Never disassemble.
• Never place crankshaft position sensor (POS) in a location where it is exposed to magnetism.

: 0 N·m (0 kg-m, 0 ft-lb)

: 19.6 N·m (2.0 kg-m, 14 ft-lb)

PBIC3245J

: Cylinder block left side

: Engine front

JPBIA5163ZZ
