SERVICE DATA AND SPECIFICATIONS (SDS)

EM-115

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

*: Total indicator reading

VALVE LIFTER

Unit: mm (in)

VALVE CLEARANCE

Unit: mm (in)

*: Approximately 80

°

C (176

°

F)

AVAILABLE VALVE LIFTER

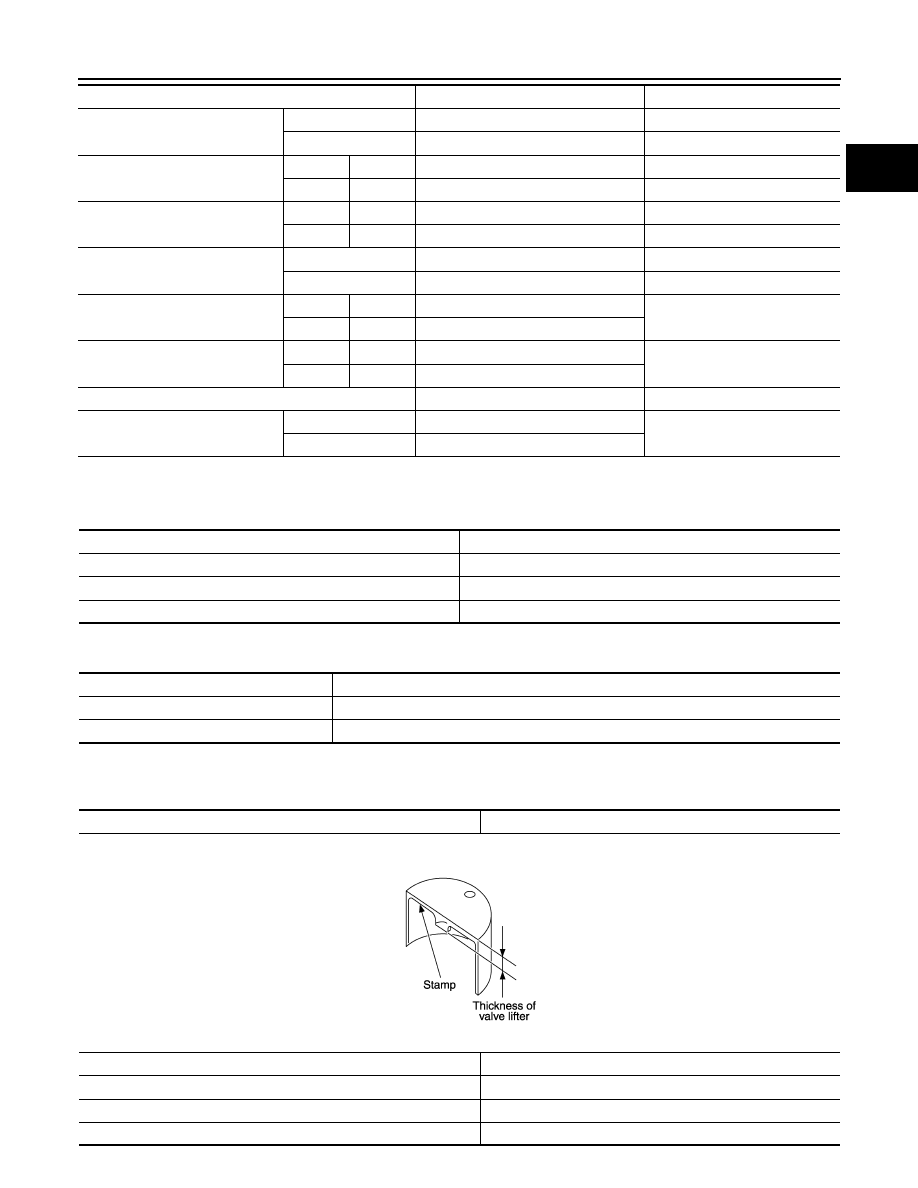

Camshaft cam height “A”

Intake

44.322 - 44.522 (1.7450 - 1.7528)

—

Exhaust

43.664 - 43.864 (1.7191 - 1.7269)

—

Camshaft journal diameter

Intake

No.1

27.934 - 28 (1.0998 - 1.1024)

—

Intake

No.2 to 5

24.969 - 25 (0.9830 - 0.9843)

—

Camshaft journal diameter

Exhaust

No.1

27.934 - 28 (1.0998 - 1.1024)

—

Exhaust

No.2 to 6

24.969 - 25 (0.9830 - 0.9843)

—

Camshaft bracket inner diameter

No. 1

28.044 - 28.076 (1.1041 - 1.1054)

—

No. 2, 3, 4, 5,6

25.040 - 25.060 (0.9858 - 0.9866)

—

Camshaft journal oil clearance

Intake

No.1

0.044 - 0.142 (0.0017 - 0.0056)

—

Intake

No.2 to 5

0.040 - 0.091 (0.0016 - 0.0036)

Camshaft journal oil clearance

Exhaust

No.1

0.044 - 0.142 (0.0017 - 0.0056)

—

Exhaust

No.2 to 6

0.040 - 0.091 (0.0016 - 0.0036)

Camshaft end play

0.203 - 0.239 (0.008 - 0.0094)

—

Camshaft radial play

No. 1

0.06 - 0.146 (0.002 - 0.0057)

—

No. 2, 3, 4, 5,6

0.05 - 0.09 (0.0020 - 0.0035)

Items

Standard

Limit

Items

Standard

Valve lifter outer diameter

29.964 - 29.987 (1.1797 - 1.1806)

Valve lifter hole diameter

30.000 - 30.021 (1.1811 - 1.1819)

Valve lifter clearance

0.013 - 0.057 (0.0005 - 0.0022)

Items

Cold

Intake

0.25 - 0.35 (0.0098 - 0.0138)

Exhaust

0.46 - 0.54 (0.0181 - 0.0213)

Thickness

mm (in)

Identification mark

2.96 (0.1165)

296

2.98 (0.1173)

298

3.00 (0.1181)

300

3.02 (0.1189)

302

KBIA0119E

EM-116

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HRA2DDT]

SERVICE DATA AND SPECIFICATIONS (SDS)

Cylinder Head

INFOID:0000000010282261

CYLINDER HEAD

Unit: mm (in)

VALVE DIMENSIONS

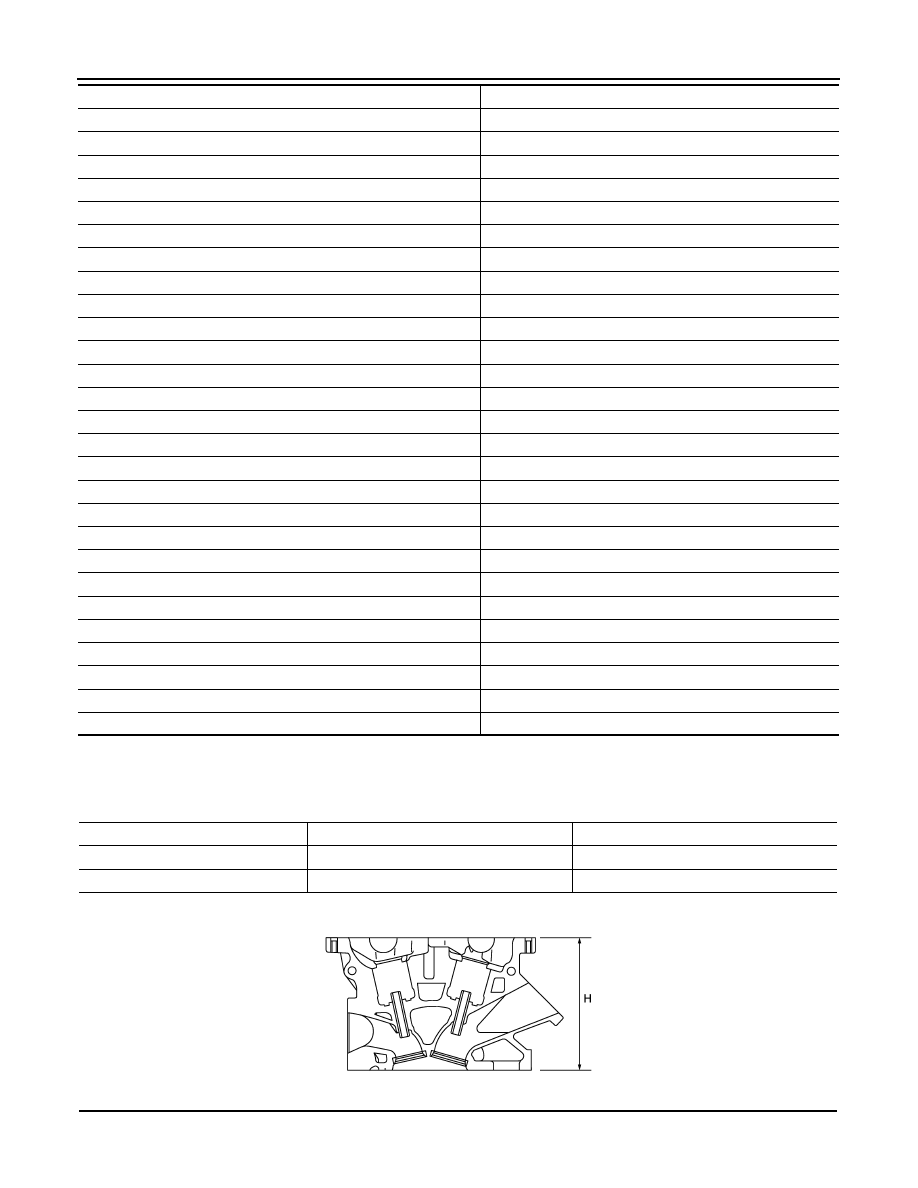

3.04 (0.1197)

304

3.06 (0.1205)

306

3.08 (0.1213)

308

3.10 (0.1220)

310

3.12 (0.1228)

312

3.14 (0.1236)

314

3.16 (0.1244)

316

3.18 (0.1252)

318

3.20 (0.1260)

320

3.22 (0.1268)

322

3.24 (0.1276)

324

3.26 (0.1283)

326

3.28 (0.1291)

328

3.30 (0.1299)

330

3.32 (0.1307)

332

3.34 (0.1315)

334

3.36 (0.1323)

336

3.38 (0.1331)

338

3.40 (0.1339)

340

3.42 (0.1346)

342

3.44 (0.1354)

344

3.46 (0.1362)

346

3.48 (0.1370)

348

3.50 (0.1378)

350

3.52 (0.1386)

352

3.54 (0.1393)

354

3.56 (0.1402)

356

Thickness

mm (in)

Identification mark

Items

Standard

Limit

Head surface distortion

—

0.1 (0.004)

Normal cylinder head height “H”

124.8 (4.9134)

—

PBIC0924E

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-117

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Unit: mm (in)

VALVE GUIDE

Unit: mm (in)

VALVE SPRING

Unit: mm (in)

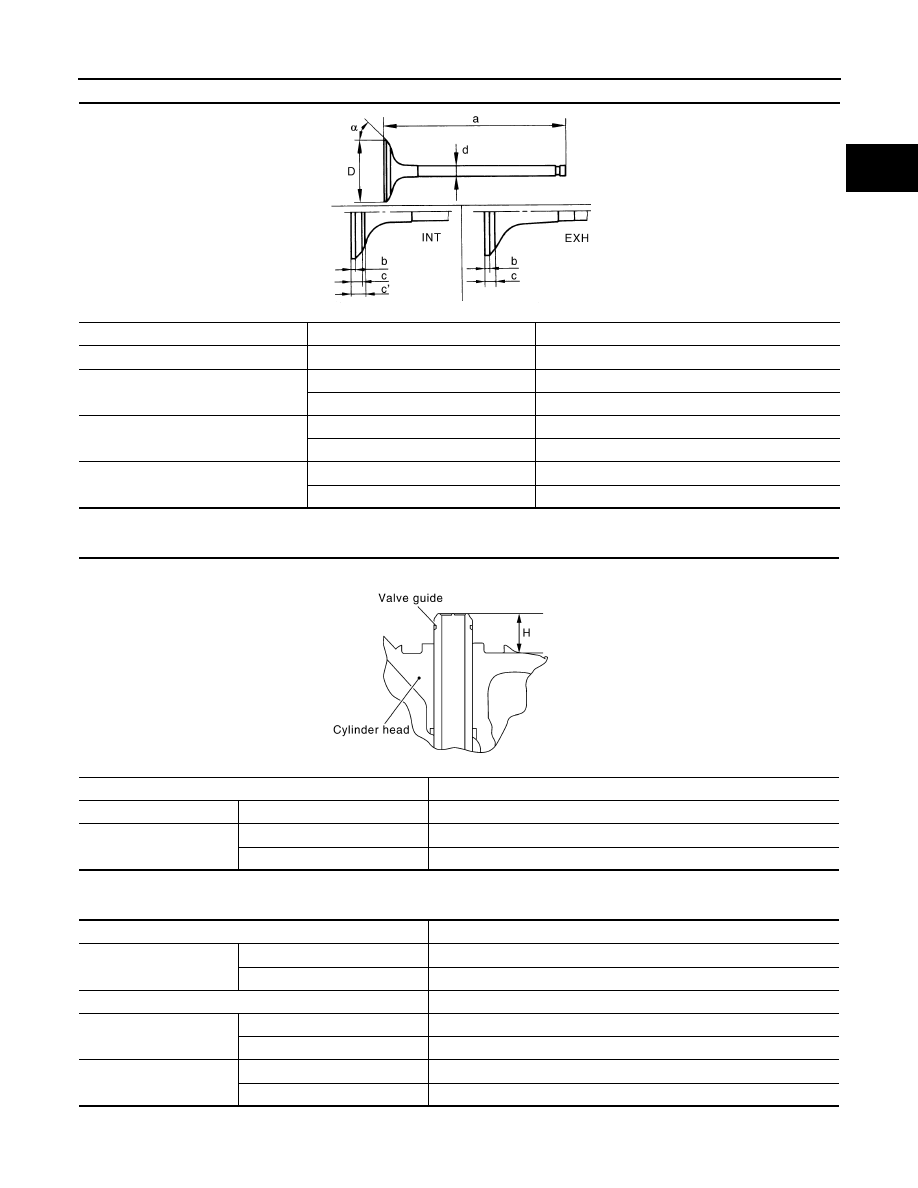

Valve head diameter “D”

Intake

26.48 - 26.72 (1.0425 - 1.0520)

Exhaust

23.38 - 23.62 (0.9205 - 0.9299)

Valve length “a”

Intake

100.84 (3.9701)

Exhaust

101.69 (4.0035)

“b”

Intake

1.15 (0.0453)

Exhaust

1.42 (0.0559)

Valve stem diameter “d ”

Intake

5.4705 - 5.4855 (0.2154 - 0.2160)

Exhaust

5.455 - 5.470 (0.2148 - 0.2154)

PBIC3878E

Items

Standard

Valve guide

Inner diameter

4.8 - 5.0 (0.1890 - 0.1969)

Valve guide clearance

Intake

0.015 - 0.047 (0.0006 - 0.0019)

Exhaust

0.03 - 0.063 (0.0012 - 0.0025)

PBIC2187E

Items

Standard

Mark on the outer diame-
ter of the springt

Intake Green

Exhaust

Yellow

Internal diameter

17.6 - 18.0 (0.6929 - 0.7087)

Wire diameter

Intake

2.78 - 2.82 (0.1094 - 0.1110)

Exhaust

2.58 - 2.62 (0.1016 - 0.1031)

Outer diameter

Intake

23.2 - 23.6 (0.9134 - 0.9291)

Exhaust

22.8 - 23.2 (0.8976 - 0.9134)

EM-118

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HRA2DDT]

SERVICE DATA AND SPECIFICATIONS (SDS)

Cylinder Block

INFOID:0000000010282262

CYLINDER BLOCK

Unit: mm (in)

AVAILABLE PISTON

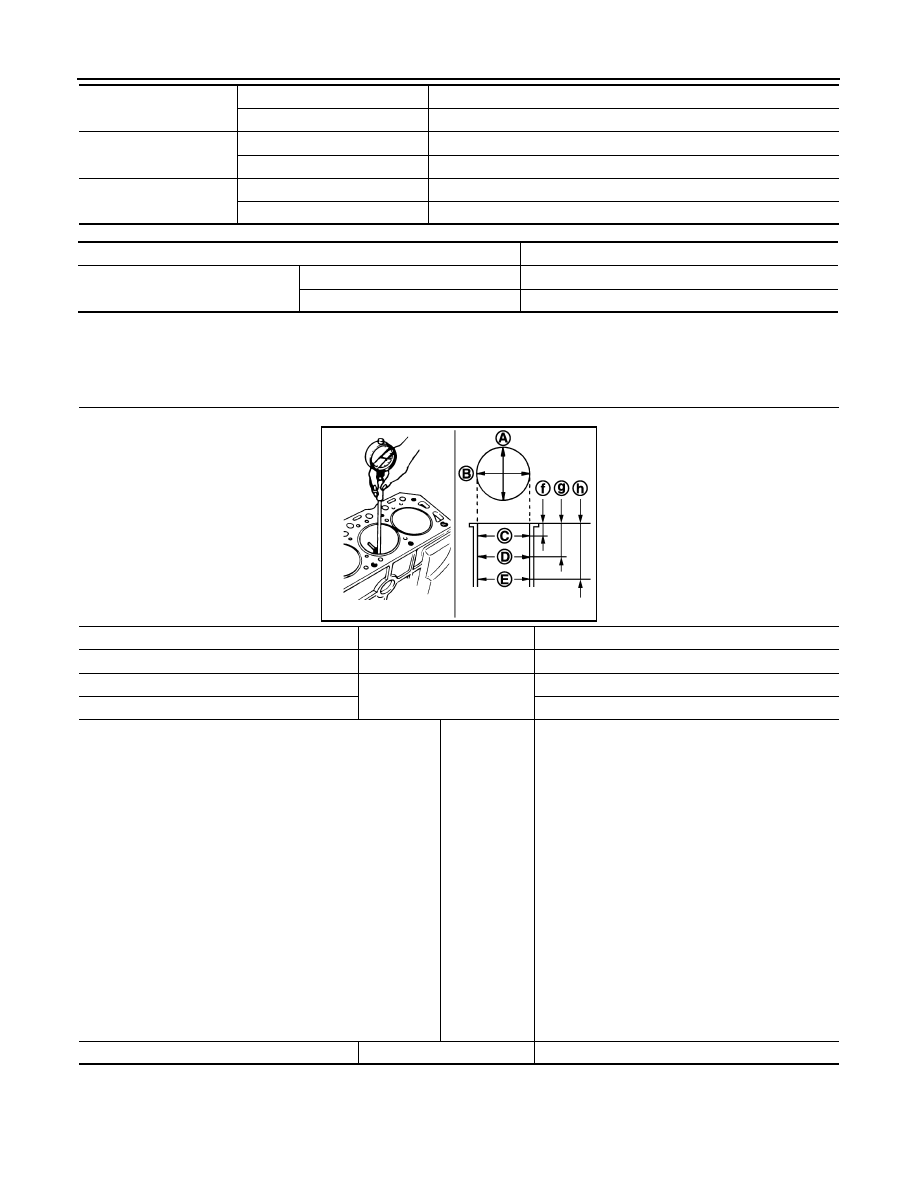

Free height

Intake

45.0 - 47.0 (1.7717 - 1.8504)

Exhaust

58.5 - 60.5 (2.3031 - 2.3819)

Height during control

Intake 32.90

(1.2953)

Exhaust

24.40 (0.9606)

Load during control

Intake

138 - 152 N (14.0 - 15.5 kg, 31 - 34 lb)

Exhaust

277 - 303 N (28.2 - 30.9 kg, 62 - 68 lb)

Items

Limit

Valve spring squareness

Intake

1.4 mm (0.055 in)

Exhaust

1.8 mm (0.071 in)

Cylinder block top surface distortion

Limit

0.1 (0.004)

Cylinder bore inner diameter

Standard

78.000 - 78.015 (3.0709 - 3.0715)

Out-of-round

Limit

0.015 (0.0006)

Taper

0.010 (0.0004)

Cylinder block main bearing housing inner diameter grade

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W

51.997 - 51.998 (2.0471 - 2.0472)
51.998 - 51.999 (2.0472 - 2.0472)
51.999 - 52.000 (2.0472 - 2.0472)
52.000 - 52.001 (2.0472 - 2.0473)
52.001 - 52.002 (2.0473 - 2.0473)
52.002 - 52.003 (2.0473 - 2.0474)
52.003 - 52.004 (2.0474 - 2.0474)
52.004 - 52.005 (2.0474 - 2.0474)
52.005 - 52.006 (2.0474 - 2.0475)
52.006 - 52.007 (2.0475 - 2.0475)
52.007 - 52.008 (2.0475 - 2.0476)
52.008 - 52.009 (2.0476 - 2.0476)
52.009 - 52.010 (2.0476 - 2.0476)

52.010 - 52.011 (2.0476 - 2.0477)
52.011 - 52.012 (2.0477 - 2.0477)

52.012 - 52.013 (2.0477 - 2.0478)
52.013 - 52.014 (2.0478 - 2.0478)
52.014 - 52.015 (2.0478 - 2.0478)
52.015 - 52.016 (2.0478 - 2.0479)
52.016 - 52.017 (2.0479 - 2.0479)

Difference in inner diameter between cylinders

Standard

Less than 0.03 (0.0012)
