Juke F15 (2012 year). Service Repair Manual - part 358

TM-160

< SYSTEM DESCRIPTION >

[CVT: RE0F10B]

DIAGNOSIS SYSTEM (TCM)

X: Application

: Optional selection

Monitored item (Unit)

(Unit)

Monitor item selection

Remarks

MAIN

SIGNALS

ECU IN-

PUT SIG-

NALS

VSP SENSOR

(km/h or mph)

Displays the vehicle speed calculated from the CVT out-
put shaft speed.

ESTM VSP SIG

(km/h or mph)

Displays the vehicle speed signal (ABS) received
through CAN communication.

PRI SPEED SEN

(rpm)

Displays the primary pulley speed calculated from the
pulse signal of the primary speed sensor.

ENG SPEED SIG

(rpm)

Displays the engine speed received through CAN com-
munication.

SEC HYDR SEN

(V)

—

ATF TEMP SEN

(V)

Displays the signal voltage of the CVT fluid temperature
sensor.

VIGN SEN

(V)

Displays the battery voltage applied to TCM.

VEHICLE SPEED

(km/h or mph)

Vehicle speed recognized by the TCM.

PRI SPEED

(rpm)

Displays the primary pulley speed recognized by TCM.

SEC SPEED

(rpm)

Displays the secondary pulley speed recognized by
TCM.

ENG SPEED

(rpm)

Displays the engine speed recognized by TCM.

SLIP REV

(rpm)

Displays the speed difference between the input shaft
speed of CVT and the engine speed.

GEAR RATIO

—

G SPEED

(G)

Displays the acceleration and deceleration speed of the
vehicle calculated from vehicle speed change.

ACC PEDAL OPEN

(0.0/8)

Displays the estimated throttle position received through
CAN communication.

TRQ RTO

—

SEC PRESS

(MPa)

—

ATFTEMP COUNT

Means CVT fluid temperature. Actual oil temperature (

numeric value is converted. Refer to

TM-128

DSR REV

(rpm)

Displays the target primary pulley speed calculated from
processing of gear shift control.

DGEAR RATIO

—

DSTM STEP

(step)

—

STM STEP

(step)

—

LU PRS

(MPa)

Displays the target oil pressure of the torque converter
clutch solenoid valve calculated from oil pressure pro-
cessing of gear shift control.

LINE PRS

(MPa)

Displays the target oil pressure of the line pressure sole-
noid valve calculated from oil pressure processing of
gear shift control.

TGT SEC PRESS

(MPa)

—

ISOLT1

(A)

Displays the command current from TCM to the torque
converter clutch solenoid valve.

ISOLT2

(A)

Displays the command current from TCM to the line pres-
sure solenoid valve.

DIAGNOSIS SYSTEM (TCM)

TM-161

< SYSTEM DESCRIPTION >

[CVT: RE0F10B]

ISOLT3

(A)

Secondary pressure solenoid valve output current

SOLMON1

(A)

Torque converter clutch solenoid valve monitor current

SOLMON2

(A)

Line pressure solenoid valve monitor current

SOLMON3

(A)

Secondary pressure solenoid valve monitor current

BRAKE SW

(On/Off)

Displays the reception status of the stop lamp switch sig-
nal received through CAN communication.

FULL SW

(On/Off)

Not mounted but displayed.

IDLE SW

(On/Off)

Displays the reception status of the closed throttle posi-
tion signal received through CAN communication.

SPORT MODE SW

(On/Off)

• Displays the reception status of the sport mode switch

signal received through CAN communication.

• It is displayed although not equipped.

STRDWNSW

(On/Off)

• Displays the operation status of the paddle shifter

(down switch).

• It is displayed although not equipped.

STRUPSW

(On/Off)

• Displays the operation status of the paddle shifter (up

switch).

• It is displayed although not equipped.

DOWNLVR

(On/Off)

Displays the operation status of the selector lever (down
switch).

UPLVR

(On/Off)

Displays the operation status of the selector lever (up
switch).

NONMMODE

(On/Off)

Displays if the selector lever position is not at the manual
shift gate.

MMODE

(On/Off)

• Displays if the selector lever position is at the manual

shift gate.

• It is displayed although not equipped.

INDLRNG

(On/Off)

Displays the transmission status of the shift position (L
position) signal transmitted through CAN communication.

INDDRNG

(On/Off)

Displays the transmission status of the shift position (D
position) signal transmitted through CAN communication.

INDNRNG

(On/Off)

Displays the transmission status of the shift position (N
position) signal transmitted through CAN communication.

INDRRNG

(On/Off)

Displays the transmission status of the shift position (N
position) signal transmitted through CAN communication.

INDPRNG

(On/Off)

Displays the transmission status of the shift position (P
position) signal transmitted through CAN communication.

CVT LAMP

(On/Off)

—

SPORT MODE IND

(On/Off)

• Displays the transmission status of the S mode indica-

tor signal transmitted through CAN communication.

• It is displayed although not equipped.

MMODE IND

(On/Off)

Displays the transmission status of the manual mode sig-
nal transmitted through CAN communication.

SMCOIL D

(On/Off)

Step motor coil “D” energizing status

SMCOIL C

(On/Off)

Step motor coil “C” energizing status

SMCOIL B

(On/Off)

Step motor coil “B” energizing status

SMCOIL A

(On/Off)

Step motor coil “A” energizing status

Monitored item (Unit)

(Unit)

Monitor item selection

Remarks

MAIN

SIGNALS

ECU IN-

PUT SIG-

NALS

TM-162

< SYSTEM DESCRIPTION >

[CVT: RE0F10B]

DIAGNOSIS SYSTEM (TCM)

LUSEL SOL OUT

(On/Off)

—

LUSEL SOL MON

(On/Off)

—

VDC ON

(On/Off)

Displays the reception status of the VDC operation signal
received through CAN communication.

TCS ON

(On/Off)

• Displays the reception status of the TCS operation sig-

nal received through CAN communication.

• It is displayed although not equipped.

ABS ON

(On/Off)

Displays the reception status of the ABS operation signal
received through CAN communication.

ACC ON

(On/Off)

Not mounted but displayed.

RANGE

Displays the gear position recognized by TCM.

M GEAR POS

Display the target gear of manual mode

D POSITION SW

(On/Off)

Displays the operation status of the transmission range
switch (D position).

N POSITION SW

(On/Off)

Displays the operation status of the transmission range
switch (N position).

L POSITION SW

(On/Off)

Displays the operation status of the transmission range
switch (L position).

P POSITION SW

(On/Off)

Displays the operation status of the transmission range
switch (P position).

R POSITION SW

(On/Off)

Displays the operation status of the transmission range
switch (R position).

ECO SW

(On/Off)

• Displays the reception status of the ECO mode switch

signal received through CAN communication.

• It is displayed although not equipped.

DRIVE MODE STATS

(On/Off)

• Displays the drive mode status recognized by TCM.
• Only vehicle with Nissan Dynamic Control System are

displayed.

SNOW MODE

(On/Off)

• Display the drive mode (SNOW switch status) of Nis-

san Dynamic Control System received through CAN
communication.

• Only vehicle with Nissan Dynamic Control System are

displayed.

• It is displayed although not equipped.

ECO MODE

(On/Off)

• Display the driving mode (ECO switch status) of Nis-

san Dynamic Control System received through CAN
communication.

• Only vehicle with Nissan Dynamic Control System are

displayed.

NORMAL MODE

(On/Off)

• Display the driving mode (AUTO switch status) of Nis-

san Dynamic Control Systemm received through CAN
communication.

• Only vehicle with Nissan Dynamic Control System are

displayed.

SPORT MODE

(On/Off)

• Display the driving mode (SPORT switch status) of

Nissan Dynamic Control System received through
CAN communication.

• Only vehicle with Nissan Dynamic Control System are

displayed.

Monitored item (Unit)

(Unit)

Monitor item selection

Remarks

MAIN

SIGNALS

ECU IN-

PUT SIG-

NALS

DIAGNOSIS SYSTEM (TCM)

TM-163

< SYSTEM DESCRIPTION >

[CVT: RE0F10B]

Diagnostic Tool Function

INFOID:0000000006601575

OBD SELF-DIAGNOSTIC PROCEDURE (WITH GST)

Refer to

EC-72, "Diagnosis Description"

TM-164

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10B]

TCM

ECU DIAGNOSIS INFORMATION

TCM

Reference Value

INFOID:0000000006601678

VALUES ON THE DIAGNOSIS TOOL

Item name

Condition

Display value (Approx.)

VSP SENSOR

During driving

Approximately matches the speedometer
reading.

ESTM VSP SIG

During driving

Approximately matches the speedometer
reading.

PRI SPEED SEN

During driving (lock-up ON)

Approximately matches the engine speed.

ENG SPEED SIG

Engine running

Closely matches the tachometer reading.

SEC HYDR SEN

“N” position idle

Approx. 1.0 V

ATF TEMP SEN

CVT fluid: Approx. 20

C (68

Approx. 2.01 – 2.05 V

CVT fluid: Approx. 50

C (122

Approx. 1.45 – 1.50 V

CVT fluid: Approx. 80

C (176

Approx. 0.90 – 0.94 V

VIGN SEN

Ignition switch: ON

Battery voltage

VEHICLE SPEED

During driving

Approximately matches the speedometer
reading.

PRI SPEED

During driving (lock-up ON)

Approximately matches the engine speed.

SEC SPEED

During driving

45 X Approximately matches the speedom-
eter reading.

ENG SPEED

Engine running

Closely matches the tachometer reading.

SLIP REV

During driving

engine speed

−

input speed

GEAR RATIO

During driving

Approx. 2.34 – 0.39

G SPEED

Vehicle stopped

Approx. 0.00 G

During acceleration

The value changes to the positive side
along with acceleration.

During deceleration

The value changes to the positive side
along with deceleration.

ACC PEDAL OPEN

Released accelerator pedal - Fully depressed acceler-
ator pedal

0.0/8 – 8.0/8

TRQ RTO

While driving

The value changes along with acceleration/
deceleration.

SEC PRESS

“N” position idle

Approx. 0.5 MPa

ATFTEMP COUNT

CVT fluid: Approx. 20

C (68

CVT fluid: Approx. 50

C (122

104

CVT fluid: Approx. 80

C (176

161

DSR REV

During driving

The value changes to the positive side
along with deceleration.

DGEAR RATIO

During driving

The value changes to the positive side
along with deceleration.

DSTM STEP

During driving

Approx. 0 step – 177 step

STM STEP

During driving

Approx. 0 step – 177 step

TCM

TM-165

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10B]

LU PRS

• Engine started
• Vehicle is stopped.

Approx.

−

0.500 MPa

• Selector lever: “D” position
• Accelerator pedal position: 1/8 or less
• Vehicle speed: 20 km/h (12 MPH) or more

Approx. 0.450 MPa

LINE PRS

• After engine warm up
• Selector lever: “N” position
• At idle

Approx. 0.500 MPa

• After engine warm up
• Selector lever: “N” position
• Depress the accelerator pedal fully

Approx. 4.400 – 4.900 MPa

TGT SEC PRESS

• After engine warm up
• Selector lever: “N” position
• At idle

Approx. 0.700 MPa

ISOLT1

Lock-up “OFF”

Approx. 0.0 A

Lock-up “ON”

Approx. 0.7 A

ISOLT2

Release your foot from the accelerator pedal

Approx. 0.8 A

Press the accelerator pedal all the way down

Approx. 0.0 A

ISOLT3

Secondary pressure low - Secondary pressure high

Approx. 0.8 – 0.0 A

SOLMON1

Lock-up “OFF”

Approx. 0.0 A

Lock-up “ON”

Approx. 0.7 A

SOLMON2

“N” position idle

Approx. 0.8 A

When stalled

Approx. 0.3 – 0.6 A

SOLMON3

“N” position idle

Approx. 0.6 – 0.7 A

When stalled

Approx. 0.4 – 0.6 A

BRAKE SW

Depressed brake pedal

Released brake pedal

Off

FULL SW

Fully depressed accelerator pedal

Released accelerator pedal

Off

IDLE SW

Released accelerator pedal

Fully depressed accelerator pedal

Off

SPORT MODE SW

Always

Off

STRDWNSW

Always

Off

STRUPSW

Always

Off

DOWNLVR

Selector lever: - side

Other than the above

Off

UPLVR

Selector lever: + side

Other than the above

Off

NONMMODE

Manual shift gate position (neutral, +side, -side)

Off

Other than the above

MMODE

Manual shift gate position (neutral)

Other than the above

Off

INDLRNG

Always

Off

INDDRNG

Selector lever in “D” position

When setting selector lever to other positions

Off

INDNRNG

Selector lever in “N“ position

When setting selector lever to other positions

Off

Item name

Condition

Display value (Approx.)

TM-166

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10B]

TCM

INDRRNG

Selector lever in “R” position

When setting selector lever to other positions

Off

INDPRNG

Selector lever in “P” position

When setting selector lever to other positions

Off

CVT LAMP

Approx. 2 seconds after ignition switch ON

Other conditions

Off

SPORT MODE IND

Always

Off

MMODE IND

In manual mode

Other conditions

Off

SMCOIL D

During driving

Changes On

⇔

Off

SMCOIL C

During driving

Changes On

⇔

Off

SMCOIL B

During driving

Changes On

⇔

Off

SMCOIL A

During driving

Changes On

⇔

Off

LUSEL SOL OUT

Selector lever in “P”, “N” positions

Wait at least for 5 seconds with the selector lever in “R”,
“D” positions

Off

LUSEL SOL MON

Selector lever in “P”, “N” positions

Wait at least for 5 seconds with the selector lever in “R”,
“D” positions

Off

VDC ON

ESP is activated

Other conditions

Off

TCS ON

Always

Off

ABS ON

ABS is activated

Other conditions

Off

ACC ON

Always

Off

RANGE

Selector lever in “N” or “P” position

N·P

Selector lever in “R” position

Selector lever in “D” position

M GEAR POS

During driving

1, 2, 3, 4, 5, 6

P POSITION SW

Selector lever in “P” position

Other than the above position

Off

R POSITION SW

Selector lever in “R” position

Other than the above position

Off

N POSITION SW

Selector lever in “N“ position

Other than the above position

Off

D POSITION SW

Selector lever in “D” position

Other than the above position

Off

L POSITION SW

Always

Off

ECO SW

Always

Off

DRIVE MODE STATS

Nissan Dynamic Control System: NORMAL mode

NORMAL

Nissan Dynamic Control System: ECO mode

ECO

Nissan Dynamic Control System: SPORT mode

SPORT

SPORT MODE

Nissan Dynamic Control System: SPORT mode

Other conditions

Off

Item name

Condition

Display value (Approx.)

TCM

TM-167

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10B]

*1: Means CVT fluid temperature. Convert numerical values for actual fluid temperature

C (

F). Refer to

TM-128, "ATFTEMP COUNT

Conversion Table"

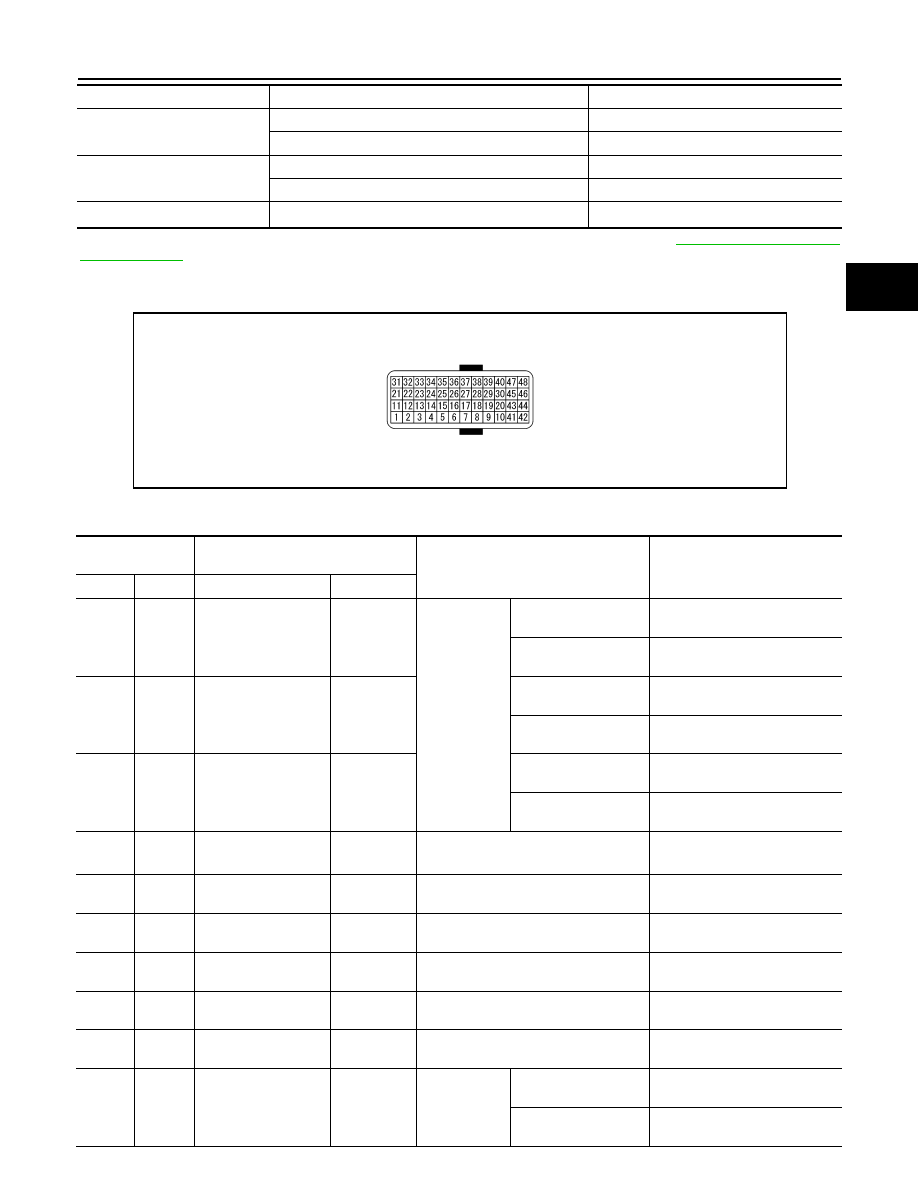

TERMINAL LAYOUT

PHYSICAL VALUES

NORMAL MODE

Nissan Dynamic Control System: NORMAL mode

Other conditions

Off

ECO MODE

Nissan Dynamic Control System: ECO mode

Other conditions

Off

SNOW MODE

Always

Off

Item name

Condition

Display value (Approx.)

SCIA6679J

Terminal No.

(wire color)

Description

Condition

Value (Approx.)

−

Signal name

Input/Output

(G)

Ground

R RANGE SW

Input

Ignition switch
ON

Selector lever in “R”
position

10 – 16 V

Other than the above
position

0 V

(Y)

Ground

N RANGE SW

Input

Selector lever in “N”
position

10 – 16 V

Other than the above
position

0 V

(W)

Ground

D RANGE SW

Input

Selector lever in “D”
positions

10 – 16 V

Other than the above
position

0 V

(V)

—

(B)

Ground

Output

Always

0 V

(Y)

Ground

Sensor ground

Input

Always

0 V

(BR)

—

CLOCK (SEL2)

—

(G)

—

CHIP SELECT
(SEL1)

—

(W)

—

DATA I/O (SEL3)

—

(L)

Ground

P RANGE SW

Input

Ignition switch
ON

Selector lever in “P”
position

10 – 16 V

Other than the above
position

0 V

TM-168

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10B]

TCM

(SB)

Ground

CVT fluid temperature
sensor

Input

Ignition switch
ON

When CVT fluid tem-
perature is 20

(68

2.0 V

When CVT fluid tem-
perature is 80

(176

1.0 V

(P)

Ground

Secondary pressure
sensor

Input

• Selector lever: “N” position
• Idle speed

1.0 V

(Y)

Ground

Sensor ground

Input

Always

0 V

(LG)

Ground

Sensor power

Output

Ignition switch ON

5.0 V

Ignition switch OFF

0 V

(GR)

Ground

Step motor D

Output

Within 2 seconds after ignition switch
ON, the time measurement by using the
pulse width measurement function (Hi

level) of CONSULT-III.

CAUTION:

Connect the diagnosis data link ca-
ble to the vehicle diagnosis connec-
tor.

10.0 msec

(V)

Ground

Step motor C

Output

30.0 msec

(BG)

Ground

Step motor B

Output

10.0 msec

(R)

Ground

Step motor A

Output

30.0 msec

(P)

—

CAN-L

Input/Output

—

(L)

—

CAN-H

Input/Output

—

(BG)

Ground

Primary speed sensor

Input

• Selector lever: “M

” position

• While driving at 20 km/h (12 MPH)

800 Hz

(R)

Ground

Secondary speed
sensor

Input

• Selector lever: “M

” position

• While driving at 20 km/h (12 MPH)

500 Hz

(W)

Ground

Input speed sensor

Input

• Selector lever: “M

” position

• While driving at 20 km/h (12 MPH)

800 Hz

Terminal No.

(wire color)

Description

Condition

Value (Approx.)

−

Signal name

Input/Output

JPDIA0819ZZ

JPDIA0901ZZ

JPDIA0819ZZ

TCM

TM-169

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10B]

*1: This harness is not used.

*2: A circuit tester cannot be used to test this item.

Fail-safe

INFOID:0000000006601680

The TCM has an electrical fail-safe mode. In this mode TCM is operator even if there is an error in a main
electronic control input/output signal circuit.

Description

When a malfunction is detected in each sensor, switch, solenoid or others, this function provides control to
minimize reduction of drivability so that durability of transmission assembly can be acquired.

(L)

Ground

Lock-up select sole-
noid valve

Output

Ignition switch
ON

Selector lever in “P” or
“N” positions

10 – 16 V

Wait at least for 5 sec-
onds with the selector
lever in “R” or “D” posi-
tions.

0 V

(G)

Ground

Torque converter
clutch solenoid valve

Output

When vehicle
cruises in “D”
position

When CVT performs
lock-up

6.0 V

When CVT does not
perform lock-up

1.5 V

(W)

Ground

Secondary pressure
solenoid valve

Output

“P” or “N” posi-
tion idle

Release your foot
from the accelerator
pedal.

5.0 – 7.0 V

Press the accelerator
pedal all the way
down.

3.0 – 4.0 V

(Y)

Ground

Line pressure sole-
noid valve

Output

Release your foot
from the accelerator
pedal.

5.0 – 7.0 V

Press the accelerator
pedal all the way
down.

1.0 V

(B)

Ground

Output

Always

0 V

(G)

Ground

G sensor

Input

Ignition switch
ON

When the vehicle
stops on a flat road

2.5 V

(LG)

Ground

Power supply

Input

Ignition switch
ON

—

10 – 16 V

Ignition switch
OFF

—

0 V

(BG)

Ground

Power supply
(memory back-up)

Input

Always

10 – 16 V

(Y)

Ground

Power supply

Input

Ignition switch
ON

—

10 – 16 V

Ignition switch
OFF

—

0 V

Terminal No.

(wire color)

Description

Condition

Value (Approx.)

−

Signal name

Input/Output

TM-170

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10B]

TCM

DTC

Condition

Vehicle behavior

P0703

—

• Start is slow
• Acceleration is slow

P0705

—

• Position indicator on combination meter is not dis-

played

• Selector shock is large
• Start is slow
• Acceleration at high load state is slow
• Manual mode is not activated
• Lock-up is not performed

P0710

Engine coolant temperature
when engine starts is 10

(50

F) or more

Open circuit is detected while
ignition switch is OFF

• Selector shock is large
• Low is fixed

Other than the above

• Selector shock is large
• Engine speed is high in middle and high speed

range

Engine coolant temperature when engine starts is 10

(50

F) or less

• Start is slow
• Acceleration is slow
• Vehicle speed is not increased

Engine coolant temperature when engine starts is

−

C (

−

F) or less

Vehicle speed is not increased

P0715

—

• Re-acceleration is slightly slow
• Re-start is slow after vehicle is stop by strong de-

celeration

• Manual mode is not activated
• Lock-up is not performed

P0715

—

Idle neutral control is not performed

P0720

—

• Start is slow
• Re-acceleration is slow
• Re-start is slow after vehicle is stop by strong de-

celeration

• Manual mode is not activated
• Lock-up is not performed

P0725

—

Lock-up is not performed

P0740

—

• Selector shock is large
• Lock-up is not performed

P0744

—

Lock-up is not performed

P0746

A malfunction is detected

• Start is slow
• Acceleration is slow
• Lock-up is not performed

Function is excessively reduced after a malfunction is detect-
ed

• Start is difficult
• Drive is difficult
• Lock-up is not performed

P0778

—

Engine speed is high in middle and high speed
range

P0826

—

Manual mode is not activated

P0840

—

• Start is slow
• Acceleration at high load state is slow

P0841

—

• Start is slow
• Acceleration is slow

P0868

—

• Start is slow
• Acceleration is slow

(Slow acceleration is subject to secondary pres-
sure that is recognized by TCM)

P1585

—

Idle neutral control is not performed

P1701

—

• Start is slow
• Acceleration at high load state is slow

TCM

TM-171

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10B]

DTC Inspection Priority Chart

INFOID:0000000006601681

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC “U1000” is displayed with other DTCs, first perform the trouble diagnosis for DTC “U1000”.
Refer to

TM-195

DTC Index

INFOID:0000000006601682

NOTE:
If DTC “U1000” is displayed with other DTCs, first perform the trouble diagnosis for DTC “U1000”.
Refer to

TM-195

P1705

—

• Acceleration is slow
• Lock-up is not performed

P1722

—

Lock-up is not activated in coast state

P1723

A malfunction is detected in primary pulley speed sensor side

• Acceleration is slow
• Re-start is slow after vehicle is stop by strong de-

celeration

• Manual mode is not activated
• Lock-up is not performed

A malfunction is detected in secondary pulley speed sensor

• Start is slow
• Acceleration is slow
• Re-start is slow after vehicle is stop by strong de-

celeration

• Manual mode is not activated
• Lock-up is not performed

P1726

—

Acceleration is slow

P1740

—

• Selector shock is large
• Lock-up is not performed

P1777

A malfunction is detected in low side (when vehicle is
stopped)

• Low is fixed
• Lock-up is not performed

A malfunction is detected in high side (during driving)

• Start is slow
• Acceleration is low in low speed range
• Lock-up is not performed

U1000

—

• Start is slow
• Acceleration is slow
• Vehicle speed is not increased

U1010

—

• Start is slow
• Acceleration is slow
• Vehicle speed is not increased

DTC

Condition

Vehicle behavior

Priority

Detected items (DTC)

U1000

Except above

DTC

Items

(CONSULT-III screen terms)

Reference

OBD

Except OBD

CONSULT-III

GST

CONSULT-III only

“TRANSMISSION”

—

P0703

BRAKE SWITCH B

TM-197

P0705

T/M RANGE SENSOR A

TM-200

P0710

FLUID TEMP SENSOR A

TM-202

P0715

INPUT SPEED SENSOR A

TM-204

TM-172

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10B]

TCM

*: These numbers are prescribed by ISO 15031-5.

—

P0717

INPUT SPEED SENSOR A

TM-207

P0720

OUTPUT SPEED SENSOR

TM-209

—

P0725

ENGINE SPEED

TM-212

—

P0730

INCORRECT GR RATIO

TM-214

P0740

TORQUE CONVERTER

TM-215

P0744 P0744

TORQUE

CONVERTER

TM-217

P0745

PC SOLENOID A

TM-219

P0746

PC SOLENOID A

TM-221

P0776

PC SOLENOID B

TM-223

P0778

PC SOLENOID B

TM-225

—

P0826

UP/DOWN SHIFT SWITCH

TM-227

P0840

FLUID PRESS SEN/SW A

TM-230

—

P0841

FLUID PRESS SEN/SW A

TM-232

—

P0868

FLUID PRESS LOW

TM-234

—

P1585

G SENSOR

TM-236

—

P1701

TCM

TM-239

—

P1705

TP SENSOR

TM-241

—

P1722

VEHICLE SPEED

TM-242

—

P1723

SPEED SENSOR

TM-244

—

P1726

THROTTLE CONTROL SIG

TM-246

P1740

SLCT SOLENOID

TM-247

—

P1745

LINE PRESS CONTROL

TM-249

P1777

STEP MOTOR

TM-250

P1778

STEP MOTOR

TM-252

U1000

CAN COMM CIRCUIT

TM-195

—

U1010

CONTROL UNIT (CAN)

TM-196

DTC

Items

(CONSULT-III screen terms)

Reference

OBD

Except OBD

CONSULT-III

GST

CONSULT-III only

“TRANSMISSION”

CVT CONTROL SYSTEM

TM-173

< WIRING DIAGRAM >

[CVT: RE0F10B]

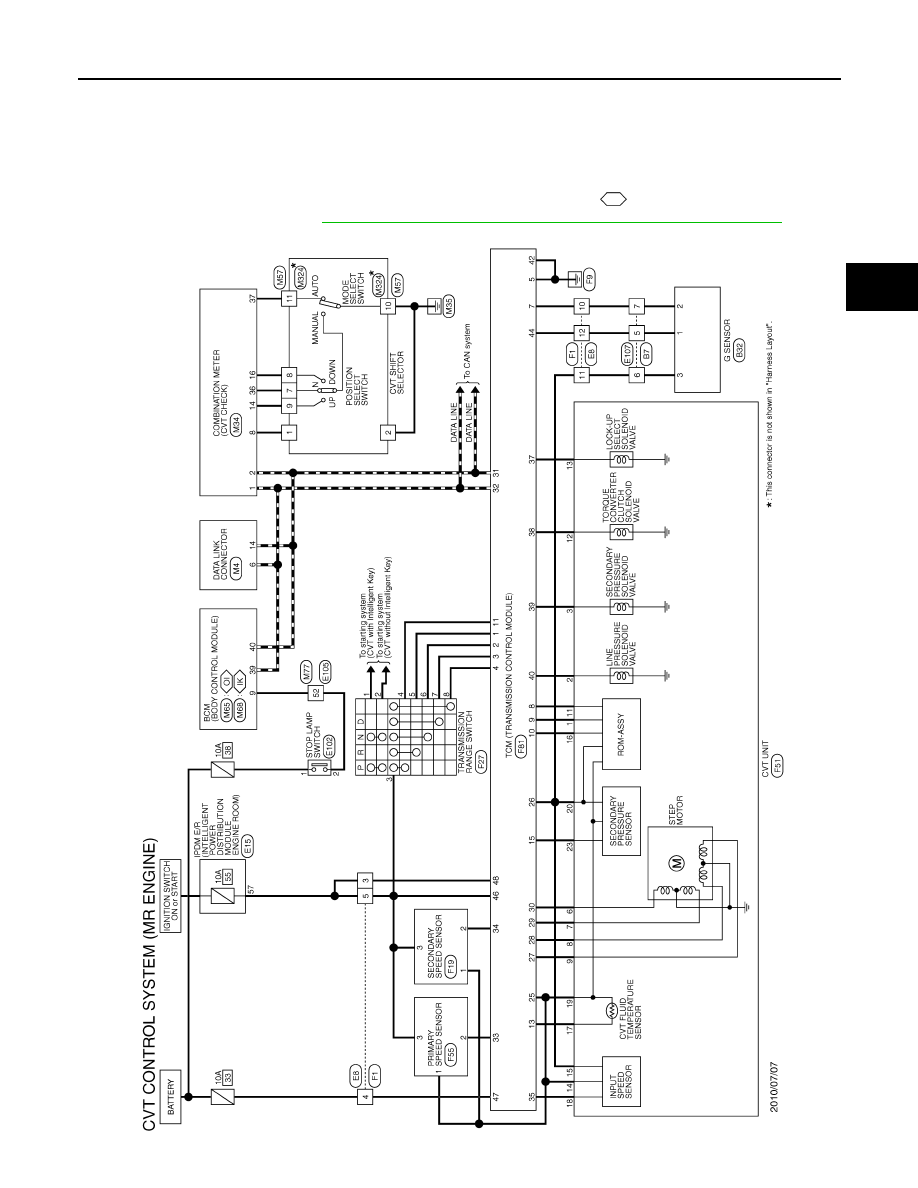

WIRING DIAGRAM

CVT CONTROL SYSTEM

Wiring diagram

INFOID:0000000006601852

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if notde-

scribed in wiring diagram), refer to

GI-12, "Connector Information/Explanation of Option Abbreviation"

JCDWA0644GB

TM-174

< WIRING DIAGRAM >

[CVT: RE0F10B]

CVT SHIFT LOCK SYSTEM

CVT SHIFT LOCK SYSTEM

Wiring diagram

INFOID:0000000006601853

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if notde-

scribed in wiring diagram), refer to

GI-12, "Connector Information/Explanation of Option Abbreviation"

JCDWA0645GB

DIAGNOSIS AND REPAIR WORKFLOW

TM-175

< BASIC INSPECTION >

[CVT: RE0F10B]

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000006601544

INTRODUCTION

The TCM receives a signal from the vehicle speed sensor, transmission range switch and provides shift con-
trol or lock-up control via CVT solenoid valves.
The TCM also communicates with the ECM by means of a signal
sent from sensing elements used with the OBD-related parts of the
CVT system for malfunction-diagnostic purposes. The TCM is capa-
ble of diagnosing malfunctioning parts while the ECM can store mal-
functions in its memory.
Input and output signals must always be correct and stable in the
operation of the CVT system. The CVT system must be in good
operating condition and be free of valve seizure, solenoid valve mal-
function, etc.

It is much more difficult to diagnose an error that occurs intermit-
tently rather than continuously. Most intermittent errors are caused
by poor electric connections or improper wiring. In this case, careful
checking of suspected circuits may help prevent the replacement of
good parts.
A visual check only may not find the cause of the errors. A road test
with CONSULT-III (or GST) or a circuit tester connected should be
performed. Follow the “DETAILED FLOW”.

Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such errors, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A “Diagnostic Work Sheet” as shown on
the example (Refer to

TM-176

) should be used.

Start your diagnosis by looking for “conventional” errors first. This will
help troubleshoot driveability errors on an electronically controlled
engine vehicle.
Also check related Service bulletins.

DETAILED FLOW

COLLECT THE INFORMATION FROM THE CUSTOMER

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred) using diagnosis worksheet. Refer to

TM-176, "Diagnostic Work Sheet"

>> GO TO 2.

CHECK SYMPTOM 1

Check the following items based on the information obtained from the customer.
• Fail-safe. Refer to

TM-169, "Fail-safe"

• CVT fluid inspection. Refer to

TM-184, "Inspection"

• Line pressure test. Refer to

TM-188, "Inspection and Judgment"

SAT631IB

SAT632I

SEF234G

Content .. 356 357 358 359 ..
