SRC-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (AIR BAG)

When driver air bag module (Item display 1) and satellite sensor RH (Item display2) are malfunctioning.

CONSULT-III Function

INFOID:0000000006439853

APPLICATION ITEM

CONSULT-III performs the following functions.

HOW TO ERASE SELF DIAGNOSTIC RESULTS

• “Self Diagnostic Result”

A current self-diagnostic result is displayed on CONSULT-III screen in real time.
After the malfunction is repaired completely, no malfunction is detected on “Self Diagnostic Result”.

• “SELF-DIAG [PAST]”

Return to “Self Diagnostic Result” CONSULT-III screen by touching the “BACK” key of CONSULT-III and
select “Self Diagnostic Result” in SELECT DIAG MODE. Touch “Erase” in “Self Diagnostic Result” mode.
NOTE:
If the memory of the malfunction in “SELF-DIAG [PAST]” is not erased, the user mode shows the system
malfunction by the illumination of the warning lamp even if the malfunction is repaired completely.

• “TROUBLE DIAG RECORD”

The memory of “TROUBLE DIAG RECORD” cannot be erased.

• “SELF-DIAG RESULT [CAN]”

Self-diagnosis result other than “SELF-DIAG RESULT [CAN]” is erased when touching “Erase”.

SPECIAL FUNCTION

CAUSE OF WARNING

This item indicates IGN low or high voltage condition.
The air bag warning lamp blink in user mode when the battery voltage is lowered to the voltage value (less
than 9 V or higher to the voltage more than 16V) at which the SRS cannot be operated normally. The air bag
warning lamp turns OFF after the battery voltage returns to normal status after blinking.

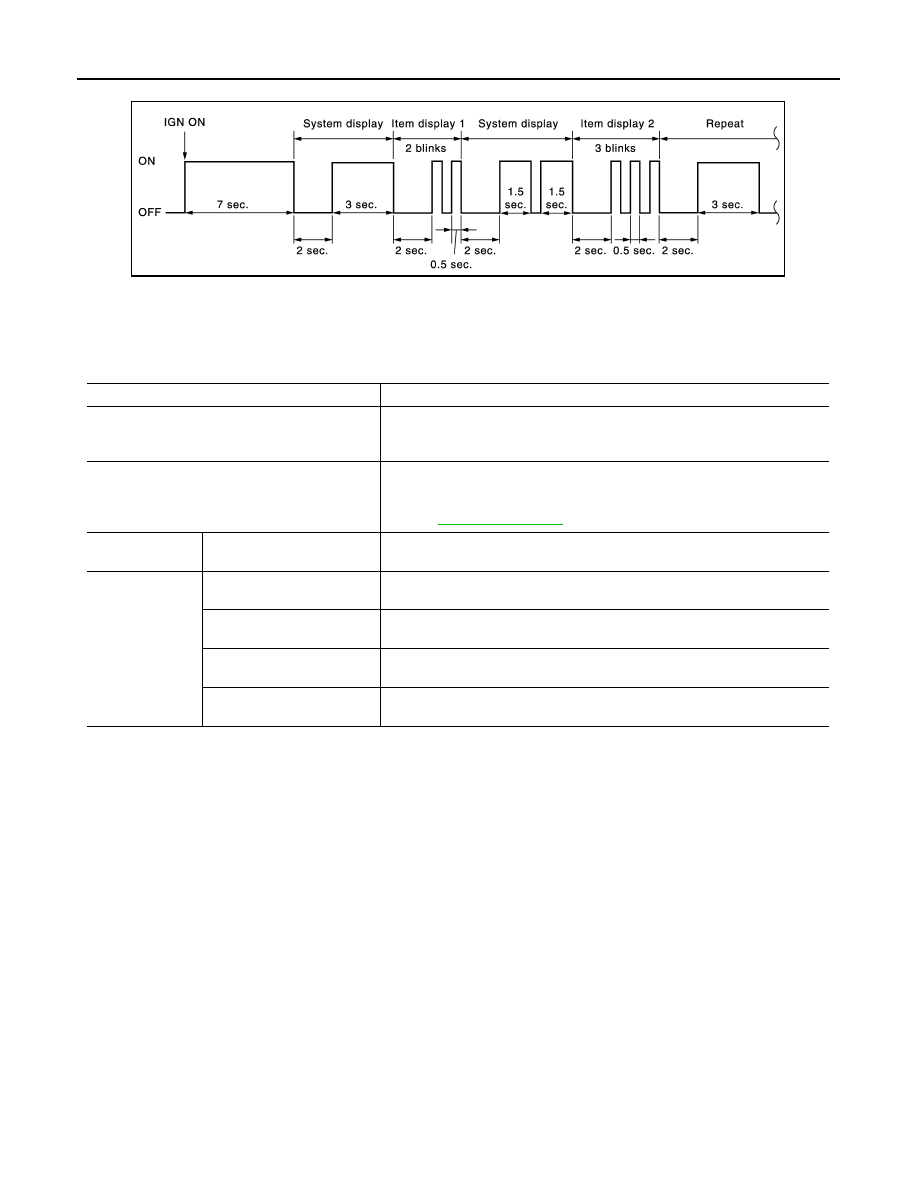

JMHIA0950GB

Diagnosis mode

Description

ECU Identification

Air bag diagnosis sensor unit ECU discriminated number (identification num-
ber) is displayed. Air bag diagnosis sensor unit has individual ECU discriminat-
ed number (identification number) based on model and equipment.

Self Diagnostic Result

The current self diagnosis results (also indicated with the number of air bag
warning lamp blinks in the diagnosis mode) are displayed on CONSULT-III
screen in real time. This refers to a malfunctioning part requiring repairs.
Refer to

SRC-18, "DTC Index"

Function Test

CAR COMPUTER DIAG.

Test result is indicated using “OK” or “NG” so that the customer recognizes eas-
ily.

Special function

SELF-DIAG [PAST]

Diagnosis results previously stored in the memory are displayed on CONSULT-
III screen. The stored results are not erased until memory erasing is executed.

TROUBLE DIAG RECORD

With TROUBLE DIAG RECORD, diagnosis results previously erased by a re-
set operation can be displayed on CONSULT-III screen.

SELF-DIAG RESULT [CAN]

Self-diagnosis result other than “SELF-DIAG RESULT [CAN]” is erased when
touching “Erase”.

CAUSE OF WARNING

It displays the cause of warning lamp illumination that is not recorded in mem-
ory.

DIAGNOSIS SYSTEM (AIR BAG)

SRC-17

< SYSTEM DESCRIPTION >

SRC

In such a case, the DTC memory is not performed and changing to the self-diagnostic mode by IGN operation
cannot be performed while the air bag warning lamp illuminates. “NO DTC” is displayed even if the malfunc-
tioning parts are checked by CONSULT-III.
This function records the following items.

Display contents of CONSULT-III

Description

Air bag

IGN VOLT COND

“LOW” is displayed when IGN low or high voltage is detected. If not, “OK” is
displayed.

IGN VOLT TIME

Times of IGN low or high voltage is detected.

LOW V RECORED

Times of IGN ON after IGN low or high voltage is detected.

SRC-18

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

ECU DIAGNOSIS INFORMATION

DIAGNOSIS SENSOR UNIT

DTC Index

INFOID:0000000006439854

DTC

Diagnostic item

Explanation

Reference page

—

NO DTC IS DETECTED.

When malfunction is
indicated by the “AIR
BAG” warning lamp in
the user mode

Low battery voltage (Less than 9 V) or
high battery voltage (more than 16V)

SRC-16, "CON-
SULT-III Func-
tion"

Self-diagnostic result is not erased af-
ter repair

SRC-12, "On
Board Diagnosis
Function"

SRC-

16, "CONSULT-
III Function"

Intermittent malfunction is detected in
the past

GI-42, "Intermit-
tent Incident"

No malfunction is detected

—

B1001-B1015

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

•

SRC-29,
"DTC Logic"

•

SRC-30,
"DTC Logic"

•

SRC-31,
"DTC Logic"

B1023

PASS A/B INDCTR CKT

Passenger air bag OFF indicator circuit is open or shorted to
ground or the circuits are shorted each other

SRC-32, "DTC
Logic"

B1024

PASS A/B DEACT SW

Front passenger air bag deactivation switch unit is malfunction-
ing

SRC-34, "DTC
Logic"

B1026-B1031

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-36, "DTC
Logic"

B1033
B1034

CRASH ZONE SEN
[UNIT FAIL]

Crash zone sensor is malfunctioning

SRC-37, "DTC
Logic"

B1035

CRASH ZONE SEN
[COMM FAIL]

Crash zone sensor is malfunctioning

SRC-39, "DTC
Logic"

B1036

CRASH ZONE SEN
[UNMATCH]

Crash zone sensor is out of the specified specification

SRC-41, "DTC
Logic"

B1037
B1039
B1041

CRASH ZONE SENS1

Crash zone sensor is malfunctioning

SRC-42, "DTC
Logic"

B1042-B1047

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-44, "DTC
Logic"

B1049
B1054

DRIVER AIRBAG MODULE
[OPEN]

Driver air bag module circuit is open (including the spiral cable)

SRC-45, "DTC
Logic"

B1050
B1055

DRIVER AIRBAG MODULE
[VB-SHORT]

Driver air bag module circuit is shorted to power supply circuit
(including the spiral cable)

SRC-47, "DTC
Logic"

B1051
B1056

DRIVER AIRBAG MODULE
[GND-SHORT]

Driver air bag module circuit is shorted to ground (including the
spiral cable)

SRC-49, "DTC
Logic"

B1052
B1057

DRIVER AIRBAG MODULE
[SHORT]

Driver air bag module circuits are shorted to each other (includ-
ing spiral cable)

SRC-51, "DTC
Logic"

B1058-B1063

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-53, "DTC
Logic"

B1065
B1070

ASSIST A/B MODULE
[OPEN]

Passenger air bag module circuit is open

SRC-54, "DTC
Logic"

B1066
B1071

ASSIST A/B MODULE
[VB-SHORT]

Passenger air bag module circuit is shorted to power supply
circuit

SRC-56, "DTC
Logic"

DIAGNOSIS SENSOR UNIT

SRC-19

< ECU DIAGNOSIS INFORMATION >

SRC

B1067
B1072

ASSIST A/B MODULE
[GND-SHORT]

Passenger air bag module circuit is shorted to ground

SRC-58, "DTC
Logic"

B1068
B1073

ASSIST A/B MODULE
[SHORT]

Passenger air bag module circuits are shorted to each other

SRC-60, "DTC
Logic"

B1074-B1079

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-62, "DTC
Logic"

B1080
B1096

DRIVER AIRBAG MODULE
[SHORT]

Driver air bag module circuits are shorted to each other (includ-
ing spiral cable)

SRC-63, "DTC
Logic"

B1081

PRE-TEN FRONT RH
[OPEN]

Front seat belt pre-tensioner RH circuit is open

SRC-65, "DTC
Logic"

B1082

PRE-TEN FRONT RH
[VB-SHORT]

Front seat belt pre-tensioner RH circuit is shorted to power
supply circuit

SRC-67, "DTC
Logic"

B1083

PRE-TEN FRONT RH
[GND-SHORT]

Front seat belt pre-tensioner RH circuit is shorted to ground

SRC-69, "DTC
Logic"

B1084

PRE-TEN FRONT RH
[SHORT]

Front seat belt pre-tensioner RH circuits are shorted to each
other

SRC-71, "DTC
Logic"

B1086

PRE-TEN FRONT LH
[OPEN]

Front seat belt pre-tensioner LH circuit is open

SRC-73, "DTC
Logic"

B1087

PRE-TEN FRONT LH
[VB-SHORT]

Front seat belt pre-tensioner LH circuit is shorted to power sup-
ply circuit

SRC-75, "DTC
Logic"

B1088

PRE-TEN FRONT LH
[GND-SHORT]

Front seat belt pre-tensioner LH circuit is shorted to ground

SRC-77, "DTC
Logic"

B1089

PRE-TEN FRONT LH
[SHORT]

Front seat belt pre-tensioner LH circuits are shorted to each
other

SRC-79, "DTC
Logic"

B1090-B1095

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-81, "DTC
Logic"

B1106-B1111

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-82, "DTC
Logic"

B1113
B1114

SATELLITE SENS RH
[UNIT FAIL]

Satellite sensor RH is malfunctioning

SRC-83, "DTC
Logic"

B1115

SATELLITE SENS RH
[COMM FAIL]

Satellite sensor RH is malfunctioning

SRC-85, "DTC
Logic"

B1116

SATELLITE SENS RH
[UNMATCH]

Satellite sensor RH is out of the specified specification

SRC-87, "DTC
Logic"

B1118
B1119

SATELLITE SENS LH
[UNIT FAIL]

Satellite sensor LH is malfunctioning

SRC-88, "DTC
Logic"

B1120

SATELLITE SENS LH
[COMM FAIL]

Satellite sensor LH is malfunctioning

SRC-90, "DTC
Logic"

B1121

SATELLITE SENS LH
[UNMATCH]

Satellite sensor LH is out of the specified specification

SRC-92, "DTC
Logic"

B1122-B1127

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-93, "DTC
Logic"

B1129

SIDE MODULE RH
[OPEN]

Side air bag module RH circuit is open

SRC-94, "DTC
Logic"

B1130

SIDE MODULE RH
[VB-SHORT]

Side air bag module RH circuit is shorted to power supply cir-
cuit

SRC-96, "DTC
Logic"

B1131

SIDE MODULE RH
[GND-SHORT]

Side air bag module RH circuit is shorted to ground

SRC-98, "DTC
Logic"

B1132

SIDE MODULE RH
[SHORT]

Side air bag module RH circuits are shorted to each other

SRC-100, "DTC
Logic"

B1134

SIDE MODULE LH
[OPEN]

Side air bag module LH circuit is open

SRC-102, "DTC
Logic"

DTC

Diagnostic item

Explanation

Reference page

SRC-20

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

B1135

SIDE MODULE LH
[VB-SHORT]

Side air bag module LH circuit is shorted to power supply circuit

SRC-104, "DTC
Logic"

B1136

SIDE MODULE LH
[GND-SHORT]

Side air bag module LH circuit is shorted to ground

SRC-106, "DTC
Logic"

B1137

SIDE MODULE LH
[SHORT]

Side air bag module LH circuits are shorted to each other

SRC-108, "DTC
Logic"

B1138-B1143

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-110, "DTC
Logic"

B1144

CONTROL UNIT
[MISS INSTALLATION]

Air bag diagnosis sensor unit is malfunctioning or out of the
specified specification

SRC-111, "DTC
Logic"

B1145

CURTAIN MODULE RH
[OPEN]

Curtain air bag module RH circuit is open

SRC-112, "DTC
Logic"

B1146

CURTAIN MODULE RH
[VB-SHORT]

Curtain air bag module RH circuit is shorted to power supply
circuit

SRC-114, "DTC
Logic"

B1147

CURTAIN MODULE RH
[GND-SHORT]

Curtain air bag module RH circuit is shorted to ground

SRC-116, "DTC
Logic"

B1148

CURTAIN MODULE RH
[SHORT]

Curtain air bag module RH circuits are shorted to each other

SRC-118, "DTC
Logic"

B1150

CURTAIN MODULE LH
[OPEN]

Curtain air bag module LH circuit is open

SRC-120, "DTC
Logic"

B1151

CURTAIN MODULE LH
[VB-SHORT]

Curtain air bag module LH circuit is shorted to power supply cir-
cuits

SRC-122, "DTC
Logic"

B1152

CURTAIN MODULE LH
[GND-SHORT]

Curtain air bag module LH circuit is shorted to ground

SRC-124, "DTC
Logic"

B1153

CURTAIN MODULE LH
[SHORT]

Curtain air bag module LH circuits are shorted to each other

SRC-126, "DTC
Logic"

B1154-B1159

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-128, "DTC
Logic"

B1170-B1175

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-129, "DTC
Logic"

B1177

PRE-TEN2 FRONT RH
[OPEN]

Lap pre-tensioner RH circuit is open

SRC-130, "DTC
Logic"

B1178

PRE-TEN2 FRONT RH
[VB-SHORT]

Lap pre-tensioner RH circuit is shorted to power supply circuit

SRC-131, "DTC
Logic"

B1179

PRE-TEN2 FRONT RH
[GND-SHORT]

Lap pre-tensioner RH circuit is shorted to ground

SRC-132, "DTC
Logic"

B1180

PRE-TEN2 FRONT RH
[SHORT]

Lap pre-tensioner RH circuits are shorted to each other

SRC-133, "DTC
Logic"

B1182

PRE-TEN2 FRONT LH
[OPEN]

Lap pre-tensioner LH circuit is open

SRC-134, "DTC
Logic"

B1183

PRE-TEN2 FRONT LH
[VB-SHORT]

Lap pre-tensioner LH circuit is shorted to power supply circuit

SRC-135, "DTC
Logic"

B1184

PRE-TEN2 FRONT LH
[GND-SHORT]

Lap pre-tensioner LH circuit is shorted to ground

SRC-136, "DTC
Logic"

B1185

PRE-TEN2 FRONT LH
[SHORT]

Lap pre-tensioner LH circuits are shorted to each other

SRC-137, "DTC
Logic"

B1186-B1191

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-138, "DTC
Logic"

B1202-B1207

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-139, "DTC
Logic"

B1209

FRONTAL COLLISION DETEC-
TION

Front seat belt pre-tensioner, driver air bag and passenger air
bag are deployed

SRC-140, "De-
scription"

DTC

Diagnostic item

Explanation

Reference page

DIAGNOSIS SENSOR UNIT

SRC-21

< ECU DIAGNOSIS INFORMATION >

SRC

B1210

SIDE COLLISION DETECTION

Side air bag, curtain air bag and front seat belt pre-tensioner
are deployed

SRC-141, "DTC
Logic"

B1212-B1214

RH1 SAT-SENS

Satellite sensor RH is malfunctioning

SRC-142, "DTC
Logic"

B1215-B1217

LH1 SAT-SENS

Satellite sensor LH is malfunctioning

SRC-144, "DTC
Logic"

B1218-B1223

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-146, "DTC
Logic"

B1234-B1239

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-147, "DTC
Logic"

DTC

Diagnostic item

Explanation

Reference page

SRC-22

< WIRING DIAGRAM >

SRS AIR BAG SYSTEM

WIRING DIAGRAM

SRS AIR BAG SYSTEM

Wiring Diagram

INFOID:0000000006707008

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information/Explanation of Option Abbreviation"

JCHWA0444GB

SRS AIR BAG SYSTEM

SRC-23

< WIRING DIAGRAM >

SRC

JCHWA0445GB

SRC-24

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000006439856

OVERALL SEQUENCE

DETAILED FLOW

JMHIA1324GB

DIAGNOSIS AND REPAIR WORK FLOW

SRC-25

< BASIC INSPECTION >

SRC

INTERVIEW THE CUSTOMER FOR THE SYMPTOM

Interview the customer for the symptom (the condition and the environment when the incident/malfunction
occurs).

>> GO TO 2.

CHECK SYMPTOM

Check the symptom from the customer information.

>> GO TO 3.

CHECK WARNING LAMP OPERATION

Check air bag warning lamp operation in the user mode. Refer to

SRC-12, "On Board Diagnosis Function"

Are any malfunction detected?

YES

>> GO TO 5.

>> GO TO 4.

CHECK LOW VOLTAGE

Check low voltage with CONSULT-III (Special function). Refer to

SRC-16, "CONSULT-III Function"

Are any malfunction detected?

YES

>> GO TO 9.

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

CHECK SELF DIAGNOSTIC RESULTS

Check self diagnostic result with CONSULT-III or diagnosis mode.
If it is impossible to switch to diagnosis mode, follow the same procedure that DTC is not detected.
NOTE:
Perform the following procedure if DTC is detected.
• Record DTC (Print them out with CONSULT-III.)
• Erase self diagnostic result.
• Study the relationship between the malfunction that DTC or air bag warning lamp indicates and the symptom

that the customer describes.

• Check related service bulletins for information.
Is DTC detected?

YES

>> GO TO 6.

>> GO TO 7.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the DTC.

>> GO TO 8.

PERFORM DIAGNOSIS ACCORDING TO WARNING LAMP OPERATION

Check air bag warning lamp operation in the user mode. Refer to

SRC-12, "On Board Diagnosis Func-

tion"

Perform Diagnosis Procedure for the air bag warning lamp operation. Refer to

SRC-12, "On Board Diag-

nosis Function"

(USER MODE).

>> GO TO 9.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the DTC.

>> GO TO 9.

REPAIR OR REPLACE THE MALFUNCTION PART

SRC-26

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

Repair or replace the malfunctioning part.

>> GO TO 10.

10.

FINAL CHECK

Check self diagnostic result and air bag warning lamp operation in the user mode.
Is the malfunction repaired?

YES

>> INSPECTION END

>> GO TO 2.

U1000 CAN COMM CIRCUIT

SRC-27

< DTC/CIRCUIT DIAGNOSIS >

SRC

DTC/CIRCUIT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000006439857

CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Modern
vehicle is equipped with many electronic control unit, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected
with 2 communication lines (CAN H-line, CAN L-line) allowing a high rate of information transmission with less
wiring. Each control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart. Refer to

LAN-31, "CAN COMMUNICATION SYSTEM : CAN Communica-

tion Signal Chart"

DTC Logic

INFOID:0000000006439858

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000006439859

PERFORM SELF DIAGNOSTIC

Turn ignition switch ON and wait for 2 seconds or more.

Check “SELF-DIAG [CAN]” in “special function” of “AIR BAG” using CONSULT-III.

Is DTC “U1000” displayed?

YES

>> Refer to

LAN-17, "Trouble Diagnosis Flow Chart"

>> Refer to

GI-42, "Intermittent Incident"

DTC

CONSULT-III display

description

DTC Detection Condition

Possible cause

U1000

CAN COMM CIRCUIT

When air bag diagnosis sensor unit cannot
communicate CAN communication signal
continuously for 2 seconds or more.

CAN communication system

SRC-28

< DTC/CIRCUIT DIAGNOSIS >

U1010 CONTROL UNIT (CAN)

U1010 CONTROL UNIT (CAN)

DTC Logic

INFOID:0000000006439860

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000006439861

REPLACE AIR BAG DIAGNOSIS SENSOR UNIT

When DTC “U1010” is detected, replace Air bag diagnosis sensor unit.

>> Replace Air bag diagnosis sensor unit. Refer to

SR-30, "Removal and Installation"

DTC

CONSULT-III display de-

scription

DTC Detection Condition

Possible cause

U1010

CONTROL UNIT (CAN)

Air bag diagnosis sensor unit detected internal CAN communica-
tion circuit malfunction.

Air bag diagnosis sensor unit

B1001, B1002, B1003, B1004, B1005 DIAGNOSIS SENSOR UNIT

SRC-29

< DTC/CIRCUIT DIAGNOSIS >

SRC

B1001, B1002, B1003, B1004, B1005 DIAGNOSIS SENSOR UNIT

DTC Logic

INFOID:0000000006439862

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

CHECK SELF-DIAG RESULT

With CONSULT-III

Turn ignition switch ON.

Perform “Self Diagnostic Result” mode of “AIR BAG” using CONSULT-III.

Without CONSULT-III

Turn ignition switch ON.

Check the air bag warning lamp status. Refer to

SRC-12, "On Board Diagnosis Function"

NOTE:
SRS does not enter the diagnosis mode if no malfunction is detected in the user mode.
Is malfunctioning part detected?

YES

>> Refer to

SRC-29, "Diagnosis Procedure"

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000006439863

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal, and wait 3 minutes

or more. (To discharge backup capacitor.)

• Never use unspecified tester or other measuring device.

CHECK HARNESS CONNECTOR

Check the harness connector.
Is the inspection result normal?

YES

>> GO TO 2.

>> Replace harness connectors.

CHECK WIRING HARNESS

Check the wiring harness externals.

Is the inspection result normal?

YES

>> GO TO 3.

>> Replace wiring harness.

REPLACE AIR BAG DIAGNOSIS SENSOR UNIT

Replace air bag diagnosis sensor unit. Refer to

SR-30, "Removal and Installation"

Perform DTC confirmation procedure. Refer to

SRC-29, "DTC Logic"

Is DTC detected?

YES

>> GO TO 1.

>> INSPECTION END

DTC

Display contents of

CONSULT-III

DTC detecting condition

Possible cause

B1001
B1002
B1003
B1004
B1005

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

Malfunction in air bag diagnosis sensor unit

SRC-30

< DTC/CIRCUIT DIAGNOSIS >

B1006, B1007, B1008, B1009, B1010 DIAGNOSIS SENSOR UNIT

B1006, B1007, B1008, B1009, B1010 DIAGNOSIS SENSOR UNIT

DTC Logic

INFOID:0000000006439864

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

CHECK SELF-DIAG RESULT

With CONSULT-III

Turn ignition switch ON.

Perform “Self Diagnostic Result” mode of “AIR BAG” using CONSULT-III.

Without CONSULT-III

Turn ignition switch ON.

Check the air bag warning lamp status. Refer to

SRC-12, "On Board Diagnosis Function"

NOTE:
SRS does not enter the diagnosis mode if no malfunction is detected in the user mode.

Is malfunctioning part detected?

YES

>> Refer to

SRC-30, "Diagnosis Procedure"

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000006439865

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal, and wait 3 minutes

or more. (To discharge backup capacitor.)

• Never use unspecified tester or other measuring device.

CHECK HARNESS CONNECTOR

Check the harness connector.

Is the inspection result normal?

YES

>> GO TO 2.

>> Replace harness connectors.

CHECK WIRING HARNESS

Check the wiring harness externals.
Is the inspection result normal?

YES

>> GO TO 3.

>> Replace wiring harness.

REPLACE AIR BAG DIAGNOSIS SENSOR UNIT

Replace air bag diagnosis sensor unit. Refer to

SR-30, "Removal and Installation"

Perform DTC confirmation procedure. Refer to

SRC-30, "DTC Logic"

Is DTC detected?

YES

>> GO TO 1.

>> INSPECTION END

DTC

Display contents of

CONSULT-III

DTC detecting condition

Possible cause

B1006
B1007
B1008
B1009
B1010

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

Malfunction in air bag diagnosis sensor unit

B1011, B1012, B1013, B1014, B1015 DIAGNOSIS SENSOR UNIT

SRC-31

< DTC/CIRCUIT DIAGNOSIS >

SRC

B1011, B1012, B1013, B1014, B1015 DIAGNOSIS SENSOR UNIT

DTC Logic

INFOID:0000000006439866

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

CHECK SELF-DIAG RESULT

With CONSULT-III

Turn ignition switch ON.

Perform “Self Diagnostic Result” mode of “AIR BAG” using CONSULT-III.

Without CONSULT-III

Turn ignition switch ON.

Check the air bag warning lamp status. Refer to

SRC-12, "On Board Diagnosis Function"

NOTE:
SRS does not enter the diagnosis mode if no malfunction is detected in the user mode.
Is malfunctioning part detected?

YES

>> Refer to

SRC-31, "Diagnosis Procedure"

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000006439867

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal, and wait 3 minutes

or more. (To discharge backup capacitor.)

• Never use unspecified tester or other measuring device.

CHECK HARNESS CONNECTOR

Check the harness connector.
Is the inspection result normal?

YES

>> GO TO 2.

>> Replace harness connectors.

CHECK WIRING HARNESS

Check the wiring harness externals.

Is the inspection result normal?

YES

>> GO TO 3.

>> Replace wiring harness.

REPLACE AIR BAG DIAGNOSIS SENSOR UNIT

Replace air bag diagnosis sensor unit. Refer to

SR-30, "Removal and Installation"

Perform DTC confirmation procedure. Refer to

SRC-31, "DTC Logic"

Is DTC detected?

YES

>> GO TO 1.

>> INSPECTION END

DTC

Display contents of

CONSULT-III

DTC detecting condition

Possible cause

B1011
B1012
B1013
B1014
B1015

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

Malfunction in air bag diagnosis sensor unit

Content .. 332 333 334 335 ..
