Juke F15 (2012 year). Service Repair Manual - part 282





MIR-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

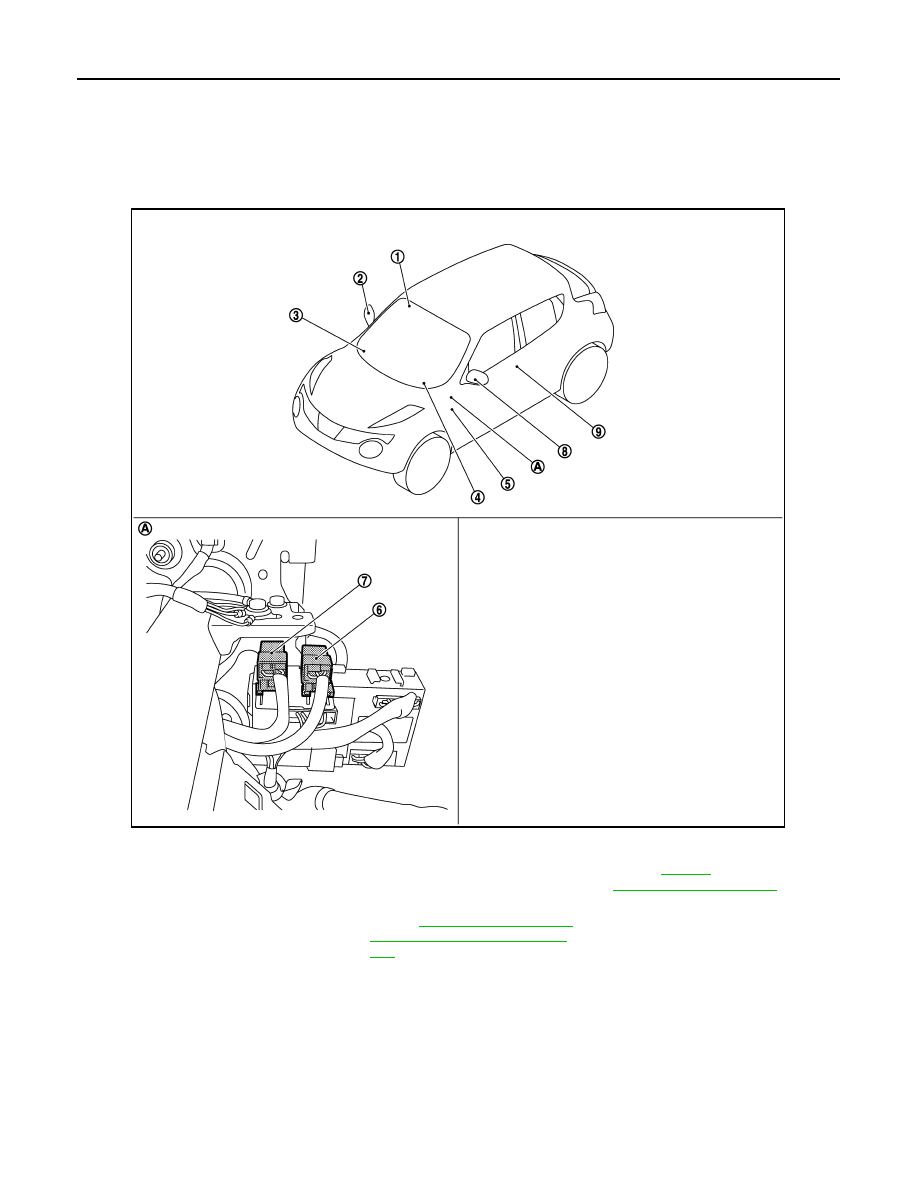

Component Parts Location

INFOID:0000000006486939

Component Description

INFOID:0000000006486940

1.

Door request switch (driver side)

2.

Door mirror (driver side)

3.

Remote keyless entry receiver
Refer to

DLK-21,

"Component Parts Location"

4.

Door mirror remote control switch

5.

BCM
Refer to

BCS-6, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

6.

Door mirror close relay

7.

Door mirror open relay

8.

Door mirror (passenger side)

9.

Door request switch (passenger
side)

A.

Front LH of passenger room

JMLIA1444ZZ

COMPONENT PARTS

MIR-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

Item

Function

BCM

Auto retractable door mirror system is operated when door lock signal is received from Intelli-
gent Key or door request switch.

Remote keyless entry receiver

Receives Intelligent Key operation signal and transmits to BCM

Door request switch

Transmits door lock/unlock operation signal to BCM

Door mirror remote control switch
(open/close switch)

• Door mirror is retracted by open/close switch.
• Auto retractable door mirror function operates for AUTO side only.

Door mirror (open/close motor)

Door mirror is retracted by open/close switch.

Door mirror open relay

• Power supply is supplied to motor when door mirror is opening.
• This is the ground circuit when auto retractable door mirror is operating.

Door mirror close relay

• Power supply is supplied to motor when door mirror is closed.
• Power supply is supplied to motor when auto retractable door mirror is operating.

Door mirror remote control switch (mir-
ror switch)

It supplies power to mirror motor through mirror switch and changeover switch.

Door mirror remote control switch
(chengeover switch)

It transmits the LH/RH control of door mirror that supplies power.

Door mirror motor

It makes mirror face operate from side to side and up and down via integrated motor.

MIR-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

AUTO RETRACTABLE DOOR MIRORR FUNCTION

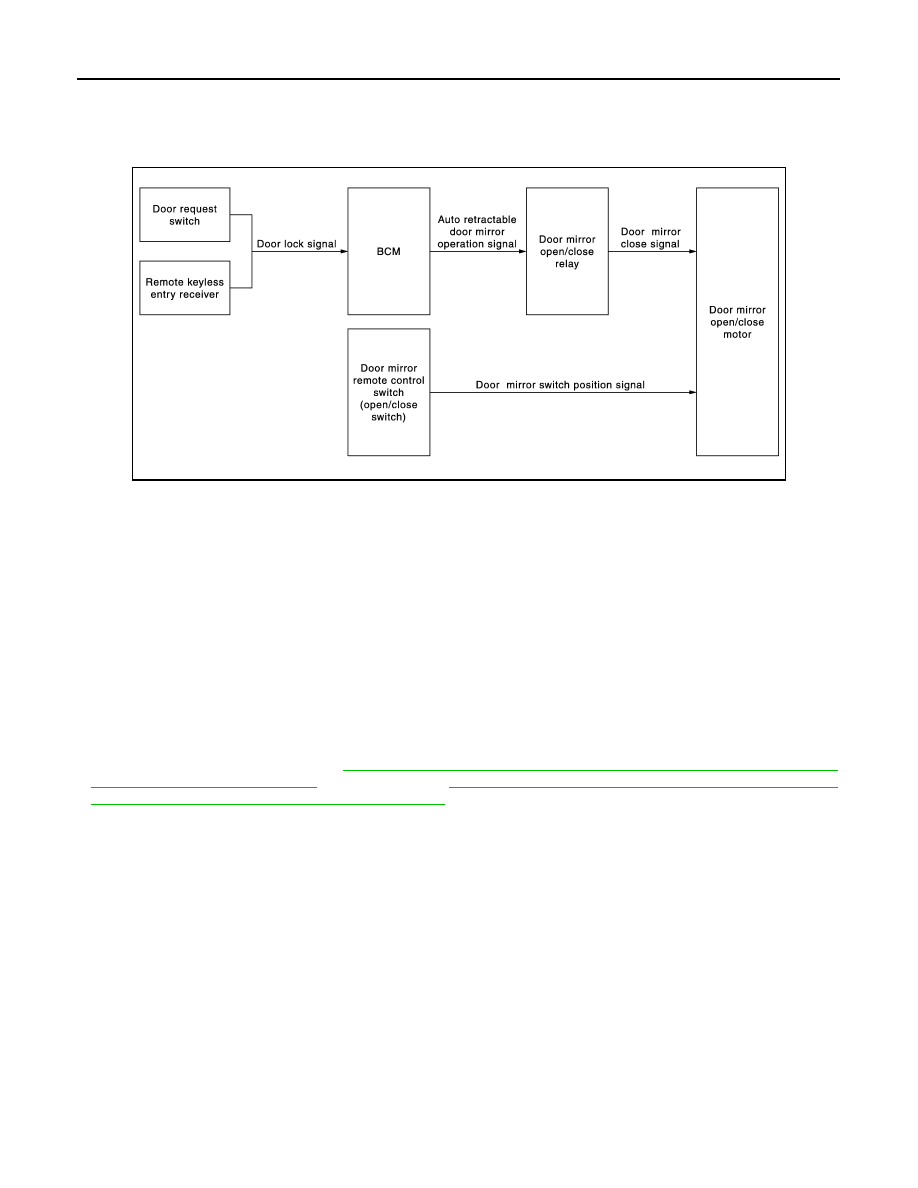

AUTO RETRACTABLE DOOR MIRORR FUNCTION : System Diagram

INFOID:0000000006486941

AUTO RETRACTABLE DOOR MIRORR FUNCTION : System Description

INFOID:0000000006486942

BCM retracts door mirror when door lock signal is received from Intelligent Key or door request switch.

OPERATION CONDITION

The system operates under the following conditions.
• Ignition switch: OFF
• Open/Close switch: AUTO

1.

Press lock button of Intelligent Key or door request switch when the system is in operation condition.

2.

Door mirror open/close relay turns ON for approximately 6 seconds. Door mirror is retracted.

NOTE:
• Auto retractable door mirror system is not operated when BCM detects door lock signal from power window

main switch of door key cylinder switch.

• ON/OFF of auto retractable door mirror system can be set on “WORK SUPPORT” of “INTELLIGENT KEY”of

“BCM” using CONSULT-III. Refer to

DLK-43, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLI-

GENT KEY) (With Super Lock)"

 (With super lock)

DLK-219, "INTELLIGENT KEY : CONSULT-III Function

(BCM - INTELLIGENT KEY) (Without Super Lock)"

 (Without super lock).

JMLIA0975GB

DIAGNOSIS SYSTEM (BCM)

MIR-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000006683087

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:

• *1: This item is displayed, but not used.

• *2: For models with automatic A/C, this diagnosis mode is not used.

FREEZE FRAME DATA (FFD)

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM. Refer to CONSULT-III opera-
tion manual.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

• Automatic A/C
• Manual A/C

AIR CONDITONER

×

×

*

2

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

Theft warning alarm

THEFT ALM

×

×

×

RETAINED PWR*

1

×

Signal buffer system

SIGNAL BUFFER

×

×

MIR-10

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT-III.

INTELLIGENT KEY

INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY) (With Super
Lock)

INFOID:0000000006683088

WORK SUPPORT

CONSULT screen item

Indication/Unit

Description

Vehicle Speed

km/h

Vehicle speed of the moment a particular DTC is detected

Odo/Trip Meter

km

Total mileage (Odometer value) of the moment a particular DTC is detected

Vehicle Condition

SLEEP>LOCK

Power position status of
the moment a particular
DTC is detected

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “LOCK”)

SLEEP>OFF

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “OFF”.)

LOCK>ACC

While turning power supply position from “LOCK” to “ACC”

ACC>ON

While turning power supply position from “ACC” to “IGN”

RUN>ACC

While turning power supply position from “RUN” to “ACC” (Vehicle
is stopping and selector lever is except P position.)

CRANK>RUN

While turning power supply position from “CRANKING” to “RUN”
(From cranking up the engine to run it)

RUN>URGENT

While turning power supply position from “RUN“ to “ACC” (Emer-
gency stop operation)

ACC>OFF

While turning power supply position from “ACC” to “OFF”

OFF>LOCK

While turning power supply position from “OFF” to “LOCK”

OFF>ACC

While turning power supply position from “OFF” to “ACC”

ON>CRANK

While turning power supply position from “IGN” to “CRANKING”

OFF>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “OFF”.) to low power consumption mode

LOCK>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “LOCK”.) to low power consumption mode

LOCK

Power supply position is “LOCK” (Ignition switch OFF with steer-
ing is locked.)

OFF

Power supply position is “OFF” (Ignition switch OFF with steering
is unlocked.)

ACC

Power supply position is “ACC” (Ignition switch ACC)

ON

Power supply position is “IGN” (Ignition switch ON with engine
stopped)

ENGINE RUN

Power supply position is “RUN” (Ignition switch ON with engine
running)

CRANKING

Power supply position is “CRANKING” (At engine cranking)

IGN Counter

0 - 39

The number of times that ignition switch is turned ON after DTC is detected
• The number is 0 when a malfunction is detected now.
• The number increases like 1

 2

 3...38

 39 after returning to the normal condition

whenever ignition switch OFF

 ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

DIAGNOSIS SYSTEM (BCM)

MIR-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

Monitor item

Description

INSIDE ANT DIAGNOSIS

This function allows inside key antenna self-diagnosis

LOCK/UNLOCK BY I-KEY

Door lock/unlock function by door request switch mode can be changed to operation in this
mode
• On: Operate
• Off: Non-operation

ENGINE START BY I-KEY

Engine start function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

TRUNK/GLASS HATCH OPEN

NOTE:
This item is displayed, but cannot be monitored

PANIC ALARM SET

NOTE:
This item is displayed, but cannot be monitored

TRUNK OPEN DELAY

NOTE:
This item is displayed, but cannot be monitored

LO- BATT OF KEY FOB WARN

Intelligent Key low battery warning mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

ANTI KEY LOCK IN FUNCTI

Key reminder function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

HAZARD ANSWER BACK

Hazard reminder function mode by door request switch and Intelligent Key button can be se-
lected from the following with this mode
• Lock Only: Door lock operation only
• Unlock Only: Door unlock operation only
• Lock/Unlock: Lock and unlock operation
• Off: Non-operation

ANS BACK I-KEY LOCK

Buzzer reminder function (lock operation) mode by door request switch can be selected from
the following with this mode
• Horn Chirp: Sound horn
• Buzzer: Sound Intelligent Key warning buzzer
• Off: Non-operation

ANS BACK I-KEY UNLOCK

Buzzer reminder function (unlock operation) mode by door request switch can be changed to
operation with this mode
• On: Operate
• Off: Non-operation

SHORT CRANKING OUTPUT

Starter motor can operate during the times below
• 70 msec
• 100  msec
• 200  msec

CONFIRM KEY FOB ID

It can be checked whether Intelligent Key ID code is registered or not in this mode

AUTO LOCK SET

Auto door lock operation time can be changed in this mode
• MODE 1: OFF
• MODE 2: 30 sec
• MODE 3: 1 minute
• MODE 4: 2 minutes
• MODE 5: 3 minutes
• MODE 6: 4 minutes
• MODE 7: 5 minutes

ANSWER BACK FUNCTION

Buzzer reminder function mode by Intelligent Key button can be selected from the following
with this mode
• On: Operate
• Off: Non-operation

TAKE OUT FROM WIN WARN SET

NOTE:
This item is indicated, but not used

RETRACTABLE MIRROR SET

Auto retractable door mirror function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

MIR-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

SELF-DIAG RESULT

Refer to

BCS-67, "DTC Index"

.

DATA MONITOR

Monitor Item

Condition

REQ SW -DR

Indicates [On/Off] condition of door request switch (driver side)

REQ SW -AS

Indicates [On/Off] condition of door request switch (passenger side)

REQ SW -BD/TR

Indicates [On/Off] condition of back door request switch

PUSH SW

Indicates [On/Off] condition of push-button ignition switch

CLUTCH SW*

1

Indicates [On/Off] condition of clutch interlock switch

BRAKE SW 1

Indicates [On/Off]*

2

 condition of stop lamp switch power supply

BRAKE SW 2

Indicates [On/Off] condition of stop lamp switch

DETE/CANCL SW

Indicates [On/Off] condition of P position

SFT PN/N SW

Indicates [On/Off] condition of P or N position

S/L -LOCK

Indicates [On/Off] condition of steering lock unit (LOCK)

S/L -UNLOCK

Indicates [On/Off] condition of steering lock unit (UNLOCK)

S/L RELAY -F/B

Indicates [On/Off] condition of steering lock relay

UNLK SEN -DR

Indicates [On/Off] condition of driver door UNLOCK status

PUSH SW -IPDM

Indicates [On/Off] condition of push-button ignition switch

IGN RLY1 -F/B

Indicates [On/Off] condition of ignition relay 1

DETE SW -IPDM

Indicates [On/Off] condition of P position

SFT PN -IPDM

Indicates [On/Off] condition of P or N position

SFT P -MET

Indicates [On/Off] condition of P position

SFT N -MET

Indicates [On/Off] condition of N position

ENGINE STATE

Indicates [Stop/Stall/Crank/Run] condition of engine states

S/L LOCK-IPDM

Indicates [On/Off] condition of steering lock unit (LOCK)

S/L UNLK-IPDM

Indicates [On/Off] condition of steering lock unit (UNLOCK)

S/L RELAY-REQ

Indicates [On/Off] condition of steering lock relay

VEH SPEED 1

Display the vehicle speed signal received from combination meter by numerical value [Km/h]

VEH SPEED 2

Display the vehicle speed signal received from ABS or VDC or TCM by numerical value [Km/h]

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver side door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger side door status

ID OK FLAG

Indicates [Set/Reset] condition of key ID

PRMT ENG STRT

Indicates [Set/Reset] condition of engine start possibility

PRMT RKE STRT

NOTE:
This item is displayed, but cannot be monitored

TRNK/HAT MNTR

NOTE:
This item is displayed, but cannot be monitored

RKE-LOCK

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

RKE-PANIC

NOTE:
This item is displayed, but cannot be monitored

RKE-MODE CHG

Indicates [On/Off] condition of MODE CHANGE signal from Intelligent Key

DIAGNOSIS SYSTEM (BCM)

MIR-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

*

1

: It is displayed but does not operate on CVT models.

*

2

: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY) (Without Su-

RKE OPE COUN1

When remote keyless entry receiver receives the signal transmitted while operating on Intelli-
gent Key, the numerical value start changing

RKE OPE COUN2

NOTE:
This item is displayed, but cannot be monitored

Monitor Item

Condition

Test item

Description

OUTSIDE BUZZER

This test is able to check Intelligent Key warning buzzer operation
• On: Operate
• Off: Non-operation

INSIDE BUZZER

This test is able to check warning chime in combination meter operation
• Take Out: Take away warning chime sounds when CONSULT-III screen is touched
• Key: Key warning chime sounds when CONSULT-III screen is touched
• Knob: OFF position warning chime sounds when CONSULT-III screen is touched
• Off: Non-operation

INDICATOR

This test is able to check warning lamp operation
• KEY ON: “KEY” Warning lamp illuminates when CONSULT-III screen is touched
• KEY IND: “KEY” Warning lamp blinks when CONSULT-III screen is touched
• Off: Non-operation

INT LAMP

This test is able to check interior room lamp operation
• On: Operate
• Off: Non-operation

LCD

This test is able to check meter display information
• BP N: Engine start operation indicator lamp indicate when CONSULT-III screen is touched
• BP I: Engine start operation indicator lamp indicate when CONSULT-III screen is touched
• ID NG: This item is displayed, but cannot be monitored
• ROTAT: This item is displayed, but cannot be monitored
• SFT P: Shift P warning lamp indicate when CONSULT-III screen is touched
• INSRT: This item is displayed, but cannot be monitored
• BATT: Key warning lamp indicator when CONSULT-III screen is touched
• NO KY: Key warning lamp indicator when CONSULT-III screen is touched
• OUTKEY: Engine start operation indicator lamp indicate when CONSULT-III screen is

touched

• LK WN: Engine start operation indicator lamp indicate when CONSULT-III screen is touched

FLASHER

This test is able to check security hazard lamp operation
The hazard lamps are activated after “LH/RH/Off” on CONSULT-III screen is touched

P RANGE

This test is able to check CVT shift selector power supply
• On: Operate
• Off: Non-operation

ENGINE SW ILLUMI

This test is able to check push-ignition switch illumination operation
Push-ignition switch illumination illuminates when “ON” on CONSULT-III screen is touched

PUSH SWITCH INDICATOR

This test is able to check LOCK indicator in push-ignition switch operation
LOCK indicator in push-ignition switch illuminates when “ON” on CONSULT-III screen is
touched

BATTERY SAVER

This test is able to check interior room lamp operation.
The interior room lamp will be activated after “ON” on CONSULT-III screen is touched.

TRUNK/BACK DOOR

This test is able to check back door opener actuator open operation.
This actuator opens when “Open” on CONSULT-III screen is touched.

RETRACTABLE MIRROR

This test is able to check auto retractable door mirror operation
• On: Operate
• Off: Non-operation

MIR-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

per Lock)

INFOID:0000000006684291

WORK SUPPORT

Monitor item

Description

INSIDE ANT DIAGNOSIS

This function allows inside key antenna self-diagnosis

LOCK/UNLOCK BY I-KEY

Door lock/unlock function by door request switch mode can be changed to operation in this
mode
• On: Operate
• Off: Non-operation

ENGINE START BY I-KEY

Engine start function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

TRUNK/GLASS HATCH OPEN

NOTE:
This item is displayed, but cannot be monitored

PANIC ALARM SET

NOTE:
This item is displayed, but cannot be monitored

TRUNK OPEN DELAY

NOTE:
This item is displayed, but cannot be monitored

LO- BATT OF KEY FOB WARN

Intelligent Key low battery warning mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

ANTI KEY LOCK IN FUNCTI

Key reminder function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

HAZARD ANSWER BACK

Hazard reminder function mode by door request switch and Intelligent Key button can be se-
lected from the following with this mode
• Lock Only: Door lock operation only
• Unlock Only: Door unlock operation only
• Lock/Unlock: Lock and unlock operation
• Off: Non-operation

ANS BACK I-KEY LOCK

Buzzer reminder function (lock operation) mode by door request switch can be selected from
the following with this mode
• Horn Chirp: Sound horn
• Buzzer: Sound Intelligent Key warning buzzer
• Off: Non-operation

ANS BACK I-KEY UNLOCK

Buzzer reminder function (unlock operation) mode by door request switch can be changed to
operation with this mode
• On: Operate
• Off: Non-operation

SHORT CRANKING OUTPUT

Starter motor can operate during the times below
• 70 msec
• 100  msec
• 200  msec

CONFIRM KEY FOB ID

It can be checked whether Intelligent Key ID code is registered or not in this mode

AUTO LOCK SET

Auto door lock operation time can be changed in this mode
• MODE 1: OFF
• MODE 2: 30 sec
• MODE 3: 1 minute
• MODE 4: 2 minutes
• MODE 5: 3 minutes
• MODE 6: 4 minutes
• MODE 7: 5 minutes

ANSWER BACK FUNCTION

Buzzer reminder function mode by Intelligent Key button can be selected from the following
with this mode
• On: Operate
• Off: Non-operation

DIAGNOSIS SYSTEM (BCM)

MIR-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

SELF-DIAG RESULT

Refer to

BCS-67, "DTC Index"

.

DATA MONITOR

TAKE OUT FROM WIN WARN SET

NOTE:
This item is indicated, but not used

RETRACTABLE MIRROR SET

Auto retractable door mirror function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

Monitor item

Description

Monitor Item

Condition

REQ SW -DR

Indicates [On/Off] condition of door request switch (driver side)

REQ SW -AS

Indicates [On/Off] condition of door request switch (passenger side)

REQ SW -BD/TR

Indicates [On/Off] condition of back door request switch

PUSH SW

Indicates [On/Off] condition of push-button ignition switch

CLUTCH SW*

1

Indicates [On/Off] condition of clutch interlock switch

BRAKE SW 1

Indicates [On/Off]*

2

 condition of stop lamp switch power supply

BRAKE SW 2

Indicates [On/Off] condition of stop lamp switch

DETE/CANCL SW

Indicates [On/Off] condition of P position

SFT PN/N SW

Indicates [On/Off] condition of P or N position

S/L -LOCK

Indicates [On/Off] condition of steering lock unit (LOCK)

S/L -UNLOCK

Indicates [On/Off] condition of steering lock unit (UNLOCK)

S/L RELAY -F/B

Indicates [On/Off] condition of steering lock relay

UNLK SEN -DR

Indicates [On/Off] condition of driver door UNLOCK status

PUSH SW -IPDM

Indicates [On/Off] condition of push-button ignition switch

IGN RLY1 -F/B

Indicates [On/Off] condition of ignition relay 1

DETE SW -IPDM

Indicates [On/Off] condition of P position

SFT PN -IPDM

Indicates [On/Off] condition of P or N position

SFT P -MET

Indicates [On/Off] condition of P position

SFT N -MET

Indicates [On/Off] condition of N position

ENGINE STATE

Indicates [Stop/Stall/Crank/Run] condition of engine states

S/L LOCK-IPDM

Indicates [On/Off] condition of steering lock unit (LOCK)

S/L UNLK-IPDM

Indicates [On/Off] condition of steering lock unit (UNLOCK)

S/L RELAY-REQ

Indicates [On/Off] condition of steering lock relay

VEH SPEED 1

Display the vehicle speed signal received from combination meter by numerical value [Km/h]

VEH SPEED 2

Display the vehicle speed signal received from ABS or VDC or TCM by numerical value [Km/h]

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver side door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger side door status

ID OK FLAG

Indicates [Set/Reset] condition of key ID

PRMT ENG STRT

Indicates [Set/Reset] condition of engine start possibility

PRMT RKE STRT

NOTE:
This item is displayed, but cannot be monitored

TRNK/HAT MNTR

NOTE:
This item is displayed, but cannot be monitored

RKE-LOCK

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

MIR-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

*

1

: It is displayed but does not operate on CVT models.

*

2

: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

RKE-PANIC

NOTE:
This item is displayed, but cannot be monitored

RKE-MODE CHG

Indicates [On/Off] condition of MODE CHANGE signal from Intelligent Key

RKE OPE COUN1

When remote keyless entry receiver receives the signal transmitted while operating on Intelli-
gent Key, the numerical value start changing

RKE OPE COUN2

NOTE:
This item is displayed, but cannot be monitored

Monitor Item

Condition

Test item

Description

OUTSIDE BUZZER

This test is able to check Intelligent Key warning buzzer operation
• On: Operate
• Off: Non-operation

INSIDE BUZZER

This test is able to check warning chime in combination meter operation
• Take Out: Take away warning chime sounds when CONSULT-III screen is touched
• Key: Key warning chime sounds when CONSULT-III screen is touched
• Knob: OFF position warning chime sounds when CONSULT-III screen is touched
• Off: Non-operation

INDICATOR

This test is able to check warning lamp operation
• KEY ON: “KEY” Warning lamp illuminates when CONSULT-III screen is touched
• KEY IND: “KEY” Warning lamp blinks when CONSULT-III screen is touched
• Off: Non-operation

INT LAMP

This test is able to check interior room lamp operation
• On: Operate
• Off: Non-operation

LCD

This test is able to check meter display information
• BP N: Engine start operation indicator lamp indicate when CONSULT-III screen is touched
• BP I: Engine start operation indicator lamp indicate when CONSULT-III screen is touched
• ID NG: This item is displayed, but cannot be monitored
• ROTAT: This item is displayed, but cannot be monitored
• SFT P: Shift P warning lamp indicate when CONSULT-III screen is touched
• INSRT: This item is displayed, but cannot be monitored
• BATT: Key warning lamp indicator when CONSULT-III screen is touched
• NO KY: Key warning lamp indicator when CONSULT-III screen is touched
• OUTKEY: Engine start operation indicator lamp indicate when CONSULT-III screen is

touched

• LK WN: Engine start operation indicator lamp indicate when CONSULT-III screen is touched

FLASHER

This test is able to check security hazard lamp operation
The hazard lamps are activated after “LH/RH/Off” on CONSULT-III screen is touched

P RANGE

This test is able to check CVT shift selector power supply
• On: Operate
• Off: Non-operation

ENGINE SW ILLUMI

This test is able to check push-ignition switch illumination operation
Push-ignition switch illumination illuminates when “ON” on CONSULT-III screen is touched

PUSH SWITCH INDICATOR

This test is able to check LOCK indicator in push-ignition switch operation
LOCK indicator in push-ignition switch illuminates when “ON” on CONSULT-III screen is
touched

BATTERY SAVER

This test is able to check interior room lamp operation.
The interior room lamp will be activated after “ON” on CONSULT-III screen is touched.

DIAGNOSIS SYSTEM (BCM)

MIR-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

TRUNK/BACK DOOR

This test is able to check back door opener actuator open operation.
This actuator opens when “Open” on CONSULT-III screen is touched.

RETRACTABLE MIRROR

This test is able to check auto retractable door mirror operation
• On: Operate
• Off: Non-operation

Test item

Description

MIR-18

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000006486945

ECU

Reference

BCM

BCS-41, "Reference Value"

BCS-64, "Fail-safe"

BCS-66, "DTC Inspection Priority Chart"

BCS-67, "DTC Index"

DOOR MIRROR SYSTEM (WITH INTELLIGENT KEY)

MIR-19

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

WIRING DIAGRAM

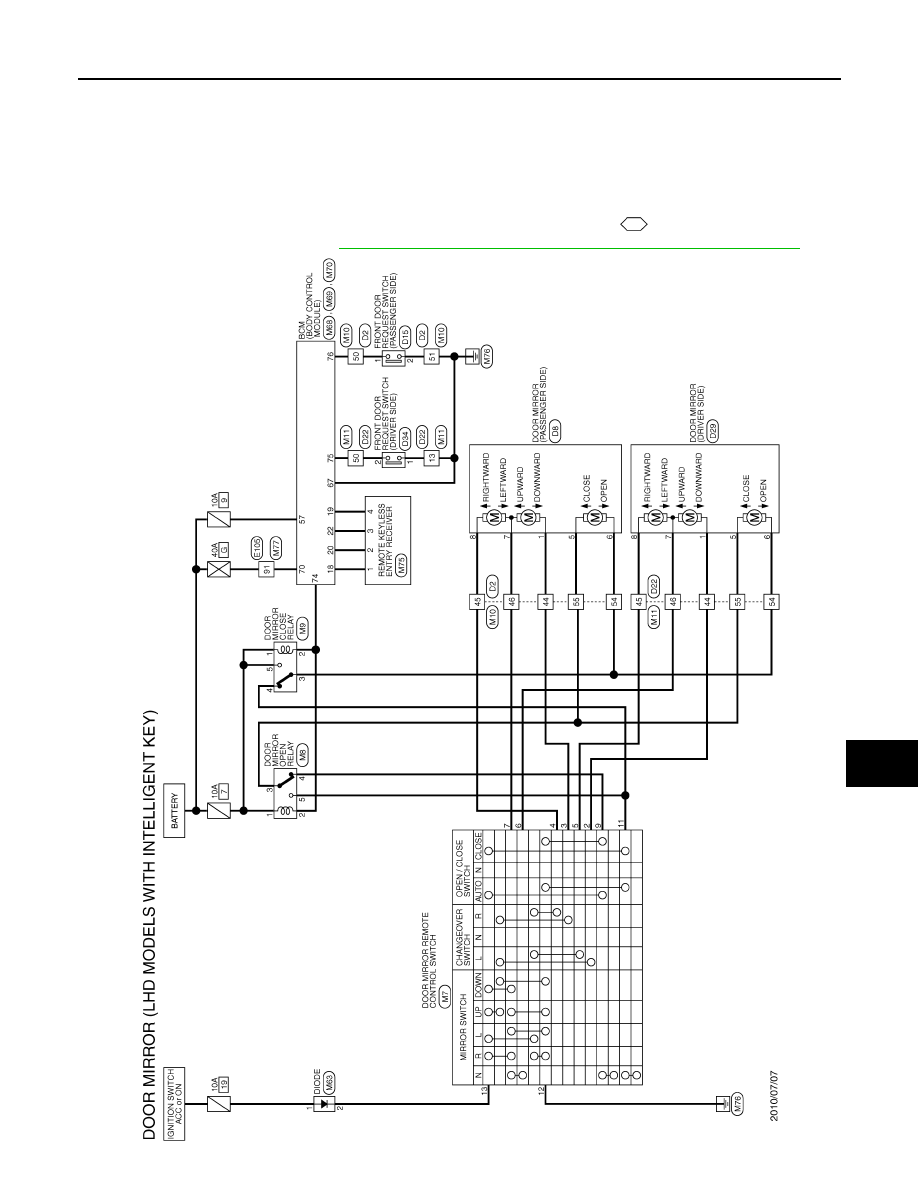

DOOR MIRROR SYSTEM (WITH INTELLIGENT KEY)

LHD

LHD : Wiring Diagram

INFOID:0000000006486946

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information/Explanation of Option Abbreviation"

.

JCLWA4233GB

MIR-20

< WIRING DIAGRAM >

DOOR MIRROR SYSTEM (WITH INTELLIGENT KEY)

RHD

RHD : Wiring Diagram

INFOID:0000000006708437

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information/Explanation of Option Abbreviation"

.

JCLWA4235GB

DOOR MIRROR SYSTEM (WITHOUT INTELLIGENT KEY)

MIR-21

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

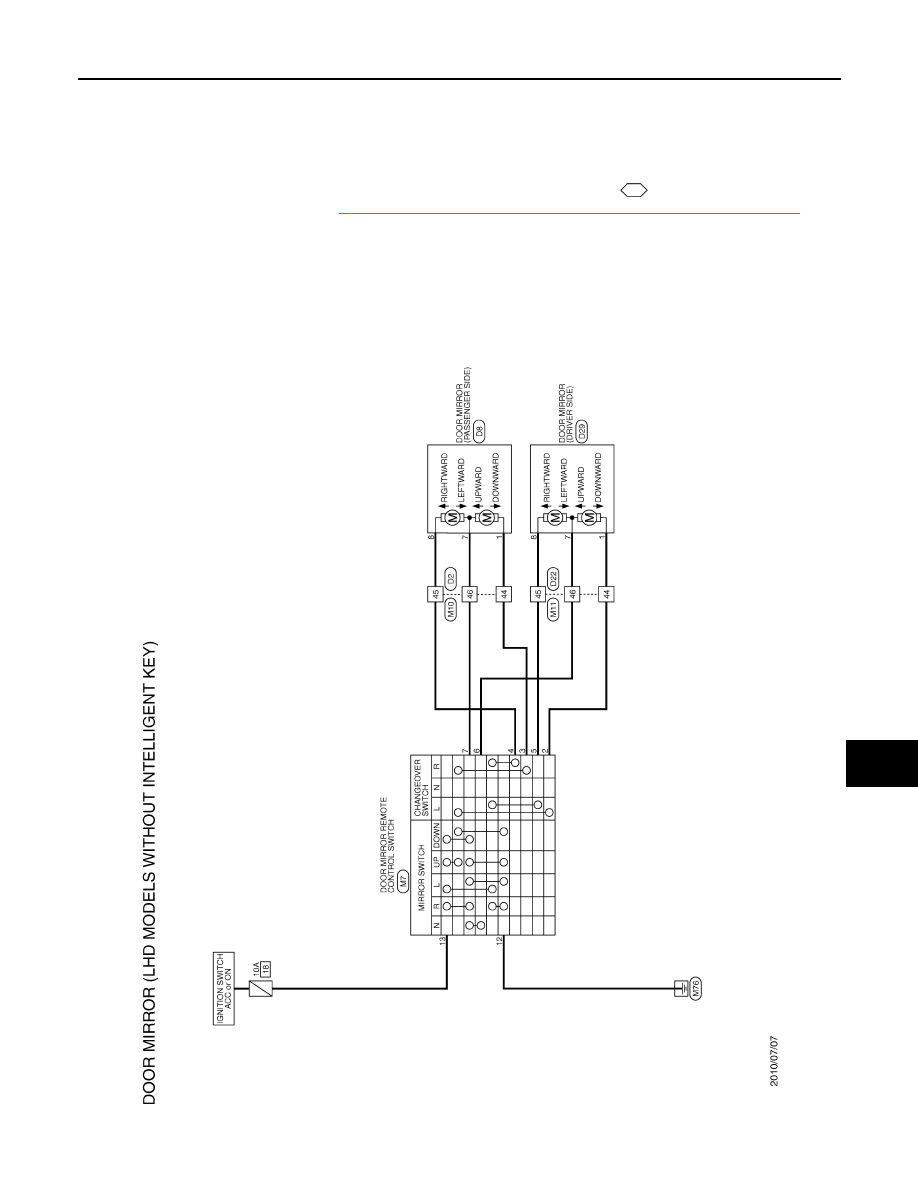

DOOR MIRROR SYSTEM (WITHOUT INTELLIGENT KEY)

LHD

LHD : Wiring Diagram

INFOID:0000000006708441

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information/Explanation of Option Abbreviation"

.

RHD

JCLWA4234GB















Content      ..     280      281      282      283     ..
