Juke F15 (2012 year). Service Repair Manual - part 256

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

INL-11

< SYSTEM DESCRIPTION >

INL

INT LAMP

CONSULT screen item

Indication/Unit

Description

Vehicle Speed

km/h

Vehicle speed of the moment a particular DTC is detected

Odo/Trip Meter

Total mileage (Odometer value) of the moment a particular DTC is detected

Vehicle Condition

SLEEP>LOCK

Power position status of
the moment a particular
DTC is detected

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “LOCK”)

SLEEP>OFF

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “OFF”.)

LOCK>ACC

While turning power supply position from “LOCK” to “ACC”

ACC>ON

While turning power supply position from “ACC” to “IGN”

RUN>ACC

While turning power supply position from “RUN” to “ACC” (Vehicle
is stopping and selector lever is except P position.)

CRANK>RUN

While turning power supply position from “CRANKING” to “RUN”
(From cranking up the engine to run it)

RUN>URGENT

While turning power supply position from “RUN“ to “ACC” (Emer-
gency stop operation)

ACC>OFF

While turning power supply position from “ACC” to “OFF”

OFF>LOCK

While turning power supply position from “OFF” to “LOCK”

OFF>ACC

While turning power supply position from “OFF” to “ACC”

ON>CRANK

While turning power supply position from “IGN” to “CRANKING”

OFF>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “OFF”.) to low power consumption mode

LOCK>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “LOCK”.) to low power consumption mode

LOCK

Power supply position is “LOCK” (Ignition switch OFF with steer-
ing is locked.)

OFF

Power supply position is “OFF” (Ignition switch OFF with steering
is unlocked.)

ACC

Power supply position is “ACC” (Ignition switch ACC)

Power supply position is “IGN” (Ignition switch ON with engine
stopped)

ENGINE RUN

Power supply position is “RUN” (Ignition switch ON with engine
running)

CRANKING

Power supply position is “CRANKING” (At engine cranking)

IGN Counter

0 - 39

The number of times that ignition switch is turned ON after DTC is detected
• The number is 0 when a malfunction is detected now.
• The number increases like 1

→

3...38

→

39 after returning to the normal condition

whenever ignition switch OFF

→

ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

INL-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

INFOID:0000000006483375

WORK SUPPORT

*: Factory setting

DATA MONITOR

JPLIA0093GB

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 2

7.5 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 3

15 sec.

MODE 4*

30 sec.

SET I/L D-UNLCK INTCON

On*

With the interior room lamp timer function

Off

Without the interior room lamp timer function

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from request switch (passenger side)

REQ SW-RR
[On/Off]

NOTE:
The item is indicated, but not monitored.

REQ SW-RL
[On/Off]

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

INL-13

< SYSTEM DESCRIPTION >

INL

ACTIVE TEST

BATTERY SAVER

BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)

INFOID:0000000006483376

WORK SUPPORT

*:Factory setting

PUSH SW
[On/Off]

Push switch status received from Intelligent Key unit by CAN communication

UNLK SEN -DR
[On/Off]

Driver door unlock status input from unlock sensor

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW- RL
[On/Off]

The switch status input from rear door switch LH

DOOR SW- BK
[On/Off]

The switch status input from back door switch

CDL LOCK SW
[On/Off]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status input from door lock and unlock switch

TRNK/HAT MNTR
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL LK-SW
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL UN-SW
[On/Off]

NOTE:
The item is indicated, but not monitored

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

Outputs the interior room lamp control signal to turn the interior room lamps ON.
[Map lamp, room lamp (when applicable lamps switch is in DOOR position.)]

Off

Stops the interior room lamp control signal to turn the interior room lamps.

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1

30 min.

Sets the interior room lamp battery saver timer operating
time.

MODE 2

60 min.

MODE 3

15 min.

BATTERY SAVER SET

With the exterior lamp battery saver function

Off

Without the exterior lamp battery saver function

ROOM LAMP BAT SAV SET

With the interior room lamp battery saver function

Off

Without the interior room lamp battery saver function

INL-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

DATA MONITOR

ACTIVE TEST

*: Each lamp switch is in ON position.

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from front request switch (passenger side)

REQ SW-RR
[On/Off]

NOTE:
The item is indicated, but not monitored.

REQ SW-RL
[On/Off]

PUSH SW
[On/Off]

Push switch status received from Intelligent Key unit by CAN communication

UNLK SEN-DR
[On/Off]

Driver door unlock status input from unlock sensor

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW- RL
[On/Off]

The switch status input from rear door switch LH

DOOR SW- BK
[On/Off]

The switch status input from back door switch

CDL LOCK SW
[On/Off]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status input from door lock and unlock switch

TRNK/HAT MNTR
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL LK-SW
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL UN-SW
[On/Off]

NOTE:
The item is indicated, but not monitored

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

Test item

Operation

Description

BATTERY SAVER

Off

Cuts the interior room lamp power supply to turn interior room lamps OFF.

Outputs the interior room lamp power supply to turn interior room lamps ON.*

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

INL-15

< SYSTEM DESCRIPTION >

INL

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000006484308

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

: Applicable item

*: This item is not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT-III.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM. Refer to CONSULT-III opera-
tion manual.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

Rear window defogger

REAR DEFOGGER

Warning chime

BUZZER

Interior room lamp timer

INT LAMP

Exterior lamp

HEAD LAMP

Wiper and washer

WIPER

Turn signal and hazard warning lamps

FLASHER

—

AIR CONDITONER*

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

Combination switch

COMB SW

Body control system

BCM

IVIS - NATS

IMMU

Interior room lamp battery saver

BATTERY SAVER

Trunk lid open

TRUNK

Vehicle security system

THEFT ALM

RAP system

RETAINED PWR

Signal buffer system

SIGNAL BUFFER

I N L - 1 6

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

INT LAMP

CONSULT screen item

Indication/Unit

Description

Vehicle Speed

km/h

Vehicle speed of the moment a particular DTC is detected

Odo/Trip Meter

Total mileage (Odometer value) of the moment a particular DTC is detected

Vehicle Condition

SLEEP>LOCK

Power position status of
the moment a particular
DTC is detected

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “LOCK”)

SLEEP>OFF

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “OFF”.)

LOCK>ACC

While turning power supply position from “LOCK” to “ACC”

ACC>ON

While turning power supply position from “ACC” to “IGN”

RUN>ACC

While turning power supply position from “RUN” to “ACC” (Vehicle
is stopping and selector lever is except P position.)

CRANK>RUN

While turning power supply position from “CRANKING” to “RUN”
(From cranking up the engine to run it)

RUN>URGENT

While turning power supply position from “RUN“ to “ACC” (Emer-
gency stop operation)

ACC>OFF

While turning power supply position from “ACC” to “OFF”

OFF>LOCK

While turning power supply position from “OFF” to “LOCK”

OFF>ACC

While turning power supply position from “OFF” to “ACC”

ON>CRANK

While turning power supply position from “IGN” to “CRANKING”

OFF>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “OFF”.) to low power consumption mode

LOCK>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “LOCK”.) to low power consumption mode

LOCK

Power supply position is “LOCK” (Ignition switch OFF with steer-
ing is locked.)

OFF

Power supply position is “OFF” (Ignition switch OFF with steering
is unlocked.)

ACC

Power supply position is “ACC” (Ignition switch ACC)

Power supply position is “IGN” (Ignition switch ON with engine
stopped)

ENGINE RUN

Power supply position is “RUN” (Ignition switch ON with engine
running)

CRANKING

Power supply position is “CRANKING” (At engine cranking)

IGN Counter

0 - 39

The number of times that ignition switch is turned ON after DTC is detected
• The number is 0 when a malfunction is detected now.
• The number increases like 1

→

3...38

→

39 after returning to the normal condition

whenever ignition switch OFF

→

ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

INL-17

< SYSTEM DESCRIPTION >

INL

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

INFOID:0000000006484420

WORK SUPPORT

*: Factory setting

DATA MONITOR

JPLIA0093GB

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1

0 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 2

7.5 sec.

MODE 3

15 sec.

MODE 4*

30 sec.

SET I/L D-UNLCK INTCON

On*

With the interior room lamp timer function

Off

Without the interior room lamp timer function

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.

INL-18

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

ACTIVE TEST

BATTERY SAVER

BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)

INFOID:0000000006484421

WORK SUPPORT

Monitor item

[Unit]

Description

IGN ON SW
[On/Off]

Ignition switch (ON) status judges from IGN signal (ignition power supply)

KEY ON SW
[On/Off]

The switch status input from key switch

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW- RL
[On/Off]

The switch status input from rear door switch LH

BACK DOOR SW
[On/Off]

The switch status input from back door switch

LOCK STATUS
[On/Off]

The switch status input from door lock status switch (driver side)

CDL LOCK SW
[On/Off]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status input from door lock and unlock switch

KEYLESS LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

KEYLESS UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

TRNK/HAT MNTR
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL LK-SW
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL UN-SW
[On/Off]

NOTE:
The item is indicated, but not monitored

ACC ON SW
[On/Off]

Ignition switch (ACC) status judges from ACC signal (ACC power supply)

Test item

Operation

Description

INT LAMP

Outputs the interior room lamp control signal to turn the interior room lamps ON.
[Map lamp, room lamp (when applicable lamps switch is in DOOR position.)]

Off

Stops the interior room lamp control signal to turn the interior room lamps.

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1

30 min.

Sets the interior room lamp battery saver timer operating
time.

MODE 2

60 min.

MODE 3

15 min.

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

INL-19

< SYSTEM DESCRIPTION >

INL

*:Factory setting

DATA MONITOR

ACTIVE TEST

*: Each lamp switch is in ON position.

ROOM LAMP BAT SAV SET

With the interior room lamp battery saver function

Off

Without the interior room lamp battery saver function

Service item

Setting item

Setting

Monitor item

[Unit]

Description

IGN ON SW
[On/Off]

Ignition switch (ON) status judges from IGN signal (ignition power supply)

KEY ON SW
[On/Off]

The switch status input from key switch

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW- RL
[On/Off]

The switch status input from rear door switch LH

BACK DOOR SW
[On/Off]

The switch status input from back door switch

LOCK STATUS
[On/Off]

The switch status input from door lock status switch (driver side)

CDL LOCK SW
[On/Off]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status input from door lock and unlock switch

KEYLESS LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

KEYLESS UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

TRNK/HAT MNTR
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL LK-SW
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL UN-SW
[On/Off]

NOTE:
The item is indicated, but not monitored

ACC ON SW
[On/Off]

Ignition switch (ACC) status judges from ACC signal (ACC power supply)

Test item

Operation

Description

BATTERY SAVER

Off

Cuts the interior room lamp power supply to turn interior room lamps OFF.

Outputs the interior room lamp power supply to turn interior room lamps ON.*

INL-20

< ECU DIAGNOSIS INFORMATION >

BCM

ECU DIAGNOSIS INFORMATION

BCM

WITH INTELLIGENT KEY

WITH INTELLIGENT KEY : List of ECU Reference

INFOID:0000000006478947

WITHOUT INTELLIGENT KEY

WITHOUT INTELLIGENT KEY : List of ECU Reference

INFOID:0000000006478948

ECU

Reference

BCM

BCS-41, "Reference Value"

BCS-64, "Fail-safe"

BCS-66, "DTC Inspection Priority Chart"

BCS-67, "DTC Index"

ECU

Reference

BCM

BCS-125, "Reference Value"

BCS-140, "Fail-safe"

BCS-140, "DTC Inspection Priority Chart"

BCS-141, "DTC Index"

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-21

< WIRING DIAGRAM >

INL

WIRING DIAGRAM

INTERIOR ROOM LAMP CONTROL SYSTEM

Wiring Diagram

INFOID:0000000006484220

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation: if not

described in wiring diagram), refer to

GI-12, "Connector Information/Explanation of Option Abbreviation"

JCLWA4241GB

INL-22

< WIRING DIAGRAM >

INTERIOR ROOM LAMP CONTROL SYSTEM

JCLWA4242GB

ILLUMINATION

INL-23

< WIRING DIAGRAM >

INL

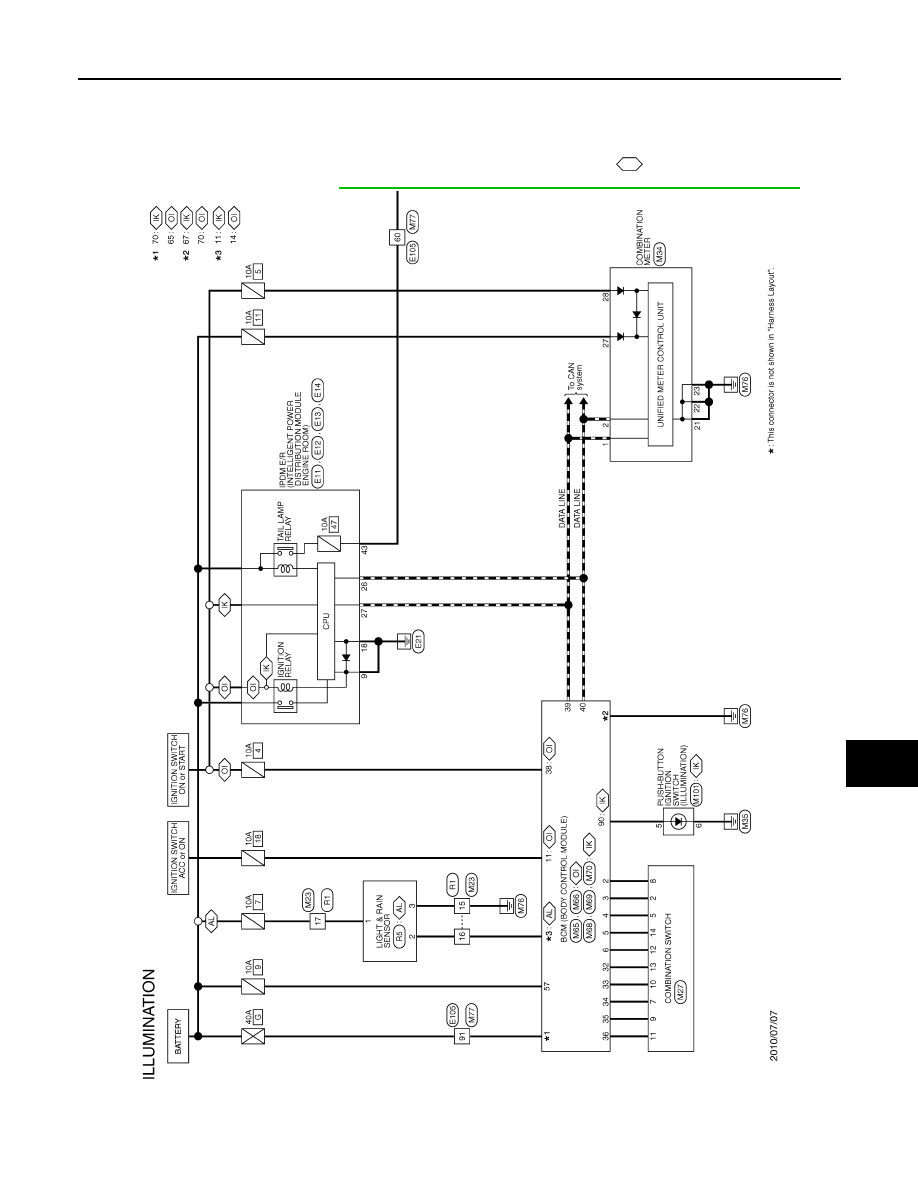

ILLUMINATION

Wiring Diagram

INFOID:0000000006484221

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation: if not

described in wiring diagram), refer to

GI-12, "Connector Information/Explanation of Option Abbreviation"

JCLWA4243GB

INL-24

< WIRING DIAGRAM >

ILLUMINATION

JCLWA4244GB

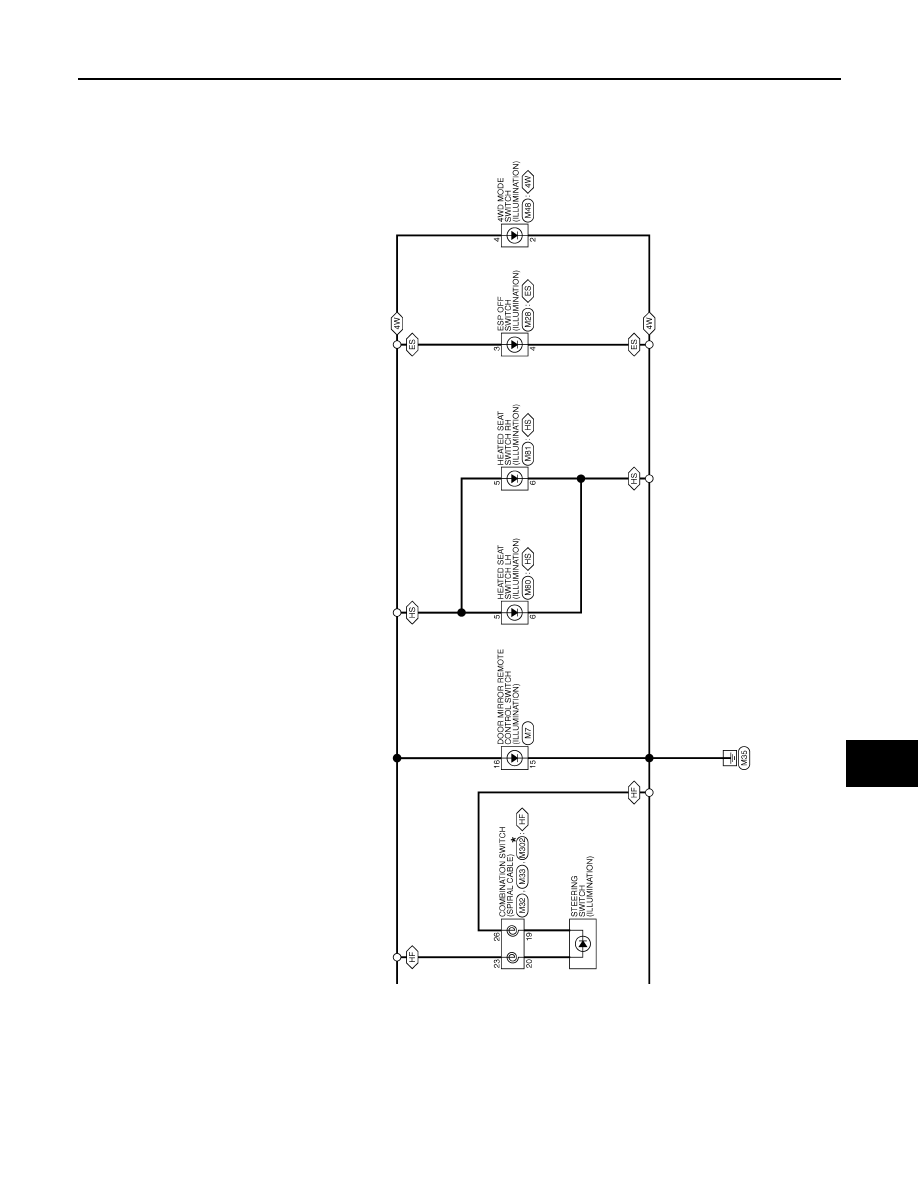

ILLUMINATION

INL-25

< WIRING DIAGRAM >

INL

JCLWA4245GB

INL-26

< BASIC INSPECTION >

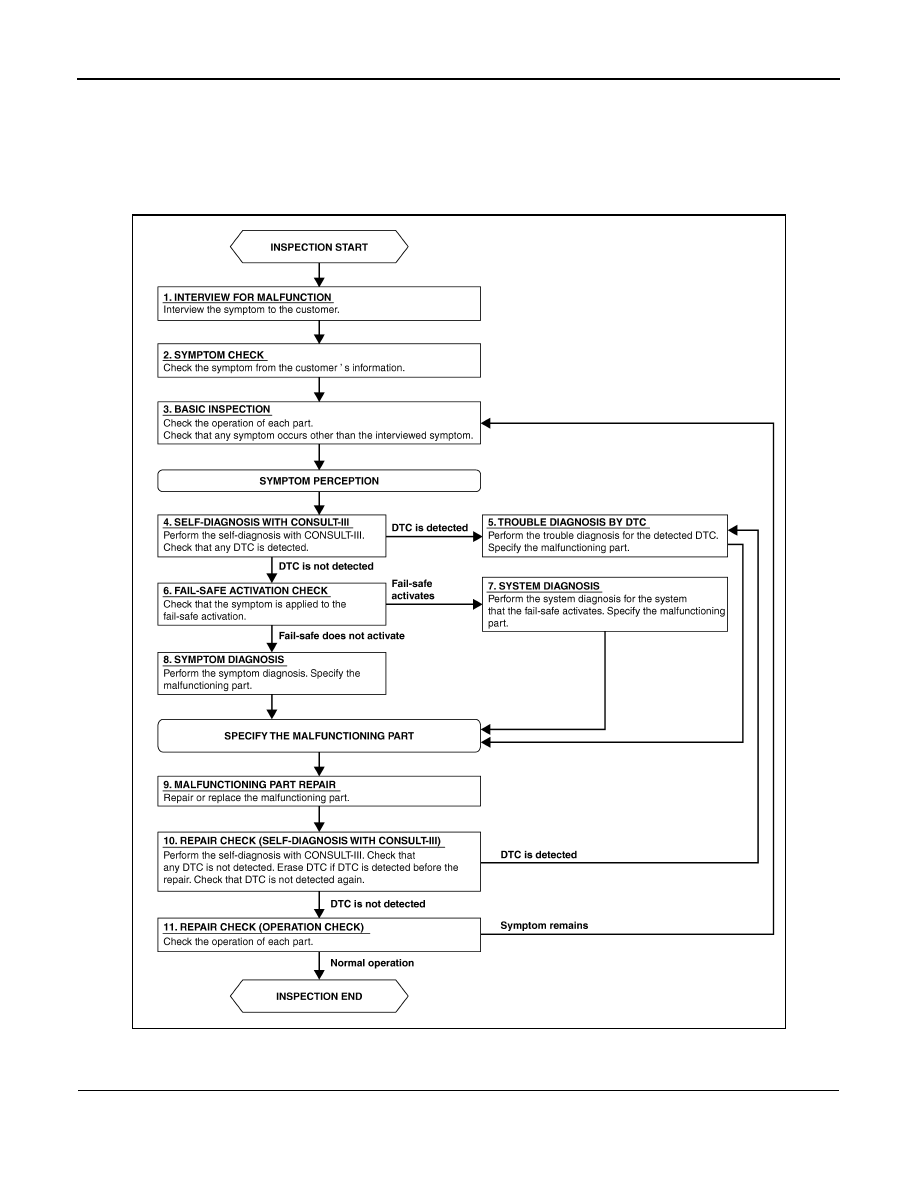

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000006478951

OVERALL SEQUENCE

DETAILED FLOW

INTERVIEW FOR MALFUNCTION

Interview the symptom to the customer.

JPLIA0313GB

Content .. 254 255 256 257 ..
