Juke F15 (2012 year). Service Repair Manual

INTAKE SENSOR

HAC-95

< REMOVAL AND INSTALLATION >

[TYPE 1]

HAC

INTAKE SENSOR

Exploded View

INFOID:0000000006545859

Refer to

HA-97, "Exploded View (Automatic Air Conditioning)"

Removal and Installation

INFOID:0000000006545860

REMOVAL

Remove evaporator assembly. Refer to

HA-115, "EVAPORATOR : Removal and Installation"

Remove intake sensor from evaporator.

INSTALLATION

Note the following items, and then install in the order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply the compressor oil to them when installing.
• Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor

can be located in the same position.

• Never rotate the bracket insertion part when removing and installing the intake sensor.
• Check for leakages when recharging refrigerant. Refer to

HA-74, "Leak Test"

POWER TRANSISTOR

HAC-97

< REMOVAL AND INSTALLATION >

[TYPE 1]

HAC

POWER TRANSISTOR

Exploded View

INFOID:0000000006545863

• *1: Manual air conditioner

• *2: Automatic air conditioner

Removal and Installation

INFOID:0000000006545864

REMOVAL

Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

. (LHD models)

Remove glove box assembly. Refer to

IP-13, "Removal and Installation"

. (RHD models)

Disconnect power transistor connector.

Slide power transistor (1) to the left while pressing lever (A), and
then remove power transistor.

INSTALLATION

Install in the reverse order of removal.

A/C unit assembly

Blower fan resistor*

Sub harness*

Power transistor*

Sub harness*

Blower motor

JPIIA1549ZZ

JPIIA1636ZZ

HAC-98

< REMOVAL AND INSTALLATION >

[TYPE 1]

DOOR MOTOR

DOOR MOTOR

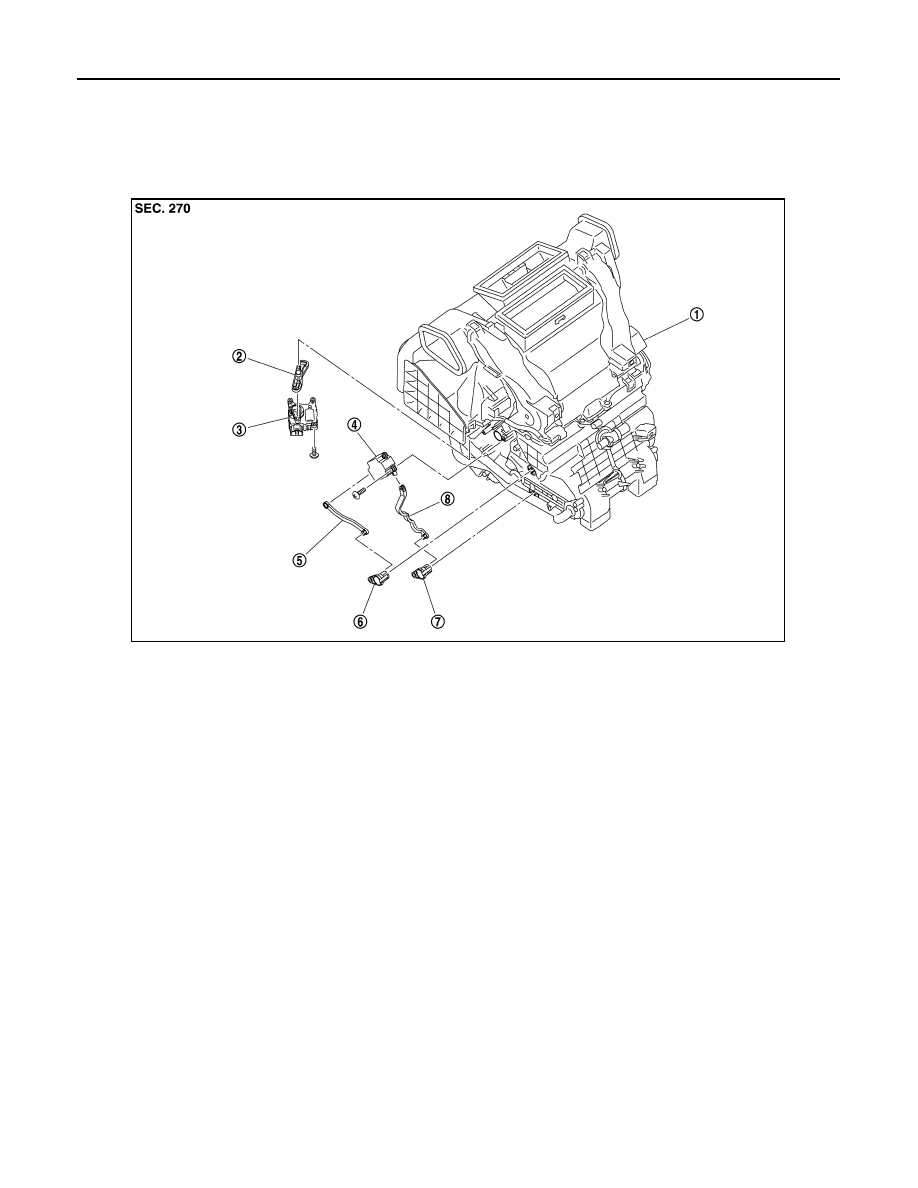

Exploded View

INFOID:0000000006545865

LEFT SIDE

RIGHT SIDE

A/C unit assembly

Intake door lever

Intake door motor

Air mix door motor

Upper air mix door rod

Upper air mix door lever

Lower air mix door lever

Lower air mix door rod

JPIIA1557ZZ

DOOR MOTOR

HAC-99

< REMOVAL AND INSTALLATION >

[TYPE 1]

HAC

INTAKE DOOR MOTOR

INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000006545866

REMOVAL

Remove instrument lower panel LH. Refer to

IP-13, "Removal and Installation"

. (LHD models)

Remove glove box assembly. Refer to

IP-13, "Removal and Installation"

. (RHD models)

Remove fixing screws (A), and then remove intake door motor
(1) from A/C unit assembly.

Disconnect intake door motor connector (2).

INSTALLATION

Install in the reverse order of removal.

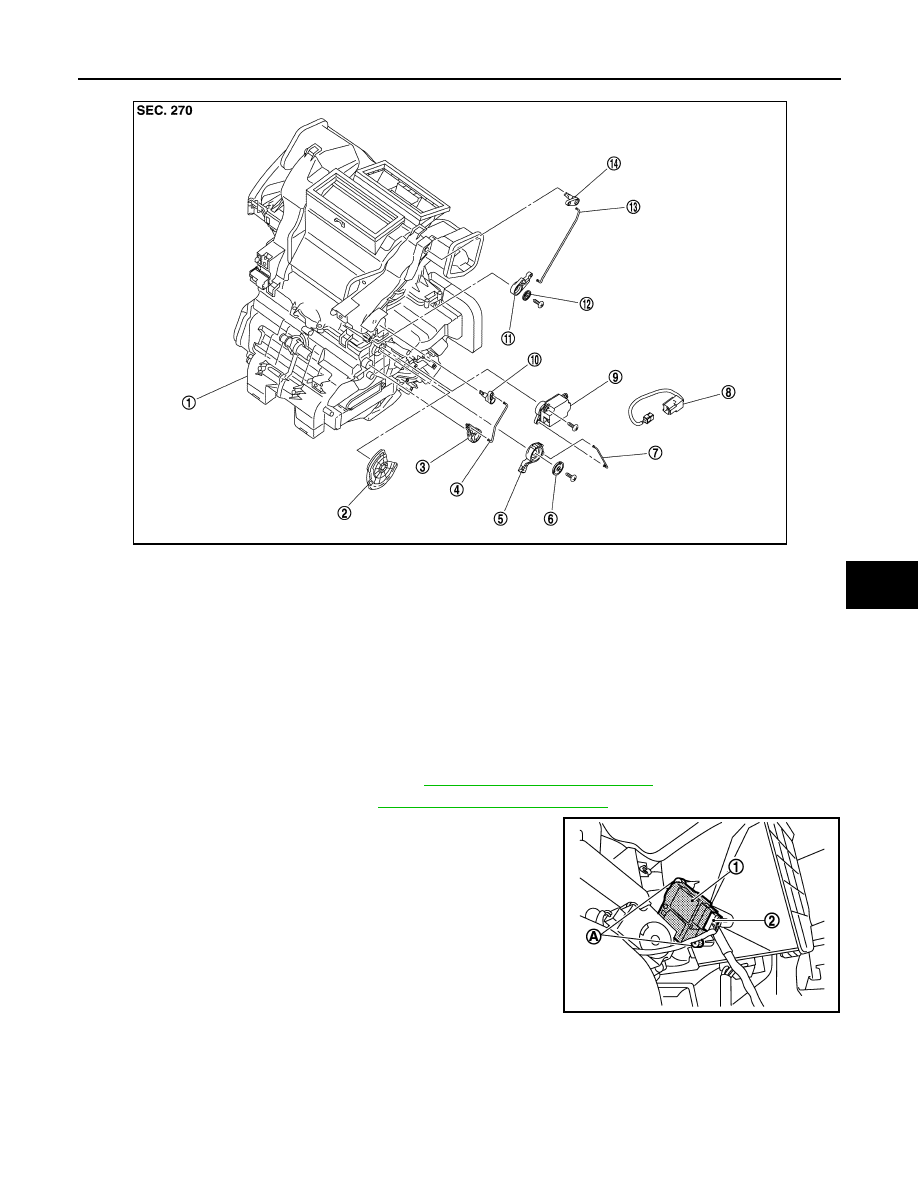

MODE DOOR MOTOR

A/C unit assembly

Main link

Sub defroster door link

Sub defroster door rod

Mode link

Plate

Mode link rod

Sub harness

Mode door motor

10. Sub defroster door lever

11.

Center ventilator and defroster door link

12. Plate

13. Center ventilator and defroster door rod 14. Center ventilator and defroster door lever

JPIIA1558ZZ

JMIIA0897ZZ

HAC-100

< REMOVAL AND INSTALLATION >

[TYPE 1]

DOOR MOTOR

MODE DOOR MOTOR : Removal and Installation

INFOID:0000000006545867

REMOVAL

Remove glove box assembly Refer to

IP-13, "Removal and Installation"

. (LHD models)

Remove instrument lower panel RH. Refer to

IP-13, "Removal and Installation"

. (RHD models)

Remove foot duct RH. Refer to

VTL-14, "FOOT DUCT : Removal and Installation"

Disconnect mode link rod from mode door motor.

Remove fixing screws (A), and then remove mode door motor
(1).

Disconnect mode door motor connector (2).

INSTALLATION

Install in the reverse order of removal.

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000006545868

REMOVAL

Remove instrument lower panel LH. Refer to

IP-13, "Removal and Installation"

. (LHD models)

Remove glove box assembly. Refer to

IP-13, "Removal and Installation"

. (RHD models)

Remove fixing screws (A), and then remove air mix door motor
(1) from A/C unit assembly.

Disconnect air mix door motor connector (2).

INSTALLATION

Install in the reverse order of removal.

JMIIA0896ZZ

JMIIA0898ZZ

APPLICATION NOTICE

HAC-101

< HOW TO USE THIS MANUAL >

[TYPE 2]

HAC

HOW TO USE THIS MANUAL

APPLICATION NOTICE

Information

INFOID:0000000006626855

Check the vehicle type to use the service information in this section.

Destination

Service information

Automatic air conditioning (4WD models)

“TYPE 1”

Automatic air conditioning (2WD models)

“TYPE 2”

Manual air conditioning (4WD models)

“TYPE 3”

Manual air conditioning (2WD models)

“TYPE 4”

Manual heater

“TYPE 5”

HAC-102

< PRECAUTION >

[TYPE 2]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006626860

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

The vehicle may be equipped with a passenger air bag deactivation switch. Because no rear seat exists where
a rear-facing child restraint can be placed, the switch is designed to turn off the passenger air bag so that a
rear-facing child restraint can be used in the front passenger seat. The switch is located in the center of the
instrument panel, near the ashtray. When the switch is turned to the ON position, the passenger air bag is
enabled and could inflate for certain types of collision. When the switch is turned to the OFF position, the pas-
senger air bag is disabled and will not inflate. A passenger air bag OFF indicator on the instrument panel lights
up when the passenger air bag is switched OFF. The driver air bag always remains enabled and is not affected
by the passenger air bag deactivation switch.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

• The vehicle may be equipped with a passenger air bag deactivation switch which can be operated by

the customer. When the passenger air bag is switched OFF, the passenger air bag is disabled and
will not inflate. When the passenger air bag is switched ON, the passenger air bag is enabled and
could inflate for certain types of collision. After SRS maintenance or repair, make sure the passenger
air bag deactivation switch is in the same position (ON or OFF) as when the vehicle arrived for ser-
vice.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

COMPONENT PARTS

HAC-103

< SYSTEM DESCRIPTION >

[TYPE 2]

HAC

SYSTEM DESCRIPTION

COMPONENT PARTS

AUTOMATIC AIR CONDITIONING SYSTEM

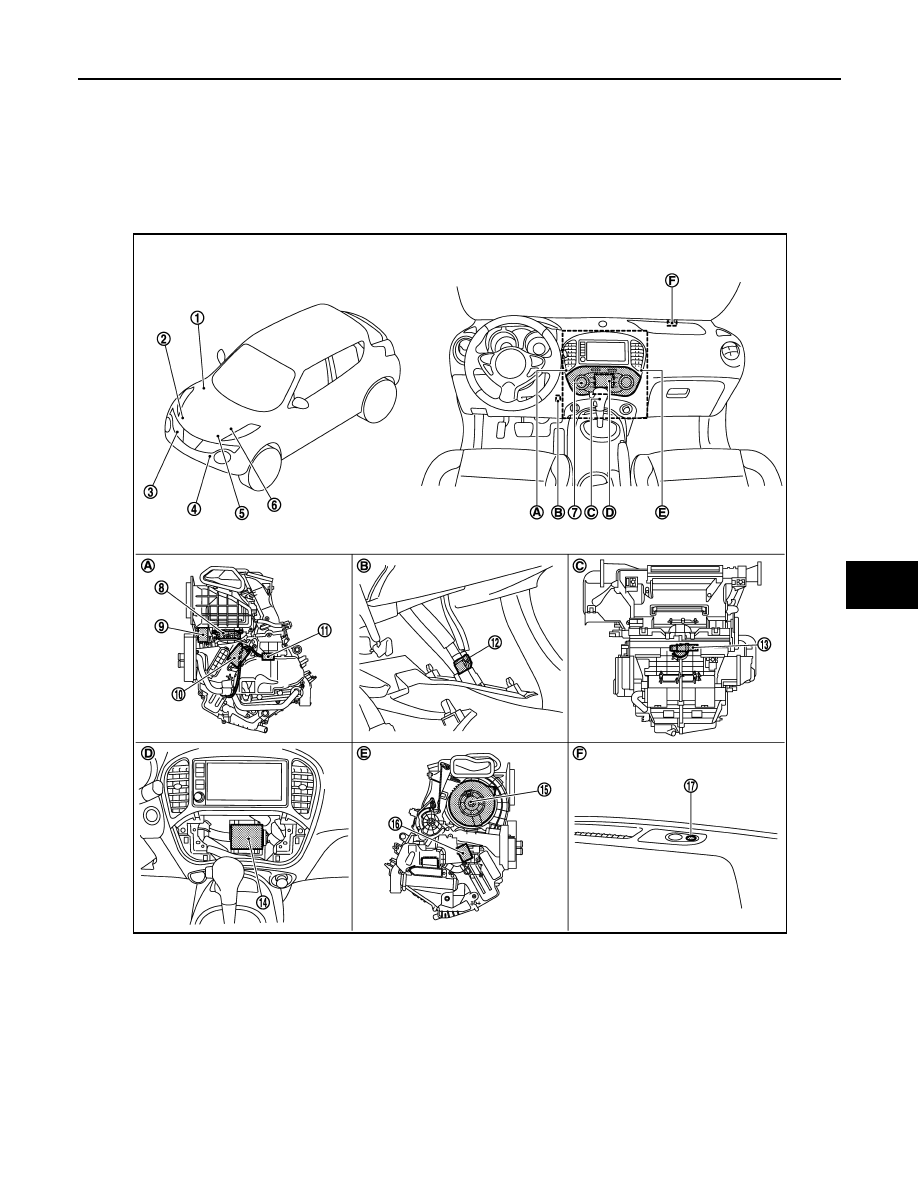

AUTOMATIC AIR CONDITIONING SYSTEM : Component Parts Location

INFOID:0000000006546650

JMIIA1056ZZ

HAC-104

< SYSTEM DESCRIPTION >

[TYPE 2]

COMPONENT PARTS

AUTOMATIC AIR CONDITIONING SYSTEM : Component Description

INFOID:0000000006546651

PTC HEATER CONTROL SYSTEM

BCM
• With Intelligent Key: Refer to

BCS-

6, "BODY CONTROL SYSTEM :
Component Parts Location"

• Without Intelligent Key: Refer to

BCS-96, "BODY CONTROL SYS-
TEM : Component Parts Loca-
tion"

Magnet clutch

Refrigerant pressure sensor

Ambient sensor

ECM
• HR16DE: Refer to

EC-455, "EN-

GINE CONTROL SYSTEM :
Component Parts Location"

• MR16DDT: Refer to

EC-25, "EN-

GINE CONTROL SYSTEM :
Component Parts Location"

• K9K: Refer to

EC-813, "Compo-

nent Parts Location"

IPDM E/R
• With Intelligent Key: Refer to

PCS-

5, "Component Parts Location"

• Without Intelligent Key: Refer to

PCS-37, "Component Parts Loca-
tion"

Multi display unit

Intake door motor

Fan control amp.

10. Air mix door motor

11.

Intake sensor

12. In-vehicle sensor

13. Aspirator

14. A/C auto amp.

15. Blower motor

16. Mode door motor

17. Sunload sensor

Left side of A/C unit assembly

Instrument lower panel LH is re-
moved

Back side of A/C unit assembly

Multi display unit is removed

Right side of A/C unit assembly

Right side of switch panel

Component

Description

A/C unit assembly

Aspirator

Intake sensor

Air mix door motor

Mode door motor

Intake door motor

Blower motor

Fan control amp.

Multi display unit

A/C auto amp.

BCM

ECM

IPDM E/R

Ambient sensor

In-vehicle sensor

Sunload sensor

Refrigerant pressure sensor

HAC-108

Magnet clutch

HAC-108

COMPONENT PARTS

HAC-105

< SYSTEM DESCRIPTION >

[TYPE 2]

HAC

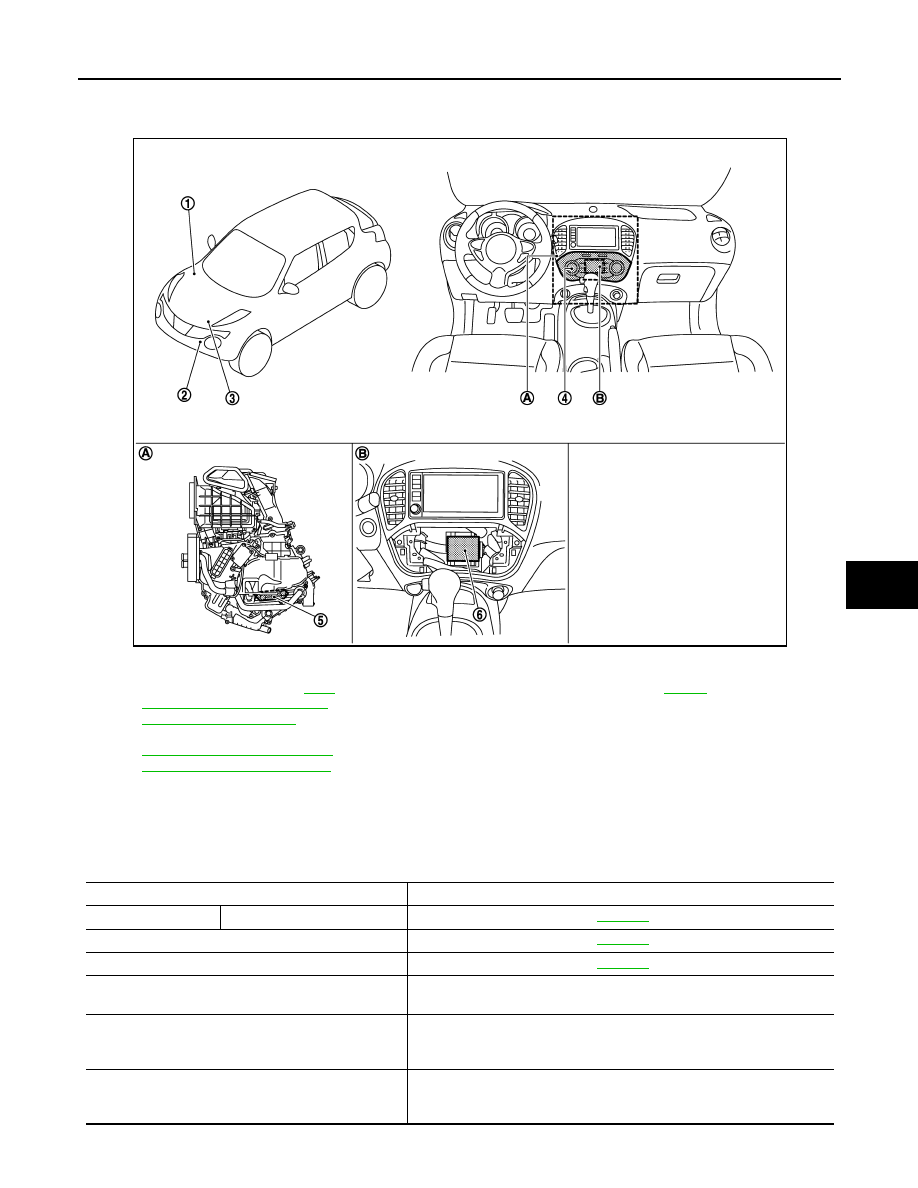

PTC HEATER CONTROL SYSTEM : Component Parts Location

INFOID:0000000006659829

PTC HEATER CONTROL SYSTEM : Component Description

INFOID:0000000006659830

BCM
• With Intelligent Key: Refer to

BCS-

6, "BODY CONTROL SYSTEM :
Component Parts Location"

• Without Intelligent Key: Refer to

BCS-96, "BODY CONTROL SYS-
TEM : Component Parts Location"

Ambient sensor

ECM
Refer to

EC-813

Multi display unit

PTC heater

A/C auto amp.

Left side of A/C unit assembly

Multi display unit is removed

JMIIA1061ZZ

Component parts

Description

A/C unit assembly

PTC heater

HAC-107

Ambient sensor

HAC-108

Multi display unit

HAC-107

A/C auto amp.

A/C auto amp. controls PTC heater control system by inputting and calcu-
lating signals from each sensor and fan control dial.

BCM

BCM transmits electrical load signal (high beam request signal, low beam
request signal, rear window defogger ON signal, and others) to A/C auto
amp. via CAN communication line.

ECM

ECM transmits engine speed signal, engine coolant temperature signal,
cooling fan speed request signal, and electrical power cut freeze signal to
A/C auto amp. via CAN communication line.

HAC-106

< SYSTEM DESCRIPTION >

[TYPE 2]

COMPONENT PARTS

A/C UNIT ASSEMBLY

A/C UNIT ASSEMBLY : Aspirator

INFOID:0000000006546652

The aspirator generates the vacuum by the air blown from the A/C
unit assembly and draws the air of the passenger room to the in-
vehicle sensor area via the aspirator duct.

A/C UNIT ASSEMBLY : Intake Sensor

INFOID:0000000006546653

Intake sensor measures temperature of evaporator fin temperature. The sensor uses a thermistor which is
sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature
increases.

A/C UNIT ASSEMBLY : Air Mix Door Motor

INFOID:0000000006546654

• Air mix door motor consists of motor that drives door, PBR (Potentio Balance Register) that detects door

position and LCU (Local Control Unit) that perform multiplex communication control (LIN) with A/C auto amp.
Refer to

HAC-114, "AUTOMATIC AIR CONDITIONING SYSTEM : Door Control"

• Rotation of motor is transmitted to air mix door (upper air mix door, lower air mix door, max. cool door) by

link, rod, and lever. Air flow temperature is switched.

A/C UNIT ASSEMBLY : Mode Door Motor

INFOID:0000000006546655

• Mode door motor consists of motor that drives door, PBR (Potentio Balance Register) that detects door posi-

tion and LCU (Local Control Unit) that perform multiplex communication control (LIN) with A/C auto amp.
Refer to

HAC-114, "AUTOMATIC AIR CONDITIONING SYSTEM : Door Control"

• Rotation of motor is transmitted to mode door (center ventilator door, side ventilator door, foot door, and

defroster door) by link, rod, and lever. Air outlet is switched.

A/C UNIT ASSEMBLY : Intake Door Motor

INFOID:0000000006546656

• Intake door motor consists of motor that drives door, PBR (Potentio Balance Register) that detects door

position and LCU (Local Control Unit) that perform multiplex communication control (LIN) with A/C auto amp.
Refer to

HAC-114, "AUTOMATIC AIR CONDITIONING SYSTEM : Door Control"

• Rotation of motor is transmitted to intake door by link and lever. Air inlet is switched.

A/C UNIT ASSEMBLY : Blower Motor

INFOID:0000000006546657

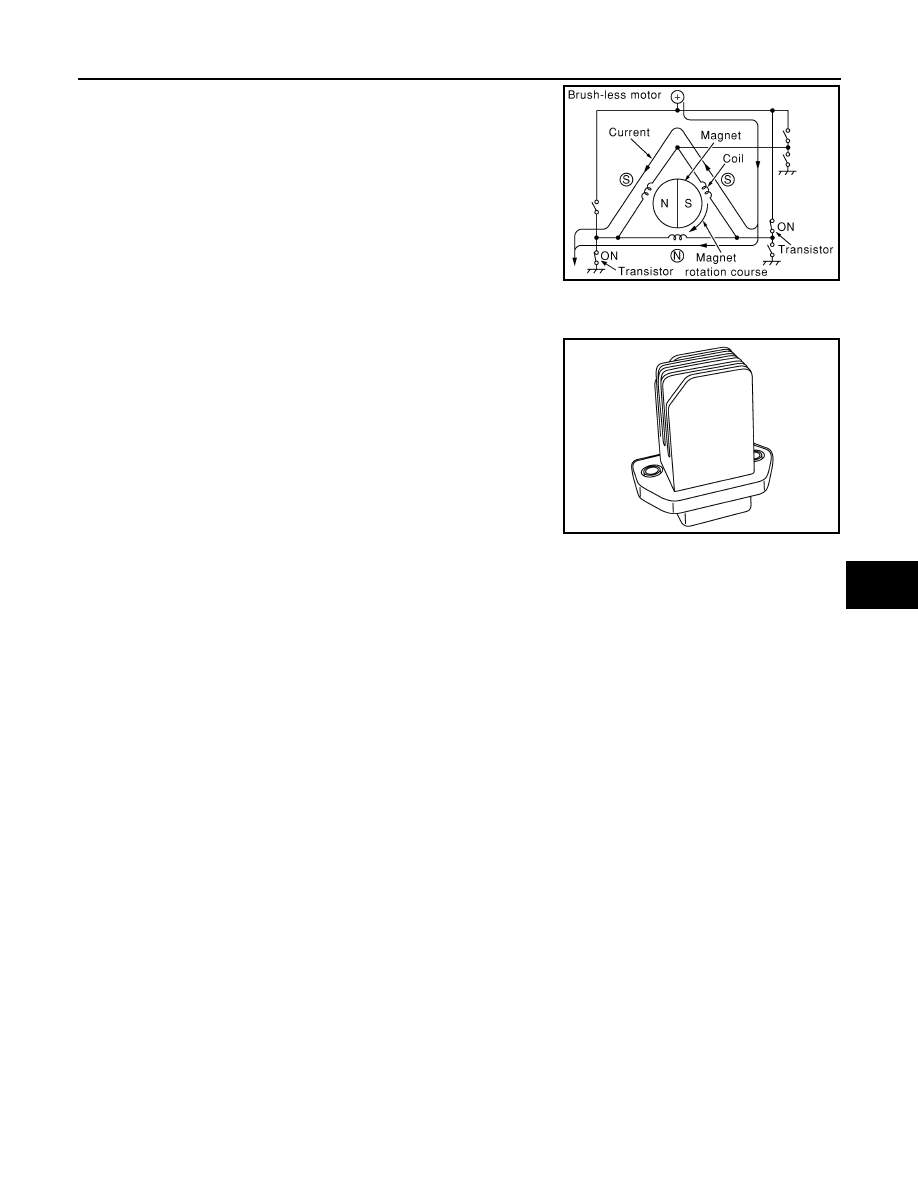

• The blower motor utilizes a brush-less motor with a rotating mag-

net.

• Quietness is improved over previous motors where the brush was

the point of contact and the coil rotated.

RJIA1804E

JPIIA1575ZZ

COMPONENT PARTS

HAC-107

< SYSTEM DESCRIPTION >

[TYPE 2]

HAC

A/C UNIT ASSEMBLY : Fan Control Amp.

INFOID:0000000006546658

• Fan control amp., that uses MOS field effect transistor, is adopted

for blower motor speed control.
NOTE:
MOS field effect transistor is a transistor for which the gate portion
is composed of a metal electrode on an oxide layer of semiconduc-
tor. Field effect transistor is controlled by voltage, while ordinary
transistor is controlled by current. Electrode of field effect transistor
is called source, drain, or gate, while electrode of ordinary transis-
tor is called emitter, collector, or base.

• Fan control amp. continuously controls voltage to blower motor,

according to gate voltage from A/C auto amp.

• This power transistor does not require a HI relay even when the

maximum voltage is applied to blower motor at HI status, because voltage drop is nominal.

A/C UNIT ASSEMBLY : PTC Heater

INFOID:0000000006659833

Heat element is heated and air flow temperature is increased by power supply from PTC relay.

Multi Display Unit

INFOID:0000000006696889

• Multi display unit integrates display and operation switches.
• Operation of each switch (A/C operation signal) and setting status (A/C ECO setting signal and ECO mode

signal) are transmitted to A/C auto amp. via CAN communication.

• Operation status of air conditioning system is indicated in the display according to A/C display signal that is

received from A/C auto amp.

A/C Auto Amp.

INFOID:0000000006546659

A/C auto amp. controls automatic air conditioning system by inputting and calculating signals from each sen-
sor and each switch. A/C auto amp. has self-diagnosis function. Diagnosis of automatic air conditioning sys-
tem can be performed quickly.

BCM

INFOID:0000000006546660

BCM transmits A/C ON signal and blower fan ON signal from A/C auto amp. to ECM via CAN communication
line.

ECM

INFOID:0000000006546661

• ECM, when receiving A/C ON signal and blower fan ON signal from BCM, transmits A/C compressor request

signal to IPDM E/R via CAN communication according to status of the engine and refrigerant pressure.

• ECM transmits engine coolant temperature signal to A/C auto amp. via CAN communication line.

IPDM E/R

INFOID:0000000006546662

A/C relay is integrated in IPDM E/R. IPDM E/R operates A/C relay when A/C compressor request signal is
received from ECM via CAN communication line.

ZHA152H

JPIIA0217ZZ

HAC-108

< SYSTEM DESCRIPTION >

[TYPE 2]

COMPONENT PARTS

Ambient Sensor

INFOID:0000000006546664

Ambient sensor measures ambient air temperature. The sensor uses a thermistor which is sensitive to the
change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

In-vehicle Sensor

INFOID:0000000006546665

In-vehicle sensor measures temperature of intake air that flows through aspirator to passenger room. The sen-
sor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the ther-
mistor decreases as temperature increases.

Sunload Sensor

INFOID:0000000006546666

Sunload sensor measures sunload amount. This sensor converts sunload amount to voltage signal by photo-
diode and transmits to A/C auto amp.

Refrigerant Pressure Sensor

INFOID:0000000006546667

DESCRIPTION

• The refrigerant pressure sensor converts high-pressure side refrigerant pressure into voltage and outputs it

to ECM.

• ECM operates cooling system protection and idle speed control according to voltage value that is input.

STRUCTURE AND OPERATION

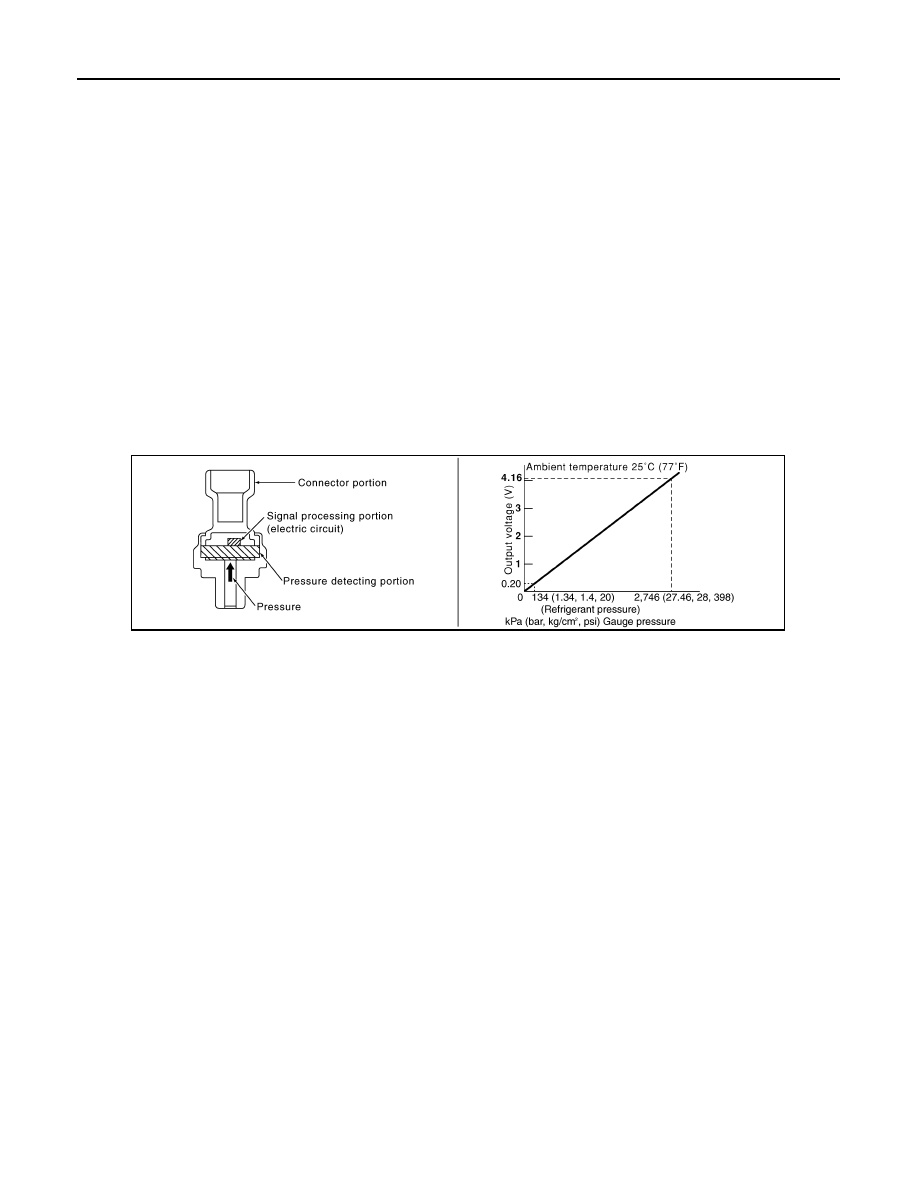

• The refrigerant pressure sensor is a capacitance type sensor. It consists of a pressure detection ares and a

signal processing area.

• The pressure detection area, which is a variable capacity condenser, changes internal static capacitance

according to pressure force.

• The signal processing area detects the static capacitance of the pressure detection area, converts the static

capacitance into a voltage value, and transmits the voltage value to ECM.

Magnet Clutch

INFOID:0000000006546668

Compressor is driven by the magnet clutch which is magnetized by electric power supply.

PBIB2657E

SYSTEM

HAC-109

< SYSTEM DESCRIPTION >

[TYPE 2]

HAC

SYSTEM

AUTOMATIC AIR CONDITIONING SYSTEM

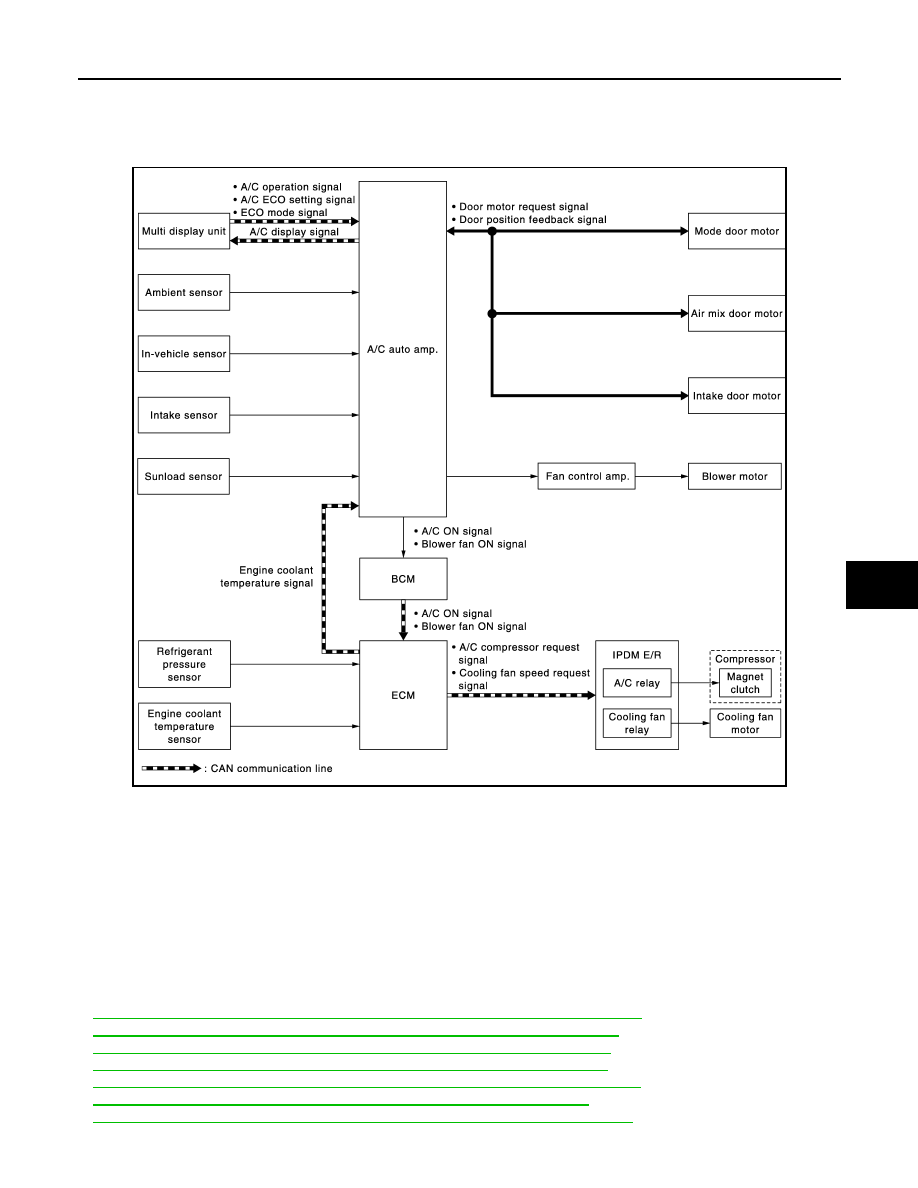

AUTOMATIC AIR CONDITIONING SYSTEM : System Diagram

INFOID:0000000006546669

AUTOMATIC AIR CONDITIONING SYSTEM : System Description

INFOID:0000000006546670

DESCRIPTION

• Automatic air conditioning system is controlled by each function of A/C auto amp., BCM, ECM and IPDM E/

• Each operation of air conditioning system is transmitted from multi display unit via CAN communication. A/C

auto amp. transmits each type of indication information (A/C display signal) to multi display unit via CAN
communication. Multi display unit displays each type of indication information (A/C display signal) that is
received.

CONTROL BY A/C AUTO AMP.

•

HAC-111, "AUTOMATIC AIR CONDITIONING SYSTEM : Temperature Control"

•

HAC-111, "AUTOMATIC AIR CONDITIONING SYSTEM : Air Outlet Control"

•

HAC-111, "AUTOMATIC AIR CONDITIONING SYSTEM : Air Flow Control"

•

HAC-112, "AUTOMATIC AIR CONDITIONING SYSTEM : Air Inlet Control"

•

HAC-112, "AUTOMATIC AIR CONDITIONING SYSTEM : Compressor Control"

•

HAC-114, "AUTOMATIC AIR CONDITIONING SYSTEM : Door Control"

•

HAC-116, "AUTOMATIC AIR CONDITIONING SYSTEM : ECO Mode Control"

• Correction for input value

JMIIA1057GB

HAC-110

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM

Ambient temperature correction

- The A/C auto amp. inputs the temperature detected with the ambient sensor as the ambient temperature.
- Perform the correction of the temperature detected with the ambient sensor for air conditioning control.
- Select and use the initial value of ambient temperature data depending on the engine coolant temperature

when turning the ignition switch from OFF to ON. Use the detection temperature of the ambient sensor at
low coolant temperature [less than approximately 56

C (133

F)]. Use the memory data (before the ignition

switch is OFF) when the engine is warming up [approximately 56

C (133

F) or more].

- Do not perform the correction of the ambient temperature when the detection temperature of the ambient

temperature is less than approximately

−

C (–4

F).

Passenger room temperature correction

- The A/C auto amp. inputs the temperature detected with the in-vehicle sensor as the passenger room tem-

perature.

- Perform the correction of the temperature detected with the in-vehicle sensor for air conditioning control.
- The A/C auto amp. performs the correction so that the recognition passenger room temperature changes

depending on the difference between the detected passenger room temperature and the recognition pas-
senger room temperature. If the difference is large, the changing is early. The changing becomes slow as
the difference becomes small.

Intake temperature correction

- The A/C auto amp. inputs the temperature detected with the intake sensor as the intake temperature.
- Perform the correction of the temperature detected with the intake sensor for air conditioning control.
- The A/C auto amp. performs the correction so that the recognition intake temperature changes depending

on the difference between the detected intake temperature and the recognition intake temperature. If the dif-
ference is large, the changing is early. The changing becomes slow as the difference becomes small.

Sunload amount correction

- The A/C auto amp. inputs the sunload amount detected with the sunload sensor.
- Perform the correction of the sunload amount detected with the sunload sensor for air conditioning control.
- When the sunload amount suddenly changes, for example when entering a tunnel, perform the correction so

that the recognition sunload amount of the A/C auto amp. changes slowly.

Set temperature correction

- A/C auto amp. controls The A/C auto amp. performs the correction to the target temperature set by the tem-

perature control switch so as to match the temperature felt by the passengers depending on the ambient
temperature detected with the ambient sensor and controls it so that the interior air temperature is always
the most suitable.

CONTROL BY BCM

•

HAC-112, "AUTOMATIC AIR CONDITIONING SYSTEM : Compressor Control"

CONTROL BY ECM

•

HAC-112, "AUTOMATIC AIR CONDITIONING SYSTEM : Compressor Control"

• Cooling fan control
- HR16DE: Refer to

EC-479, "COOLING FAN CONTROL : System Description"

- MR16DDT: Refer to

EC-61, "COOLING FAN CONTROL : System Description"

- K9K: Refer to

EC-827, "COOLING FAN CONTROL : System Description"
