SQUEAK AND RATTLE TROUBLE DIAGNOSES

Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.

Inspection Procedure

INFOID:0000000006483498

Refer to Table of Contents for specific component removal and installation information.

INSTRUMENT PANEL

Most incidents are caused by contact and movement between:
1.

Cluster lid A and instrument panel

2.

Acrylic lens and combination meter housing

3.

Instrument panel to front pillar garnish

4.

Instrument panel to windshield

5.

Instrument panel mounting pins

6.

Wiring harnesses behind the combination meter

7.

A/C defroster duct and duct joint

These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.

CAUTION:

Never use silicone spray to isolate a squeak or rattle. If the area is saturated with silicone, the recheck
of repair becomes impossible.

CENTER CONSOLE

Components to pay attention to include:

1.

Shifter assembly cover to finisher

2.

A/C control unit and cluster lid C

3.

Wiring harnesses behind audio and A/C control unit

The instrument panel repair and isolation procedures also apply to the center console.

DOORS

Pay attention to the following:
1.

Finisher and inner panel making a slapping noise

2.

Inside handle escutcheon to door finisher

3.

Wiring harnesses tapping

4.

Door striker out of alignment causing a popping noise on starts and stops

Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. The areas can usually be insulated with felt cloth tape or insulator foam blocks to
repair the noise.

TRUNK

Trunk noises are often caused by a loose jack or loose items put into the trunk by the customer.
In addition look for the following:

1.

Trunk lid dumpers out of adjustment

2.

Trunk lid striker out of adjustment

3.

Trunk lid torsion bars knocking together

4.

A loose license plate or bracket

Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.

SUNROOF/HEADLINING

Noises in the sunroof/headlining area can often be traced to one of the following:
1.

Sunroof lid, rail, linkage or seals making a rattle or light knocking noise

2.

Sunvisor shaft shaking in the holder

3.

Front or rear windshield touching headlining and squeaking

SQUEAK AND RATTLE TROUBLE DIAGNOSES

EXT-9

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.

SEATS

When isolating seat noise it is important to note the position the seat is in and the load placed on the seat
when the noise occurs. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:

1.

Headrest rods and holder

2.

A squeak between the seat pad cushion and frame

3.

Rear seatback lock and bracket

These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.

UNDERHOOD

Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:

1.

Any component mounted to the engine wall

2.

Components that pass through the engine wall

3.

Engine wall mounts and connectors

4.

Loose radiator mounting pins

5.

Hood bumpers out of adjustment

6.

Hood striker out of adjustment

These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

EXT-10

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

Diagnostic Worksheet

INFOID:0000000006483499

PIIB8740E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

EXT-11

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

PIIB8742E

EXT-12

< REMOVAL AND INSTALLATION >

FRONT BUMPER

REMOVAL AND INSTALLATION

FRONT BUMPER

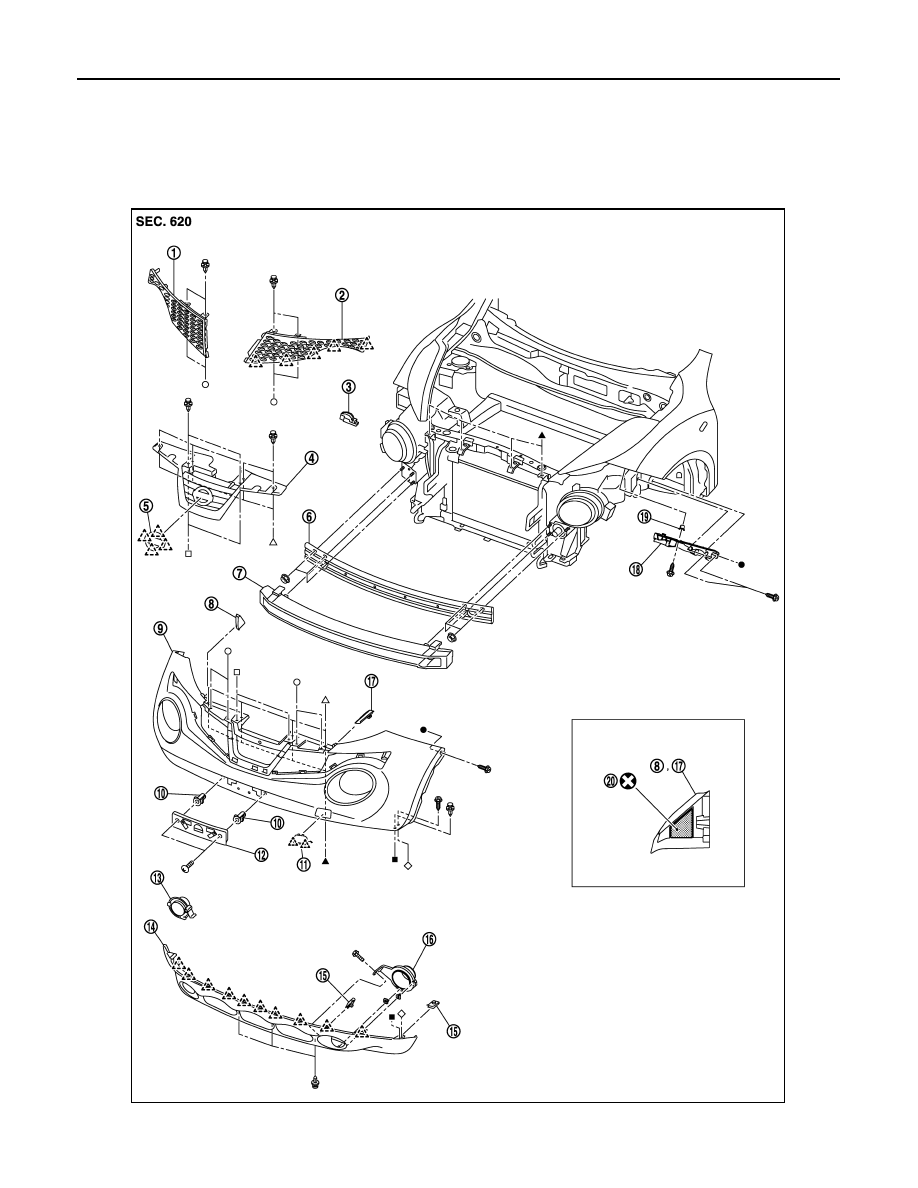

Exploded View

INFOID:0000000006479267

JMKIA5631GB

FRONT BUMPER

EXT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000006479268

CAUTION:

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with
oil.

REMOVAL

1.

Fully open hood assembly.

2.

Remove clips (A) of bumper upper side.

3.

Remove front fillet molding front side. Refer to

EXT-26, "FRONT FILLET MOLDING : Removal and Instal-

lation"

.

4.

Remove bumper fascia assembly fixing screws (A) (LH and
RH).

5.

Remove air guide fixing screws, and then remove air guide (LH and RH).Refer to

EXT-22, "Exploded

View"

.

6.

Remove clips of bumper lower side.

1.

Front side grille RH

2.

Front side grille LH

3.

Bumper side bracket RH

4.

Front center grille

5.

Emblem

6.

Bumper reinforcement

7.

Energy absorber

8.

Bumper end rubber RH

9.

Bumper fascia

10.

Screw grommet

11.

Bumper bracket cover

12.

License plate bracket

13.

Front fog bracket RH

14.

Bumper fascia lower

15.

U nut

16.

Front fog bracket LH

17.

Bumper end rubber LH

18.

Bumper side bracket LH

19.

Screw grommet

20.

double-sided tape
[t: 1.2 mm (0.047 in)]

: Pawl

: Do not reuse

JMKIA5593ZZ

JMKIA5559ZZ

EXT-14

< REMOVAL AND INSTALLATION >

FRONT BUMPER

7.

Pull bumper fascia side toward the vehicle side to disengage the
fitting of bumper side bracket and bumper fascia side as shown

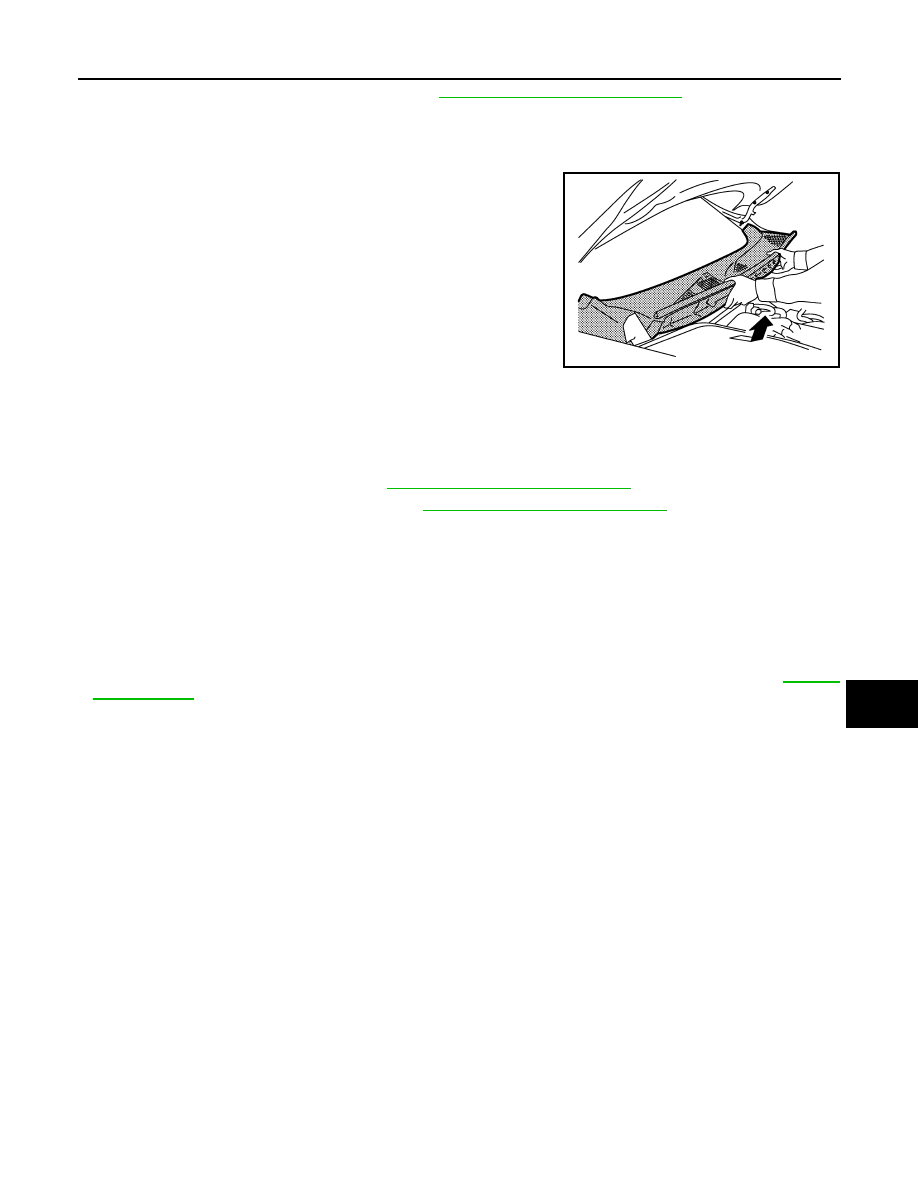

by the arrow in the figure.

8.

CAUTION:

When removing bumper fascia assembly, 2 workers are
required so as to prevent it from dropping.

9.

Disconnect front fog lamp harness connectors. (with fog lamp)

10. Remove bumper fascia assembly.

11. Remove the following parts after removing bumper fascia assembly.

• Front fog lamp assembly (LH and RH). (with fog lamp)
• Front fog lamp finishers (LH and RH). (with out fog lamp)
• Bumper fascia lower
• License plate bracket

12. Remove bumper energy absorber.

13. Remove bumper reinforcement mounting nuts, and then remove bumper reinforcement.

14. Remove bumper side bracket mounting screws, and then remove bumper side bracket.

INSTALLATION

Note the following items, and then install in the reverse order of removal.
NOTE:
• The following table shows the specified values for checking normal installation status.
• Fitting adjustment cannot be performed.

: Pawl

JMKIA5592ZZ

JMKIA5560ZZ

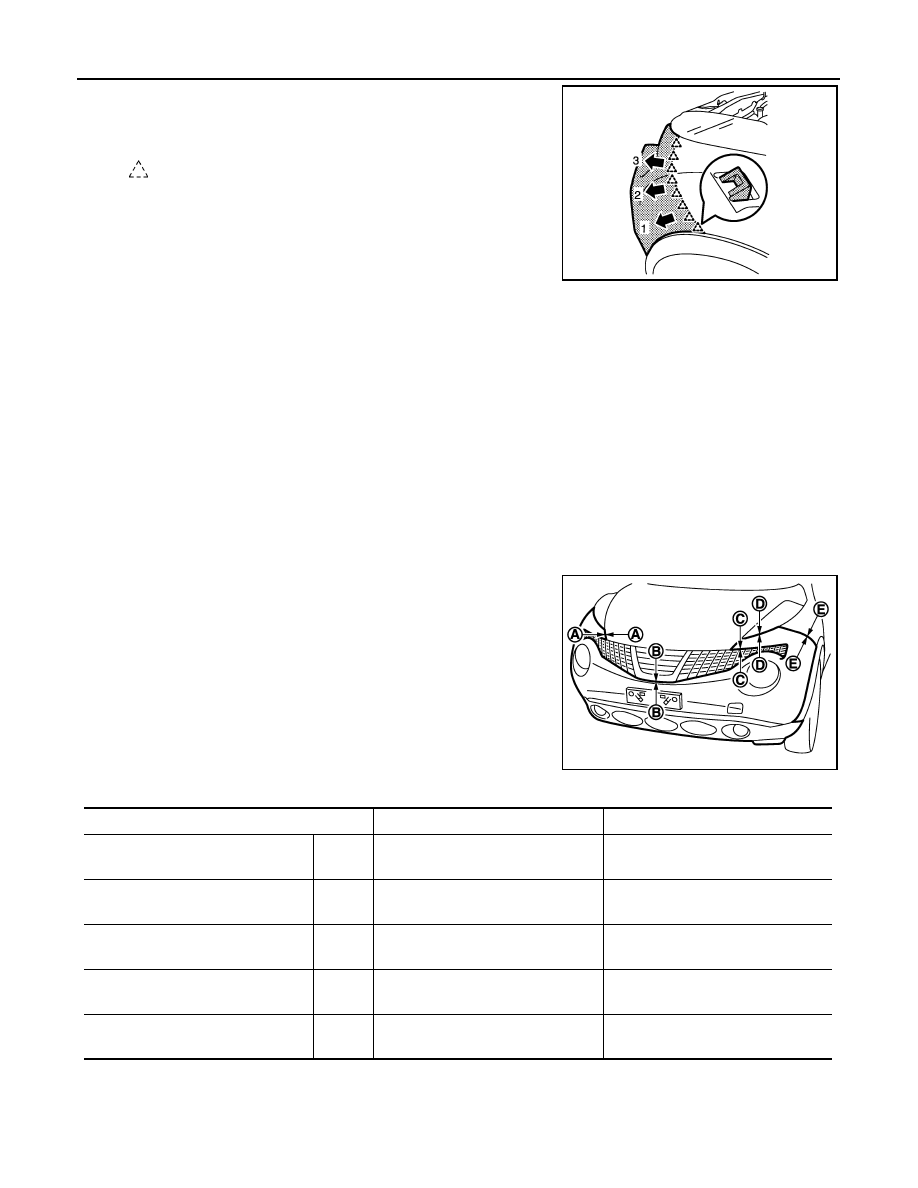

Portion Clearance

Surface

height

difference

Bumper fascia assembly –
Hood

A – A

2.0 – 6.0 mm

(0.079 – 0.236 in)

(

−

0.2) – (+0.1) mm

[(

−

0.008) – (+0.004) in]

Bumper fascia assembly –
Front center grille

B – B

0.3 – 2.7 mm

(0.012 – 0.106 in)

—

Bumper fascia assembly –
Front side grille

C – C

0.5 – 2.5 mm

(0.020 – 0.098 in)

—

Bumper fascia assembly –
Front combination lamp

D – D

0.5 – 3.5 mm

(0.020 – 0.138 in)

—

Bumper fascia assembly –
Front fender

E – E

0.0 – 1.0 mm

(0.000 –0.039 in)

(

−

0.39) – (+1.7) mm

[(

−

0.012) – (+0.067) in]

REAR BUMPER

EXT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REAR BUMPER

Exploded View

INFOID:0000000006479269

1.

Bumper side bracket LH

2.

Bumper closing LH

3.

Bumper fascia assembly

4.

Reflex reflector LH

5.

Rear panel lower

6.

U nut

7.

Bumper fascia lower

8.

Reflex reflector RH

9.

Bumper stay LH

JMKIA5647GB

EXT-16

< REMOVAL AND INSTALLATION >

REAR BUMPER

Removal and Installation

INFOID:0000000006479270

CAUTION:

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with
oil.

REMOVAL

1.

Fully open back door.

2.

Remove bumper fascia mounting screws of rear combination lamp (LH and RH) lower side.

3.

Remove rear fillet molding rear side. Refer to

EXT-27, "REAR FILLET MOLDING : Removal and Installa-

tion"

.

4.

Remove bumper closing.

5.

Remove clips of bumper lower side.

6.

Remove bumper fascia assembly fixing screws (A) (LH and
RH).

7.

Pull bumper fascia side toward the vehicle side to disengage the
fitting of bumper side bracket and bumper fascia side as shown

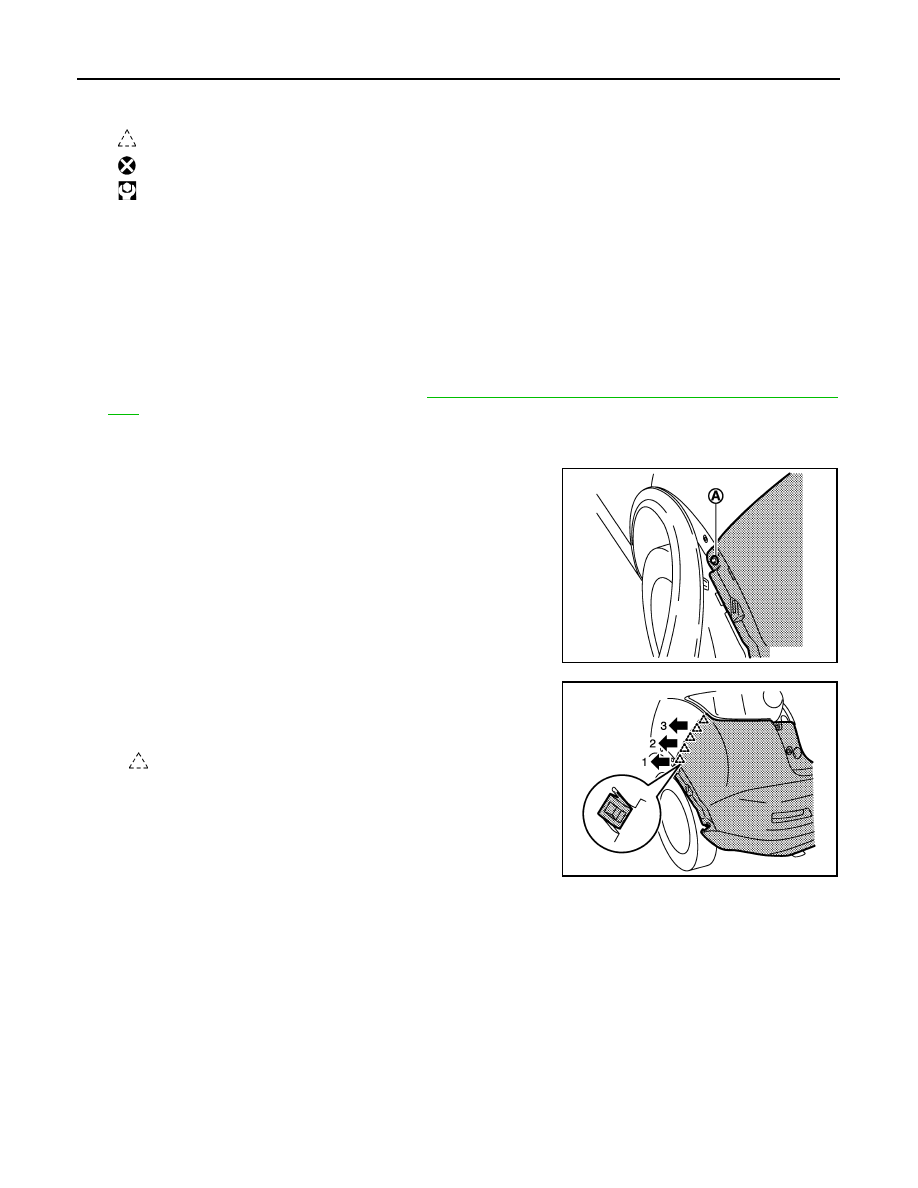

by the arrow in the figure.

CAUTION:

When removing bumper fascia, 2 workers are required so
as to prevent it from dropping.

8.

Disconnect rear fog lamp harness connector.

9.

Remove bumper fascia assembly.

10. Remove the following parts after removing rear bumper fascia.

• Bumper fascia lower
• Bumper finisher
• Reflex reflector (LH and RH).

11. Remove bumper energy absorber.
12. Remove rear panel lower.

13. Remove bumper stay (LH and RH).

14. Remove bumper side bracket fixing screws, and then remove bumper side bracket (LH and RH).

INSTALLATION

Note the following items, and then install in the reverse order of removal.

10.

screw grommet

11.

Bumper energy absorber

12.

Bumper stay RH

13.

Bumper closing RH

14.

Bumper side bracket RH

: Pawl

: Do not reuse

: N·m (kg-m, ft-lb)

JMKIA5561ZZ

: Pawl

JMKIA5564ZZ

REAR BUMPER

EXT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

NOTE:
• The following table shows the specified values for checking normal installation status.
• Fitting adjustment cannot be performed.

JMKIA5562ZZ

Portion

Clearance

Surface height difference

Bumper fascia assembly –
Rear fender

A – A

0.0 – 1.0 mm

(0.000 – 0.039 in)

(

−

0.3) – (+1.7) mm

[(

−

0.012) – (+0.067) in]

Bumper fascia assembly –
Rear combination lamp

B – B

0.2 – 3.0 mm

(0.008 – 0.118 in)

—

Bumper fascia assembly –
Back door

C – C

3.0 – 7.0 mm

(0.118 – 0.276 in)

0.0 – 4.0 mm

(0.000 – 0.157 in)

D – D

6.0 – 10.0 mm

(0.236 – 0.394 in)

0.0 – 4.0 mm

(0.000 – 0.157 in)

EXT-18

< REMOVAL AND INSTALLATION >

FRONT GRILLE

FRONT GRILLE

Exploded View

INFOID:0000000006479271

Removal and Installation

INFOID:0000000006479272

REMOVAL

CAUTION:

When remove front grilles (1) apply protective tape (A) on the
bumper fascia (2) to protect the painted surface from damage.

1.

Fully open hood assembly.

1.

Bumper fascia assembly

2.

Front side grille RH

3.

Front center grille

4.

Emblem

5.

Front side grille LH

: Pawl

JMKIA5563ZZ

JMKIA5622ZZ

FRONT GRILLE

EXT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

2.

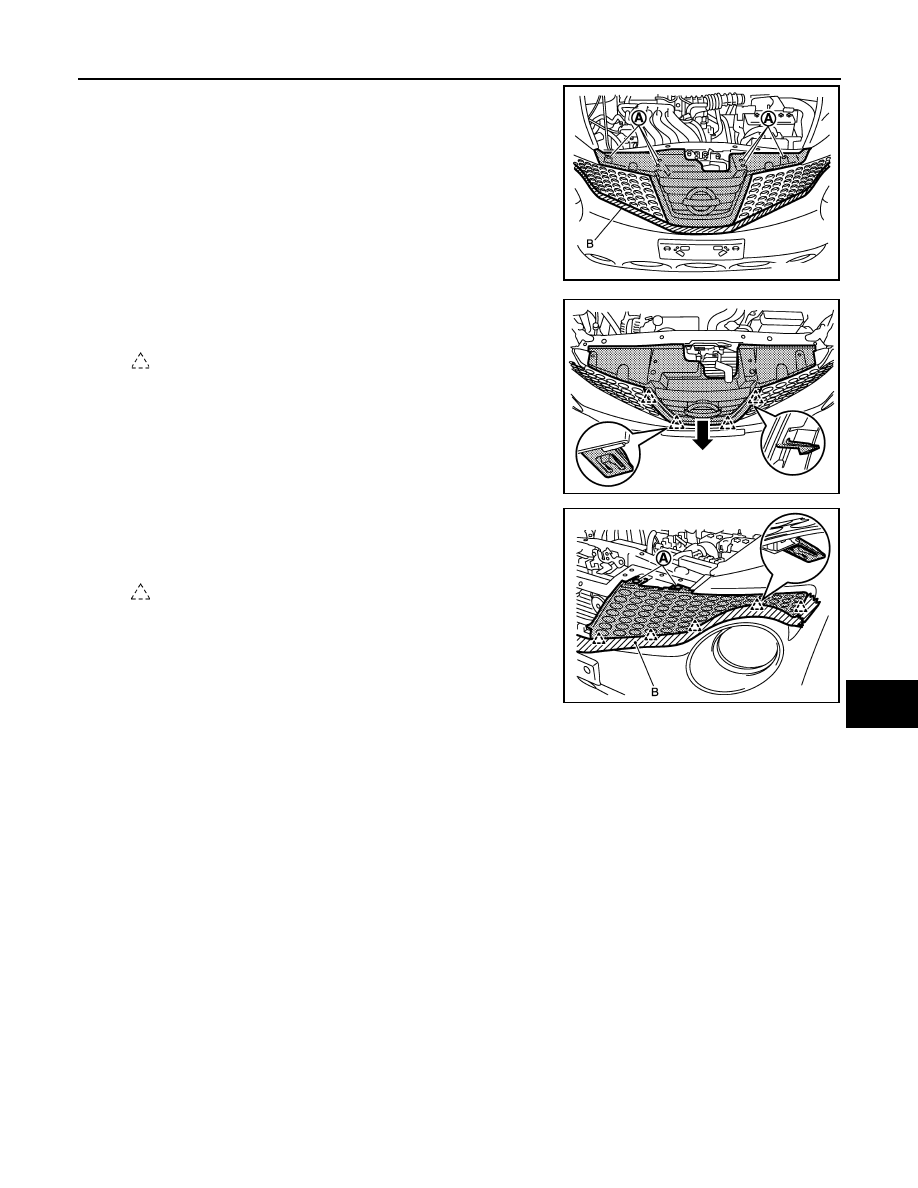

Remove front center grille upper fixing clips (A).

CAUTION:

Apply protective tape (B) around bumper fascia.

3.

Disengage fixing pawls from back side while pulling front center
grille to wade vehicle front, and then remove front center grille.

4.

Remove front side grille (LH and RH) upper fixing clips (A).

5.

Disengage fixing pawls from back side of front side grille (LH
and RH).

CAUTION:

Apply protective tape (B) around bumper fascia.

6.

Remove front side grille (LH and RH) to ward vehicle front.

7.

Remove emblem after removing front grille.

INSTALLATION

Install in the reverse order of removal.

JMKIA5623ZZ

: Pawl

JMKIA5756ZZ

: Pawl

JMKIA5624ZZ

EXT-20

< REMOVAL AND INSTALLATION >

COWL TOP

COWL TOP

Exploded View

INFOID:0000000006479273

LHD models

Removal and Installation

INFOID:0000000006479274

REMOVAL

1.

Fully open hood assembly.

JMKIA5620ZZ

1.

Front fender cover RH

2.

Cowl top cover seal

3.

Blind plug RH

4.

Cowl top cover

5.

Cowl top cover cap

6.

Cowl top extension

7.

EPT seal [t: 3.0 mm (0.118 in)]

8.

Air intake cover

9.

Blind plug LH

10. Front fender cover LH

11. Washer nozzle

: Clip

: Pawl

: Do not reuse

COWL TOP

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

2.

Remove front wiper arm (LH and RH). Refer to

WW-76, "Removal and Installation"

.

3.

Disconnect washer tube joint on cowl top cover RH.

4.

Remove front fender cover (LH and RH).

5.

Remove cowl top cover fixing clips.

6.

Pull forward to release cowl top cover from windshield glass.

CAUTION:

When performing the procedure after removing cowl top
cover, cover the lower end of windshield glass with ure-
thane etc.

7.

Remove cowl top cover.

8.

Remove the following parts after removing cowl top cover.
• EPT sealer
• Cowl top seal
• Washer tube
• Washer nozzle (LH and RH). Refer to

WW-87, "Removal and Installation"

.

9.

Remove front wiper drive assembly. Refer to

WW-80, "Removal and Installation"

.

10. Remove cowl top extension mounting bolts, and then remove cowl top extension.

INSTALLATION

Note the following items and then, install in the reverse order of removal.

CAUTION:

• Clean the joint between the cowl top cover and the windshield, and then install them.
• Replace the EPT sealer on the back surface with new EPT sealer when reusing the cowl top cover.
• Remove the EPT sealer remaining on the cowl top cover using a double-faced adhesive tape remove.
• To maintain adhesion, never wash the vehicle within 24 hours after installation.
• Perform the stop position adjustment at the installation of the front wiper arms. Refer to

WW-76,

"Adjustment"

.

JMKIA5621ZZ

EXT-22

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

FENDER PROTECTOR

Exploded View

INFOID:0000000006479275

Removal and Installation

INFOID:0000000006479276

REMOVAL

1.

Remove front fillet molding. Refer to

EXT-26, "FRONT FILLET MOLDING : Removal and Installation"

.

2.

Remove air guide fixing bolts, and then remove air guide.

3.

Remove front fender protector mounting screws and clips.

4.

Remove front fender protector from wheel house.

INSTALLATION

Install in the reverse order of removal.

1.

Hoodledge insurator

2.

Fender protector

3.

U nut

4.

Air guide

5.

Screw grommet

A.

To hoodledge panel

: Vehicle front

JMKIA5651ZZ

SILL COVER

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

SILL COVER

Exploded View

INFOID:0000000006479277

Removal and Installation

INFOID:0000000006479278

REMOVAL

1.

Remove sill cover front end fixing screw (A).

1.

Screw grommet

2.

Screw grommet

3.

Sill cover

4.

Wind deflector

JMKIA5581ZZ

JMKIA5565ZZ
