Juke F15 (2012 year). Service Repair Manual

APPLICATION NOTICE

DLK-17

< HOW TO USE THIS MANUAL >

[TYPE 1]

DLK

HOW TO USE THIS MANUAL

APPLICATION NOTICE

Information

INFOID:0000000006445314

Check the vehicle type to use the service information in this section.

Service information

Destination

Type 1

With Intelligent Key and super lock

Type 2

With Intelligent Key, without super lock

Type 3

Without Intelligent Key, with super lock

Type 4

Without Intelligent Key and super lock

DLK-18

< PRECAUTION >

[TYPE 1]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006635610

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

The vehicle may be equipped with a passenger air bag deactivation switch. Because no rear seat exists where
a rear-facing child restraint can be placed, the switch is designed to turn off the passenger air bag so that a
rear-facing child restraint can be used in the front passenger seat. The switch is located in the center of the
instrument panel, near the ashtray. When the switch is turned to the ON position, the passenger air bag is
enabled and could inflate for certain types of collision. When the switch is turned to the OFF position, the pas-
senger air bag is disabled and will not inflate. A passenger air bag OFF indicator on the instrument panel lights
up when the passenger air bag is switched OFF. The driver air bag always remains enabled and is not affected
by the passenger air bag deactivation switch.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

• The vehicle may be equipped with a passenger air bag deactivation switch which can be operated by

the customer. When the passenger air bag is switched OFF, the passenger air bag is disabled and
will not inflate. When the passenger air bag is switched ON, the passenger air bag is enabled and
could inflate for certain types of collision. After SRS maintenance or repair, make sure the passenger
air bag deactivation switch is in the same position (ON or OFF) as when the vehicle arrived for ser-
vice.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation after Battery Disconnect

INFOID:0000000006635616

NOTE:
• Before removing and installing any control units, first turn the ignition switch to the LOCK position, then dis-

connect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect both

battery cables.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

PRECAUTIONS

DLK-19

< PRECAUTION >

[TYPE 1]

DLK

OPERATION PROCEDURE

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

Turn the ignition switch to ACC position.
(At this time, the steering lock will be released.)

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

Perform the necessary repair operation.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from ACC position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

Perform self-diagnosis check of all control units using CONSULT-III.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000006635617

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

Work

INFOID:0000000006302703

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operational.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

PIIB3706J

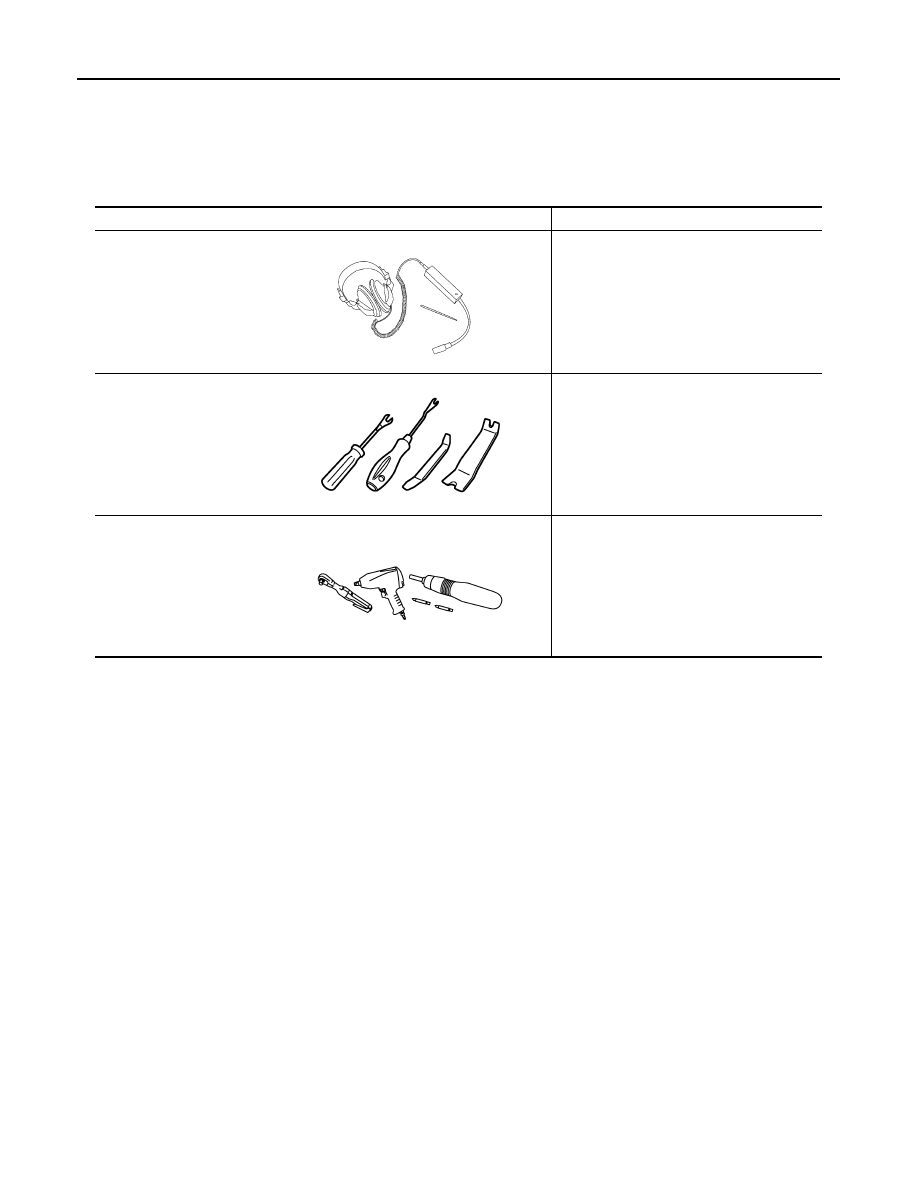

DLK-22

< SYSTEM DESCRIPTION >

[TYPE 1]

COMPONENT PARTS

Component Description

INFOID:0000000006302707

Combination meter

Intelligent Key warning buzzer

Push-button ignition switch

Inside key antenna (instrument center) 5.

TCM
Refer to

TM-133, "CVT CONTROL

SYSTEM : TCM"

(RE0F10B models)

TM-316, "CVT CONTROL SYSTEM

: TCM"

(RE0F11A models)

Remote keyless entry receiver

BCM
Refer to

BCS-6, "BODY CONTROL

SYSTEM : Component Parts Location"

Power window switch (passenger
side) (door lock and unlock switch)

Outside key antenna (passenger side)

10. Front door request switch (passenger

side)

11.

Inside key antenna (console)

12. Inside key antenna (luggage room)

13. Back door request switch

14. Back door lock assembly

15. Outside antenna (rear bumper)

16. Front door lock assembly (driver side) 17. Front door switch (driver side)

18. Front door request switch (driver side)

19. Outside key antenna (driver side)

20. Power window main switch (door lock

and unlock switch)

21. Door lock status indicator

22. Air bag diagnosis sensor unit

Refer to

SRC-7, "Component Parts Lo-

cation"

View with front bumper removed

View with multi display unit removed

View with instrument panel assembly
removed

View with center console assembly re-
moved

View with luggage room finisher re-
moved

View with rear bumper removed

Item

Function

Air bag diagnosis sensor unit

Transmits air bag signal to BCM.

BCM

Controls the door lock system.

Back door opener actuator

Opens the back door with the back door open signal from BCM.

Back door opener switch

Inputs back door opener switch operation signal to BCM.

Combination meter

• Displays each operation method guide and warning for system malfunction.
• Performs operation method guide and warning with buzzer.
• Transmits vehicle seep signal to CAN communication line.

Door lock actuator

• Inputs locks/unlocks signal from BCM and locks/unlocks each door.
• Integrated in each door lock assembly.

Door lock and unlock switch

• Transmits door lock/unlock operation to BCM.
• Integrated in the power window main switch and front power window switch (passenger side).

Door lock status indicator

• The door lock status indicates door lock status.
• The indicator illuminates when a lock operation is successful.

Door request switch

• Transmits door lock/unlock operation to BCM.
• Integrated in the outside handle (driver side, passenger side and back door).

Door switch

Detects door open/close condition.

Inside key antenna

• Detects whether Intelligent Key is inside the vehicle.
• Installed in the instrument center, consol and luggage room.

Intelligent Key

The following functions are available when having and carrying electronic ID.
• Door lock/unlock
• Engine start
• Remote control entry function is available when operating on button.

Intelligent Key warning buzzer

Warns for an inappropriate operation.

Outside key antenna

• Detects whether Intelligent Key is outside the vehicle.
• Integrated in the outside handle (driver side, passenger side and back door).

Push-button ignition switch

• BCM transmits the change in the power supply position with the push-button ignition switch to

IPDM E/R via CAN communication line. IPDM E/R transmits the power supply position status
via CAN communication line to BCM.

• Immobilizer antenna amp checks Intelligent Key transponder.

COMPONENT PARTS

DLK-23

< SYSTEM DESCRIPTION >

[TYPE 1]

DLK

Remote keyless entry receiver

Receives Intelligent Key operation and transmits to BCM.

Super lock actuator

• Inputs super lock set/release signal from BCM and set/release super lock function.
• Integrated in each door lock assembly.

TCM

Transmits shift position signal to BCM via CAN communication line.

Unlock sensor

Built-in in driver side door lock assembly
• Detects door lock condition of driver door

Item

Function

DLK-24

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (POWER DOOR LOCK SYSTEM)

SYSTEM (POWER DOOR LOCK SYSTEM)

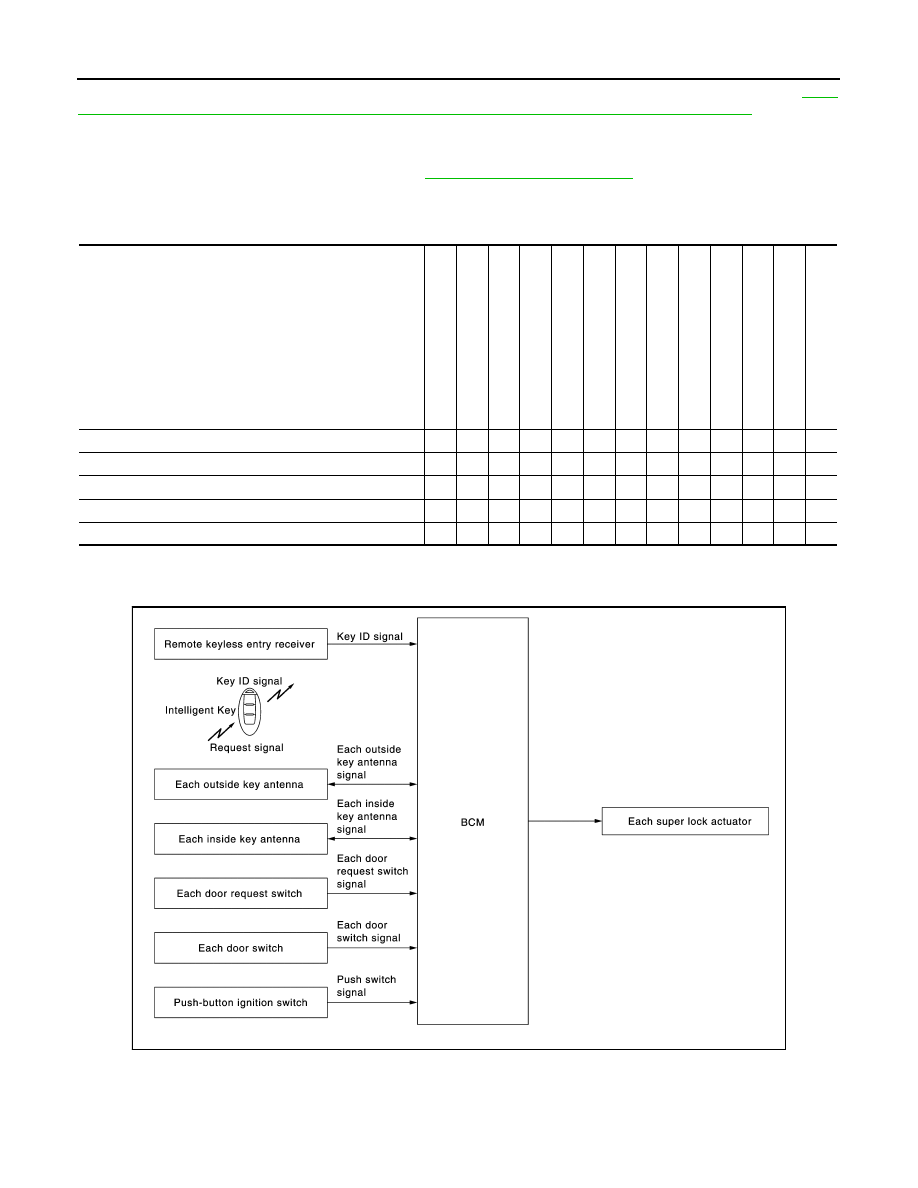

System Diagram

INFOID:0000000006302723

System Description

INFOID:0000000006302724

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switch (driver side) is build into power window main switch.
• The door lock and unlock switch (passenger side) is build into front power window switch (passenger side).
• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors actu-

ator are unlocked.

Unlock Sensor

• With the mechanical key inserted in the door key cylinder on driver side, turning it to lock position, locks door

lock actuator of all doors.

• With the mechanical key inserted in the door key cylinder on driver side, turning it to unlock position, unlocks

door lock actuator of all doors.

AIR BAG INTERLOCK UNLOCK FUNCTION

When ignition switch is ON and BCM receives air bag signal, it operates automatically to unlock all doors. Air
bag diagnosis sensor unit sends the air bag signal to BCM.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock /unlock state, refer to

INL-6, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

OPERATION CONDITION

If all of the following conditions are satisfied, door lock and unlock operation is performed using the door lock/
unlock switch.

: While door lock and unlock switch is pressed in the lock direction during this state, combination meter buzzer sounds and warns.

: When this item becomes OK according to Intelligent Key ID verification, door lock/unlock operation is allowed.

JMKIA5999GB

Door lock and unlock switch operation

Operation condition

LOCK

• Closed driver side door

• Doors other than drivers door are closed*

• Super lock is releases*

• Doors are not locked by Intelligent Key or door request switch*

• Door lock that is requested is not auto door lock*

UNLOCK

Doors are not locked by Intelligent Key or door request switch*

SYSTEM (POWER DOOR LOCK SYSTEM)

DLK-25

< SYSTEM DESCRIPTION >

[TYPE 1]

DLK

NOTE:

Information of super lock function. Refer to

DLK-30, "SUPER LOCK FUNCTION : System Description"

DOOR LOCK STATUS INDICATOR OPERATION

The door lock status indicator indicates door lock status under the following condition. And the timer is running
to turn OFF the indicator.

: Steering lock is locked.

1 Minute Timer

A timer must be running to turn OFF the indicator. The timer runs for 1 minute after doors are locked by Intelli-
gent Key, door request switch or auto door lock.

30 Minute Timer

A timer must be running to turn OFF the indicator. The timer runs for 30 minutes after doors are locked by door
lock and unlock switch.

OVERRIDE FUNCTION

When inside handle of front door is operated while doors are in lock states, lock state of the applicable door
lock becomes invalid and the door is open.

UNLOCK LINK FUNCTION

When driver door or passenger door is opened using the override function, all doors are unlocked.
Unlock function operates when driver door or passenger door is open while all of the following conditions are
satisfied.

NOTE:
When anti-hijack function is activated, only the applicable door is unlocked.

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (LOCK OPERATION)

The interlock door lock function is the function that locks all doors linked with the vehicle speed or shift posi-
tion. It has 2 types as per the following items.

Vehicle Speed Sensing Auto Door Lock

All doors are locked when the vehicle speed reaches 10 km/h (6 MPH) or more.
BCM outputs the lock signal to all door lock actuators when it detects that the ignition switch is turned ON, all
doors are closed and the vehicle speed received from the combination meter via CAN communication
becomes 10 km/h (6 MPH) or more.

P Range Interlock Door Lock*

All doors are locked when shifting the selector lever from the P position to any position other than P.
BCM outputs the lock signal to all door lock actuators when it detects that the ignition switch is in the ON posi-
tion and the shift signal received from the TCM via CAN communication is shifted from the P position to any
position other than P.

Setting change of Automatic Door Lock/Unlock Function

Lock operation

Ignition position

Door state

Indicator operation

Door lock and unlock switch

All doors closed

Door lock and unlock switch

Any doors open

OFF

Door lock and unlock switch

ACC, OFF or LOCK*

All doors closed

ON (30 minute timer)

Intelligent Key/
Door request switch/
Auto door lock function

ACC, OFF or LOCK*

All doors closed

ON (1 minute timer)

Door lock and unlock switch

ACC, OFF or LOCK*

Driver doors open

→

All doors closed

OFF

→

ON (30 minute timer)

Intelligent Key/
Door request switch

ACC, OFF or LOCK*

Any doors open

→

All doors closed

OFF

→

ON (1 minute timer)

Operation condition

• Doors are locked by door lock/unlock switch or by automatic lock/unlock function
• Driver or passenger door switch is switched from OFF to ON
• Anti-hijack function is not activated
• Vehicle speed is 5 km/h (3 MPH) or less

DLK-26

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (POWER DOOR LOCK SYSTEM)

The lock operation setting of the automatic door lock/unlock function can be changed.
NOTE:
P range interlock door lock can be selected for M/T models, but automatic door lock/unlock function does not
operate.

With CONSULT-III

The ON/OFF switching of the automatic door lock function and the type selection of the automatic door lock/
unlock function can be performed at the WORK SUPPORT setting of CONSULT-III.

Without CONSULT- III

The automatic door lock function ON/OFF can be switched by performing the following operation.

Close all doors (door switch OFF)

Ignition switch: OFF

→

Press and hold the door lock and unlock switch for 5 seconds or more in the lock direction within 20 sec-
onds after turning the ignition switch ON.

The switching complete when the hazard lamp blinks.

: This function does not operate on M/T models.

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (UNLOCK OPERATION)

The automatic door lock/unlock function is the function that unlocks all doors linked with the key position or
shift position. It has 2 types as per the following items.

IGN OFF Interlock Door Unlock

All doors are unlocked when the power supply position is changed from ON to OFF.
BCM outputs the unlock signal to all door lock actuators when it detects that the power supply position is
changed from ignition switch ON to OFF.

P Range Interlock Door Unlock*

All doors are unlocked when shifting the selector lever from any position other than the P to P position.
BCM outputs the unlock signal to all door lock actuators when it detects that the ignition switch is in the ON
position and the shift signal received from TCM via CAN communication is shifted from any position other than
the P to P position.

Setting change of Automatic Door Lock/Unlock Function

The unlock operation setting of the automatic door lock/unlock function can be changed.
NOTE:
P range interlock door lock can be selected for M/T models, but automatic door lock/unlock function does not
operate.

With CONSULT- III

The ON/OFF switching of the automatic door lock/unlock function and the type selection of the automatic door
lock/unlock function can be performed at the WORK SUPPORT setting of CONSULT-III. Refer to

DLK-41,

"DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK) (With Super Lock)"

Without CONSULT- III

The automatic door lock/unlock function ON/OFF can be switched by performing the following operation.

Close all doors below (door switch OFF)

Ignition switch: OFF

→

Press and hold the door lock and unlock switch for 5 seconds or more in the unlock direction within 20
seconds after turning the power supply position ON.

The switching is complete when the hazard lamp blinks.

: This function does not operate on M/T models.

OFF

→

: 2 blinks

→

OFF

: 1 blink

OFF

→

: 2 blinks

→

OFF

: 1 blink

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-27

< SYSTEM DESCRIPTION >

[TYPE 1]

DLK

SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM

INTELLIGENT KEY SYSTEM : System Diagram

INFOID:0000000006302725

INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000006302726

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communication between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• The settings for each function can be changed with CONSULT-III.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT-III.

JMKIA6003GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch

DLK-28

Super lock

When all doors are closed super lock system can be set/release by Intelligent
Key or door request switch

DLK-30

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the In-
telligent Key

DLK-33

DLK-28

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

DOOR LOCK FUNCTION

DOOR LOCK FUNCTION : System Diagram

INFOID:0000000006302727

DOOR LOCK FUNCTION : System Description

INFOID:0000000006302728

When pressing the door request switch, it is possible to lock and unlock the door by carrying the Intelligent
Key.

OPERATION DESCRIPTION

• When the BCM detects that each door request switch is pressed, it activates the outside key antenna and

inside key antenna corresponding to the pressed door request switch and transmits the request signal to the
Intelligent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• BCM lock/unlock each door, sets/releases super lock, and blinks hazard warning lamps (lock: 1 time, unlock:

2 times) at the same time as a reminder.

NOTE:
Information of super lock function.
Refer to

DLK-30, "SUPER LOCK FUNCTION : System Description"

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is
operated.

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle

DLK-35

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver

DLK-36

Auto retractable door mirror

Door mirror operates by operation of Intelligent Key

MIR-8

Engine start

The engine can be turned on while carrying the Intelligent Key

SEC-14

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state

INL-6

Function

Description

Refer

JMKIA6007GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-29

< SYSTEM DESCRIPTION >

[TYPE 1]

DLK

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function
is in the range of approximately 80 cm (31.50 in) surrounding the
driver, passenger door handles (1) and back door handle (2). How-
ever, this operating range depends on the ambient conditions.

ANTI-HIJACK FUNCTION

Information of super lock system with anti-hijack function.
Refer to

DLK-30, "SUPER LOCK FUNCTION : System Description"

HAZARD REMINDER FUNCTION

Blinks hazard warning lamps as a reminder, during lock/unlock operation using door request switch.

Setting of Hazard Reminder Mode

AUTO DOOR LOCK FUNCTION

After door is unlocked by door request switch operation and if 30 seconds or more passes without performing
the following operation, all doors are automatically locked. However, operation check function does not acti-
vate.

Each door request switch operation

Operation condition

Lock

• All doors are closed
• Ignition switch is in the OFF position
• P position warning is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area

Unlock

• All doors are closed
• Ignition switch is in the OFF position
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

JMKIA5569ZZ

Hazard reminder setting

(With CONSULT-III)

Door lock operation

(with door request switch)

Hazard warning lamp blink

HAZARD ANSWER BACK

OFF

Any

—

LOCK ONLY

Lock

Once

Unlock

—

Unlock (Anti-hijack)

—

UNLK ONLY

Lock

—

Unlock

Twice

Unlock (Anti-hijack)

Twice (quick)

LOCK/UNLK

Lock

Once

Unlock

Twice

Unlock (Anti-hijack)

Twice (quick)

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

DLK-30

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

43, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY) (With Super Lock)"

DOOR LOCK STATUS INDICATOR OPERATION

• Door lock status indicator turns indicator lamp ON or OFF and indicates door lock or unlock state.
• For door lock status indicator operation, refer to

DLK-24, "System Description"

LIST OF OPERATION RELATED PARTS

Parts marked with

are the parts related to operation.

SUPER LOCK FUNCTION

SUPER LOCK FUNCTION : System Diagram

INFOID:0000000006532134

SUPER LOCK FUNCTION : System Description

INFOID:0000000006302729

• Super lock provides a higher anti-theft performance than a conventional door lock function.
• BCM controls the super lock function.

Door lock function

lli

nt Key

s en

try rec

Door switch

or re

t s

itc

or l

tua

y an

ten

Out

e ke

y a

ten

CAN co

ati

tem

atu

ind

Hazard w

rning

lamp

-bu

tton

swi

tch

ati

Door lock/unlock function

Hazard reminder function

Door lock status indicator operation

Anti-hijack function

Auto door lock function

JMKIA6012GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-31

< SYSTEM DESCRIPTION >

[TYPE 1]

DLK

• When all doors are closed super lock system can be set/release by Intelligent Key or door request switch.
• When super lock is set, inside handle of doors do not work.

SUPER LOCK SET OPERATION (LOCK OPERATION)

Super Lock Set by Intelligent Key

When Intelligent Key lock button is operated while all doors are in unlock state, super lock of all doors is set,
and simultaneously, all doors are locked.

Super Lock Set by Door Request Switch

When door request switch (driver side, passenger side, or back door) is operated while all doors are in unlock
state, super lock of all doors is set, and simultaneously, all doors are locked.

SUPER LOCK RELEASE OPERATION (UNLOCK OERATION) WITH ANTI-HIJACK MODE

Super Lock Release by Intelligent Key

When Intelligent Key unlock button is operated while super lock of all doors is set, super lock of all doors is
released, and simultaneously, driver door are unlocked. When Intelligent Key unlock button is operated again
within 5 seconds of the 1st unlock button operation, all doors are unlocked.

Super Lock Release by Door Request Switch (Driver Side)

When driver side door request switch is operated while super lock of all doors is set, super lock of all doors is
released, and simultaneously, driver door are unlocked. When driver side door request switch is operated
again within 5 seconds of the 1st driver side door request switch operation, all doors are unlocked.

Super Lock Release by Door Request Switch (Passenger Side)

When passenger side door request switch is operated while super lock of all doors is set, super lock of all
doors is released, and simultaneously, all doors are unlocked.

Super Lock Release by Door Request Switch (Back Door)

When back door request switch is operated while super lock of all doors is set, super lock of all doors is
released, and simultaneously, back door are unlocked. When back door request switch is operated again
within 5 seconds of the 1st back door request switch operation, all doors are unlocked.

SUPER LOCK RELEASE OPERATION (UNLOCK OERATION) WITHOUT ANTI-HIJACK MODE

Super Lock Release by Intelligent Key

When Intelligent Key unlock button is operated while super lock of all doors is set, super lock of all doors is
released, and simultaneously, all doors are unlocked.

Super Lock Release by Door Request Switch

When door request switch (driver side, passenger side or back door) is operated while super lock of all doors
is set, super lock of all doors is released, and simultaneously, all doors are unlocked.

ANTI-HIJACK FUNCTION SETTING

With CONSULT-III

Anti-hijack function can be set to ON/OFF using CONSULT-III.
Refer to

DLK-41, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK) (With Super Lock)"

Without CONSULT-III

Anti-hijack function can be set to ON/OFF by user with a registered Intelligent Keyfob.
• ON/OFF can be switched when Intelligent Key lock button and unlock button are pressed simultaneously for

5 seconds or more while steering lock is locked.

• When mode is switched, hazard warning lamp blinks.

BACK DOOR OPEN FUNCTION

OFF

→

: 1 blink

→

OFF

: 3 blinks

Juke F15 (2012 year). Service Repair Manual - part 64
