Juke F15 (2012 year). Service Repair Manual - part 58

CO-44

< REMOVAL AND INSTALLATION >

[HR16DE]

RADIATOR

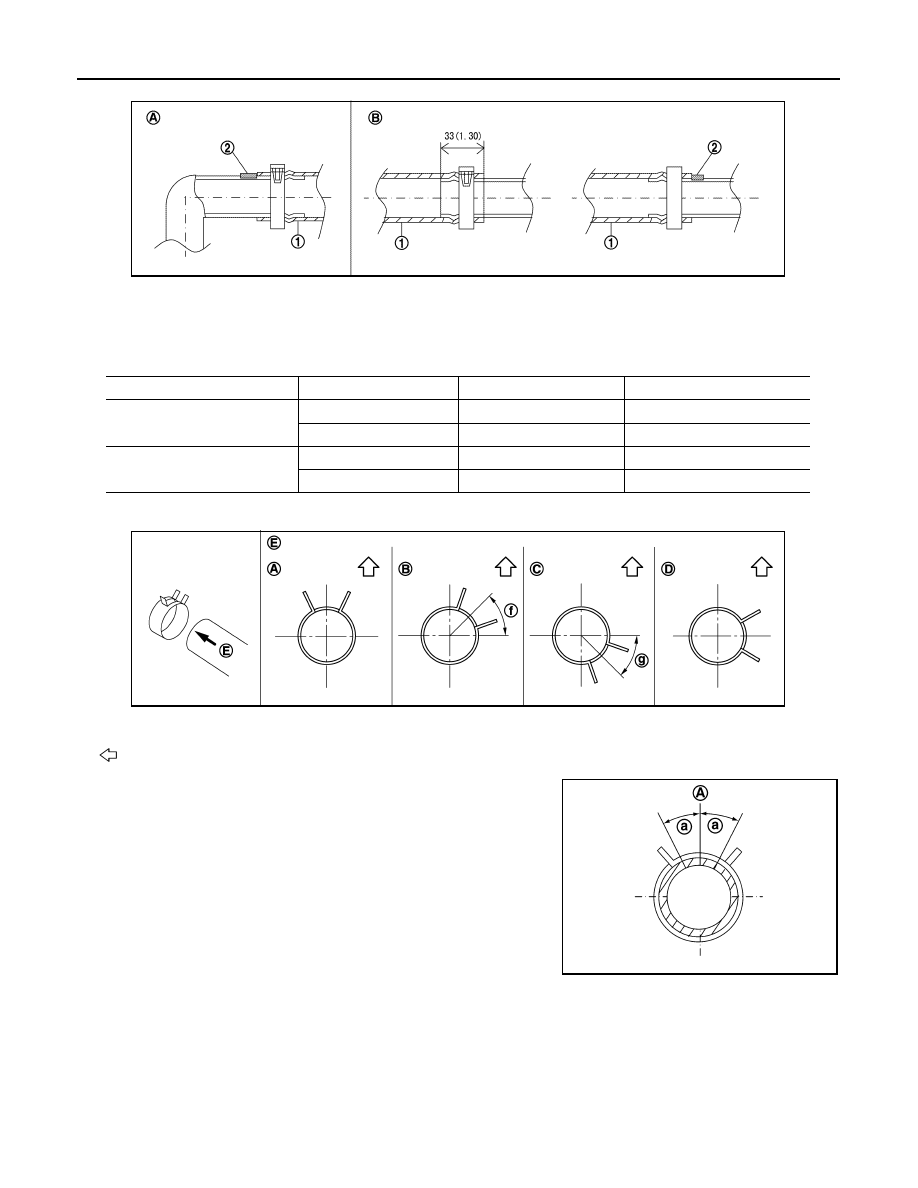

• For the orientation of the hose clamp pawl, refer to the figure.

*: Refer to the illustrations for the specific position each hose clamp tab.

• The angle (b) created by the hose clamp pawl and the specified

line (A) must be within

±

30 as shown in the figure.

Unit:  mm (in)

A.

Radiator side

B.

Engine side

Radiator hose

Hose end

Paint mark

Position of hose clamp*

Radiator hose (upper)

Radiator side

Upper

A

Engine side

Upper

B

Radiator hose (lower)

Radiator side

Lower

C

Engine side

Upper

D

E.

View E

f.

45

°

g,

45

°

: Vehicle upper

JSBIA0238GB

JPBIA3911ZZ

JSBIA0240ZZ

RADIATOR

CO-45

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

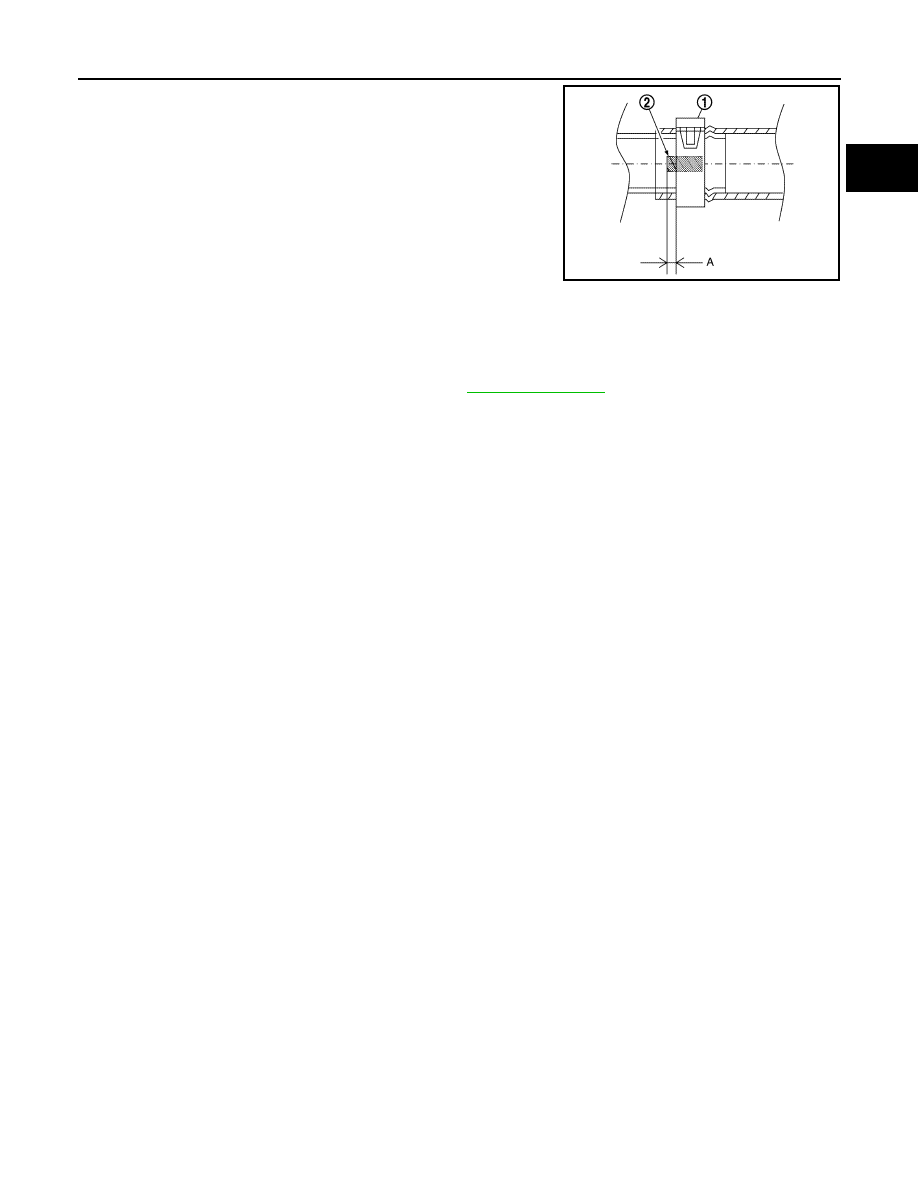

• To install hose clamps (1), check that the dimension (A) from the

end of the hose clamp on the radiator hose to the hose clamp is
within the reference value.

Inspection

INFOID:0000000006492582

INSPECTION AFTER INSTALLATION

• Check for leakage of engine coolant using the radiator cap tester adapter (commercial service tool) and the

radiator cap tester (commercial service tool). Refer to

CO-37, "Inspection"

.

• Start and warm up the engine. Check visually that there is no leakage of engine coolant.

Dimension “A”

: (

−

1) – (+1) mm

JSBIA0241ZZ

CO-46

< REMOVAL AND INSTALLATION >

[HR16DE]

COOLING FAN

COOLING FAN

Exploded View

INFOID:0000000006492583

Removal and Installation

INFOID:0000000006492584

REMOVAL

1.

Drain engine coolant from radiator. Refer to

CO-37, "Draining"

.

CAUTION:

• Perform this step engine is cold.
• Never spill engine coolant on drive belt.

2.

Remove air duct (inlet) and resonator assembly. Refer to

EM-161, "Removal and Installation"

.

3.

Remove reservoir tank as follows:

a.

Disconnect reservoir tank hose.

b.

Release the tab (A) in the direction shown by the arrow (

).

c.

Lift up and remove the reservoir tank with the tab released.

4.

Remove radiator hose (upper). Refer to

CO-42, "Exploded View"

.

5.

Disconnect harness connector from fan motor, and move harness to aside.

6.

Remove cooling fan assembly.

CAUTION:

Be careful not to damage or scratch on radiator core when removing.

1.

Fan motor

2.

Fan shroud

3.

Cooling fan

A.

Apply on fan motor shaft



: Apply genuine high strength thread locking sealant or equivalent.

: N·m (kg-m, in-lb)

JPBIA2916GB

JPBIA4209ZZ

COOLING FAN

CO-47

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Only use genuine parts for fan shroud mounting bolt and observe the specified torque (to prevent
radiator from being damaged).
NOTE:
Cooling fan is controlled by ECM. For details, Refer to

EC-774, "Component Function Check"

.

Disassembly and Assembly

INFOID:0000000006492585

DISASSEMBLY

1.

Remove cooling fan mounting nut, and then remove the cooling fan.

2.

Remove fan motor.

ASSEMBLY

Note the following, and assemble in the reverse order of disassembly.
• Apply genuine high strength thread locking sealant on fan motor shaft.

Inspection

INFOID:0000000006492586

INSPECTION AFTER DISASSEMBLY

Cooling Fan

Inspect cooling fan for crack or unusual bend.
• If anything is found, replace cooling fan.

CO-48

< REMOVAL AND INSTALLATION >

[HR16DE]

WATER PUMP

WATER PUMP

Exploded View

INFOID:0000000006492587

Removal and Installation

INFOID:0000000006492588

REMOVAL

1.

Drain engine coolant from radiator. Refer to

CO-37, "Draining"

.

CAUTION:

• Perform this step when the engine is cold.
• Never spill engine coolant on drive belt.

2.

Steer front wheel to the right.

3.

Remove front fender protector (RH). Refer to

EXT-22, "Removal and Installation"

.

4.

Loosen mounting bolts of water pump pulley before loosening belt tension of drive belt.

5.

Remove drive belt. Refer to

EM-160, "Removal and Installation"

.

6.

Remove water pump pulley.

7.

Remove water pump.
• Loosen mounting bolts in reverse order as shown in the figure.
• Engine coolant will leak from cylinder block, so have a recep-

tacle ready below.

CAUTION:

• Handle water pump vane so that it does not contact any

other parts.

• Water pump cannot be disassembled and should be

replaced as a unit.

INSTALLATION

Install in the reverse order of removal.

1.

Gasket

2.

Water pump

3.

Water pump pulley

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JPBIA4104GB

KBIA3393J

WATER PUMP

CO-49

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

Inspection

INFOID:0000000006492589

INSPECTION AFTER REMOVAL

• Check visually that there is no significant dirt or rusting on water

pump body and vane (A).

• Check that there is no looseness in vane shaft, and that it turns

smoothly when rotated by hand.

• Replace water pump, if necessary.

INSPECTION AFTER INSTALLATION

• Check for leakage of engine coolant using the radiator cap tester adapter (commercial service tool) and the

radiator cap tester (commercial service tool). Refer to

CO-37, "Inspection"

.

• Start and warm up the engine. Check visually that there is no leakage of engine coolant.

PBIC3313J

CO-50

< REMOVAL AND INSTALLATION >

[HR16DE]

THERMOSTAT

THERMOSTAT

Exploded View

INFOID:0000000006492590

Removal and Installation

INFOID:0000000006492591

REMOVAL

1.

Drain engine coolant from radiator. Refer to

CO-37, "Draining"

.

CAUTION:

Perform this step when engine is cold.

2.

Remove air duct (inlet). Refer to

EM-161, "Removal and Installation"

.

3.

Disconnect radiator hose (lower) from water inlet. Refer to

CO-42, "Exploded View"

.

4.

Remove water inlet and thermostat.
• Engine coolant leakage from cylinder block, so have a receptacle ready below.

INSTALLATION

Note the following, and install in the reverse order of removal.

Thermostat

• Install thermostat with making rubber ring (1) groove fit to thermo-

stat flange (A) with the whole circumference.

1.

Radiator hose (upper)

2.

Water inlet

3.

Rubber ring

4.

Thermostat

A.

To radiator

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

PBIC3810E

JPBIA4229ZZ

THERMOSTAT

CO-51

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

• Install thermostat (2) with jiggle valve (A) facing upwards.

Water Inlet

After installation, fix water inlet clip (A) on the oil level gauge guide
(1) as shown in the figure.

Inspection

INFOID:0000000006492592

INSPECTION AFTER REMOVAL

Thermostat

• Place a thread (A) so that it is caught in the valves of thermostat

(1). Immerse fully in a container (B) filled with water. Heat while
stirring.

• The valve opening temperature is the temperature at which the

valve opens and falls from the thread.

• Continue heating. Check the full open valve lift amount.
• After checking the maximum valve lift amount, lower the water

temperature and check the valve closing temperature.

• If out of the standard, replace thermostat.

INSPECTION AFTER INSTALLATION

• Check for leakage of engine coolant using the radiator cap tester adapter (commercial service tool) and the

radiator cap tester (commercial service tool). Refer to

CO-37, "Inspection"

.

• Start and warm up the engine. Check visually that there is no leakage of engine coolant.

1

: Cylinder block

PBIC3812E

B

: Positioning

PBIC3755E

Standard: Refer to

CO-54, "Thermostat"

.

PBIC3314J

CO-52

< REMOVAL AND INSTALLATION >

[HR16DE]

WATER OUTLET

WATER OUTLET

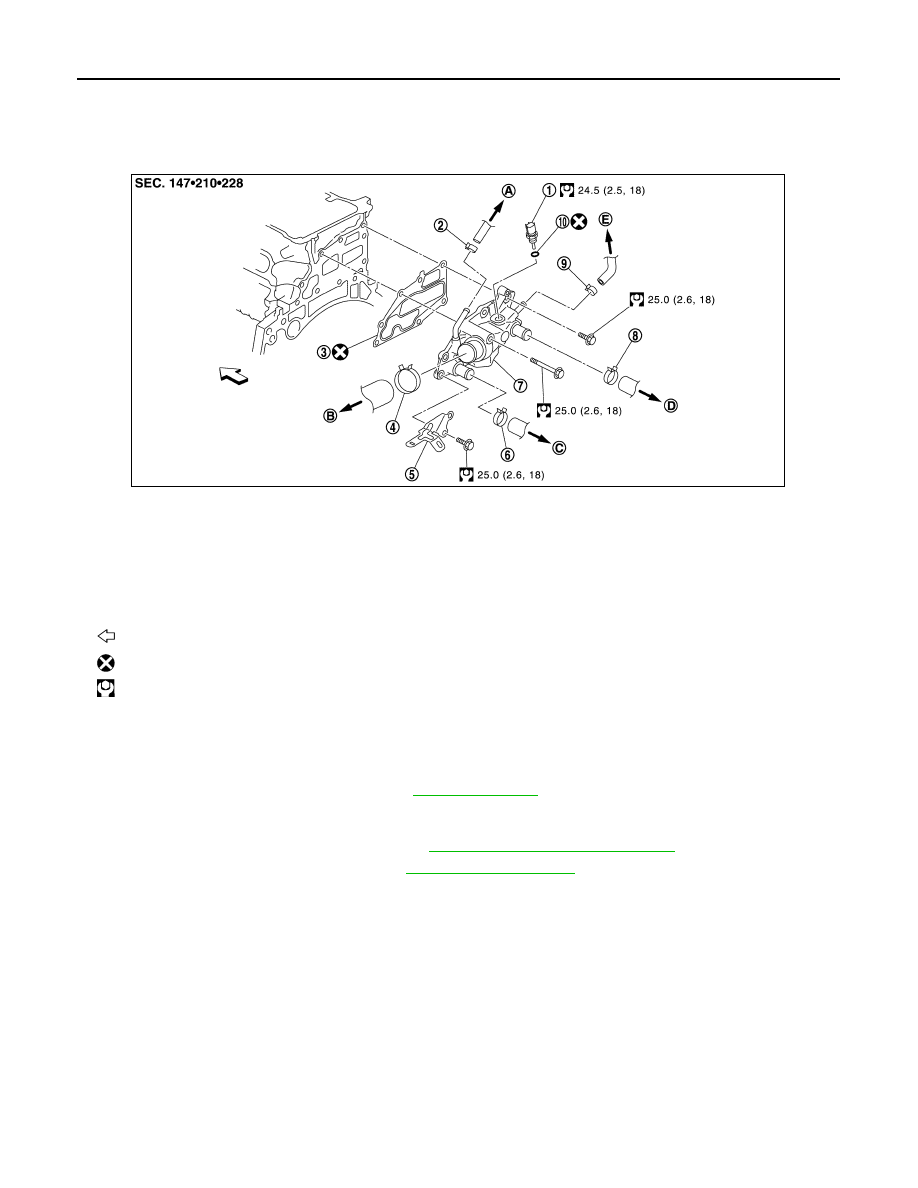

Exploded View

INFOID:0000000006492593

Removal and Installation

INFOID:0000000006492594

REMOVAL

1.

Drain engine coolant from radiator. Refer to

CO-37, "Draining"

.

CAUTION:

• Perform this step when engine is cold.

2.

Remove air duct (inlet) and air ducts. Refer to

EM-161, "Removal and Installation"

.

3.

Disconnect radiator hose (upper). Refer to

CO-42, "Exploded View"

.

4.

Disconnect harness connector from engine coolant temperature sensor.

5.

Remove water hoses and heater hoses.

6.

Remove water outlet.

7.

Remove engine coolant temperature sensor from water outlet, if necessary.

INSTALLATION

Installation is the reverse order of removal.

Inspection

INFOID:0000000006492595

INSPECTION AFTER REMOVAL

Water Control Valve

1.

Engine coolant temperature sensor

2.

Clamp

3.

Gasket

4.

Clamp

5.

Bracket

6.

Clamp

7.

Water outlet

8.

Clamp

9.

Clamp

10. Washer

A.

To electric throttle control actuator

B.

To radiator

C.

To CVT oil warmer

D.

To heater core

E.

To electric throttle control actuator

: Engine front

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JPBIA4757GB

WATER OUTLET

CO-53

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

• Place a thread (A) so that it is caught in the valves of water control

valve (1). Immerse fully in a container (B) filled with water. Heat
while stirring.

• The valve opening temperature is the temperature at which the

valve opens and falls from the thread.

• Continue heating. Check the continuous valve lifting toward maxi-

mum valve lift.
NOTE:
The maximum valve lift amount standard temperature for water
control valve is the reference value.

• After checking the maximum valve lift amount, lower the water

temperature and check the valve closing temperature.

• If out of the standard, replace water control valve.

INSPECTION AFTER INSTALLATION

• Check for leakage of engine coolant using the radiator cap tester adapter (commercial service tool) and the

radiator cap tester (commercial service tool). Refer to

CO-37, "Inspection"

.

• Start and warm up the engine. Check visually that there is no leakage of engine coolant.

Standard:

Refer to

CO-54, "Water Control Valve"

.

PBIC3314J

CO-54

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR16DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000006492596

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:

 (US qt, Imp qt)

Radiator

INFOID:0000000006492597

Unit: kPa (kg/cm

2

, psi)

Thermostat

INFOID:0000000006492598

Standard

Heater Thermostat (CVT models)

INFOID:0000000006710595

Standard

Reference value

Water Control Valve

INFOID:0000000006492599

Standard

Engine coolant capacity (With reservoir tank at “MAX” level)

CVT models

6.3 (6-2/3, 5-1/2)

M/T models

Reservoir tank engine coolant capacity (At “MAX” level)

0.7 (3/4, 5/8)

Cap relief pressure

Standard

78 - 98 (0.8 - 1.0, 11 - 14)

Limit

59 (0.6, 9)

Leakage testing pressure

98 (1.0, 14)

Valve opening temperature

80.5 - 83.5

°

C (177 - 182

°

F)

Maximum valve lift

8.0 mm/95

°

C (0.315 in/203

°

F)

Valve closing temperature

77

°

C (171

°

F)

Valve lift

More than 4.5 mm (0.177 in)

Valve opening temperature

72

°

C (162

°

F)

Maximum valve lift

5.0 mm/95

°

C (0.197 in/203

°

F)

Valve opening temperature

93.5 - 96.5

°

C (200 - 206

°

F)

Maximum valve lift

8.0 mm/108

°

C (0.315 in/226

°

F)

Valve closing temperature

90

°

C (194

°

F)

PRECAUTIONS

CO-55

< PRECAUTION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006492600

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation after Battery Disconnect

INFOID:0000000006492601

NOTE:
• Before removing and installing any control units, first turn the ignition switch to the LOCK position, then dis-

connect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect both

battery cables.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

4.

Perform the necessary repair operation.

CO-56

< PRECAUTION >

[K9K]

PRECAUTIONS

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from ACC position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT-III.

Precaution for Liquid Gasket

INFOID:0000000006492602

REMOVAL OF LIQUID GASKET

• After removing the mounting bolts and nuts, separate the mating

surface using a seal cutter and remove the liquid gasket.

CAUTION:

Be careful not to damage the mating surfaces.

• In areas where the cutter is difficult to use, use a plastic hammer to

lightly tap the gasket applied area.

CAUTION:

If for some unavoidable reason a tool such as a flat-bladed
screwdriver is used, be careful not to damage the mating sur-
faces.

LIQUID GASKET APPLICATION PROCEDURE

1.

Using a scraper, remove the old liquid gasket adhering to the
gasket application surface and the mating surface.
• Remove the liquid gasket completely from the groove of the

gasket application surface, mounting bolts and bolt holes.

2.

Wipe the gasket application surface and the mating surface with
white gasoline (lighting and heating use) to remove adhering
moisture, grease and foreign materials.

3.

Attach the liquid gasket to the tube presser.
Use Genuine Liquid Gasket or equivalent.

4.

Apply the gasket without breaks to the specified location with the
specified dimensions.
• If there is a groove for the liquid gasket application, apply the

gasket to the groove.

• As for the bolt holes, normally apply the gasket inside the

holes. If specified, it should be applied outside the holes. Make
sure to read the instruction in this manual.

• Within five minutes of gasket application, install the mating

component.

• If the liquid gasket protrudes, wipe it off immediately.
• Do not retighten after the installation.
• After 30 minutes or more have passed from the installation, fill

the engine oil and coolant.

CAUTION:

If there are instructions in this manual, observe them.

PBIC0275E

PBIC0003E

EMA0622D

SEM159F

PREPARATION

CO-57

< PREPARATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

PREPARATION

PREPARATION

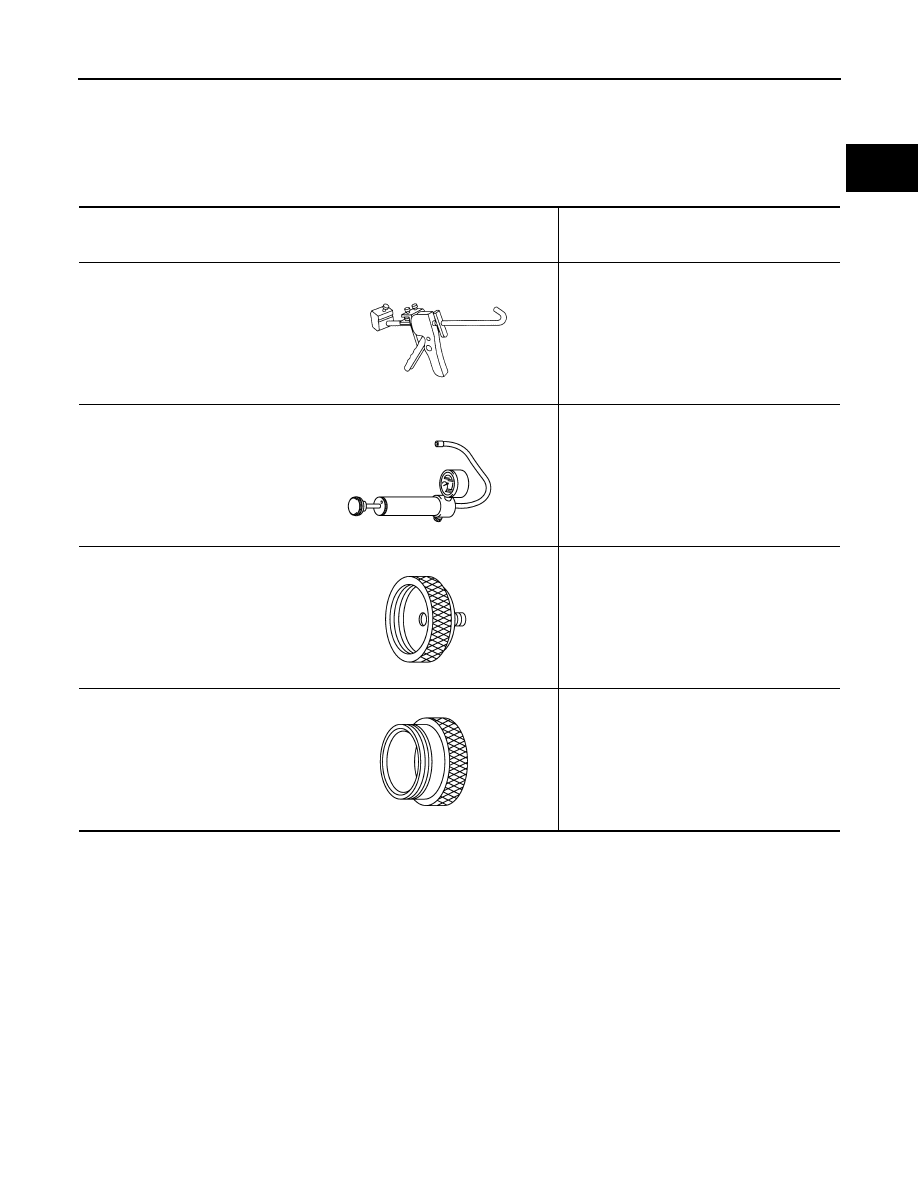

Special Service Tool

INFOID:0000000006492603

NISSAN tool number
(RENAULT too number)
Tool name

Description

WS39930000
(        —       )
Tube pressure

Pressing the tube of liquid gasket

       —
(M.S. 554_07)
Tester

Leak checking
Checking reservoir tank cap

       —
(M.S. 554_01)
Reservoir tank cap tester adapter A

Adapting tester to reservoir tank

      —
(M.S. 554_06)
Reservoir tank cap tester adapter B

Adapting tester to reservoir tank cap

S-NT052

MLIA0012E

MLIA0013E

MLIA0014E

CO-58

< SYSTEM DESCRIPTION >

[K9K]

COOLING SYSTEM

SYSTEM DESCRIPTION

COOLING SYSTEM

Cooling Circuit

INFOID:0000000006492604

1.

Radiator

2.

Reservoir tank

3.

Heating elements (Thermo plungers)

4.

Heater core

5.

Exhaust gas cooler

6.

Thermostat

7.

Water pump

8.

Water-oil heat exchanger

9.

Bleed screw

10. Bleed screw

11.

Bleed screw

12. Choke

13. Choke

14. Choke

JPBIA3122ZZ

RADIATOR

CO-59

< BASIC INSPECTION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

BASIC INSPECTION

RADIATOR

Inspection

INFOID:0000000006492605

Check radiator for mud or clogging. If necessary, clean radiator as follows.

CAUTION:

• Be careful not to bend or damage the radiator fins.
• When radiator is cleaned without removal, remove all surrounding parts such as radiator fan, radia-

tor shroud and horns. Then tape the harness and connectors to prevent water from entering.

1.

Apply water by hose to the back side of the radiator core vertically downwards.

2.

Apply water again to all radiator core surface once per minute.

3.

Stop washing if any stains no longer flow out from the radiator.

4.

Blow air into the back side of radiator core vertically downwards.

• Use compressed air lower than 490 kPa (4.9 bar 5 kg/cm

2

, 71psi) and keep distance more than 30 cm (11.8

in).

5.

 Blow air again into all the radiator core surface once per minute until no water sprays out.
