Juke F15 (2012 year). Service Repair Manual - part 51

CHG

PRECAUTIONS

CHG-3

< PRECAUTION >

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006601098

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

The vehicle may be equipped with a passenger air bag deactivation switch. Because no rear seat exists where
a rear-facing child restraint can be placed, the switch is designed to turn off the passenger air bag so that a
rear-facing child restraint can be used in the front passenger seat. The switch is located in the center of the
instrument panel, near the ashtray. When the switch is turned to the ON position, the passenger air bag is
enabled and could inflate for certain types of collision. When the switch is turned to the OFF position, the pas-
senger air bag is disabled and will not inflate. A passenger air bag OFF indicator on the instrument panel lights
up when the passenger air bag is switched OFF. The driver air bag always remains enabled and is not affected
by the passenger air bag deactivation switch.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

• The vehicle may be equipped with a passenger air bag deactivation switch which can be operated by

the customer. When the passenger air bag is switched OFF, the passenger air bag is disabled and
will not inflate. When the passenger air bag is switched ON, the passenger air bag is enabled and
could inflate for certain types of collision. After SRS maintenance or repair, make sure the passenger
air bag deactivation switch is in the same position (ON or OFF) as when the vehicle arrived for ser-
vice.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation after Battery Disconnect

INFOID:0000000006601099

NOTE:
• Before removing and installing any control units, first turn the ignition switch to the LOCK position, then dis-

connect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect both

battery cables.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

CHG-4

< PRECAUTION >

PRECAUTIONS

OPERATION PROCEDURE

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

Turn the ignition switch to ACC position.
(At this time, the steering lock will be released.)

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

Perform the necessary repair operation.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from ACC position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

Perform self-diagnosis check of all control units using CONSULT-III.

Precaution for Power Generation Voltage Variable Control System

INFOID:0000000006532093

CAUTION:

For thailand model, the battery current sensor that is installed to the battery cable at the negative ter-
minal measures the charging/discharging current of the battery, and performs various controls. If the
electrical component or the ground wire is connected directly to the battery terminal, the current other
than that being measured with the battery current sensor is charging to or discharging from the bat-
tery. This condition causes the malfunction of the control, and then the battery discharge may occur.
Do not connect the electrical component or the ground wire directly to the battery terminal.

CHG

PREPARATION

CHG-5

< PREPARATION >

PREPARATION

Commercial Service Tools

INFOID:0000000006532094

Special Service Tools

INFOID:0000000006601097

Tool name

Description

Power tool

Loosening bolts, nuts and screws

PIIB1407E

Tool number

Tool name

Description

KV10118200 (included in the adapter

kit: Mot. 1732)

Alternator pulley adapter

Removing and installing alternator pulley

PKIA1241E

CHG-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

CHARGING SYSTEM

CHARGING SYSTEM : Component Parts Location

INFOID:0000000006532095

CHARGING SYSTEM : Component Description

INFOID:0000000006532096

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM : Component
Parts Location

INFOID:0000000006532097

NOTE:

Charge warning lamp (On the combi-
nation meter)

Alternator

JMMIA0482ZZ

Component part

Description

Alternator

“B” terminal

Refer to

CHG-20, "Description"

“S” terminal

Refer to

CHG-24, "Description"

“L” terminal

Refer to

CHG-21, "Description"

Combination meter (Charge warning lamp)

The IC voltage regulator warning function activates to illuminate
the charge warning lamp, if any of the following symptoms occur
while alternator is operating:
• Excessive voltage is produced.
• No voltage is produced.

CHG

COMPONENT PARTS

CHG-7

< SYSTEM DESCRIPTION >

This system is applied only for models with battery current sensor. The battery current sensor is installed to
the battery cable at the negative terminal.

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM : Component De-
scription

INFOID:0000000006532098

Alternator

ECM
Refer to

EC-25, "ENGINE CON-

TROL SYSTEM :
Component Parts Location"

(MR16DDT),

EC-455, "ENGINE

CONTROL SYSTEM :
Component Parts Location"

(HR16DE),

EC-813, "Component

Parts Location"

(K9K).

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

(with Intelligent Key sys-

tem),

PCS-37, "Component Parts

Location"

(without Intelligent Key

system).

Battery current sensor (with battery
temperature sensor)

Battery

JMMIA0483ZZ

Component part

Description

Alternator (IC voltage regulator)

IC voltage regulator controls the power generation voltage by the
target power generation voltage based on the received power gen-
eration command signal.
When there is no power generation command signal, the alterna-
tor performs the normal power generation according to the char-
acteristic of the IC voltage regulator.

Battery current sensor (with battery temperature sensor)

Battery current sensor is installed to the battery cable at the neg-
ative terminal, and it detects the charging/discharging current of
the battery and sends the voltage signal to ECM according to the
current value.

ECM

Battery current sensor detects the charging/discharging current of
the battery. ECM judges the battery condition based on this signal.
ECM judges whether to perform the power generation voltage
variable control according to the battery condition.
When performing the power generation voltage variable control,
ECM calculates the target power generation voltage according to
the battery condition and sends the calculated value as the power
generation command value signal to IPDM E/R.

IPDM E/R

IPDM E/R converts the received power generation command val-
ue into the power generation command signal (PWM signal) and
sends it to the IC voltage regulator.

CHG-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

CHARGING SYSTEM

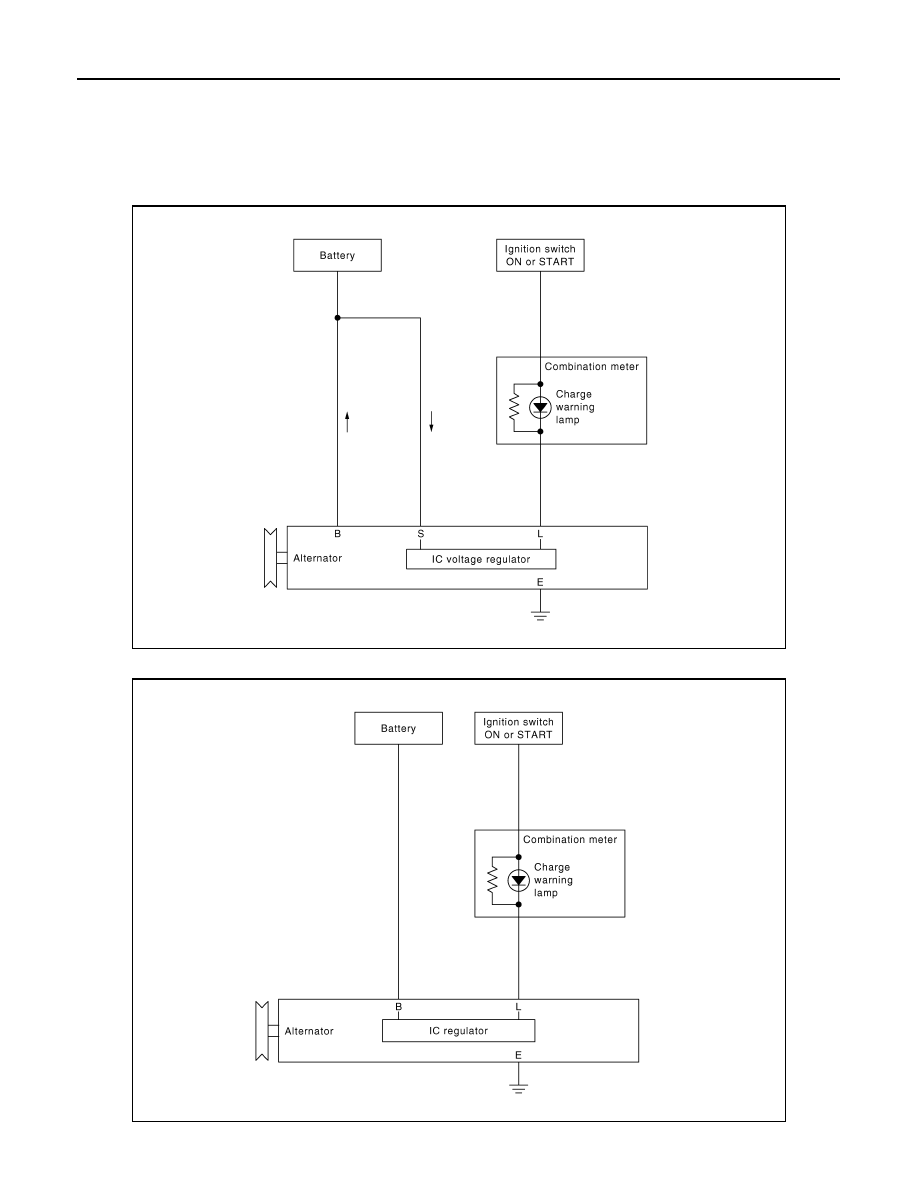

CHARGING SYSTEM : System Diagram

INFOID:0000000006532099

GASOLINE ENGINE MODELS

DIESEL ENGINE MODELS

JPMIA0426GB

JPMIA0250GB

CHG

SYSTEM

CHG-9

< SYSTEM DESCRIPTION >

CHARGING SYSTEM : System Description

INFOID:0000000006532100

The alternator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged.
The voltage output is controlled by the IC voltage regulator.

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM : System Dia-
gram (Gasoline Engine Models)

INFOID:0000000006532101

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM : System De-
scription (Gasoline Engine Models)

INFOID:0000000006532102

By performing the power generation voltage variable control, the engine load due to the power generation of
the alternator is reduced and fuel consumption is decreased.
NOTE:
When any malfunction is detected in the power generation voltage variable control system, the power genera-
tion is performed according to the characteristic of the IC voltage regulator of the alternator.

JMMIA0388GB

CHG-10

< WIRING DIAGRAM >

CHARGING SYSTEM

WIRING DIAGRAM

CHARGING SYSTEM

Wiring Diagram

INFOID:0000000006532103

GASOLINE ENGINE MODELS

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information/Explanation of Option Abbreviation"

JCMWA5879GB

CHG

CHARGING SYSTEM

CHG-11

< WIRING DIAGRAM >

DIESEL ENGINE MODELS

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information/Explanation of Option Abbreviation"

JCMWA5880GB

CHG-12

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

GASOLINE ENGINE MODELS

GASOLINE ENGINE MODELS : Work Flow

INFOID:0000000006532104

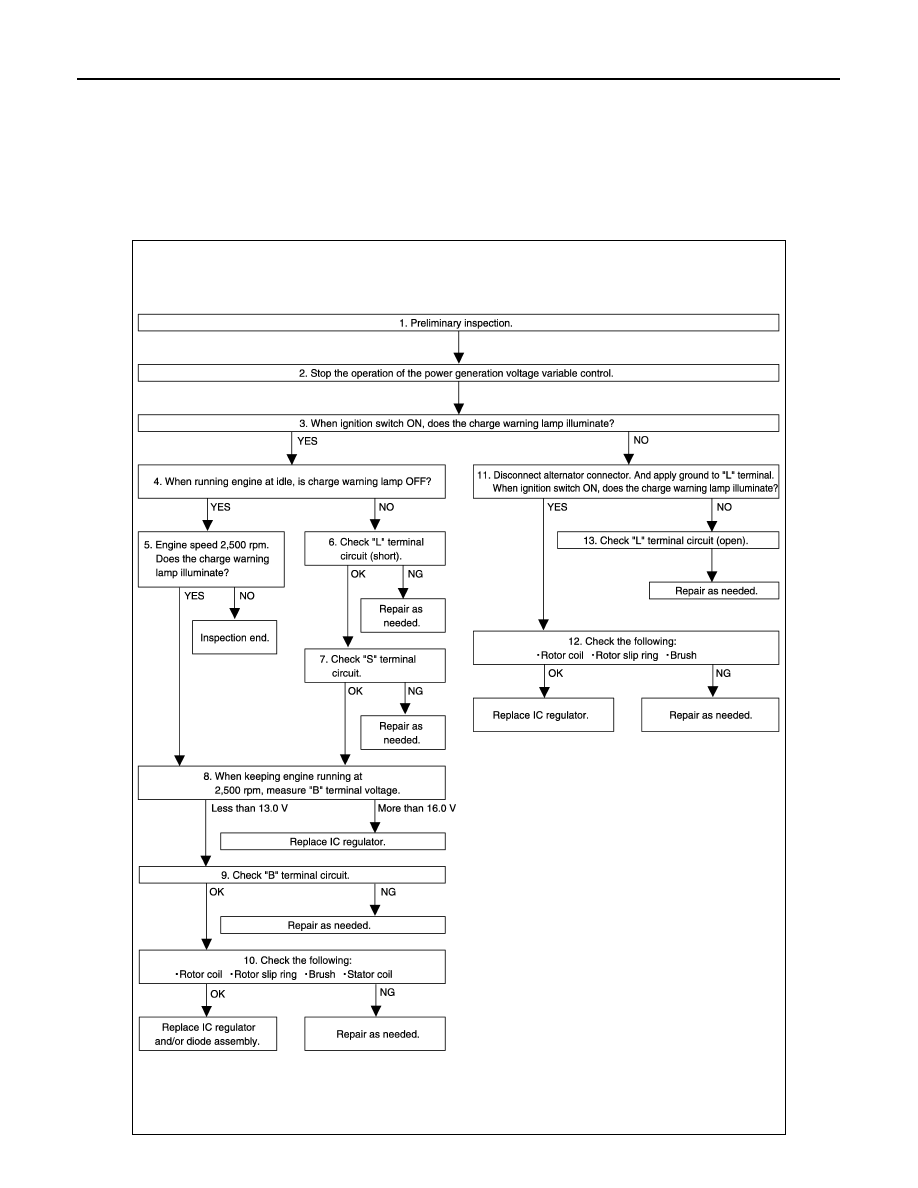

OVERALL SEQUENCE

JSMIA0080GB

CHG

DIAGNOSIS AND REPAIR WORKFLOW

CHG-13

< BASIC INSPECTION >

DETAILED FLOW

PRELIMINARY INSPECTION

Perform the preliminary inspection. Refer to

CHG-17, "Inspection Procedure"

Models with battery current sensor>>GO TO 2.
Models without battery current sensor>>GO TO 3.

STOP POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

Stop the operation of the power generation voltage variable control in either of the following procedures.
• After selecting “ENGINE” of “SELECT SYSTEM” using CONSULT-III, set the DUTY value of “ALTERNATOR

DUTY” to 0 % by selecting “ALTERNATOR DUTY” of “Active Test”. Continue “Active Test” until the end of
inspection. (When the DUTY value is 0 or 100 %, the normal power generation is performed according to the
characteristic of the IC regulator of the alternator.)

• Turn the ignition switch OFF, and disconnect the battery current sensor connector. [However, DTC (P1550 -

P1554) of the engine might remain. After finishing the inspection, connect the battery current sensor connec-
tor and erase the self-diagnostic results history of the engine using CONSULT-III.]

>> GO TO 3.

INSPECTION WITH CHARGE WARNING LAMP (IGNITION SWITCH IS ON)

Turn the ignition switch ON.

Does the charge warning lamp illuminate?

YES

>> GO TO 4.

>> GO TO 11.

INSPECTION WITH CHARGE WARNING LAMP (IDLING)

Start the engine and run it at idle.

Does the charge warning lamp turn OFF?

YES

>> GO TO 5.

>> GO TO 6.

INSPECTION WITH CHARGE WARNING LAMP

Increase and maintain the engine speed at 2,500 rpm.
Does the charge warning lamp illuminate?

YES

>> GO TO 8.

>> INSPECTION END

“L” TERMINAL CIRCUIT (SHORT) INSPECTION

Check “L” terminal circuit (short). Refer to

CHG-23, "Diagnosis Procedure"

Is the inspection result normal?

YES

>> GO TO 7.

>> Repair as needed.

“S” TERMINAL CIRCUIT INSPECTION

Check “S” terminal circuit. Refer to

CHG-24, "Diagnosis Procedure"

Is the inspection result normal?

YES

>> GO TO 8.

>> Repair as needed.

MEASURE “B” TERMINAL VOLTAGE

Start engine. When keeping engine running at 2,500 rpm, measure “B” terminal voltage.

What voltage does the measurement result show?

Less than 13.0 V>>GO TO 9.
More than 16.0 V>>Replace IC voltage regulator.

“B” TERMINAL CIRCUIT INSPECTION

CHG-14

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

Check “B” terminal circuit. Refer to

CHG-20, "Diagnosis Procedure"

Is the inspection result normal?

YES

>> GO TO 10.

>> Repair as needed.

10.

DISASSEMBLE AND CHECK ALTERNATOR

Check the following conditions.
• Rotor coil
• Rotor slip ring
• Brush
• Stator coil
Refer to

CHG-29, "HR16DE : Inspection"

(HR16DE),

CHG-33, "MR16DDT : Inspection"

(MR16DDT).

Are these normal?

YES

>> Replace IC voltage regulator and/or diode assembly.

>> Repair as needed.

11.

INSPECTION WITH CHARGE WARNING LAMP (IGNITION SWITCH IS ON)

Disconnect alternator connector and ground “L” harness side.

Turn the ignition switch ON.

Does the charge warning lamp illuminate?

YES

>> GO TO 12.

>> GO TO 13.

12.

DISASSEMBLE AND CHECK ALTERNATOR

Check the following conditions.
• Rotor coil
• Rotor slip ring
• Brush
Refer to

CHG-29, "HR16DE : Inspection"

(HR16DE),

CHG-33, "MR16DDT : Inspection"

(MR16DDT).

Are these normal?

YES

>> Replace IC voltage regulator.

>> Repair as needed.

13.

CHECK “L” TERMINAL CIRCUIT (OPEN)

Check “L” terminal circuit (open). Refer to

CHG-21, "Diagnosis Procedure"

>> Repair as needed.

DIESEL ENGINE MODELS

CHG

DIAGNOSIS AND REPAIR WORKFLOW

CHG-15

< BASIC INSPECTION >

DIESEL ENGINE MODELS : Work Flow

INFOID:0000000006635053

OVERALL SEQUENCE

DETAILED FLOW

PRELIMINARY INSPECTION

Perform the preliminary inspection. Refer to

CHG-17, "Inspection Procedure"

>> GO TO 2.

INSPECTION WITH CHARGE WARNING LAMP (IGNITION SWITCH IS ON)

Turn the ignition switch ON.
Does the charge warning lamp illuminate?

YES

>> GO TO 3.

>> GO TO 8.

INSPECTION WITH CHARGE WARNING LAMP (IDLING)

Start the engine and run it at idle.

Does the charge warning lamp turn OFF?

YES

>> GO TO 4.

>> GO TO 5.

INSPECTION WITH CHARGE WARNING LAMP (ENGINE AT 2,500 RPM)

JPMIA0226GB

CHG-16

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

Increase and maintain the engine speed at 2,500 rpm.

Does the charge warning lamp illuminate?

YES

>> GO TO 6.

>> INSPECTION END

“L” TERMINAL CIRCUIT (SHORT) INSPECTION

Check “L” terminal circuit (short). Refer to

CHG-23, "Diagnosis Procedure"

Is the inspection result normal?

YES

>> GO TO 6.

>> Repair as needed.

MEASURE “B” TERMINAL VOLTAGE

Engine start. When keeping engine running at 2,500 rpm, measure “B” terminal voltage.
What voltage does the measurement result show?

Less than 13.0 V>>GO TO 7.
More than 16.0 V>>Replace alternator.

“B” TERMINAL CIRCUIT INSPECTION

Check “B” terminal circuit. Refer to

CHG-20, "Diagnosis Procedure"

Is the inspection result normal?

YES

>> Replace alternator.

>> Repair as needed.

INSPECTION WITH CHARGE WARNING LAMP (IGNITION SWITCH IS ON)

Disconnect alternator connector and ground “L” harness side.

Turn the ignition switch ON.

Does the charge warning lamp illuminate?

YES

>> Replace alternator.

>> GO TO 9.

CHECK “L” TERMINAL CIRCUIT (OPEN)

Check “L” terminal circuit (open). Refer to

CHG-21, "Diagnosis Procedure"

>> Repair as needed.

CHG

CHARGING SYSTEM PRELIMINARY INSPECTION

CHG-17

< BASIC INSPECTION >

CHARGING SYSTEM PRELIMINARY INSPECTION

Inspection Procedure

INFOID:0000000006532105

CHECK BATTERY TERMINALS CONNECTION

Check if battery terminals are clean and tight.
Is the inspection result normal?

YES

>> GO TO 2.

>> Repair battery terminals connection.

CHECK FUSE

Check for blown fuse and fusible link.

Gasoline engine models

Diesel engine models

Is the inspection result normal?

YES

>> GO TO 3.

>> Be sure to eliminate the cause of malfunction before installing new fuse.

CHECK “E” TERMINAL CONNECTION (ALTERNATOR GROUND)

Check if “E” terminal (alternator ground) is clean and tight.

Is the inspection result normal?

YES

>> GO TO 4.

>> Repair “E” terminal (alternator ground) connection.

CHECK DRIVE BELT TENSION

Check drive belt tension. Refer to the following.
• HR16DE engine models:

EM-154, "Checking"

• MR16DDT engine models:

EM-20, "Checking"

• K9K engine models:

EM-276, "Checking Drive Belts"

Is the inspection result normal?

YES

>> INSPECTION END

>> Repair as needed.

Unit

Power source (Power supply terminals)

Fuse No.

Alternator

Battery (“S” terminal)

Combination meter

Ignition switch ON (“L” terminal)

Unit

Power source (Power supply terminals)

Fuse No.

Combination meter

Ignition switch ON (“L” terminal)

CHG-18

< BASIC INSPECTION >

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM OPERATION

INSPECTION

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM OPER-
ATION INSPECTION

Inspection Procedure

INFOID:0000000006532106

CAUTION:

When performing this inspection, always use a charged battery that has completed the battery inspec-
tion. (When the charging rate of the battery is low, the response speed of the voltage change will
become slow. This can cause an incorrect inspection.)

CHECK ECM (CONSULT-III)

Perform ECM self-diagnosis with CONSULT-III. Refer to

EC-501, "CONSULT-III Function"

(MR16DDT), or

EC-835, "CONSULT-III Function"

(K9K).

Self-diagnostic results content

No malfunction detected>> GO TO 2.
Malfunction detected>> Check applicable parts, and repair or replace corresponding parts.

CHECK OPERATION OF POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

Connect CONSULT-III and start the engine.

Check that the selector lever is in “P” or “N” position and that all of the electric loads and A/C, etc. are
turned OFF.

Select “ALTERNATOR DUTY” at “Active Test” of “ENGINE”, and then check the value of “BATTERY
VOLT” monitor when DUTY value of “ALTERNATOR DUTY” is set to 40.0 %.

Check the value of “BATTERY VOLT” monitor when DUTY value of “ALTERNATOR DUTY” is set to
80.0%.

Is the measurement value within the specification?

YES

>> INSPECTION END

>> GO TO 3.

CHECK IPDM E/R (CONSULT-III)

Perform IPDM E/R self-diagnosis with CONSULT-III. Refer to

PCS-14, "CONSULT-III Function (IPDM E/R)"

(with Intelligent Key system),

PCS-45, "CONSULT-III Function (IPDM E/R)"

(without Intelligent Key system).

Self-diagnostic results content

No malfunction detected>> GO TO 4.
Malfunction detected>> Check applicable parts, and repair or replace corresponding parts.

CHECK HARNESS BETWEEN ALTERNATOR AND IPDM E/R

Turn ignition switch OFF.

Disconnect alternator connector and IPDM E/R connector.

Check continuity between alternator harness connector and IPDM E/R harness connector.

“BATTERY VOLT”

2 seconds after setting the
DUTY value of “ALTERNA-
TOR DUTY” to 40.0 %

: 12 - 13.6 V

“BATTERY VOLT”

20 seconds after setting
the DUTY value of “ALTER-
NATOR DUTY” to 80.0 %

: +0.5 V or more against
the value of “BATTERY
VOLT” monitor when
DUTY value is 40.0 %

Alternator harness connector

IPDM E/R harness connector

Continuity

Connector

Terminal

Connector

Terminal

F15

E13

Existed

Content .. 49 50 51 52 ..
