COMPONENT PARTS

BCS-97

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

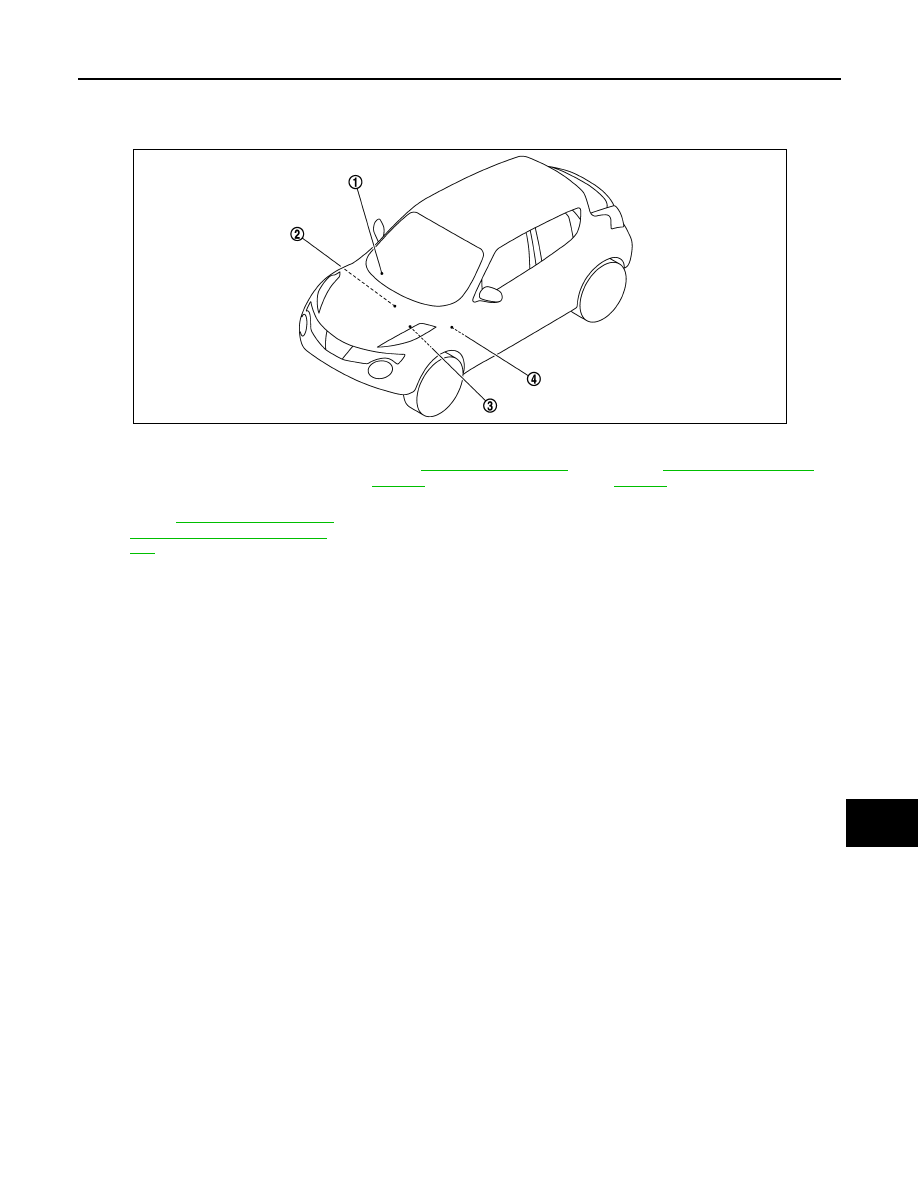

POWER CONSUMPTION CONTROL SYSTEM : Component Parts Location

INFOID:0000000006700114

Combination meter

Multi display unit
Refer to

AV-96, "Component Parts

Location"

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

BCM
Refer to

BCS-96, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

JMMIA0471ZZ

BCS-98

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

SYSTEM

BODY CONTROL SYSTEM

BODY CONTROL SYSTEM : System Description

INFOID:0000000006627723

OUTLINE

• BCM (Body Control Module) controls various electrical components.It receives the information required from

CAN communication and the signals received from each switch and sensor.

• BCM has a combination switch reading function for reading the status of combination switches (light, turn

signal, wiper and washer) in addition to functions for controlling the operation of various electrical compo-
nents. It also has a signal transmission function, for other systems, and a power consumption control func-
tion that reduces the power consumption with the ignition switch OFF.

• BCM is equipped with a diagnosis function that operates with CONSULT-III and allows for various settings to

be changed.

BCM FUNCTION LIST

System

Reference page

Combination switch reading system

BCS-100, "COMBINATION SWITCH READING SYSTEM : System
Diagram"

Signal buffer system

BCS-103, "SIGNAL BUFFER SYSTEM : System Diagram"

Power consumption control system

BCS-104, "POWER CONSUMPTION CONTROL SYSTEM : Sys-
tem Diagram"

Headlamp system

EXL-9, "HEADLAMP SYSTEM : System Diagram"

Auto light system

•

EXL-10, "AUTO LIGHT SYSTEM (WITHOUT DTRL) : System Di-
agram"

(Without daytime running light system)

•

EXL-11, "AUTO LIGHT SYSTEM (WITH DTRL) : System Dia-
gram"

(With daytime running light system)

Daytime running light system

EXL-12, "DAYTIME RUNNING LIGHT SYSTEM : System Diagram"

Front fog lamp system

EXL-13, "FRONT FOG LAMP SYSTEM : System Diagram"

Rear fog lamp system

EXL-14, "REAR FOG LAMP SYSTEM : System Diagram"

Turn signal and hazard warning lamp system

EXL-14, "TURN SIGNAL AND HAZARD WARNING LAMP SYS-
TEM : System Diagram"

Parking, license plate, side maker and tail lamps system

•

EXL-15, "PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM
(WITHOUT DTRL) : System Diagram"

(Without daytime running

light system)

•

EXL-16, "PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM
(WITH DTRL) : System Diagram"

(With daytime running light sys-

tem)

Exterior lamp battery saver system

•

EXL-17, "EXTERIOR LAMP BATTERY SAVER SYSTEM (WITH-
OUT DTRL) : System Diagram"

(Without daytime running light

system)

•

EXL-18, "EXTERIOR LAMP BATTERY SAVER SYSTEM (WITH
DTRL) : System Diagram"

(With daytime running light system)

Interior room lamp control system

INL-6, "INTERIOR ROOM LAMP CONTROL SYSTEM : System Di-
agram"

Interior room lamp battery saver system

INL-8, "INTERIOR ROOM LAMP BATTERY SAVER SYSTEM : Sys-
tem Diagram"

Front wiper and washer system

•

WW-8, "FRONT WIPER AND WASHER SYSTEM (WITH LIGHT
& RAIN SENSOR) : System Diagram"

(With light and rain sensor)

•

WW-11, "FRONT WIPER AND WASHER SYSTEM (WITHOUT
LIGHT & RAIN SENSOR) : System Diagram"

(Without light and

rain sensor))

Rear wiper and washer system

WW-14, "REAR WIPER AND WASHER SYSTEM : System Dia-
gram"

Headlamp washer system

WW-16, "HEAD LAMP WASHER SYSTEM : System Diagram"

BCS

SYSTEM

BCS-99

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BODY CONTROL SYSTEM : Fail-safe

INFOID:0000000006627724

FAIL-SAFE CONTROL BY DTC

BCM performs fail-safe control when any DTC are detected.

REAR WIPER MOTOR PROTECTION

BCM detects the rear wiper stopping position according to the rear wiper auto stop signal.
When the rear wiper auto stop signal does not change more than 5 seconds while driving the rear wiper, BCM
stops power supply to protect the rear wiper motor.

Condition of cancellation

Pass more than 1 minute after the rear wiper stop.

Turn rear wiper switch OFF.

Operate the rear wiper switch or rear washer switch.

HIGH FLASHER OPERATION

BCM detects the turn signal lamp circuit status by the current value.
BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn signal
lamp operating.
NOTE:
The blinking speed is normal while activating the hazard warning lamp.

COMBINATION SWITCH READING SYSTEM

Rear window defogger system

•

DEF-7, "WITH AUTO A/C : System Diagram"

(With automatic A/

•

DEF-7, "WITHOUT AUTO A/C : System Diagram"

(Without auto-

matic A/C))

Air conditioning control system

Automatic A/C

•

HAC-17, "System Diagram"

(4WD models)

•

HAC-109, "AUTOMATIC AIR CONDITIONING SYSTEM : System
Diagram"

(2WD models)

Manual A/C

•

HAC-203, "System Diagram"

(4WD models)

•

HAC-253, "MANUAL AIR CONDITIONING SYSTEM : System Di-
agram"

(2WD models)

Manual heater

HAC-315, "System Description"

Warning chime system

WCS-6, "WARNING CHIME SYSTEM : System Diagram"

Power door lock system

•

DLK-363, "System Diagram"

(With super lock)

•

DLK-494, "System Diagram"

(Without super lock)

Remote keyless entry sys-
tem

Remote keyless entry unction

•

DLK-366, "REMOTE KEYLESS ENTRY FUNCTION : System Di-
agram"

(With super lock)

•

DLK-497, "System Diagram"

(Without super lock)

Super lock function

DLK-367, "SUPER LOCK FUNCTION : System Diagram"

Back door opener system

•

DLK-369, "System Diagram"

(With super lock)

•

DLK-494, "System Diagram"

(Without super lock)

Nissan anti-theft system (NATS)

SEC-173, "NISSAN ANTI-THEFT SYSTEM : System Diagram"

Vehicle security system

SEC-174, "VEHICLE SECURITY SYSTEM : System Diagram"

Power window system

PWC-6, "POWER WINDOW SYSTEM : System Diagram"

System

Reference page

Display contents of CONSULT

Fail-safe

Cancellation

B2190: NATS ANTENNA AMP

Inhibit engine cranking

Erase DTC

B2191: DIFFERENCE OF KEY

Inhibit engine cranking

Erase DTC

B2192: ID DISCORD BCM-ECM

Inhibit engine cranking

Erase DTC

B2193: CHAIN OF BCM-ECM

Inhibit engine cranking

Erase DTC

B2195: ANTI SCANNING

Inhibit engine cranking

Ignition switch ON

→

OFF

B2196: DONGLE NG

Inhibit engine cranking

Erase DTC

BCS-100

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

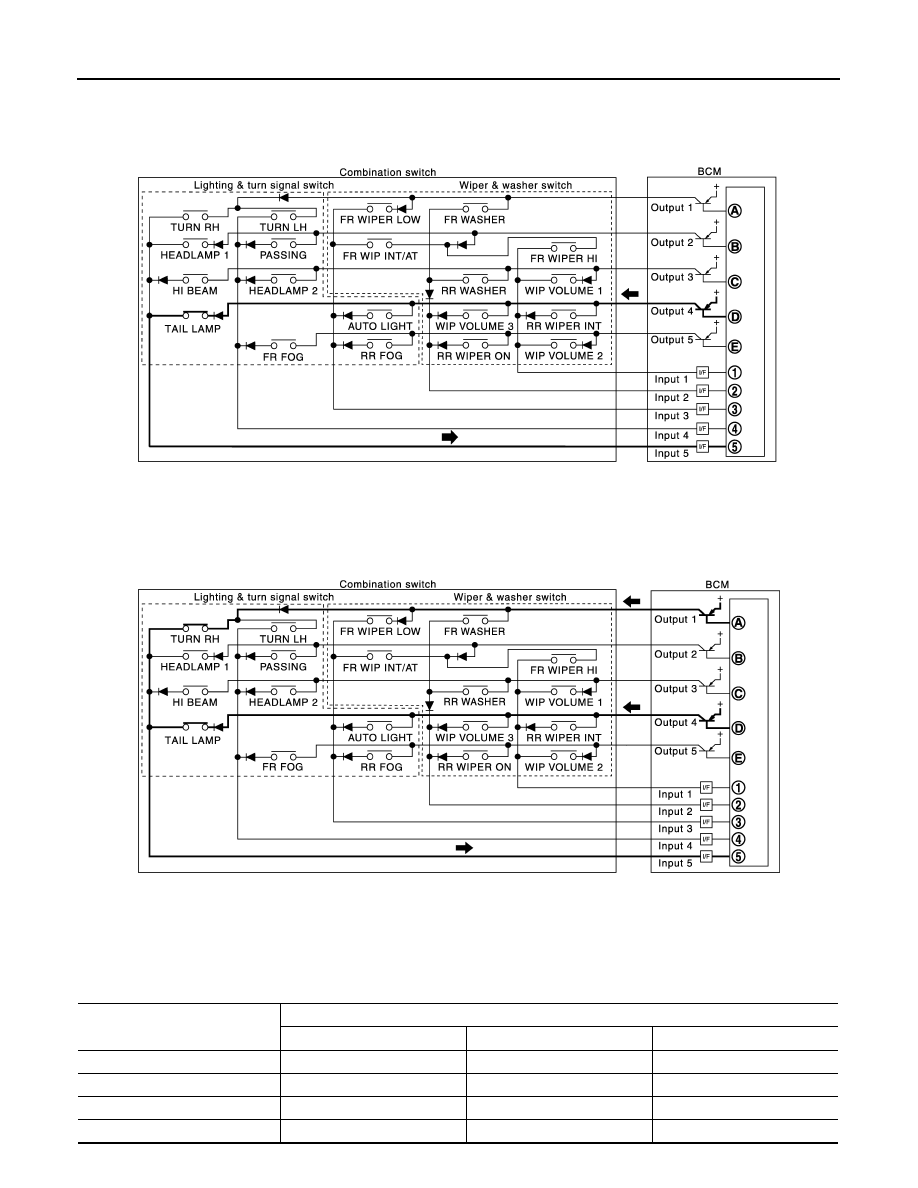

COMBINATION SWITCH READING SYSTEM : System Diagram

INFOID:0000000006698947

NOTE:
• *1: TAIL LAMP switch links lighting switch 1ST and 2ND positions.
• *2: “FR WIP INT/AT” is FR WIPER INT/AUTO.

COMBINATION SWITCH READING SYSTEM : System Description

INFOID:0000000006698948

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the

status of each switch.

• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a

maximum of 20 switch status.

COMBINATION SWITCH MATRIX

Combination switch circuit

NOTE:
• *1: TAIL LAMP switch links lighting switch 1ST and 2ND positions.
• *2: “FR WIP INT/AT” is FR WIPER INT/AUTO.

JMMIA0377GB

JMMIA0378GB

BCS

SYSTEM

BCS-101

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

Combination switch INPUT-OUTPUT system list

NOTE:

Headlamp has a dual system switch.

COMBINATION SWITCH READING FUNCTION

Description

• BCM reads the status of the combination switch at 10 ms interval normally.

NOTE:
BCM reads the status of the combination switch at 60 ms interval when BCM is controlled at low power con-
sumption control mode.

• BCM operates as follows and judges the status of the combination switch.
- It operates the transistor on OUTPUT side in the following order: OUTPUT 1

→

5, and outputs

voltage waveform.

- The voltage waveform of OUTPUT corresponding to the formed circuit is input into the interface on INPUT

side if any (1 or more) switches are ON.

- It reads this change of the voltage as the status signal of the combination switch.

Operation Example

System

INPUT 1

INPUT 2

INPUT 3

INPUT 4

INPUT 5

OUTPUT 1

—

FR WASHER

FR WIPER LOW

TURN LH

TURN RH

OUTPUT 2

FR WIPER HI

—

FR WIPER INT/

AUTO

PASSING

HEADLAMP 1

OUTPUT 3

WIP VOLUME 1

RR WASHER

—

HEADLAMP 2

HI BEAM

OUTPUT 4

RR WIPER INT

WIP VOLUME 3

AUTO LIGHT

—

TAIL LAMP

OUTPUT 5

WIP VOLUME 2

RR WIPER ON

RR FOG

FR FOG

—

JPMIA0609GB

JMMIA0326GB

BCS-102

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

In the following operation example, the combination of the status signals of the combination switch is replaced
as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.

Example 1: When a switch (TAIL LAMP switch) is turned ON

• The circuit between OUTPUT 4 and INPUT 5 is formed when the TAIL LAMP switch is turned ON.

• BCM detects the combination switch status signal “5D” when the signal of OUTPUT 4 is input to INPUT 5.
• BCM judges that the TAIL LAMP switch is ON when the signal “5D” is detected.

Example 2: When some switches (TURN RH switch, TAIL LAMP switch) are turned ON

• The circuits between OUTPUT 1 and INPUT 5 and between OUTPUT 4 and INPUT 5 are formed when the

TURN RH switch and TAIL LAMP switch are turned ON.

• BCM detects the combination switch status signal “5AD” when the signals of OUTPUT 1 and OUTPUT 4 are

input to INPUT 5.

• BCM judges that the TURN RH switch and TAIL LAMP switch are ON when the signal “5AD” is detected.

WIPER VOLUME DIAL POSITION

BCM judges the wiper volume dial 1 - 7 by the status of WIP VOLUME 1, 2 and 3 switches.

JMMIA0379GB

JMMIA0380GB

Wiper volume

dial position

Switch status

WIP VOLUME 1

WIP VOLUME 2

WIP VOLUME 3

OFF

BCS

SYSTEM

BCS-103

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

NOTE:

For details of wiper volume dial position, refer to

WW-8, "FRONT WIPER AND WASHER SYSTEM (WITH LIGHT & RAIN SENSOR) :

System Description"

(with light and rain sensor),

WW-11, "FRONT WIPER AND WASHER SYSTEM (WITHOUT LIGHT & RAIN SEN-

SOR) : System Description"

(without light and rain sensor).

SIGNAL BUFFER SYSTEM

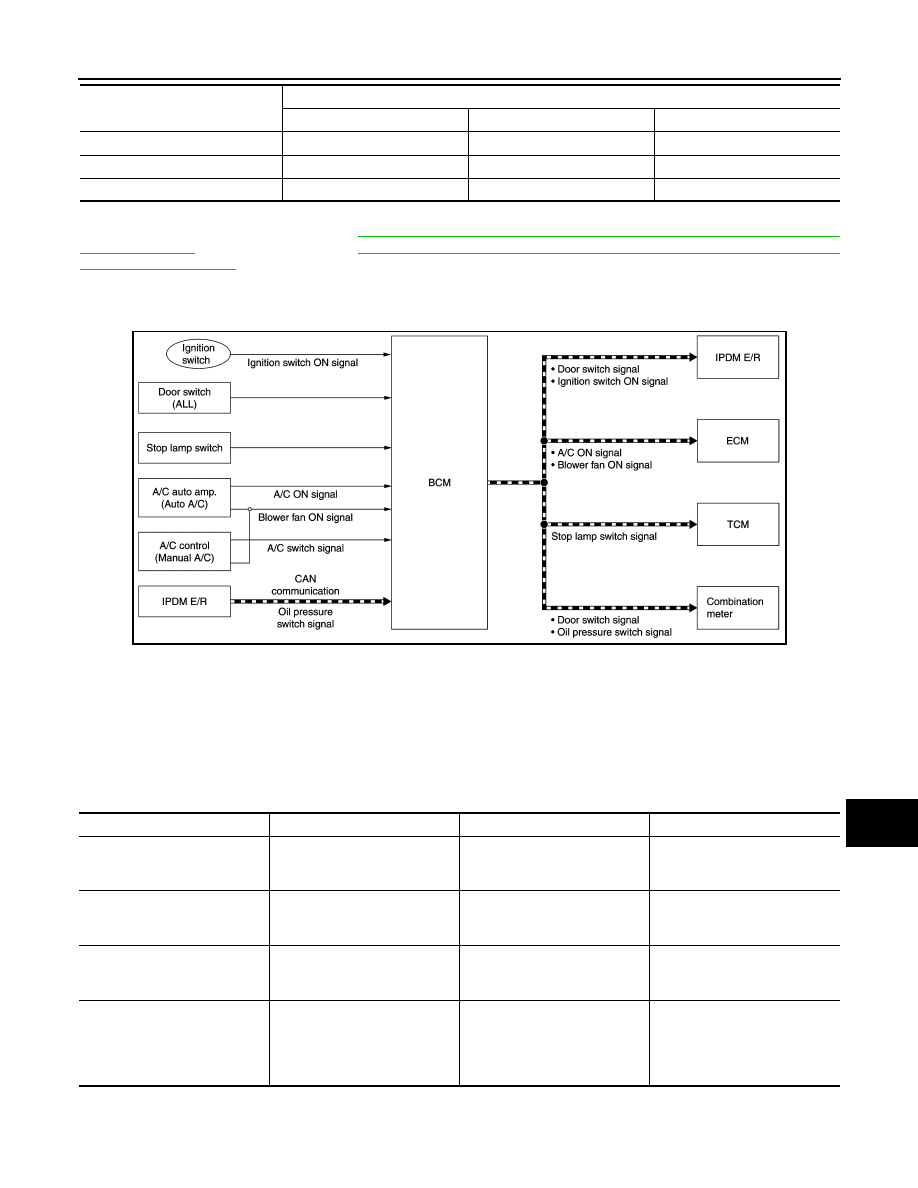

SIGNAL BUFFER SYSTEM : System Diagram

INFOID:0000000006627727

NOTE:
Oil pressure switch is applied to diesel engine models.

SIGNAL BUFFER SYSTEM : System Description

INFOID:0000000006627728

OUTLINE

BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.

SIGNAL TRANSMISSION FUNCTION LIST

OFF

Wiper volume

dial position

Switch status

WIP VOLUME 1

WIP VOLUME 2

WIP VOLUME 3

JMMIA0580GB

Signal name

Input

Output

Description

Ignition switch ON signal

Ignition switch

IPDM E/R (CAN)

Inputs the ignition switch signal
and transmits it with CAN com-
munication.

Door switch signal

Any door switch

• Combination meter (CAN)
• IPDM E/R (CAN)

Inputs the door switch signal
and transmits it with CAN com-
munication.

Blower fan ON signal

• A/C auto amp. (Auto A/C)
• A/C control (Manual A/C)

ECM (CAN)

Input blower fan switch signal,
and transmit the blower fan ON
signal via CAN communication.

A/C ON signal

• A/C auto amp. (Auto A/C)
• A/C control (Manual A/C)

ECM (CAN)

Input A/C ON signal (automatic
A/C) or A/C switch signal (man-
ual A/C), and transmit the A/C
ON signal via CAN communica-
tion.

BCS-104

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

POWER CONSUMPTION CONTROL SYSTEM

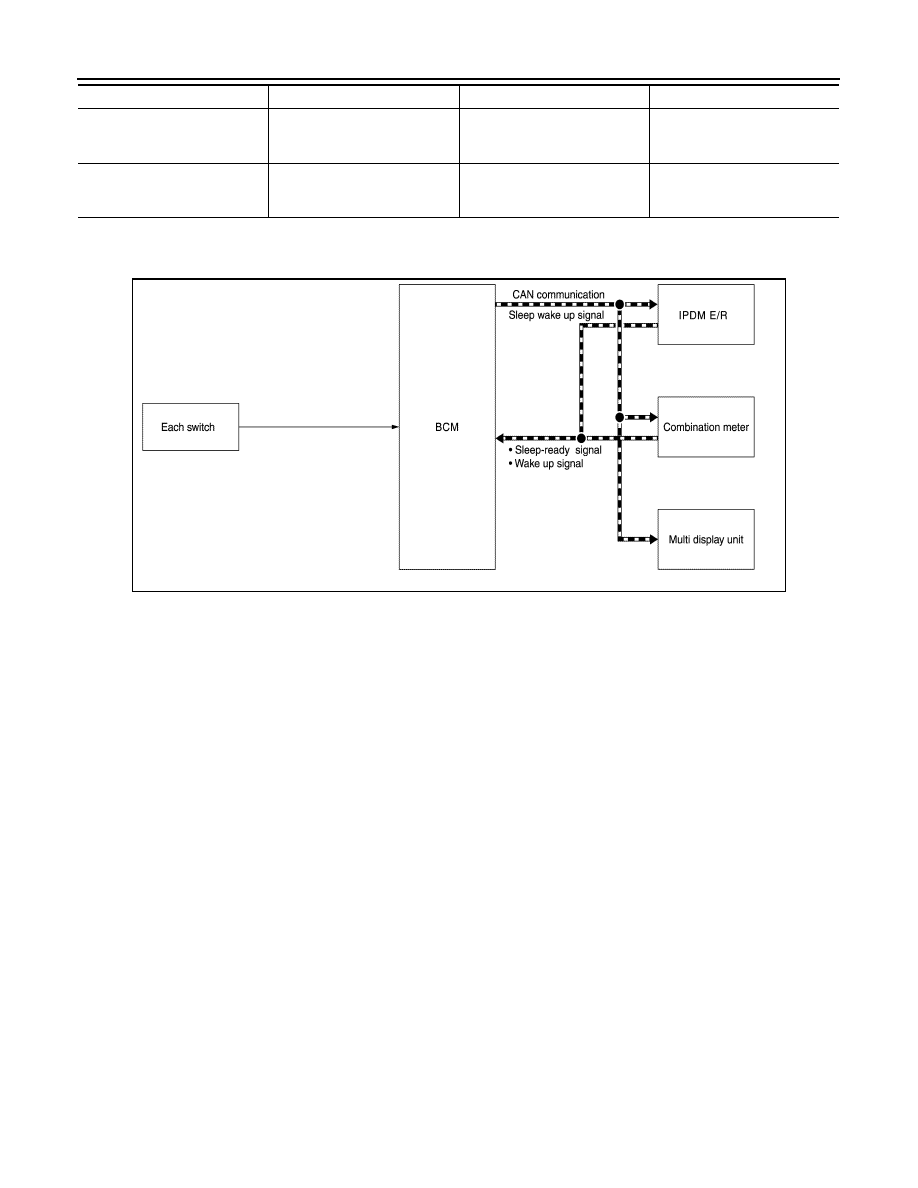

POWER CONSUMPTION CONTROL SYSTEM : System Diagram

INFOID:0000000006627729

POWER CONSUMPTION CONTROL SYSTEM : System Description

INFOID:0000000006627730

OUTLINE

• BCM incorporates a power saving control function that reduces the power consumption according to the

vehicle status.

• BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep

request to each unit (IPDM E/R, combination meter and multi control unit) that operates with the ignition
switch OFF.

Normal mode (wake-up)

- CAN communication is normally performed with other units
- Each control with BCM is operating properly

CAN communication sleep mode (CAN sleep)

- CAN transmission is stopped
- Control with BCM only is operating

Low power consumption mode (BCM sleep)

- Low power consumption control is active
- CAN transmission is stopped

LOW POWER CONSUMPTION CONTROL WITH BCM

BCM reduces the power consumption with the following operation in the low power consumption mode.
• The reading interval of the each switches changes from 10 ms interval to 60 ms interval.

Sleep mode activation

• BCM receives the sleep-ready signal (ready) from IPDM E/R and combination meter via CAN communica-

tion.

• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are ful-

filled.

Oil pressure switch signal (Die-
sel engine models)

IPDM E/R (CAN)

Combination meter (CAN)

Transmits the received oil pres-
sure switch signal with CAN
communication.

Stop lamp switch signal

Stop lamp switch

• TCM (CAN)
• ECM (CAN) (Diesel engine

models)

Inputs the stop lamp switch sig-
nal, and transmits it via CAN
communication.

Signal name

Input

Output

Description

JMMIA0579GB

BCS

SYSTEM

BCS-105

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

• Each unit stops the transmission of CAN communication with the sleep wake up signal. BCM is in CAN com-

munication sleep mode.

• BCM is in the low power consumption mode and perform the low power consumption control when all of the

BCM sleep conditions are fulfilled with CAN sleep condition.

Sleep condition

Wake-up operation

• BCM transmits sleep wake up signal (wake up) to each unit when any condition listed below is established,

and then goes into normal mode from low power consumption mode.

• Each unit starts transmissions with CAN communication by receiving sleep wake up signals. Each unit trans-

mit wake up signals to BCM with CAN communication to convey the start of CAN communication.

Wake-up condition

CAN sleep condition

BCM sleep condition

• Receiving the sleep-ready signal (ready) from all units
• 1 minute after turning ignition switch OFF
• Vehicle security system: Not operation
• Warning chime: Not operation
• Stop lamp switch: OFF
• Turn signal indicator lamp: Not operation
• Exterior lamp: OFF
• Door lock status: No change
• CONSULT-III communication status: Not communication
• Door switch status: No change
• Driver door lock status: No change
• Key switch status: No change

• Interior room lamp battery saver: Time out
• Nissan anti-theft system (NATS): Not operation
• Remote keyless entry receiver communication status: No com-

munication

Wake-up condition

• Receiving the sleep-ready signal (Not-ready) from any units
• Ignition switch: OFF

→

ACC, ON

• Key switch: OFF

→

ON, ON

→

OFF

• Hazard switch: ON
• HI BEAM switch: OFF

→

ON, ON

→

OFF

• PASSING switch: OFF

→

ON, ON

→

OFF

• HEADLAMP 1 switch: OFF

→

ON, ON

→

OFF

• HEADLAMP 2 switch: OFF

→

ON, ON

→

OFF

• TAIL LAMP switch: OFF

→

• FR FOG switch: OFF

→

ON, ON

→

OFF

• RR FOG switch: OFF

→

• TURN RH: OFF

→

ON, ON

→

OFF

• TURN LH: OFF

→

ON, ON

→

OFF

• Driver door switch: OFF

→

ON, ON

→

OFF

• Passenger door switch: OFF

→

ON, ON

→

OFF

• Rear RH door switch: OFF

→

ON, ON

→

OFF

• Rear LH door switch: OFF

→

ON, ON

→

OFF

• Back door switch: OFF

→

ON, ON

→

OFF

• Back door opener switch: OFF

→

• Stop lamp switch: ON
• Door lock and unlock switch:

NEUTRAL

→

LOCK, NEUTRAL

→

UNLOCK

• Front door lock assembly (driver side) (unlock sensor):

OFF

→

ON, ON

→

OFF

• Remote keyless entry receiver communication: Receiving

BCS-106

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000006627731

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

: Applicable item

• *1: This item is displayed, but is not used.

• *2: For models with automatic A/C, this mode is not used.

DOOR LOCK

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM. Refer to CONSULT-III opera-
tion manual.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

Rear window defogger

REAR DEFOGGER

Warning chime

BUZZER

Interior room lamp control

INT LAMP

Remote keyless entry system

MULTI REMOTE ENT

Exterior lamp

HEAD LAMP

Wiper and washer

WIPER

Turn signal and hazard warning lamps

FLASHER

• Automatic A/C
• Manual A/C
• Manual heater

AIR CONDITONER

Combination switch

COMB SW

Body control system

BCM

NATS

IMMU

Interior room lamp battery saver

BATTERY SAVER

Back door open

TRUNK

Vehicle security system

THEFT ALM

—

RETAINED PWR*

Signal buffer system

SIGNAL BUFFER

—

PANIC ALARM*

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-107

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK) (With Super Lock)

INFOID:0000000006747277

WORK SUPPORT

*: P range interlock door lock/unlock can be selected for M/T models, but automatic door lock/unlock function does not operate.

DATA MONITOR

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function can be changed to operate with this mode
• On: Operate
• Off: Non-operation

AUTOMATIC DOOR LOCK SELECT

Automatic door lock function can be selected from the following in this mode
• VH SPD: All doors are locked when vehicle speed more than 10 km/h (6 MPH)
• P RANGE*: All doors are locked when shifting the selector lever from P position to other

than the P position

AUTOMATIC DOOR UNLOCK SELECT

Automatic door unlock function can be selected from the following in the mode
• MODE 1: All doors are unlocked when the power supply position is changed from ON to

OFF

• MODE 2*: All doors are unlocked when shifting the selector lever from any position other

than the P to P position

• MODE 3: Driver side door is unlocked when the power supply position is changed from

ON to OFF

• MODE 4*: Driver side door is unlocked when shifting the selector lever from any position

other than the P to P position

• MODE 5: Driver side door is unlocked when key out of key switch
• MODE 6: All doors are unlocked when key out of key switch

AUTOMATIC LOCK/UNLOCK SET

Automatic door lock/unlock function can be selected from the following in this mode
• Off: Non-operation
• Unlock Only: Door unlock operation only
• Lock Only: Door lock operation only
• Lock/Unlock: Door lock and unlock operation

Monitor Item

Contents

IGN ON SW

Indicated [On/Off] condition of ignition switch in ON position

KEY ON SW

Indicated [On/Off] condition of key switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

BACK DOOR SW

Indicated [On/Off] condition of back door switch

LOCK STATUS

Indicated [On/Off] condition of front door driver side

ACC ON SW

Indicated [On/Off] condition of ignition switch in ACC position

KEYLESS LOCK

Indicated [On/Off] condition of lock signal from key fob

KEYLESS UNLOCK

Indicated [On/Off] condition of unlock signal from key fob

SHOCK SENSOR

Indicates [NOMAL/ON/OFF] condition of circuit between BCM and air bag diag-
nosis sensor unit
• NORMAL: Ignition switch ON (BCM is receiving normal condition signal from

air bag diagnosis sensor unit)

• ON: During the receiving of air bag signal from air bag diagnosis sensor unit
• OFF: After the receiving of air bag signal from air bag diagnosis sensor unit

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

BCS-108

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK) (Without Super Lock)

INFOID:0000000006747280

WORK SUPPORT

*: P range interlock door lock/unlock can be selected for M/T models, but automatic door lock/unlock function does not operate.

DATA MONITOR

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

VEHICLE SPEED

Display the vehicle speed signal received from combination meter by numerical
value [Km/h]

Monitor Item

Contents

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LCK” on CONSULT-III screen is touched
• The all door lock actuators are unlocked when “ALL UNLK” on CONSULT-III screen is touched
• The door lock actuator (driver side) is unlocked when “DR UNLK” on CONSULT-III screen is

touched

• The back door lock actuator is unlocked when “BD ULK” on CONSULT-III screen is touched
• The door lock actuator (other) is unlocked when “OTR ULK” on CONSULT-III screen is touched

DOOR LOCK IND

This test is able to check door lock status indicator operation

SUPER LOCK

This test is able to check super lock actuator operation
• The all super lock actuators are set when “LOCK” on CONSULT-III screen is touched
• The all super lock actuators are released when “UNLOCK” on CONSULT-III screen is touched

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function can be changed to operate with this mode
• On: Operate
• Off: Non-operation

AUTOMATIC DOOR LOCK SE-
LECT

than the P position

AUTOMATIC DOOR UNLOCK
SELECT

Automatic door unlock function can be selected from the following in the mode
• MODE 1: All doors are unlocked when the power supply position is changed from ON to

OFF

• MODE 2*: All doors are unlocked when shifting the selector lever from any position other

than the P to P position

• MODE 3: Driver side door is unlocked when the power supply position is changed from ON

to OFF

• MODE 4*: Driver side door is unlocked when shifting the selector lever from any position

other than the P to P position

• MODE 5: Driver side door is unlocked when key out of key switch
• MODE 6: All doors are unlocked when key out of key switch

AUTOMATIC LOCK/UNLOCK
SET

Monitor Item

Contents

IGN ON SW

Indicated [On/Off] condition of ignition switch in ON position

KEY ON SW

Indicated [On/Off] condition of key switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-109

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

ACTIVE TEST

REAR WINDOW DEFOGGER

REAR WINDOW DEFOGGER : CONSULT-III Function (BCM - REAR DEFOGGER)

INFOID:0000000006747294

Data monitor

ACTIVE TEST

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

BACK DOOR SW

Indicated [On/Off] condition of back door switch

LOCK STATUS

Indicated [On/Off] condition of front door driver side

ACC ON SW

Indicated [On/Off] condition of ignition switch in ACC position

KEYLESS LOCK

Indicated [On/Off] condition of lock signal from key fob

KEYLESS UNLOCK

Indicated [On/Off] condition of unlock signal from key fob

SHOCK SENSOR

Indicates [NOMAL/ON/OFF] condition of circuit between BCM and air bag di-
agnosis sensor unit
• NORMAL: Ignition switch ON (BCM is receiving normal condition signal

from air bag diagnosis sensor unit)

• ON: During the receiving of air bag signal from air bag diagnosis sensor unit
• OFF: After the receiving of air bag signal from air bag diagnosis sensor unit

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

VEHICLE SPEED

Display the vehicle speed signal received from combination meter by numer-
ical value [Km/h]

Monitor Item

Contents

Test item

Description

DOOR LOCK

touched

• The door lock actuator (driver side) is unlocked when “DR UNLK” on CONSULT-III screen

is touched

• The back door lock actuator is unlocked when “BD ULK” on CONSULT-III screen is touched
• The door lock actuator (other) is unlocked when “OTR ULK” on CONSULT-III screen is

touched

DOOR LOCK IND

NOTE:
This item is displayed, but cannot be monitored

SUPER LOCK

NOTE:
This item is displayed, but cannot be monitored

Monitor Item

Description

REAR DEF SW

Displays “Press (ON)/other (OFF)” status determined with the rear window defogger switch.

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch ACC position.

BCS-110

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

BUZZER

BUZZER : CONSULT-III Function (BCM - BUZZER)

INFOID:0000000006747295

CONSULT-III APPLICATION ITEMS

DATA MONITOR

ACTIVE TEST

INT LAMP

Test Item

Description

REAR DEFOGGER

Give a drive signal to the rear window defogger relay to activate it.

Test item

Diagnosis mode

Description

BUZZER

Data Monitor

Displays BCM input data in real time.

Active Test

Operation of electrical loads can be checked by sending driving signal to them.

Display item

[Unit]

Description

IGN ON SW
[On/Off]

Status of ignition switch judged by BCM.

KEY ON SW
[On/Off]

Status of key switch judged by BCM.

DOOR SW-DR
[km/h]

Status of driver side door switch judged by BCM.

REVERSE SW CAN
[On/Off]

This item is displayed, but cannot be monitored.

TAIL LAMP SW
[On/Off]

Status of lighting switch judged by BCM using the combination switch readout function.

FR FOG SW
[On/Off]

Status of front fog lamp switch judged by BCM using the combination switch readout function.

BUCKLE SW
[On/Off]

Status of seatbelt buckle switch (driver side) received from combination meter with CAN communica-
tion line.

VEHICLE SPEED
[km/h]

Value of vehicle speed signal received from combination meter with CAN communication line.

Display item

[Unit]

Description

IGN KEY WARN ALM

The key warning chime operation can be checked by operating the relevant function (On/Off).

LIGHT WARN ALM

The light warning chime operation can be checked by operating the relevant function (On/Off).

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-111

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

INFOID:0000000006747289

WORK SUPPORT

*: Factory setting

DATA MONITOR

JPLIA0093GB

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1

0 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 2

7.5 sec.

MODE 3

15 sec.

MODE 4*

30 sec.

SET I/L D-UNLCK INTCON

On*

With the interior room lamp timer function

Off

Without the interior room lamp timer function

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.

Juke F15 (2012 year). Service Repair Manual - part 15
