Juke F15 (2012 year). Service Repair Manual - part 3

STEERING SWITCH SIGNAL B CIRCUIT

AV-29

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO WITHOUT NAVIGATION]

STEERING SWITCH SIGNAL B CIRCUIT

Description

INFOID:0000000006659776

Transmits the steering switch signal to audio unit.

Diagnosis Procedure

INFOID:0000000006659768

CHECK STEERING SWITCH SIGNAL B CIRCUIT

Disconnect audio unit connector and spiral cable connector.

Check continuity between audio unit harness connector and spiral cable harness connector.

Check continuity between audio unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

>> Repair harness or connector.

CHECK SPIRAL CABLE

Check spiral cable.
Is the inspection result normal?

YES

>> GO TO 3.

>> Replace spiral cable. Refer to

SR-16, "Exploded View"

CHECK AUDIO UNIT VOLTAGE

Connect audio unit connector and spiral cable connector.

Turn ignition switch ON.

Check voltage between audio unit harness connector.

Is the inspection result normal?

YES

>> GO TO 4.

>> Replace audio unit. Refer to

AV-38, "Removal and Installation"

CHECK STEERING SWITCH

Turn ignition switch OFF.

Check steering switch. Refer to

AV-30, "Component Inspection"

Is the inspection result normal?

YES

>> INSPECTION END

>> Replace steering switch. Refer to

AV-44, "Exploded View"

Audio unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M128

M33

Existed

Audio unit

Ground

Continuity

Connector

Terminal

M128

Not existed

Probe

Reference value

(Approx.)

(+)

(

−

)

Audio unit

Connector

Terminal

Connector

Terminal

M128

3.3 V

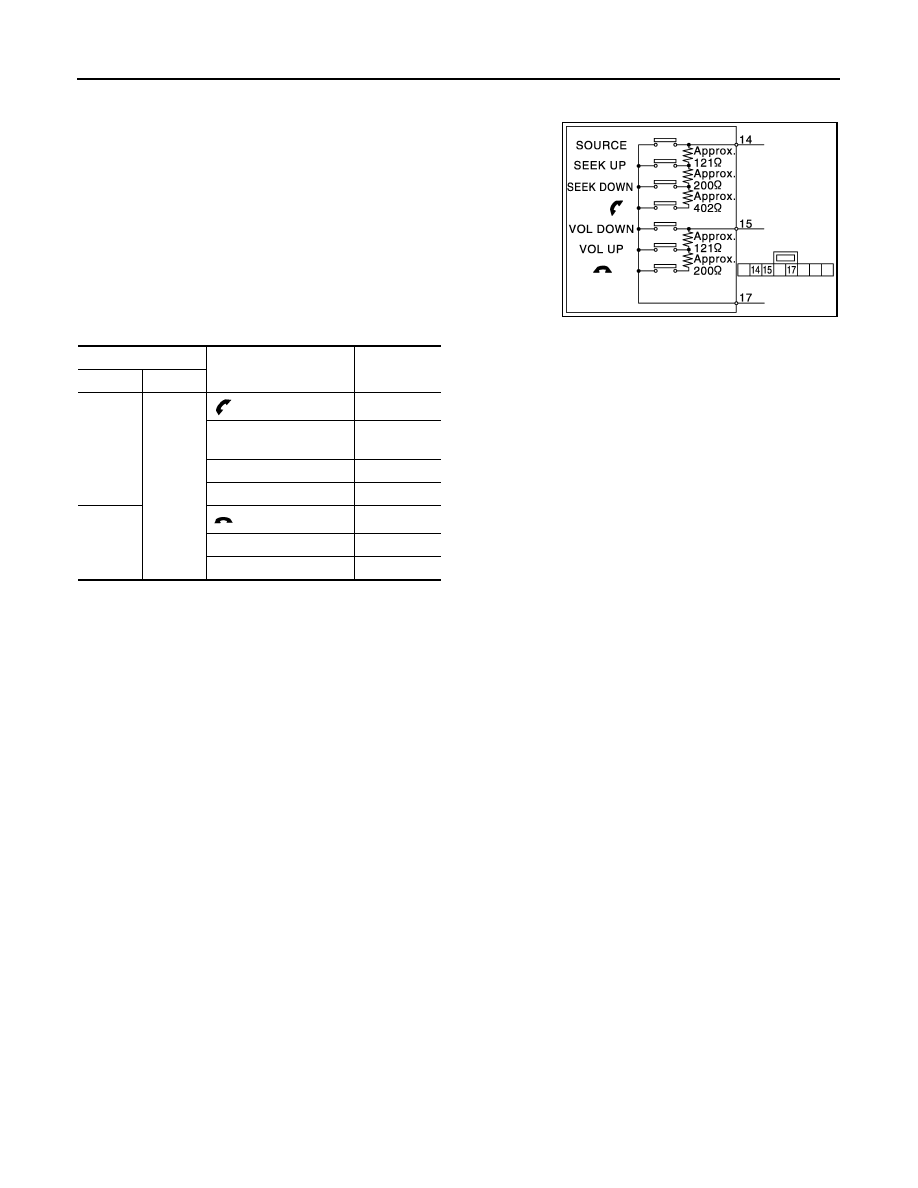

AV-30

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO WITHOUT NAVIGATION]

STEERING SWITCH SIGNAL B CIRCUIT

Component Inspection

INFOID:0000000006659779

Measure the resistance between the steering switch connector.

Standard

JPNIA1780GB

Steering switch

Condition

Resistance

(Approx.)

Ω

Terminal

switch ON

709 – 737

SEEK DOWN switch
ON

315 – 327

SEEK UP switch ON

119 – 123

SOURCE switch ON

switch ON

315 – 327

VOL UP switch ON

119 – 123

VOL DOWN switch ON

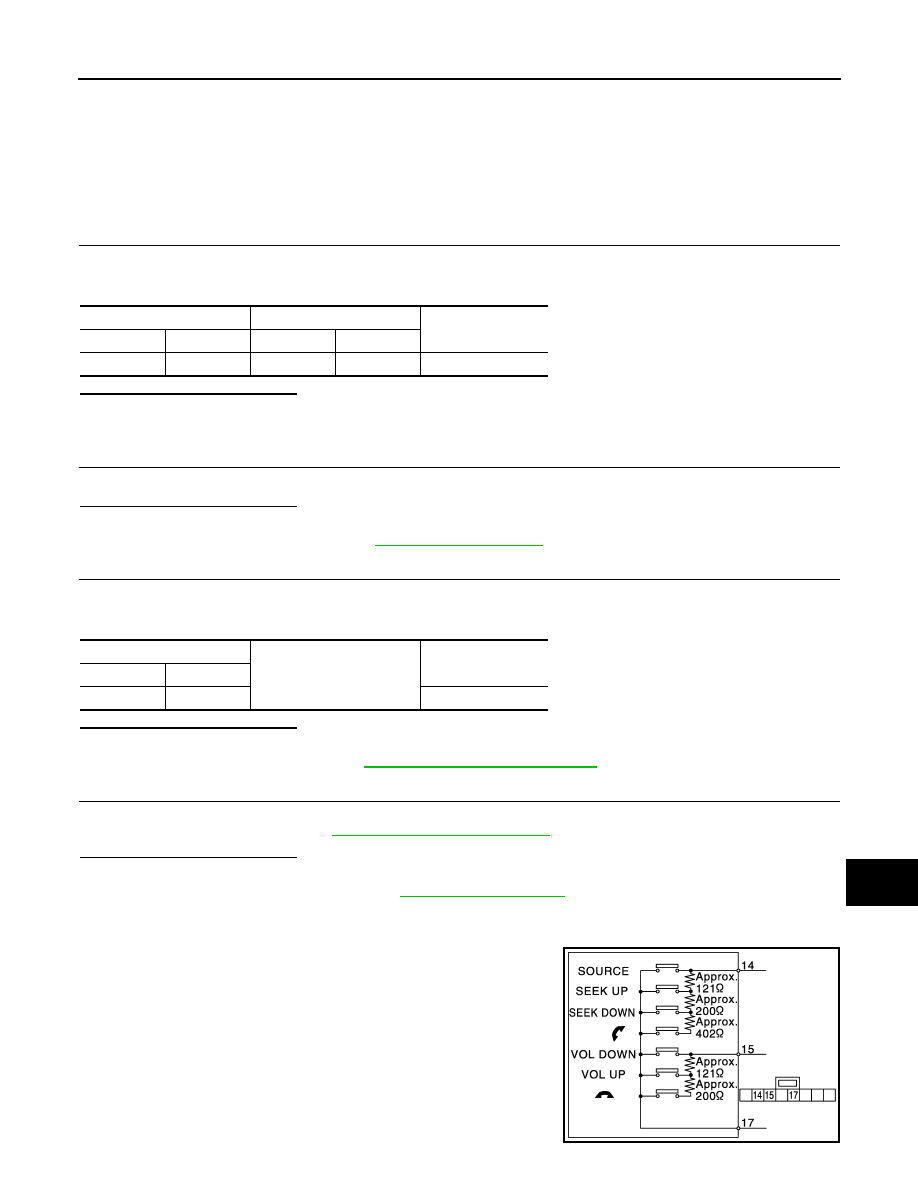

STEERING SWITCH GROUND CIRCUIT

AV-31

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO WITHOUT NAVIGATION]

STEERING SWITCH GROUND CIRCUIT

Description

INFOID:0000000006659777

Transmits the steering switch signal to audio unit.

Diagnosis Procedure

INFOID:0000000006659771

CHECK STEERING SWITCH SIGNAL GROUND CIRCUIT

Disconnect audio unit connector and spiral cable connector.

Check continuity between audio unit harness connector and spiral cable harness connector.

Is the inspection result normal?

YES

>> GO TO 2.

>> Repair harness or connector.

CHECK SPIRAL CABLE

Check spiral cable.

Is the inspection result normal?

YES

>> GO TO 3.

>> Replace spiral cable. Refer to

SR-16, "Exploded View"

CHECK GROUND CIRCUIT

Connect audio unit connector.

Check continuity between audio unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

>> Replace audio unit. Refer to

AV-38, "Removal and Installation"

CHECK STEERING SWITCH

Turn ignition switch OFF.

Check steering switch. Refer to

AV-31, "Component Inspection"

Is the inspection result normal?

YES

>> INSPECTION END

>> Replace steering switch. Refer to

AV-44, "Exploded View"

Component Inspection

INFOID:0000000006659780

Measure the resistance between the steering switch connector.

Audio unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M128

M33

Existed

Audio unit

Ground

Continuity

Connector

Terminal

M128

Existed

JPNIA1780GB

AV-32

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO WITHOUT NAVIGATION]

STEERING SWITCH GROUND CIRCUIT

Standard

Steering switch

Condition

Resistance

(Approx.)

Ω

Terminal

switch ON

709 – 737

SEEK DOWN switch
ON

315 – 327

SEEK UP switch ON

119 – 123

SOURCE switch ON

switch ON

315 – 327

VOL UP switch ON

119 – 123

VOL DOWN switch ON

AUDIO SYSTEM SYMPTOMS

AV-33

< SYMPTOM DIAGNOSIS >

[AUDIO WITHOUT NAVIGATION]

SYMPTOM DIAGNOSIS

AUDIO SYSTEM SYMPTOMS

MODELS WITH USB CONNECTION FUNCTION

MODELS WITH USB CONNECTION FUNCTION : Symptom Table

INFOID:0000000006414393

AUDIO SYSTEM

RELATED TO HANDS-FREE PHONE

• Check that the cellular phone is the corresponding type (Bluetooth

™

enabled) and Bluetooth

™

turns ON.

• Malfunction may occur due to the version change of the phone type, etc. even though it is the corresponding

type. The cell phone must support at least hands-free profile V1.0 and object push V1.0. Refer to cell phone
instruction manual.

Symptoms

Check items

Probable malfunction location / Action

to take

The audio system does not turn
ON.

–

Audio unit power supply and ground cir-
cuit.
Refer to

AV-24, "AUDIO UNIT : Diagno-

sis Procedure"

Audio sound is not heard.

No sound from all speakers.

Replace audio unit.
Refer to

AV-38, "Removal and Installa-

tion"

Sound is heard only from specific places.

Sound signal circuit of suspect system.
Perform audio unit diagnosis function.
Refer to

AV-10, "MODELS WITH USB

CONNECTION FUNCTION : On Board
Diagnosis Function"

Only specified switch cannot be
operated.

–

Replace audio unit.
Refer to

AV-38, "Removal and Installa-

tion"

Display does not dim.

Check “Illumination” in
diagnosis function of
audio unit.
Refer to

AV-10, "MOD-

ELS WITH USB CON-
NECTION FUNCTION
: On Board Diagnosis
Function"

“ON” is displayed for “Illumi-
nation”.

Replace audio unit.
Refer to

AV-38, "Removal and Installa-

tion"

“ON” is not displayed for “Il-
lumination”.

Illumination signal circuit

Speed sensitive volume system
does not work.

Check “Vehicle speed”
in diagnosis function of
audio unit.
Refer to

AV-10, "MOD-

ELS WITH USB CON-
NECTION FUNCTION
: On Board Diagnosis
Function"

A value of “Vehicle Speed”
changes according to vehi-
cle speeds.

Replace audio unit.
Refer to

AV-38, "Removal and Installa-

tion"

A value of “Vehicle Speed”
does not change according
to vehicle speeds.

Vehicle speed signal circuit

• AM/FM radio is not received.
• Traffic information (RDS) is

not received.

• Other audio sound

is normal.

• Check “Self check”

in diagnosis function
of audio unit.
Refer to

AV-10,

"MODELS WITH
USB CONNECTION
FUNCTION : On
Board Diagnosis
Function"

The malfunction related to
radio antenna is not detect-
ed.

Replace audio unit.
Refer to

AV-38, "Removal and Installa-

tion"

The malfunction related to
radio antenna is detected.

• Antenna amp. ON signal circuit.
• Antenna base
• Antenna feeder

AV-34

< SYMPTOM DIAGNOSIS >

[AUDIO WITHOUT NAVIGATION]

AUDIO SYSTEM SYMPTOMS

• When customers contact concerning Bluetooth

™

compatible cell phone malfunction for the first time, always

suggest customers to update cellular phone software if possible.

• Check that customer cellular phone is compatible on the published list. The dealer should contact its RBU/

NSC for the list.

• Take note of any exceptions that the list may detail, i.e. no ringing tone or no phonebook transfer etc. If the

customer phone is not listed then its full function cannot be guaranteed. NISSAN should not replace the
audio unit if the cell phone does not appear on the list or the cell phone is operating as described on the list
e.g. no ringing tone, no phonebook transfer etc.

• Take note of any exceptions to other phones made by the same manufacturer as the customers. Any excep-

tions on one model by a specific manufacturer may be common to all models made by that manufacturer.

Simple Check for Bluetooth

™

Communication

If cellular phone and audio unit cannot be connected with Bluetooth

™

communication, following procedure

allows the technician to judge which device has malfunction.

Turn on a cellular phone, not connecting Bluetooth

™

communication.

Start CONSULT-III, then start Windows

Set CONSULT-III near a cellular phone.

When operated Bluetooth

™

registration by cellular phone, check

if CONSULT-III

would be displayed on the device name.

(If other Bluetooth

™

device is located near cellular phone, a

name of the device would be displayed also.)
NOTE:
*:Displayed device name is “NISSAN-

”.

• If no device name is displayed, cellular phone is malfunction.

Repair the cellular phone first, then perform diagnosis.

• If CONSULT-III is displayed on device name, cellular phone is nor-

mal

. Perform diagnosis as per the following table.

: There is no 100% guarantee that cellular phone operates all

functions on audio unit. Different phone manufacturers implement Bluetooth

™

in different ways. Phones on

Supported Phone List are tested and any minor exceptions are listed.

Trouble Diagnosis Chart by Symptom

RELATED TO USB

NOTE:
Check that there is no malfunction of USB equipment main body before performing a diagnosis.

JPNIA0441GB

Symptoms

Check items

Possible malfunction location / Action to take

Does not recognize cellular
phone connection.

Repeat the registration of cellular phone.

Audio unit malfunction. Replace audio unit.
Refer to

AV-38, "Removal and Installation"

Hands-free phone cannot be
activated.

• Hands-free phone operation can be

made, but the communication cannot
be established.

• Hands-free phone operation can be

performed, however, voice between
each other cannot be heard during the
conversation.

Originating sound is not heard
by the other party with hands-
free phone communication.

Voice operation is work.

Voice operation does not work.

Microphone signal circuit malfunction.
Refer to

AV-25, "Diagnosis Procedure"

The other party's voice cannot
be heard by hands-free phone.

—

TEL voice sound signal circuits malfunction.

AUDIO SYSTEM SYMPTOMS

AV-35

< SYMPTOM DIAGNOSIS >

[AUDIO WITHOUT NAVIGATION]

iPod

is a trademark of Apple inc., registered in the U.S. and other countries.

RELATED TO AUXILIARY INPUT

NOTE:
Check that there is no malfunction of AUX equipment main body before performing a diagnosis.

RELATED TO STEERING SWITCH

MODELS WITHOUT USB CONNECTION FUNCTION

MODELS WITHOUT USB CONNECTION FUNCTION : Symptom Table

INFOID:0000000006577791

Symptoms

Check items

Probable malfunction location / Action

to take

iPod

or USB memory can not

be recognized.

With iPod or USB
memory Connected,
check “USB connect-
ed” in diagnosis func-
tion of audio unit.

“ON” is displayed for “USB
connected”.

• USB and AUX harness
• USB connector and AUX jack
• Audio unit

“ON” is not displayed for
“USB connected”.

• USB and AUX harness
• USB connector and AUX jack

Symptoms

Check items

Probable malfunction location

No voice sound is heard when
AUX mode is selected.

Voice sound is heard when other modes
are selected.

• USB and AUX harness
• USB connector and AUX jack

Symptoms

Possible malfunction location / Action to take

All steering switches are not operated.

Steering switch signal ground circuit.
Refer to

AV-31, "Diagnosis Procedure"

Only specified switch cannot be operated.

Steering switch.

“

”, “SEEK UP”, “SEEK DOWN” and “SOURCE” switches

are not operated.

Steering switch signal A circuit.
Refer to

AV-27, "Diagnosis Procedure"

“

”, “VOL UP” and “VOL DOWN” switches are not operated.

Steering switch signal B circuit
Refer to

AV-29, "Diagnosis Procedure"

The steering switch operates improperly.
(The above phenomena excluded.)

EQ1 circuit

Symptoms

Check items

Possible malfunction location / Action to take

Audio sound is not heard.

No sound from all speakers.

Audio unit power supply and ground circuit.
Refer to

AV-24, "AUDIO UNIT : Diagnosis Procedure"

Sound is heard only from specific
places.

Sound signal circuit of suspect system.

AV-36

< SYMPTOM DIAGNOSIS >

[AUDIO WITHOUT NAVIGATION]

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000006414394

RELATED TO AUDIO

• The majority of the audio malfunctions are the result of outside causes (bad CD, electromagnetic interfer-

ence, etc.). Check the symptoms below to diagnose the malfunction.

• The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunctioning.

Check that noise is caused and/or changed by engine speed, ignition switch turned to each position, and
operation of each piece of electrical equipment. Then determine the cause.

NOTE:
• CD-R is not guaranteed to play because they can contain compressed audio (MP3, WMA) or could be incor-

rectly mastered by the customer on a computer.

• Check that the CDs carry the Compact Disc Logo. If not, the disc is not mastered to the red book Compact

Disc Standard and may not play.

Noise resulting from variations in field strength, such as fading noise and multi-path noise, or external noise from trains and other
sources, is not a malfunction.

NOTE:

• Fading noise: This noise occurs because of variations in the field strength in a narrow range due to mountains or buildings blocking

the signal.

• Multi-path noise: This noise results from a time difference between the broadcast waves directly from the station arriving at the

antenna and the waves reflected by mountains or buildings.

RELATED TO TELEPHONE

Symptoms

Cause and counter measure

Cannot play

Check that the CD was inserted correctly.

Check that the CD is scratched or dirty.

Check that there is condensation inside the player, and if there is, wait until the condensation is
gone (about 1 hour) before using the player.

The player will play correctly after it returns to the normal temperature if there is a temperature
increase error.

Only the music CD files (CD-DA data) will be played if there is a mixture of music CD files (CD-
DA data) and MP3/WMA files on a CD.

Files with extensions other than “.MP3”, “.WMA”, “.mp3”, or “.wma” cannot be played.

Check that the finalization process, such as session close and disc close, is done for the disc.

Check that the CD is protected by copyright.

Poor sound quality

Check that the CD is scratched or dirty.

It takes a relatively long time before
the music starts playing.

If there are many folder or file levels on the MP3/WMA CD, or if it is a multisession disc, some
time may be required before the music starts playing.

The songs do not play back in the
desired order.

The playback order is the order in which the files were written by the software, so the files might
not play in the desired order.

Symptoms

Cause and counter measure

Intermittent voice turbulence occurs be-
tween buildings.

Surrounded by buildings, cell phones may have a poor reception due to radio waves
irregular reflection or interception.

Noise interference occurs under the rail-
road overpass or near high-tension wires,
traffic lights, or neon signs.

Noise waves from these may be mixed into radio waves.

Booming noises are mixed into audio.

Radio waves from the cell phone may be mixed into audio.

No sound can be heard:
• Voice from the party on the other end of

the line cannot be heard.

• No ring tone.

• Check that the key switch is not set to ON or ACC.
• Check that sound volume (VOL) is not set to minimum.

• Check that the connection of Bluetooth

™

is normal.

• Adjust cell phone ring tone and volume. Volume levels of ring tone and voice on the

phone depend on the volume setting of the cell phone, according to the model.

NORMAL OPERATING CONDITION

AV-37

< SYMPTOM DIAGNOSIS >

[AUDIO WITHOUT NAVIGATION]

Voice cannot be transmitted to the party on
the other end of the line.

Check that the connection of Bluetooth

™

is normal.

Telephone call does not get through.

• Check that the cell phone is not locked.

• Check that the connection of Bluetooth

™

is normal.

• Check that the telephone call is made in the area within the telecommunications car-

rier service area.

• Check that the area is not a blind area.

The party on the other end of the line hears
noises while talking on a hand-held cell
phone.

The party on the other end of the line may hear noises depending on where the cell
phone is placed.

Bluetooth

™

has a slow connection after ig-

nition switch ON.

Some models take time for standby.

Sound level of voice is different from that of
ringing sounds or ring tone.

This model allows separate settings for sound levels of ringing sounds, ring tone, and
voice.

The number of electric field reception bars
of the audio unit is different from that of the
cell phone. Or telephone call does not get
through even when transmitting with the re-
ception bar displayed.

Specifications regarding the number of electric field reception bars differ from cell
phone to cell phone. (Reception bar of the audio unit is the guideline.)

The party on the other end of the line hears
muffled sounds while talking on the phone.

Ambient sounds through the microphone make muffled sounds after conversion pe-
culiar to digital devices.

Symptoms

Cause and counter measure

AV-38

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]

AUDIO UNIT

REMOVAL AND INSTALLATION

AUDIO UNIT

Removal and Installation

INFOID:0000000006578268

REMOVAL

Remove cluster lid C. Refer to

IP-12, "Exploded View"

Remove audio unit screws.

Disconnect audio unit connectors to remove audio unit and brackets as a single unit.

Remove brackets screws to remove audio unit.

INSTALLATION

Install in the reverse order of removal.

Enter the anti-theft code (with USB connection function models). Refer to

AV-23, "Work Procedure"

FRONT DOOR SPEAKER

AV-39

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000006578269

REMOVAL

Remove front door finisher. Refer to

INT-13, "Exploded View"

Remove front door speaker screws, then disconnect front door speaker connector and remove front door
speaker.

INSTALLATION

Install in the reverse order of removal.

AV-40

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]

TWEETER

TWEETER

Removal and Installation

INFOID:0000000006578270

REMOVAL

Remove front pillar garnish. Refer to

INT-18, "Exploded View"

Remove tweeter clip, then disconnect tweeter connector and remove tweeter.

INSTALLATION

Install in the reverse order of removal.

REAR DOOR SPEAKER

AV-41

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000006578271

REMOVAL

Remove rear door finisher. Refer to

INT-16, "Exploded View"

Remove rear door speaker screws, then disconnect rear door speaker connector and remove rear door
speaker.

INSTALLATION

Install in the reverse order of removal.

AV-42

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]

ANTENNA BASE

ANTENNA BASE

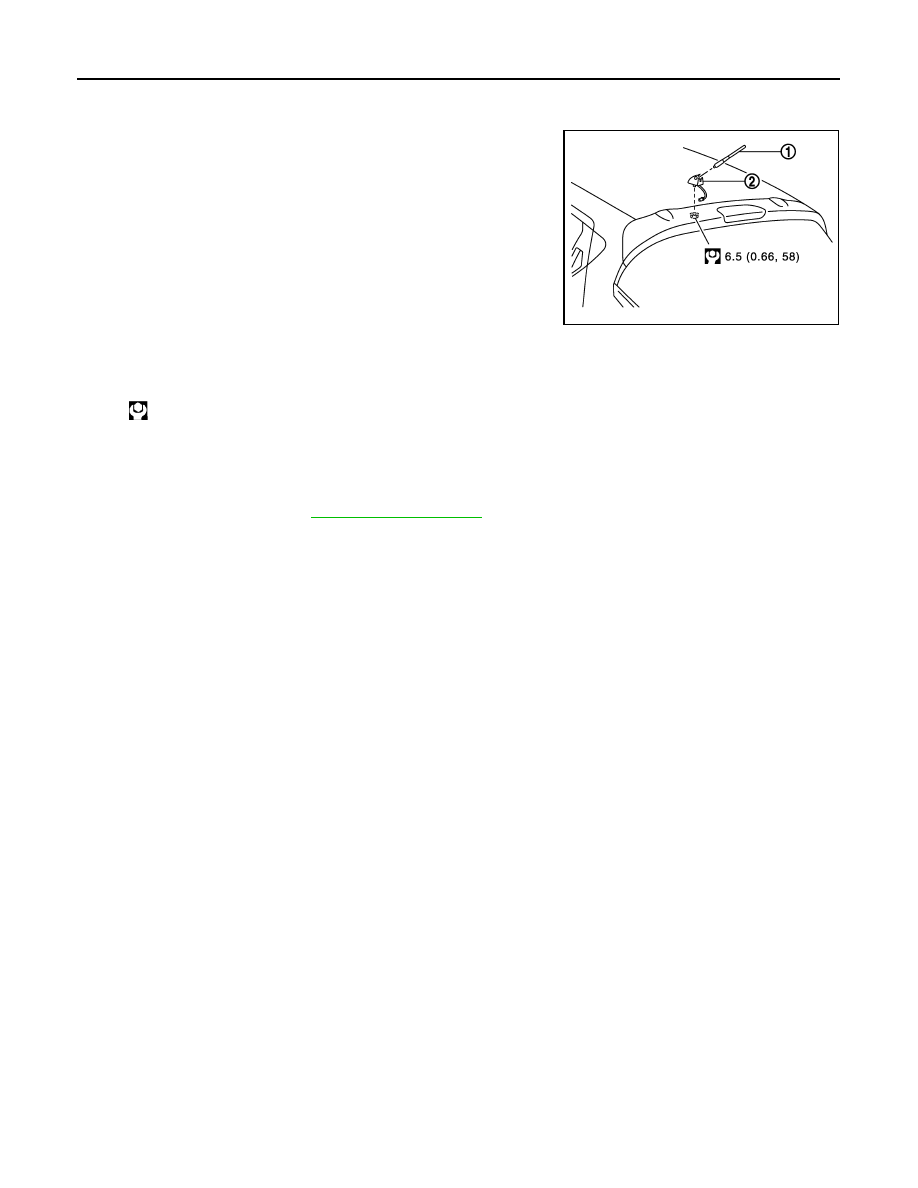

Exploded View

INFOID:0000000006578272

Removal and Installation

INFOID:0000000006578273

REMOVAL

Remove headlining. Refer to

INT-26, "Exploded View"

Disconnect antenna feeder connector.

Remove nut to remove antenna base.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

If the antenna base mounting nut is tightened looser than the specified torque, then this will lower the
sensitivity of the antenna. On the other hand, if the nut is tightened tighter than the specified torque,
then this will deform the roof panel.

JSNIA3161GB

Antenna rod

Antenna base

: N·m (kg-m, in-lb)

MICROPHONE

AV-43

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]
