Nissan Juke F15. Manual - part 969

LU-6

< PREPARATION >

[MR FOR NISMO RS MODELS]

PREPARATION

PREPARATION

PREPARATION

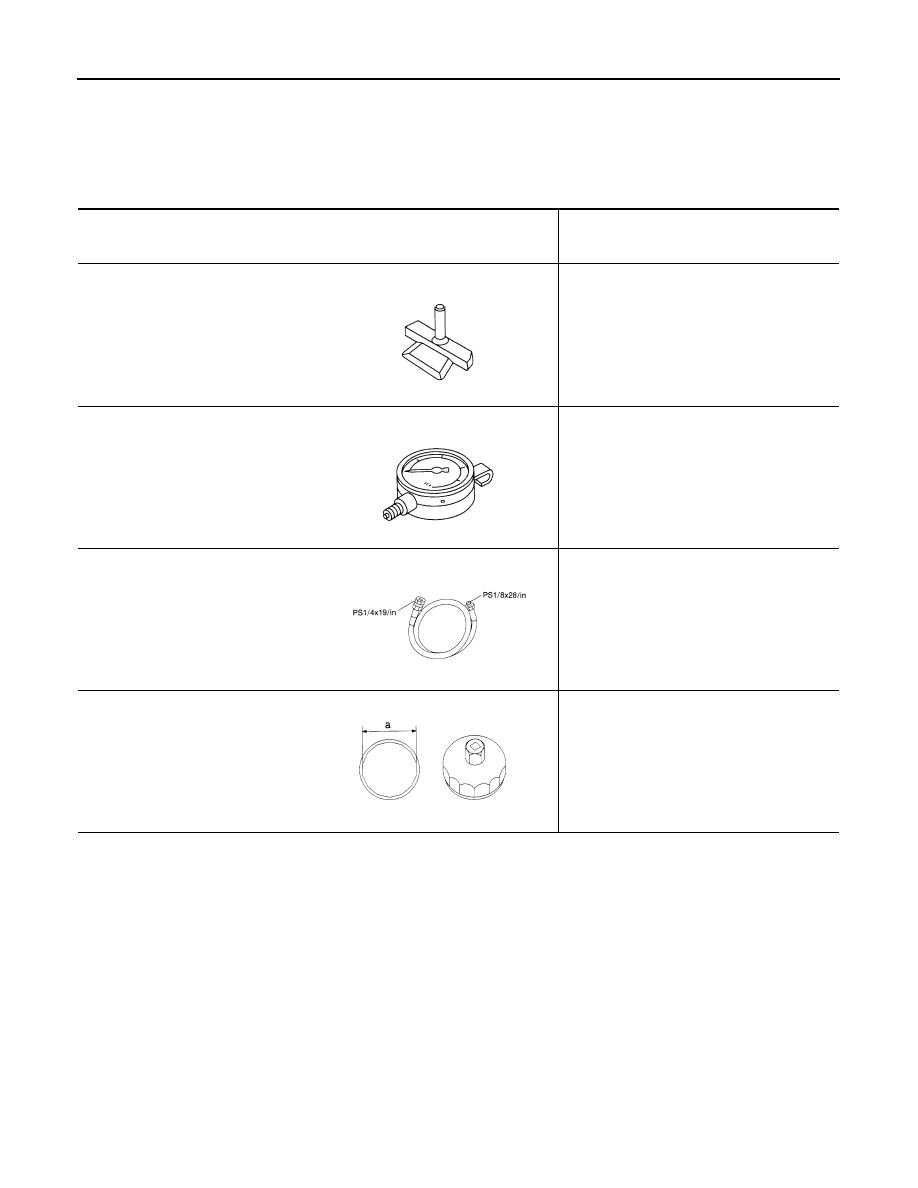

Special Service Tools

INFOID:0000000012197468

The actual shapes oh TechMate tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000012197469

Tool number
(TechMate No.)
Tool name

Description

KV10111100
(J-37228)
Seat cutter

Removing oil pan (lower) etc.

ST25051001
(J-25695-1)
Oil pressure gauge

Measuring oil pressure
Maximum measuring range: 2,452 kPa (25
kg/cm

2

, 356 psi)

ST25052000
(J-25695-2)
Hose

Adapting oil pressure gauge to cylinder block

KV10115801
(J-38956)
Oil filter wrench

Removing and installing oil filter
a: 64.3 mm (2.531 in)

NT046

NT050

S-NT559

S-NT375

PREPARATION

LU-7

< PREPARATION >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

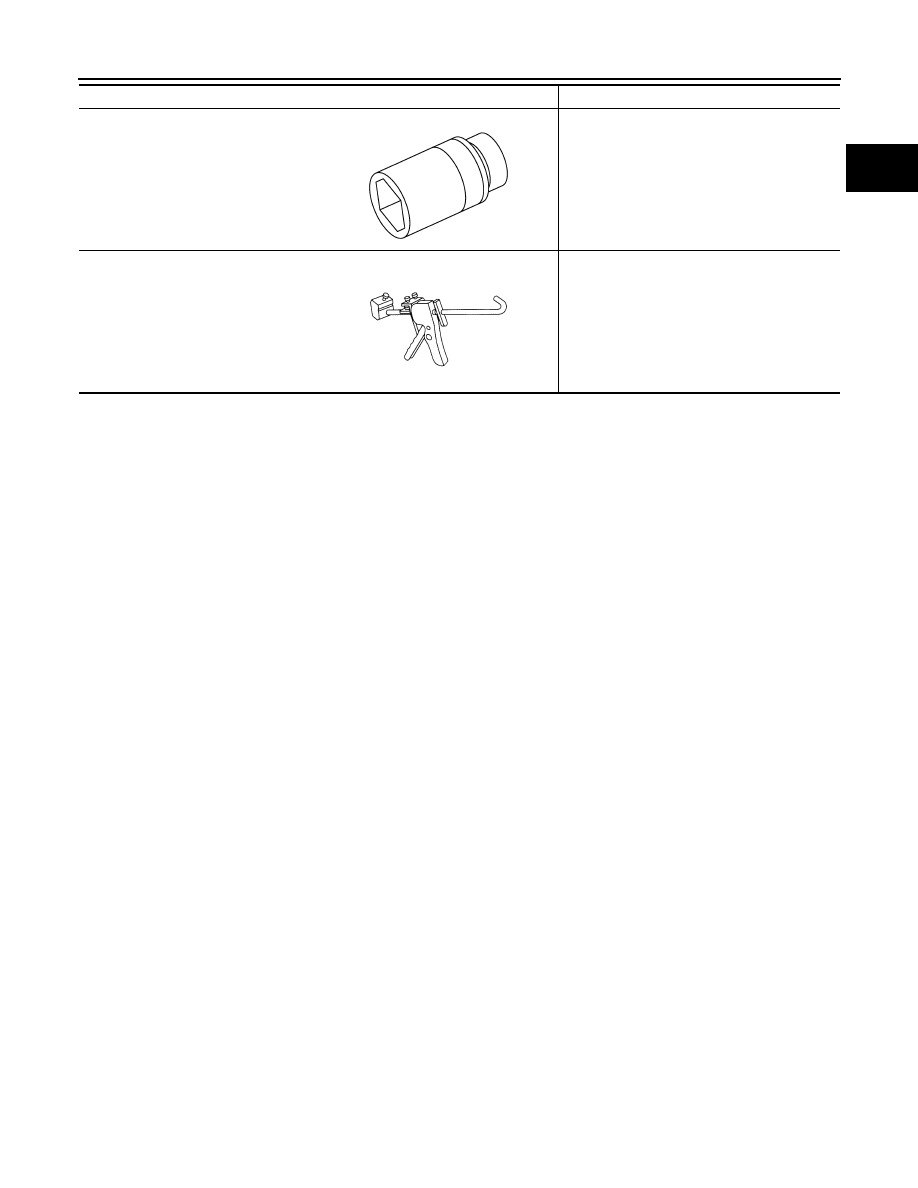

Tool name

Description

Deep socket

Removing and installing oil pressure sensor
27 mm (1.06 in)

Tube presser

Pressing the tube of liquid gasket

PBIC4066E

NT052

LU-8

< SYSTEM DESCRIPTION >

[MR FOR NISMO RS MODELS]

DESCRIPTION

SYSTEM DESCRIPTION

DESCRIPTION

Engine Lubrication System

INFOID:0000000012197470

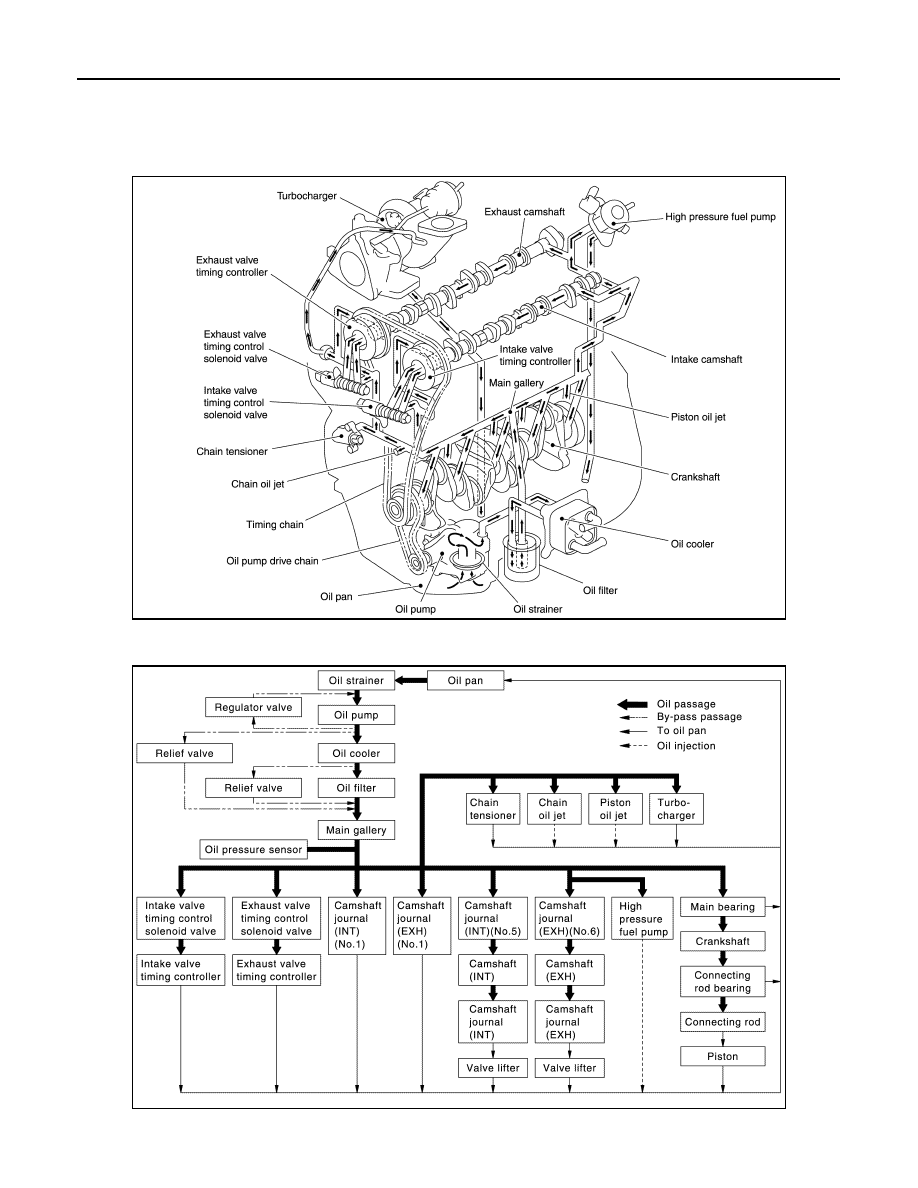

Engine Lubrication System Schematic

INFOID:0000000012197471

JPBIA4342GB

JPBIA4343GB

ENGINE OIL

LU-9

< PERIODIC MAINTENANCE >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

PERIODIC MAINTENANCE

ENGINE OIL

Inspection

INFOID:0000000012197472

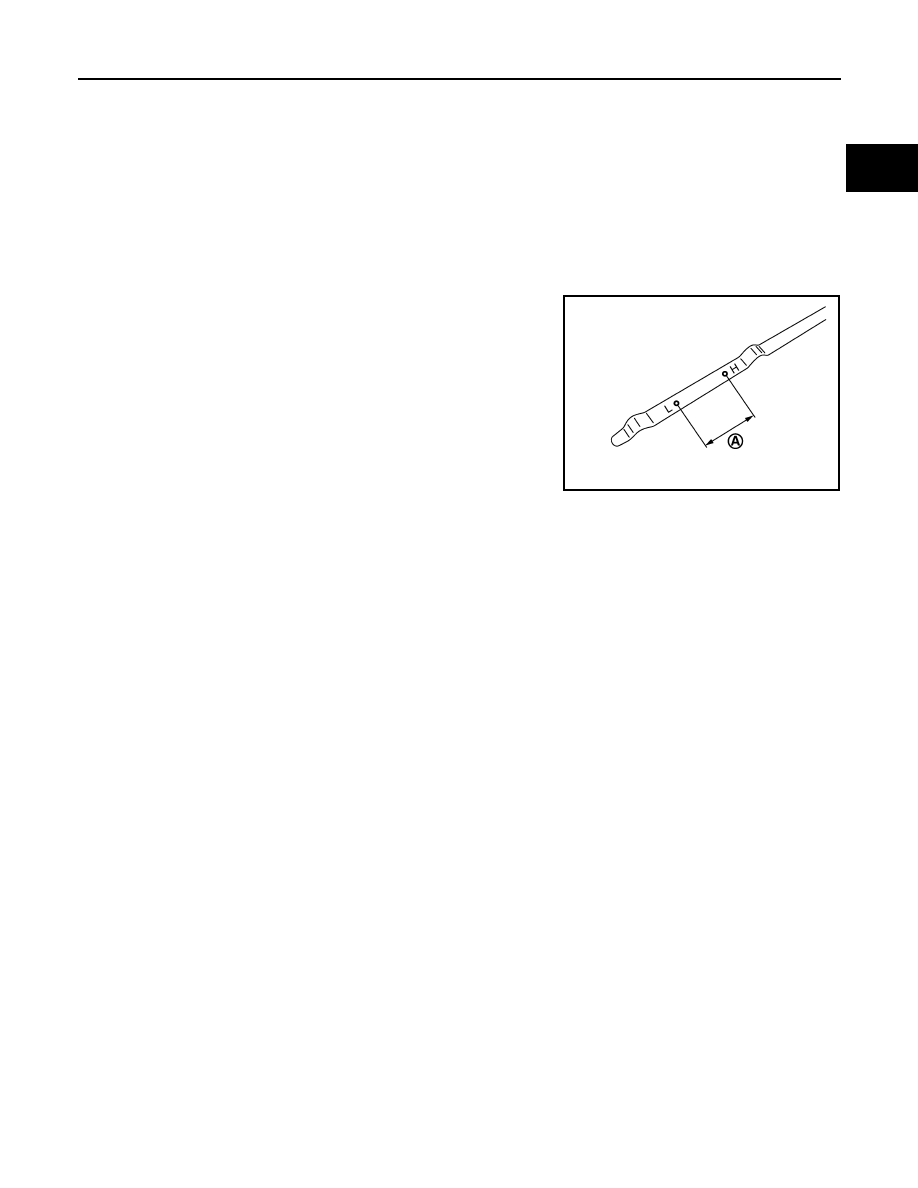

ENGINE OIL LEVEL

NOTE:

Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop

it and allow 10 minutes before checking.
1. Pull out oil level gauge and wipe it clean.
2. Insert oil level gauge and check that the engine oil level is within

the range (A) shown in the figure.

3. If it is out of range, adjust it.

ENGINE OIL APPEARANCE

• Check engine oil for white turbidity or heavy contamination.

• If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.

Repair or replace damaged parts.

ENGINE OIL LEAKAGE

Check for engine oil leakage around the following area.

• Oil cooler

• Oil temperature sensor

• Oil pan bolt

• Oil pan (upper and lower)

• Oil pan drain plug

• Oil pressure sensor

• Oil filter

• Valve timing control cover

• Valve timing control solenoid valve (intake and exhaust)

• Front cover

• Turbocharger

• Turbocharger oil tube (feed and return)

• Turbocharger oil hose

• Mating surface between high pressure fuel pump and camshaft bracket

• Mating surface between cylinder head and camshaft bracket

• Mating surface between cylinder block and cylinder head

• Mating surface between camshaft bracket and rocker cover

• Crankshaft oil seals (front and rear)

OIL PRESSURE CHECK

WARNING:

• Be careful not to get burned, as engine oil may be hot.

• When checking engine oil pressure, shift position should be “Parking” (CVT models) or “Neutral”

(M/T models), and apply parking brake securely.

1. Check engine oil level.

PBIC3309J
