FL-22

< REMOVAL AND INSTALLATION >

[MR16DDT ]

FUEL TANK

3. After connecting, pull out quick connector and centralized under

floor piping by hand. Check connections are secure.

2WD : Inspection

INFOID:0000000012197593

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leakage.
1. Turn ignition switch “ON” (with engine stopped), and check connections for leakage by applying fuel pres-

sure to fuel piping.

2. Start engine and rev it up and check there are no fuel leakage at the fuel system tube and hose connec-

tions.

AWD

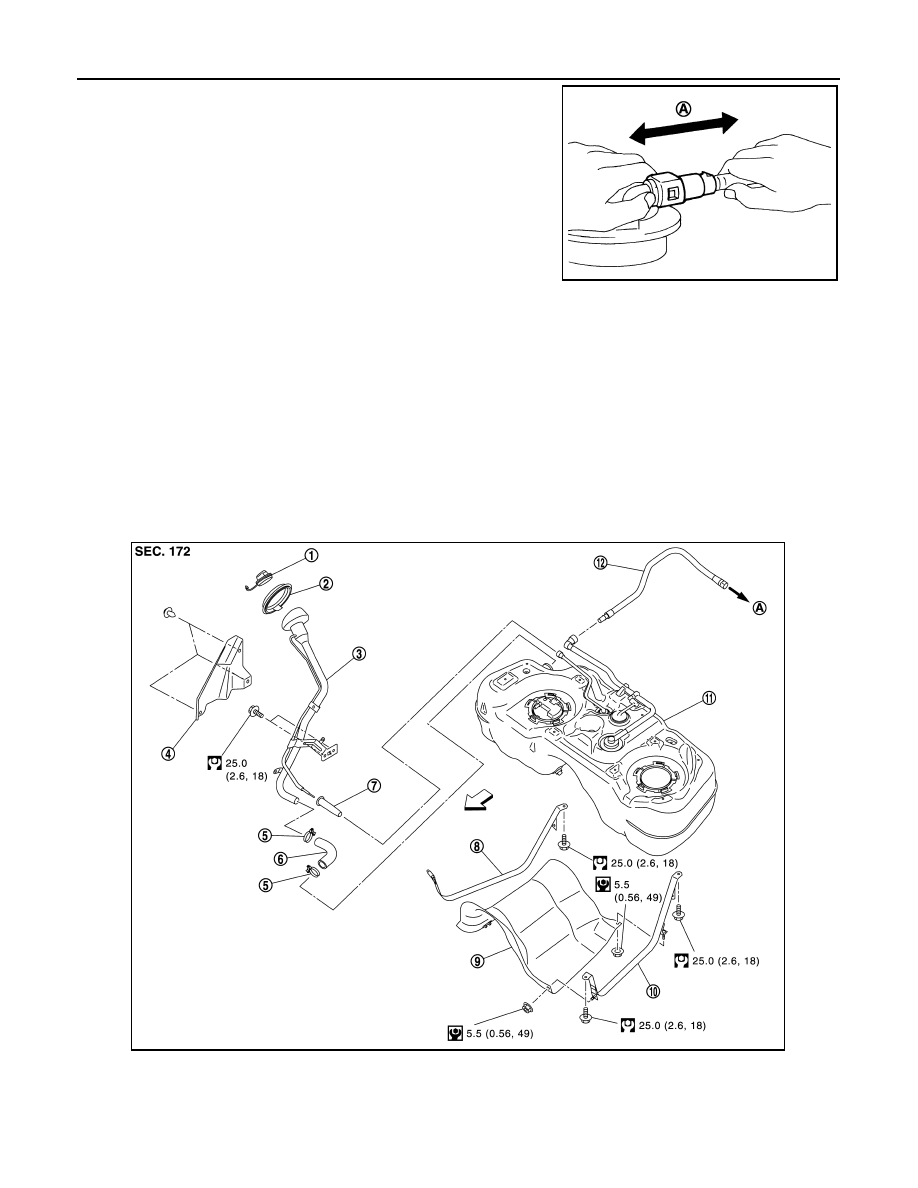

AWD : Exploded View

INFOID:0000000012197594

A :  Pull

JPBIA0140ZZ

1.

Fuel filler cap

2.

Grommet

3.

Fuel filler tube

4.

Cover

5.

Clamp

6.

Fuel filler hose

7.

EVAP hose protector

8.

Fuel tank band (RH)

9.

Protector

JPBIA4873GB

FUEL TANK

FL-23

< REMOVAL AND INSTALLATION >

[MR16DDT ]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

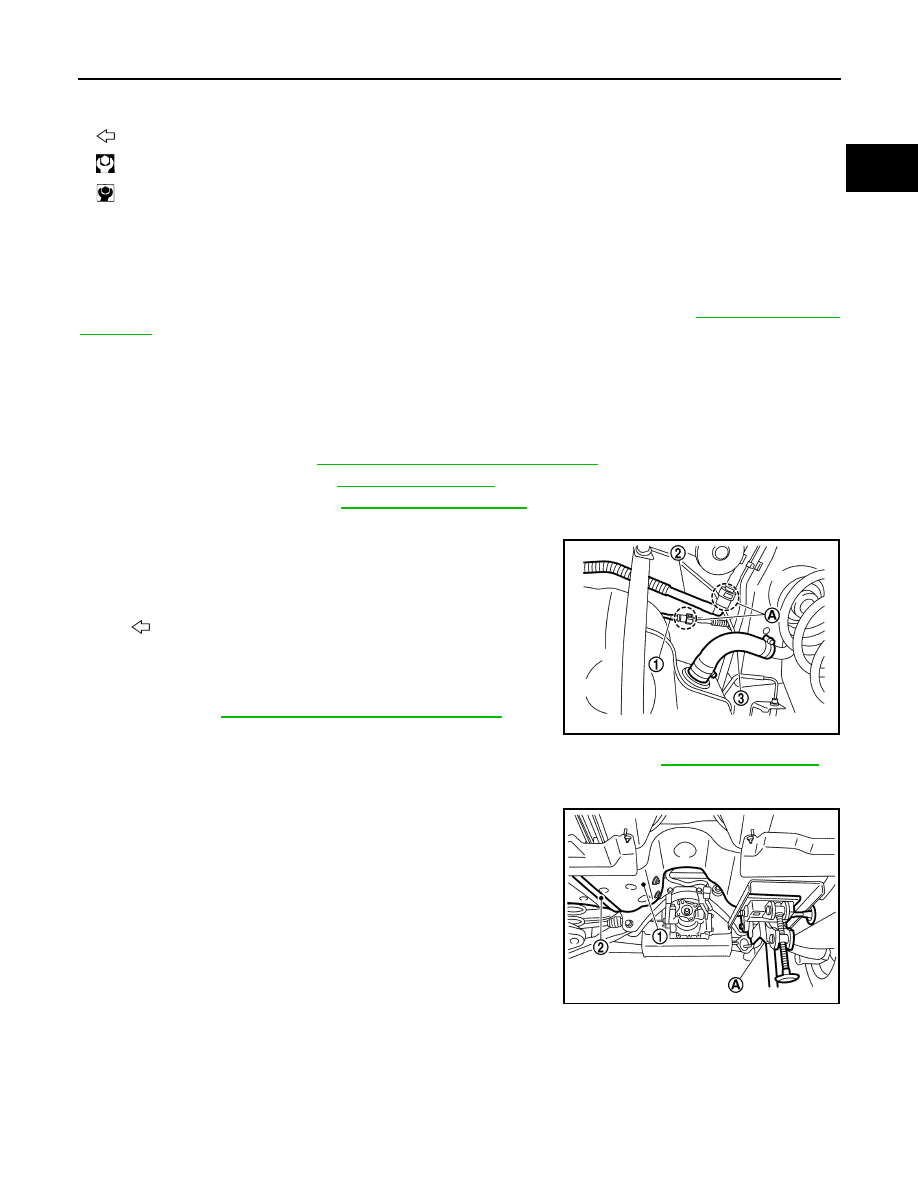

AWD : Removal and Installation

INFOID:0000000012197595

REMOVAL

WARNING:

Be sure to read “General Precautions” when working on the fuel system. Refer to

FL-2, "General Pre-

cautions"

.

CAUTION:

• Because fuel tank forwardly inclines and becomes unstable when installing/removing, fuel should be

drained if found the remaining quantity.

• Situate vehicle on a flat and solid surface.
1. Drain fuel from fuel tank if necessary.
2. Perform the steps 2 to 7 of “REMOVAL” in “ FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL

PUMP ASSEMBLY”. Refer to

FL-11, "AWD : Removal and Installation"

.

3. Remove center muffler. Refer to

EX-5, "Exploded View"

.

4. Remove propeller shaft. Refer to

DLN-124, "Exploded View"

.

5. Remove protector from fuel tank.
6. Remove fuel filler hose (3) at fuel tank side.

7. Disconnect vent hose connector (1).
8. Disconnect vent tube and EVAP hose at rear side of fuel tank.

• Instruction for quick connector (A) of EVAP tube and vent

hose. Refer to

FL-11, "AWD : Removal and Installation"

.

9. Remove parking brake cable mounting bolts, and keep a service area. Refer to

PB-6, "Exploded View"

.

10. Remove ABS harness connector from fuel tank mounting band.

11. Support left of fuel tank (1) with transmission jack (A), and them

remove fuel tank band (RH) (2).

10. Fuel tank band (LH)

11.

Fuel tank

12. Vent tube

A.

To EVAP canister
Vehicle front

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

1 : Vent tube
2 : EVAP hose

: Vehicle front

JPBIA4474ZZ

JPBIA4475ZZ

FL-24

< REMOVAL AND INSTALLATION >

[MR16DDT ]

FUEL TANK

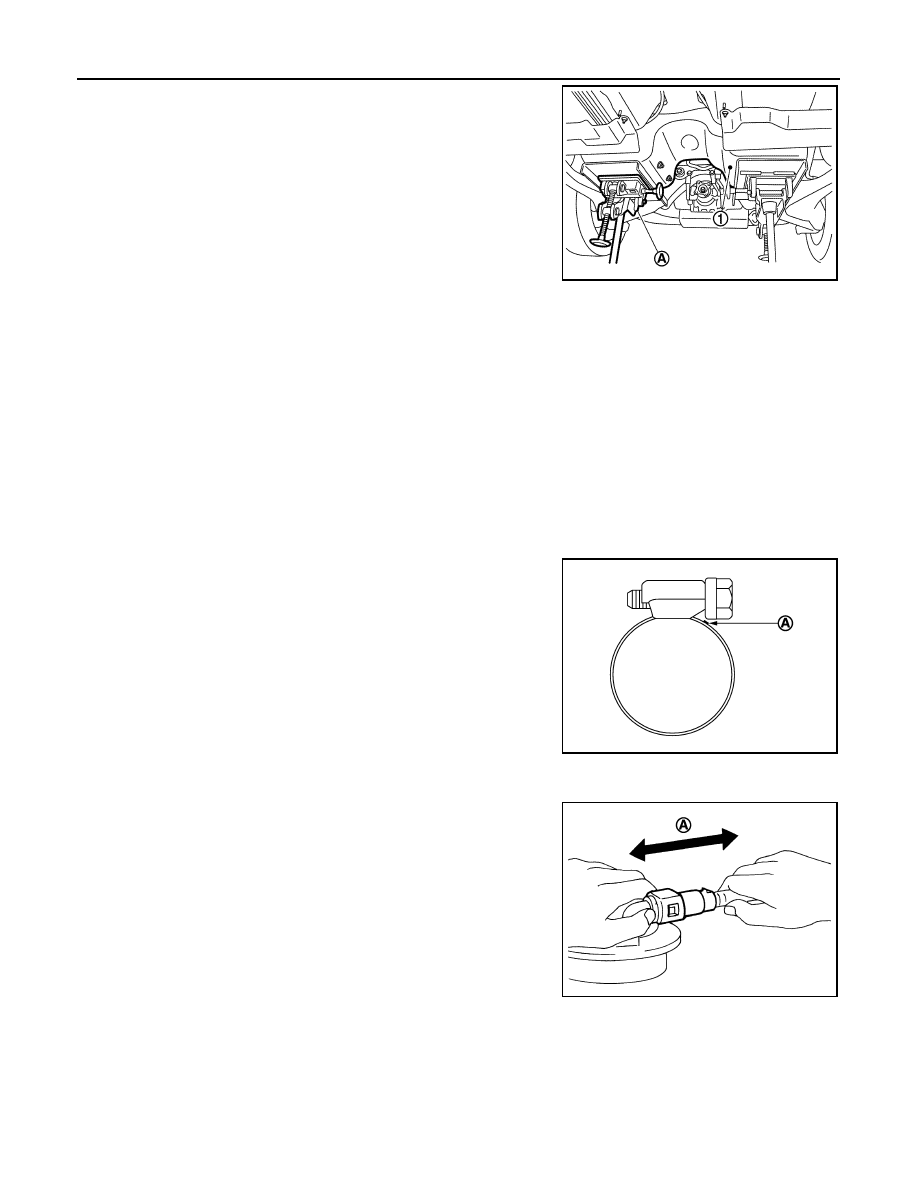

12. Support right of fuel tank (1) with transmission jack (A), and then

remove fuel tank band mounting bolts (LH).

13. Supporting with hands, descend transmission jack carefully, and remove fuel tank with fuel tank band

(LH).

CAUTION:

Fuel tank may be in an unstable condition because of the shape of fuel tank bottom. Never rely on

jack too much. Be sure to hold tank securely.

INSTALLATION

Note the following, and install in the reverse order of removal.

Fuel Filler Hose

• Insert fuel filler hose to the length below.

• Be sure hose clamp is not placed on swelled area of fuel filler tube.

• Tighten the clamp band with the top mark (A) until the mark is on

the bolt head flange.

EVAP Hose

1. Check connections for damage or foreign material.
2. Align the matching side connection part with the center of shaft,

and insert connector straight until it clicks.

3. After connecting, pull out quick connector and centralized under-

floor piping by hand. Make sure connections are secure.

AWD : Inspection

INFOID:0000000012197596

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leakage.
1. Turn ignition switch “ON” (with engine stopped), and check connections for leakage by applying fuel pres-

sure to fuel piping.

JPBIA4476ZZ

: 35 mm (1.38 in)

JPBIA0146ZZ

A

:  Pull

JPBIA0140ZZ

FUEL TANK

FL-25

< REMOVAL AND INSTALLATION >

[MR16DDT ]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

2. Start engine and rev it up and check there are no fuel leakage at the fuel system tube and hose connec-

tions.
