DOOR SASH TAPE

Exploded View

INFOID:0000000012199332

FRONT DOOR SASH TAPE
FRONT DOOR SASH TAPE : Removal and Installation

INFOID:0000000012199333

REMOVAL

1. Remove front door outside molding. Refer to

EXT-41, "FRONT DOOR OUTSIDE MOLDING : Removal

and Installation"

.

2. Heat front door sash tape surface using a dryer, and then peel front door sash tape.

CAUTION:

Never damage painted surface of door panel.

INSTALLATION

NOTE:

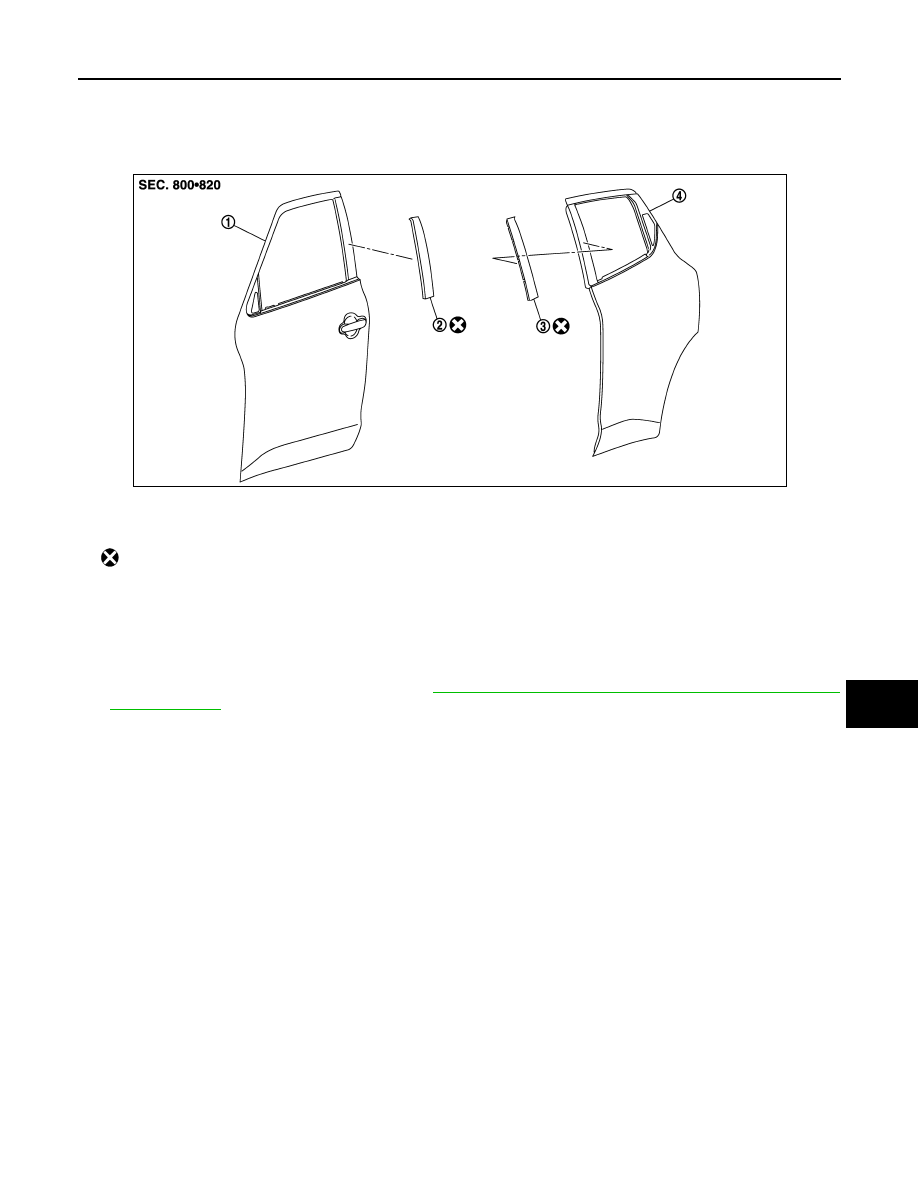

For installation position of front door sash tape, refer to the position as shown in the figure.

1.

Front door panel

2.

Front door sash tape

3.

Rear door sash tape

4.

Rear door panel

: Always replace after every disassembly.

JMKIA5665ZZ

EXT-44

< REMOVAL AND INSTALLATION >

DOOR SASH TAPE

CAUTION:

• Degrease front door panel mounting surface for front door sash tape.

• Paint grain or dust on mounting surface of front door sash tape may spoil exterior appearance if it

remains. Clean the mounting surface and check that no paint grain or dust remains, before starting

the operation.

• Never reuse front door sash tape.

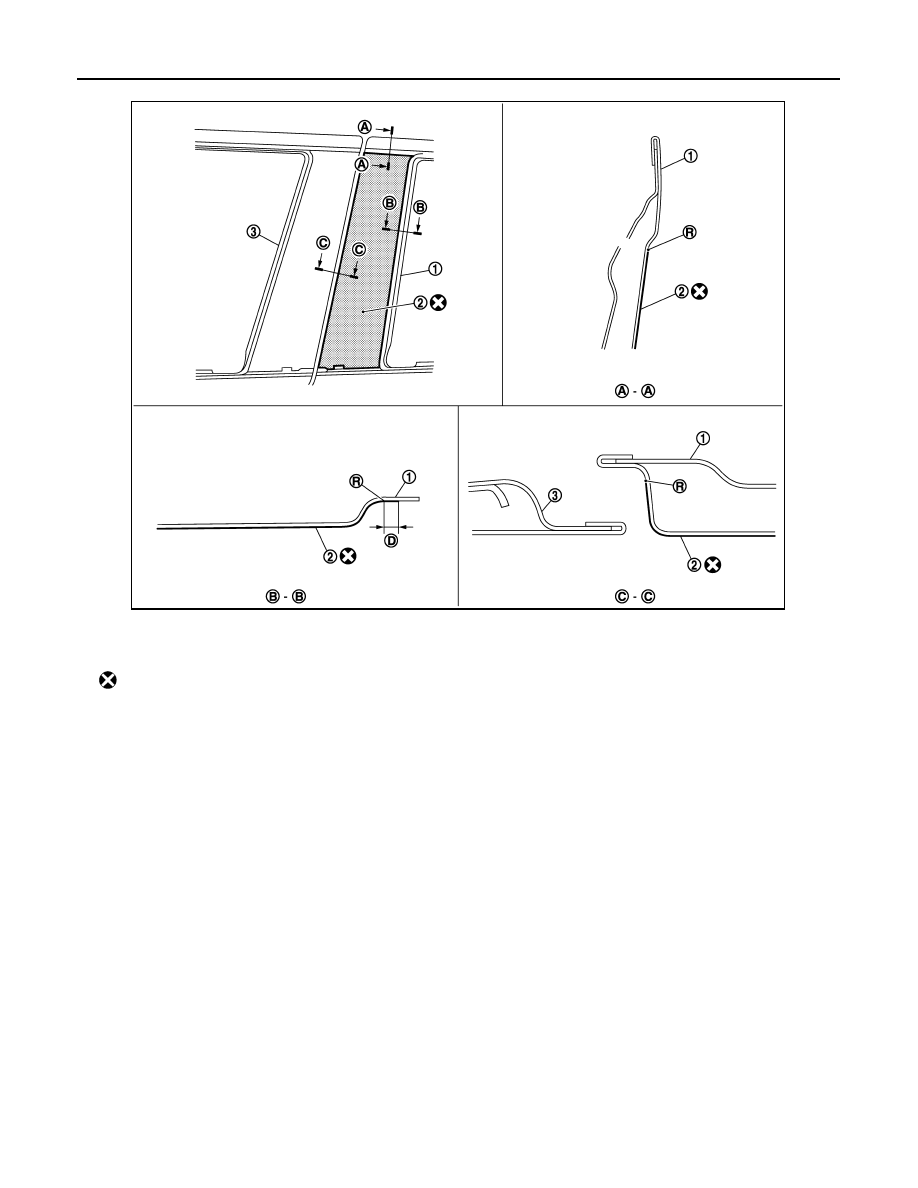

1. Affix front door sash tape align front door sash tape upper portion to front door outer upper end.

1.

Front door panel

2.

Front door sash tape

3.

Rear door panel

R. Radius

: Always replace after every disassembly.

D

: 2.0 mm (0.08 in)

E

: 4.0 mm (0.16 in)

JMKIA5666ZZ

DOOR SASH TAPE

EXT-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

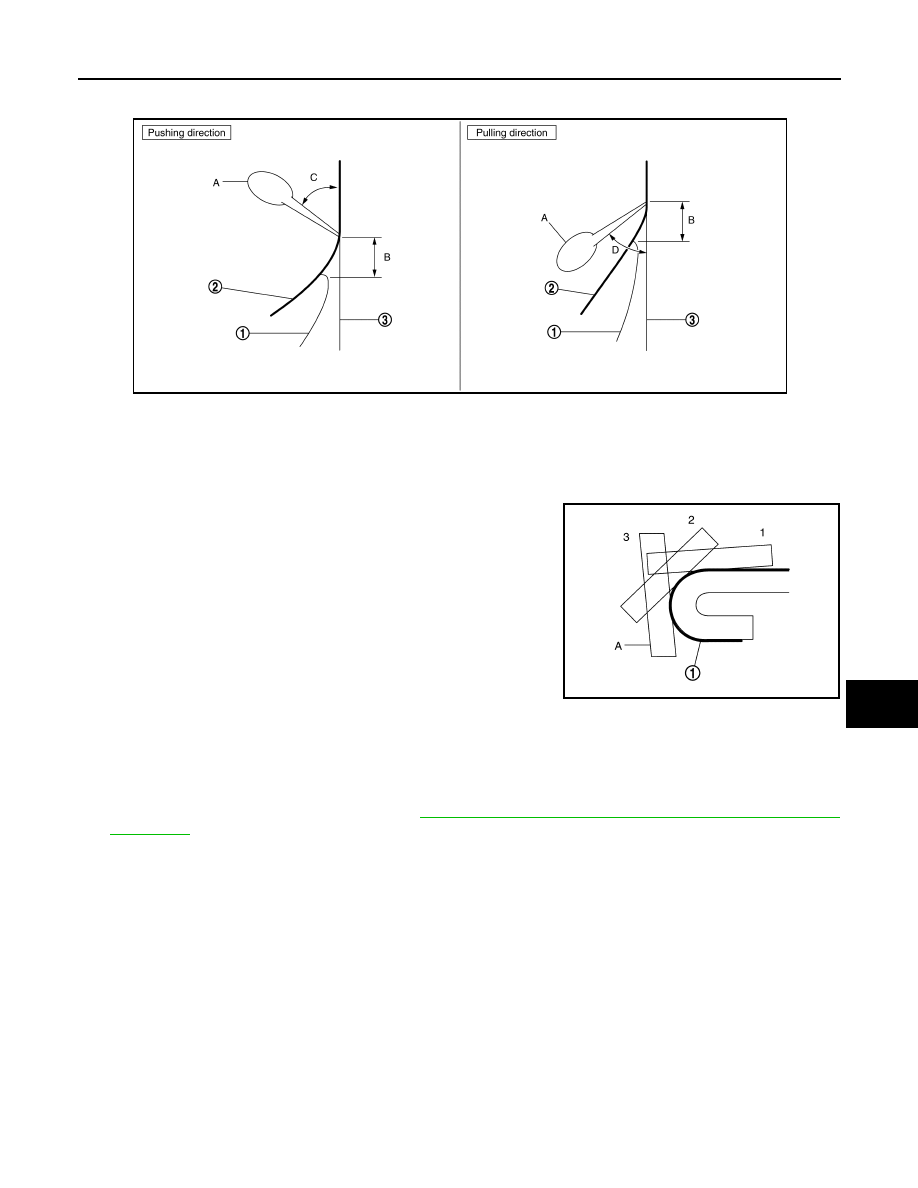

2. Affix front door sash tape (2) to front door panel (3) by applying pressure using a squeegee (A) while peel-

ing off release coated paper (1).

NOTE:

• Peel release coated paper at distance of 10 – 20 mm (0.394 – 0.787 in) ahead (B) of squeegee and affix

front door sash tape.

• To prevent any bubbles from forming, slightly lift the portion, not yet affixed using squeegee, so that por-

tion dose not contact with panel surface. Apply pressure and affix at a low and constant speed using

squeegee tilted at 40 – 50

° angle (pushing direction) (C) 30 – 45° angle (pulling direction) (D).

3. For small radius portion of hemming part, gradually apply pres-

sure and affix front door sash tape (1) using squeegee (A) in 1 –

3 steps.

CAUTION:

Never wash the vehicle within 24 hours so as to keep adhe-

sive.

REAR DOOR SASH TAPE
REAR DOOR SASH TAPE : Removal and Installation

INFOID:0000000012199334

REMOVAL

1. Remove rear door outside molding. Refer to

EXT-42, "REAR DOOR OUTSIDE MOLDING : Removal and

Installation"

.

2. Heat rear door sash tape surface using a dryer, and then peel rear door sash tape.

CAUTION:

Never damage painted surface of door panel.

INSTALLATION

NOTE:

For installation position of rear door sash tape, refer to the position as shown in the figure.

JMKIB1013GB

JMKIB1014ZZ

EXT-46

< REMOVAL AND INSTALLATION >

DOOR SASH TAPE

CAUTION:

• Degrease rear door panel mounting surface for rear door sash tape.

• Paint grain or dust on mounting surface of rear door sash tape may spoil exterior appearance if it

remains. Clean the mounting surface and check that no paint grain or dust remains, before starting

the operation.

• Never reuse rear door sash tape.

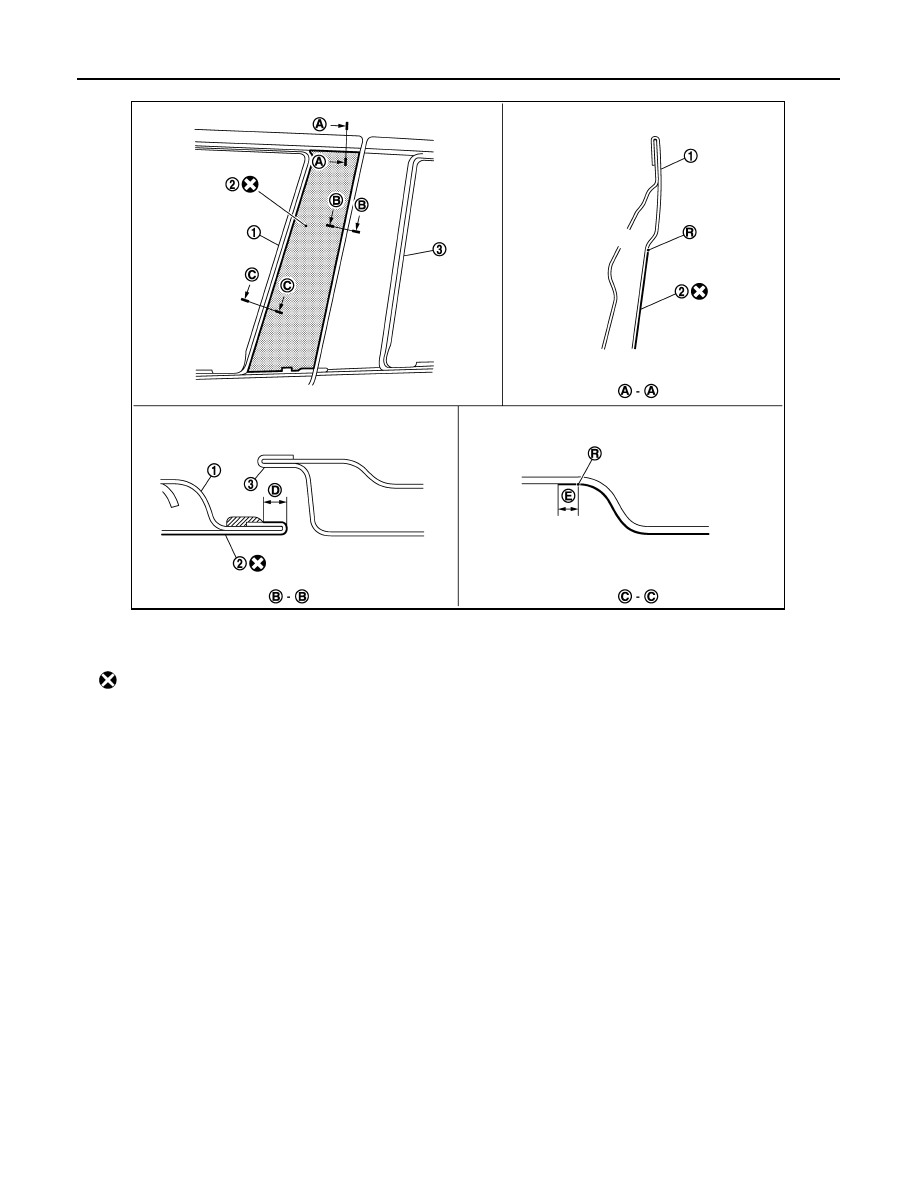

1. Affix rear door sash tape align rear door sash tape upper portion to rear door outer upper end.

1.

Rear door panel

2.

Rear door sash tape

3.

Front door panel

R. Radius

: Always replace after every disassembly.

D

: 2.0 mm (0.08 in)

JMKIA5667ZZ
