EXL-108

< REMOVAL AND INSTALLATION >

[XENON TYPE]

REAR COMBINATION LAMP

REAR COMBINATION LAMP

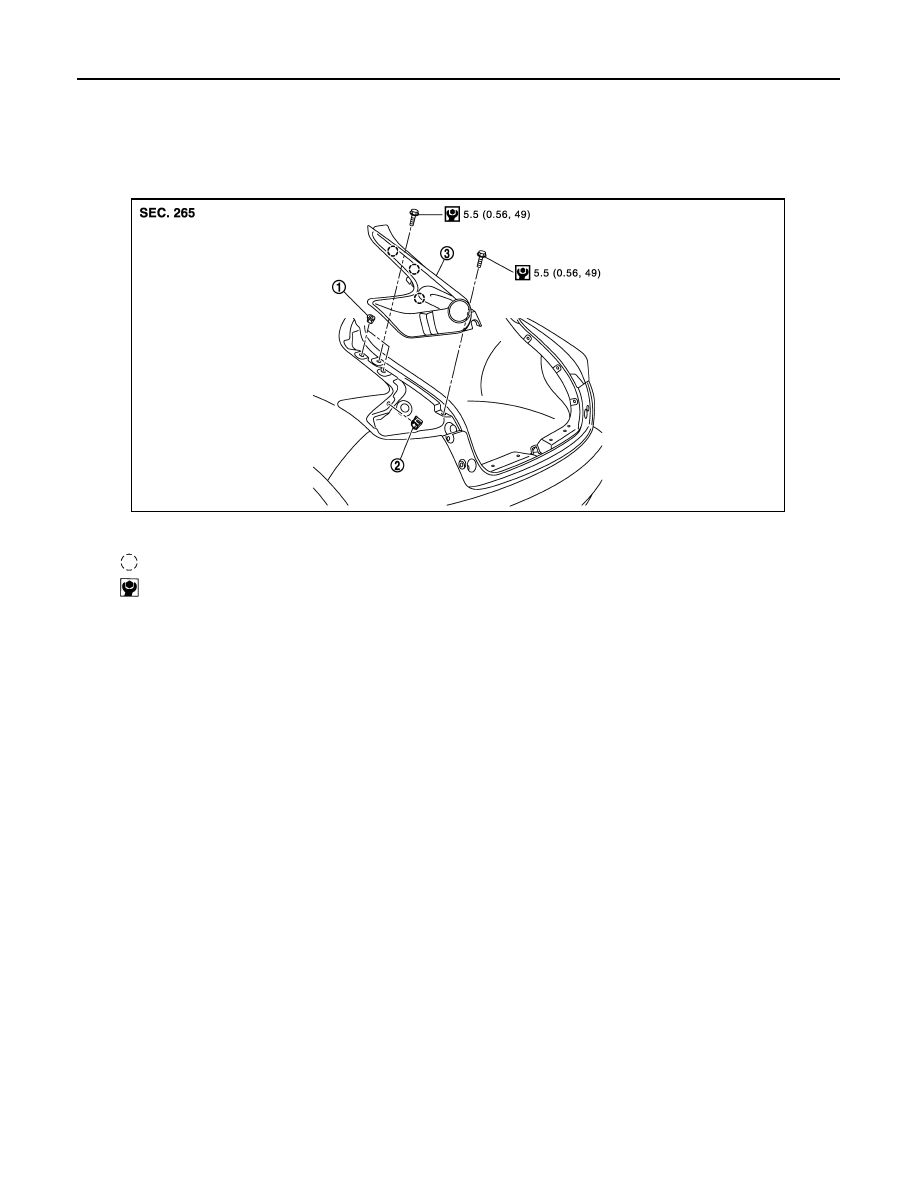

Exploded View

INFOID:0000000012201699

REMOVAL

DISASSEMBLY

1.

Grommet

2.

Grommet

3.

Rear combination lamp

: Clip

: N·m (kg-m, in-lb)

JMLIA1217GB

REAR COMBINATION LAMP

EXL-109

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Removal and Installation

INFOID:0000000012201700

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

• When removing, always use a remover tool that is made of plastic.

REMOVAL

1. Full open back door.
2. Remove luggage side lower finisher. Refer to

INT-35, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

3. Remove rear combination lamp mounting bolts.
4. Insert a remover tool into the rear combination lamp and rear fender to disengage the clips.
5. Pull up rear combination lamp, and then remove rear combination lamp.
6. Disconnect rear combination lamp connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000012201701

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

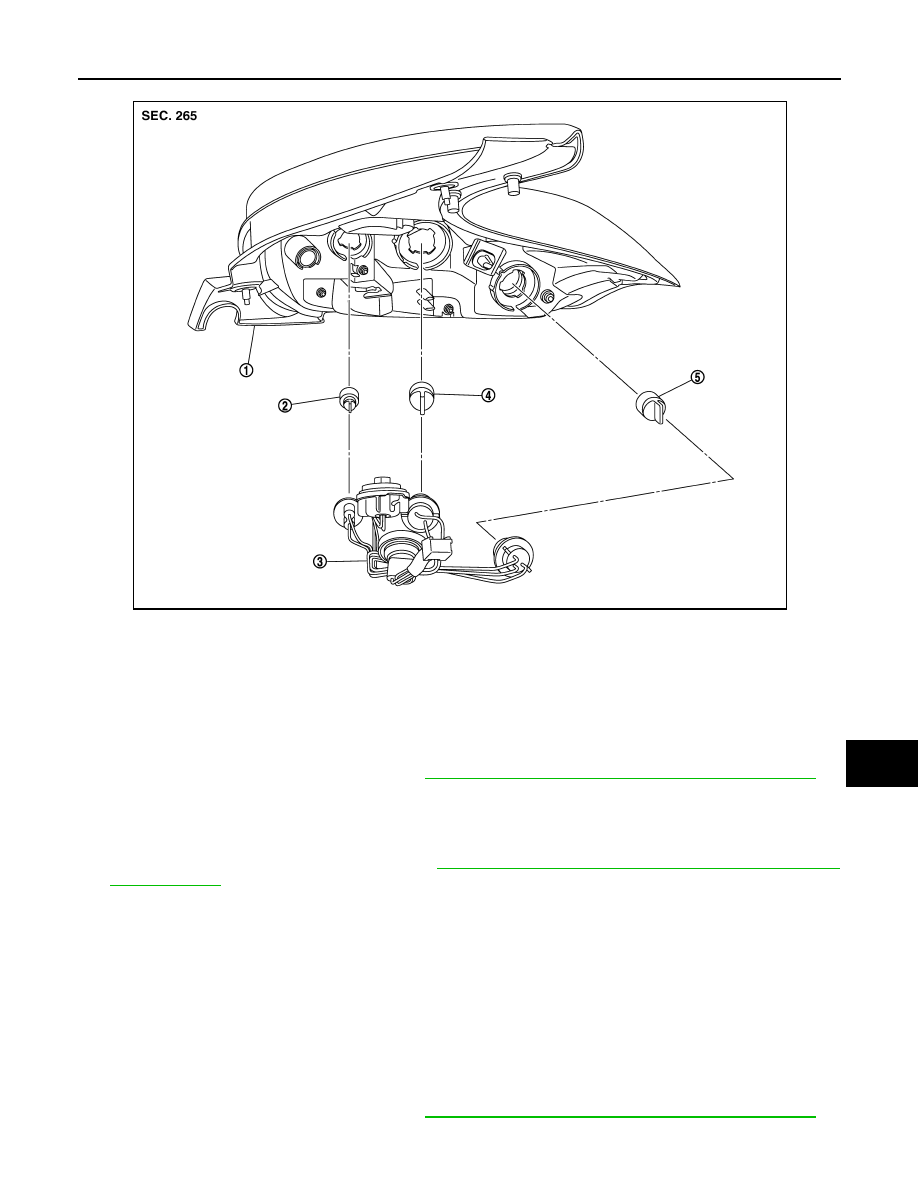

1.

Rear combination lamp

2.

Back-up lamp bulb

3.

Harness connector

4.

Rear turn signal lamp bulb

5.

Stop/Tail lamp bulb
(Rear side marker lamp)

JMLIA5404ZZ

EXL-110

< REMOVAL AND INSTALLATION >

[XENON TYPE]

REAR COMBINATION LAMP

• Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

TAIL LAMP (LED)

CAUTION:

Replacement of a single part is not possible due to the adoption of LED. For replacement, replace rear

combination lamp as a set. Refer to

EXL-109, "Removal and Installation"

.

STOP/TAIL LAMP BULB (REAR SIDE MARKER LAMP)

1. Remove rear combination lamp assembly. Refer to

EXL-109, "Removal and Installation"

.

2. Rotate stop/tail lamp bulb socket counterclockwise, and then remove stop/tail lamp bulb socket.
3. Remove stop/tail lamp bulb from stop/tail lamp bulb socket.

REAR TURN SIGNAL LAMP BULB

1. Remove rear combination lamp assembly. Refer to

EXL-109, "Removal and Installation"

.

2. Rotate rear turn signal lamp bulb socket counterclockwise, and then remove rear turn signal lamp bulb

socket.

3. Remove rear turn signal lamp bulb from rear turn signal lamp bulb socket.

BACK-UP LAMP BULB

1. Remove rear combination lamp assembly. Refer to

EXL-109, "Removal and Installation"

.

2. Rotate back-up lamp bulb socket counterclockwise, and then remove back-up lamp bulb socket.
3. Remove back-up lamp bulb from back-up lamp bulb socket.

HIGH-MOUNTED STOP LAMP

EXL-111

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HIGH-MOUNTED STOP LAMP

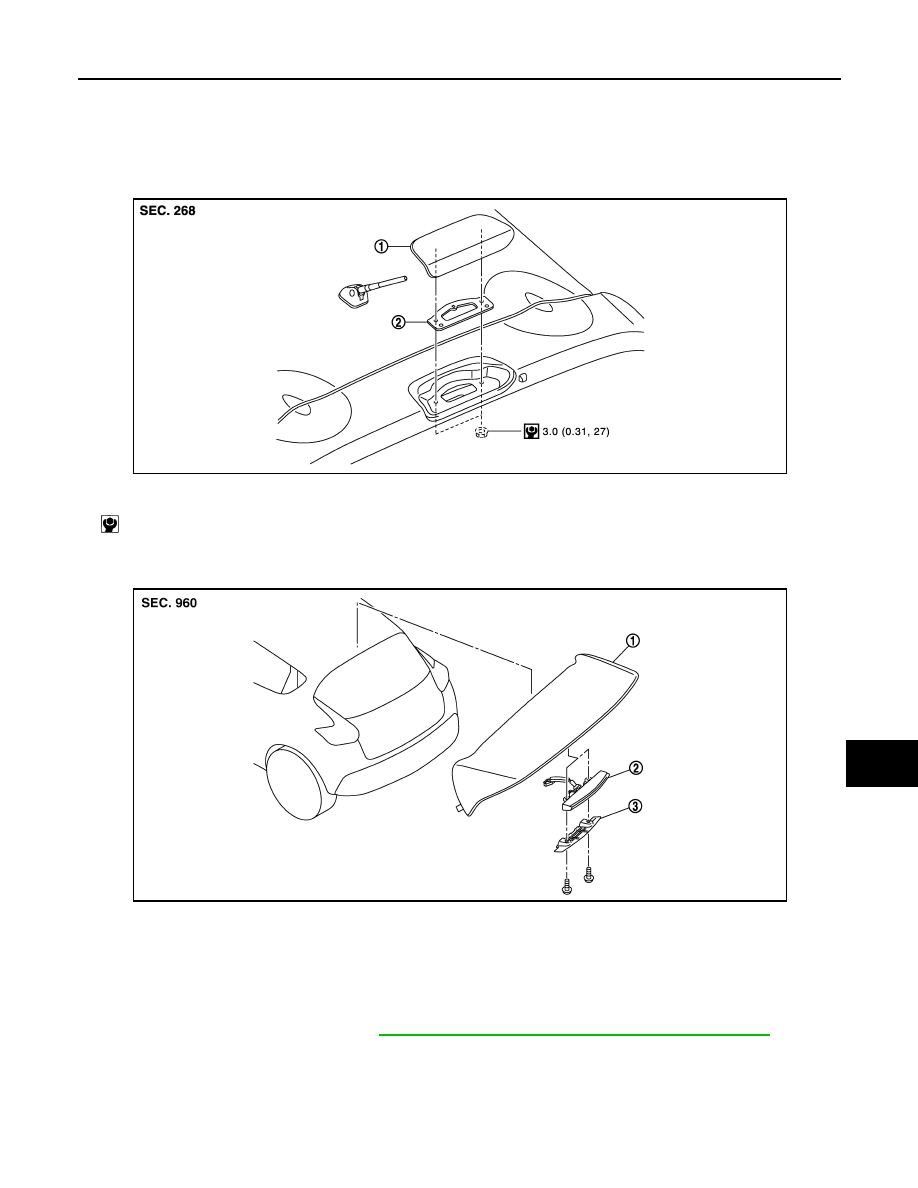

Exploded View

INFOID:0000000012201702

EXCEPT FOR NISMO AND NISMO RS

NISMO AND NISMO RS

Removal and Installation

INFOID:0000000012201703

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

REMOVAL

Except for NISMO and NISMO RS

1. Remove blind seal from back door inside.

CAUTION:

1.

High-mounted stop lamp

2.

Seal packing

: N·m (kg-m, in-lb)

JMLIA1220GB

1.

Rear spoiler

2.

High-mounted stop lamp

3.

High-mounted stop lamp cover

JMLIA3757ZZ
