HEADLAMP

Removal and Installation

INFOID:0000000012201678

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

REMOVAL

1. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

2. Remove headlamp assembly mounting bolts.
3. Pull out headlamp assembly forward the vehicle, and then disconnect the connector before removing the

headlamp assembly.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, perform aiming adjustment. Refer to

EXL-91, "Description"

.

Replacement

INFOID:0000000012201679

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

• After installing the bulb, install the back cover and the bulb socket securely for watertightness.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

• Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

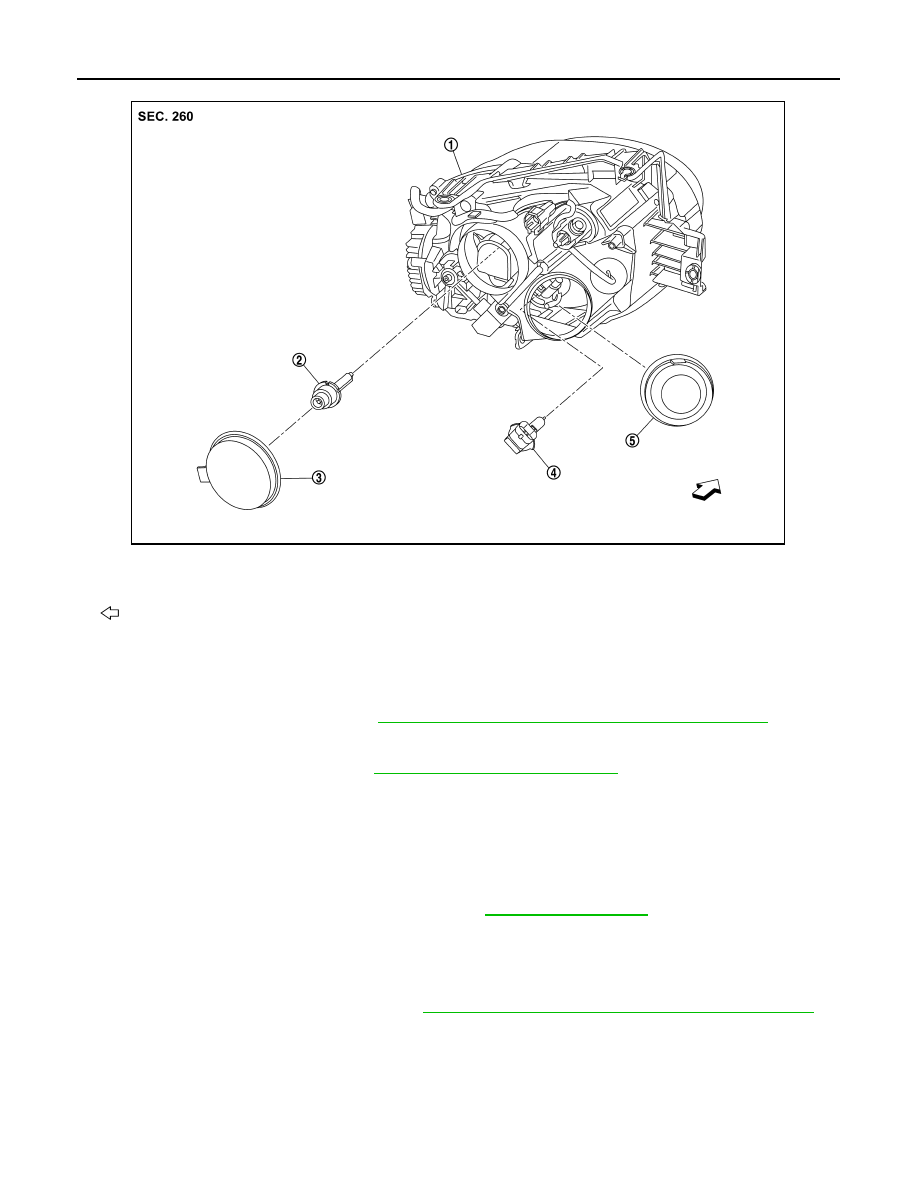

XENON BULB (LO)

1.

Headlamp assembly

2.

Xenon bulb (LO)

3.

Back cover A

4.

Halogen bulb (HI)

5.

Back cover B

: Vehicle front

JMLIA5699ZZ

HEADLAMP

EXL-97

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Left Side of The Vehicle

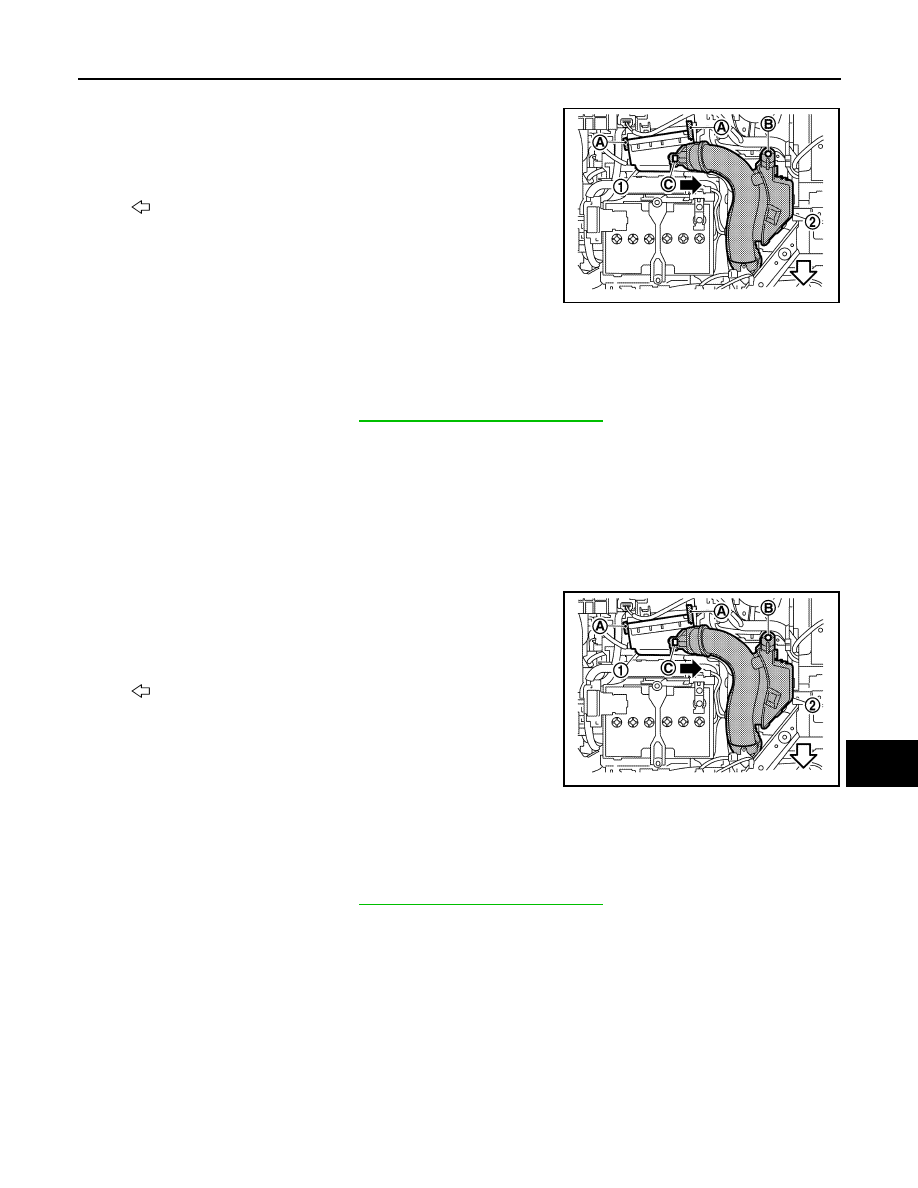

1. Remove fixing clips (A) of air cleaner assembly (1).
2. While pulling up on the (B) portion of the air duct inlet (upper)

(2), disengage of the portion (C), and then remove air duct inlet

(upper) as shown by the arrow in the figure.

3. Remove back cover A.
4. Rotate xenon bulb socket counterclockwise and unlock it.
5. Remove retaining spring lock, and then remove xenon bulb from headlamp assembly.

Right Side of The Vehicle

1. Remove washer tank inlet. Refer to

WW-43, "Removal and Installation"

.

2. Remove back cover A.
3. Rotate xenon bulb socket counterclockwise and unlock it.
4. Remove retaining spring lock, and then remove xenon bulb from headlamp assembly.

CAUTION:

Never break xenon bulb ceramic tube when replacing bulb.

HALOGEN BULB (HI)

Left Side of The Vehicle

1. Remove fixing clips (A) of air cleaner assembly (1).
2. While pulling up on the (B) portion of the air duct inlet (upper)

(2), disengage of the portion (C), and then remove air duct inlet

(upper) as shown by the arrow in the figure.

3. Remove back cover B.
4. Disconnect halogen bulb harness connector.
5. Rotate halogen bulb clockwise and unlock it, and then remove halogen bulb from headlamp assembly.

Right Side of The Vehicle

1. Remove washer tank inlet. Refer to

WW-43, "Removal and Installation"

.

2. Remove back cover B.
3. Disconnect halogen bulb harness connector.
4. Rotate halogen bulb counterclockwise and unlock it, and then remove halogen bulb from headlamp

assembly.

Disassembly and Assembly

INFOID:0000000012201680

DISASSEMBLY

1. Remove back cover (A and B).
2. Rotate xenon bulb socket counterclockwise and unlock it.
3. Remove retaining spring lock, and then remove xenon bulb from headlamp assembly.

: Vehicle front

JMLIA5700ZZ

: Vehicle front

JMLIA5700ZZ

EXL-98

< REMOVAL AND INSTALLATION >

[XENON TYPE]

HEADLAMP

4. Disconnect halogen bulb harness connector.
5. Remove halogen bulb.

Left side of the vehicle

• Rotate halogen bulb clockwise and unlock it, and then remove halogen bulb from headlamp assembly.

Right side of the vehicle

• Rotate halogen bulb counterclockwise and unlock it, and then remove halogen bulb from headlamp

assembly.

ASSEMBLY

Assemble in the reverse order of disassembly.

FRONT COMBINATION LAMP

EXL-99

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT COMBINATION LAMP

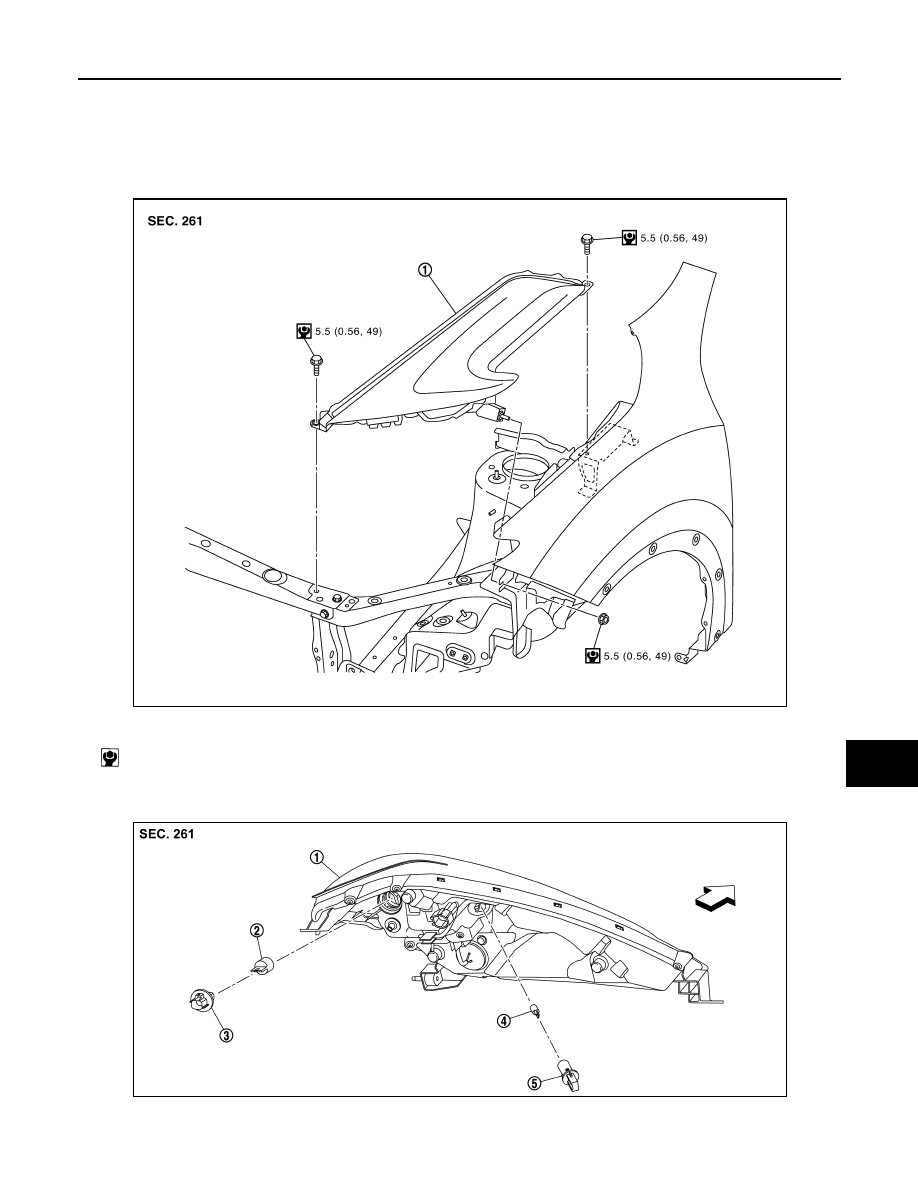

Exploded View

INFOID:0000000012201681

REMOVAL

DISASSEMBLY

1.

Front combination lamp

: N·m (kg-m, in-lb)

JMLIA5399GB

JMLIA6148ZZ
