IGNITION COIL, SPARK PLUG AND ROCKER COVER

IGNITION COIL, SPARK PLUG AND ROCKER COVER

Exploded View

INFOID:0000000012197399

Removal and Installation

INFOID:0000000012197400

REMOVAL

1. Drain coolant. Refer to

CO-40, "Draining and Filling"

.

2. Remove the engine cover. Refer to

EM-191, "Removal and Installation"

.

3. Disconnect air inlet pipe 3, air inlet pipe 1, and the recirculation hose. Refer to

EM-194, "Exploded View"

.

4. Disconnect the water hose (between the electric throttle control actuator and turbocharger). Refer to

EM-

197, "Exploded View"

.

5. Remove the PCV hose from rocker cover.
6. Remove the rocker cover protector.

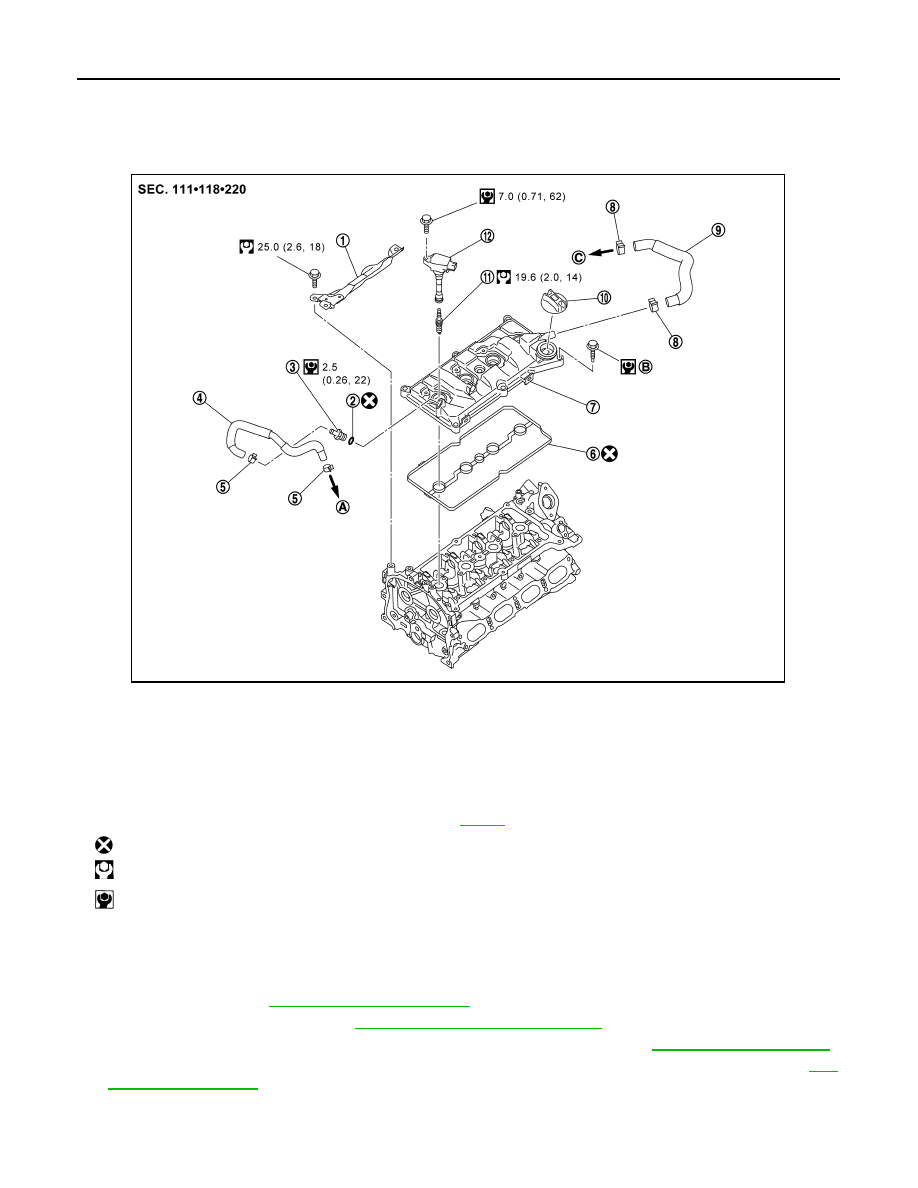

1.

Rocker cover protector

2.

O-ring

3.

Positive Crank Ventilation (PCV)
valve

4.

PCV hose

5.

Clamp

6.

Rocker cover gasket

7.

Rocker cover

8.

Clamp

9.

PCV hose

10. Oil filler cap

11. Spark plug

12. Ignition coil

A.

To intake manifold

B.

Comply with the assembly procedure
when tightening.

EM-214

.

C.

To turbocharger inlet tube

 : Always replace after every disassembly.

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

JSBIA5757GB

IGNITION COIL, SPARK PLUG AND ROCKER COVER

EM-215

< REMOVAL AND INSTALLATION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

7. Remove the ignition coil.

CAUTION:

• Never subject parts to impact.

• Never disassemble the ignition coil.

8. Remove PCV valve if necessary.
9. Move the ignition coil harness to secure space for work.

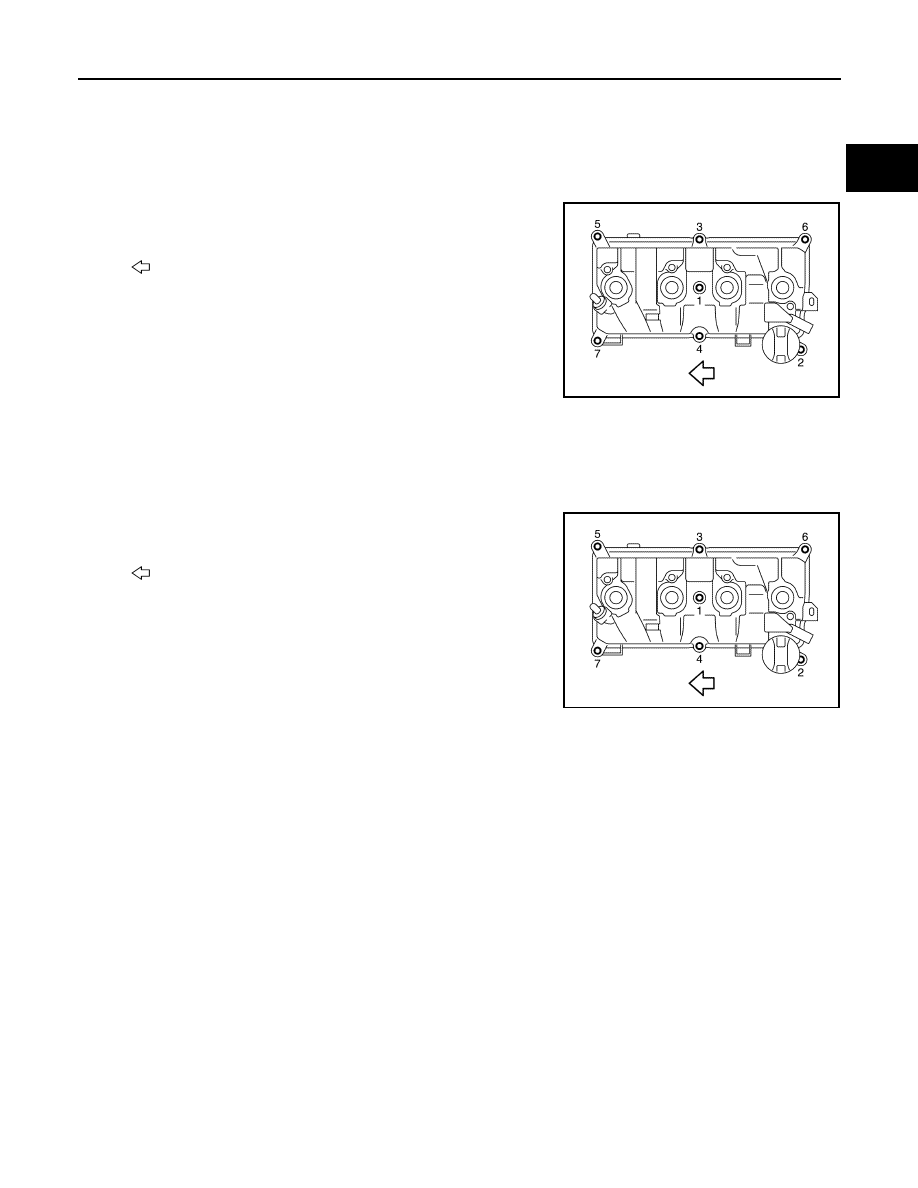

10. Loosen bolts in the reverse order of the numerical order shown

in the figure to remove rocker cover.

INSTALLATION

1. Install the rocker cover according to the following procedure.
a. Install the rocker cover to the cylinder head.

CAUTION:

Check that the gasket is not dropped.

b. Tighten bolts evenly in two steps in the order as shown in the fig-

ure. Tighten the mounting bolts to the specified torque.

2. Install the PCV valve.

• Insert flange of PCV valve until it closely contacts the grommet.

3. Install removed parts in the reverse order of removal.

: Engine front

JPBIA4392ZZ

: Engine front

First tightening torque

: 1.96 N·m (0.20 kg-m, 17 in-lb)

Second tightening
torque

: 8.33 N·m (0.85 kg-m, 74 in-lb)

JPBIA4392ZZ

EM-216

< UNIT REMOVAL AND INSTALLATION >

[MR EXCEPT FOR NISMO RS MODELS]

ENGINE ASSEMBLY

UNIT REMOVAL AND INSTALLATION

ENGINE ASSEMBLY

2WD
2WD : Exploded View

INFOID:0000000012197401

M/T

CAUTION:

Check that the stud bolt (*2) is tightened to the specified torque before tightening the mounting nut

(*1) shown in the figure. [Stud bolt (*2) may be loosened after loosening the mounting nut (*1)]

CVT

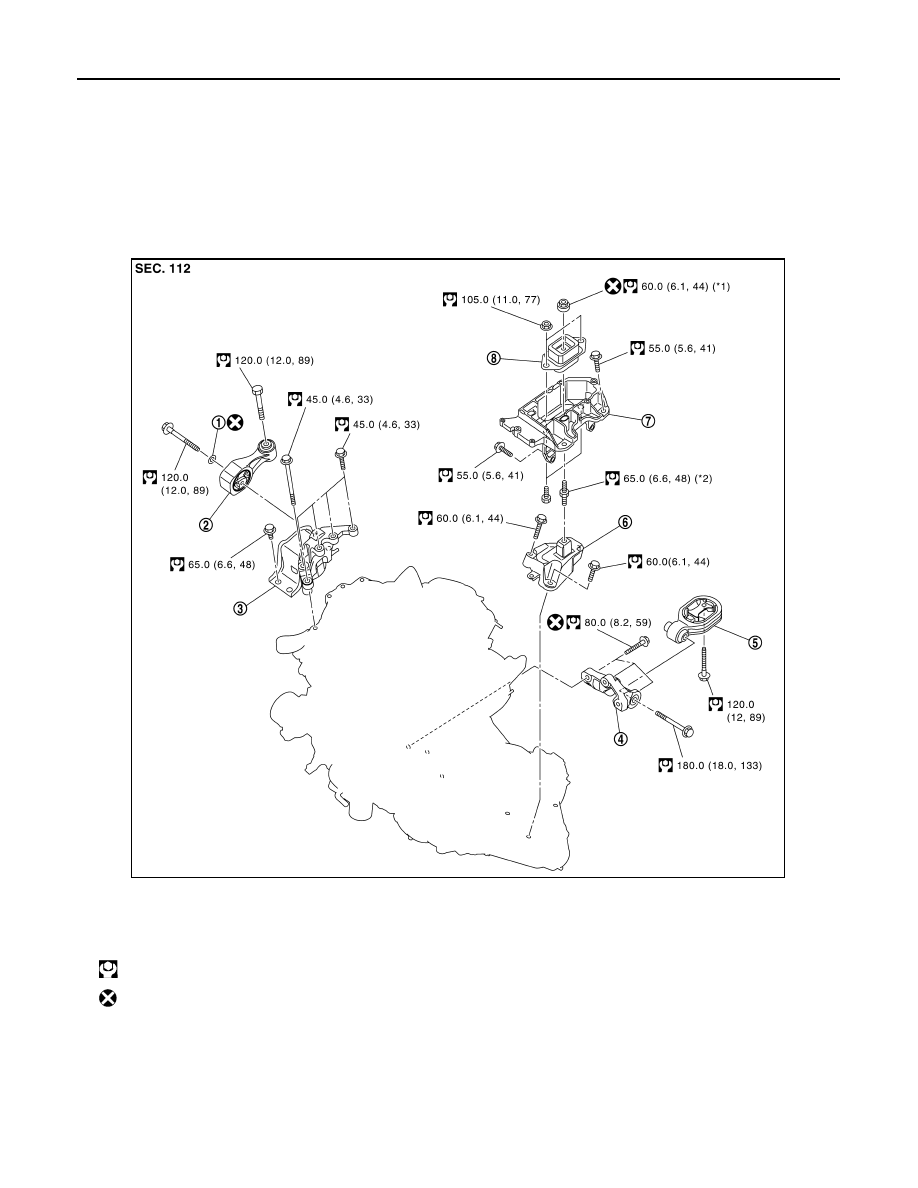

1.

Washer

2.

Upper torque rod (RH)

3.

Engine mounting insulator (RH)

4.

Rear torque rod bracket

5.

Rear torque rod

6.

Engine mounting bracket (LH)

7.

Engine mounting frame support (LH) 8.

Engine mounting insulator (LH)

 : N·m (kg-m, ft-lb)

 : Always replace after every disassembly.

JSBIA4461GB

ENGINE ASSEMBLY

EM-217

< UNIT REMOVAL AND INSTALLATION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

2WD : Removal and Installation

INFOID:0000000012197402

WARNING:

• Situate the vehicle on a flat and solid surface.

• Place chocks at front and back of rear wheels.

• Attach proper slingers and bolts described in PARTS CATALOG if engine slingers are not equipped.

CAUTION:

• Always be careful to work safely, avoid forceful or uninstructed operations.

• Never start working until exhaust system and coolant are cool enough.

• If items or work required are not covered by the engine section, refer to the applicable sections.

• Always use the support point specified for lifting.

• Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for unavoid-

able reasons, support at the rear axle jacking point with a transmission jack or an equivalent before

starting work, in preparation for the backward shift of center of gravity.

• For supporting points for lifting and jacking point at rear axle, refer to

GI-30, "Garage Jack and

Safety Stand and 2-Pole Lift"

.

NOTE:

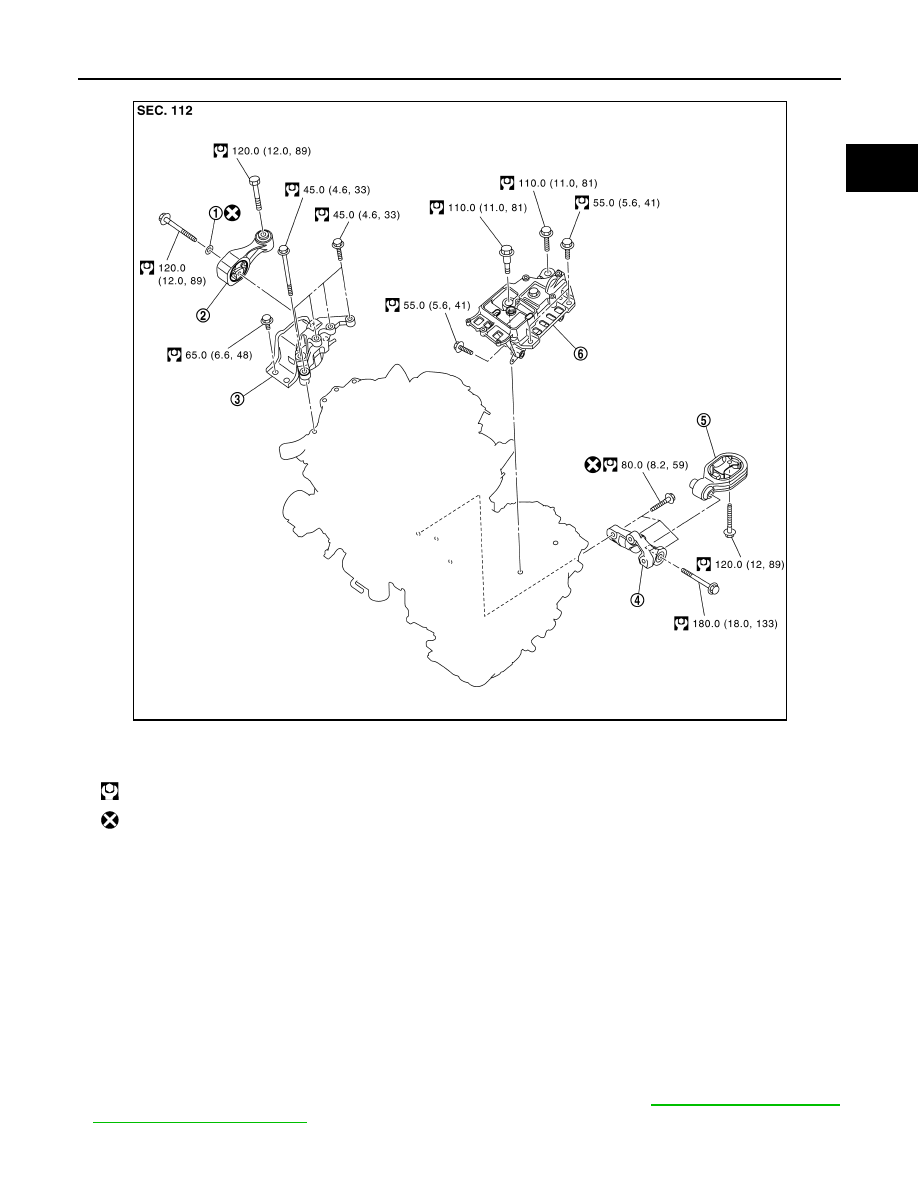

1.

Washer

2.

Upper torque rod (RH)

3.

Engine mounting insulator (RH)

4.

Rear engine mounting bracket

5.

Rear torque rod

6.

Engine mounting insulator (LH)

 : N·m (kg-m, ft-lb)

 : Always replace after every disassembly.

JSBIA4462GB
