P0122, P0123 TP SENSOR

EC-865

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between electric throttle control actuator harness connector and ECM harness con-

nector.

4. Also check harness for short to power.
Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

3.

CHECK THROTTLE POSITION SENSOR 2 GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between electric throttle control actuator harness connector and ECM harness con-

nector.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK THROTTLE POSITION SENSOR 2 INPUT SIGNAL CIRCUIT

1. Check the continuity between electric throttle control actuator harness connector and ECM harness con-

nector.

2. Also check harness for short to ground and to power.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts.

5.

CHECK THROTTLE POSITION SENSOR

Check the throttle position sensor. Refer to

EC-865, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace electric throttle control actuator. Refer to

EM-197, "Exploded View"

.

Component Inspection

INFOID:0000000012198376

1.

CHECK THROTTLE POSITION SENSOR

+

−

Continuity

Electric throttle control actu-

ator

ECM

Connector

Terminal

Connector

Terminal

F29

5

F24

83

Existed

+

−

Continuity

Electric throttle control actu-

ator

ECM

Connector

Terminal

Connector

Terminal

F29

4

F24

85

Existed

+

−

Continuity

Electric throttle control actu-

ator

ECM

Connector

Terminal

Connector

Terminal

F29

3

F24

80

Existed

EC-866

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

P0122, P0123 TP SENSOR

1. Turn ignition switch OFF.

2. Reconnect all harness connectors disconnected.

3. Perform “ Throttle Valve Closed Position Learning”. Refer to

EC-754, "Description"

.

4. Turn ignition switch ON.

5. Set selector lever to D (CVT) or 1st (M/T) position.

6. Check the voltage between ECM harness connector terminals as per the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace electric throttle control actuator. Refer to

EM-197, "Exploded View"

.

ECM

Condition

Voltage

Connector

+

−

Terminal

F24

88

85

Accelerator
pedal

Fully released

More than 0.36V

Fully depressed

Less than 4.75V

80

Fully released

Less than 4.75V

Fully depressed

More than 0.36V

P0125 ECT SENSOR

EC-867

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0125 ECT SENSOR

DTC Logic

INFOID:0000000012198377

DTC DETECTION LOGIC

NOTE:

• If DTC P0125 is displayed with P0116, first perform the trouble diagnosis for DTC P0116. Refer to

EC-

858, "DTC Logic"

.

• If DTC P0125 is displayed with P0117 or P0118, first perform the trouble diagnosis for DTC P0117,

P0118. Refer to

EC-860, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

CHECK ENGINE COOLANT TEMPERATURE SENSOR 1 FUNCTION

With CONSULT

1. Turn ignition switch ON.

2. Select “DATA MONITOR” mode with CONSULT.

3. Check that “COOLANT TEMP/S” is above 10

°C (50°F).

Is the temperature above 10

°C (50°F)?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

1. Start engine and run it for 65 minutes at idle speed.

If “COOLANT TEMP/S” increases to more than

−7°C (19.4°F) within 65 minutes, stop engine

because the test result will be OK.

CAUTION:

Never overheat engine.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>>

EC-867, "Diagnosis Procedure"

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000012198378

1.

CHECK ENGINE COOLANT TEMPERATURE SENSOR 1

Check engine coolant temperature sensor 1. Refer to

EC-868, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace engine coolant temperature sensor 1.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P0125

ECT SENSOR
(Insufficient coolant tempera-
ture for closed loop fuel control)

• Voltage sent to ECM from the sensor is not

practical, even when some time has passed
after starting the engine.

• Engine coolant temperature is insufficient for

closed loop fuel control.

• Harness or connectors

(High resistance in the circuit)

• Engine coolant temperature sensor

1

• Multi-way control valve

EC-868

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

P0125 ECT SENSOR

2.

CHECK MULTI-WAY CONTROL VALVE OPERATION

When the engine is cold [lower than 64

°C (147°F)] condition, grasp lower radiator hose and confirm that the

engine coolant does not flow.
Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Repair or replace water outlet (MCV). Refer to

CO-54, "Exploded View"

.

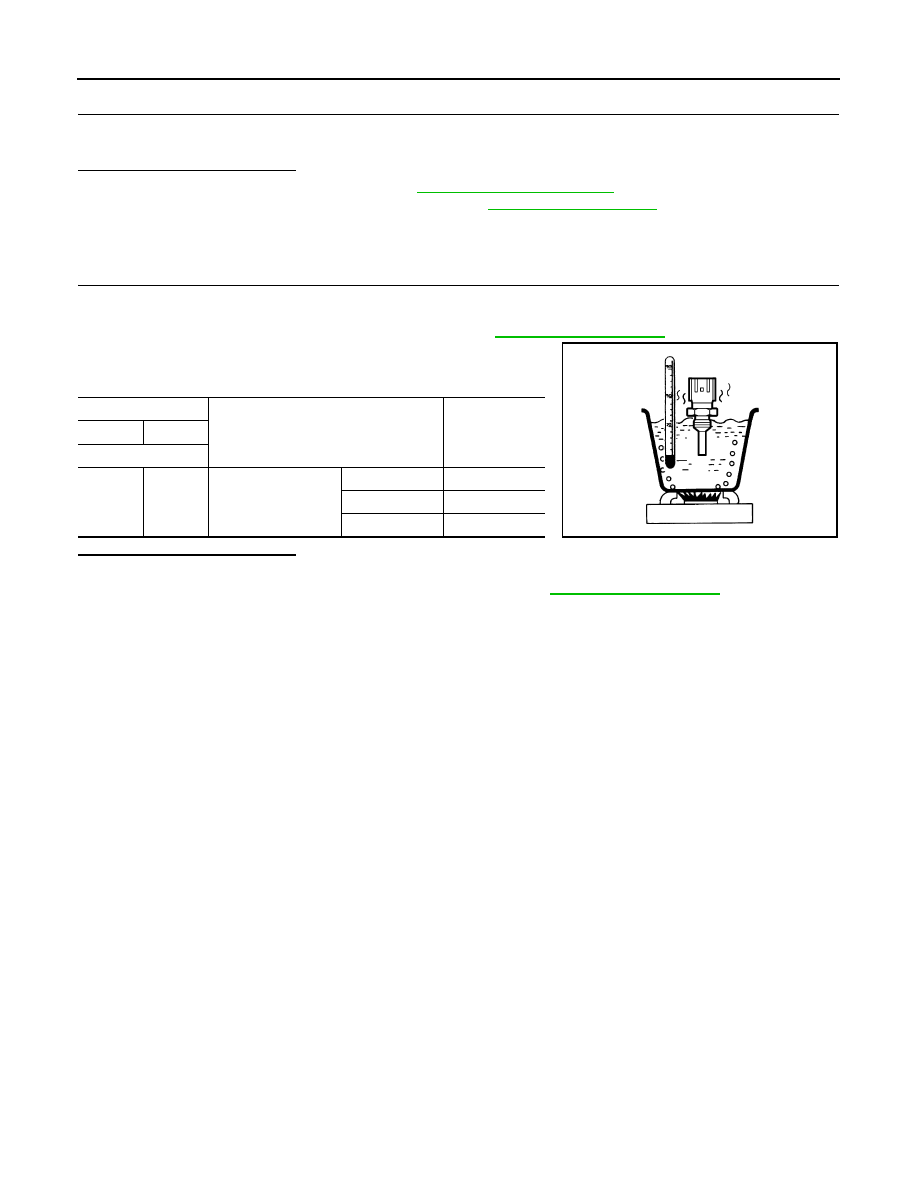

Component Inspection

INFOID:0000000012198379

1.

CHECK ENGINE COOLANT TEMPERATURE SENSOR 1

1. Turn ignition switch OFF.

2. Disconnect engine coolant temperature sensor 1 harness connector.

3. Remove engine coolant temperature sensor 1. Refer to

CO-54, "Exploded View"

.

4. Check resistance between engine coolant temperature sensor 1

terminals as per the following.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine coolant temperature sensor 1. Refer to

CO-54, "Exploded View"

.

ECT sensor 1

Condition

Resistance

(k

Ω)

+

−

Terminal

1

2

Temperature [

°C (°F)]

20 (68)

2.37 - 2.63

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

JMBIA0080ZZ
