DIAGNOSIS AND REPAIR WORKFLOW

EC-745

< BASIC INSPECTION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

6.

PERFORM BASIC INSPECTION

Perform

EC-765, "Work Procedure"

.

Do you have CONSULT?

YES

>> GO TO 7.

NO

>> GO TO 9.

7.

PERFORM SPEC IN DATA MONITOR MODE

With CONSULT

Make sure that “MASS AIR FLOW SENSOR (Hz)”, “B/FUEL SCHDL” and “A/F ALPHA-B1” are within the SP

value using CONSULT in “SPEC” of “DATA MONITOR” mode. Refer to

EC-785, "Component Function

Check"

.

Is the measurement value within the SP value?

YES

>> GO TO 9.

NO

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART BY TROUBLE DIAGNOSIS - SPECIFICATION VALUE

Detect malfunctioning part according to

EC-786, "Diagnosis Procedure"

.

Is malfunctioning part detected?

YES

>> GO TO 11.

NO

>> GO TO 9.

9.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to

EC-1242, "Symptom Table"

 based on the confirmed symptom in

step 4, and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 10.

10.

DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

Inspect according to Diagnosis Procedure of the system.

NOTE:

The Diagnosis Procedure in EC section described based on open circuit inspection. A short circuit inspection

is also required for the circuit check in the Diagnosis Procedure. For details, refer to Circuit Inspection in

GI-

48, "Circuit Inspection"

.

Is malfunctioning part detected?

YES

>> GO TO 11.

NO

>> Monitor input data from related sensors or check the voltage of related ECM terminals using CON-

SULT. Refer to

EC-679, "Reference Value"

.

11.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-

ment.

3. Check DTC. If DTC is displayed, erase it. Refer to the following.

With CONSULT: “How to Erase DTC and 1st Trip DTC” in

EC-667, "CONSULT Function"

.

>> GO TO 12.

12.

FINAL CHECK

When DTC was detected in step 2, perform DTC CONFIRMATION PROCEDURE or Component Function

Check again, and then make sure that the malfunction have been repaired securely.

When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and make sure

that the symptom is not detected.
Is DTC detected and does symptom remain?

YES-1 >> DTC is detected: GO TO 10.

YES-2 >> Symptom remains: GO TO 6.

EC-746

< BASIC INSPECTION >

[MR EXCEPT FOR NISMO RS MODELS]

DIAGNOSIS AND REPAIR WORKFLOW

NO-1 >> No request for I/M examination from the customer: Before returning the vehicle to the customer,

always erase unnecessary DTC in ECM and TCM ( With CONSULT: Refer to “How to Erase

DTC and 1st Trip DTC” in

EC-667, "CONSULT Function"

, If the completion of SRT is needed,

drive vehicle under the specific driving pattern. Refer to

EC-774, "SRT Set Driving Pattern"

.

NO-2 >> I/M examination, requested from the customer: GO TO 13.

13.

PREPARE FOR I/M EXAMINATION

1. Set SRT codes. Refer to

EC-773, "Description"

.

2. Erase permanent DTCs. Refer to

EC-779, "Description"

.

>> INSPECTION END

Diagnostic Work Sheet

INFOID:0000000012198253

DESCRIPTION

There are many operating conditions that lead to the malfunction of

engine components. A good grasp of such conditions can make trou-

bleshooting faster and more accurate.

In general, each customer feels differently about a incident. It is

important to fully understand the symptoms or conditions for a cus-

tomer complaint.

Utilize a diagnostic worksheet like the one on the next page in order

to organize all the information for troubleshooting.

Some conditions may cause the MIL to come on steady or blink and

DTC to be detected. Examples:

• Vehicle ran out of fuel, which caused the engine to misfire.

• Fuel filler cap was left off or incorrectly screwed on, allowing fuel to

evaporate into the atmosphere.

SEF907L

DIAGNOSIS AND REPAIR WORKFLOW

EC-747

< BASIC INSPECTION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

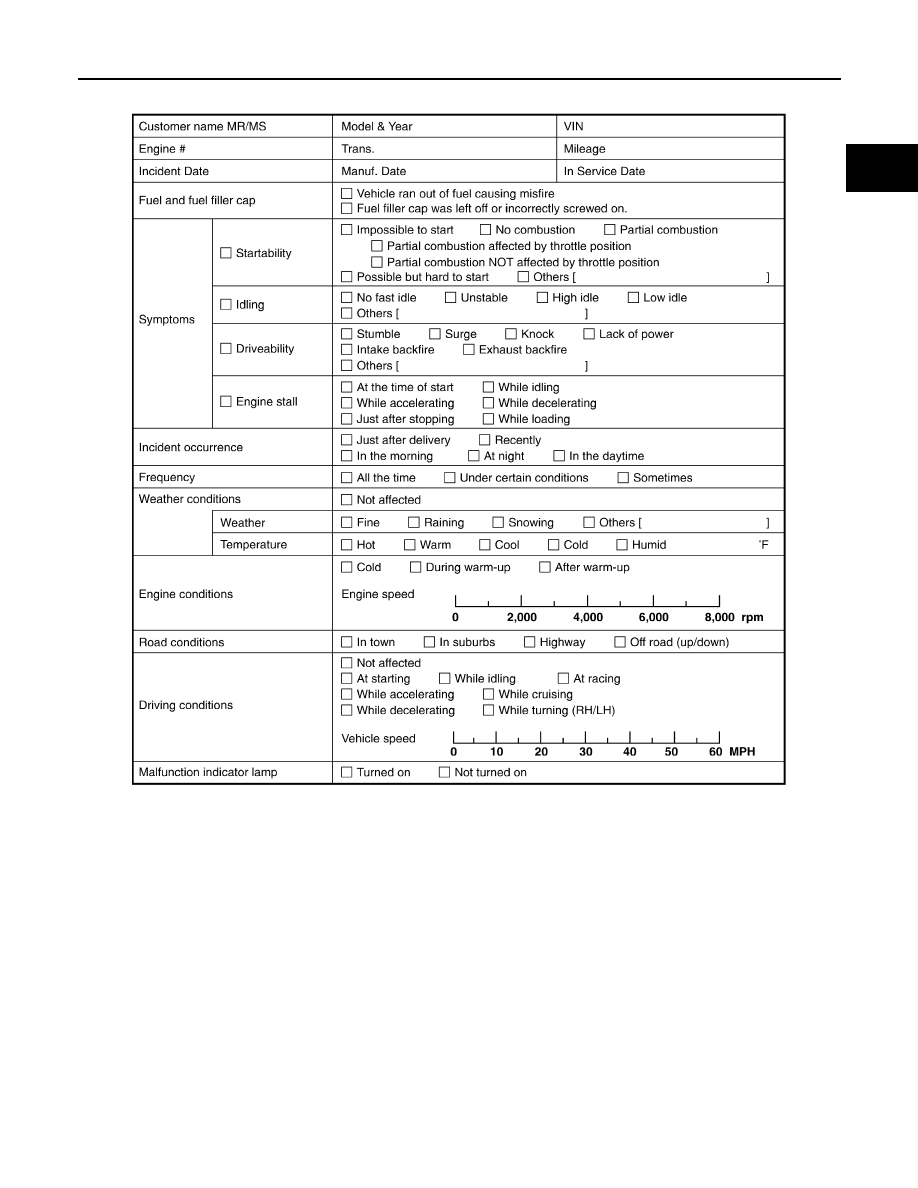

WORKSHEET SAMPLE

MTBL0017

EC-748

< BASIC INSPECTION >

[MR EXCEPT FOR NISMO RS MODELS]

SERVICE AFTER REPLACING OR REMOVING ENGINE PARTS

SERVICE AFTER REPLACING OR REMOVING ENGINE PARTS

Description

INFOID:0000000012198254

SPECIAL REPAIR REQUIREMENT

×: Applicable

*: Harness connector disconnection included.

Part name

Service performed

Required service

Reference

Replacement

Removal

*

ECM

×

Additional service when replacing ECM

EC-749

×

Accelerator pedal released position learning

EC-753

Throttle valve closed position learning

EC-754

Accelerator Pedal

×

×

Accelerator pedal released position learning

EC-753

G sensor

×

×

G sensor calibration

EC-763

Turbocharger assembly

×

×

Wastegate valve closed positon learning

EC-755

Idle air volume learning

EC-758

Electric throttle

×

×

Throttle valve closed position learning

EC-754

Idle air volume learning

EC-758

×

Air fuel ratio initial learning

EC-760

Mass air flow sensor

×

Air fuel ratio initial learning

EC-760

Fuel injector

×

Battery

×

Cumulative battery discharge current clear

EC-764

Camshaft

×

Valve timing offset data clear

EC-756

Valve timing offset data writing

EC-757

Timing chain

×

Valve timing offset data clear

EC-756

Valve timing offset data writing

EC-757

Engine assembly

×

Idle air volume learning

EC-758

Air fuel ratio initial learning

EC-760

Valve timing offset data clear

EC-756

Valve timing offset data writing

EC-757

Wastegate valve closed positon learning

EC-755

Throttle valve closed position learning

EC-754
