COMPONENT PARTS

EC-601

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

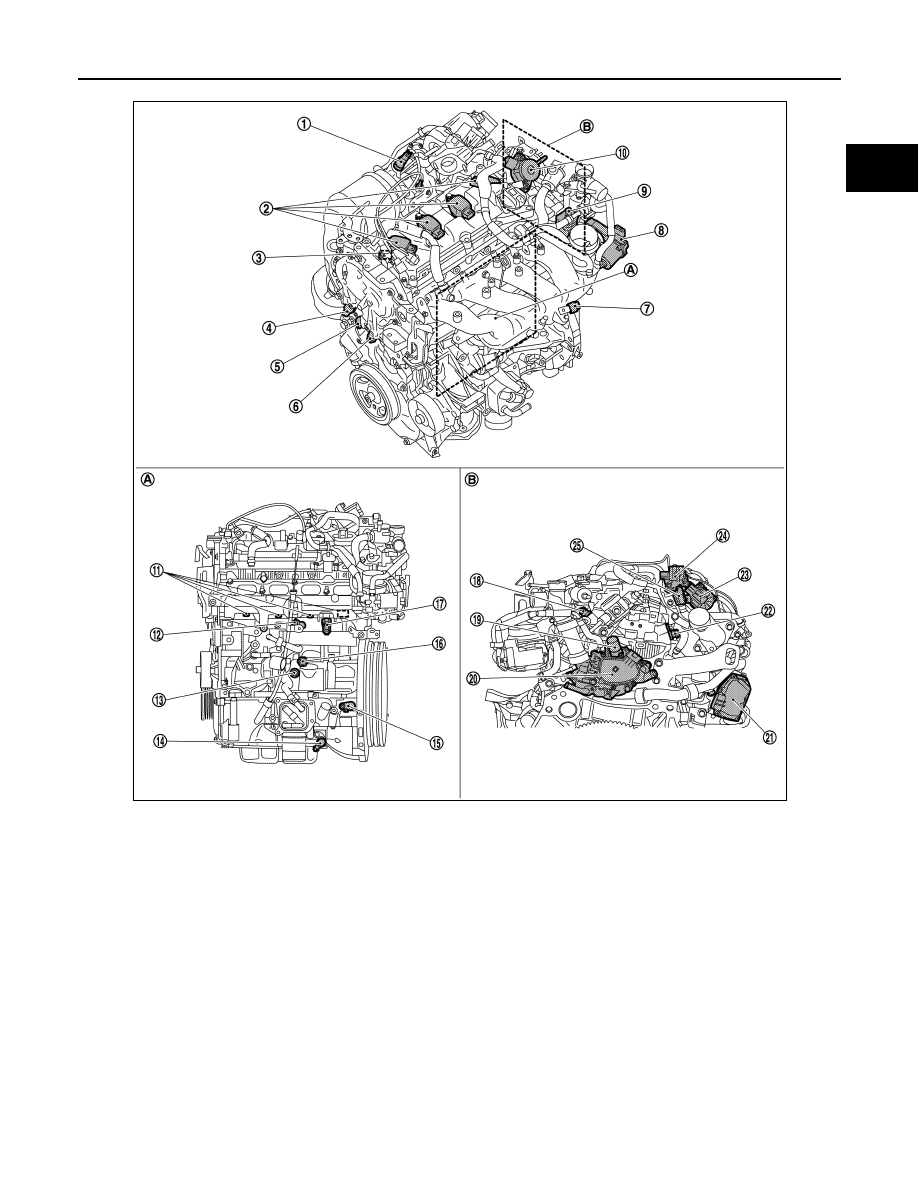

EXHAUST COMPARTMENT

2WD

1.

Air fuel ratio (A/F) sensor 1

2.

Ignition coil (with power transistor)

3.

PCV valve

4.

Exhaust valve timing control solenoid
valve

5.

Intake valve timing intermediate lock
control solenoid valve

6.

Intake valve timing control solenoid
valve

7.

Manifold absolute pressure sensor

8.

Electric throttle control actuator

9.

Intake manifold runner control valve

10. High pressure fuel pump

11. Fuel injector

12. Knock sensor

13. Engine oil temperature sensor

14. Engine oil pressure control solenoid

valve

15. Crankshaft position sensor

16. Engine oil pressure sensor

17. Fuel rail pressure sensor

18. Camshaft position sensor

19. Engine coolant temperature sensor

20. Multi-way control valve

21. EGR volume control valve

22. Exhaust valve timing control position

sensor

23. Electric wastegate control actuator

24. Turbocharger bypass control valve

25. EGR pressure sensor
A.

Cylinder block left side

B.

Engine rear end

JSBIA7179ZZ

EC-602

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

COMPONENT PARTS

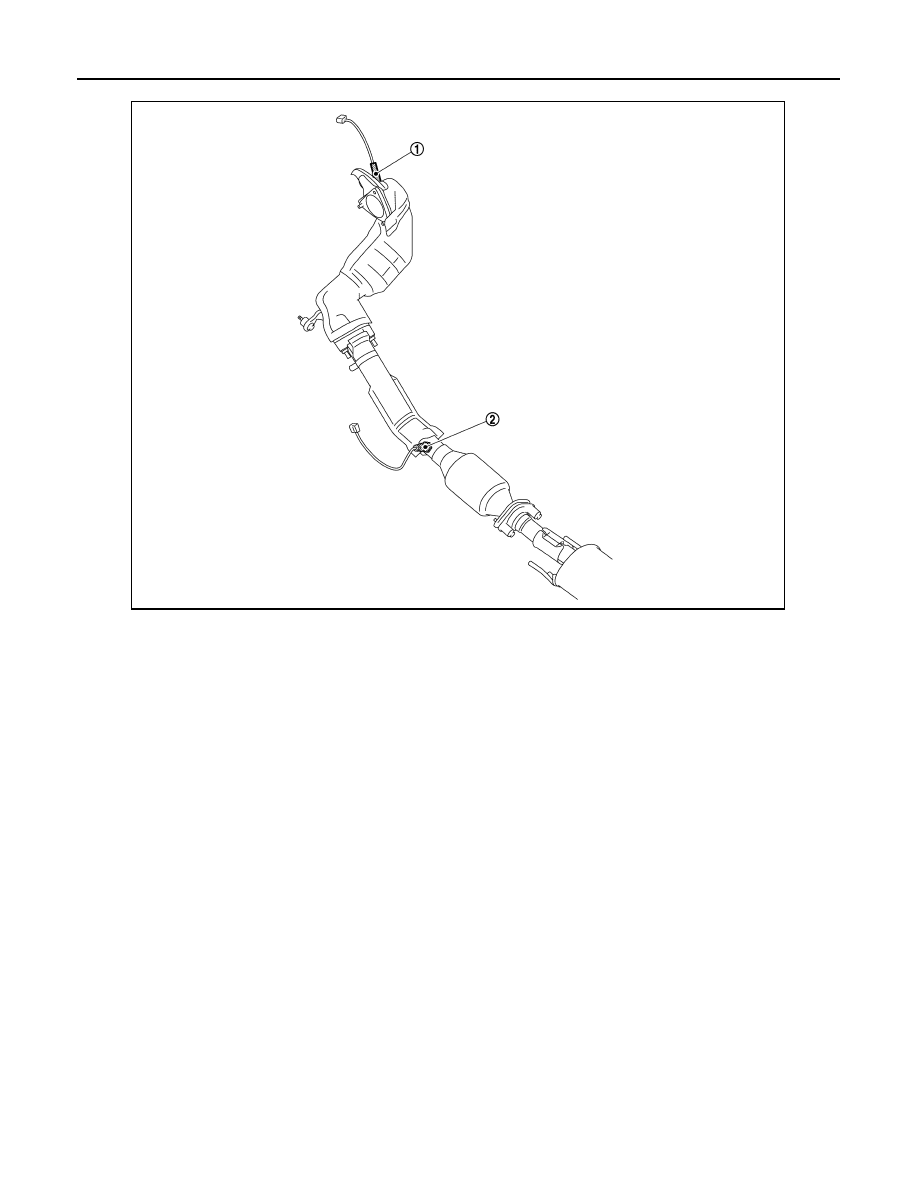

AWD

1.

A/F sensor 1

2.

Heated oxygen sensor 2

JPBIA4609ZZ

COMPONENT PARTS

EC-603

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

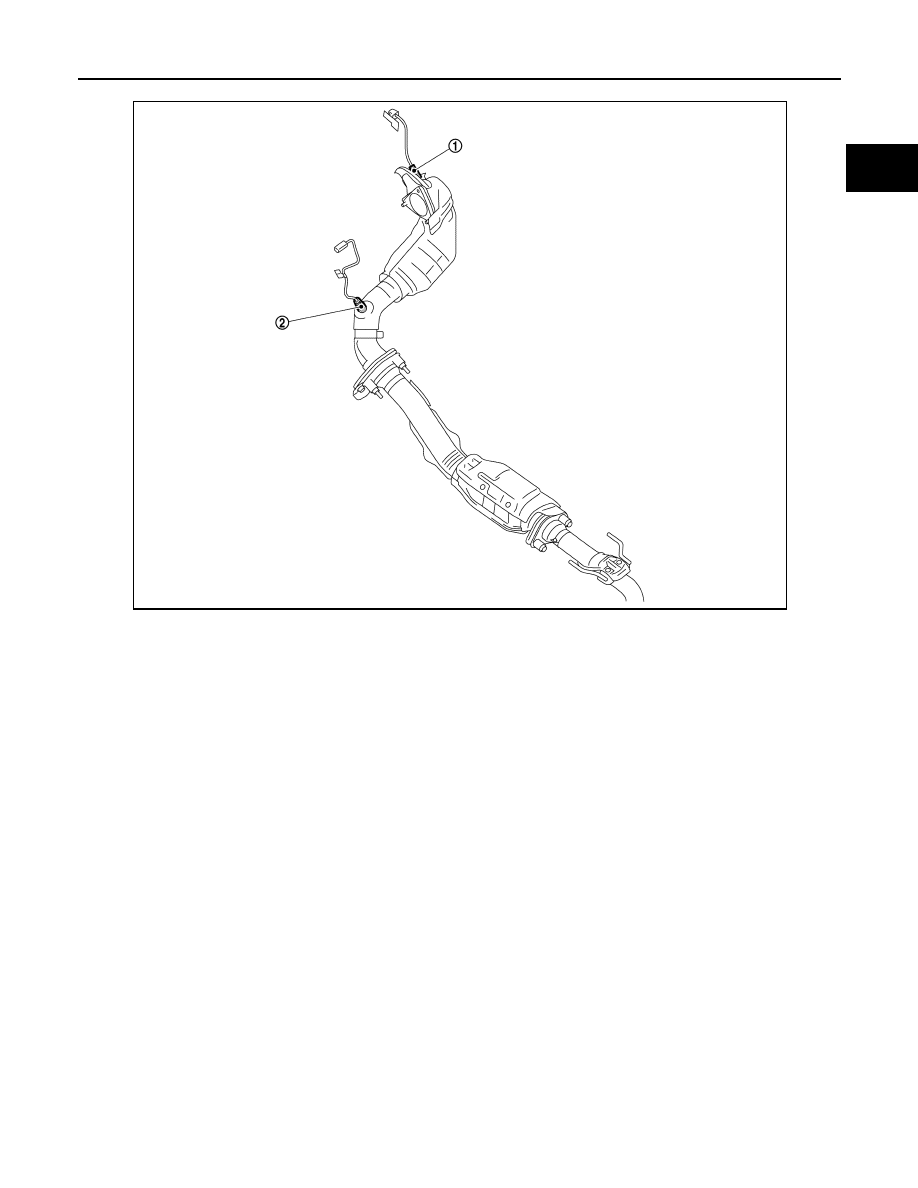

BODY COMPARTMENT

1.

A/F sensor 1

2.

Heated oxygen sensor 2

JPBIA4610ZZ

EC-604

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

COMPONENT PARTS

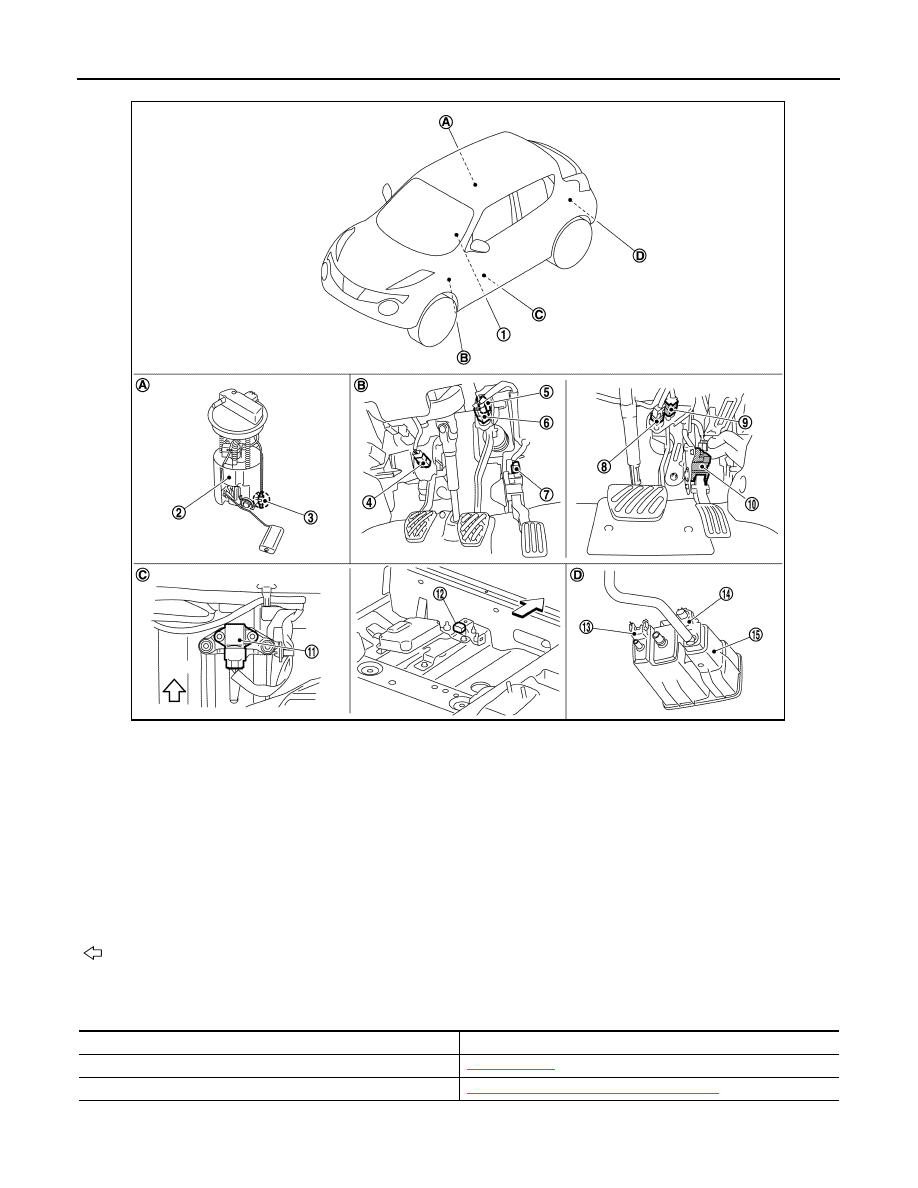

ENGINE CONTROL SYSTEM : Component Description

INFOID:0000000012198148

1.

ASCD steering switch

2.

Fuel level sensor unit, fuel filter and
fuel pump assembly

3.

Fuel tank temperature sensor

4.

Clutch pedal position switch
(with M/T models)

5.

Brake pedal position switch
(with M/T models)

6.

Stop lamp switch
(with M/T models)

7.

Accelerator pedal position sensor
(with M/T models)

8.

Brake pedal position switch
(with CVT models)

9.

Stop lamp switch
(with CVT models)

10. Accelerator pedal position sensor

(with CVT models)

11. G sensor

(with 2WD models)

12. G sensor

(with AWD models)

13. EVAP control system pressure sensor 14. EVAP canister vent control valve

15. EVAP canister

A.

Under of right side second seat

B.

Periphery of pedals

C.

Under of left side front seat

D.

Fuel tank rear
: Vehicle front

JPBIA4893ZZ

Component

Reference

ECM

EC-606, "ECM"

Accelerator pedal position sensor

EC-606, "Accelerator Pedal Position Sensor"
