Nissan Juke F15. Manual - part 330

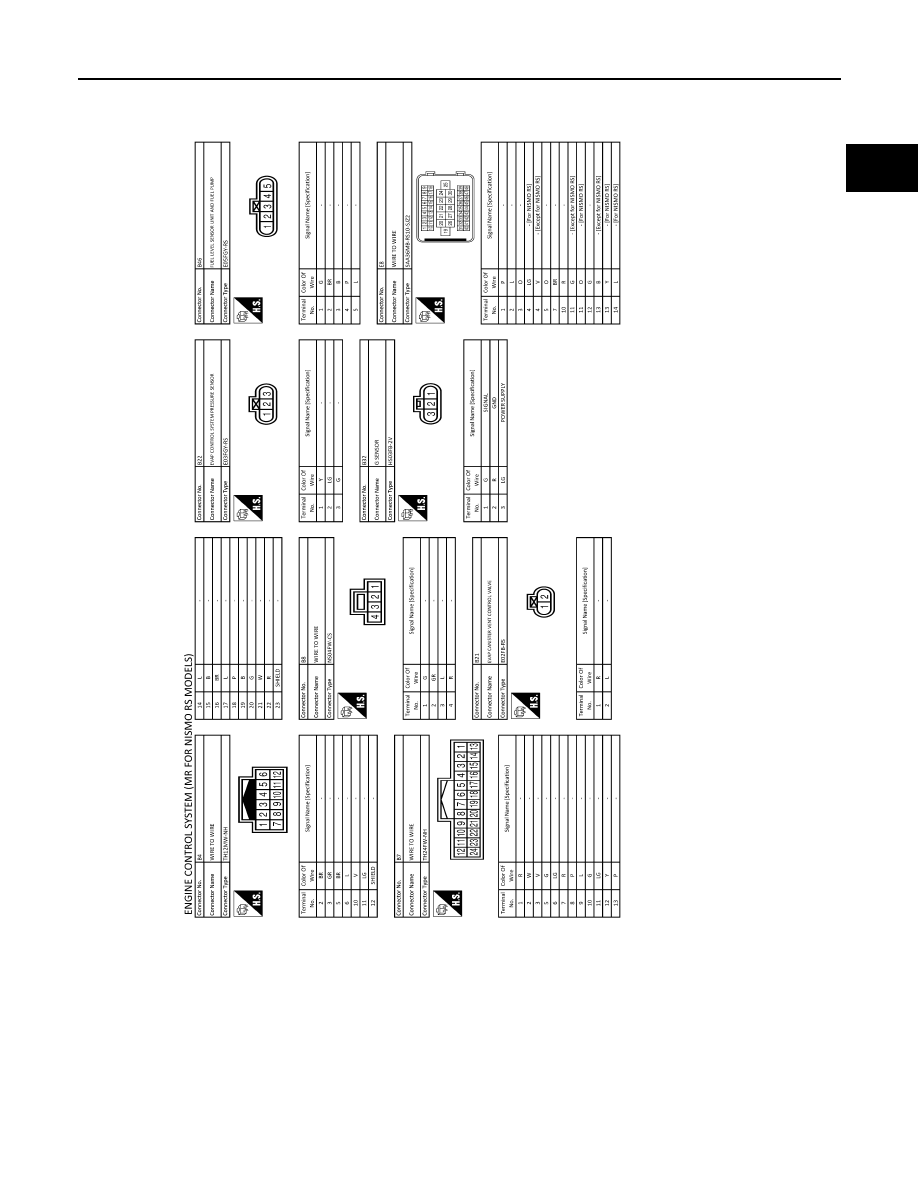

ENGINE CONTROL SYSTEM

EC-133

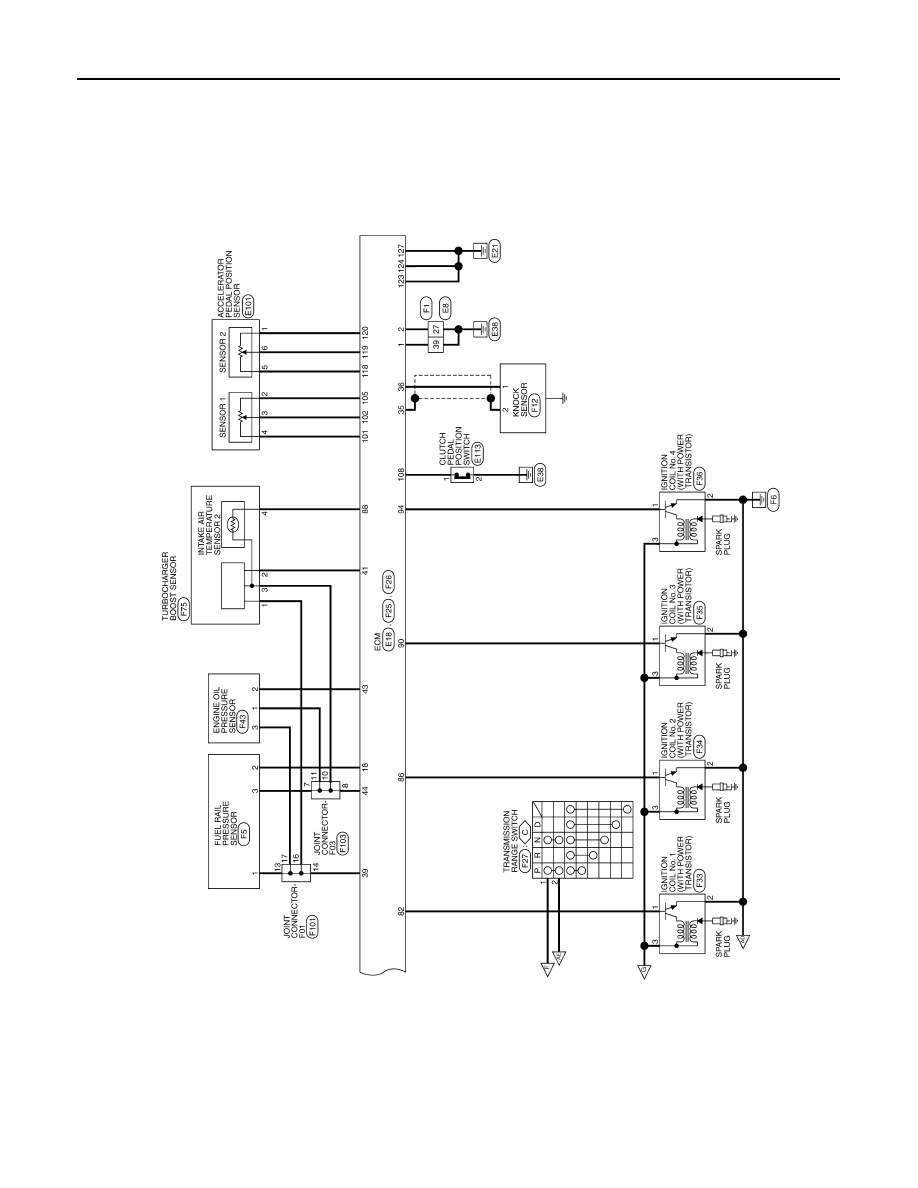

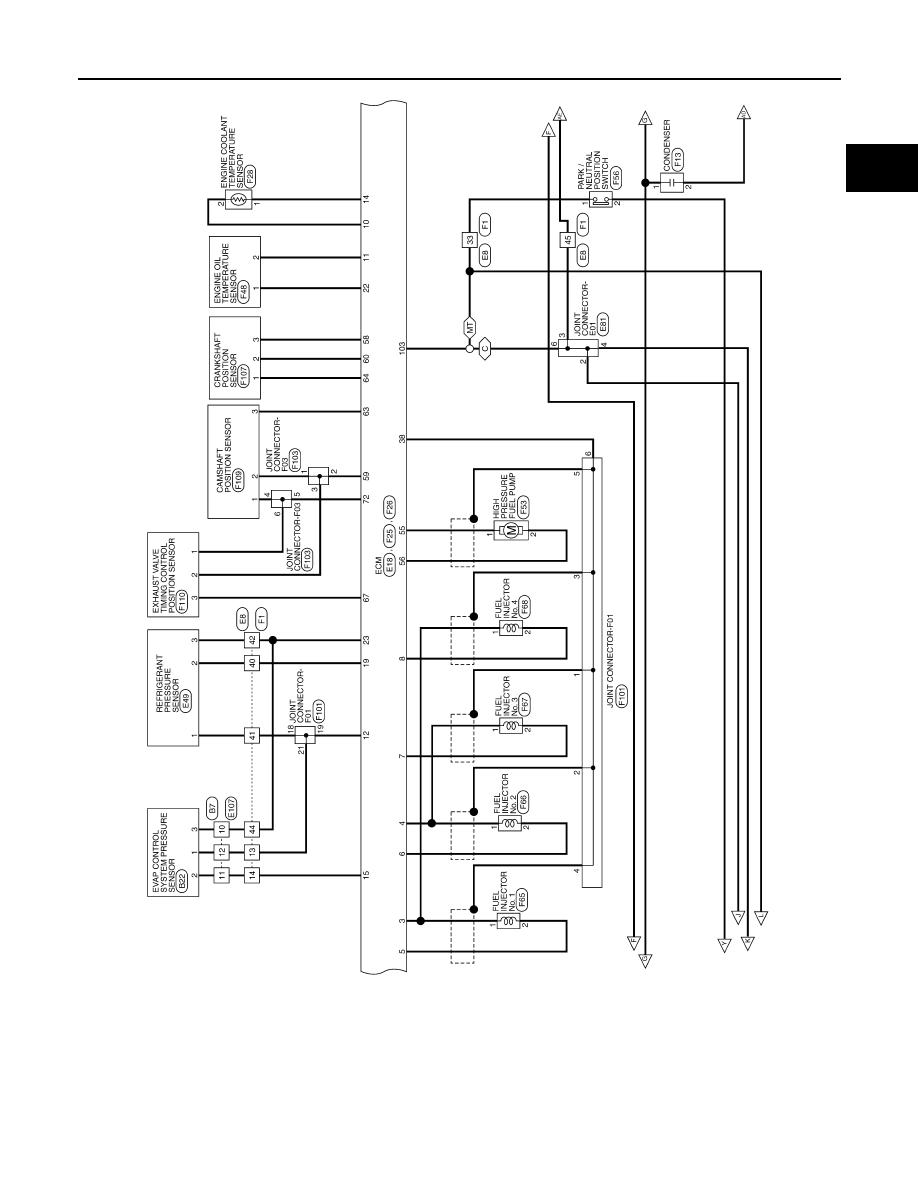

< WIRING DIAGRAM >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

JRBWD6973GB

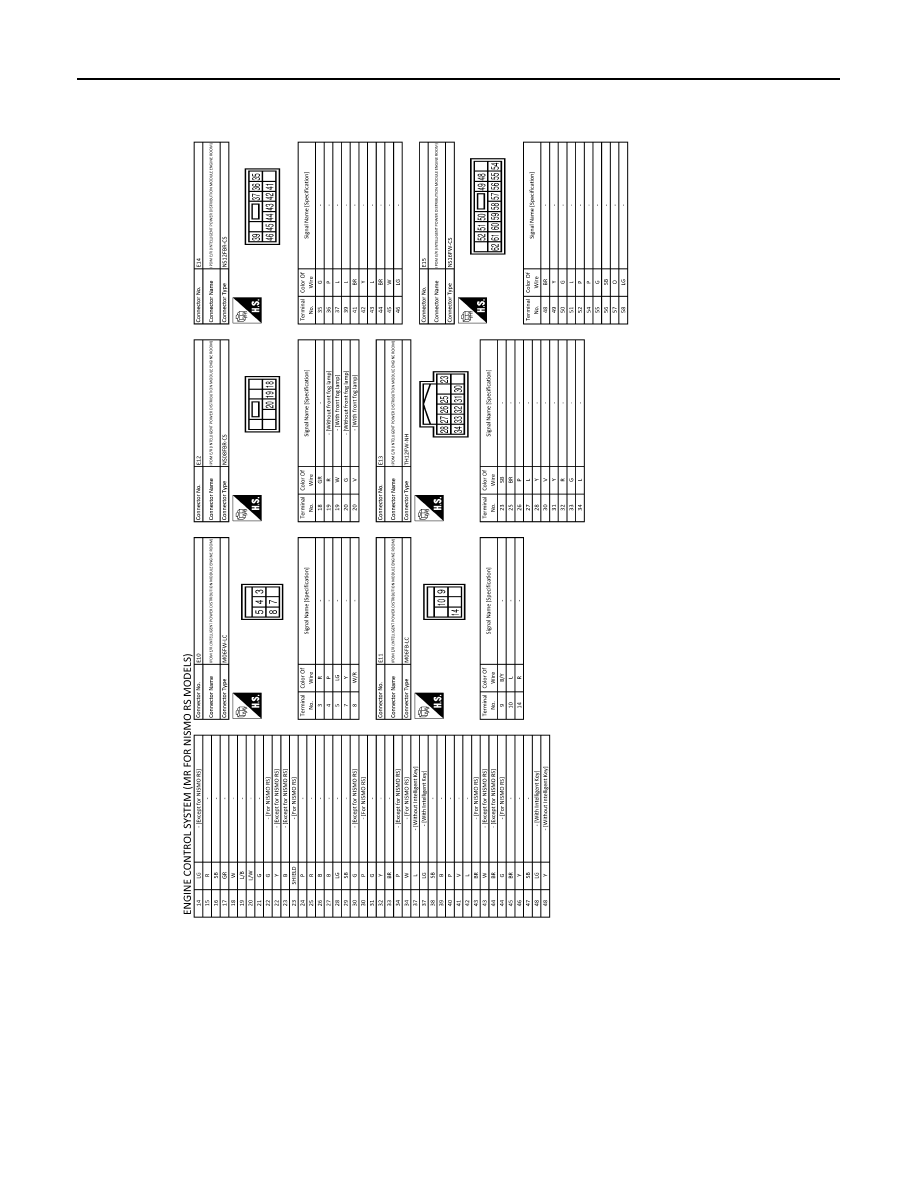

EC-134

< WIRING DIAGRAM >

[MR FOR NISMO RS MODELS]

ENGINE CONTROL SYSTEM

JRBWD6974GB

ENGINE CONTROL SYSTEM

EC-135

< WIRING DIAGRAM >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

JRBWD6975GB

EC-136

< WIRING DIAGRAM >

[MR FOR NISMO RS MODELS]

ENGINE CONTROL SYSTEM

JRBWD6976GB
