DMS-10

< ECU DIAGNOSIS INFORMATION >

[INTEGRATED CONTROL SYSTEM]

MULTI DISPLAY UNIT

ECU DIAGNOSIS INFORMATION

MULTI DISPLAY UNIT

List of ECU Reference

INFOID:0000000012201599

ECU

Reference

Multi display unit

AV-212, "Reference Value"

AV-214, "DTC Inspection Priority Chart"

AV-215, "DTC Index"

DMS

INTEGRATED CONTROL SYSTEM

DMS-11

< WIRING DIAGRAM >

[INTEGRATED CONTROL SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

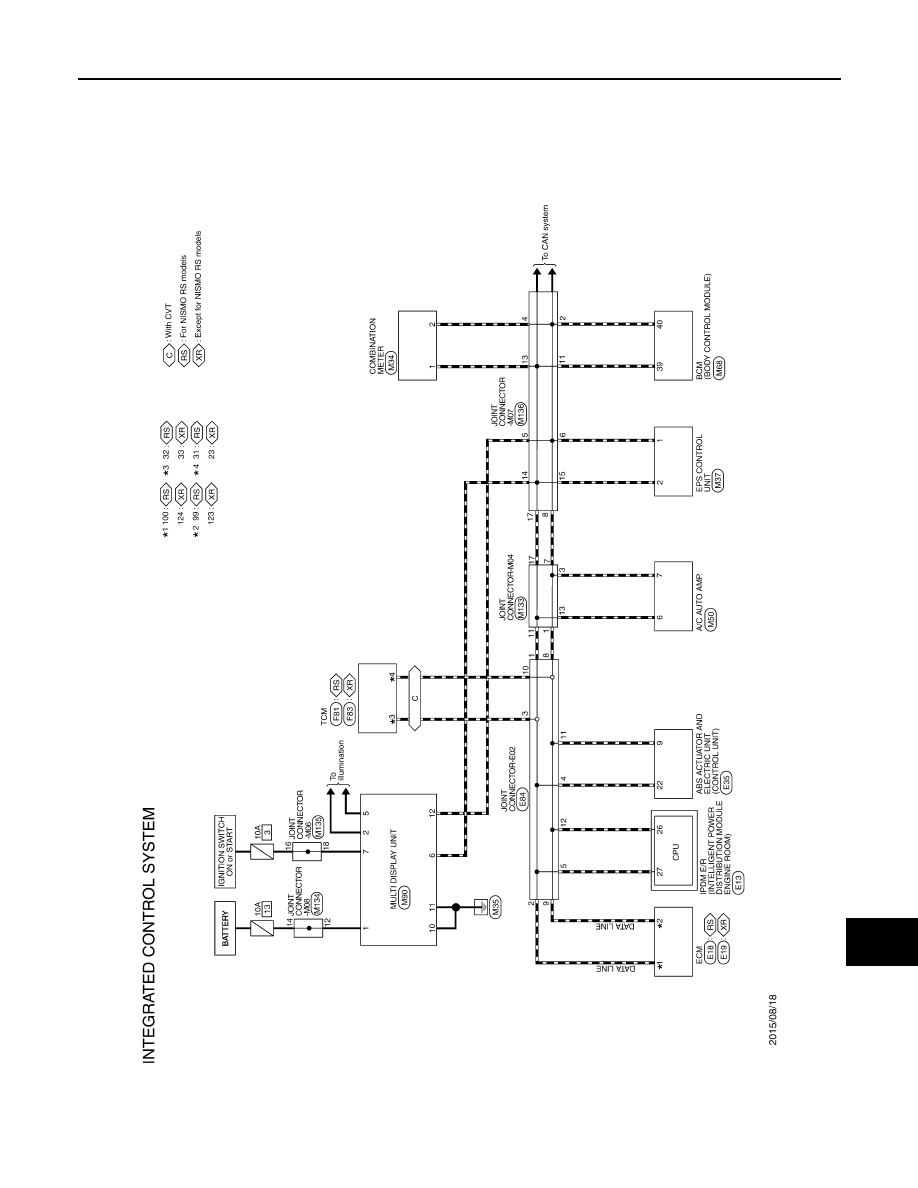

WIRING DIAGRAM

INTEGRATED CONTROL SYSTEM

Wiring Diagram

INFOID:0000000012857734

JRNWF0753GB

DMS-12

< WIRING DIAGRAM >

[INTEGRATED CONTROL SYSTEM]

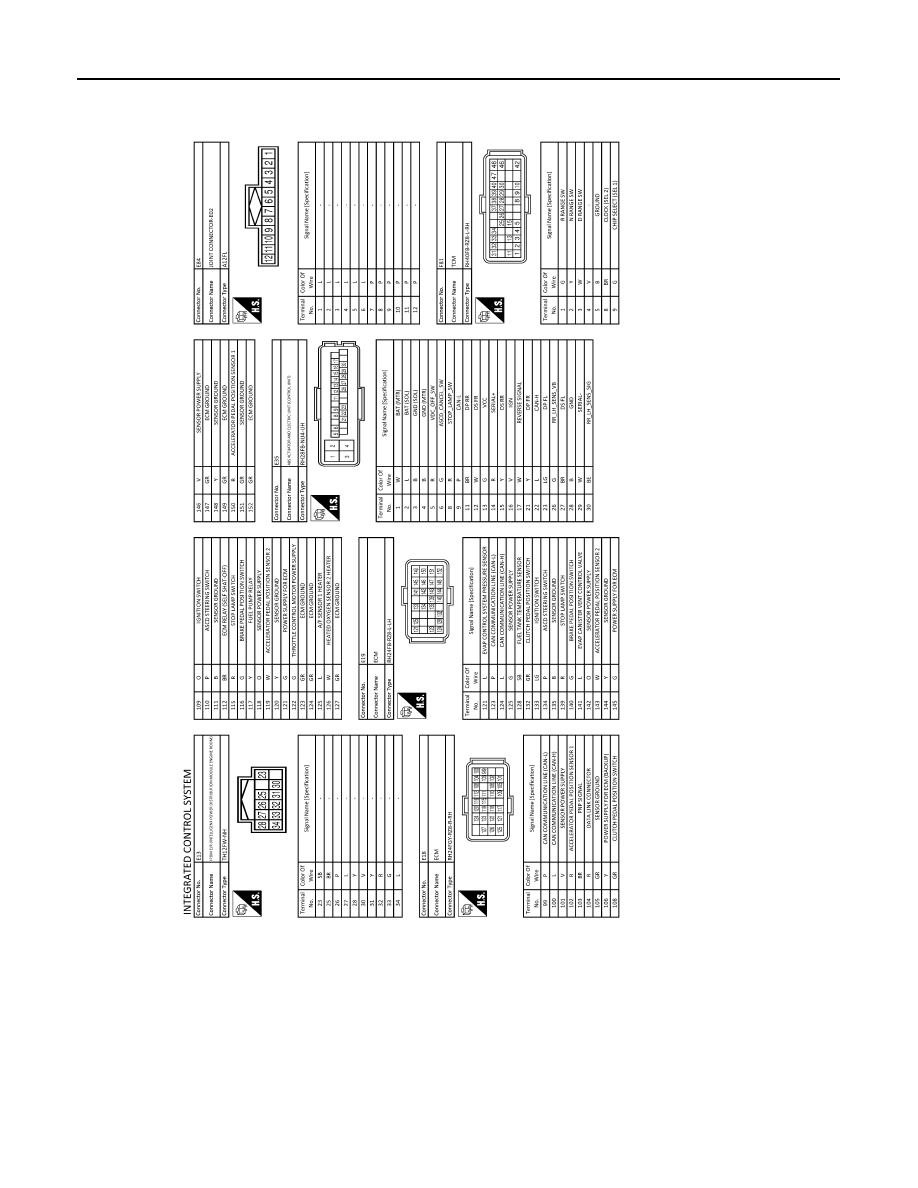

INTEGRATED CONTROL SYSTEM

JRNWF0754GB

DMS

INTEGRATED CONTROL SYSTEM

DMS-13

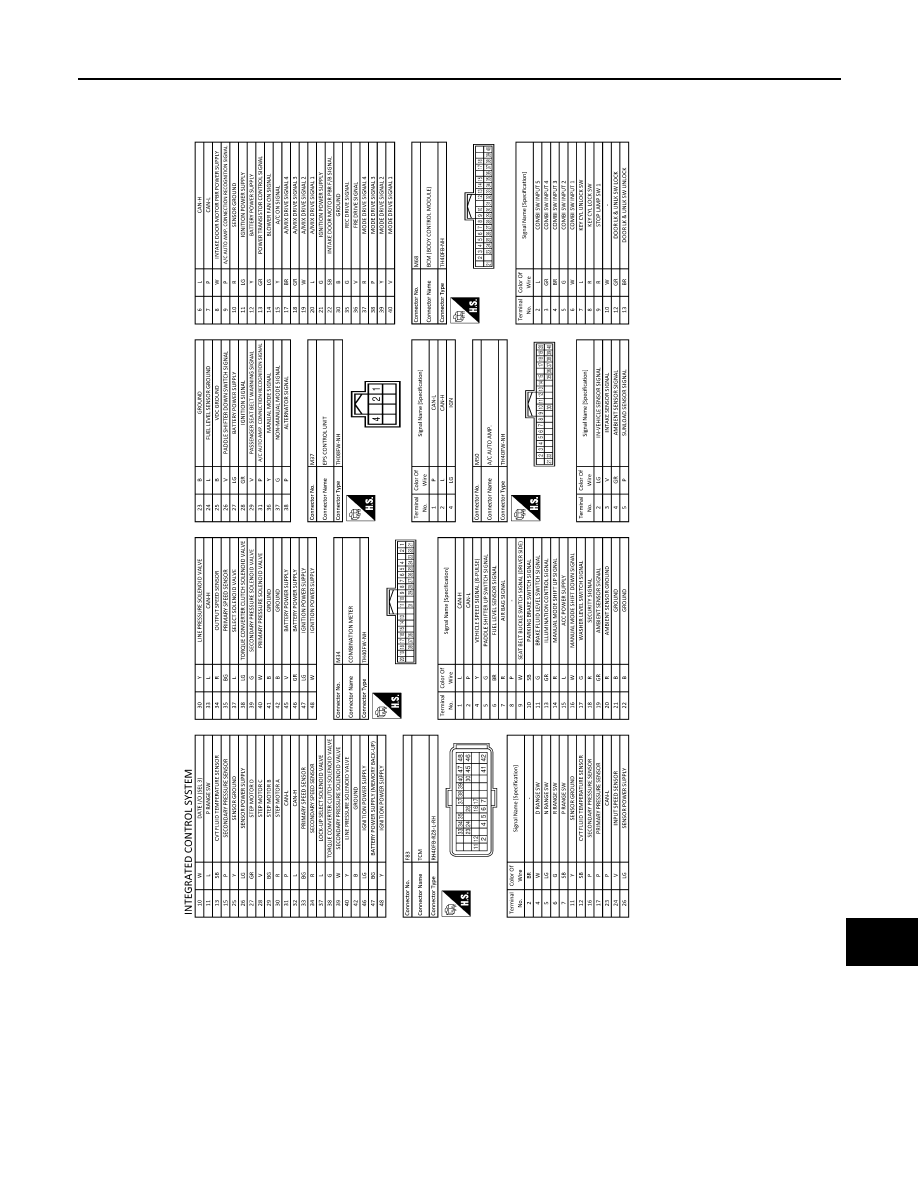

< WIRING DIAGRAM >

[INTEGRATED CONTROL SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JRNWF0755GB
