Nissan Juke F15. Manual - part 243





DLK-152

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

6. Remove mounting bolts, and then remove back door stay lower bracket.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.

• After installation, check back door open/close, lock/unlock operation.

BACK DOOR STAY : Disposal

INFOID:0000000012196728

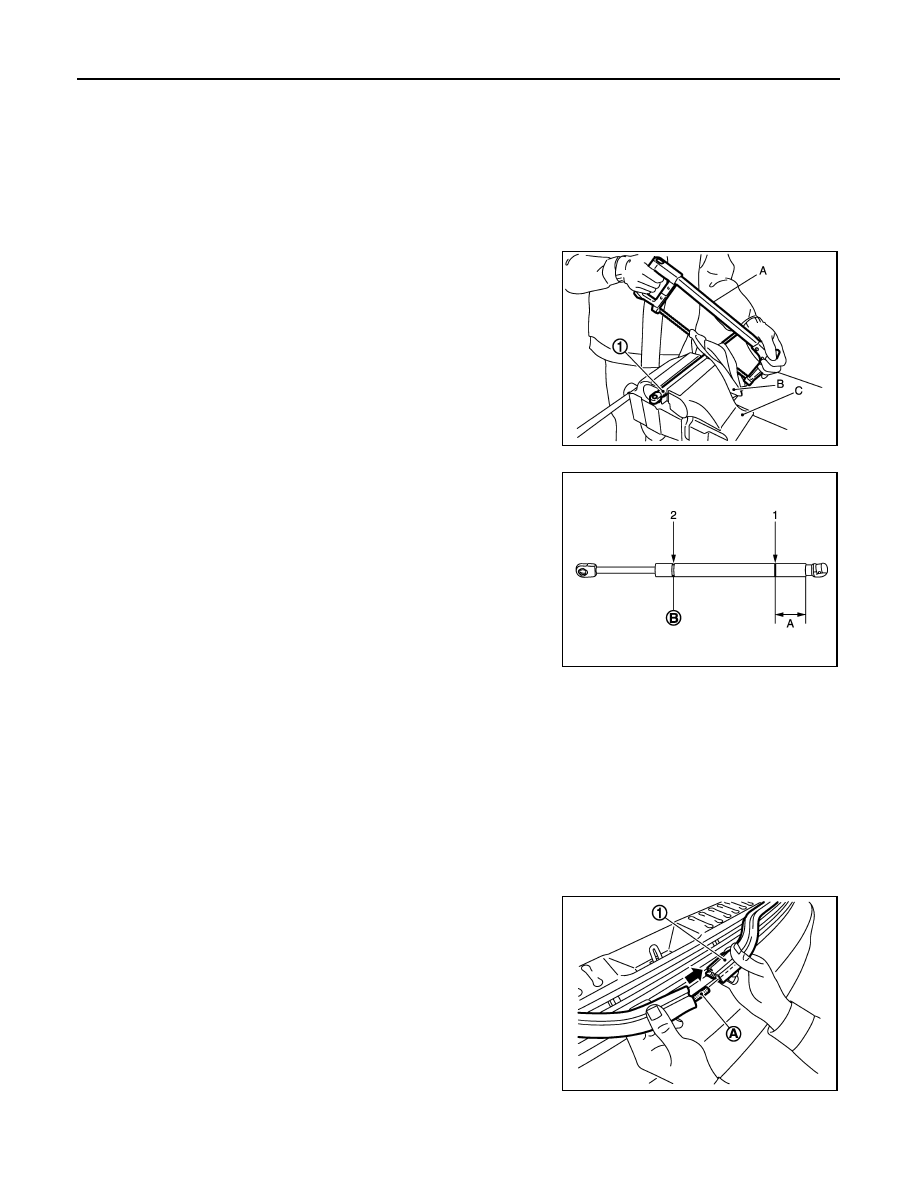

1. Fix back door stay (1) using a vise (C).
2. Using hacksaw (A) slowly make 2 holes in the back door stay, in

numerical order as shown in the figure.

CAUTION:

• When cutting a hole on back door stay, always cover a

hacksaw using a shop cloth (B) to avoid scattering metal

fragments or oil.

• Wear eye protection (safety glasses).

• Wear gloves.

BACK DOOR WEATHER-STRIP
BACK DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000012196729

REMOVAL

Pull up and remove engagement with body from weather-strip joint.

CAUTION:

Never pull strongly on weather-strip.

INSTALLATION

1. Working from the upper section, align weather-strip center mark with vehicle center position mark and

install weather-strip onto the vehicle.

2. For the lower section, insert pad (A) into weather-strip (1), and

then fix the connection point.

JMKIA3336ZZ

A: 20 mm (0.787 in)
B: Cut at the groove.

JMKIA3609ZZ

JMKIA5661ZZ

BACK DOOR

DLK-153

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

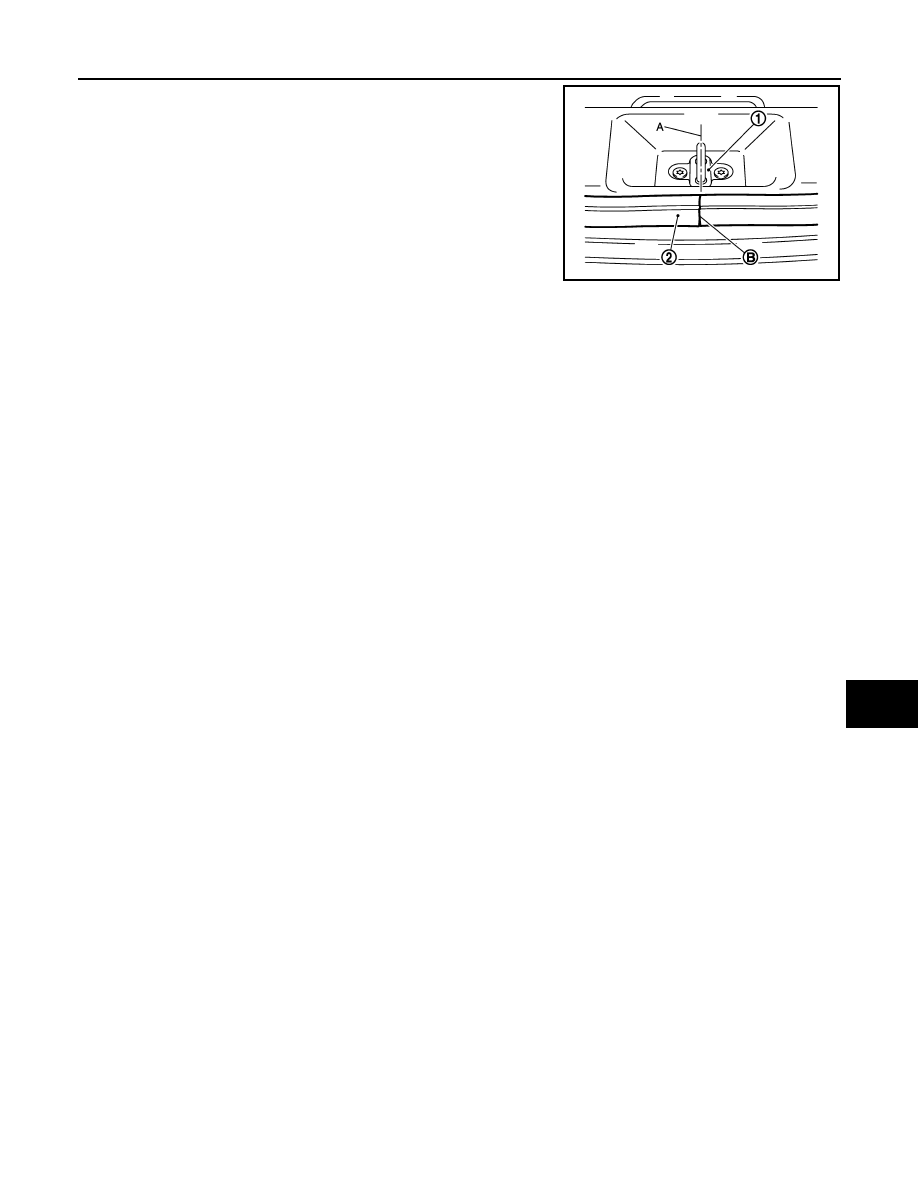

3. Align the connecting point (B) of weather-strip (2) to the center

(A) of striker (1), and then install as shown in the figure.

4. Pull weather-strip gently to ensure that there is no loose section.

NOTE:

Check that weather-strip fits tightly in each corner and luggage rear plate.

JMKIA5662ZZ

DLK-154

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

HOOD LOCK

HOOD LOCK

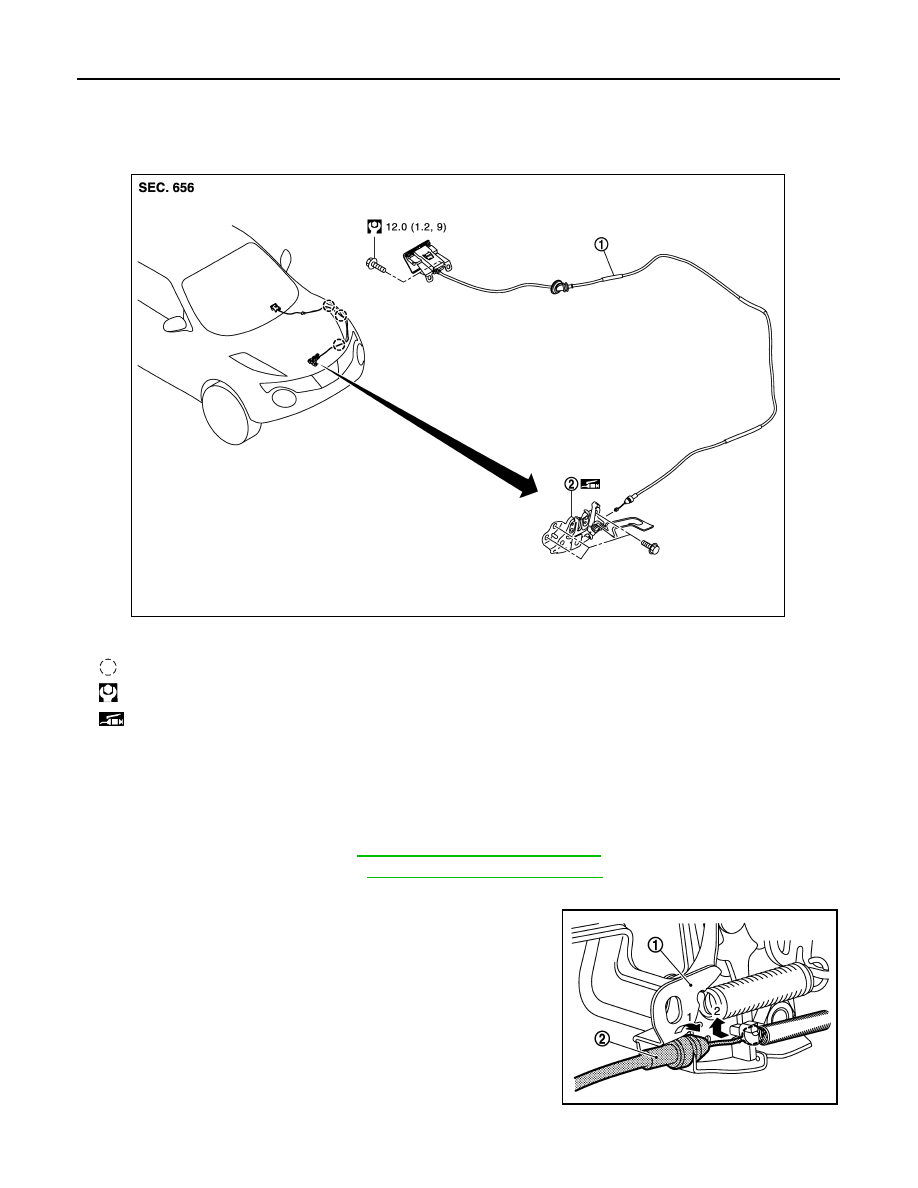

Exploded View

INFOID:0000000012196730

HOOD LOCK
HOOD LOCK : Removal and Installation

INFOID:0000000012196731

REMOVAL

1. Remove front center grille. Refer to

EXT-26, "Removal and Installation"

.

2. Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

3. Remove hood lock assembly mounting bolts, and then remove hood lock assembly.
4. Disconnect hood lock control cable assembly (2) from hood lock

assembly (1).

INSTALLATION

1.

Hood lock control cable assembly

2.

Hood lock assembly

: Clip

: N·m (kg-m, ft-lb)

: Body grease

JMKIA5899GB

JMKIA5900ZZ

HOOD LOCK

DLK-155

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check that hood lock control cable is properly engaged with hood lock.

• After installation, perform hood fitting adjustment. Refer to

DLK-125, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform hood lock control inspection. Refer to

DLK-155, "Inspection"

.

HOOD LOCK CONTROL CABLE
HOOD LOCK CONTROL CABLE : Removal and Installation

INFOID:0000000012196732

REMOVAL

1. Disconnect hood lock control cable assembly from hood lock assembly.
2. Remove fender protector (LH). Refer to

EXT-31, "Removal and Installation"

.

3. Remove hood lock cable clip.

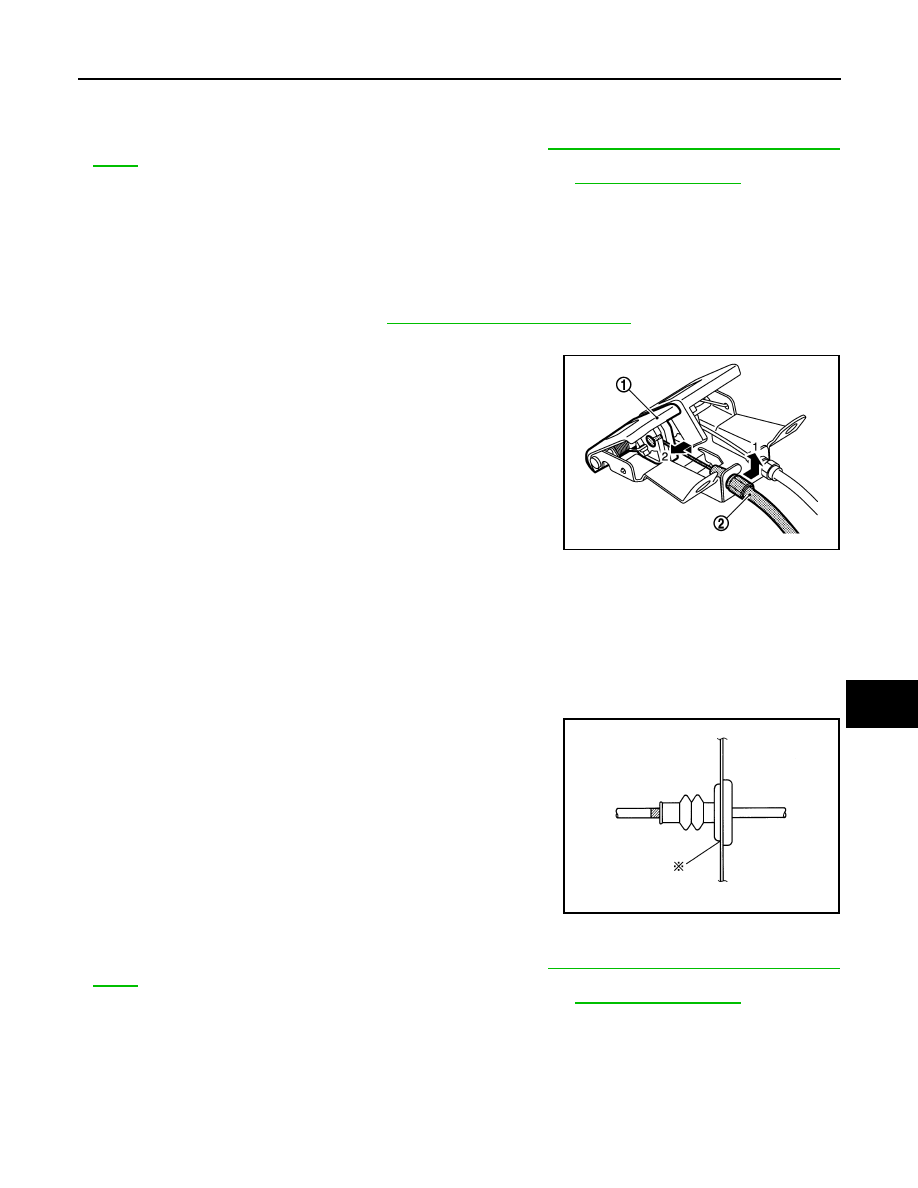

4. Remove hood lock control cable assembly of instrument lower

panel (LH), and then remove fuel filler lid opener cable (2) from

fuel filler lid opener lever (1).

5. Remove grommet on the lower dash, and pull the hood lock control cable toward the passenger compart-

ment.

CAUTION:

While pulling, never to damage (peeling) the outside of hood lock control cable.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never to bend cable too much, keeping the radius 100 mm (3.937 in) or more.

• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark) properly.

• Check that hood lock control cable is properly engaged with hood lock.

• After installation, perform hood fitting adjustment. Refer to

DLK-125, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform hood lock control inspection. Refer to

DLK-155, "Inspection"

.

Inspection

INFOID:0000000012196733

NOTE:

If the hood lock cable is bent or deformed, replace it.
1. Check that secondary latch is securely engaged with securely striker from the dead load of the hood

assembly.

JMKIA5901ZZ

PIIB5801E
