Nissan Juke F15. Manual - part 206

DLK-4

HOOD ...............................................................

124

Exploded View .......................................................

124

HOOD ASSEMBLY ..................................................

124

HOOD ASSEMBLY : Removal and Installation .....

124

HOOD ASSEMBLY : Adjustment ..........................

125

HOOD HINGE ...........................................................

126

HOOD HINGE : Removal and Installation .............

126

HOOD HINGE : Adjustment ..................................

127

HOOD SUPPORT ROD ............................................

129

HOOD SUPPORT ROD : Removal and Installa-
tion .........................................................................

129

RADIATOR CORE SUPPORT .........................

130

MR16DDT .................................................................

130

MR16DDT : Exploded View ...................................

130

MR16DDT : Removal and Installation ...................

130

FRONT FENDER .............................................

133

Exploded View .......................................................

133

Removal and Installation .......................................

133

FRONT DOOR .................................................

135

Exploded View .......................................................

135

DOOR ASSEMBLY ..................................................

135

DOOR ASSEMBLY : Removal and Installation .....

135

DOOR ASSEMBLY : Adjustment ..........................

137

DOOR STRIKER ......................................................

138

DOOR STRIKER : Removal and Installation .........

138

DOOR HINGE ...........................................................

138

DOOR HINGE : Removal and Installation .............

138

DOOR CHECK LINK ................................................

139

DOOR CHECK LINK : Removal and Installation ...

139

REAR DOOR ...................................................

140

Exploded View .......................................................

140

DOOR ASSEMBLY ..................................................

140

DOOR ASSEMBLY : Removal and Installation .....

140

DOOR ASSEMBLY : Adjustment ..........................

142

DOOR STRIKER ......................................................

143

DOOR STRIKER : Removal and Installation .........

143

DOOR HINGE ...........................................................

143

DOOR HINGE : Removal and Installation .............

143

DOOR CHECK LINK ................................................

144

DOOR CHECK LINK : Removal and Installation ...

144

BACK DOOR ...................................................

145

Exploded View .......................................................

145

BACK DOOR ASSEMBLY .......................................

145

BACK DOOR ASSEMBLY : Removal and Installa-
tion .........................................................................

145

BACK DOOR ASSEMBLY : Adjustment ................

148

BACK DOOR STRIKER ..........................................

150

BACK DOOR STRIKER : Removal and Installa-
tion ........................................................................

150

BACK DOOR HINGE ..............................................

151

BACK DOOR HINGE : Removal and Installation ..

151

BACK DOOR STAY ................................................

151

BACK DOOR STAY : Removal and Installation ....

151

BACK DOOR STAY : Disposal .............................

152

BACK DOOR WEATHER-STRIP ............................

152

BACK DOOR WEATHER-STRIP : Removal and
Installation .............................................................

152

HOOD LOCK ....................................................

154

Exploded View ......................................................

154

HOOD LOCK ...........................................................

154

HOOD LOCK : Removal and Installation ..............

154

HOOD LOCK CONTROL CABLE ...........................

155

HOOD LOCK CONTROL CABLE : Removal and
Installation .............................................................

155

Inspection ..............................................................

155

FRONT DOOR LOCK .......................................

157

Exploded View ......................................................

157

DOOR LOCK ...........................................................

157

DOOR LOCK : Removal and Installation ..............

157

INSIDE HANDLE .....................................................

158

INSIDE HANDLE : Removal and Installation ........

158

OUTSIDE HANDLE .................................................

158

OUTSIDE HANDLE : Removal and Installation ....

158

REAR DOOR LOCK .........................................

161

Exploded View ......................................................

161

DOOR LOCK ...........................................................

161

DOOR LOCK : Removal and Installation ..............

161

INSIDE HANDLE .....................................................

162

INSIDE HANDLE : Removal and Installation ........

162

OUTSIDE HANDLE .................................................

162

OUTSIDE HANDLE : Removal and Installation ....

162

BACK DOOR LOCK .........................................

164

Exploded View ......................................................

164

DOOR LOCK ...........................................................

164

DOOR LOCK : Removal and Installation ..............

164

EMERGENCY LEVER .............................................

164

EMERGENCY LEVER : Unlock procedures .........

164

FUEL FILLER LID OPENER ............................

166

Exploded View ......................................................

166

FUEL FILLER LID ...................................................

166

FUEL FILLER LID : Removal and Installation .......

166

DLK-5

DLK

FUEL FILLER OPENER CABLE .............................

167

FUEL FILLER OPENER CABLE : Removal and
Installation .............................................................

167

FUEL FILLER LID LOCK ........................................

167

FUEL FILLER LID LOCK : Removal and Installa-
tion ........................................................................

168

DOOR SWITCH ................................................

169

Exploded View ......................................................

169

Removal and Installation .......................................

169

INSIDE KEY ANTENNA ...................................

170

INSTRUMENT CENTER ..........................................

170

INSTRUMENT CENTER : Removal and Installa-
tion ........................................................................

170

LUGGAGE ROOM ...................................................

170

LUGGAGE ROOM : Exploded View .....................

170

LUGGAGE ROOM : Removal and Installation ......

170

OUTSIDE KEY ANTENNA ..............................

172

DRIVER SIDE ...........................................................

172

DRIVER SIDE : Removal and Installation .............

172

PASSENGER SIDE ..................................................

172

PASSENGER SIDE : Removal and Installation ....

172

REAR BUMPER .......................................................

172

REAR BUMPER : Removal and Installation ..........

172

INTELLIGENT KEY WARNING BUZZER .......

173

Removal and Installation .......................................

173

REMOTE KEYLESS ENTRY RECEIVER .......

174

Removal and Installation .......................................

174

INTELLIGENT KEY BATTERY .......................

175

Removal and Installation .......................................

175

DLK-6

< PRECAUTION >

[WITH INTELLIGENT KEY SYSTEM]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000012196571

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this

Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, it is recommended that all maintenance

and repair be performed by an authorized NISSAN/INFINITI dealer.

• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury

caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,

see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with

a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery or batteries, and wait at least 3 minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000012196572

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

Precautions For Xenon Headlamp Service

INFOID:0000000012196573

WARNING:

Comply with the following warnings to prevent any serious accident.

• Disconnect the battery cable (negative terminal) or the power supply fuse before installing, remov-

ing, or touching the xenon headlamp (bulb included). The xenon headlamp contains high-voltage

generated parts.

• Never work with wet hands.

• Check the xenon headlamp ON-OFF status after assembling it to the vehicle. Never turn the xenon

headlamp ON in other conditions. Connect the power supply to the vehicle-side connector.

PIIB3706J

PRECAUTIONS

DLK-7

< PRECAUTION >

[WITH INTELLIGENT KEY SYSTEM]

DLK

(Turning it ON outside the lamp case may cause fire or visual impairments.)

• Never touch the bulb glass immediately after turning it OFF. It is extremely hot.

CAUTION:

Comply with the following cautions to prevent any error and malfunction.

• Install the xenon bulb securely. (Insufficient bulb socket installation may melt the bulb, the connec-

tor, the housing, etc. by high-voltage leakage or corona discharge.)

• Never perform HID circuit inspection with a tester.

• Never touch the xenon bulb glass with hands. Never put oil and grease on it.

• Dispose of the used xenon bulb after packing it in thick vinyl without breaking it.

• Never wipe out dirt and contamination with organic solvent (thinner, gasoline, etc.).

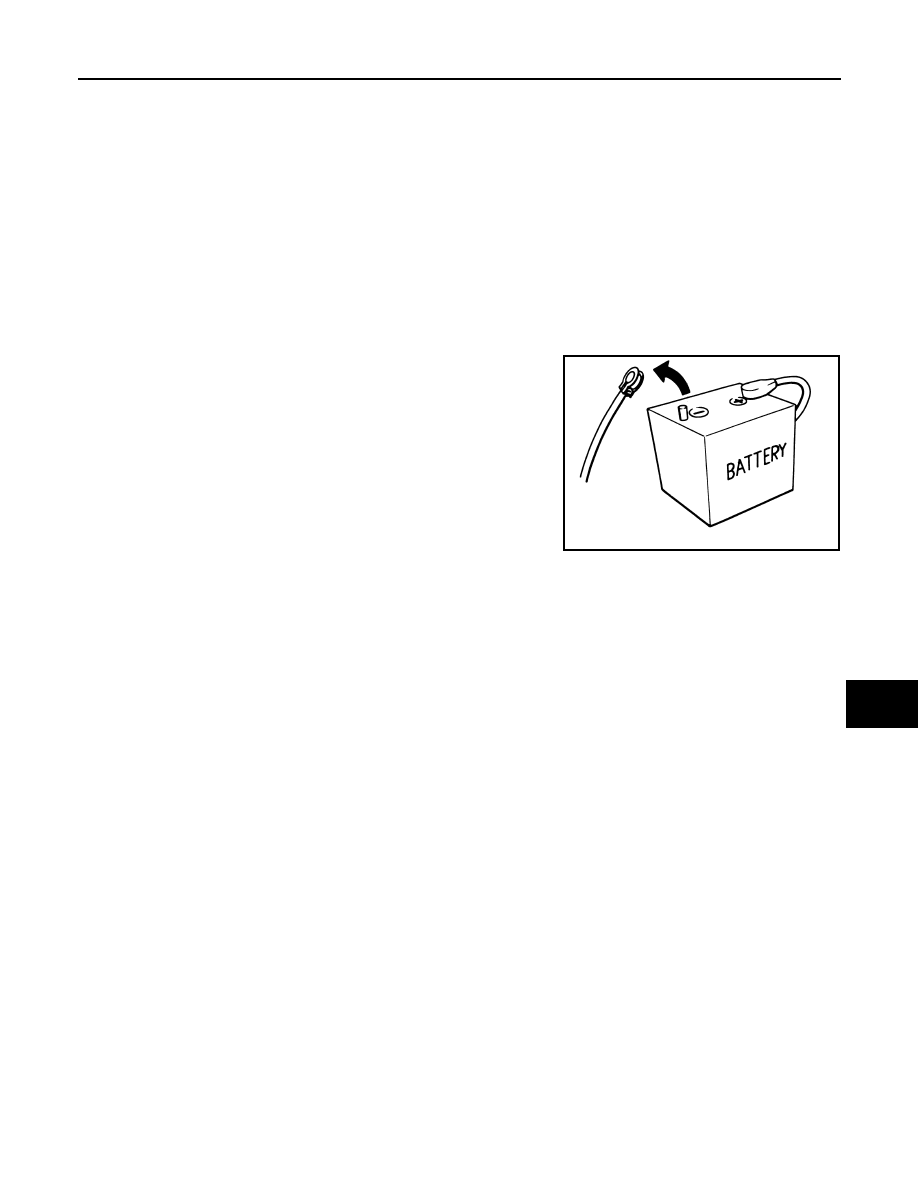

Precautions for Removing Battery Terminal

INFOID:0000000012831472

When disconnecting the battery terminal, pay attention to the following.

• Always use a 12V battery as power source.

• Never disconnect battery terminal while engine is running.

• When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.

• For vehicles with the engine listed below, remove the battery termi-

nal after a lapse of the specified time:

NOTE:

ECU may be active for several tens of seconds after the ignition switch is turned OFF. If the battery terminal

is removed before ECU stops, then a DTC detection error or ECU data corruption may occur.

• After high-load driving, if the vehicle is equipped with the V9X engine, turn the ignition switch OFF and wait

for at least 15 minutes to remove the battery terminal.

NOTE:

• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

Work

INFOID:0000000012196575

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operational.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

D4D engine

: 20 minutes

YS23DDT

: 4 minutes

HRA2DDT

: 12 minutes

YS23DDTT

: 4 minutes

K9K engine

: 4 minutes

ZD30DDTi

: 60 seconds

M9R engine

: 4 minutes

ZD30DDTT

: 60 seconds

R9M engine

: 4 minutes

V9X engine

: 4 minutes

YD25DDTi

: 2 minutes

SEF289H

Content .. 204 205 206 207 ..
