REPLACEMENT OPERATIONS

BRM-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

POINT

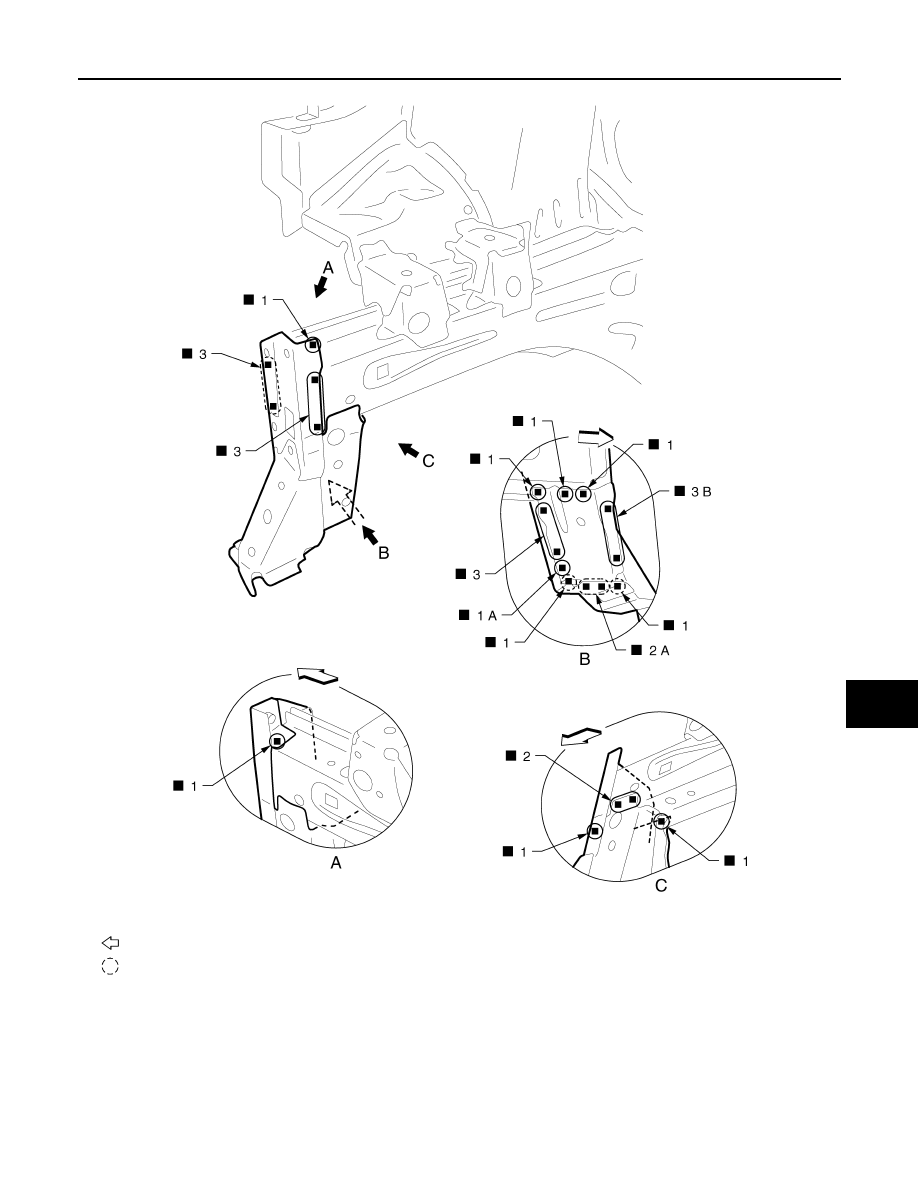

The front side member on the left can also be replaced partially by butt welding.

: Vehicle front
: Weld the parts onto the back of the component part.

Replacement parts

z

Front suspension mounting bracket
(RH Front)

z

Add on frame bracket (RH)

JSKIA2013ZZ

BRM-46

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

NOTE:
For welding method and the number of welding points, refer to

BRM-42, "Front Side Member"

.

Front Pillar

INFOID:0000000012199845

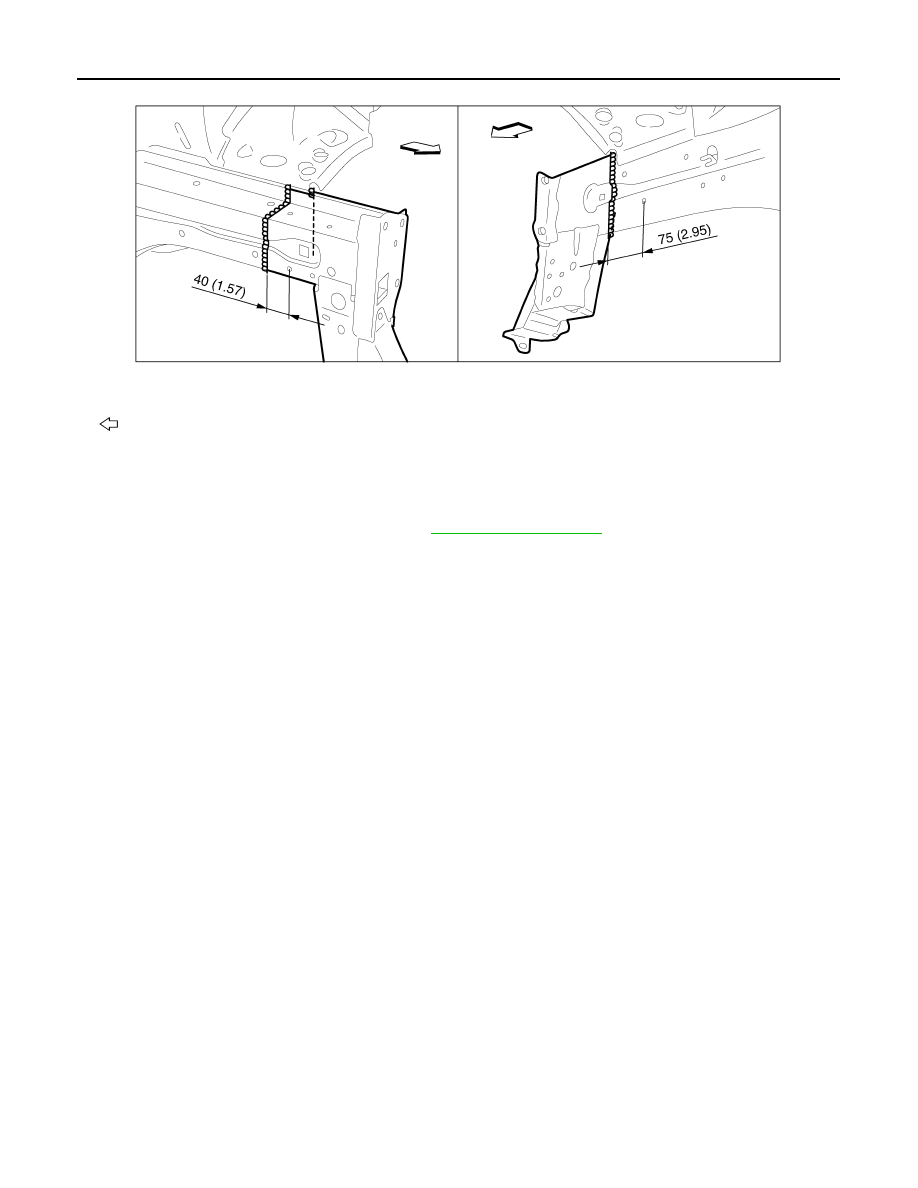

Work after hoodledge reinforcement is removed.

Unit: mm (in)

: Vehicle front

Replacement parts

z

Front side member assembly (LH)

z

Front side member closing plate as-
sembly (LH)

JSKIA2014GB

REPLACEMENT OPERATIONS

BRM-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

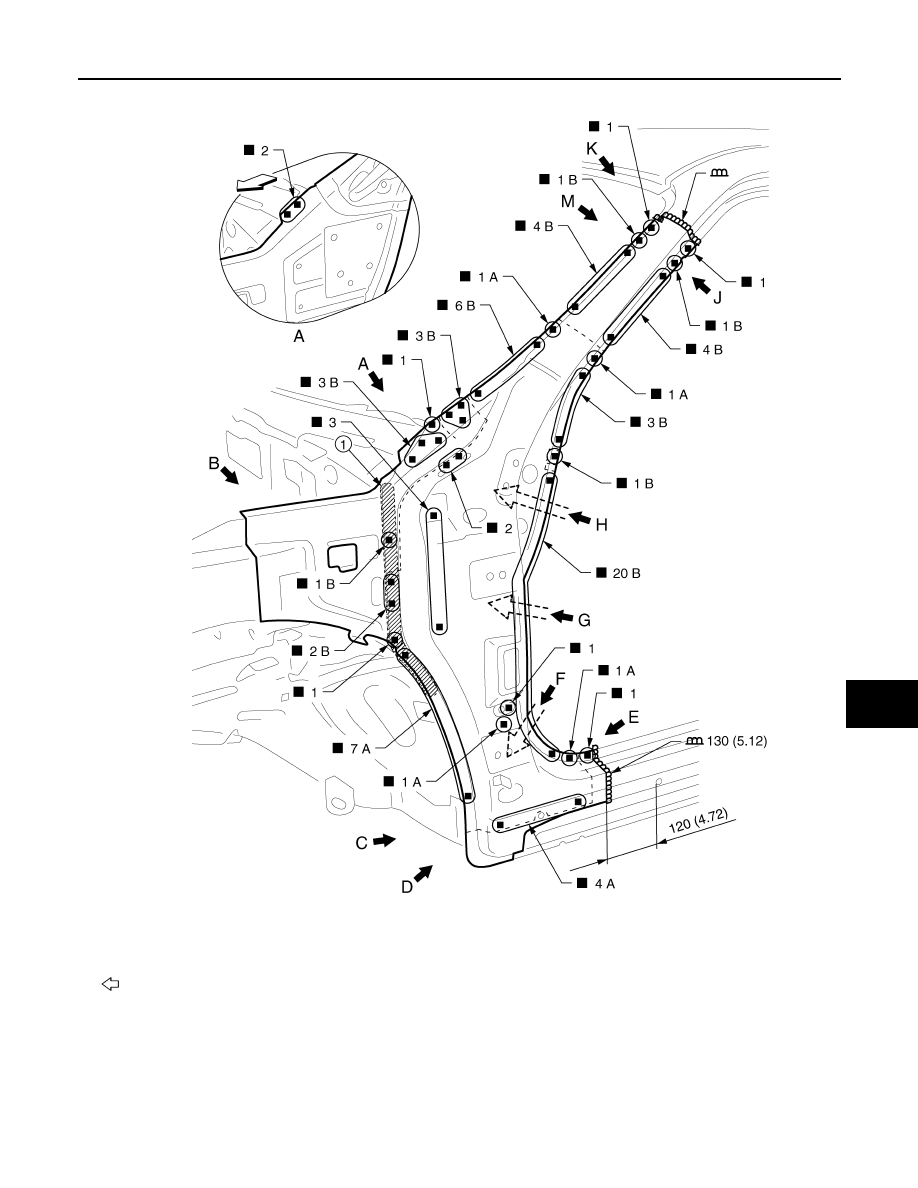

View A: Before installing outer front side body, front fender bracket assembly, and front pillar brace

1.

Body sealing

Unit: mm (in)

: Vehicle front

Replacement parts

z

Outer front side body (LH)

z

Front pillar brace (LH)

z

Side dash (LH)

z

Upper inner front pillar (LH)

z

Front fender bracket assembly (LH)

JSKIA2168GB

BRM-48

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

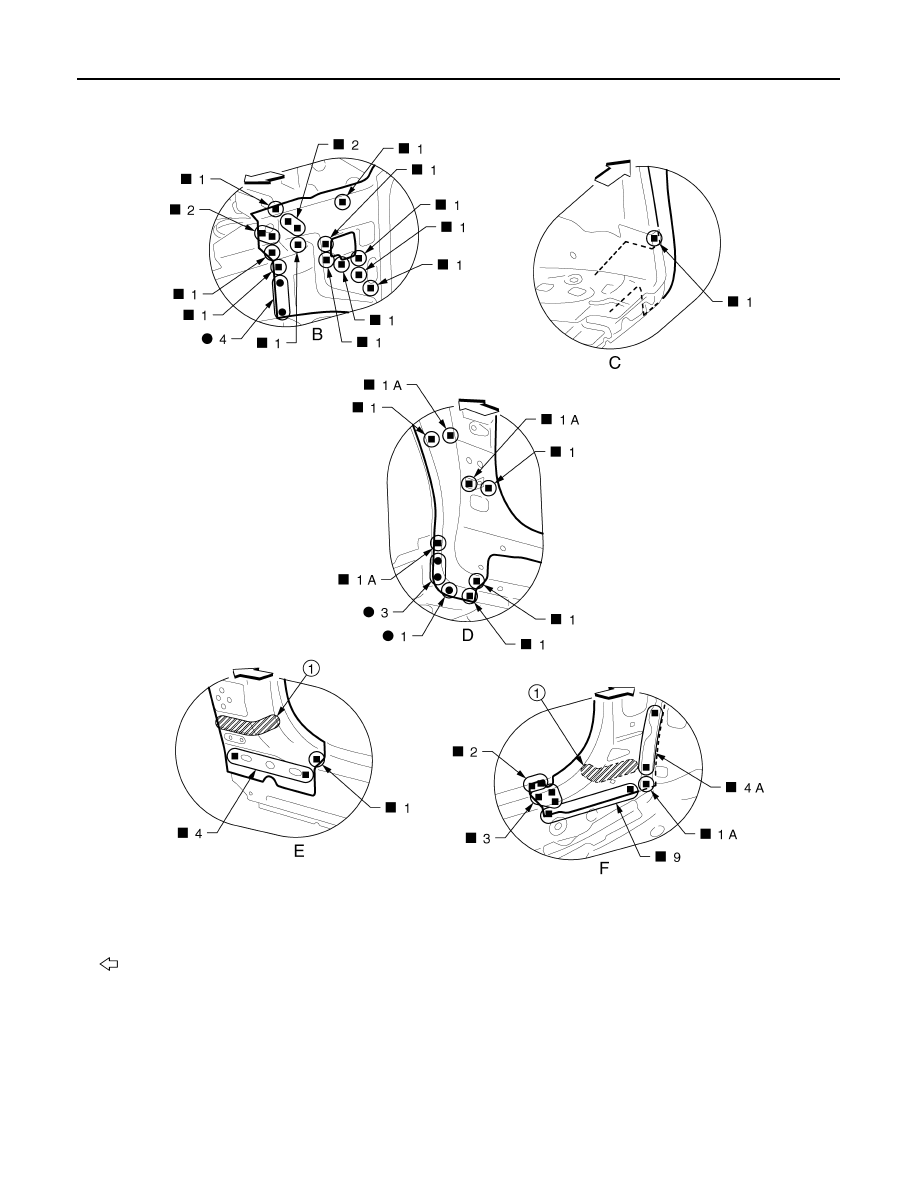

View E: Before installing outer front side body and front fender bracket assembly

1.

Urethane foam

: Vehicle front

JSKIA2210ZZ
