REMOVAL AND INSTALLATION

CORROSION PROTECTION

Description

INFOID:0000000012199830

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in

NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-

rosive measures.

ANTI-CORROSIVE PRECOATED STEEL (GALVANNEALED STEEL)

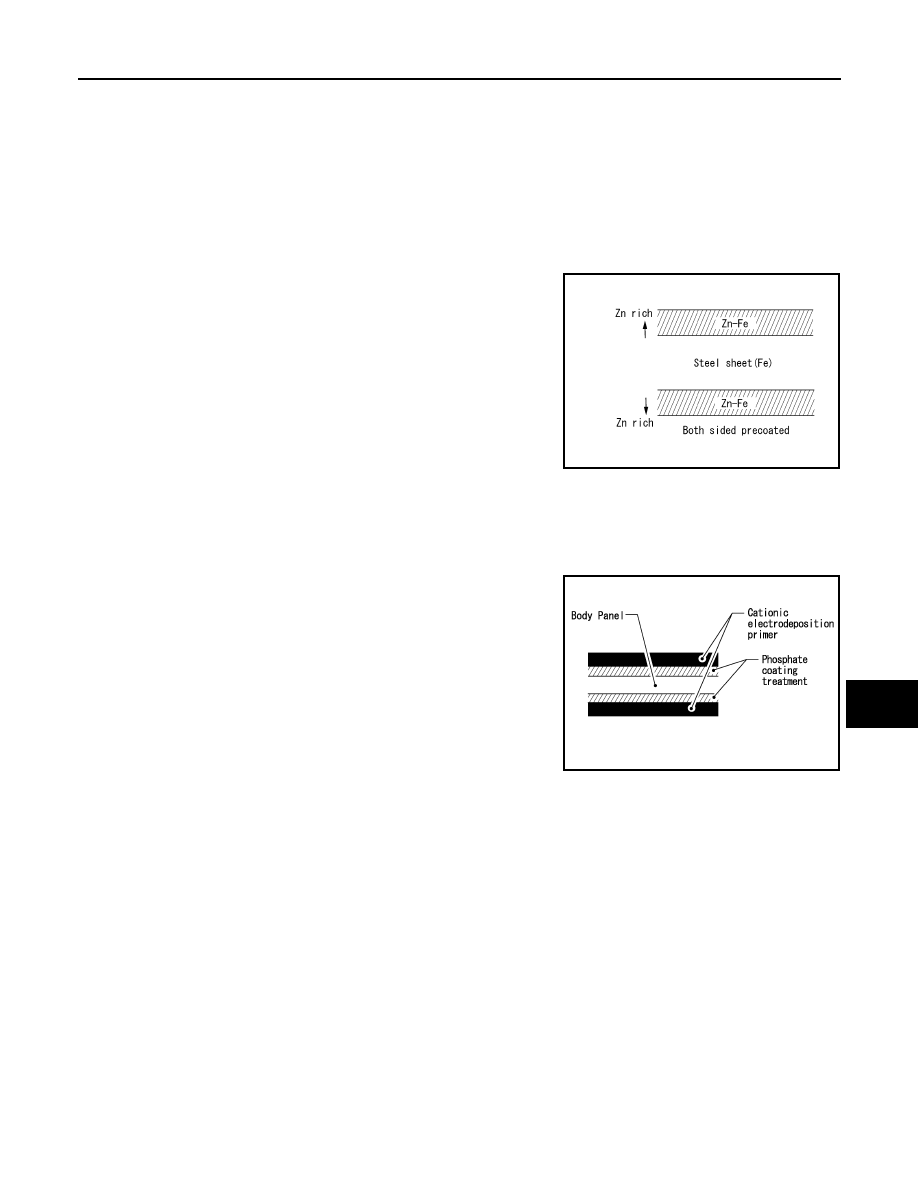

To improve repairability and corrosion resistance, a new type of anti-

corrosive precoated steel sheet has been adopted replacing conven-

tional zinc-coated steel sheet.

Galvannealed steel is electroplated and heated to form Zinc-iron

alloy, which provides excellent and long term corrosion resistance

with cationic electrodeposition primer.

Nissan Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that

GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-

mance built into the vehicle at the factory.

PHOSPHATE COATING TREATMENT AND CATIONIC ELECTRODEPOSITION PRIMER

A phosphate coating treatment and a cationic electrodeposition

primer, which provide excellent corrosion protection, are employed

on all body components.

CAUTION:

Confine paint removal during welding operations to an absolute

minimum.

Nissan Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GENU-

INE NISSAN PARTS or an equivalent be used for panel replacement to maintain anti-corrosive performance

built into the vehicle at the factory.

Anti-corrosive Wax

INFOID:0000000012199831

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-

tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of

the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf

life.

DOOR

SIIA2294E

PIIA0095E

BRM-22

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

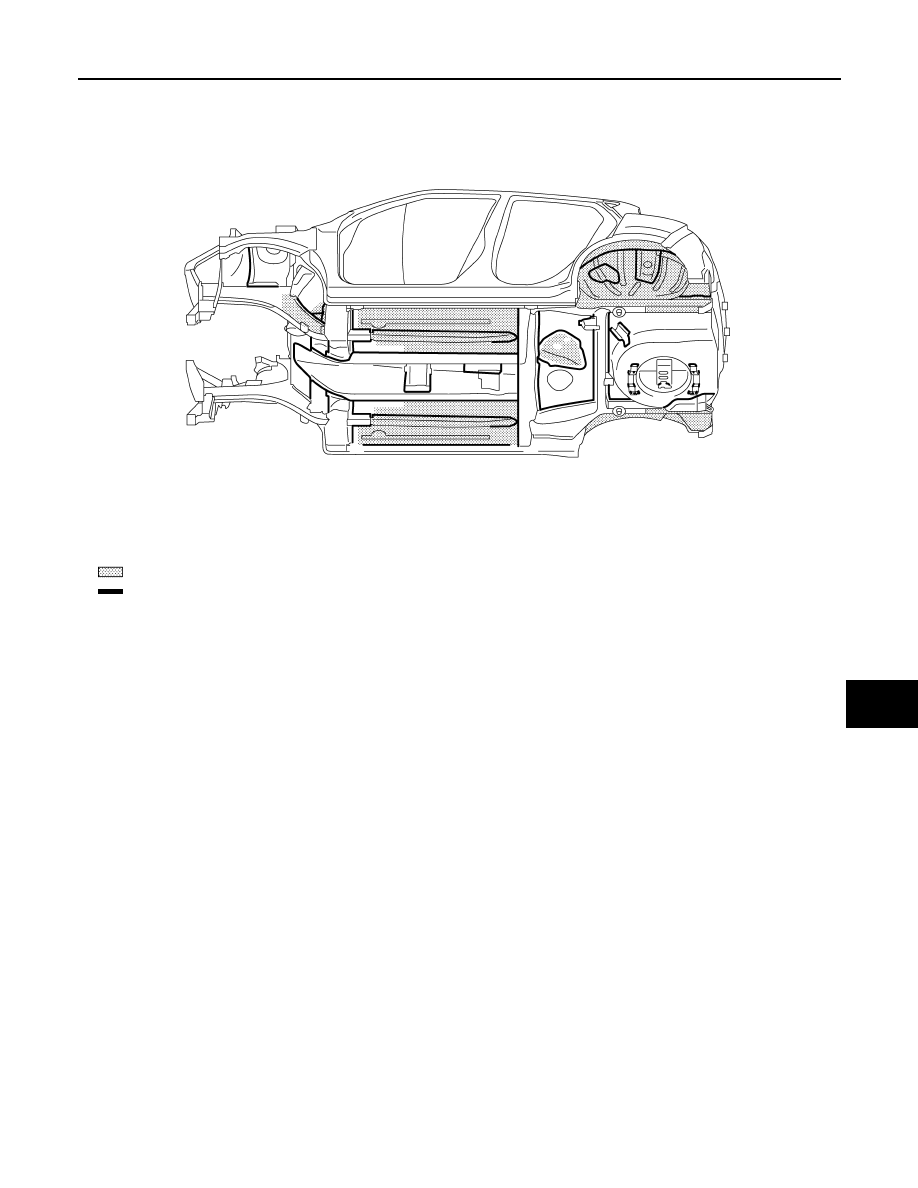

Undercoating (2WD Models)

INFOID:0000000012199832

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-

ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-

ing which is rust resistant, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

PRECAUTIONS IN UNDERCOATING

1. Never apply undercoating to any place unless specified (such as the areas above the muffler and three-

way catalyst that are subjected to heat).

2. Never undercoat the exhaust pipe or other parts that become hot.
3. Never undercoat rotating parts.
4. Apply bitumen wax after applying undercoating.
5. After putting seal on the vehicle, put undercoating on it.

B.

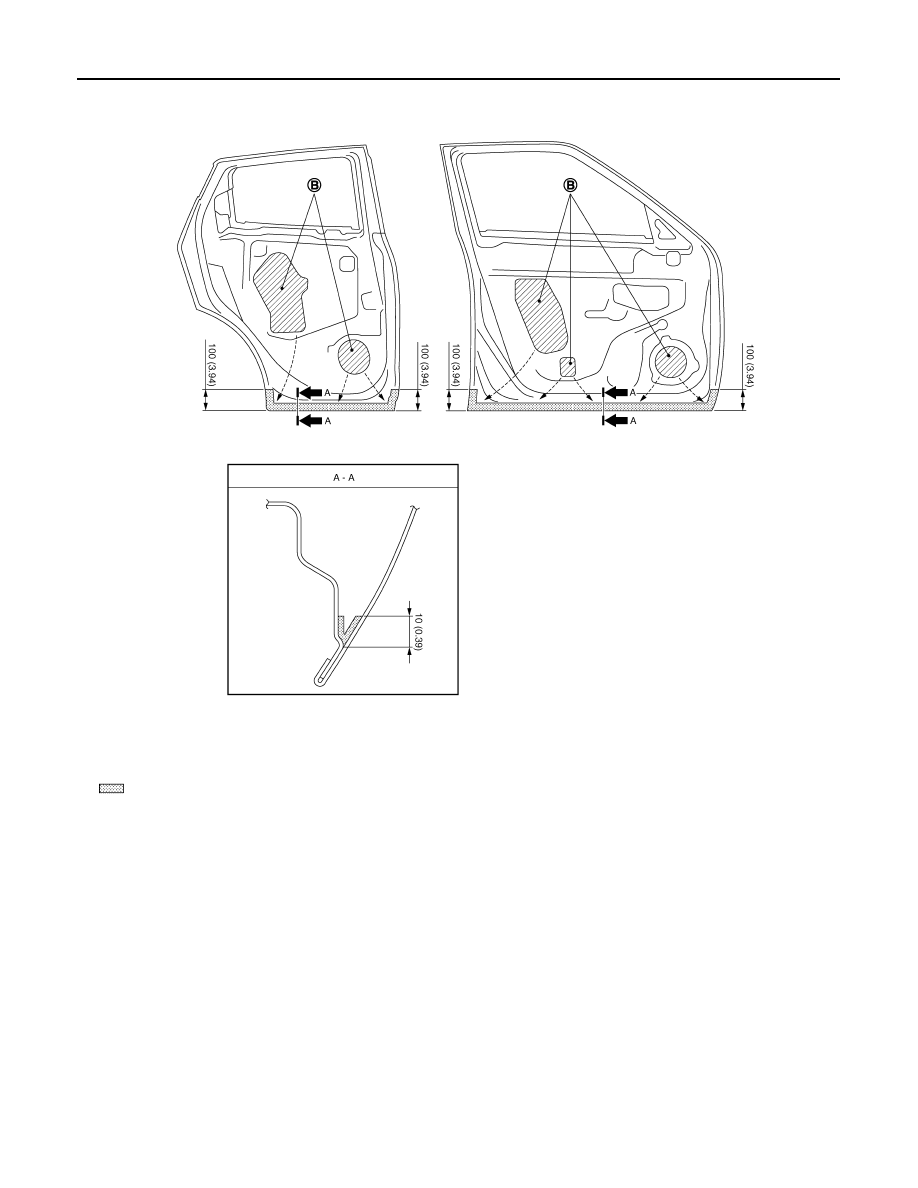

Nozzle insert hole

Unit: mm (in)

: Anti-corrosive wax coated portions

JSKIA2131ZZ

CORROSION PROTECTION

BRM-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

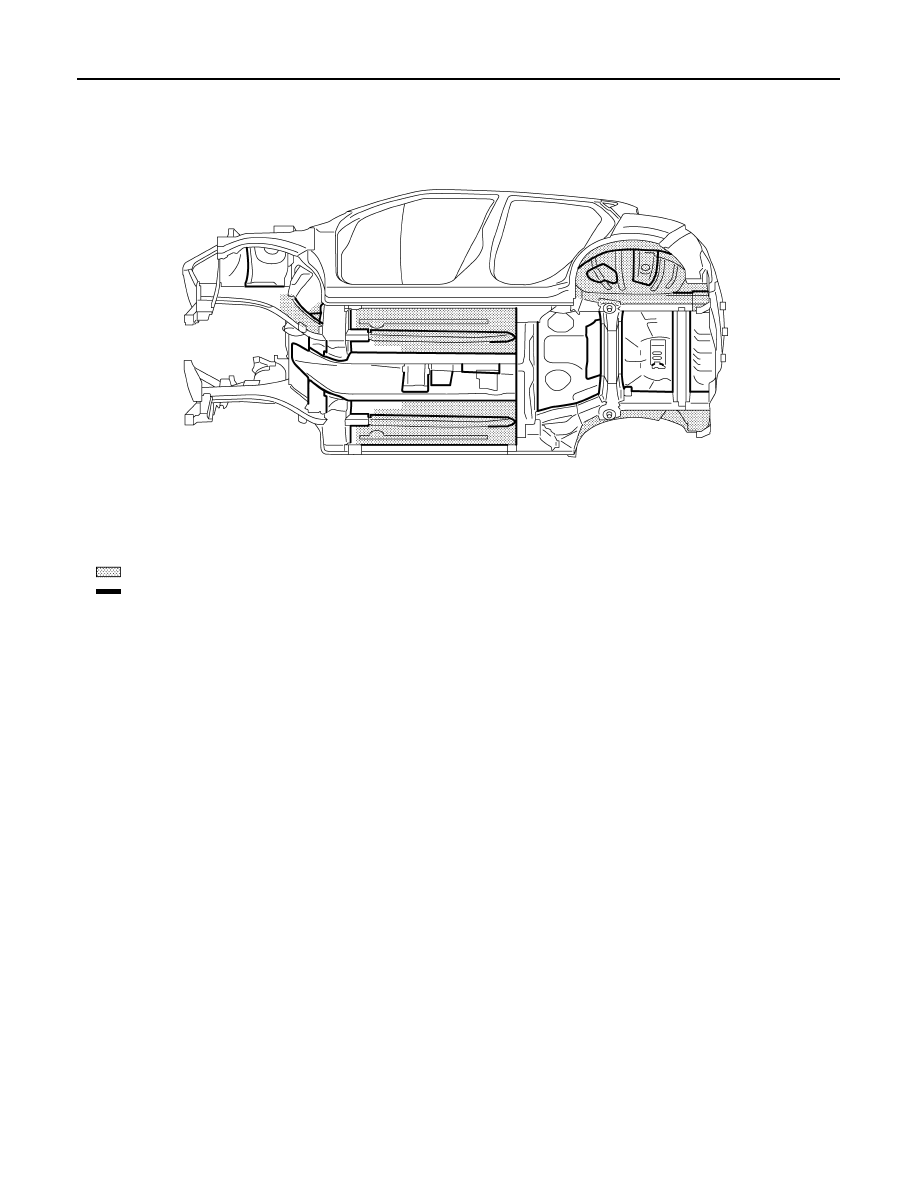

Undercoating (AWD Models)

INFOID:0000000012199833

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-

ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-

ing which is rust resistant, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

PRECAUTIONS IN UNDERCOATING

1. Never apply undercoating to any place unless specified (such as the areas above the muffler and three-

way catalyst that are subjected to heat).

2. Never undercoat the exhaust pipe or other parts that become hot.
3. Never undercoat rotating parts.
4. Apply bitumen wax after applying undercoating.
5. After putting seal on the vehicle, put undercoating on it.

: Undercoated areas
: Sealed portions

JSKIA2197ZZ

BRM-24

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

Body Sealing (2WD Models)

INFOID:0000000012199834

The following figure shows the areas that are sealed at the factory. Sealant that is applied to these areas

should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of sealant

and not to allow other unaffected parts to come into contact with the sealant.

: Undercoated areas
: Sealed portions

JSKIA2198ZZ
