WASHER TANK

CAUTION:

Add water up to the top of washer tank inlet after installing and check that there is no leakage.

WASHER PUMP

WW-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER PUMP

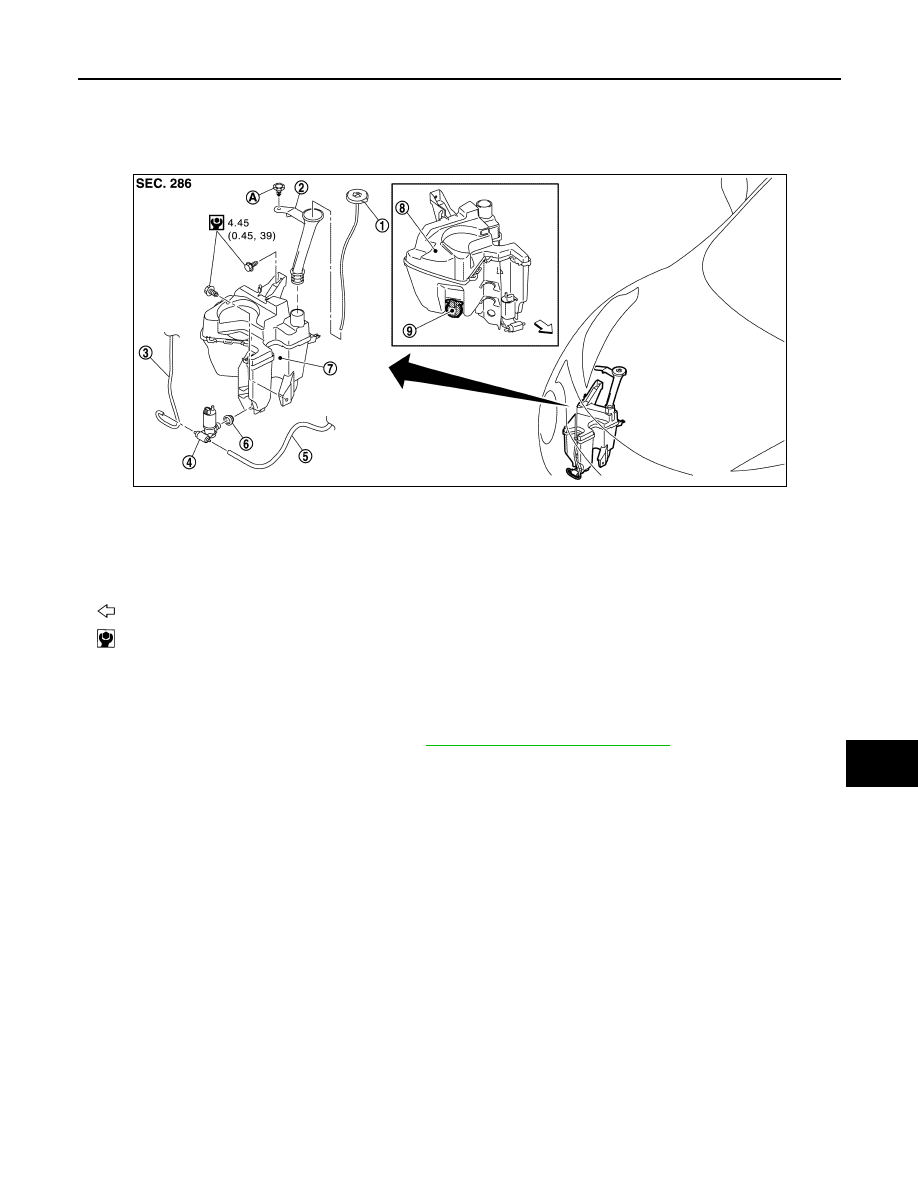

Exploded View

INFOID:0000000012197071

Removal and Installation

INFOID:0000000012197072

REMOVAL

1. Remove fender protector RH (front). Refer to

EXT-31, "Removal and Installation"

.

2. Disconnect washer pump connector.
3. Disconnect front washer tube and rear washer tube.
4. Remove washer pump from the washer tank.
5. Remove packing from washer tank.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check that there is no leakage after installation or replace packing with new part if it has been dam-

age.

• Never twist the packing when installing the washer pump.

1.

Washer tank inlet cap

2.

Washer tank inlet

3.

Front washer tube

4.

Washer pump

5.

Rear washer tube

6.

Packing

7.

Washer tank

8.

Washer tank (Canada models only)

9.

Washer level sensor (Canada mod-
els only)

A

:  Clip

: Vehicle front

: N·m (kg·m, in-lb)

JMLIA1731GB

WW-46

< REMOVAL AND INSTALLATION >

WASHER LEVEL SWITCH

WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000012197073

The washer level switch must be replaced together with the washer tank as an assembly. Refer to

WW-43,

"Removal and Installation"

.

FRONT WASHER NOZZLE AND TUBE

WW-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WASHER NOZZLE AND TUBE

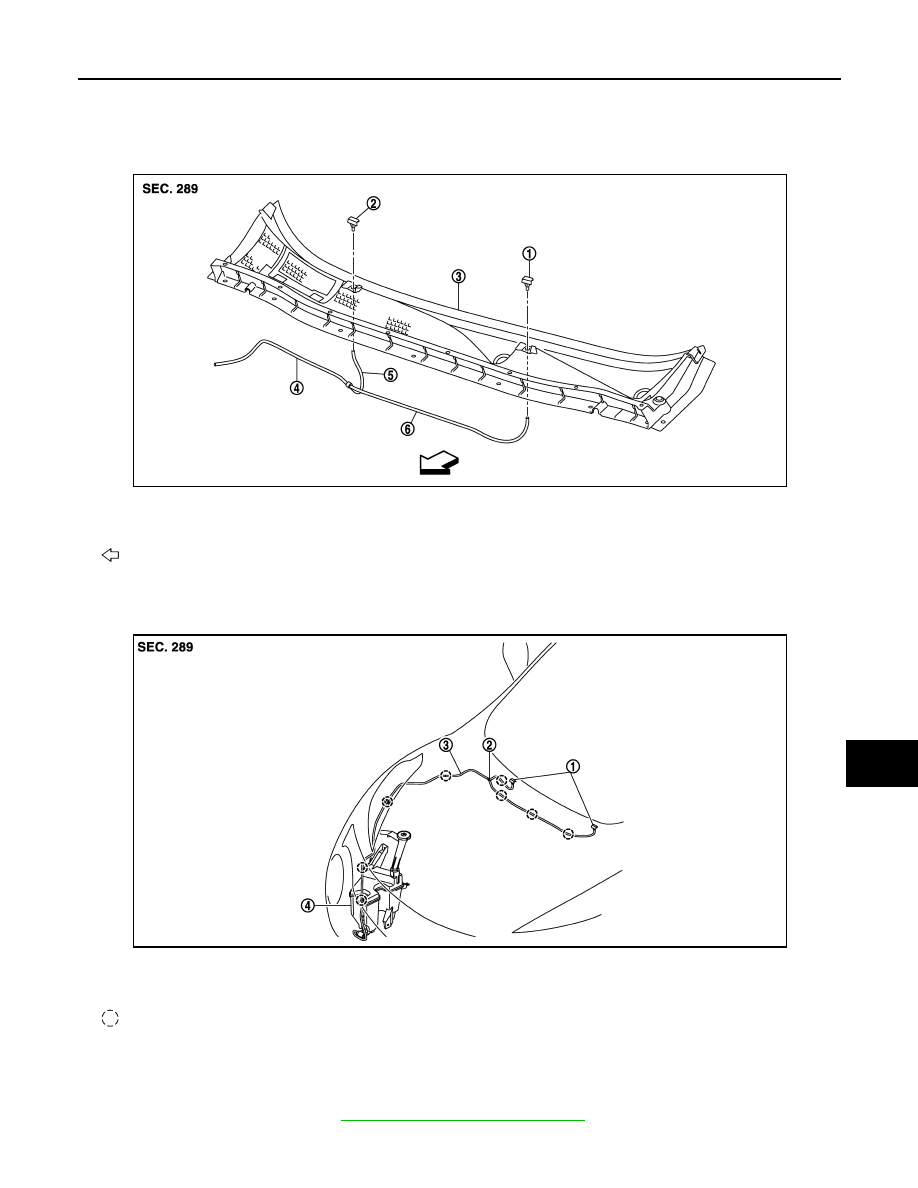

Exploded View

INFOID:0000000012197074

Hydraulic Layout

INFOID:0000000012197075

Removal and Installation

INFOID:0000000012197076

REMOVAL

1. Remove cowl top cover. Refer to

EXT-30, "Removal and Installation"

.

2. Disconnect front washer tube from front washer nozzle.

1.

Front washer nozzle LH

2.

Front washer nozzle RH

3.

Cowl top cover

4.

Front washer tube (tank side)

5.

Front washer tube RH

6.

Front washer tube LH

: Vehicle front

JMLIA1385ZZ

1.

Front washer nozzle

2.

Check valve

3.

Front washer tube

4.

Washer tank

: Clip

JMLIA1161ZZ
