PRECAUTIONS

• When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.

• For vehicles with the engine listed below, remove the battery termi-

nal after a lapse of the specified time:

NOTE:

ECU may be active for several tens of seconds after the ignition switch is turned OFF. If the battery terminal

is removed before ECU stops, then a DTC detection error or ECU data corruption may occur.

• After high-load driving, if the vehicle is equipped with the V9X engine, turn the ignition switch OFF and wait

for at least 15 minutes to remove the battery terminal.

NOTE:

• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

D4D engine

: 20 minutes

YS23DDT

: 4 minutes

HRA2DDT

: 12 minutes

YS23DDTT

: 4 minutes

K9K engine

: 4 minutes

ZD30DDTi

: 60 seconds

M9R engine

: 4 minutes

ZD30DDTT

: 60 seconds

R9M engine

: 4 minutes

V9X engine

: 4 minutes

YD25DDTi

: 2 minutes

SEF289H

COMPONENT PARTS

WW-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

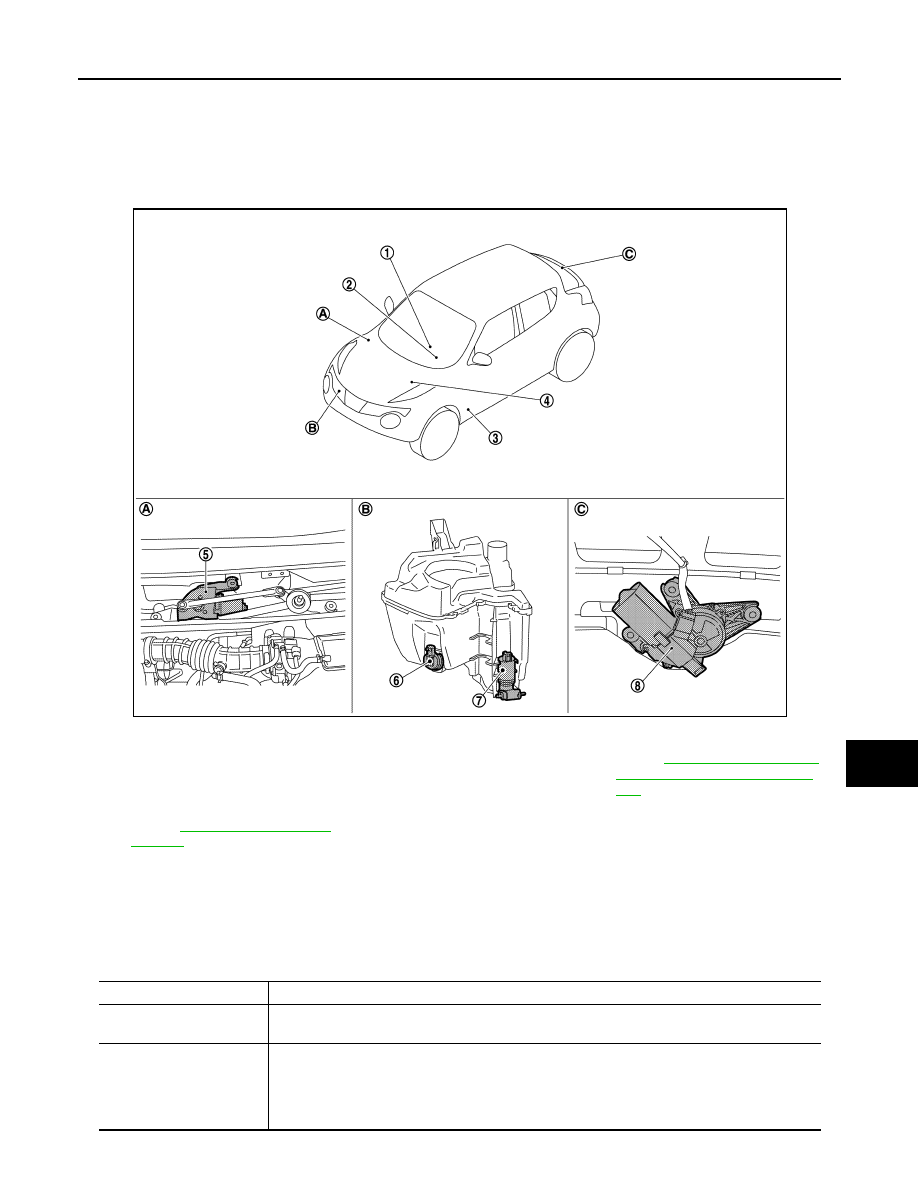

INFOID:0000000012197036

*: For Canada

Component Description

INFOID:0000000012197037

1.

Combination switch

2.

Combination meter

3.

BCM
Refer to

BCS-5, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

4.

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

5.

Front wiper motor

6.

Washer level switch*

7.

Washer pump

8.

Rear wiper motor

A.

Cowl top, right side of engine room

B.

Behind front fender protector (RH)

C.

Back door lower finisher inside

JMLIA1493ZZ

Part

Description

IPDM E/R

• Controls the integrated relay according to the request (via CAN communication) from BCM.
• Performs the auto stop control of the front wiper.

BCM

• Judges the each switch status by the combination switch reading function.
• Requests (via CAN communication) the front wiper relay and the front wiper high relay ON to

IPDM E/R.

• Supplies power to the wiper motor.
• Performs the auto stop control of the rear wiper.

WW-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

*: For Canada

Washer Switch

INFOID:0000000012197038

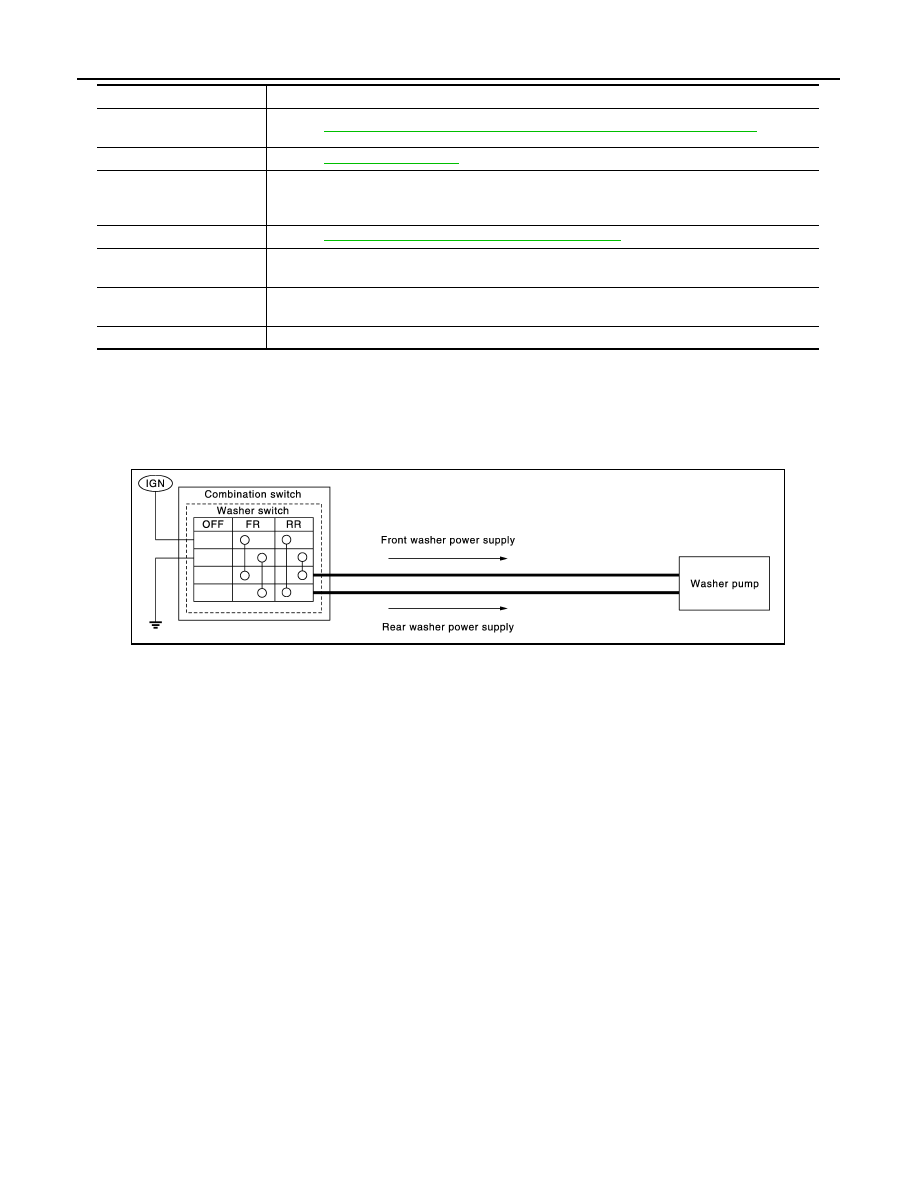

• Washer switch is integrated with combination switch.

• Combination switch operates front washer or rear washer by changing voltage polarity to be supplied to

washer pump.

Combination switch
(Wiper & washer switch)

Refer to

BCS-8, "COMBINATION SWITCH READING SYSTEM : System Description"

.

Washer switch

Refer to

WW-6, "Washer Switch"

.

Washer pump

• Washer fluid is sprayed according to washer switch states.
• Switching between front washer and rear washer is performed according to the voltage polarity

change to washer pomp.

Washer level switch*

Refer to

MWI-7, "METER SYSTEM : Component Description"

.

Front wiper motor

• IPDM E/R controls front wiper operation.
• Front wiper stop position signal is transmitted to IPDM E/R.

Rear wiper motor

• BCM controls rear wiper operation.
• Rear wiper stop position signal is transmitted to BCM.

Combination meter

Transmits the vehicle speed signal to BCM via CAN communication.

Part

Description

JPLIA0163GB

SYSTEM

WW-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

SYSTEM

FRONT WIPER AND WASHER SYSTEM

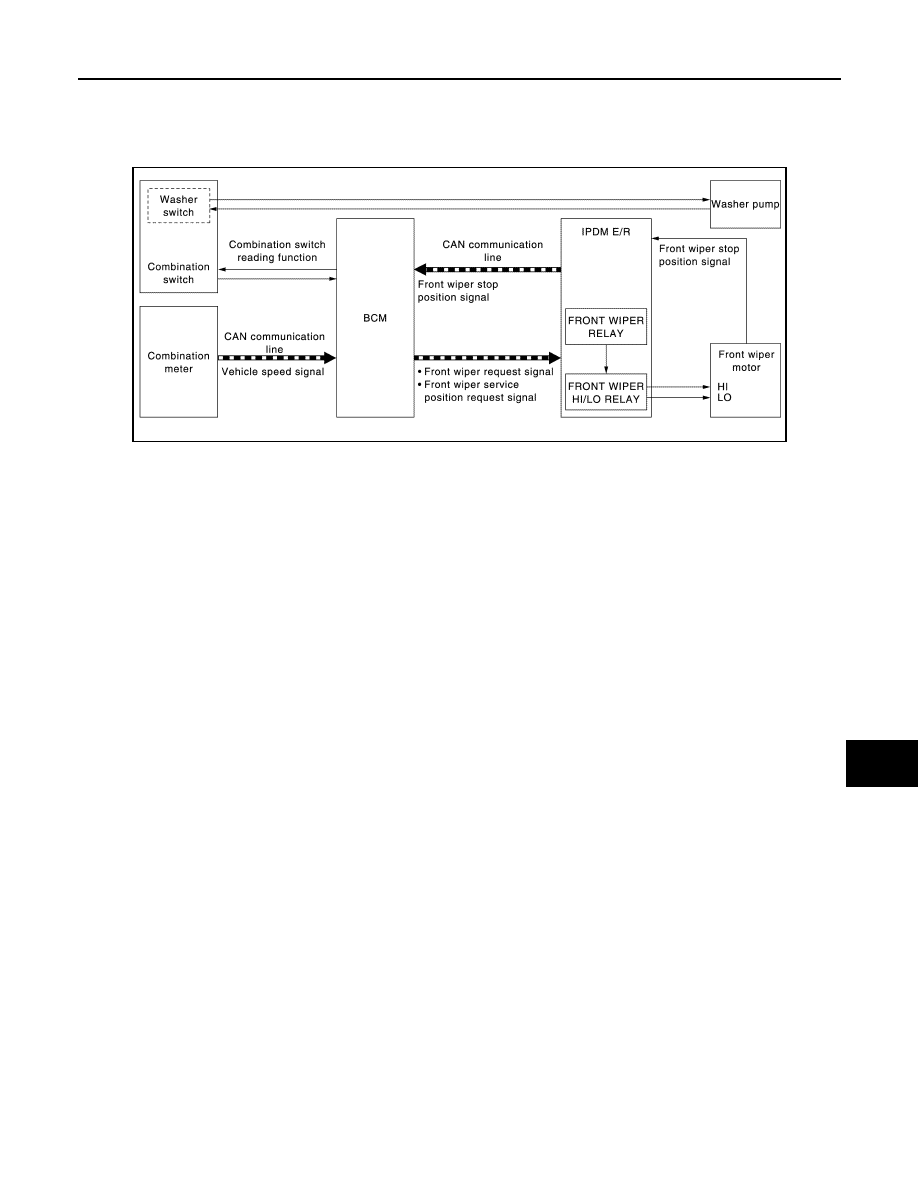

FRONT WIPER AND WASHER SYSTEM : System Diagram

INFOID:0000000012197039

FRONT WIPER AND WASHER SYSTEM : System Description

INFOID:0000000012197040

OUTLINE

The front wiper is controlled by each function of BCM and IPDM E/R.

Control by BCM

• Combination switch reading function

• Front wiper control function

Control by IPDM E/R

• Front wiper control function

• Relay control function

FRONT WIPER BASIC OPERATION

• BCM detects the combination switch condition by the combination switch reading function.

• BCM transmits the front wiper request signal to IPDM E/R via CAN communication depending on each oper-

ating condition of the front wiper.

• IPDM E/R turns ON/OFF the integrated front wiper relay and the front wiper HI/LO relay according to the

front wiper request signal. IPDM E/R provides the power supply to operate the front wiper HI/LO operation.

• Washer level sensor switch signal is transmitted to combination meter via BCM, when window washer fluid

level is less than washer level sensor.

FRONT WIPER LO OPERATION

• BCM transmits the front wiper request signal (LO) to IPDM E/R via CAN communication according to the

front wiper LO operating condition.

Front wiper LO operating condition

- Ignition switch ON

- Front wiper switch LO or front wiper switch MIST (while pressing)

• IPDM E/R turns ON the integrated front wiper relay according to the front wiper request signal (LO).

FRONT WIPER HI OPERATION

• BCM transmits the front wiper request signal (HI) to IPDM E/R via CAN communication according to the

front wiper HI operating condition.

Front wiper HI operating condition

- Ignition switch ON

- Front wiper switch HI

• IPDM E/R turns ON the integrated front wiper relay and the front wiper HI/LO relay according to the front

wiper request signal (HI).

JMLIA2059GB
