REMOVAL AND INSTALLATION

DUCT AND GRILLE

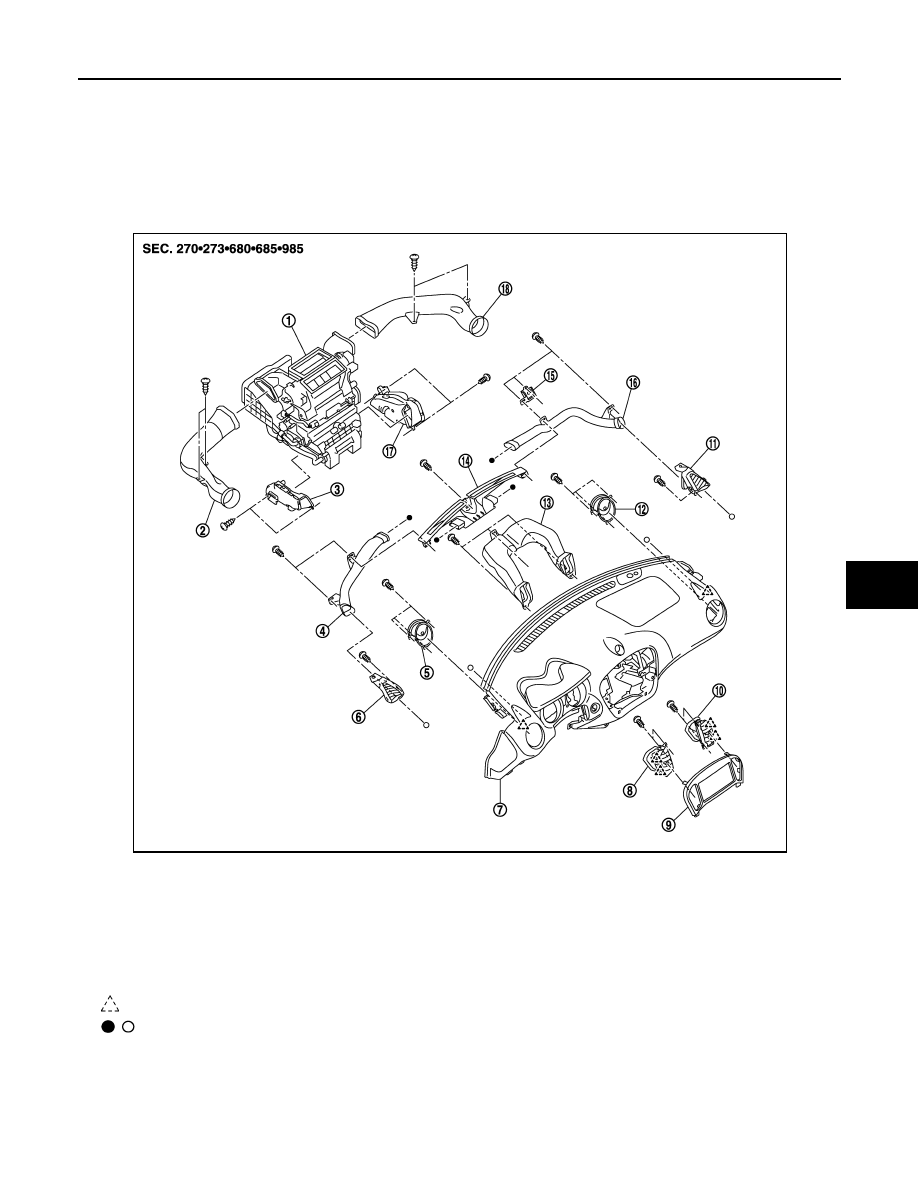

Exploded View

INFOID:0000000012199140

FRONT

REAR

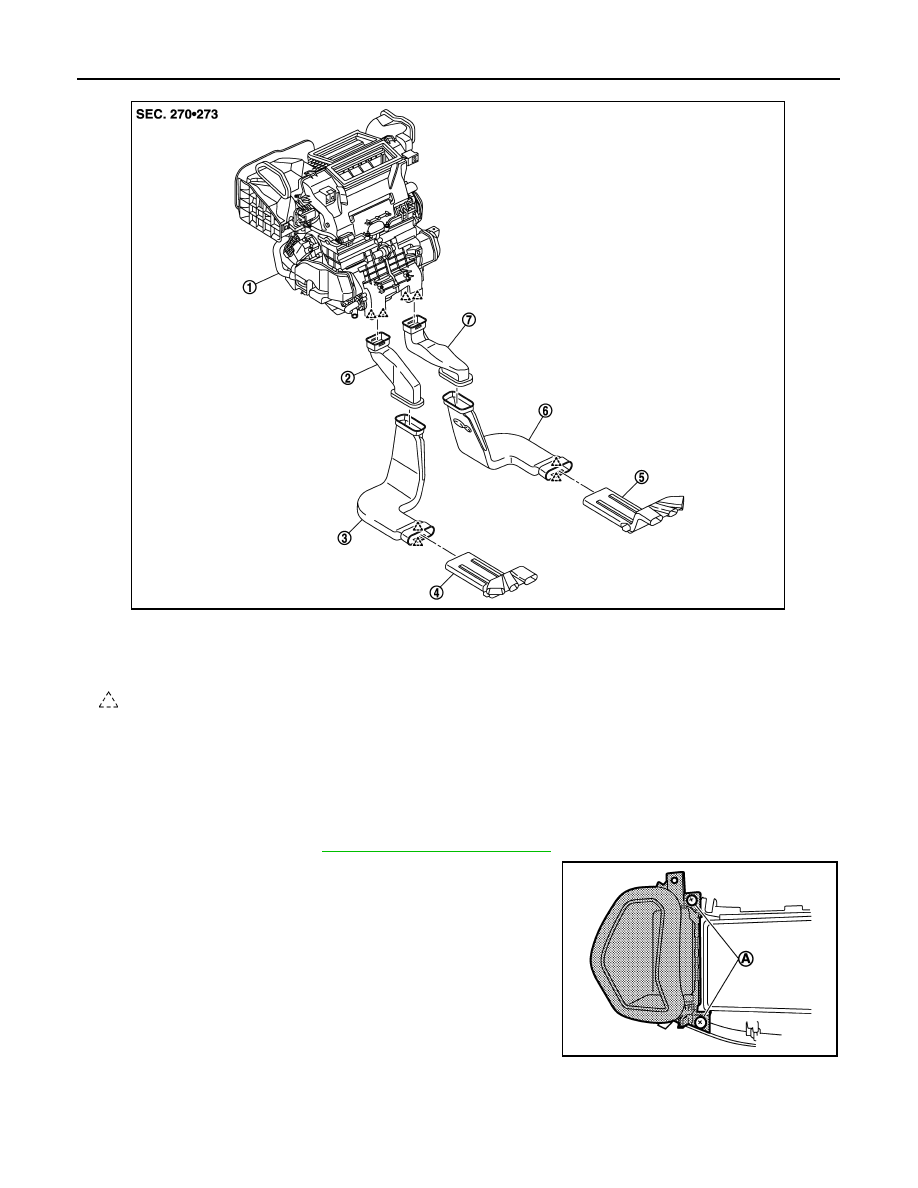

1.

A/C unit assembly

2.

Side ventilator duct LH

3.

Foot duct LH

4.

Side defroster nozzle LH

5.

Side ventilator grille LH

6.

Side defroster grille LH

7.

Instrument panel assembly

8.

Center ventilator grille LH

9.

Cluster lid C

10. Center ventilator grille RH

11. Side defroster grille RH

12. Side ventilator grille RH

13. Center ventilator duct

14. Front defroster nozzle

15. Instrument panel bracket

16. Side defroster nozzle RH

17. Foot duct RH

18. Side ventilator duct RH

: Pawl

,   : Indicates that the part is connected at points with same symbol in actual vehicle

JMIIA1040ZZ

VTL-8

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

*: Models for Canada only

CENTER VENTILATOR GRILLE
CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000012199141

REMOVAL

1. Remove cluster lid C. Refer to

IP-13, "Removal and Installation"

.

2. Remove fixing screws (A).

1.

A/C unit assembly

2.

Rear heater duct 1 LH*

3.

Rear heater duct 2 LH*

4.

Rear heater duct 3 LH*

5.

Rear heater duct 1 RH*

6.

Rear heater duct 2 RH*

7.

Rear heater duct 3 RH*

: Pawl

JMIIA0838ZZ

JMIIA0839ZZ

DUCT AND GRILLE

VTL-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

3. Disengage fixing pawls (A), and then remove center ventilator

grille.

INSTALLATION

Install in the reverse order of removal.

SIDE DEFROSTER NOZZLE
SIDE DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000012199142

REMOVAL

Driver Side

1. Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

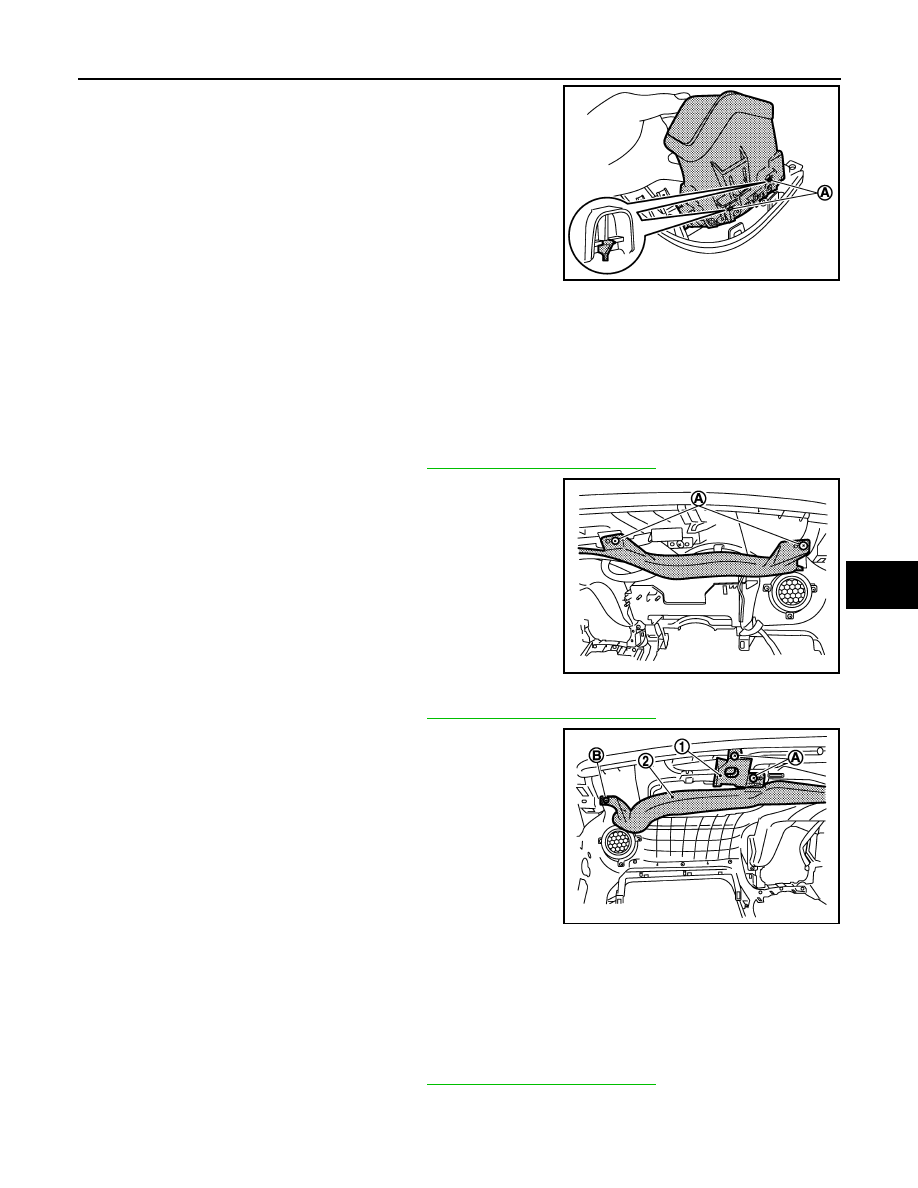

2. Remove fixing screws (A), and then remove side defroster noz-

zle.

Passenger Side

1. Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2. Remove fixing screws (A), and then remove instrument panel

bracket (1).

3. Remove fixing screw (B), and then remove side defroster nozzle

(2).

INSTALLATION

Install in the reverse order of removal.

SIDE VENTILATOR GRILLE
SIDE VENTILATOR GRILLE : Removal and Installation

INFOID:0000000012199143

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

JMIIA0840ZZ

JMIIA1042ZZ
