P0746

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

P0776

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed
• Vehicle speed is not increased

When a malfunction occurs on the low oil pressure side

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

When a malfunction occurs on the high oil pressure side

P0778

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

P0779

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

P0826

Manual mode is not activated

P0841

Not changed from normal driving

P0847

Not changed from normal driving

—

P0848

Not changed from normal driving

—

P084C

Not changed from normal driving

P084D

Not changed from normal driving

P0863

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

P0890

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed
• Vehicle speed is not increased

P0962

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

P0963

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

P0965

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

When a malfunction occurs on the low oil pressure side

• Selector shock is large
• Lock-up is not performed

When a malfunction occurs on the high oil pressure side

P0966

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

DTC

Vehicle behavior

Conditions of vehicle

SYSTEM

TM-383

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CVT CONTROL SYSTEM : Protection Control

INFOID:0000000012201100

The TCM becomes the protection control status temporarily to protect the safety when the safety of TCM and

transmission is lost. It automatically returns to the normal status if the safety is secured.

The TCM has the following protection control.

CONTROL FOR WHEEL SPIN

TORQUE IS REDUCED WHEN DRIVING WITH THE REVERSE GEAR

P0967

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

P17F0

Not changed from normal driving

—

P17F1

Not changed from normal driving

—

P17F2

Not changed from normal driving

—

P2765

• Start  is  slow
• Acceleration is slow
• Lock-up is not performed
• Manual mode is not activated

—

P2813

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Vehicle speed is not increased

When a malfunction occurs on the low oil pressure side

Selector shock is large

When a malfunction occurs on the high oil pressure side

P2814

Selector shock is large

—

P2815

Selector shock is large

—

U0073

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

U0100

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

U0102

Not changed from normal driving

—

U0140

Not changed from normal driving

—

U0141

Not changed from normal driving

—

U0155

Not changed from normal driving

—

U0164

Not changed from normal driving

—

U0300

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

U1000

Not changed from normal driving

—

U1117

Not changed from normal driving

—

DTC

Vehicle behavior

Conditions of vehicle

Control

When a wheel spin is detected, the engine output and gear ratio are limited and the line pressure is increased.
Limits engine output when a wheel spin occurs in any of right and left drive wheels.

Vehicle behavior in
control

If the accelerator is kept depressing during wheel spin, the engine revolution and vehicle speed are limited to
a certain degree.

Normal return condi-
tion

Wheel spin convergence returns the control to the normal control.

TM-384

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

SYSTEM

CONTROL WHEN FLUID TEMPERATURE IS HIGH

REVERSE PROHIBIT CONTROL

LINE PRESSURE CONTROL
LINE PRESSURE CONTROL : System Description

INFOID:0000000012201101

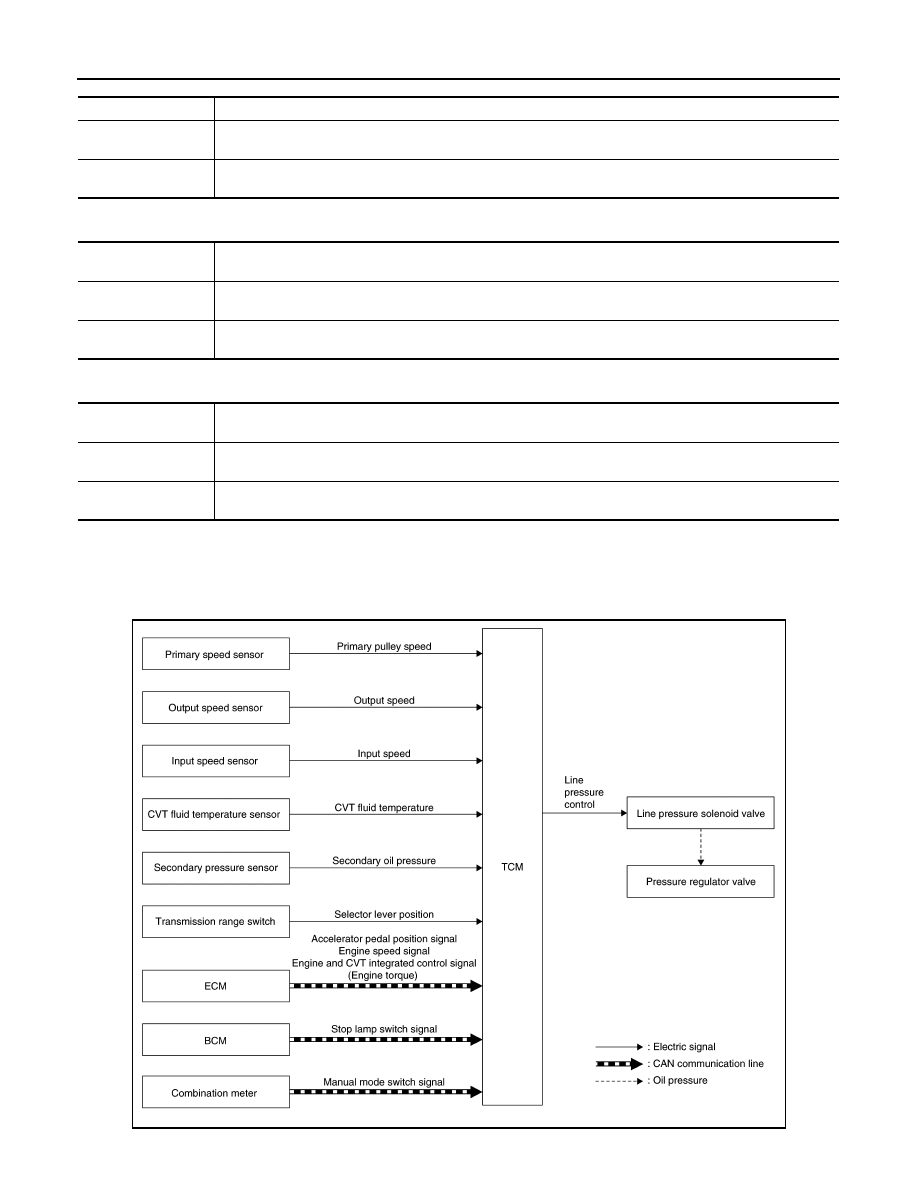

SYSTEM DIAGRAM

Control

Engine output is controlled according to a vehicle speed while reversing the vehicle.

Vehicle behavior in
control

Power performance may be lowered while reversing the vehicle.

Normal return condi-
tion

Torque returns to normal by positioning the selector lever in a range other than “R” position.

Control

When the CVT fluid temperature is high, the gear shift permission maximum revolution and the maximum
torque are reduced than usual to prevent increase of the oil temperature.

Vehicle behavior in
control

Power performance may be lowered, compared to normal control.

Normal return condi-
tion

The control returns to the normal control when CVT fluid temperature is lowered.

Control

The reverse brake is controlled to avoid becoming engaged when the selector lever is set in “R” position while
driving in forward direction at more than the specified speed.

Vehicle behavior in
control

If the selector lever is put at “R” position when driving with the forward gear, the gear becomes neutral, not
reverse.

Normal return condi-
tion

The control returns to normal control when the vehicle is driven at low speeds. (The reverse brake becomes
engaged.)

JSDIA5312GB

SYSTEM

TM-385

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DESCRIPTION

Highly accurate line pressure control and secondary pressure control reduces friction for improvement of fuel

economy.

Normal Oil Pressure Control

Appropriate line pressure and secondary pressure suitable for driving condition are determined based on the

accelerator pedal position, engine speed, primary pulley (input) speed, secondary pulley (output) speed, vehi-

cle speed, input torque, stop lamp switch signal, transmission range switch signal, lock-up signal, power volt-

age, target shift ratio, oil temperature, oil pressure, and manual mode switch signal.

Secondary Pressure Feedback Control

In normal oil pressure control and oil pressure control in shifting, highly accurate secondary pressure is deter-

mined by detecting the secondary pressure using an oil pressure sensor and by feedback control.

SHIFT CONTROL
