TM-326

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

TRANSMISSION RANGE SWITCH

TRANSMISSION RANGE SWITCH

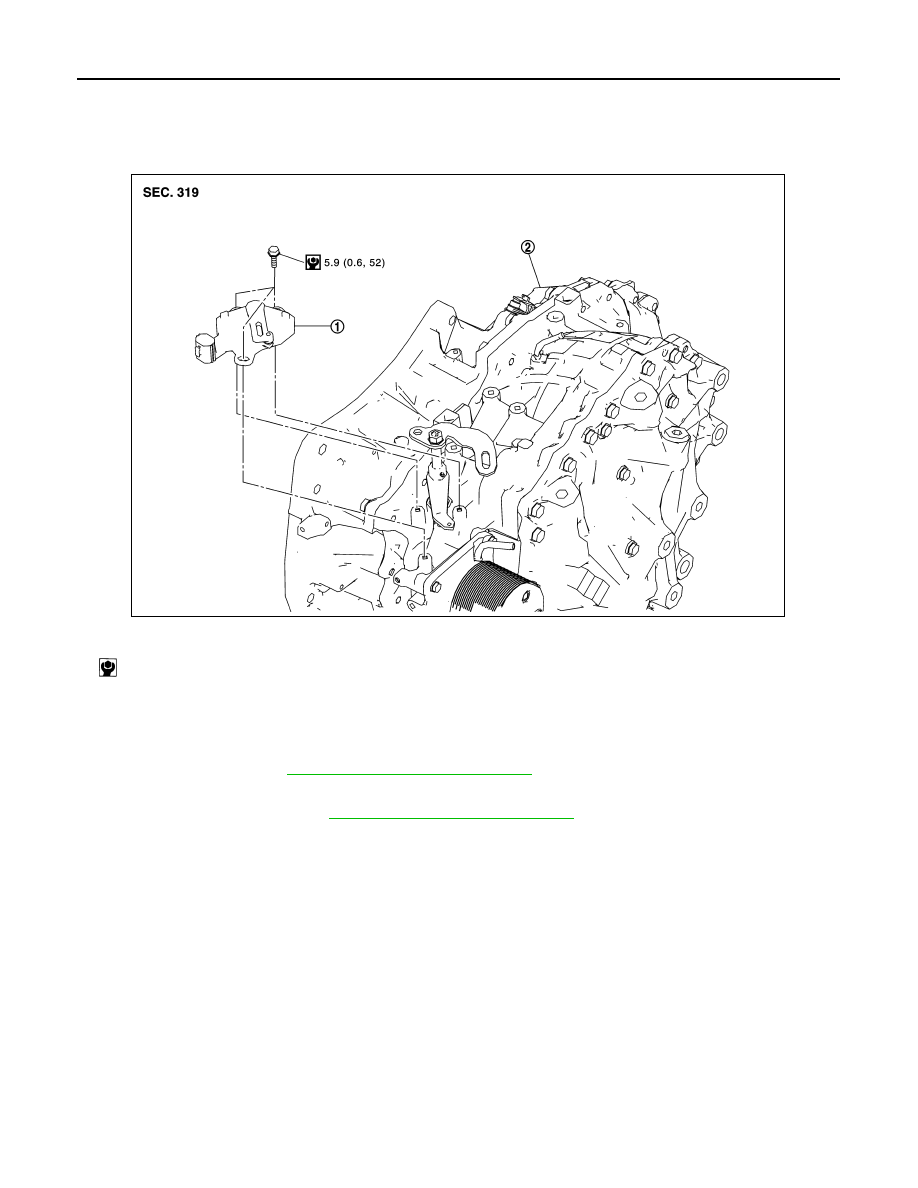

Exploded View

INFOID:0000000012201021

Removal and Installation

INFOID:0000000012201022

REMOVAL

1. Remove battery. Refer to

PG-105, "Removal and Installation"

.

2. Remove transmission range switch connector.
3. Remove control cable. Refer to

TM-319, "Removal and Installation"

.

4. Remove transmission range switch from transaxle assembly.

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000012201023

ADJUSTMENT OF TRANSMISSION RANGE SWITCH

1. Move selector lever to “N” position.
2. Remove control cable from manual lever.

1.

Transmission range switch

2.

Transaxle assembly

: N·m (kg-m, in-lb)

JSDIA2397GB

TRANSMISSION RANGE SWITCH

TM-327

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

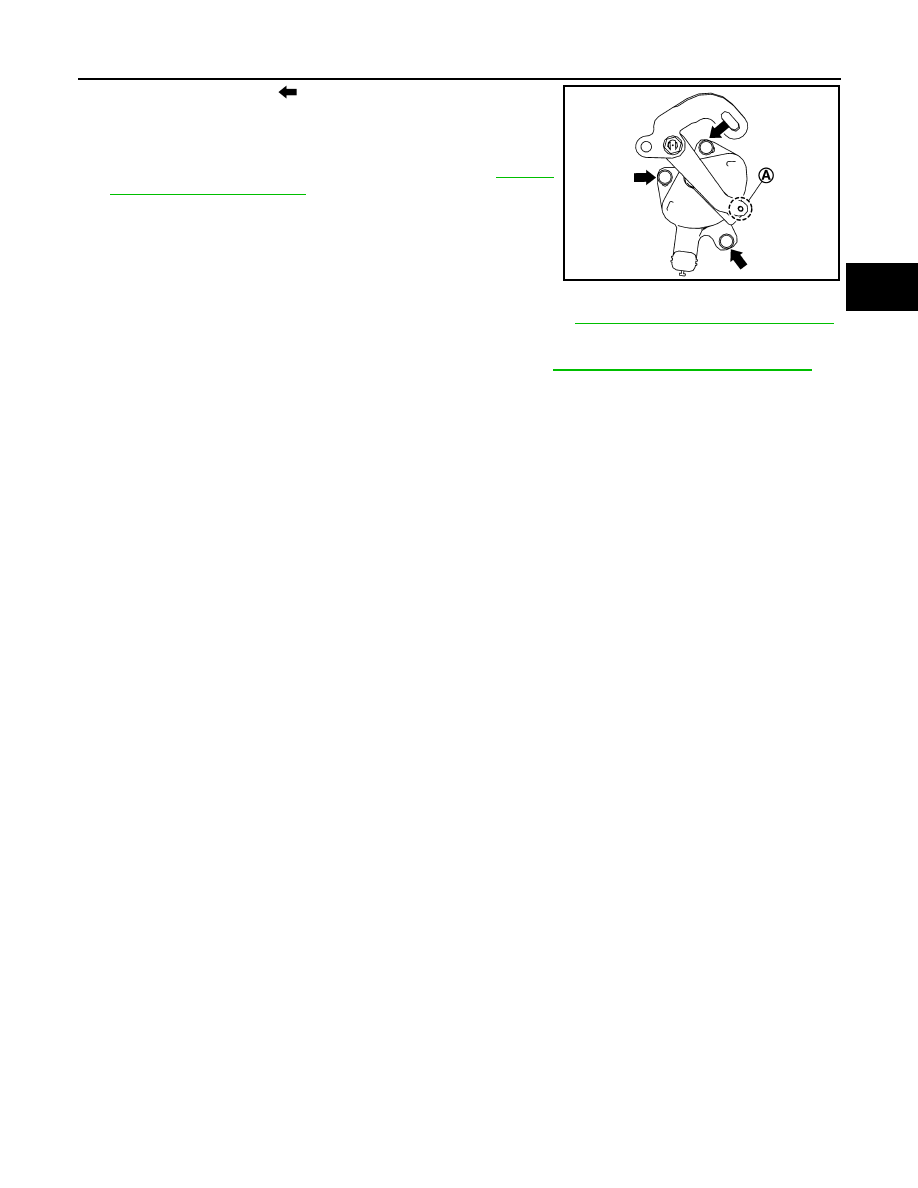

3. Loosen mounting bolts (

) of transmission range switch. Insert

a pin (

φ4 mm) into the adjusting holes (A) on both transmission

range switch and manual lever for adjusting the position.

4. Tighten mounting bolts of transmission range switch.
5. Connect control cable on manual lever. Refer to

TM-233,

"Inspection and Adjustment"

.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT positions after installing the CVT shift selector. Refer to

TM-233, "Inspection and Adjustment"

.

INSPECTION AFTER INSTALLAION

Check the CVT positions after adjusting the CVT positions. Refer to

TM-233, "Inspection and Adjustment"

.

JSDIA2398ZZ

TM-328

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

TCM

TCM

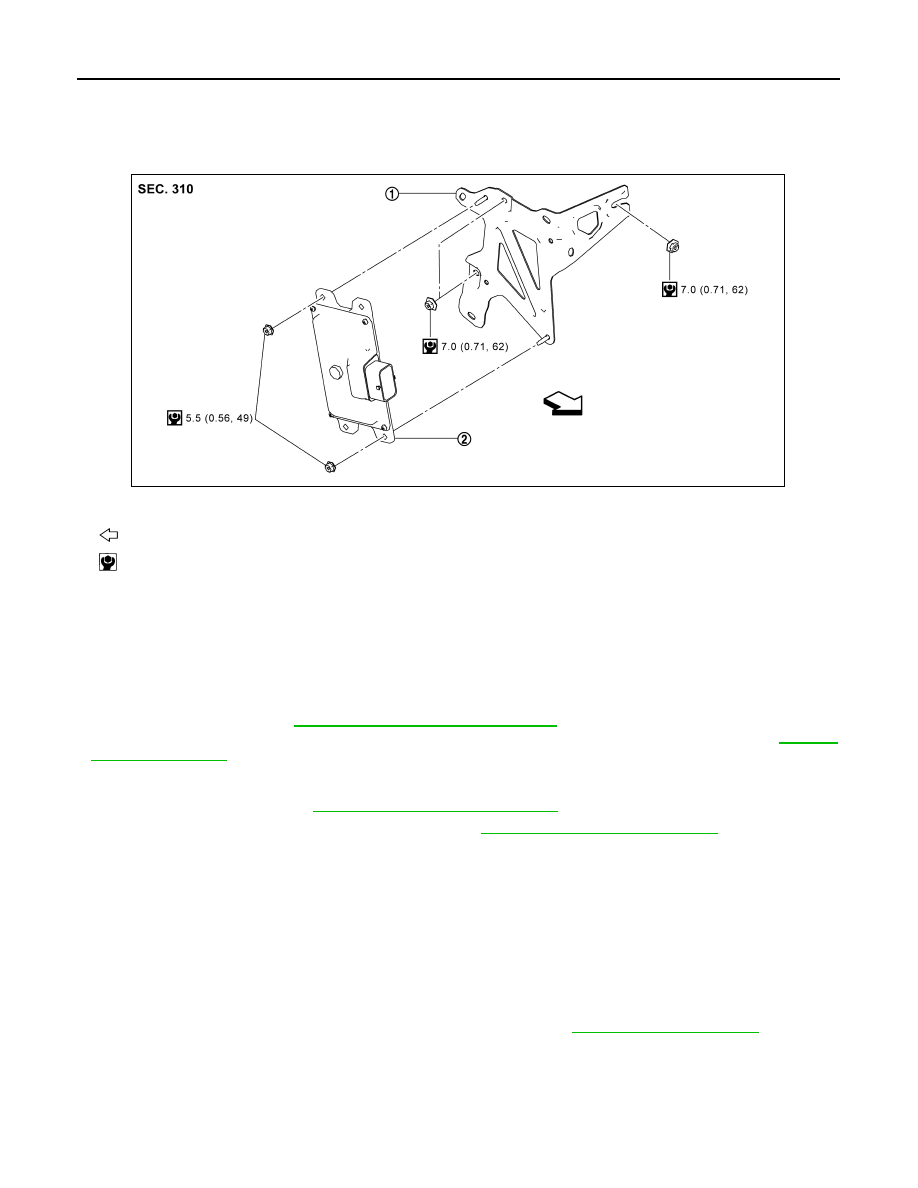

Exploded View

INFOID:0000000012201024

Removal and Installation

INFOID:0000000012201025

CAUTION:

• Never impact on TCM when removing or installing TCM.

• When replacing TCM, note the “CVTF DETERIORATION DATE” value displayed on CONSULT “CON-

FORM CVTF DETERIORTN” in MAINTENANCE BOOKLET, before start the operation.

• When replacing TCM and transaxle assembly simultaneously, replace transaxle assembly first and

then replace TCM. Refer to

TM-347, "Removal and Installation"

.

• Before replacing TCM, perform “ADDITIONAL SERVICE WHEN REPLACING TCM”. Refer to

TM-219,

"Work Procedure"

.

REMOVAL

1. Remove the battery. Refer to

PG-105, "Removal and Installation"

.

2. Remove air duct (inlet) and air cleaner case. Refer to

EM-27, "Removal and Installation"

.

3. Disconnect the TCM connector.
4. Remove the TCM.
5. Remove the bracket.

INSTALLATION

Installation is the reverse order of removal.

Adjustment

INFOID:0000000012201026

ADJUSTMENT AFTER INSTALLATION

Perform "ADDITIONAL SERVICE WHEN REPLACING TCM". Refer to

TM-219, "Work Procedure"

.

1.

Bracket

2.

TCM

:Vehicle front

: N·m (kg-m, in-lb)

JSDIA7186GB

AIR BREATHER HOSE

TM-329

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

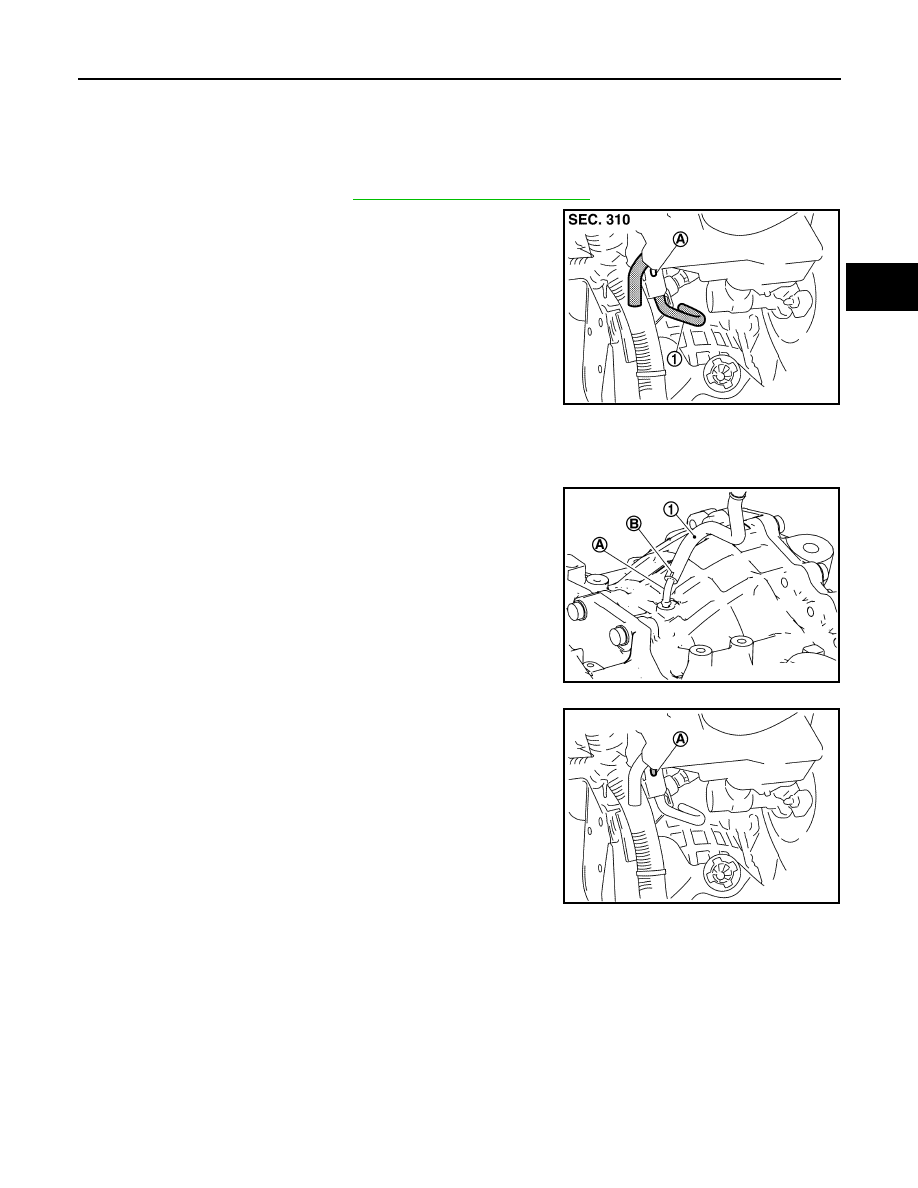

AIR BREATHER HOSE

Removal and Installation

INFOID:0000000012201027

REMOVAL

1. Remove air cleaner case. Refer to

EM-27, "Removal and Installation"

.

2. Remove clip (A) from bracket.
3. Remove air breather hose (1) from transaxle assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never bend the air breather hose to prevent damage to the hose.

• Install air breather hose (1) to transaxle tube (A) all the way to

the curve of the tube.

• Install air breather hose to transaxle tube so that the paint

mark (B) is facing upward.

• Securely install the clip (A) to the bracket.

JSDIA2454ZZ

JSDIA2399ZZ

JSDIA2458ZZ
