DRIVER AIR BAG MODULE

SR-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.

• Never use the air tools or electric tools for servicing.

REMOVAL

1. Remove side lid (LH and RH).

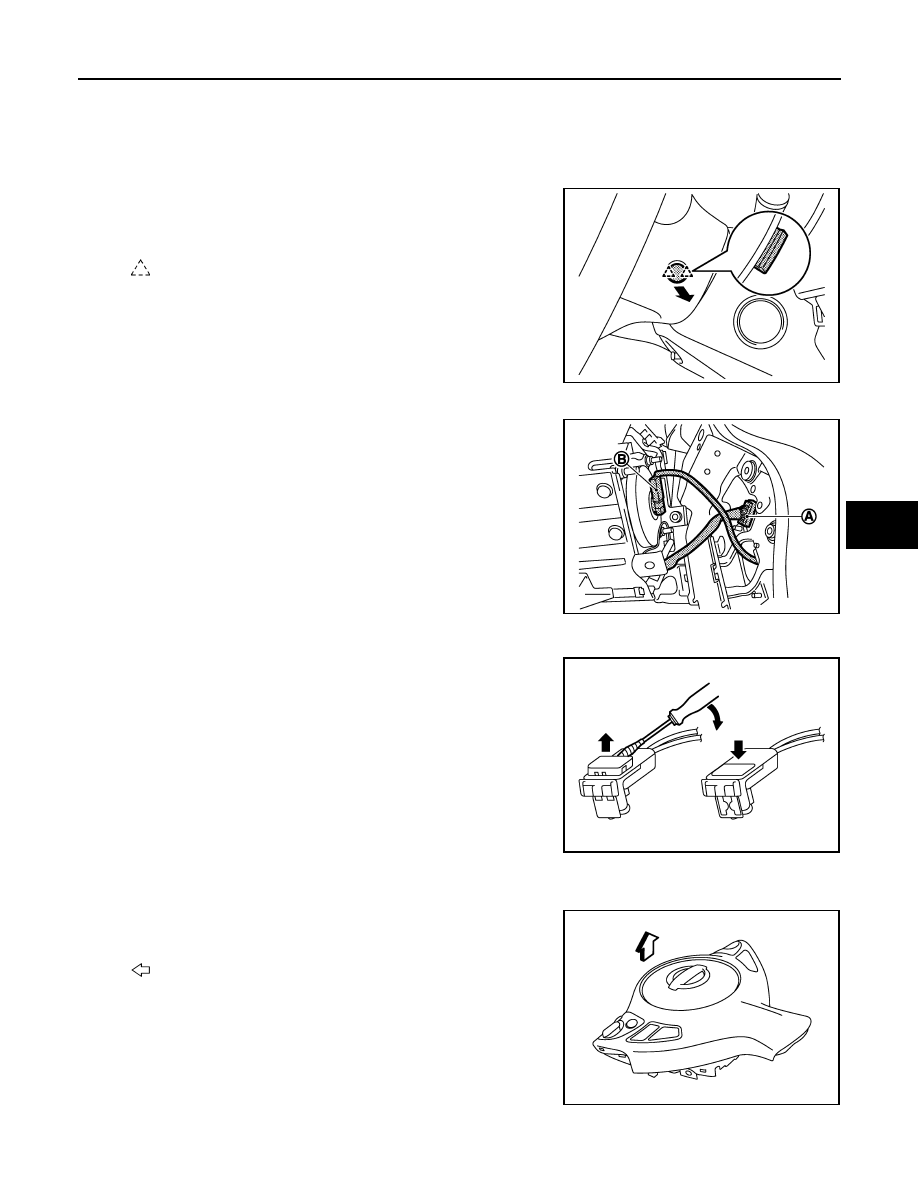

Insert flat-bladed screwdriver between side lid and steering

wheel to disengage pawls as shown in the figure.

2. Remove TORX bolts (LH and RH) from the steering wheel lower side.
3. Pull out driver air bag module.
4. Disconnect spiral cable harness connector (A).
5. Disconnect driver air bag harness connector (B).

CAUTION:

• For installing/removing the driver air bag module harness

connector, insert thin screwdriver wrapped in tape into

notch, lift lock and remove the connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed securely into it.

6. Remove driver air bag module.

CAUTION:

• Always place the driver air bag module with pad side facing

upward.

: Pawl

JMHIA1605ZZ

JMHIA1606ZZ

PHIA0953J

: Upward

JMHIA1607ZZ

SR-14

< REMOVAL AND INSTALLATION >

DRIVER AIR BAG MODULE

• Never impact the driver air bag module.

• Replace the driver air bag module if it has been dropped or

sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the driver air bag module.

• Never disassemble the driver air bag module.

• Never expose the driver air bag module to temperatures exceeding 90

°C (194 °F).

• Never allow oil, grease, detergent, or water to come in contact with the driver air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the old TORX bolts after removal, replace with the new TORX bolts.

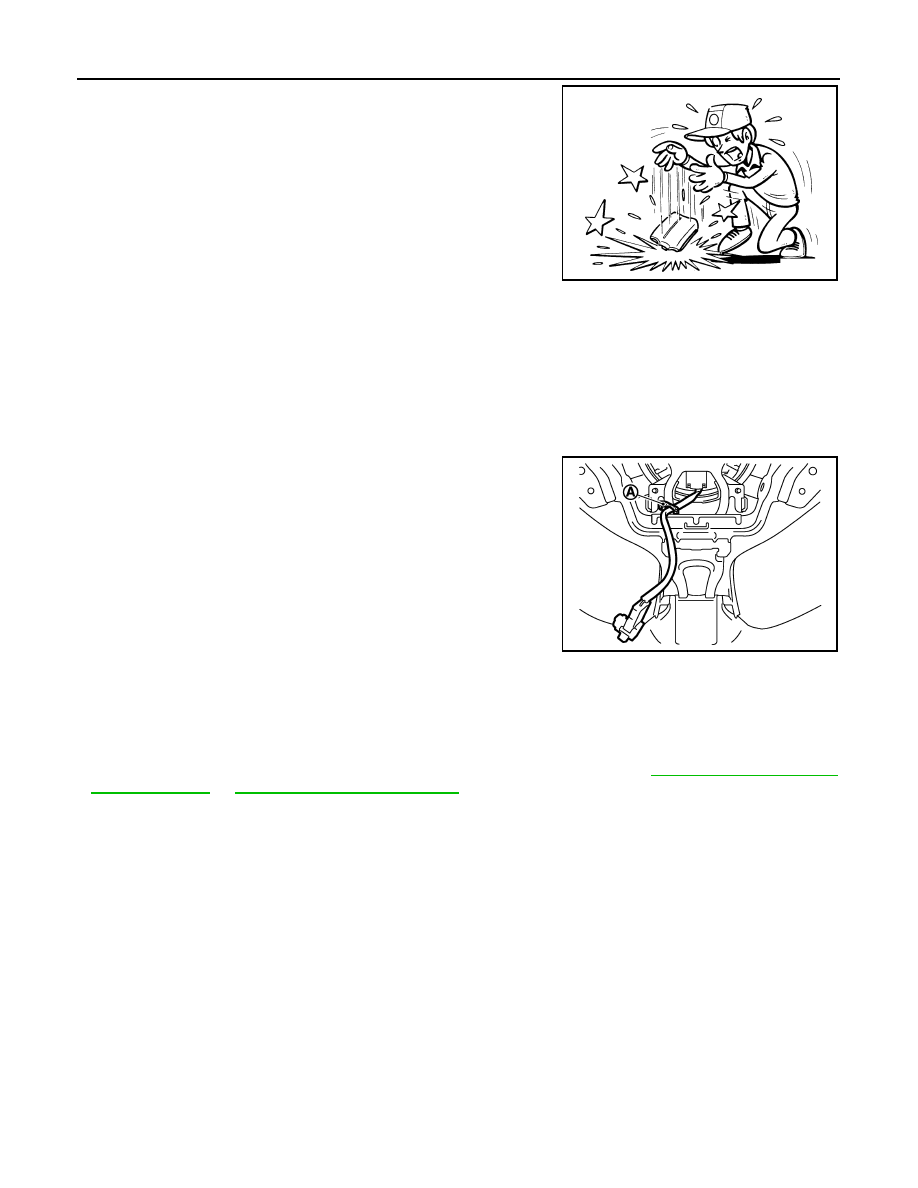

• Fix the driver air bag module harnesses to the harness fixing

hook (A).

• Never damage the harness while installing.

• Tighten the TORX bolts after completely adjusting the centers of fixing holes on the driver air bag

module side and the steering wheel side. If the holes are misaligned, the bolt threads are damaged

and the module is not installed securely.

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-10, "On Board Diag-

nosis Function"

 or

SRC-15, "CONSULT Function"

.

• After the work is complete, check that no system malfunction is detected by air bag warning lamp.

JMHIA0009ZZ

JMHIA1608ZZ

SPIRAL CABLE

SR-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

SPIRAL CABLE

Exploded View

INFOID:0000000012199971

Removal and Installation

INFOID:0000000012199972

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

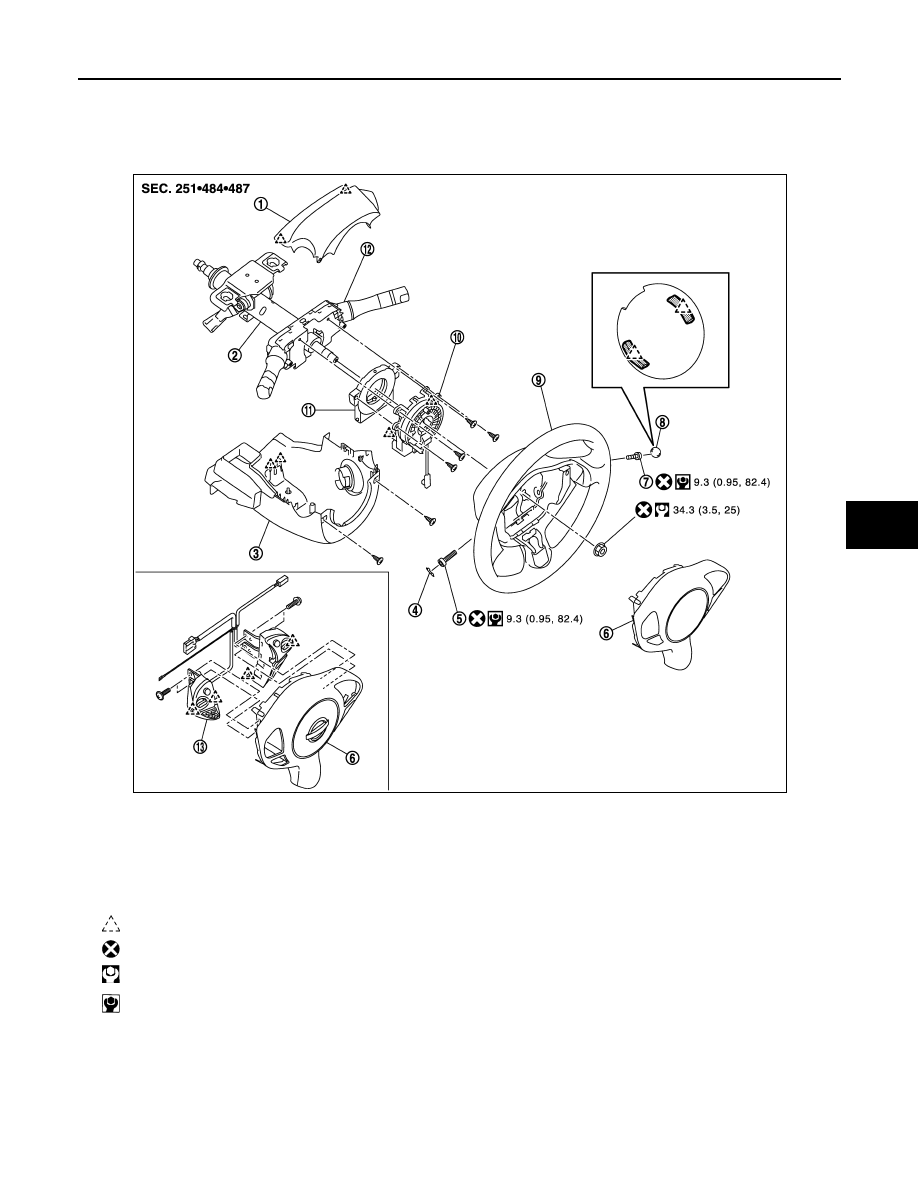

1.

Steering column upper cover

2.

Steering column assembly

3.

Steering column lower cover

4.

Side lid LH

5.

TORX bolt

6.

Driver air bag module

7.

TORX bolt

8.

Side lid RH

9.

Steering wheel

10. Spiral cable

11. Steering angle sensor

12. Combination switch

13. Steering switch

: Pawl

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JMHIA1655GB

SR-16

< REMOVAL AND INSTALLATION >

SPIRAL CABLE

REMOVAL

1. Remove driver air bag module. Refer to

SR-12, "Removal and Installation"

.

2. Remove steering wheel. Refer to

ST-9, "Removal and Installation"

.

3. Remove steering column upper cover and steering column lower cover. Refer to

IP-13, "Removal and

Installation"

.

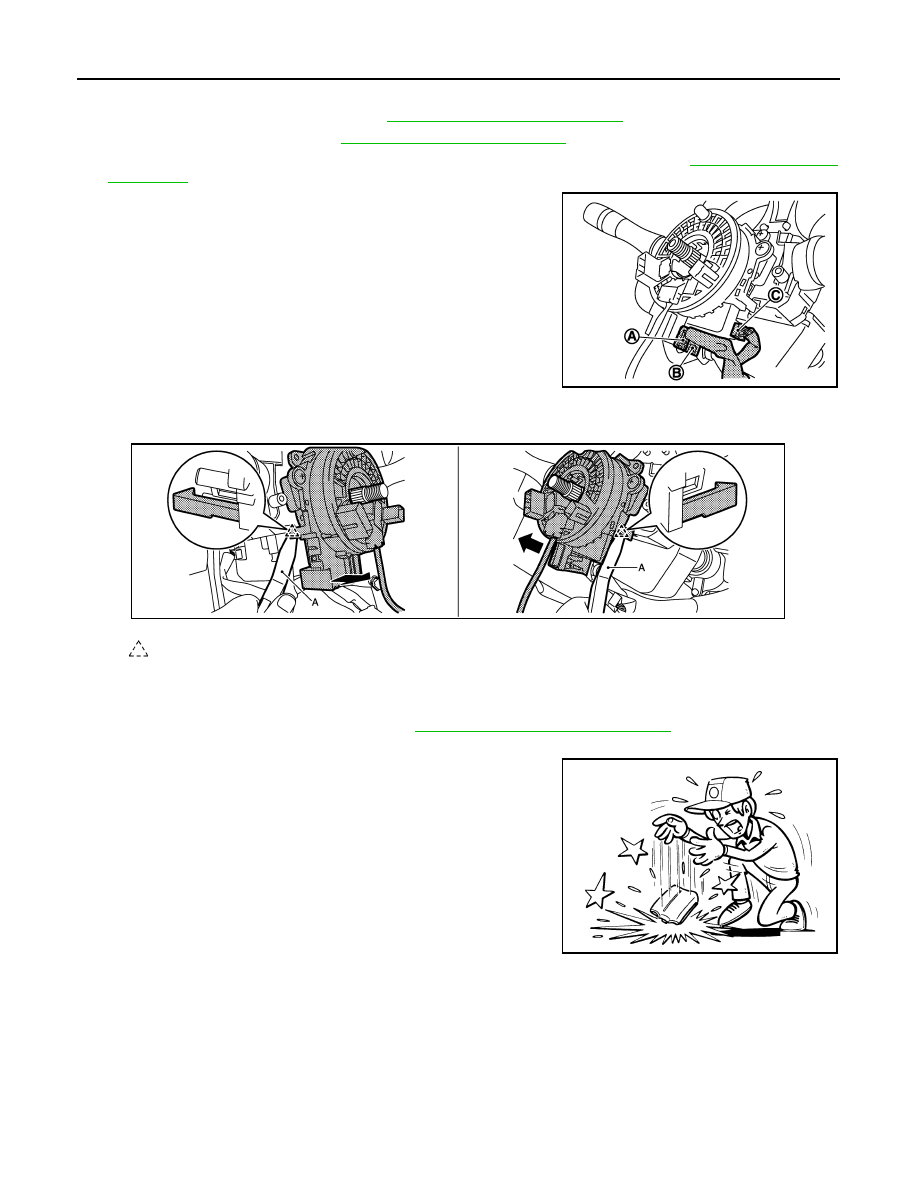

4. Disconnect the spiral cable body side harness connectors (A),

(B) and steering angle sensor harness connectors (C).

NOTE:

Disconnect the spiral cable body side harness connector (B)

after removing the spiral cable (A).

5. Remove the spiral cable fixing screws.
6. Remove the spiral cable fixing pawls with remover tool (A).

CAUTION:

Remove pawls slowly so that they are not damaged.

7. Remove the steering angle sensor. Refer to

BRC-156, "Removal and Installation"

.

CAUTION:

• Never impact the spiral cable.

• Replace the spiral cable if it is dropped or sustains an impact.

• Never disassemble the spiral cable.

• Never apply lubricant to the spiral cable.

• Never allow oil, grease, detergent, or water to come in contact with the spiral cable.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

JMHIA1656ZZ

: Pawl

JMHIA1610ZZ

JMHIA0009ZZ
