REAR SEAT

SE-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REAR SEAT

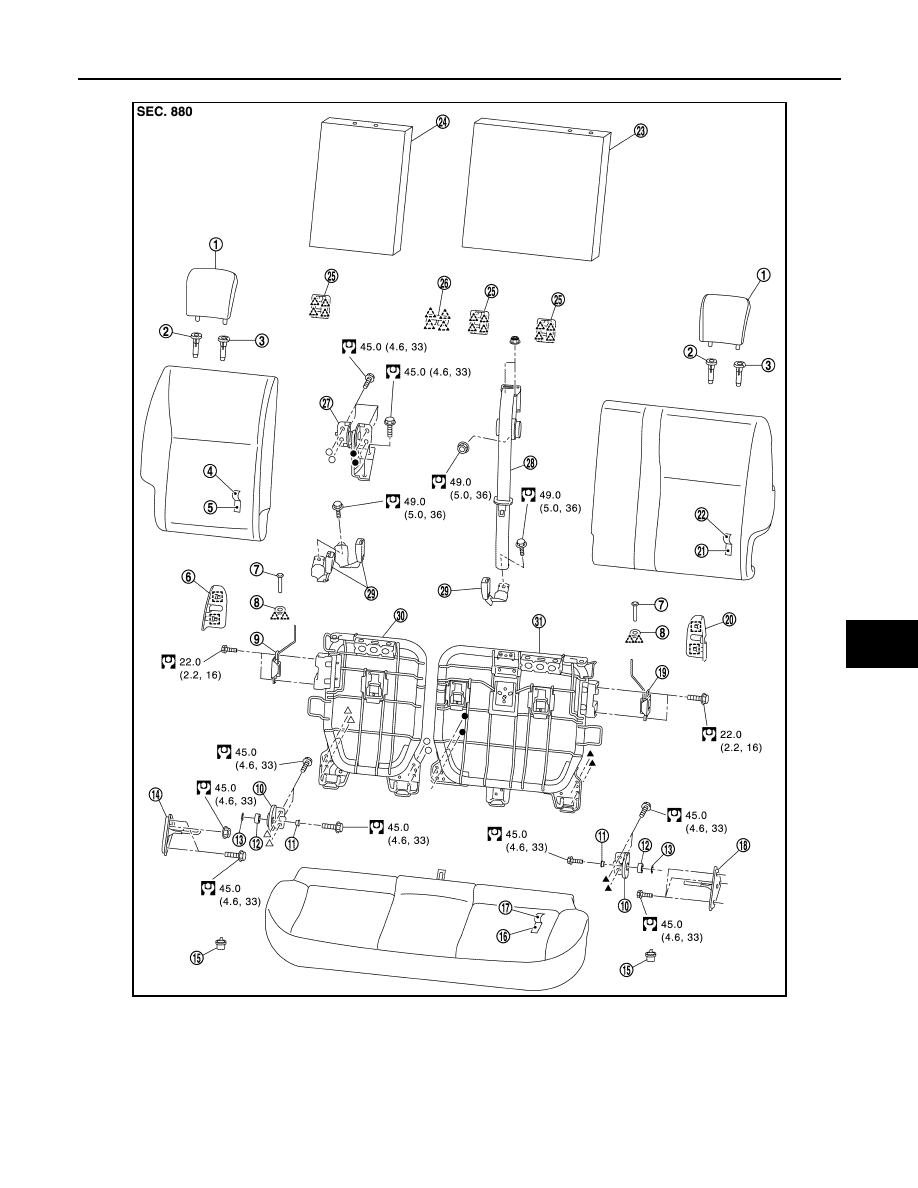

Exploded View

INFOID:0000000012196883

2WD models

JMJIA5194GB

1.

Headrest

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Seatback trim RH

5.

Seatback pad RH

6.

Seat lock cover RH

SE-30

< REMOVAL AND INSTALLATION >

REAR SEAT

7.

Seatback lock knob

8.

Seatback lock knob finisher

9.

Seatback lock assembly RH

10. Side hinge

11. Bush

12. Spacer

13. Lock washer

14. Striker RH

15. Seat cushion hook

16. Seat cushion pad

17. Seat cushion trim

18. Striker LH

19. Seatback lock assembly LH

20. Seat lock cover LH

21. Seatback pad LH

22. Seatback trim LH

23. Seatback silencer LH

24. Seatback silencer RH

25. Seatback tether cover

26. Center seat belt finisher

27. Center hinge

28. Center seat belt

29. Seat belt buckle

30. Seatback frame RH

31. Seatback frame LH

: Pawl

: Metal clip

: N·m (kg-m, ft-lb)

,  ,  ,   : Indicates that the part is connected at points with same symbol in actual vehicle.

REAR SEAT

SE-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

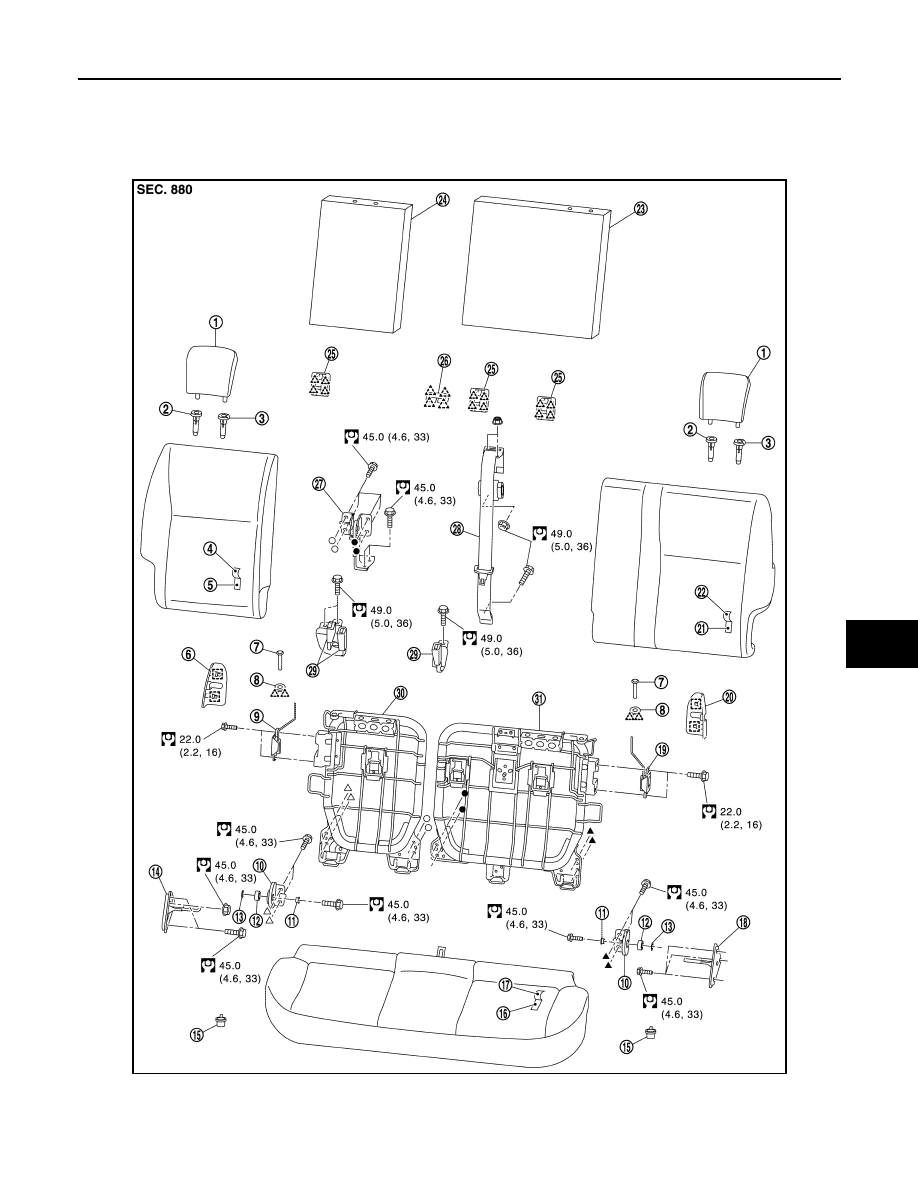

AWD models

JMJIA5193GB

1.

Headrest

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Seatback trim RH

5.

Seatback pad RH

6.

Seat lock cover RH

7.

Seatback lock knob

8.

Seatback lock knob finisher

9.

Seatback lock assembly RH

10. Side hinge

11. Bush

12. Spacer

13. Lock washer

14. Striker RH

15. Seat cushion hook

16. Seat cushion pad

17. Seat cushion trim

18. Striker LH

SE-32

< REMOVAL AND INSTALLATION >

REAR SEAT

SEAT CUSHION
SEAT CUSHION : Removal and Installation

INFOID:0000000012196884

REMOVAL

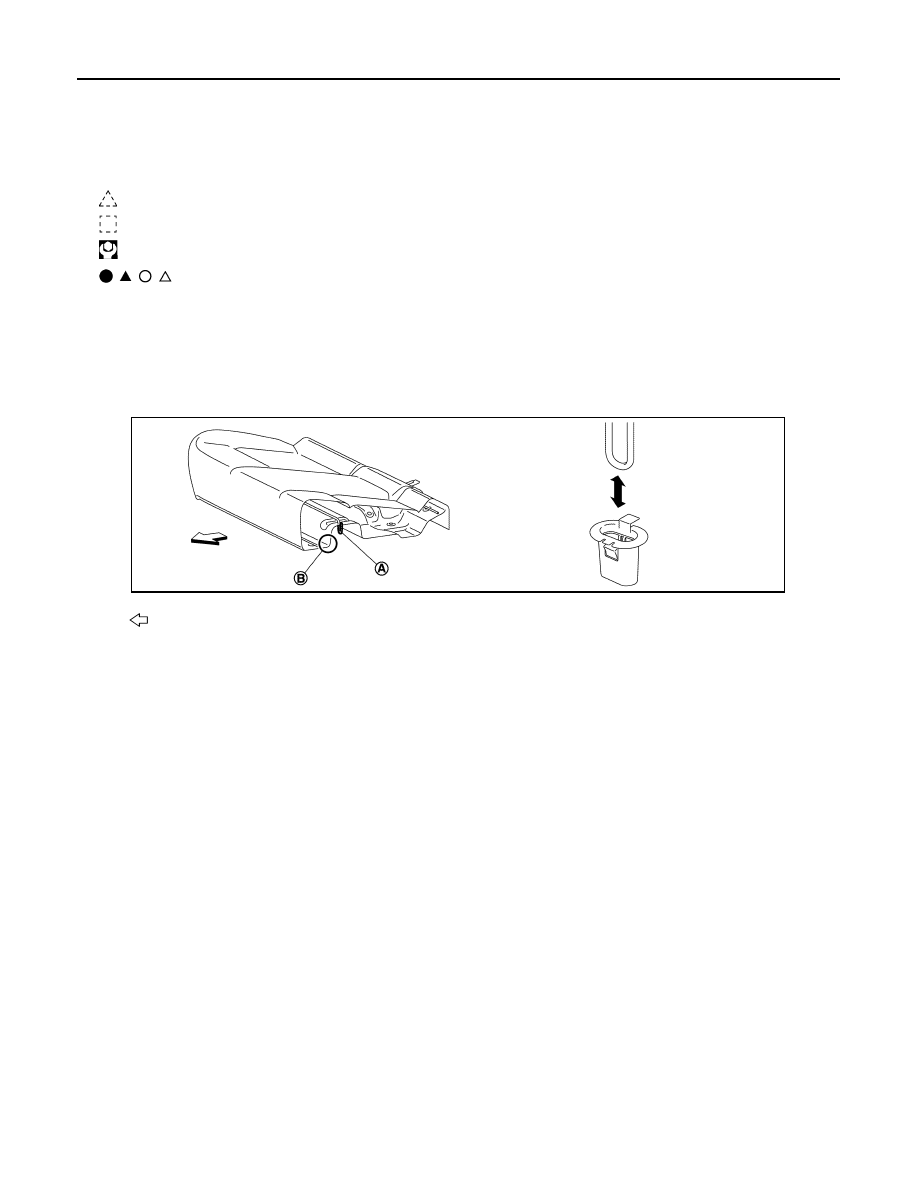

1. Lift up seat cushion at a close position (B) of engaging portion (A) and disengage seat cushion hook.

CAUTION:

Seat cushion wire close to engaging portion deforms, if excessive force is applied to seat cushion

front end when removing seat cushion.

To avoid the deformation, be careful to remove seat cushion while applying force to close posi-

tion, as much as possible, of engaging portion.

2. Pull out seat belt buckle from seat cushion.
3. Remove seat cushion from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

SEAT CUSHION : Disassembly and Assembly

INFOID:0000000012196885

DISASSEMBLY

Remove hog rings, and separate the seat cushion trim and seat cushion pad.

CAUTION:

Before performing separating operation, check the installation position of hog rings.

ASSEMBLY

Note the following item, and assemble in the reverse order of disassembly.

CAUTION:

Always install the hog ring in position.

SEATBACK

19. Seatback lock assembly LH

20. Seat lock cover LH

21. Seatback pad LH

22. Seatback trim LH

23. Seatback silencer LH

24. Seatback silencer RH

25. Seatback tether cover

26. Center seat belt finisher

27. Center hinge

28. Center seat belt

29. Seat belt buckle

30. Seatback frame RH

31. Seatback frame LH

: Pawl

: Metal clip

: N·m (kg-m, ft-lb)

,  ,  ,   : Indicates that the part is connected at points with same symbol in actual vehicle.

: Vehicle front

JMJIA4835ZZ
