FRONT SEAT

SE-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REMOVAL AND INSTALLATION

FRONT SEAT

Exploded View

INFOID:0000000012196879

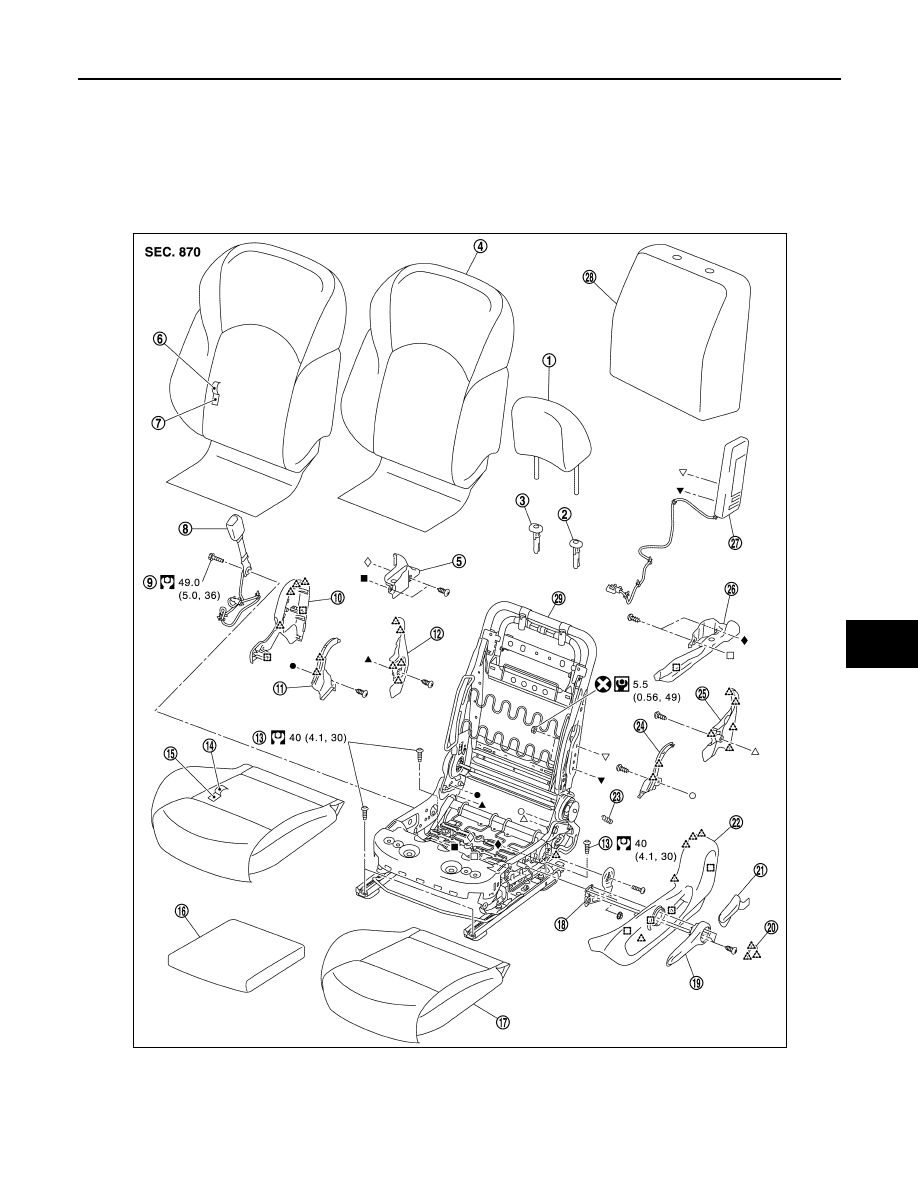

DRIVER SEAT

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback assembly
(with heater seat only)

5.

Inner lower cover

6.

Seatback trim
(without heater seat only)

JMJIA4582GB

SE-18

< REMOVAL AND INSTALLATION >

FRONT SEAT

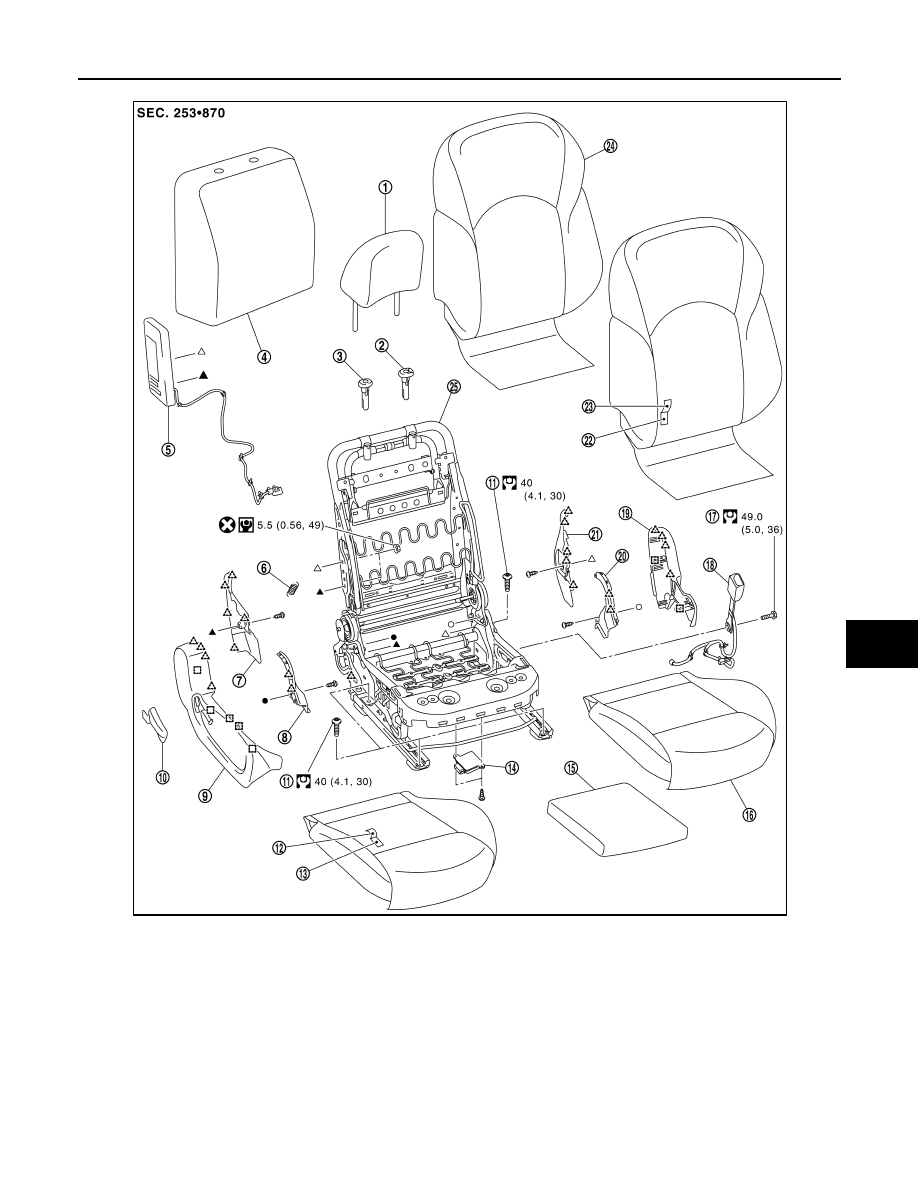

PASSENGER SEAT

7.

Seatback pad
(without heater seat only)

8.

Seat belt buckle

9.

Anchor bolt

10. Seat cushion inner finisher

11. Reclining device inner cover (front)

12. Reclining device inner cover (rear)

13. TORX bolt

14. Seat cushion trim

(without heater seat only)

15. Seat cushion pad

(without heater seat only)

16. Seat cushion silencer

17. Seat cushion assembly

(with heater seat only)

18. Lifter link

19. Lifter lever knob

20. Lifter lever knob cap

21. Reclining lever knob

22. Seat cushion outer finisher

23. Spring

24. Reclining device outer cover (front)

25. Reclining device outer cover (rear)

26. Outer lower cover

27. Side air bag module

28. Seatback silencer

29. Seat frame & adjuster assembly

: Pawl

: Metal clip

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

,  ,  ,  ,  ,  ,  ,  ,  ,   : Indicates that the part is connected at points with same symbol in actual vehicle.

FRONT SEAT

SE-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback silencer

5.

Side air bag module

6.

Spring

7.

Reclining device outer cover (rear)

8.

Reclining device outer cover (front)

9.

Seat cushion outer finisher

10. Reclining lever knob

11. TORX bolt

12. Seat cushion trim

(without heater seat only)

13. Seat cushion pad

(without heater seat only)

14. Occupant detection system control

unit

15. Seat cushion silencer

16. Seat cushion assembly

(with heater seat only)

17. Anchor bolt

18. Seat belt buckle

19. Seat cushion inner finisher

20. Reclining device inner cover (front)

21. Reclining device inner cover (rear)

JMJIA9479GB

SE-20

< REMOVAL AND INSTALLATION >

FRONT SEAT

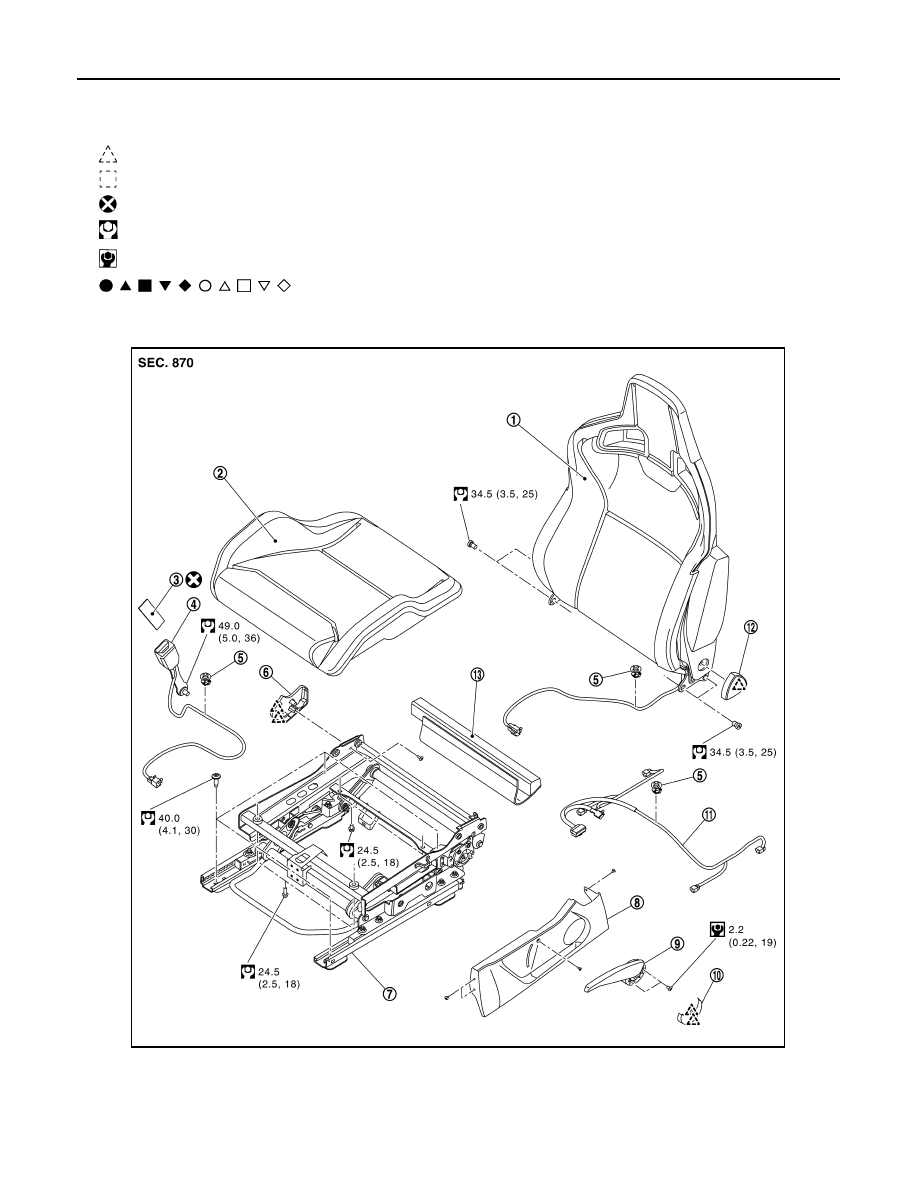

RECARO SEAT

22. Seatback pad

(without heater seat only)

23. Seatback trim

(without heater seat only)

24. Seatback assembly

(with heater seat only)

25. Seat frame & adjuster assembly

: Pawl

: Metal clip

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

,  ,  ,  ,  ,  ,  ,  ,  ,   : Indicates that the part is connected at points with same symbol in actual vehicle.

1.

Seatback assembly

2.

Seat cushion

3.

Harness tape

*

4.

Seat belt buckle

5.

Harness clip

6.

Reclining device cover

7.

Seat adjuster assembly

8.

Seat cushion finisher

9.

Lifter lever

JMJIB0222GB
