SB-10

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

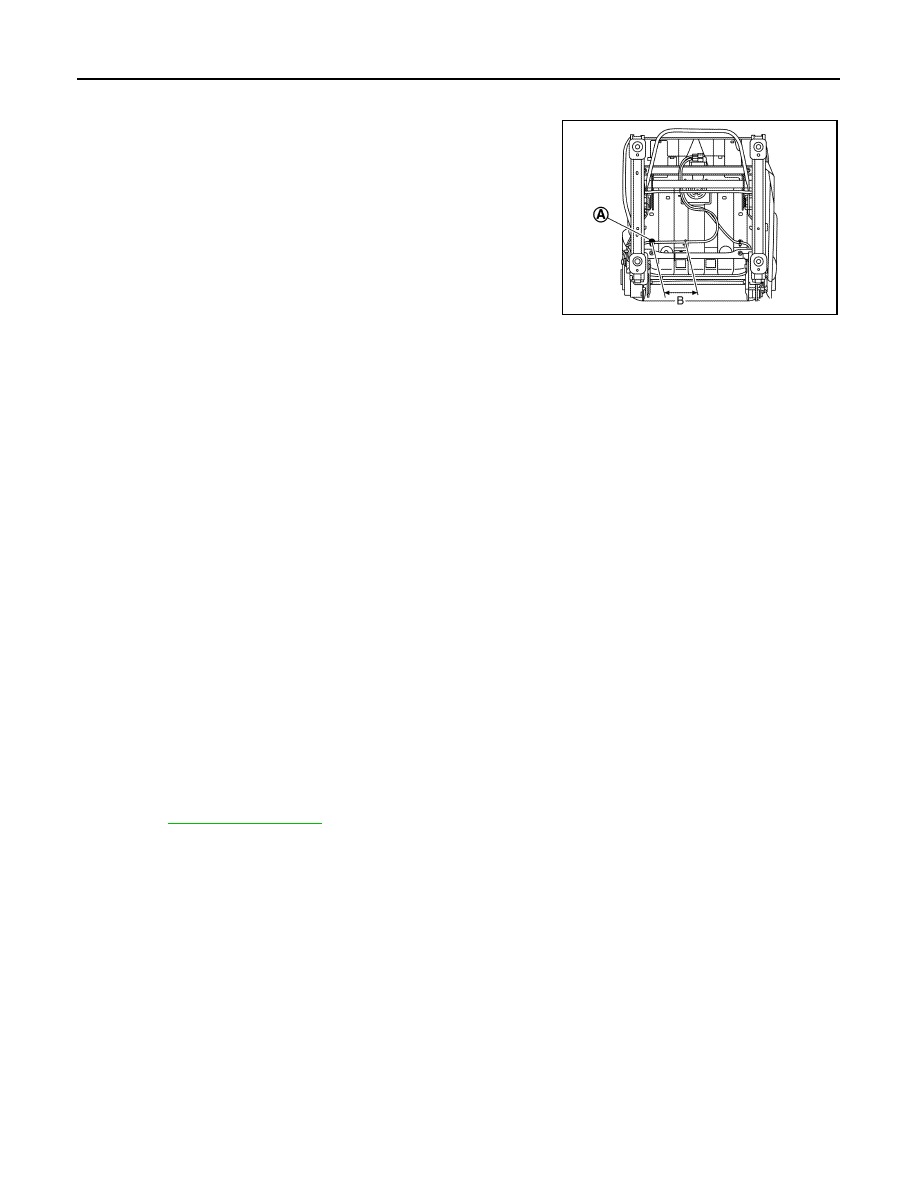

Note the following item, and then install in the reverse order of removal.

CAUTION:

• Install in the RECARO driver seat belt buckle harness fixing

clamp (A) as shown in the figure.

SEAT BELT BUCKLE : Inspection

INFOID:0000000012200323

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.

NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced

unless the collision was minor and the belts show no damage and continue to operate properly. Fail-

ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-

ing a collision should also be replaced if either damage or improper operation was noted. Seat belt

pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in

which the air bags were deployed.

Replace any seat belt assembly (including anchor bolts) if:

• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).

• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

• The seat belt pre-tensioner must be replaced even if the seat belts were not in use during the collision in

which the air bags were deployed.

PRELIMINARY CHECKS

1. Check the seat belt warning lamp for proper operation as per the following:
a. Turn ignition switch ON. The seat belt warning lamp should illuminate.
b. Fasten driver seat belt. The seat belt warning lamp should turn OFF.
2. If the air bag warning lamp is blinking, perform self-diagnosis using CONSULT and air bag warning lamp.

Refer to

SRC-10, "Description"

.

3. Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.
4. Repeat steps above if necessary to check the other seat belts.

B : 115 mm

JMJIB0221ZZ

REAR SEAT BELT

SB-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

REAR SEAT BELT

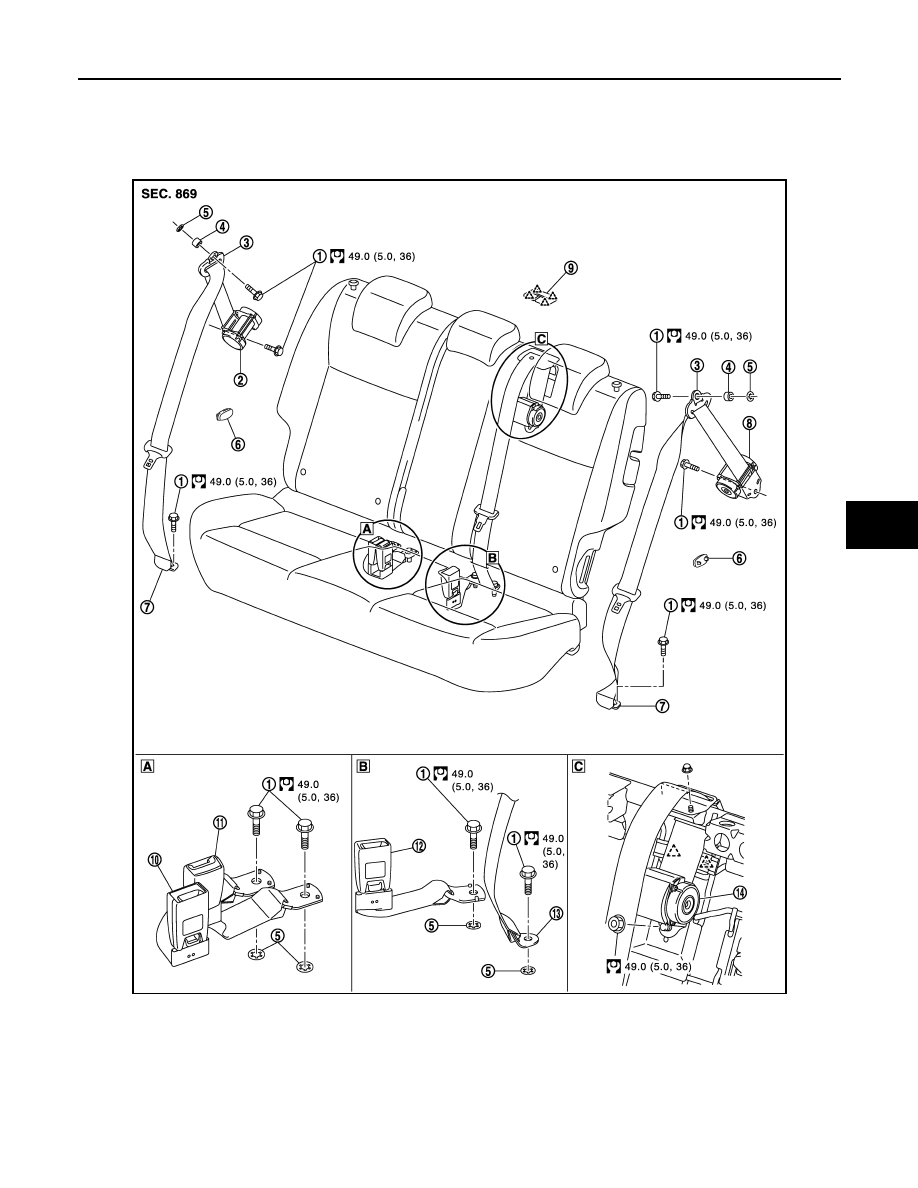

Exploded View

INFOID:0000000012200324

2WD models

JMHIA1571GB

1.

Anchor bolt

2.

Outer seat belt retractor RH

3.

Shoulder anchor

4.

Spacer

5.

Retaining washer

6.

Seat belt hook

7.

Outer anchor

8.

Outer seat belt retractor LH

9.

Center seat belt finisher

10. Center seat belt buckle

11. RH seat belt buckle

12. LH seat belt buckle

13. Center anchor

14. Center seat belt retractor

SB-12

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

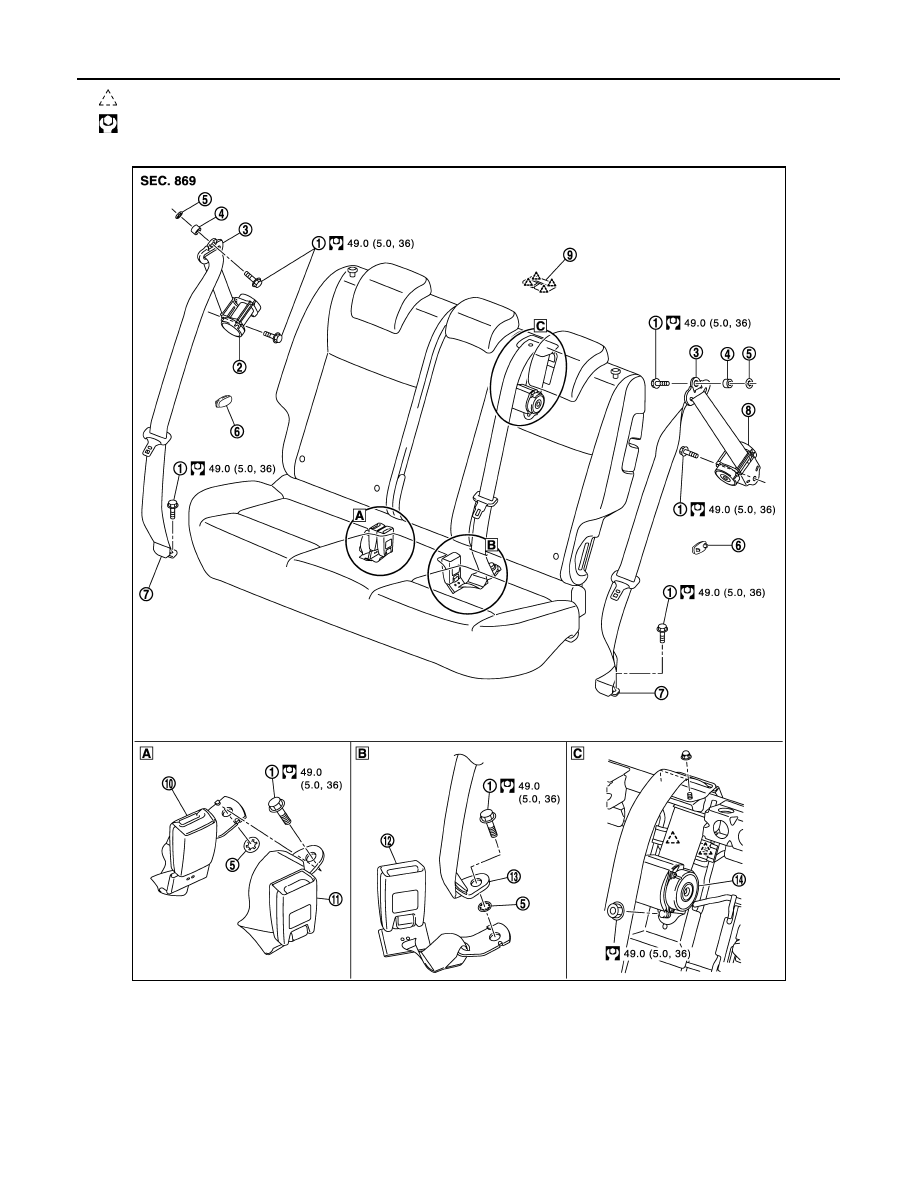

AWD models

: Pawl

: N·m (kg-m, ft-lb)

JMHIA1664GB

1.

Anchor bolt

2.

Outer seat belt retractor RH

3.

Shoulder anchor

4.

Spacer

5.

Retaining washer

6.

Seat belt hook

7.

Outer anchor

8.

Outer seat belt retractor LH

9.

Center seat belt finisher

10. RH seat belt buckle

11. Center seat belt buckle

12. LH seat belt buckle

13. Center anchor

14. Center seat belt retractor

REAR SEAT BELT

SB-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

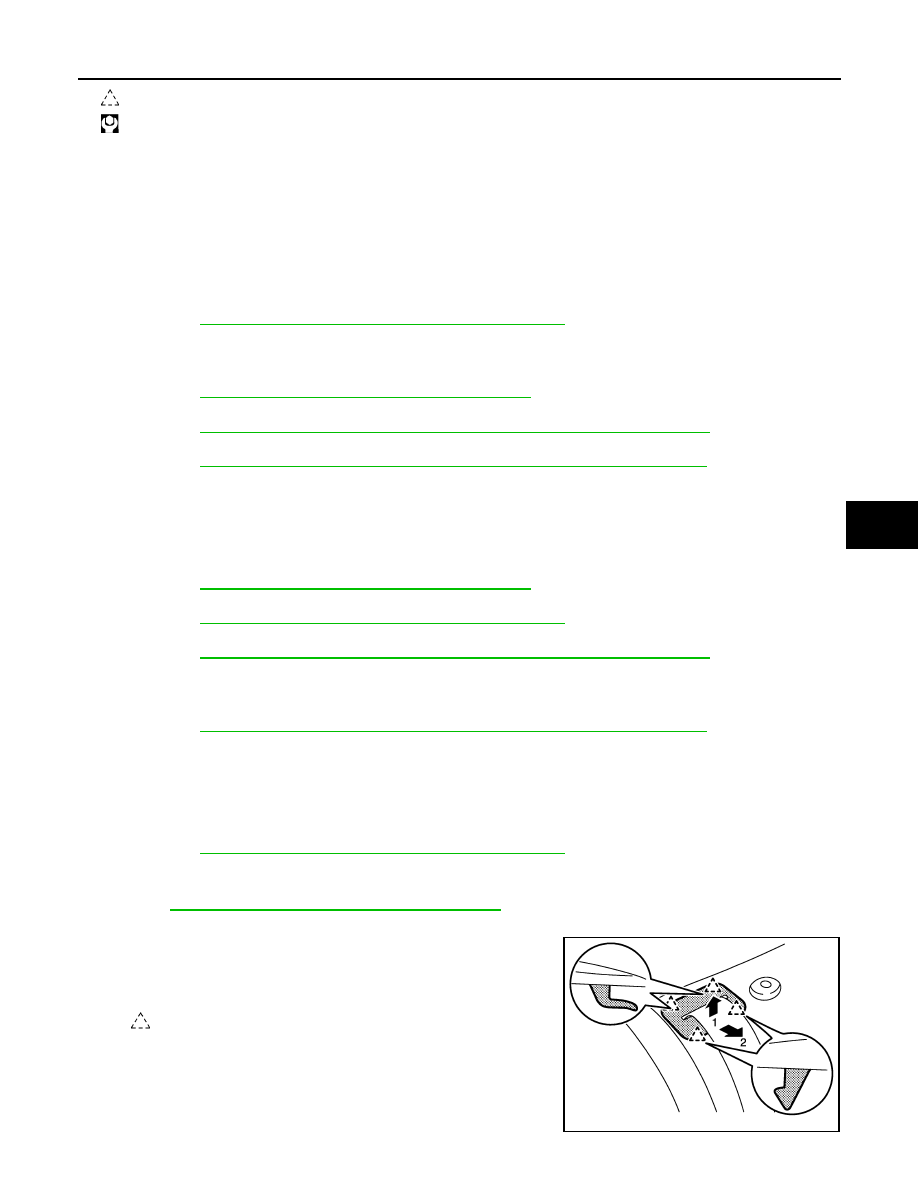

SEAT BELT RETRACTOR
SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000012200325

REMOVAL

Outer seat belt retractor (2WD models)

1. Remove outer anchor.

1. Remove rear seat cushion from the vehicle.

Refer to

SE-32, "SEAT CUSHION : Removal and Installation"

.

2. Remove outer anchor mounting anchor bolt.

2. Remove shoulder anchor.

1. Remove rear seatback from the vehicle.

Refer to

SE-33, "SEATBACK : Removal and Installation"

.

2. Remove luggage side lower finisher.

Refer to

INT-35, "LUGGAGE SIDE LOWER FINISHER : Removal and Installation"

.

3. Remove luggage side upper finisher.

Refer to

INT-36, "LUGGAGE SIDE UPPER FINISHER : Removal and Installation"

.

4. Remove shoulder anchor mounting anchor bolt.

3. Remove outer seat belt retractor mounting anchor bolt, and then remove outer seat belt retractor.

Outer seat belt retractor (AWD models)

1. Remove outer anchor.

1. Remove rear seatback from the vehicle.

Refer to

SE-33, "SEATBACK : Removal and Installation"

.

2. Remove rear seat cushion from the vehicle.

Refer to

SE-32, "SEAT CUSHION : Removal and Installation"

.

3. Remove luggage side lower finisher.

Refer to

INT-35, "LUGGAGE SIDE LOWER FINISHER : Removal and Installation"

.

4. Remove outer anchor mounting anchor bolt.

2. Remove shoulder anchor.

1. Remove luggage side upper finisher.

Refer to

INT-36, "LUGGAGE SIDE UPPER FINISHER : Removal and Installation"

.

2. Remove shoulder anchor mounting anchor bolt.

3. Remove outer seat belt retractor mounting anchor bolt, and then remove outer seat belt retractor.

Center seat belt retractor

1. Remove center anchor.

1. Remove rear seat cushion from the vehicle.

Refer to

SE-32, "SEAT CUSHION : Removal and Installation"

.

2. Remove center anchor mounting anchor bolt.

2. Remove rear seatback LH from the vehicle.

Refer to

SE-33, "SEATBACK : Removal and Installation"

.

3. Remove center seat belt finisher from seatback.

Lift up front of center seat belt finisher. Disengage front pawls.

Pull center seat belt finisher toward seat front. Disengage rear

pawls.

: Pawl

: N·m (kg-m, ft-lb)

: Pawl

JMJIA4373ZZ
