RAX-4

< PREPARATION >

[2WD]

PREPARATION

PREPARATION

PREPARATION

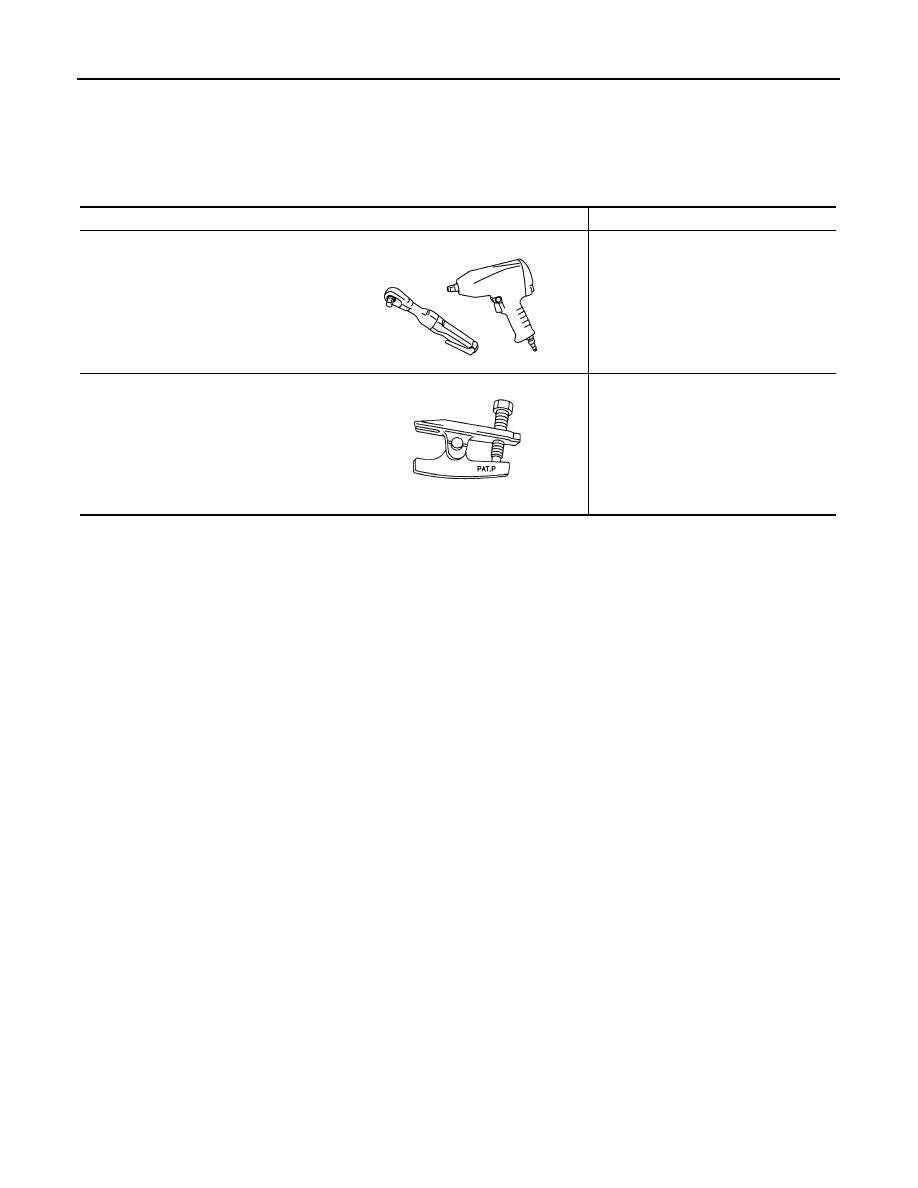

Commercial Service Tools

INFOID:0000000012196547

Tool name

Description

Power tool

Loosening bolts and nuts

Ball joint remover

Removing hub bolt

PBIC0190E

NT146

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

RAX-5

< SYMPTOM DIAGNOSIS >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000012196548

Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.

×: Applicable

Reference

RAX-7

—

RAX-6

NVH

in

RAX and RSU sections

NVH in WT section

NVH in WT section

NVH in BR section

Possible cause and SUSPECTED PARTS

Im

p

rop

er i

ns

ta

lla

tio

n,

lo

os

en

es

s

P

art

s interference

W

he

el be

arin

g da

ma

ge

REA

R

 AXLE AND REAR S

U

SPENSION

TI

RE

ROAD W

H

EEL

BR

AK

E

Symptom

REAR AXLE

Noise

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

Shimmy

×

×

×

×

×

×

Judder

×

×

×

×

×

Poor quality ride or handling

×

×

×

×

×

RAX-6

< PERIODIC MAINTENANCE >

[2WD]

REAR WHEEL HUB

PERIODIC MAINTENANCE

REAR WHEEL HUB

Inspection

INFOID:0000000012196549

COMPONENT PART

Check the mounting conditions (looseness, back lash) of each component and component conditions (wear,

damage) are normal.

WHEEL HUB ASSEMBLY (BEARING-INTEGRATED TYPE)

Check the following items, and replace the part it necessary.

• Move wheel hub assembly in the axial direction by hand. Check there is no looseness of wheel bearing.

• Rotate wheel hub assembly and check there is no unusual noise or other irregular conditions. If there is any

of irregular conditions, replace wheel hub assembly.

Axial end play

: Refer to

RAX-9, "Wheel Bearing"

.

REAR WHEEL HUB

RAX-7

< REMOVAL AND INSTALLATION >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

REMOVAL AND INSTALLATION

REAR WHEEL HUB

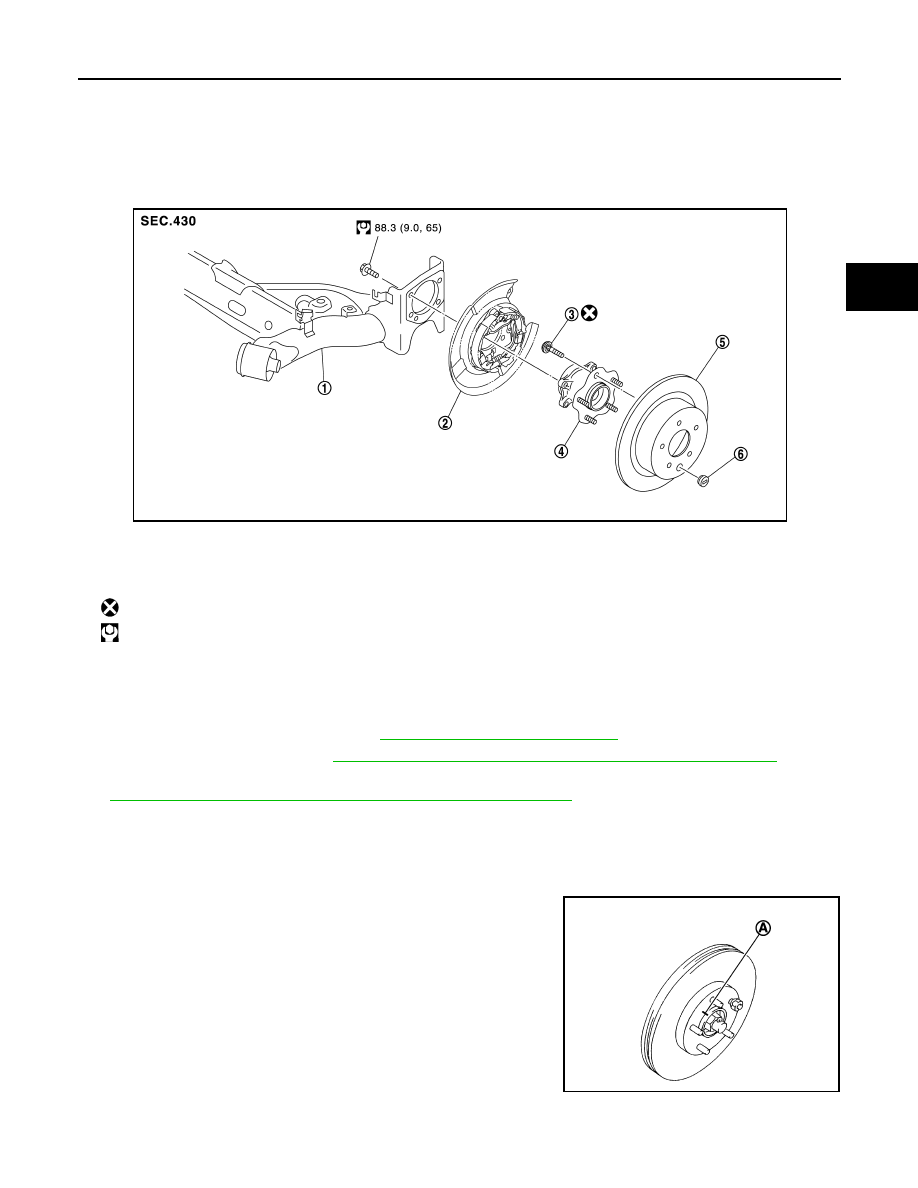

Exploded View

INFOID:0000000012196550

Removal and Installation

INFOID:0000000012196551

REMOVAL

1. Remove tires with power tool. Refer to

WT-39, "Removal and Installation"

.

2. Remove wheel sensor. Refer to

BRC-150, "REAR WHEEL SENSOR : Removal and Installation"

.

3. Remove caliper assembly. Hang caliper assembly in a place where it will not interfere with work. Refer to

BR-64, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

CAUTION:

Never depress brake pedal while brake caliper is removed.

4. Remove disc rotor. If disc rotor cannot be removed, remove as follows.

CAUTION:

• Parking brake completely in the released position.

• Put matching marks (A) on the wheel hub assembly and

the disc rotor before removing the disc rotor.

• Never drop disc rotor.

a. Fix the disc rotor with wheel nuts and remove the adjusting hole

plug.

1.

Rear suspension beam

2.

Parking brake assembly

3.

Hub bolt

4.

Wheel hub assembly (Bearing-inte-
grated type)

5.

Disc rotor

6.

Plug

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JPDIG0203GB

JPDIG0066ZZ
