PCS-24

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

IPDM E/R

IGNITION RELAY MALFUNCTION DETECTION FUNCTION

• IPDM E/R monitors the voltage at the contact circuit and excitation coil circuit of the ignition relay inside it.

• IPDM E/R judges the ignition relay error if the voltage differs between the contact circuit and the excitation

coil circuit.

• If the ignition relay cannot turn OFF due to contact seizure, it activates the tail lamp relay for 10 minutes to

alert the user to the ignition relay malfunction when the ignition switch is turned OFF.

FRONT WIPER PROTECTION FUNCTION

IPDM E/R detects front wiper stop position by a front wiper stop position signal.

When a front wiper stop position signal is in the conditions listed below, IPDM E/R stops power supply to wiper

after repeating a front wiper 10 seconds activation and 20 seconds stop.

NOTE:

This operation status can be confirmed on the IPDM E/R “Data Monitor” that displays “BLOCK” for the item

“WIP PROT” while the wiper is stopped.

STARTER MOTOR PROTECTION FUNCTION

IPDM E/R turns OFF the starter control relay to protect the starter motor when the starter control relay remains

active for 90 seconds.

DTC Index

INFOID:0000000012197162

NOTE:

• The details of time display are as follows.

- CRNT: A malfunction is detected now.

- PAST: A malfunction was detected in the past.

• IGN counter is displayed on FFD (Freeze Frame Data).

- The number is 0 when is detected now.

Front wiper motor

• The status just before activation of fail-safe control is maintained until the ignition switch is turned OFF while

the front wiper is operating at LO or HI speed.

• The wiper is operated at LO speed until the ignition switch is turned OFF if the fail-safe control is activated

while the front wiper is set in the INT mode and the front wiper motor is operating.

• Returns automatically wiper to stop position when ignition switch is turned ON if fail-safe control is activated

while front wiper motor is operated and wiper stop in the other position than stop position.

• The status is held at service position if the fail-safe control is activated while the service position function is

operating.

Front fog lamp

Front fog lamp relay OFF

Daytime running light

Daytime running light relay OFF

Rear window defogger

Rear window defogger relay OFF

Horn

Horn OFF

Ignition relay

The status just before activation of fail-safe is maintained.

Starter motor

Starter control relay OFF

Control part

Fail-safe operation

Voltage judgment

IPDM E/R judgment

Operation

Ignition relay contact

side

Ignition relay excitation

coil side

ON

ON

Ignition relay ON normal

OFF

OFF

Ignition relay OFF normal

ON

OFF

Ignition relay ON stuck

• Detects DTC “B2098: IGN RELAY ON CIRC”
• Turns ON the tail lamp relay for 10 minutes

OFF

ON

Ignition relay OFF stuck

Detects DTC “B2099: IGN RELAY OFF CIRC”

Ignition switch

Front wiper switch

Front wiper stop position signal

ON

OFF

The front wiper stop position signal (stop position) cannot be input for 10 seconds.

ON

The front wiper stop position signal does not change for 10 seconds.

PCS

IPDM E/R

PCS-25

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

- The number increases like 1

→ 2 ··· 38 → 39 after returning to the normal condition whenever IGN OFF →

ON.

- The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

×: Applicable

CONSULT display

Fail-safe

Refer to

No DTC is detected.
further testing
may be required.

U1000: CAN COMM CIRCUIT

×

PCS-31

B2098: IGN RELAY ON CIRC

×

PCS-32

B2099: IGN RELAY OFF CIRC

PCS-34

B209F: STR CUT OFF OPEN

SEC-101

B20A0: STR CUT OFF SHORT

SEC-103

B210B: STR CONT RLY ON CIRC

SEC-105

B210C: STR CONT RLY OFF CIRC

SEC-107

B210D: STARTER RLY ON CIRC

SEC-109

B210E: STARTER RLY OFF CIRC

SEC-111

B210F: INTRLCK/PNP SW ON

SEC-113

B2110: INTRLCK/PNP SW OFF

SEC-115

PCS-26

< WIRING DIAGRAM >

[IPDM E/R]

IPDM E/R

WIRING DIAGRAM

IPDM E/R

Wiring Diagram

INFOID:0000000012197163

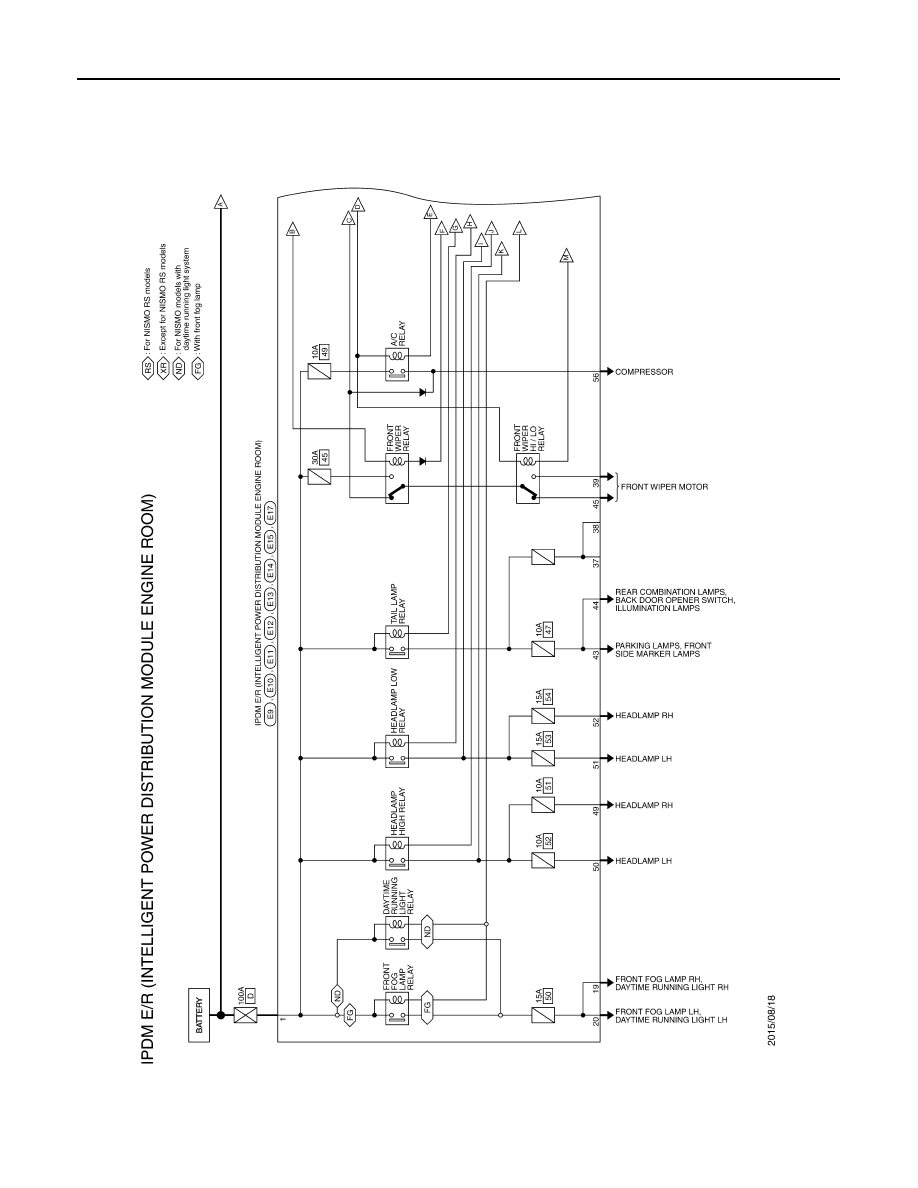

JRMWI5132GB

PCS

IPDM E/R

PCS-27

< WIRING DIAGRAM >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

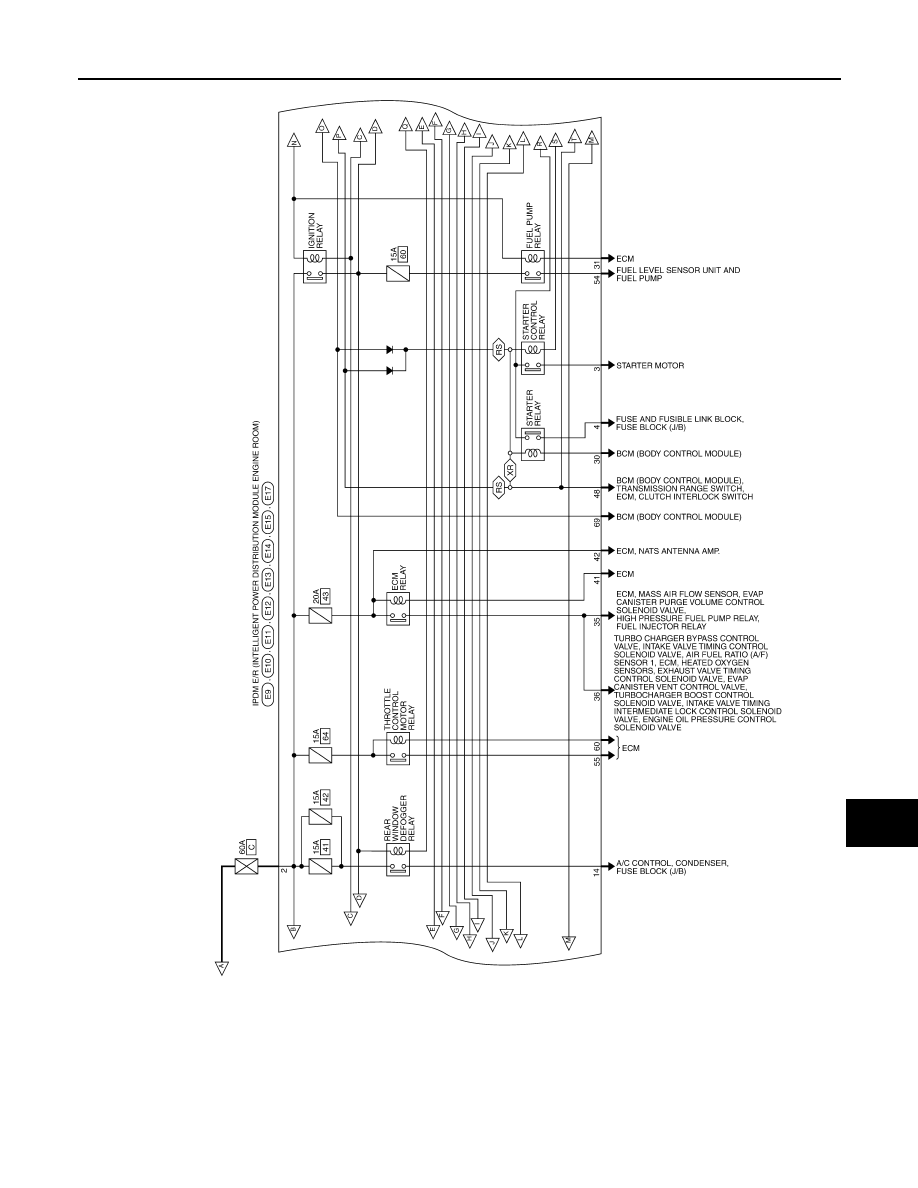

JRMWI5133GB
