MWI-34

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

ENGINE SPEED
[B2267]

• If TCM continuously transmits abnormal engine speed signals for 2 seconds or

more (CVT models).

• If ECM continuously transmits abnormal engine speed signals for 2 seconds or

more (M/T models).

MWI-51,
"Diagnosis
Procedure"

WATER TEMP
[B2268]

If ECM continuously transmits abnormal engine coolant temperature signals for 60
seconds or more.

MWI-52,
"Diagnosis
Procedure"

Display contents of CONSULT

Diagnostic item is detected when...

Refer to

MWI

IPDM E/R

MWI-35

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

IPDM E/R

List of ECU Reference

INFOID:0000000012201318

ECU

Reference

IPDM E/R

PCS-17, "Reference Value"

PCS-23, "Fail-safe"



PCS-24, "DTC Index"



MWI-36

< WIRING DIAGRAM >

METER SYSTEM

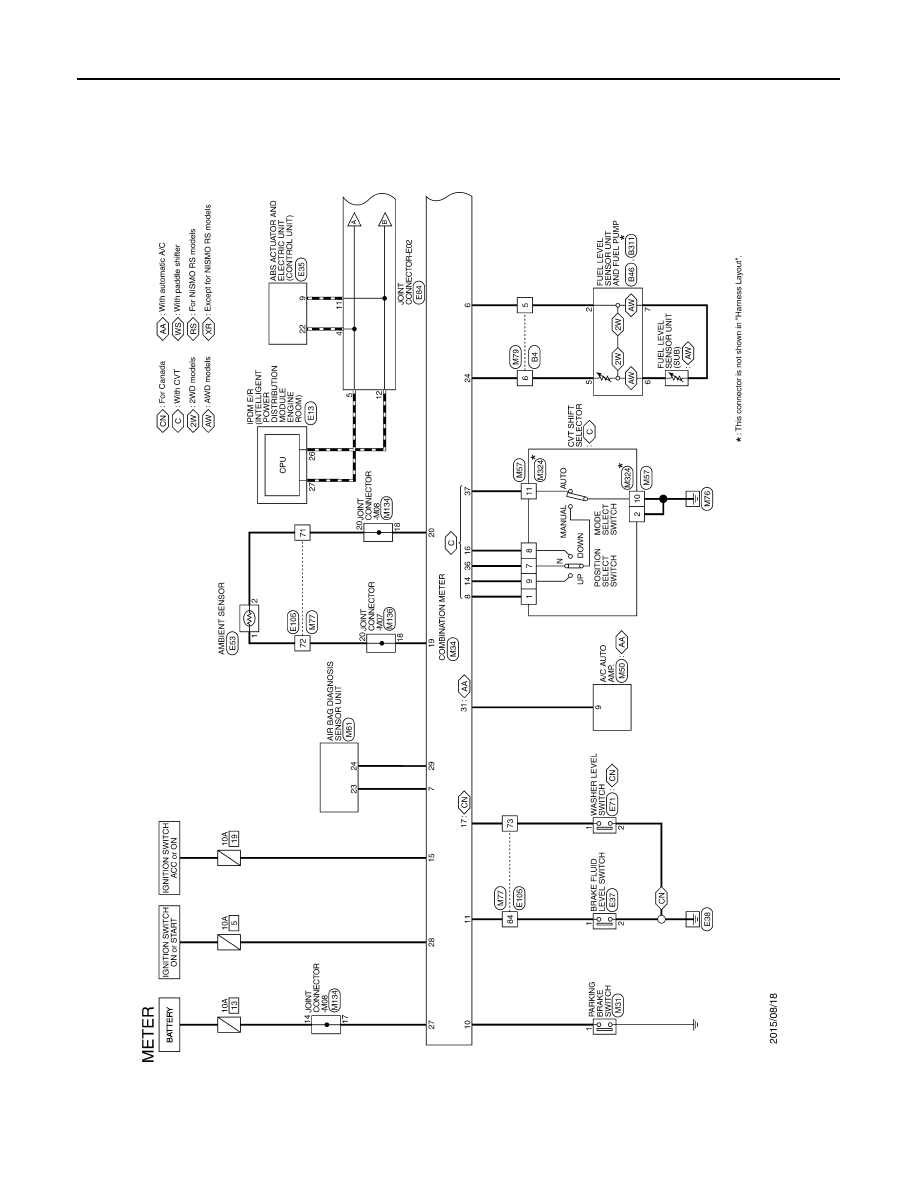

WIRING DIAGRAM

METER SYSTEM

Wiring Diagram

INFOID:0000000012201319

JRNWF0711GB

MWI

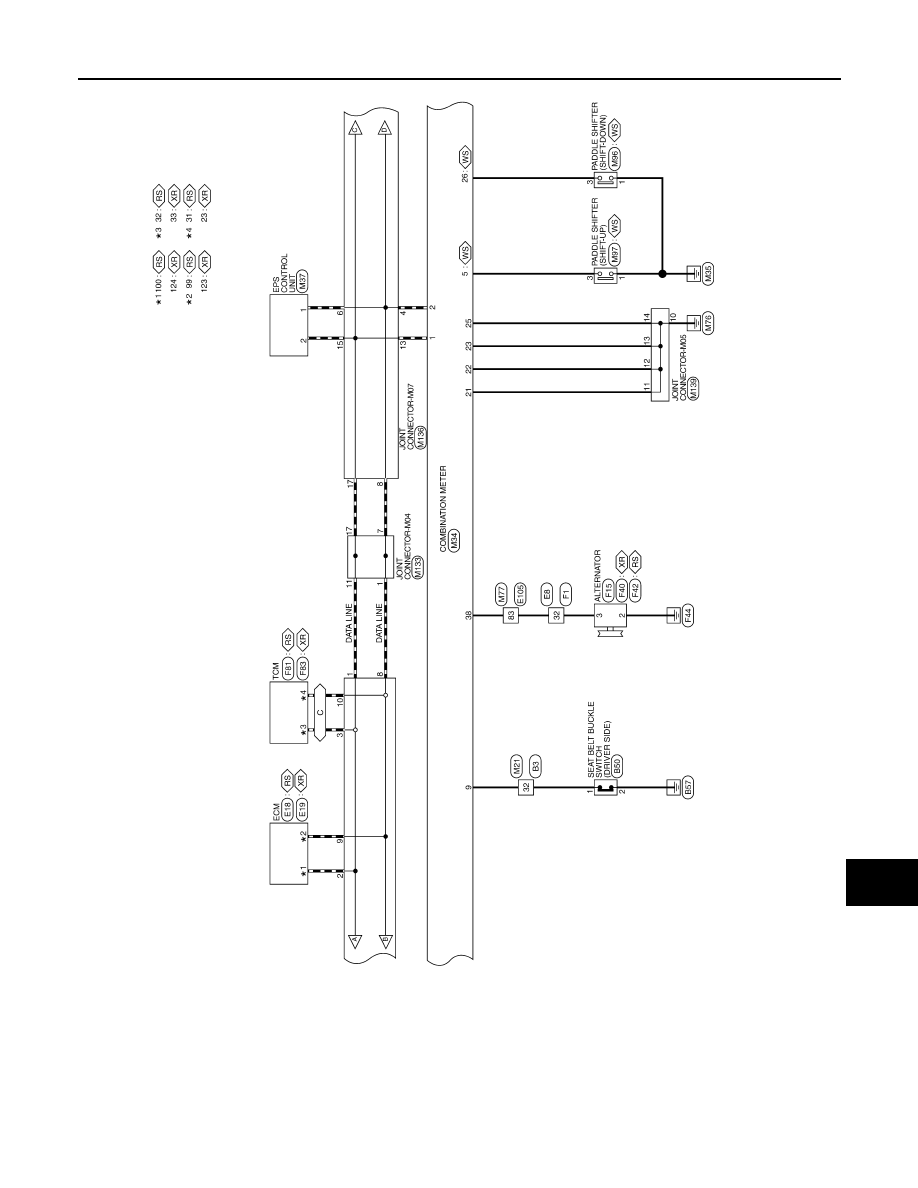

METER SYSTEM

MWI-37

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWF0712GB
