Nissan Juke F15. Manual - part 61

AV-230

< SYMPTOM DIAGNOSIS >

[INTEGRATED CONTROL SYSTEM]

INTEGRATED CONTROL SYSTEM

SYMPTOM DIAGNOSIS

INTEGRATED CONTROL SYSTEM

Symptom Table

INFOID:0000000012202640

Symptoms

Check items

Possible malfunction location/Action to take

Switches are inoperative

All switches do not work.

Perform self-diagnosis of CONSULT.
Refer to

AV-210, "CONSULT Function"

.

Only (one) specified switch does not
work.

Replace multi display unit.
Refer to

AV-231, "Removal and Installation"

.

AV

MULTI DISPLAY UNIT

AV-231

< REMOVAL AND INSTALLATION >

[INTEGRATED CONTROL SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

MULTI DISPLAY UNIT

Exploded View

INFOID:0000000012202641

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000012202642

REMOVAL

Refer to

IP-12, "Exploded View"

.

CAUTION:

• When performing the work, use a shop cloth to protect the parts from damage.

• Always fix the harness clamp in position.

INSTALLATION

Install in the reverse order of removal.

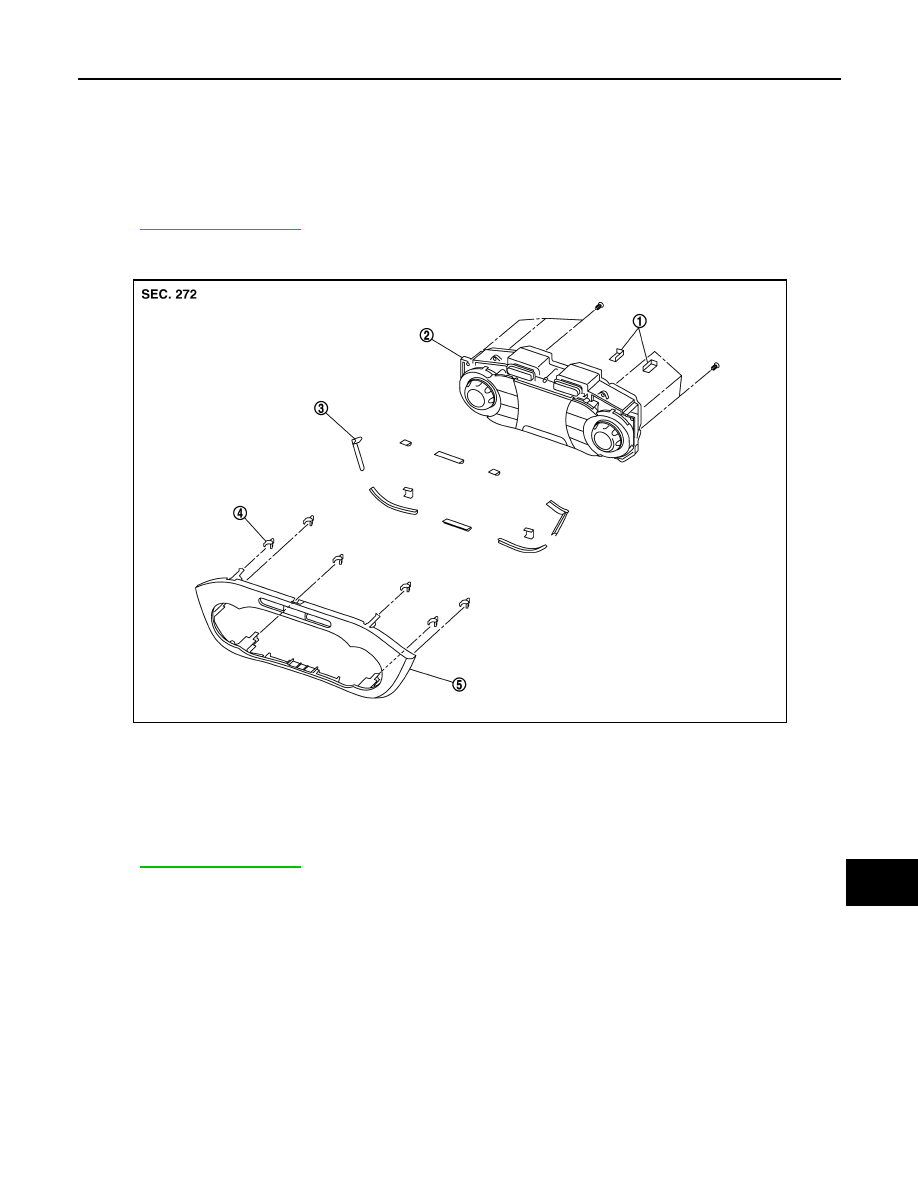

1.

Silencer tape

2.

Multi display unit

3.

Silencer tape

4.

Clip

5.

Control finisher

JPNIA1860ZZ

BCS

BCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

BCS

A

O

P

N
