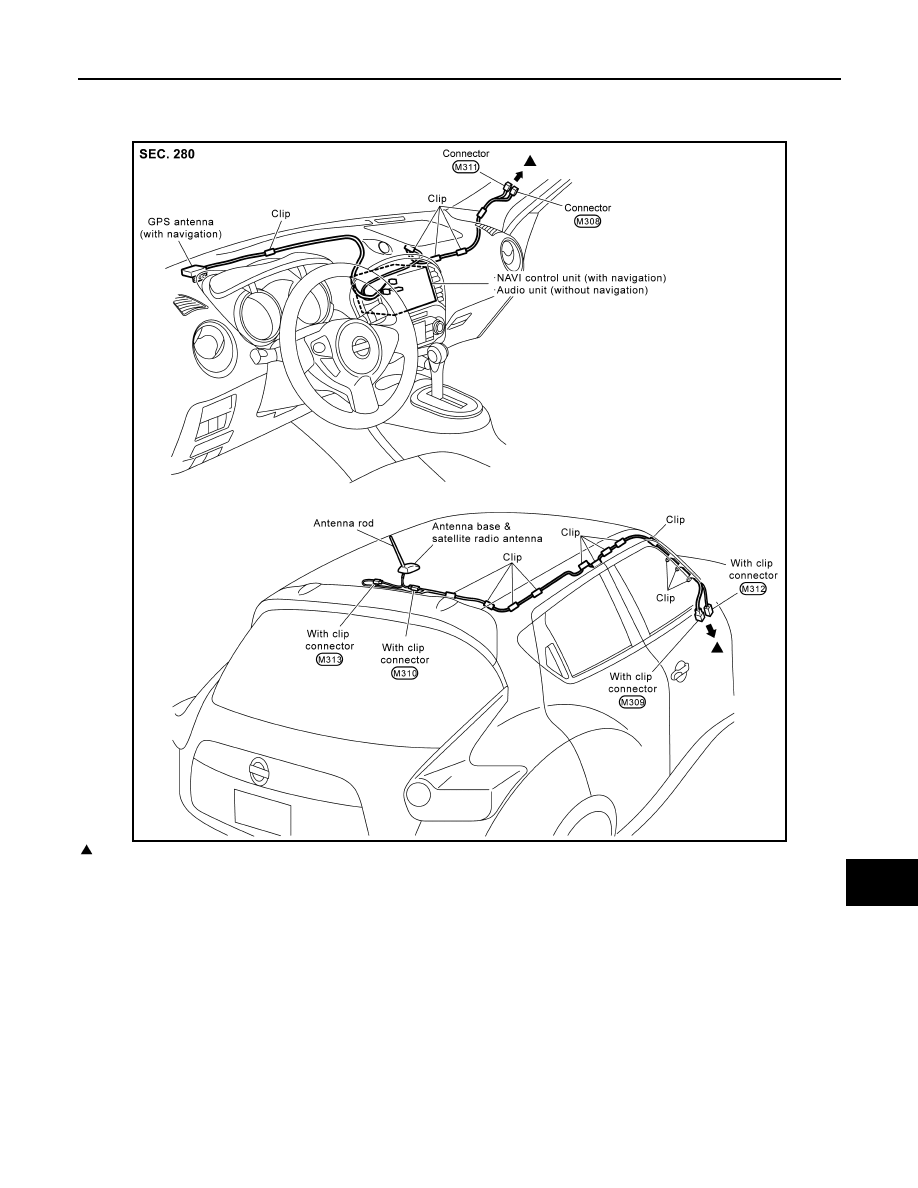

AV-58 < REMOVAL AND INSTALLATION > [DISPLAY AUDIO] ANTENNA BASE ANTENNA BASE Exploded View INFOID:0000000012202486 Removal and Installation INFOID:0000000012202487 REMOVAL 1. Remove headlining. Refer to INT-27, "NORMAL ROOF : Removal and Installation" 30, "SUNROOF : Removal and Installation" 2. Disconnect antenna feeder connector. INSTALLATION Install in the reverse order of removal. CAUTION: If the antenna base mounting nut is tightened looser than the specified torque, then this will lower the sensitivity of the antenna. On the other hand, if the nut is tightened tighter than the specified torque, then this will deform the roof panel. JSNIA3161GB 1. Antenna rod 2. Antenna base : N·m (kg-m, in-fb) |
