Instruments and controls

E08500102485

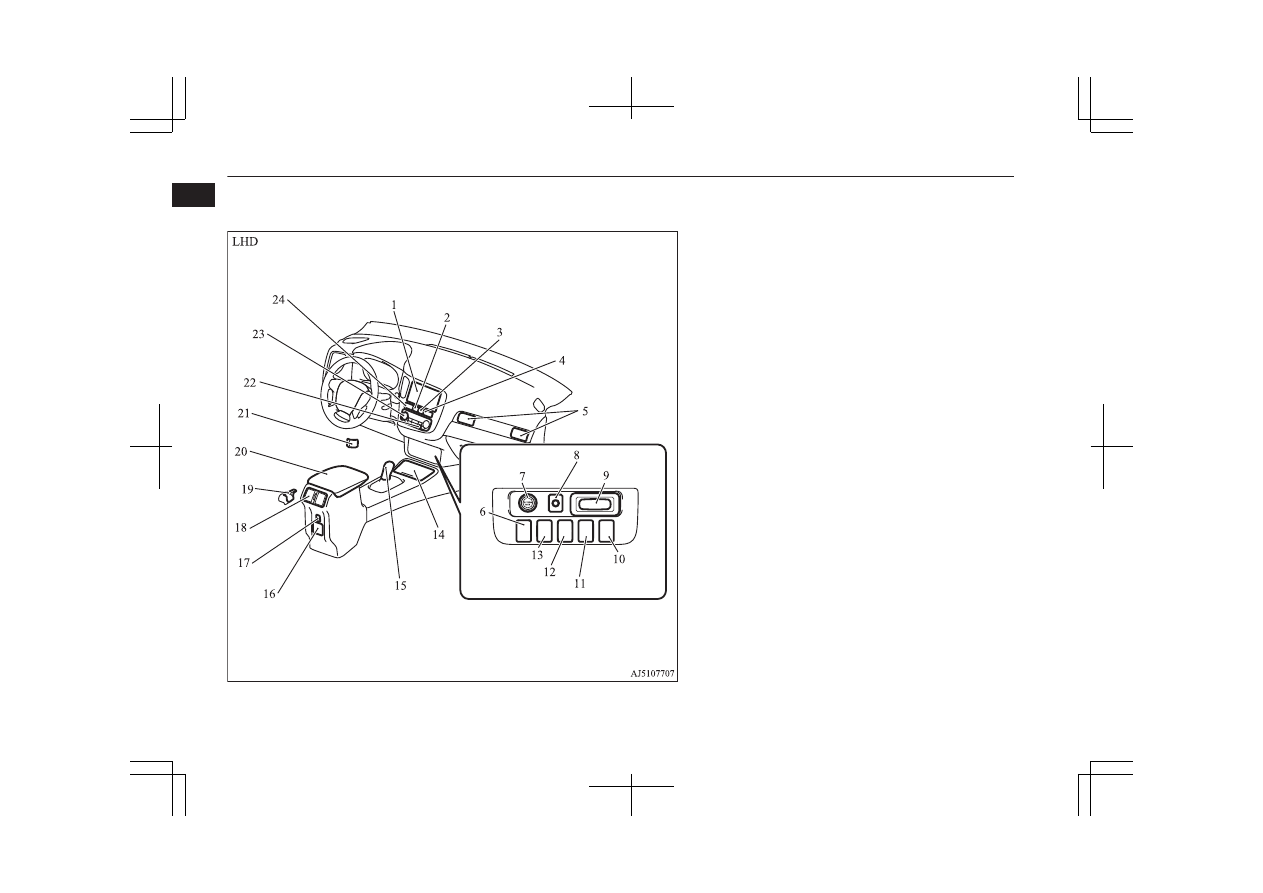

LHD

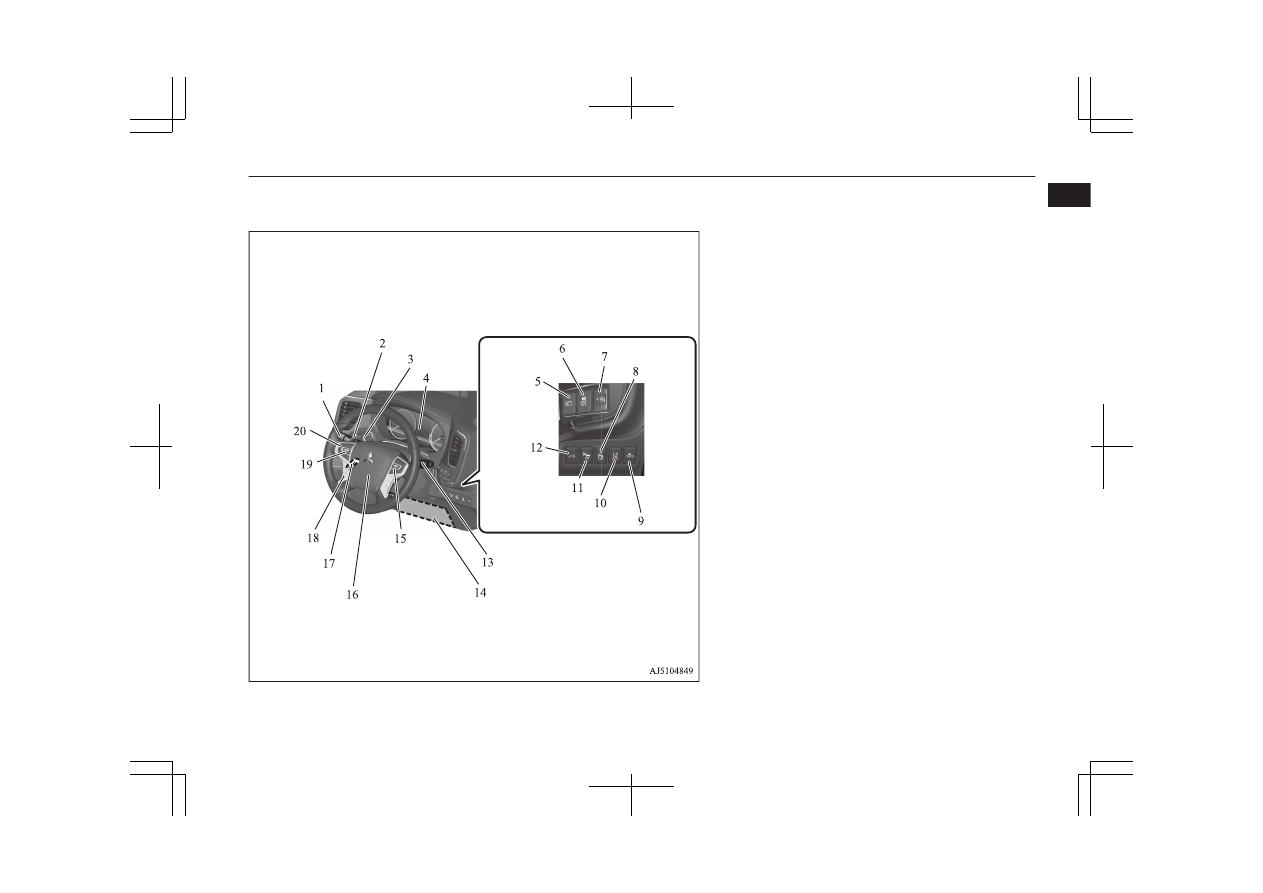

1. Combination headlamps and dipper switch p. 6-59

Automatic High-Beam (AHB) switch* p. 6-62
Turn-signal lever p. 6-67
Front fog lamp switch p. 6-68
Rear fog lamp switch p. 6-69

2. Instruments p. 6-02
3. Steering wheel audio remote control switches p. 8-28

[For DISPLAY AUDIO, Smartphone Link Display Audio and
MITSUBISHI Multi-Communication System (MMCS), refer to
the separate owner’s manual.]

4. Power switch p. 7-11
5. Regenerative braking level selector (paddle type)* p. 7-19
6. Windscreen wiper and washer switch p. 6-69

Rear window wiper and washer switch p. 6-72
Headlamp washer switch p. 6-73

7. Cruise control switches* p. 7-45, 7-55
8. Supplemental restraint system (SRS) - airbag (for driver’s seat)

p. 5-25, 5-29
Horn switch p. 6-77

9. Bluetooth® 2.0 interface* p. 8-51

10. Camera switch* p. 7-112

11. Supplemental restraint system (SRS) - front knee airbag (for driv-

er’s seat) p. 5-25, 5-29

12. Fuses p. 11-16
13. Steering wheel height and reach adjustment lever p. 7-07
14. Driver’s side electric tailgate switch* p. 4-20
15. Lane Depature Warning (LDW) switch* p. 7-88
16. Forward Collision Mitigation System (FCM) and Ultrasonic mis-

acceleration Mitigation System (UMS) ON/OFF switch* p. 7-72

17. Sonar switch* p. 7-99, 7-103
18. Acoustic Vehicle Alerting System (AVAS) OFF switch p. 7-32
19. Headlamp levelling switch* p. 6-66
20. Active stability control (ASC) OFF switch p. 7-44
21. Multi information display switch p. 6-06

Instruments and controls

1-02

OGGE19E1

Overview

1

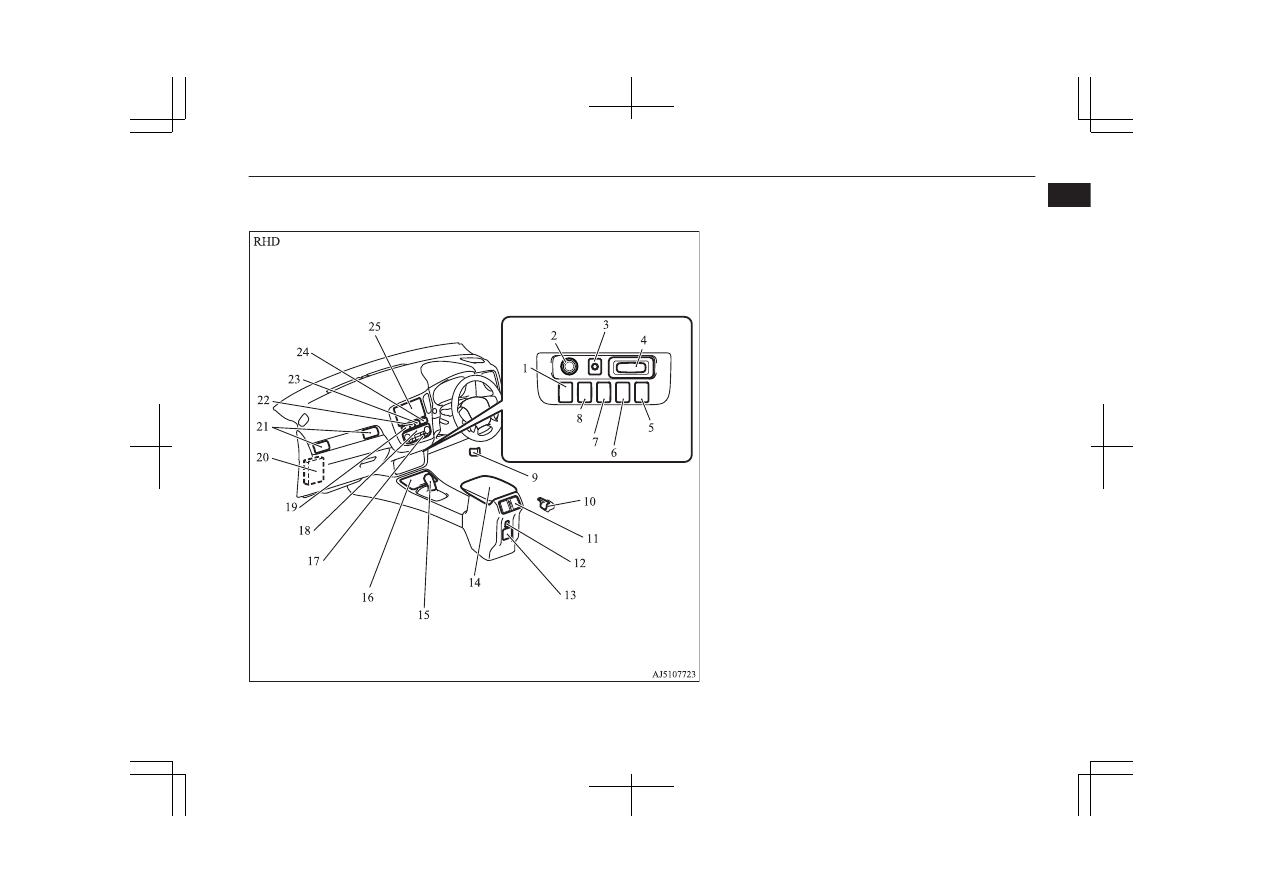

RHD

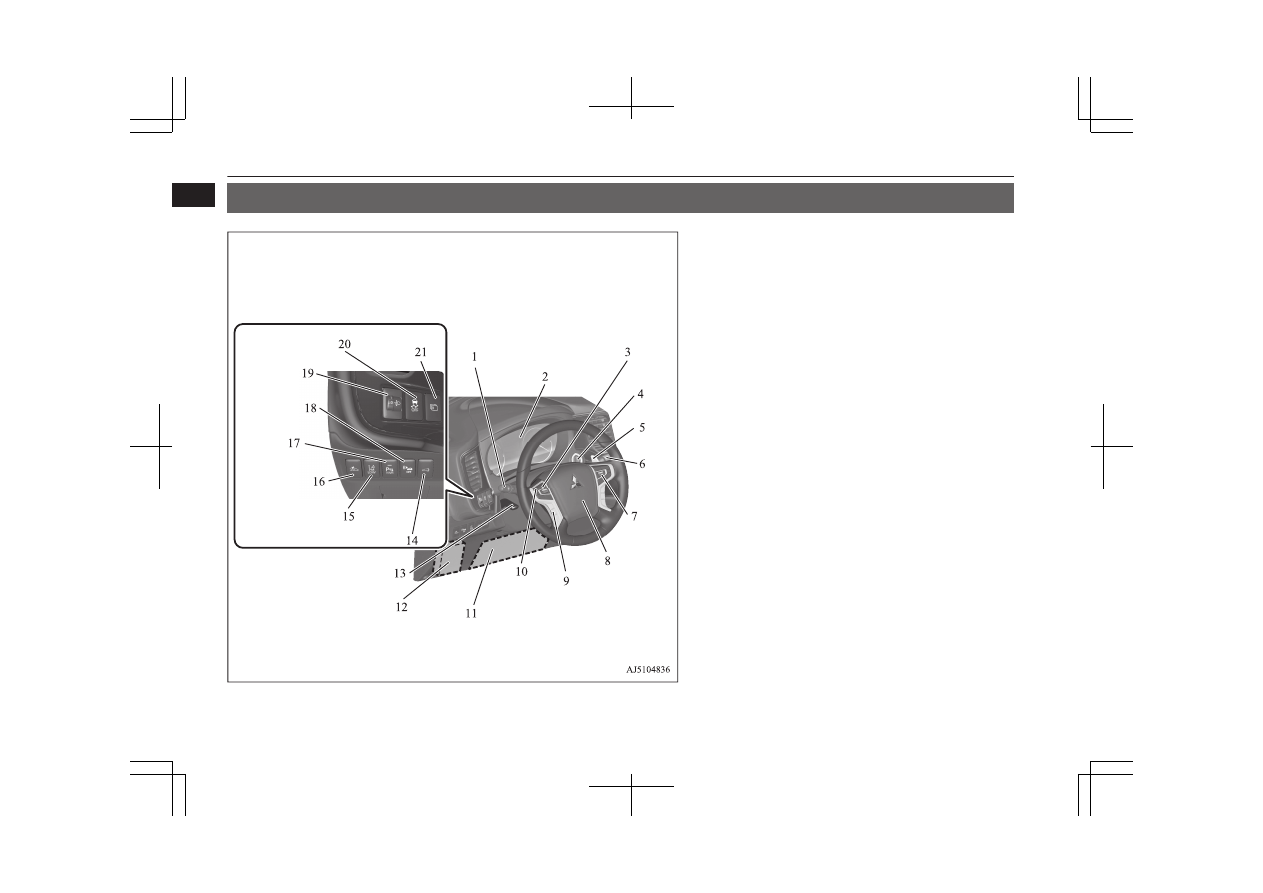

1. Combination headlamps and dipper switch p. 6-59

Automatic High-Beam (AHB) switch* p. 6-62
Turn-signal lever p. 6-67
Front fog lamp switch p. 6-68
Rear fog lamp switch p. 6-69

2. Regenerative braking level selector (paddle type)* p. 7-19
3. Power switch p. 7-11
4. Instruments p. 6-02
5. Multi information display switch p. 6-06
6. Active stability control (ASC) OFF switch p. 7-44
7. Headlamp levelling switch* p. 6-66
8. Sonar switch* p. 7-99, 7-103
9. Forward Collision Mitigation System (FCM) and Ultrasonic mis-

acceleration Mitigation System (UMS) ON/OFF switch* p. 7-72

10. Lane Depature Warning (LDW) switch* p. 7-88

11. Acoustic Vehicle Alerting System (AVAS) OFF switch p. 7-32

12. Driver’s side electric tailgate switch* p. 4-20
13. Windscreen wiper and washer switch p. 6-69

Rear window wiper and washer switch p. 6-72
Headlamp washer switch p. 6-73

14. Supplemental restraint system (SRS) - front knee airbag (for driv-

er’s seat) p. 5-25, 5-29

15. Cruise control switches* p. 7-45, 7-55
16. Supplemental restraint system (SRS) - airbag (for driver’s seat)

p. 5-25, 5-29
Horn switch p. 6-77

17. Steering wheel height and reach adjustment lever p. 7-07
18. Bluetooth® 2.0 interface* p. 8-51
19. Steering wheel audio remote control switches p. 8-28

[For DISPLAY AUDIO, Smartphone Link Display Audio and
MITSUBISHI Multi-Communication System (MMCS), refer to
the separate owner’s manual.]

20. Camera switch* p. 7-112

Instruments and controls

1-03

OGGE19E1

Overview

1

Quick guide

E08500500010

Locking and unlocking the

doors and tailgate

E08500601832

Keyless entry system

Press the remote control switch, and all doors
and the tailgate will be locked or unlocked as
desired.
The remote control switch will operate within
approximately 4 m from the vehicle.
Vehicles  without  MITSUBISHI  Remote
Control

Vehicles  with  MITSUBISHI  Remote  Con-
trol

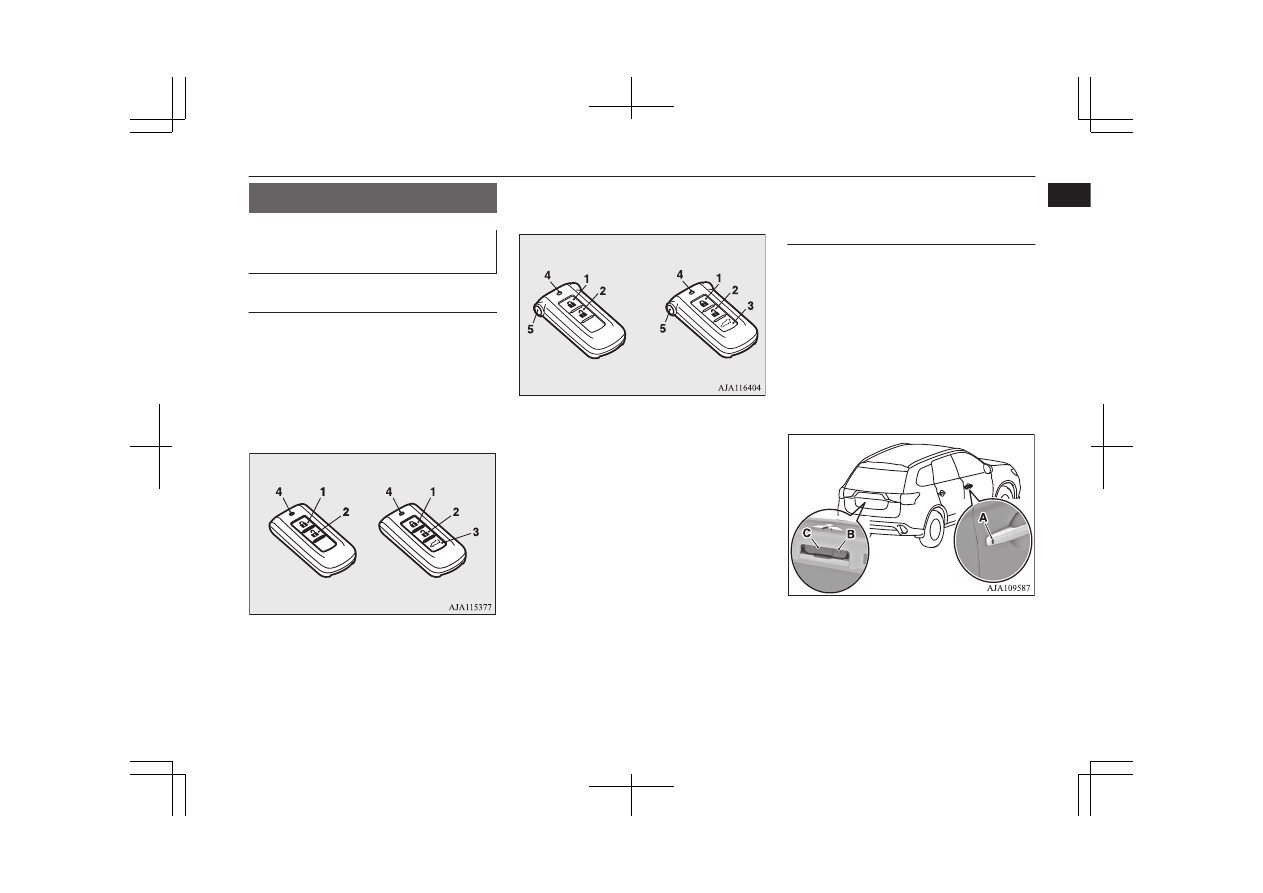

1- LOCK switch
2- UNLOCK switch
3- Electric tailgate switch
4- Indication lamp
5- Charging timer cancel switch*

Refer  to  “Keyless  entry  system”  on  page
4-03.
On vehicles with the electric tailgate, the tail-
gate can be opened automatically if you press
the electric tailgate switch (3) after unlocking
the tailgate.
Refer to “Electric tailgate” on page 4-20.
On  vehicles  with  the  MITSUBISHI  Remote
Control, the charging timer can be cancelled
if you press the charging timer cancel switch
(5) twice within 2 seconds.

Refer  to  “MITSUBISHI  Remote  Control”
on page 3-20

Keyless operation system

When you are carrying the keyless operation
key  and  within  the  operating  range,  if  you
press  the  driver’s  or  front  passenger’s  door
lock/unlock  switch  (A),  or  the  tailgate  lock
switch  (B)  (when  locking)  and  the  tailgate
open switch (C) (when unlocking), the doors
and the tailgate are locked/unlocked.
The operating range is approximately 70 cm
from the driver’s door switch, front passeng-
er’s door switch and the tailgate switches.

Refer  to  “Keyless  operation  system”  on
page 4-06.

Quick guide

1-15

OGGE19E1

Overview

1

Around the driver’s seat

E08500801687

1-Combination headlamps

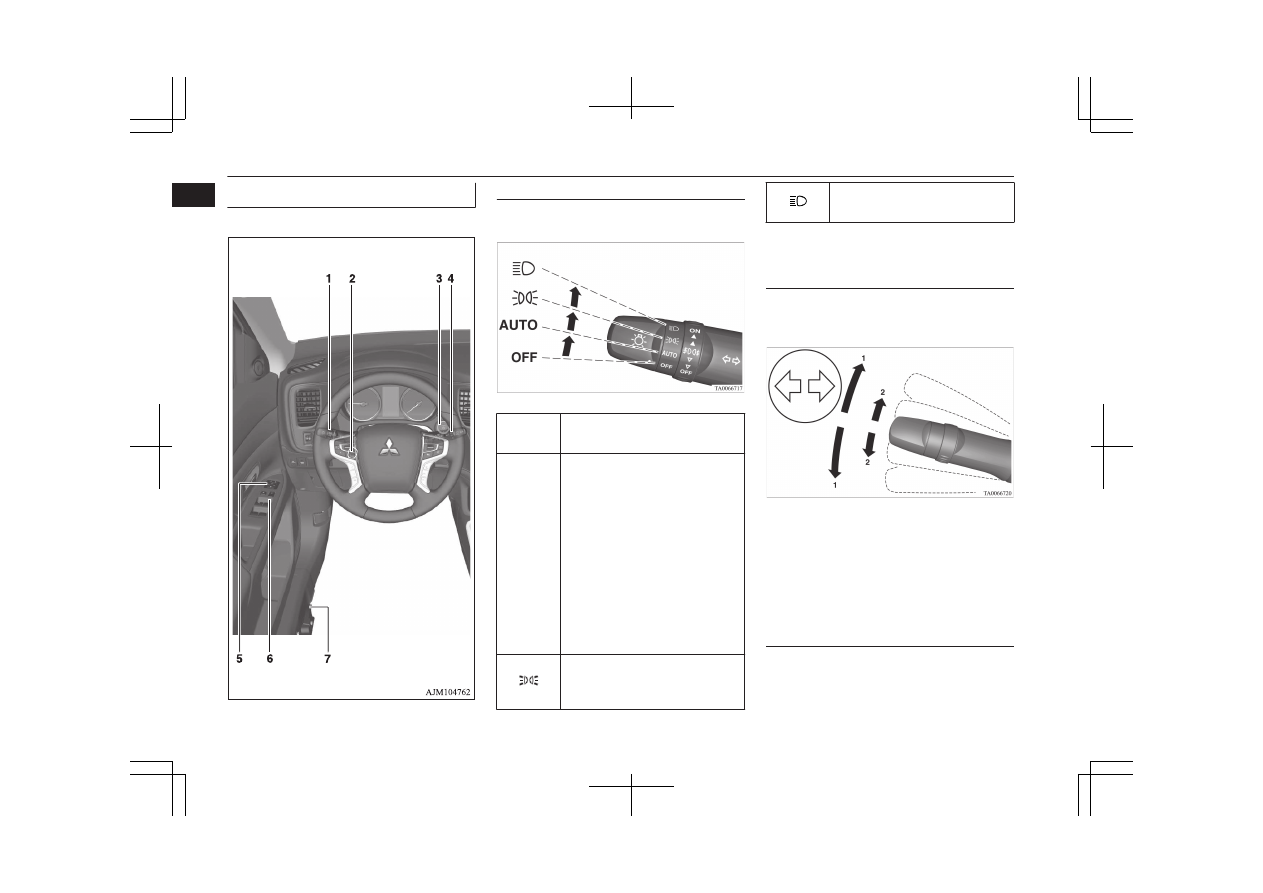

Rotate the switch to turn on the lamps.

OFF

All  lamps  off  {except  for  day-
time running lamps}

AUTO

With  the  operation  mode  of  the
power switch in the “ON” posi-
tion,  head-lamps,  position,  tail,
licence  plate,  instrument  panel
lamps  and  downlight  turn  on
and off automatically in accord-
ance  with  outside  light  level.
{Daytime running lamps will go
on while the tail lamps are off.}
All lamps turn off automatically
when  the  operation  mode  is  put
in OFF.

Position,  tail,  licence  plate,  in-
strument panel lamps and down-
light on

Headlamps  and  other  lamps  go
on

Refer  to  “Combination  headlamps  and
dipper switch” on page 6-59.

1-Turn-signal lever

The turn-signal lamps flash when the lever is
operated

1- Turn-signals
2- Lane-change signals

Refer  to  “Turn-signal  lever”  on  page
6-67.

2-Steering  wheel  height  and

reach adjustment

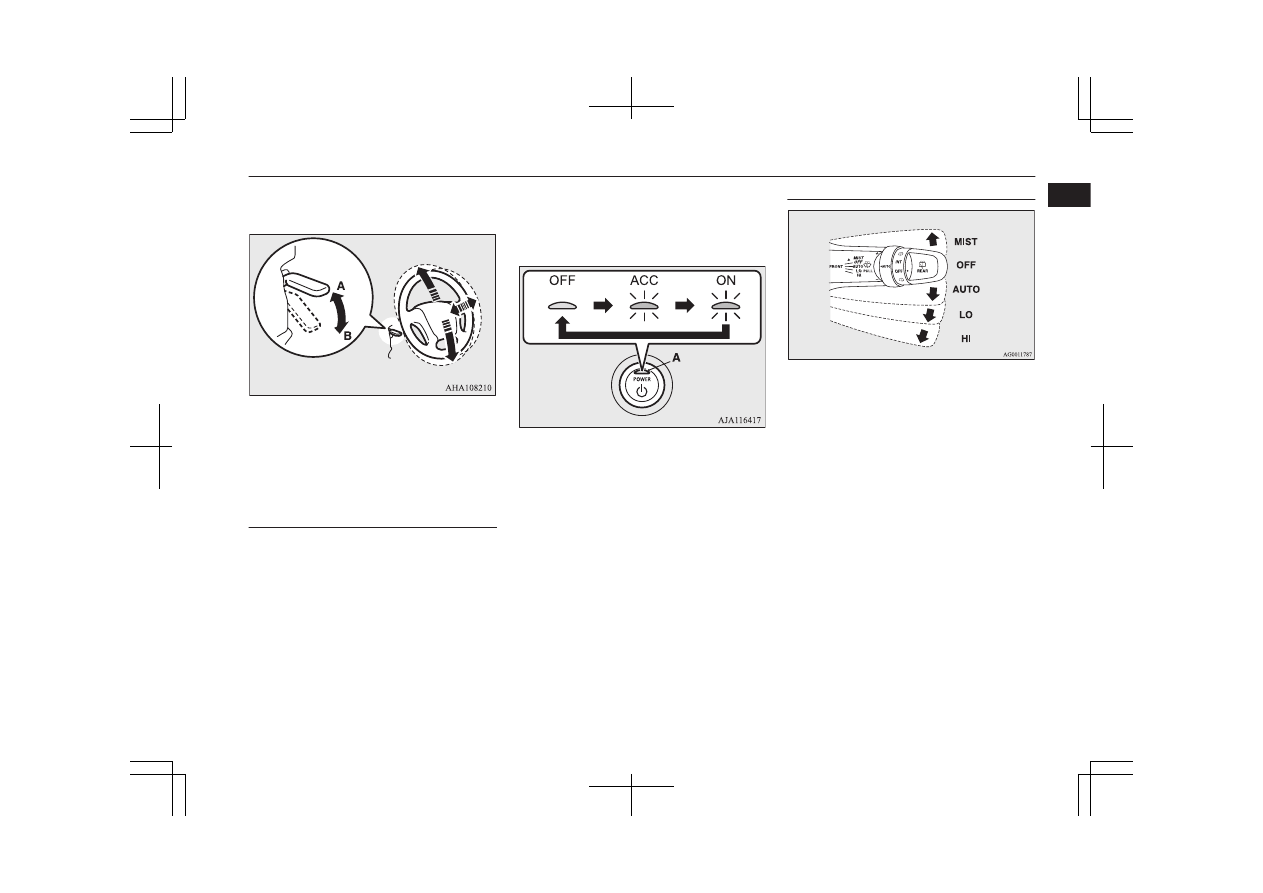

1. Release  the  lever  while  holding  the

steering wheel up.

2. Adjust the steering wheel to the desired

position.

Quick guide

1-16

OGGE19E1

Overview

1

3. Securely lock the steering wheel by pull-

ing the lever fully upward.

A-

Locked

B-

Release

Refer to “Steering wheel height and reach
adjustment” on page 7-07.

3-Power switch

If you are carrying the keyless operation key,
you can start the Plug-in Hybrid EV System.

If  you  press  the  power  switch  without  de-
pressing the brake pedal, you can change the
operation  mode  in  the  order  of  OFF,  ACC,
ON, OFF.

OFF- The indication lamp (A) on the

power switch turns off.

ACC- The indication lamp on the en-

gine switch illuminates orange.

ON- The indication lamp on the pow-

er switch illuminates blue.

Refer to “Power switch” on page 7-11.

4-Wiper and washer switch

MIST- Misting function

The  wipers  will  operate
once.

OFF- Off

AUTO- Auto-wiper control

The  wipers  will  automati-
cally operate depending on
the  degree  of  wetness  on
the windscreen.

LO- Slow

HI- Fast

The  washer  fluid  will  be  sprayed  onto  the
windscreen by pulling the lever towards you.
Refer  to  “Wiper  and  washer  switch”  on
page 6-69.

Quick guide

1-17

OGGE19E1

Overview

1
