Mitsubishi L200 (2018 year). Instruction - part 20

NOTE

When the key was used to start the engine, if
the key is removed while the doors are
closed, the lamp is illuminated and after a
few seconds it goes off.

When  the  keyless  operation  function  was
used  to  start  the  engine,  if  the  operation
mode  is  put  in  OFF  while  the  door  are
closed, the lamp illuminates and after about
15 seconds it goes off. (if so equipped)

The time until the lamp goes off (delayed
off) can be adjusted. For details, please con-
sult a MITSUBISHI MOTORS Authorized
Service Point.

The auto cut-out function cannot be operated
when the room lamp switch is in the “ON”
or “

” position.

Also, this function can be deactivated. For
details, please consult a MITSUBISHI
MOTORS Authorized Service Point.

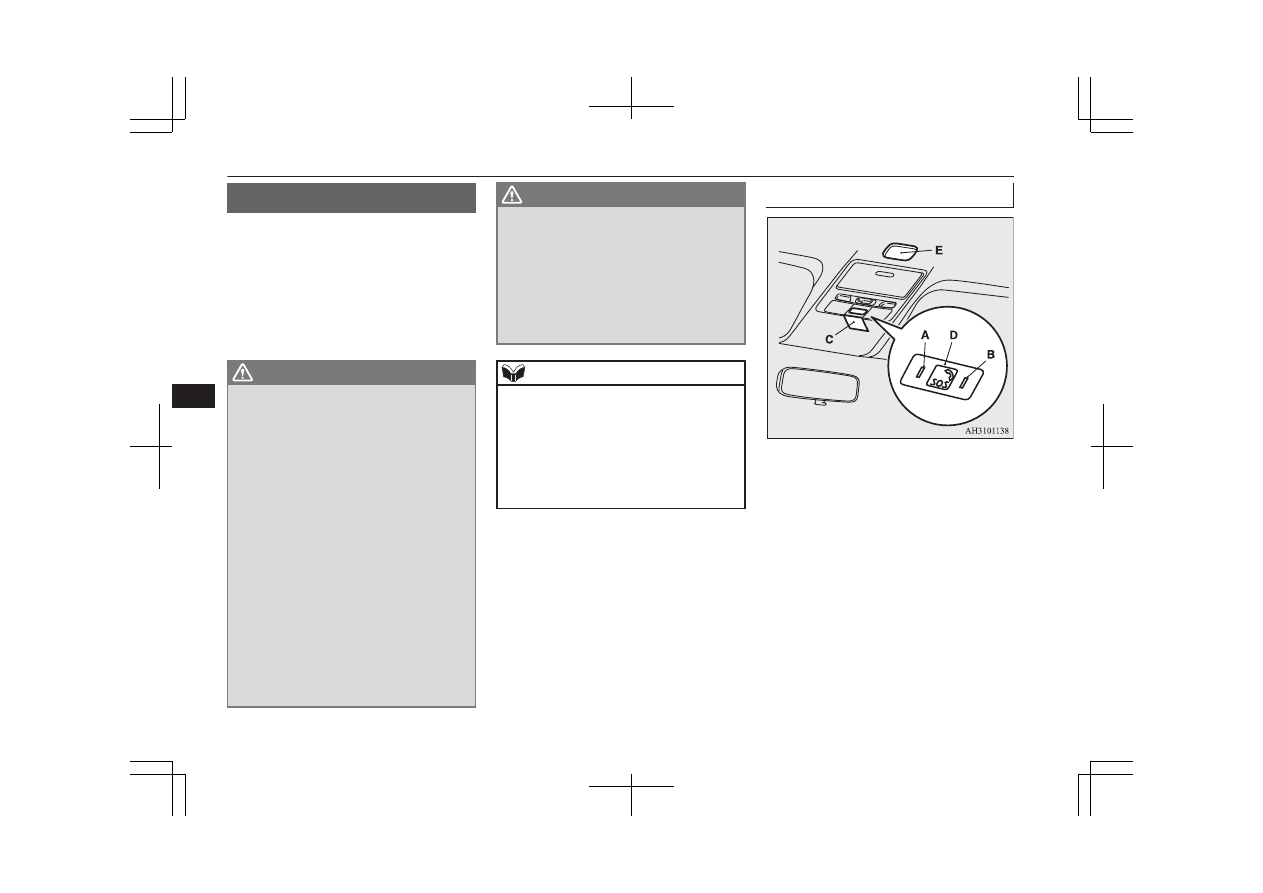

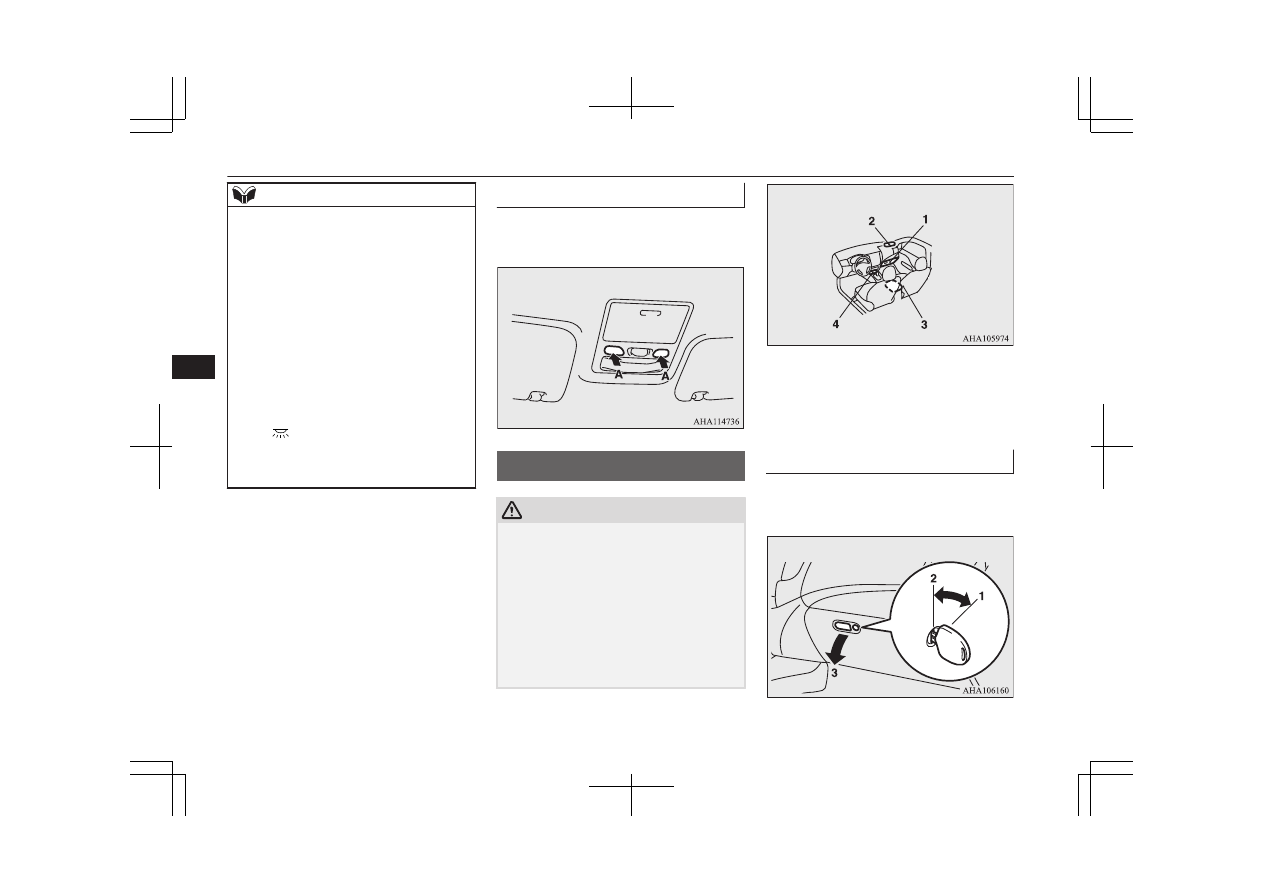

Map lamps*

E00712401237

Push the switch (A) to turn on the lamp. Push
it again to turn it off.

Storage spaces

E00713103192

CAUTION

Never  leave  lighters,  cans  of  carbonated
drink, and spectacles in the cabin when park-
ing  the  vehicle  in  hot  sunshine.  The  cabin
will  become  extremely  hot,  so  lighters  and
other  flammable  items  may  catch  fire  and
unopened  drink  cans  may  rupture.  Also,
spectacles  with  plastic  lenses  or  materials
could deform or crack.

Keep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a
storage space could otherwise cause injuries.

1- Glove box
2- Sunglasses holder*
3- Floor console box
4- Centre console under tray

Glove box

E00717602941

The glove box can be locked and unlocked
using the key.

Storage spaces

7-104

OKTE18E1

For pleasant driving

1- To lock
2- To unlock
3- To open, push the button.

NOTE

When the lamps are illuminated with the
lamp switch in the “

”, “

”, or “AU-

TO” position (vehicles with automatic lamp
control), the glove box lamp illuminates.
Refer to “Combination headlamps and dip-
per switch” on page 5-17.

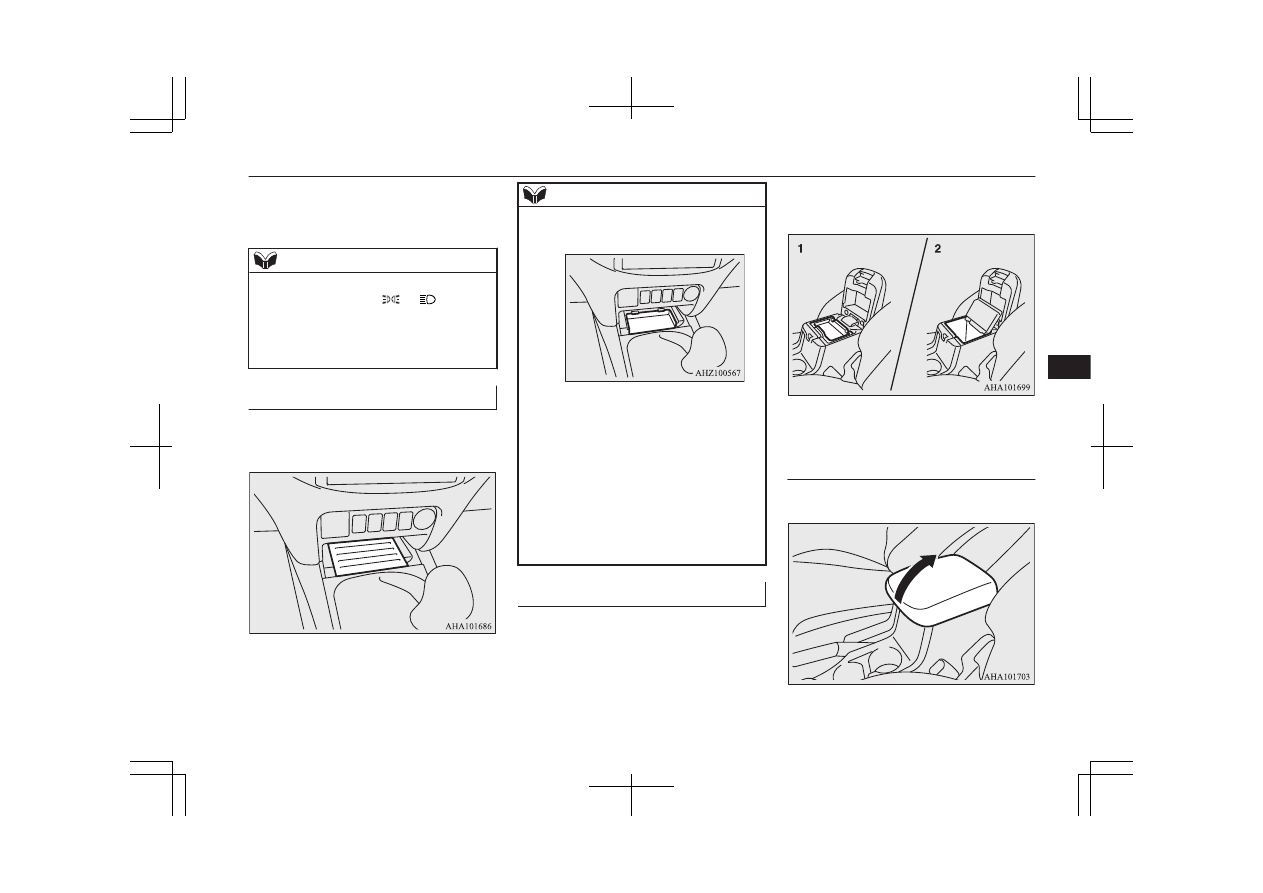

Centre console under tray

E00748600132

The centre console under tray is on the floor
console part.

NOTE

The centre console under tray is removable,
so it is also possible to use as storage space.

When  using  a  commercially  available  USB
connector cable connected to the USB input
terminal or a commercially available HDMI
connector  cable  connected  to  the  HDMI  in-
put  terminal,  if  you  hold  up  extra  length  of
the cable in the storage space and install the
tray,  you  can  use  only  the  necessary  length
cable pulled out from the storage space.

Do not use the centre console under tray as
an ashtray.
This could cause a fire or the tray will be
damaged.

Floor console box

E00723302145

Upper and lower boxes are located inside the
floor console box.

The floor console box can also be used as an
armrest.

1- Upper box
2- Lower box

Upper box

To open the upper box, raise the lid.

Storage spaces

7-105

OKTE18E1

For pleasant driving

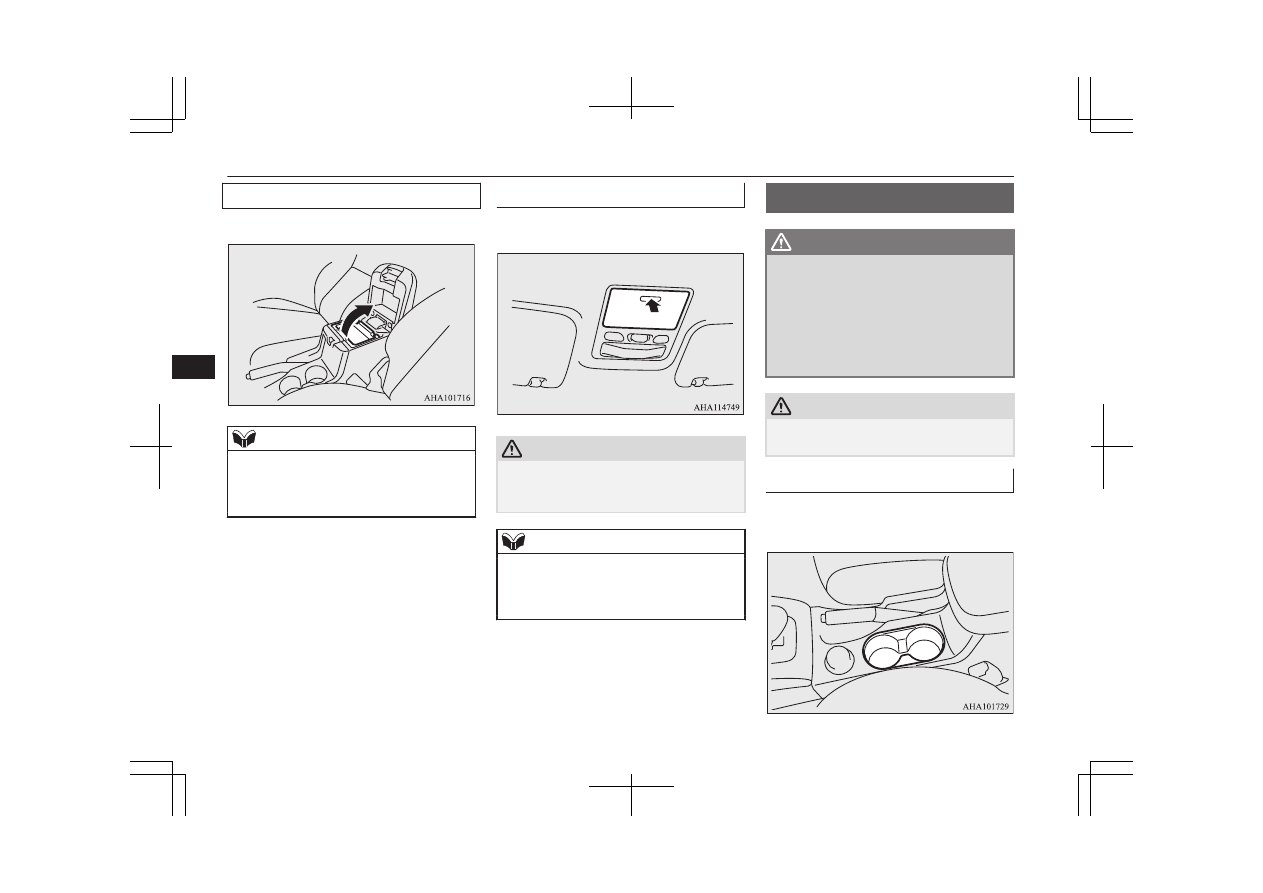

Lower box
To open the lower box, raise the upper box.

NOTE

When opening or closing the lid, be careful
not to trap hands.

The upper box can be removed and use as a
box.

Sunglasses holder*

E00718601462

To open, push the lid.

CAUTION

The holder should not be used to store any-
thing heavier than sunglasses. These objects
could drop out.

NOTE

The holder may not be able to accomodate
every possible size and shape of sunglasses;
it is advisable to check compatibility before
use.

Cup holder

E00714502268

WARNING

Do not spray water or spill beverages in-
side  the  vehicle.  If  the  switches,  wires  or
electrical  components  become  wet,  they
could malfunction or cause a vehicle fire.
If  you  accidentally  spill  a  beverage,  wipe
up  as  much  liquid  as  possible  and  imme-
diately consult a MITSUBISHI MOTORS
Authorized Service Point.

CAUTION

Do not drink beverages while driving. This
is distracting and could cause an accident.

For the front seat

The cup holder is located between the front
seats.

Cup holder

7-106

OKTE18E1

For pleasant driving

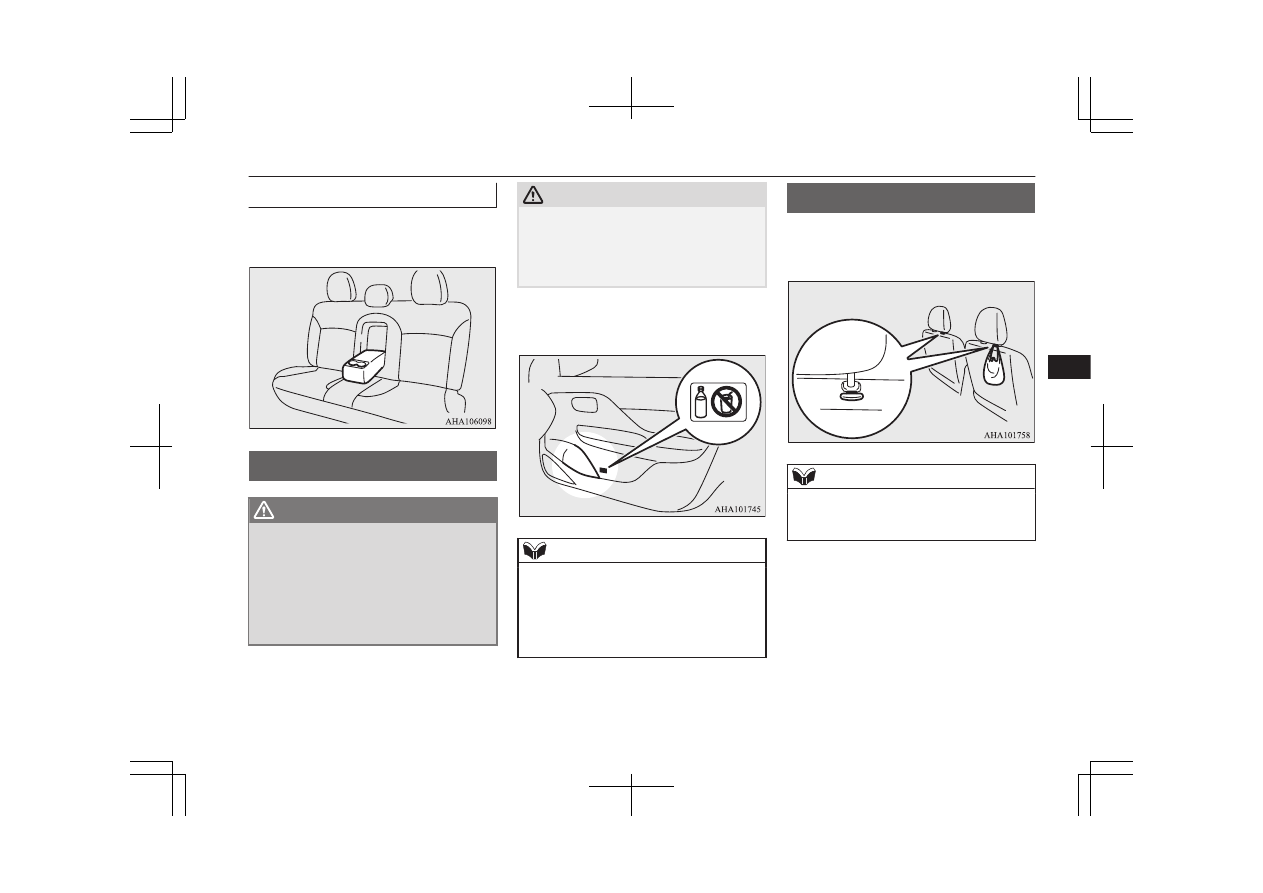

For the rear seat

E00716901605

In order to use the cup holder, allow the arm-
rest to drop down.

Bottle holder

E00718201468

WARNING

CAUTION

Do not drink beverages while driving. This
is distracting and could cause an accident.

Drinks could be spilled by the vibration and
jolts while driving. If the spilt drink is very
hot, you could be burnt.

The bottle holders are provided at both sides
of front and rear doors (if so equipped).

NOTE

Do not store cup or drink can in the bottle
holder.

Tightly close the cap on drink bottles before
storing them.

Some bottles may be too big or the wrong
shape to fit in the holder.

Convenient hook*

E00732901339

Light items of luggage can be hung from the
hook.

NOTE

Do not hang heavy luggage (more than
about 4 kg) on the hook.
Doing so could cause damage to the hook.

Bottle holder

7-107

OKTE18E1

For pleasant driving

Assist grip

E00732801400

These grips are to support the body by hand
while seated in the vehicle.

CAUTION

Do not use the assist grips when getting into
or out of the vehicle. The assist grips could
detach causing you to fall.

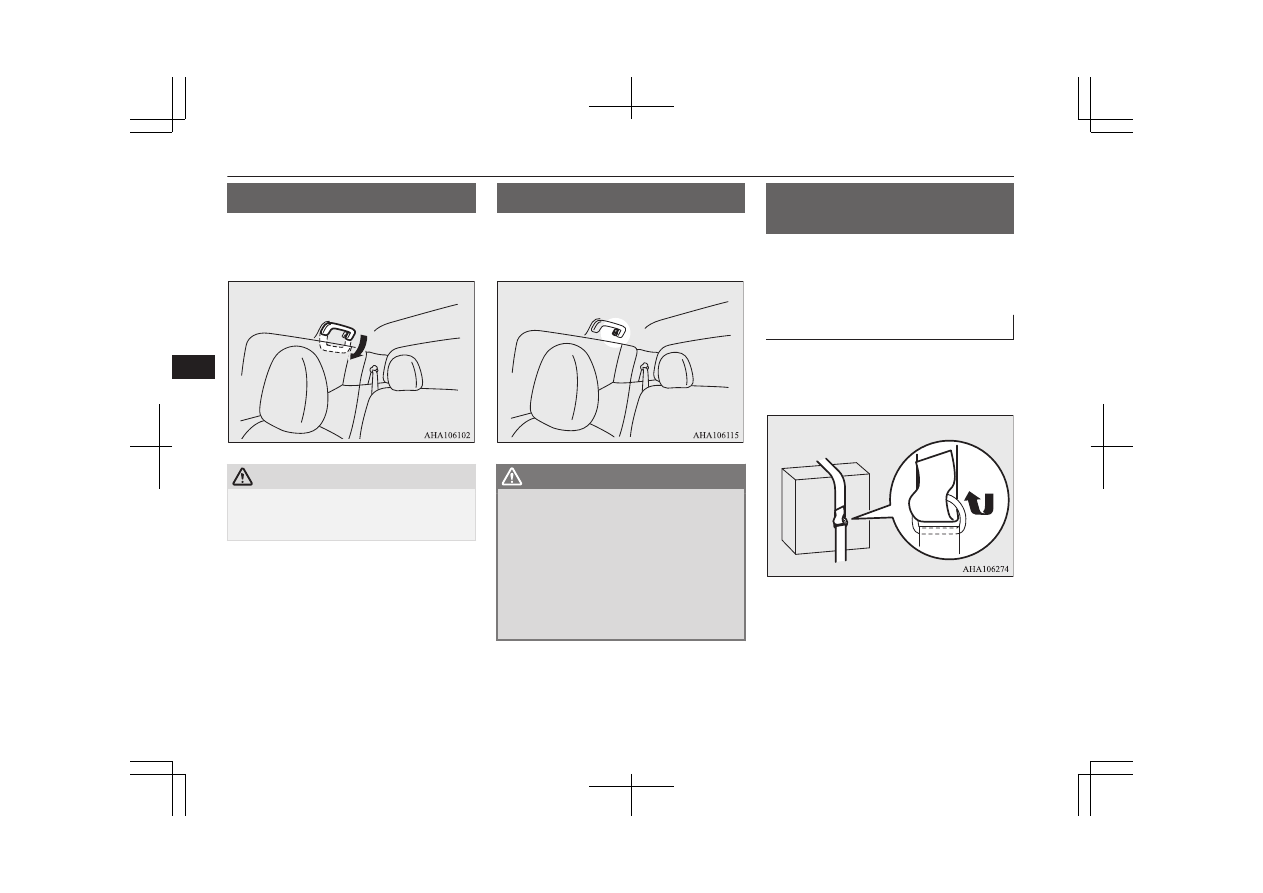

Coat hook*

E00725601682

There is a coat hook on the rear seat assist
grip.

WARNING

Do not put a hanger or any heavy or poin-
ted object on the coat hook. If the curtain
airbag was activated, any such item could
be  propelled  away  with  great  force  and
could prevent the curtain airbag from in-
flating correctly. Hang clothes directly on
the  coat  hook  (without  using  a  hanger).
Make  sure  there  are  no  heavy  or  sharp
objects  in  the  pockets  of  clothes  that  you
hang on the coat hook.

First-aid kit and warning
triangle securing bands*

E00717201139

A first-aid kit and a warning triangle can be
secured with the band(s) installed in the illus-
trated position.

Single cab, Double cab

The wall behind the seat is provided with a
band for securing a first-aid kit and a warning
triangle.

Assist grip

7-108

OKTE18E1

For pleasant driving

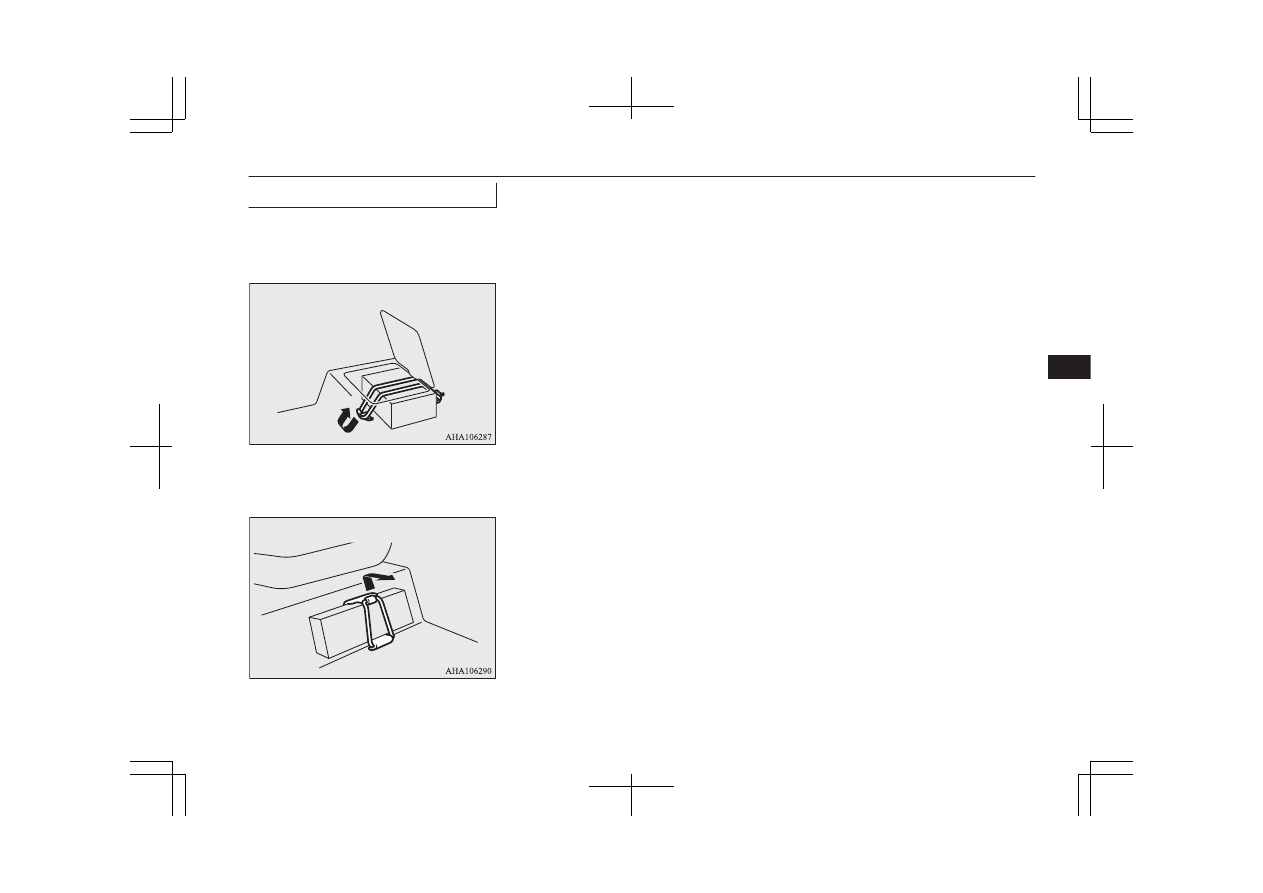

Club cab

A band for securing a first-aid kit is installed
under the floor on the left-hand side of the
rear seat.

A band for securing a warning triangle is in-
stalled left under the rear seat.

First-aid kit and warning triangle securing bands*

7-109

OKTE18E1

For pleasant driving

OKTE18E1

ERA-GLONASS*...............................................................................8-02
If the vehicle breaks down.................................................................. 8-07
If the operation mode cannot be changed to OFF (vehicles

equipped with the keyless operation system)................................. 8-07

For emergencies

OKTE18E1

ERA-GLONASS*

E00804800050

ERA-GLONASS is a system designed to re-
duce  the  severity  of  accidents.  The  location
and  vehicle  information  is  transmitted  from
the  system  to  the  emergency  call  centre  in
case of an accident or sudden illness, and the
emergency  call  centre  arranges  for  despatch
of emergency vehicles as required.

WARNING

In the country or area where there is no
available emergency call centre of the
ERA-GLONASS, or where the radio wave
of the emergency call cannot be transmit-
ted or received normally, the system does
not operate. In this case, directly arrange
an emergency vehicle or road service with
a cellular phone, etc.

If an emergency occurs and you notice a
fuel smell or bad smell, do not stay inside
the vehicle and escape to a safe place im-
mediately.

While waiting for the rescue after the
emergency call, take action to prevent sec-
ondary accidents such as a rear end colli-
sion with the following vehicle, and escape
to a safe place.

In the following cases, directly arrange an
emergency vehicle or road service with a
cellular phone, etc.

•

When the system does not operate by
failing because of collision, etc.

WARNING

•

When the vehicle is in a place where ra-
dio  waves  cannot  be  transmitted  and
received.  (for  example,  indoor,  a  base-
ment  parking  area,  mountainous  area,
inside a tunnel, etc.)

•

When the line to the emergency call
centre is occupied and the call cannot
be connected to the emergency call cen-
tre.

NOTE

This system reports to the emergency call
centre, but does not directly arrange an
emergency vehicle or pass to the road serv-
ice.

This  system  helps  to  maken  an  emergency
call  for  a  traffic  accident  or  sudden  illness,
but  does  not  have  a  function  to  protect  the
occupants.

Flow of the emergency call

ERA-GLONASS*

8-02

OKTE18E1

For emergencies

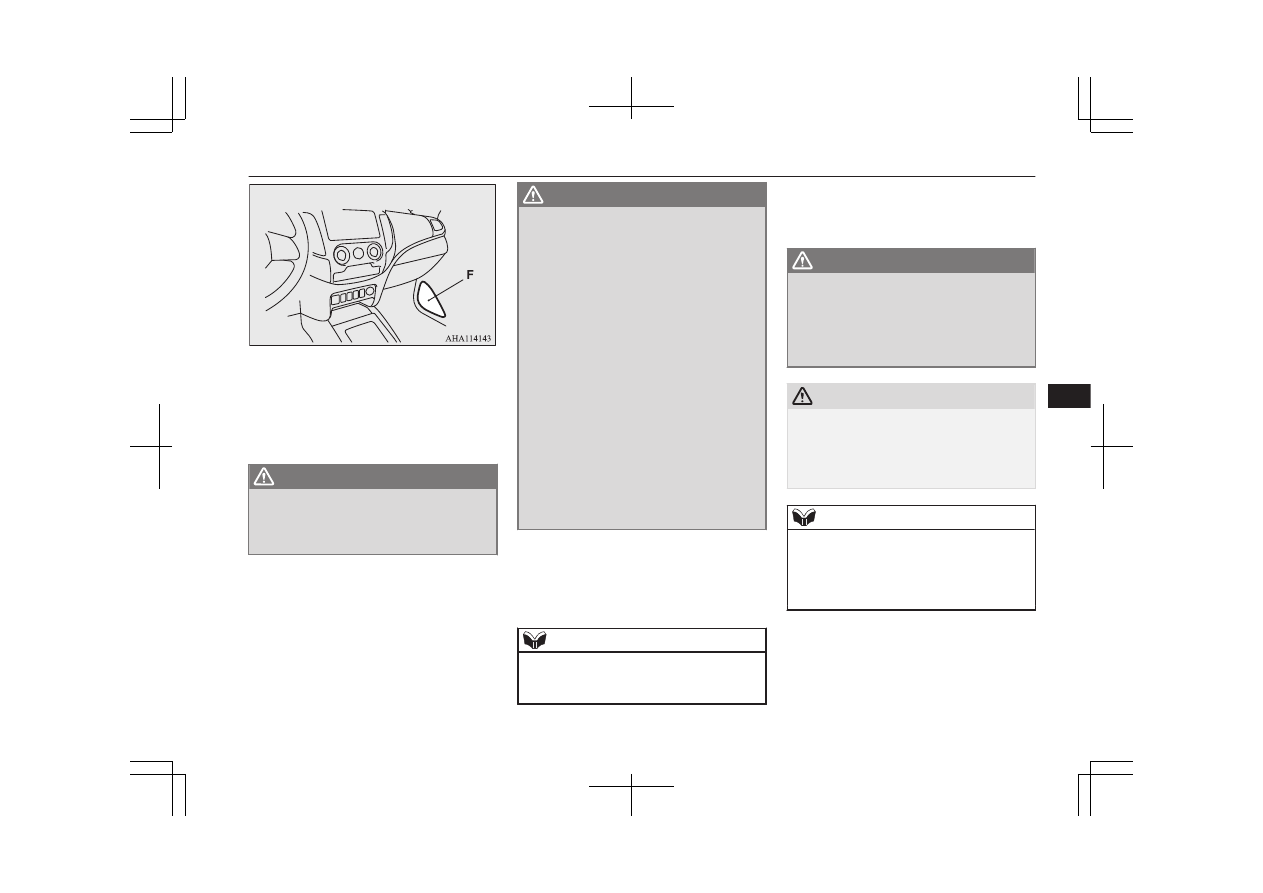

A- Red lamp

B- Green lamp
C- Cover

D- SOS switch

E- Microphone

F- Door speaker (only front passenger side)

WARNING

Do not remove or install the above parts.
This can cause failure of contact or equip-
ment, and the system may not operate
normally.

1. After setting the ignition switch or the

operation mode to “ON”, the red lamp
(A) and the green lamp (B) illuminate
for approximately 10 seconds. When ap-
proximately 10 seconds have elapsed af-
ter the lamps extinguish, the system is in
the standby state.

WARNING

If the red lamp and/or the green lamp do
not  illuminate  after  setting  the  ignition
switch  or  the  operation  mode  to  “ON”,
there  is  a  possible  failure  in  the  system.
Have  the  system  inspected  by  a
MITSUBISHI

MOTORS

Authorized

Service Point immediately.

If the red lamp remains illuminated or il-
luminates  again  after  approximately  20
seconds has elapsed after setting the igni-
tion  switch  or  the  operation  mode  to
“ON”,  there  is  a  possible  failure  in  the
system or the battery for exclusive use of
the  ERA-GLONASS  may  be  exhausted.
The battery life is approximately 3 years.
Have  the  system  inspected  or  the  battery
replaced  by  a  MITSUBISHI  MOTORS
Authorized Service Point immediately.

When  the  system  is  not  in  the  standby
state,  the  system  does  not  operate.  When
you  drive,  make  sure  to  check  that  the
system is in the standby state.

2. The system operates as follows.

[Automatic Report]
When the vehicle receives an impact
above a certain level.

NOTE

Depending on the level of impact or the an-
gle of the collision, the system may not op-
erate.

[Manual Report]
When you open the cover (C) and press
the SOS switch (D).

WARNING

Before  pressing  the  SOS  switch,  stop  the
vehicle  in  a  safe  place.  If  you  operate  it
while  driving,  your  attention  to  the  sur-
rounding  circumstances  becomes  insuffi-
cient, enough to cause an unexpected acci-
dent.

CAUTION

Do  not  open  the  cover  except  when  you
press  the  SOS  switch.  You  may  press  the
SOS  switch  by  mistake.  In  addition,  if  the
cover is opened while driving, the cover can
cause injury in case of an emergency.

NOTE

Do not press the SOS switch except in case
an emergency such as an accident or sudden
illness. When an emergency vehicle, etc. is
despatched for mischief, the applicable cost
may be charged.

3. The green lamp blinks and the system

calls the emergency call centre.

ERA-GLONASS*

8-03

OKTE18E1

For emergencies

WARNING

If the red lamp illuminates as follows, di-
rectly arrange an emergency vehicle or
road service with a cellular phone, etc.

•

When the red lamp remains illumina-
ted. (There is a possible failure in the
system.)

•

When the red lamp illuminates for 60
seconds. (The vehicle may be in a place
where radio waves cannot be transmit-
ted and received.)

4. The green lamp blinks slowly, and the

location and vehicle information is trans-
mitted to the emergency call centre.

5. When the green lamp changes from a

blinking state to an illumination state

and the buzzer sounds once, a conversa-
tion with an operator of the emergency
call centre is available.

WARNING

Do  not  replace  the  speakers.  If  they  are
replaced, the buzzer sound or the voice of
the operator at the emergency call centre
may  not  be  audible.  If  the  speakers  need
to be replaced due to a failure etc., we rec-
ommend  you  to  consult  a  MITSUBISHI
MOTORS Authorized Service Point.

An  error  may  occur  between  the  actual
report point and the point reported to the
emergency  call  centre.  Mutually  confirm
the  report  point  and  the  object  through
the  phone  call  with  the  operator  of  the
emergency call centre.

NOTE

If the vehicle side microphone (E) and/or the
speakers fail, you cannot talk with the opera-
tor of the emergency call centre.

A call cannot be disconnected from the vehi-
cle side.

6. The emergency call centre arranges for

despatch of the emergency vehicle as re-
quired.

Indicator list

Situation

Indication lamp

Cause

Solution

Red lamp

Green lamp

When setting the ignition
switch or the operation
mode to “ON”

Illuminates (for ap-
proximately 10 sec-
onds)

The system check is in progress.

Wait for a while.
The indication lamps extinguish
when the system check is com-
plete.
If the red lamp and/or the green
lamp do(es) not illuminate, there
is a possible failure in the system.
In this case, immediately have the
system inspected at a
MITSUBISHI MOTORS Author-
ized Service Point.

ERA-GLONASS*

8-04

OKTE18E1

For emergencies

Situation

Indication lamp

Cause

Solution

Red lamp

Green lamp

After approximately 20
seconds after setting the
ignition switch or the oper-
ation mode to “ON”

Extinguishes

The system works normally.

−

Illuminates

Extinguishes

There is a possible failure in the
system or the battery may be ex-
hausted.

Immediately have the system in-
spected at a MITSUBISHI
MOTORS Authorized Service
Point.

While the emergency call
is activated

Extinguishes

Blinks (at a 0.5-sec-
ond interval)

The system calls the emergency
call centre.

−

Extinguishes

Blinks (at a 2-second
interval)

The system transmits the location
and vehicle information to the
emergency call centre.

−

Extinguishes

Illuminates

A conversation with an operator
of the emergency call centre is
available.

Mutually confirm the details of
the emergency call with the oper-
ator of the emergency call centre.
If the green lamp does not extin-
guish even after the emergency
call ends, have the system inspec-
ted at a MITSUBISHI MOTORS
Authorized Service Point.

When the emergency call
failed

Illuminates (for ap-
proximately 60 sec-
onds)

Extinguishes

The emergency call failed.

Make an emergency call again, or
directly arrange an emergency ve-
hicle or road service with the
nearest public telephone, etc.

Test Mode

You can check if the system is in the normal
standby state by the following process.

Before operation, stop the vehicle in a safe
place, with good visibility, where radio
waves can be transmitted and received.

Change to Test Mode

1. When the ignition switch or the opera-

tion mode is set to “OFF”, set the igni-
tion switch or the operation mode to
“ON” while pressing the SOS switch.

ERA-GLONASS*

8-05

OKTE18E1

For emergencies

2. After setting the ignition switch or the

operation mode to “ON”, perform Steps
3 and 4 within 10 seconds.

3. Release your finger from the SOS

switch.

4. Press the SOS switch 3 or more times.
5. After approximately 10 seconds from

Step 2, the red lamp and the green lamp
extinguish. After that, the buzzer sounds
3 times.

NOTE

If the buzzer does not sound, repeat the
process from Step 1.

6. Approximately 60 seconds later, the

green lamp blinks. If you press the SOS
switch within 20 seconds, the mode
changes to the test mode.

NOTE

When the red lamp blinks instead of the
green lamp, move the vehicle in a safe place,
with good visibility, where radio waves can
be transmitted and received, then repeat the
process from Step 1.

7. Within approximately 20 seconds after

the mode has changed to the test mode,
press the SOS switch for one of the fol-

lowing periods to select the desired test
type.

10 seconds or more: Report test to the
emergency call centre

Less than 10 seconds: Test of the
ERA-GLONASS system equipment of
the vehicle

NOTE

If you do not press the SOS switch within
approximately 20 seconds, the test mode
ends.

If you drive a certain distance in the test
mode, the test mode ends.

Report test to the emergency

call centre

1. The green lamp illuminates, and the re-

port test to the emergency call centre is
started.

NOTE

If the red lamp illuminates for approximately
60  seconds,  the  vehicle  is  in  a  place  where
radio  waves  cannot  be  transmitted  and  re-
ceived.  Therefore  you  cannot  report  to  the
emergency call centre.

2. When the green lamp extinguishes, the

test mode is completed.

Test of the ERA-GLONASS

system equipment of the vehicle

1. After the buzzer sounds once, press the

SOS switch.
[Lamp Check]
When the buzzer sounds once and both
the red and green lamp illuminate alter-
nately, they are working normally.

2. When the lamps are normal, press the

SOS switch. When the lamps do not illu-
minate normally, wait for approximately
20 seconds.
[Speaker Check]
When the buzzer sounds twice and con-
tinues sounding, they are working nor-
mally.

3. When the speakers are normal, press the

SOS  switch.  When  the  buzzer  does  not
sound  normally,  wait  for  approximately
20 seconds.
[Microphone Check]
After  the  buzzer  sounds  3  times,  say
something towards the microphone.
If  your  voice  sounds  from  the  speakers,
they are working normally.

4. When the microphone is normal, press

the SOS switch. When it does not oper-
ate normally, wait for approximately 20
seconds.

5. If all check results are normal, the green

lamp illuminates (for approximately 5
seconds) and the buzzer sounds once.

ERA-GLONASS*

8-06

OKTE18E1

For emergencies

WARNING

If any of the check results are not normal,
the red lamp illuminates (for approxi-
mately 5 seconds) and the buzzer sounds 3
times. In this case, there is a possible fail-
ure in the system. Have the system inspec-
ted by a MITSUBISHI MOTORS Au-
thorized Service Point immediately.

6. When the green lamp extinguishes, the

test mode is completed.

If the vehicle breaks down

E00800101137

If the vehicle breaks down on the road, move
it to the shoulder and use the hazard warning
flashers and/or the warning triangle etc.
Refer to “Hazard warning flasher switch” on
page 5-21.

If the engine stops/fails

Vehicle operation and control are affected if
the engine stops. Before moving the vehicle
to a safe area, be aware of the following:

The brake booster becomes inoperative
and the pedal effort will increase. Press
down the brake pedal harder than usual.

Since the power steering system is no
longer operative, the steering wheel feels
heavy when turning it.

If the operation mode
cannot be changed to OFF
(vehicles equipped with the
keyless operation system)

E00804900077

If the operation mode cannot be changed to
OFF, perform the following procedure.

1. Move the selector lever to the “P”

(PARK) position, and then change the
operation mode to OFF. (For vehicles
with A/T)

2. One of the other causes could be low

battery  voltage.  If  this  occurs,  the  key-
less  entry  system,  keyless  operation
function  and  steering  lock  will  also  not
operate.  Contact  a  MITSUBISHI
MOTORS Authorized Service Point.

Emergency starting

E00800504132

If the engine cannot be started because the
battery is weak or dead, the battery from an-
other vehicle can be used with jumper cables
to start the engine.

WARNING

To  start  the  engine  using  jumper  cables
connected  from  another  vehicle,  perform
the  correct  procedures  according  to  the
instruction  below.  Incorrect  procedures
could result in a fire or explosion or dam-
age to the vehicles.

Keep sparks, cigarettes and flames away
from the battery because the battery may
produce an explosion.

CAUTION

Do not attempt to start the engine by pulling
or pushing the vehicle.
It could damage your vehicle.

Check the other vehicle. It must have a 12-
volt battery.
If the other system isn’t 12-volt, shorting can
damage both vehicles.

Use the proper cables suitable for the battery
size to prevent overheating of the cables.

Check the jumper cables for damage and
corrosion before use.

Always wear protective eye goggles when
working near the battery.

Keep the battery out of the reach of children.

1. Get the vehicles close enough so the

jumper cables can reach, but be sure the
vehicles aren’t touching each other.

2. Turn off all lamps, heater and other elec-

trical loads.

If the vehicle breaks down

8-07

OKTE18E1

For emergencies

3. Set the parking brake firmly on each ve-

hicle. Put an automatic transmission in
“P” (PARK) or a manual transmission in
“N” (Neutral). Stop the engine.

WARNING

Turn off the ignition on both vehicles be-
forehand. Make sure that the cables or
your clothes cannot be caught by the fan
or drive belt. Personal injury could result.

4. Make sure battery electrolyte is at the

proper level.
Refer to “Battery” on page 10-10.

WARNING

If electrolyte fluid is not visible, or ap-
pears to be frozen, Do Not Attempt Jump
Starting!
A battery might rupture or explode if the
temperature is below the freezing point or
if it is not filled to the proper level.

Electrolyte  is  corrosive  diluted  sulphuric
acid.
If  electrolyte  (battery  acid)  comes  into
contact with your hands, eyes, clothes and
the  painted  surface  of  your  vehicle,  it
should  be  thoroughly  flushed  with  water.
If electrolyte gets in your eyes, flush them
with  water  immediately  and  thoroughly,
and get prompt medical attention.

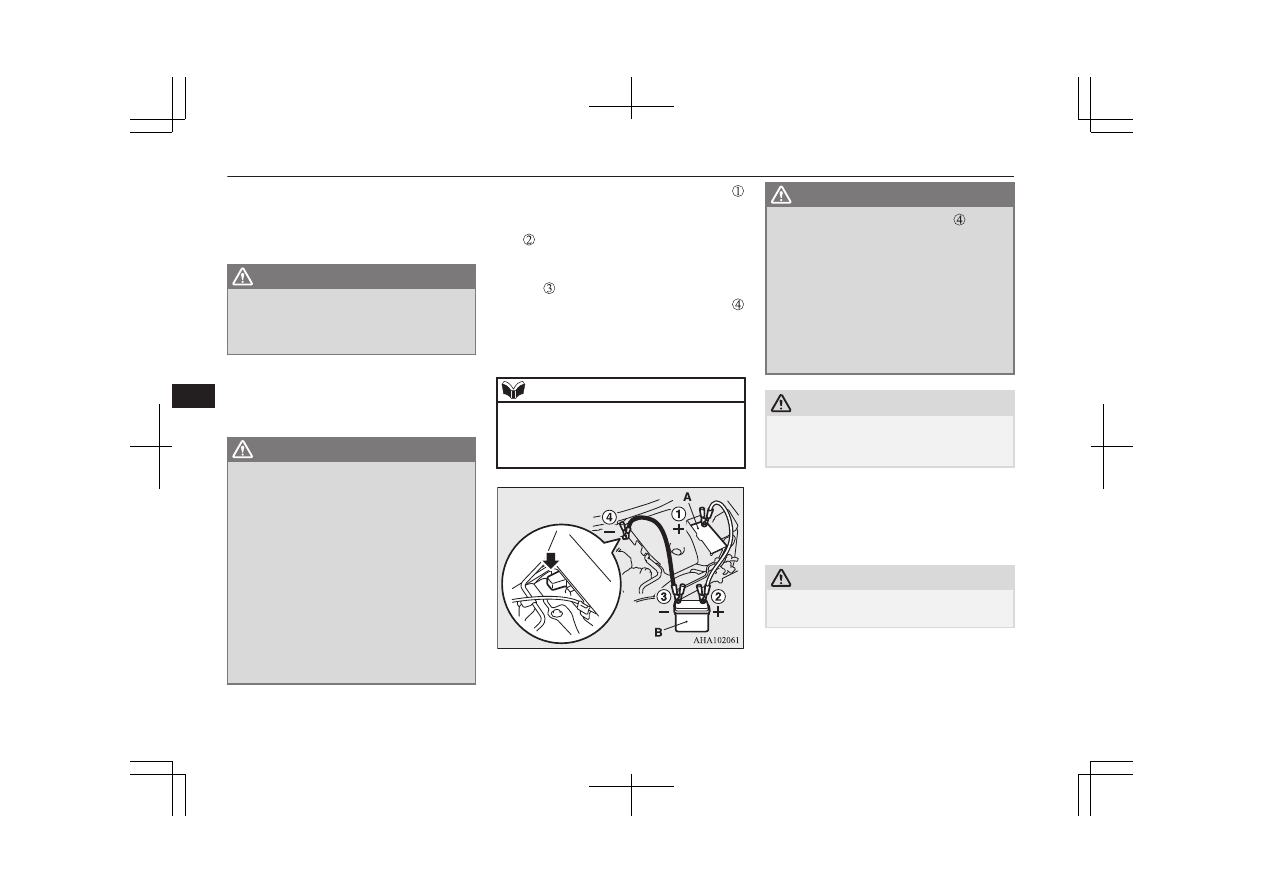

5. Connect one end of one jumper cable

to the positive (+) terminal of the dis-
charged battery (A), and the other end

to the positive (+) terminal of the

booster battery (B).
Connect one end of the other jumper ca-
ble   to the negative (−) terminal of the
booster battery (B), and the other end
to  the  engine  block  of  the  vehicle  with
the  discharged  battery  at  the  point  far-
thest from the battery.

NOTE

Open the terminal cover before connecting
the jumper cable to the positive (+) terminal
of the battery.
(Refer to “Battery” on page 10-10.)

WARNING

Make sure that the connection

is made

to the appointed position (shown in the il-
lustration).  If  the  connection  is  made  di-
rectly  to  the  negative  (−)  side  of  the  bat-
tery,  the  inflammable  gases  generated
from the battery might catch fire and ex-
plode.

When  connecting  the  jumper  cables,  do
not  connect  the  positive  (+)  cable  to  the
negative  (−)  terminal.  Otherwise  sparks
might cause explosion of the battery.

CAUTION

Take care not to get the jumper cable caught
in the cooling fan or other rotating part in
the engine compartment.

6. Start the engine in the vehicle which has

the booster battery, let the engine idle a
few minutes, then start the engine in the
vehicle with the discharged battery.

CAUTION

Keep the engine of the vehicle giving assis-
tance running.

Emergency starting

8-08

OKTE18E1

For emergencies

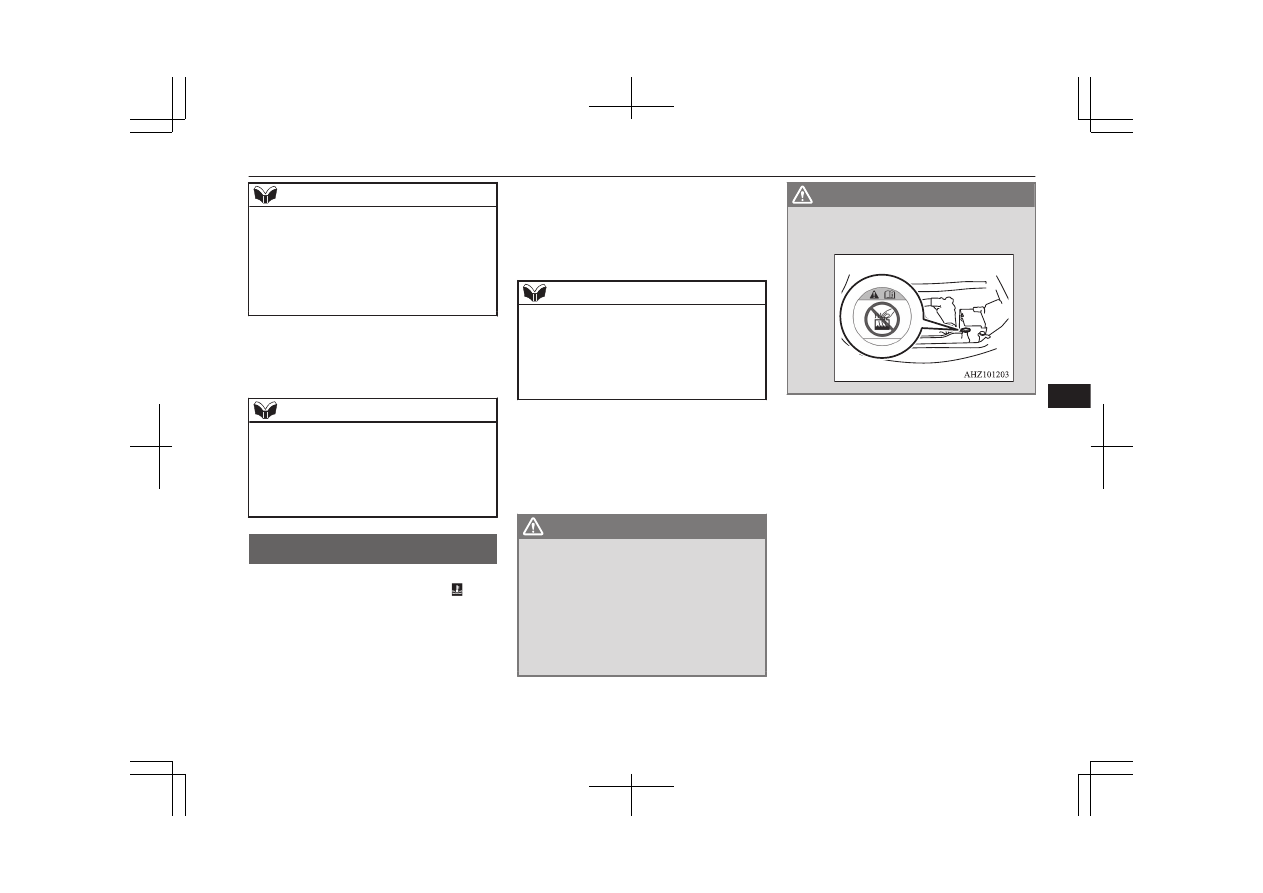

NOTE

For vehicles equipped with the Auto Stop &
Go (AS&G) system, press the “Auto Stop &
Go (AS&G) OFF” switch to deactivate the
Auto Stop & Go (AS&G) system and pre-
vent the engine from automatically stopping
before the battery is sufficiently charged.
Refer to “To deactivate” on page 6-26.

7. After the engine is started, disconnect

the cables in the reverse order and keep
the engine running for several minutes.

NOTE

If the vehicle is put in motion without fully
charging the battery, it might cause the loss
of the smooth engine operation and the anti-
lock brake warning lamp to illuminate.
Refer to “Anti-lock brake system (ABS)” on
page 6-56.

Engine overheating

E00800604117

When the engine is overheating, “ ” will
blink.
If this occurs, take the following corrective
measures:

1. Stop the vehicle in a safe place.
2. Check whether steam is coming from the

engine compartment.

[If steam does not come from the engine
compartment]
With the engine still running, raise the
bonnet to ventilate the engine compart-
ment.

NOTE

For vehicles equipped with the Auto Stop &
Go (AS&G) system, press the “Auto Stop &
Go (AS&G) OFF” switch to deactivate the
Auto Stop & Go (AS&G) system before
stopping the vehicle.
Refer to “To deactivate” on page 6-26.

[If  steam  is  coming  from  the  engine
compartment]
Stop  the  engine,  and  when  the  steam
stops,  raise  the  bonnet  to  ventilate  the
engine compartment. Restart the engine.

WARNING

Do  not  open  the  bonnet  while  steam  is
coming  from  the  engine  compartment.  It
could  cause  steam  or  hot  water  to  spurt
out, causing burns. Hot water could spurt
out  even  when  there  is  no  steam  coming
out,  and  some  parts  will  be  very  hot.  Be
very careful when opening the bonnet.

Be careful of hot steam, which could be
blowing off the reserve tank cap.

WARNING

Do not attempt to remove the radiator
cap while the engine is hot.

3. Confirm that the cooling fan (A) is turn-

ing.
[If the cooling fan is turning]
After the high coolant temperature warn-
ing has gone off, stop the engine.
[If the cooling fan is not turning]

Engine overheating

8-09

OKTE18E1

For emergencies

Content .. 18 19 20 21 ..
