Mitsubishi L200 (2018 year). Instruction - part 13





If

this

happens,

please

contact

a

MITSUBISHI MOTORS Authorized Service
Point for inspection of the system.

CAUTION

l

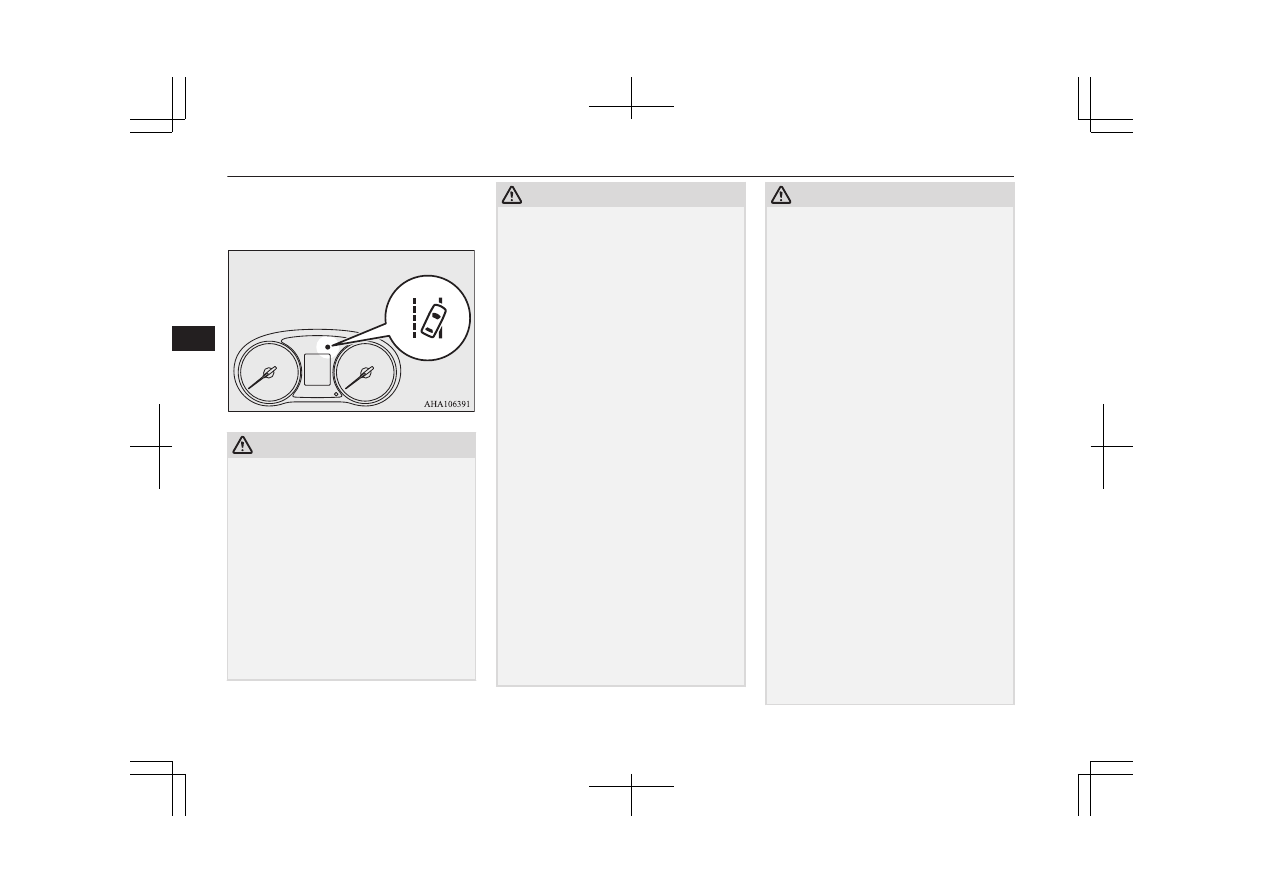

LDW  has  its  performance  limitations.  Do
not over-rely on the system.

l

LDW is not designed to lessen risks associ-
ated with not looking ahead carefully (atten-
tion drawn to something on the side, absent-
mindedness,  etc.)  or  poor  visibility  caused
by bad weather etc. Keep steering your vehi-
cle correctly and drive safely.

l

The  system  may  not  be  able  to  detect  the
lane correctly in the following conditions. If
required, set the LDW switch to “OFF.”

When driving on a road whose lane mark-
ings  (white  or  yellow)  are  worn  out  or
smeared with dirt to an extent not recog-
nizable by the system.

CAUTION

When  lane  markings  are  vague,  typically
during a drive in the rain, snow or fog, or
when running against the sun.

When  the  vehicle  is  moving  in  a  place
where lane markings are interrupted, such
as  a  toll  booth  entrance  and  motorway
junction.

When running on a road portion with in-
completely  removed  old  lane  markings,
shadows,  lingering  snow,  truck-like  pud-
dles  mistakable  for  lane  markings  (espe-
cially  after  the  rain  when  road  surface  is
reflecting  light)  or  similar  confusing  fac-
tors.

When  running  in  a  lane  other  than  the
cruising lane and passing lane.

When  running  beside  a  closed  lane  sec-
tion  or  in  a  provisional  lane  in  a  traffic
work zone.

When  running  in  an  extremely  narrow
lane.

When  the  following  distance  between
your  vehicle  and  a  vehicle  in  front  be-
comes  extremely  reduced  (especially
when a marking is hidden by a vehicle in
front this is running too close to the mark-
ing).

When entering a junction or other point of
road where lanes are laid out complicated-
ly.

When  passing  a  road  section  where  the
number  of  lanes  increases/decreases  or
multiple lanes are crossing each other.

CAUTION

When  the  lane  is  marked  by  double  or
otherwise special lines.

When driving on a winding or rough road.

When driving on a slippery road covered
by rain water, snow, ice, etc.

When  passing  through  a  place  where  the
brightness suddenly changes, like the inlet
or outlet of a tunnel.

When turning steep curves.

When  the  road  surface  is  reflecting  the
light  shining  from  the  direction  opposite
to the running direction.

Vehicle largely lurches when it is running
over  steps  or  other  irregularities  of  the
road surface.

When the headlamp illumination is inade-
quate because of contaminated or deterio-
rated  lenses  or  improperly  aimed  head-
lamps.

When the vehicle is leaning much to one
side due to heavy luggage on it or improp-
erly adjusted tyre pressures.

When  oncoming  vehicles’  headlamps
shine the LDW camera.

When  the  vehicle  is  equipped  with  non-
standard  tyres  (including  excessively
worn  tyres  and  temporary  spare  tyre),
uses snow traction device (tyre chains), or
has  non-specified  components  such  as  a
modified suspension.

When the windscreen is covered with rain
water, snow, dust, etc.

l

Follow the instructions given below to keep
your LDW in good operating conditions.

Lane Departure Warning (LDW)*

6-78

OKTE18E1

Starting and driving

6

CAUTION

Always keep the windscreen clean.

Avoid applying a strong shock or pressure
to  the  LDW  camera.  Do  not  attempt  to
disassemble it.

Disturbing  the  installation  of  the  LDW
camera or its removal is under no circum-
stances  permitted.  The  camera  has  been
precisely oriented at the factory.

Do  not  put  anything  like  a  sticker  on  the
area  in  front  of  the  LDW  camera  lens  of
the windscreen.

Use only MITSUBISHI MOTORS GEN-
UINE  Parts  when  replacing  the  wind-
screen wipers.

Rear-view camera*

E00618402280

The rear-view camera is a system that shows
the view behind the vehicle on a screen of the
MITSUBISHI Multi Communication System
(MMCS),  the  Smartphone  Link  Display  Au-
dio or the DISPLAY AUDIO.

WARNING

l

The rear-view camera is an assistance sys-
tem  that  enables  the  driver  to  check  for
obstacles  behind  the  vehicle.  Its  range  of
view  is  limited,  so  you  should  not  overly
depend on it. Please drive just as carefully
as  you  would  if  the  vehicle  did  not  have
the rear-view camera.

WARNING

l

Be sure to visually confirm safety around
the vehicle with your own eyes. Do not de-
pend entirely on the rear-view camera.

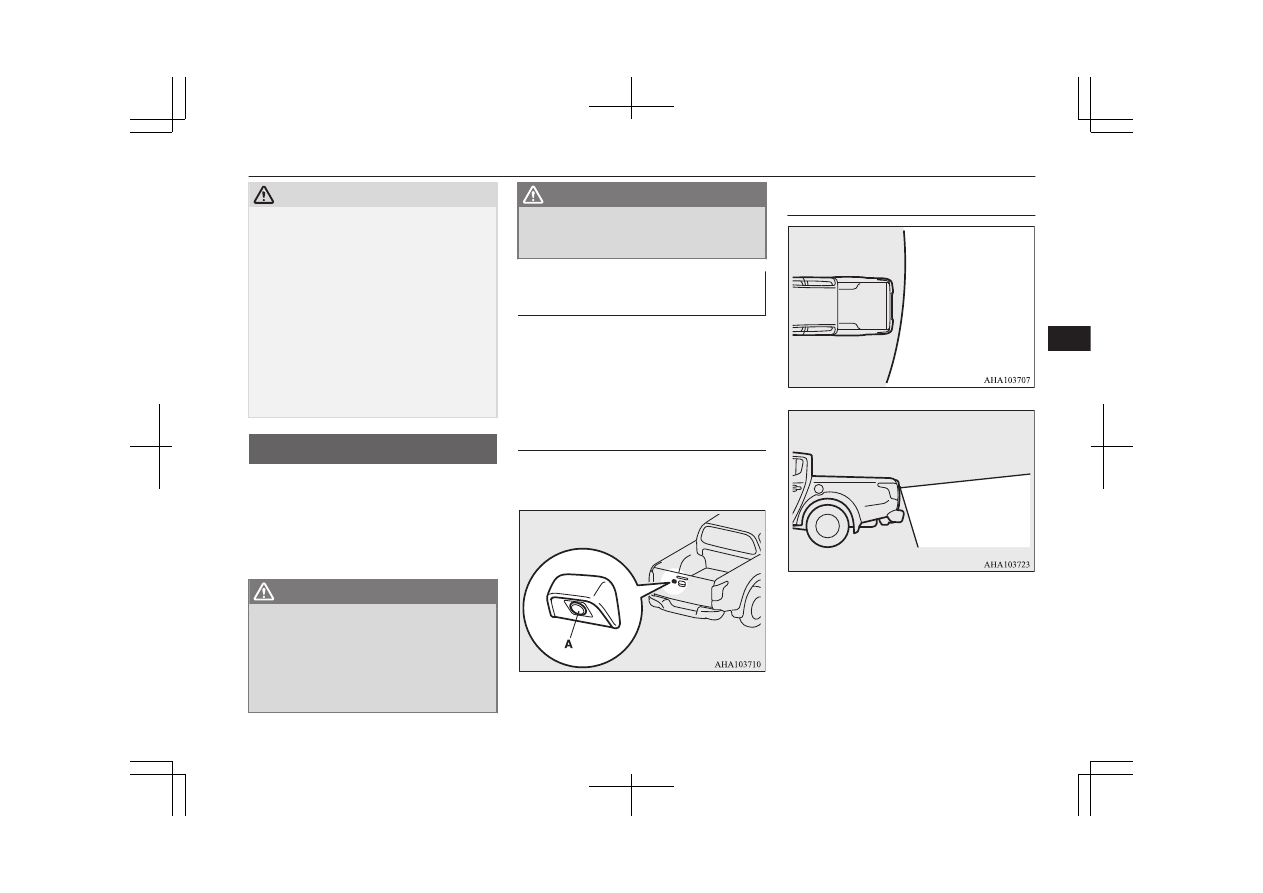

Range of view of rear-view

camera

The range of view of the rear-view camera is
limited to the area shown in the illustrations.
It cannot show both sides and the lower part
of the rear bumper, etc.
When  reversing,  be  sure  to  visually  confirm
safety around the vehicle.

Location of rear-view camera

The  rear-view  camera  (A)  is  integrated  into
the part near the rear gate handle.

Range  of  view  of  rear-view

camera

Rear-view camera*

6-79

OKTE18E1

Starting and driving

6

How to use the rear-view cam-

era

When you place the gearshift lever or the se-
lector lever in the “R” position with the igni-
tion switch in the “ON” position or the opera-
tion mode in ON, the view behind the vehicle
will automatically appear on the screen of the
MITSUBISHI Multi Communication System
(MMCS),  the  Smartphone  Link  Display  Au-
dio  or  the  DISPLAY  AUDIO.  When  you
move the gearshift lever or the selector lever
to any other position, the screen will return to
its original indication.

CAUTION

l

The rear-view camera has a special lens that
can  make  objects  shown  on  the  screen  ap-
pear  to  be  closer  or  further  away  than  they
actually are.

NOTE

l

Because  the  rear-view  camera  has  a  special
lens,  the  lines  on  the  ground  between  park-
ing  spaces  may  not  look  parallel  on  the
screen.

l

In  the  following  situations,  the  screen  indi-
cation  may  be  difficult  to  see.  There  is  no
abnormality.

Low light (nighttime).

NOTE

When the light of the sun or the light from
a vehicle’s headlamps shines directly into
the lens.

If  a  fluorescent  light  shines  directly  into
the  lens,  the  screen  indication  may  be
flicker.
There is no abnormality.

l

If  the  camera  is  hot  and  is  then  cooled  by
rain or a car wash, the lens can mist up. This
phenomenon  does  not  indicate  a  malfunc-
tion.

l

If  the  atmospheric  temperature  is  extremely
hot or extremely cold, the rear-view camera
images may not be clear.
There is no abnormality.

l

If a radio set is installed near the camera, the
rear-view camera images may cause electri-
cal  system  interference  and  the  system  may
stop functioning properly.

l

It is not possible to fully see obstacles when
the  lens  is  dirty.  If  the  lens  becomes  conta-
minated by water droplets, snow, mud or oil,
wipe  off  the  contamination,  taking  care  not
to scratch the lens.

l

Please  observe  the  following  cautions.  Ig-
noring them could lead to a camera malfunc-
tion.

Do  not  subject  the  camera  to  a  physical
shook  such  as  striking  it  strongly  or
throwing a thing at it.

Do not adhere organic substances, waxes,
oil remover, and glass cleaner to the cam-
era.
If adhered to them, immediately wipe off.

NOTE

Do not splash the camera with boiling wa-
ter.

Never  spray  or  splash  water  on  the  cam-
era or around it.

Do not disconnect, disassemble or modify
the camera.

Do  not  scratch  the  camera,  as  this  may
cause damage to the rear-view camera im-
ages.

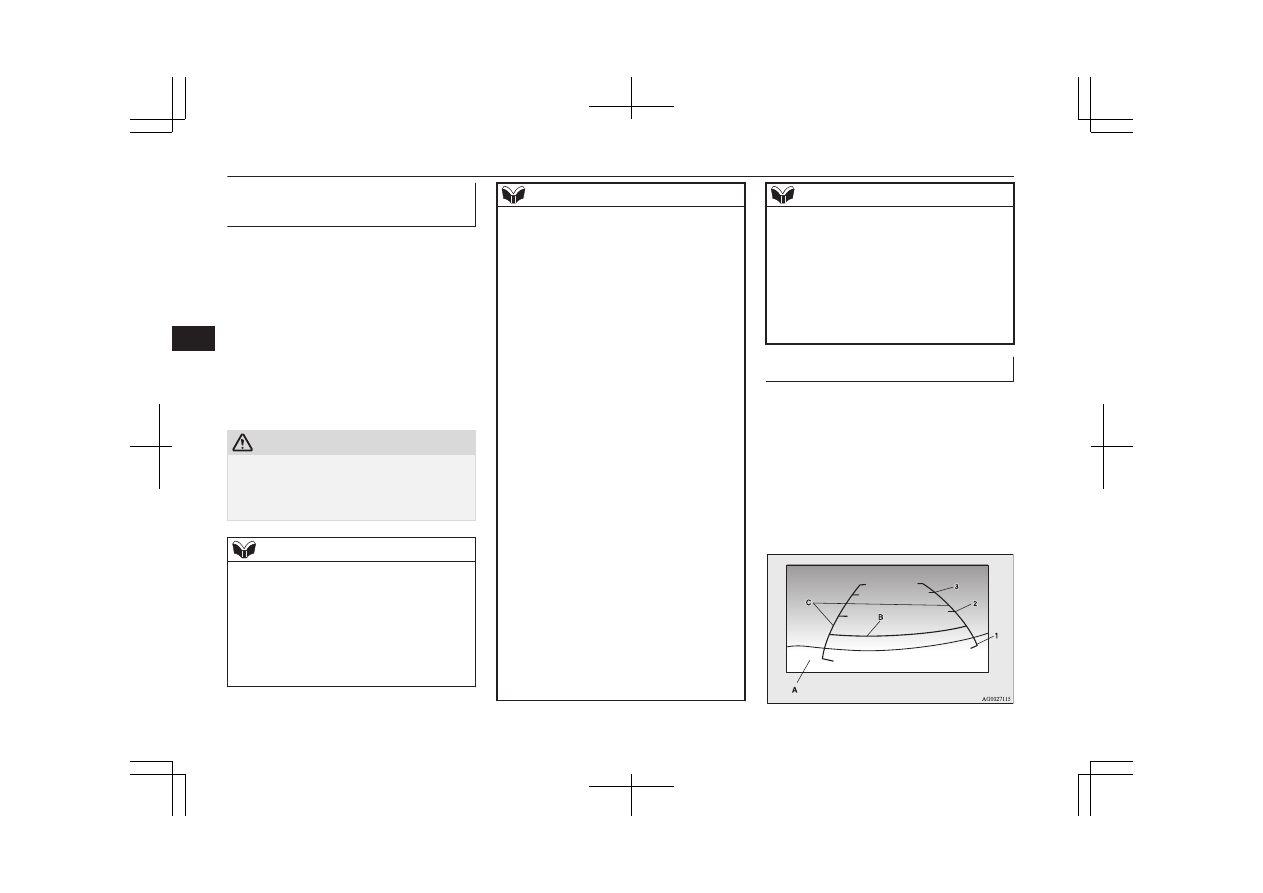

Reference lines on the screen

Reference lines and upper surface of the rear
bumper (A) are displayed on the screen.

l

Red  line  (B)  indicates  approximately
50 cm behind the rear bumper.

l

Two  Green  lines  (C)  indicate  approxi-
mately  20  cm  outside  of  the  vehicle
body.

l

Short  transverse  lines  (1  to  3)  indicate
distance from the rear bumper.

Check surroundings for safety.

Rear-view camera*

6-80

OKTE18E1

Starting and driving

6

1- Approximately  at  the  rear  edge  of  the

rear bumper

2- Approximately 100 cm
3- Approximately 200 cm

CAUTION

l

Due to the number of people in the vehicle,
the fuel quantity, the weight and positioning
of luggage, and/or the condition of the road
surface, the lines in the view from the rear-
view  camera  may  not  be  accurately  posi-
tioned relative to the actual road.
Use  the  reference  lines  only  as  a  guideline,
and always do a safety check of your behind
and surroundings directly while driving.

Errors between the display and

the actual road surface

The  reference  lines  for  distance  and  vehicle
width are based on a level, flat road surface.
In  the  following  cases,  errors  are  produced
between  the  display  reference  lines  and  the
distance on the actual road surface.

l

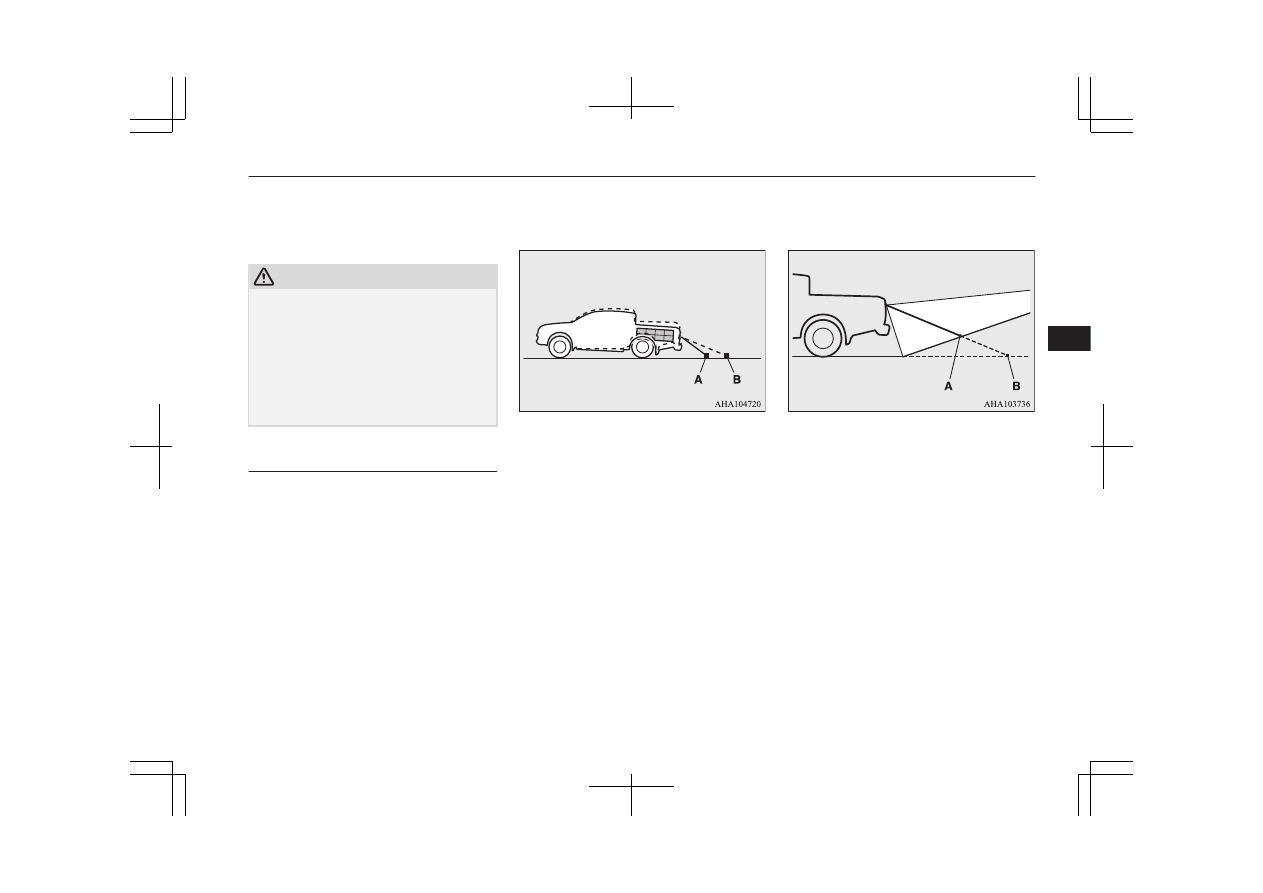

When the rear of the vehicle is weigh-
ed down with the weight of passengers
and luggage in the vehicle

The reference lines are displayed closer than
the actual distance.

Therefore  when  there  is  an  obstacle  on  the
upward  slope,  it  appears  farther  than  its  ac-
tual position.

A- Actual objects

B- Objects shown on the screen

l

When there is an upward slope behind
the vehicle

The reference lines are displayed closer than
the actual distance.

Therefore  when  there  is  an  obstacle  on  the
upward  slope,  it  appears  farther  than  its  ac-
tual position.

A- Actual objects

B- Objects shown on the screen

l

When  there  is  a  downward  slope  be-
hind the vehicle

The reference lines are displayed farther than
the actual distance.

Rear-view camera*

6-81

OKTE18E1

Starting and driving

6

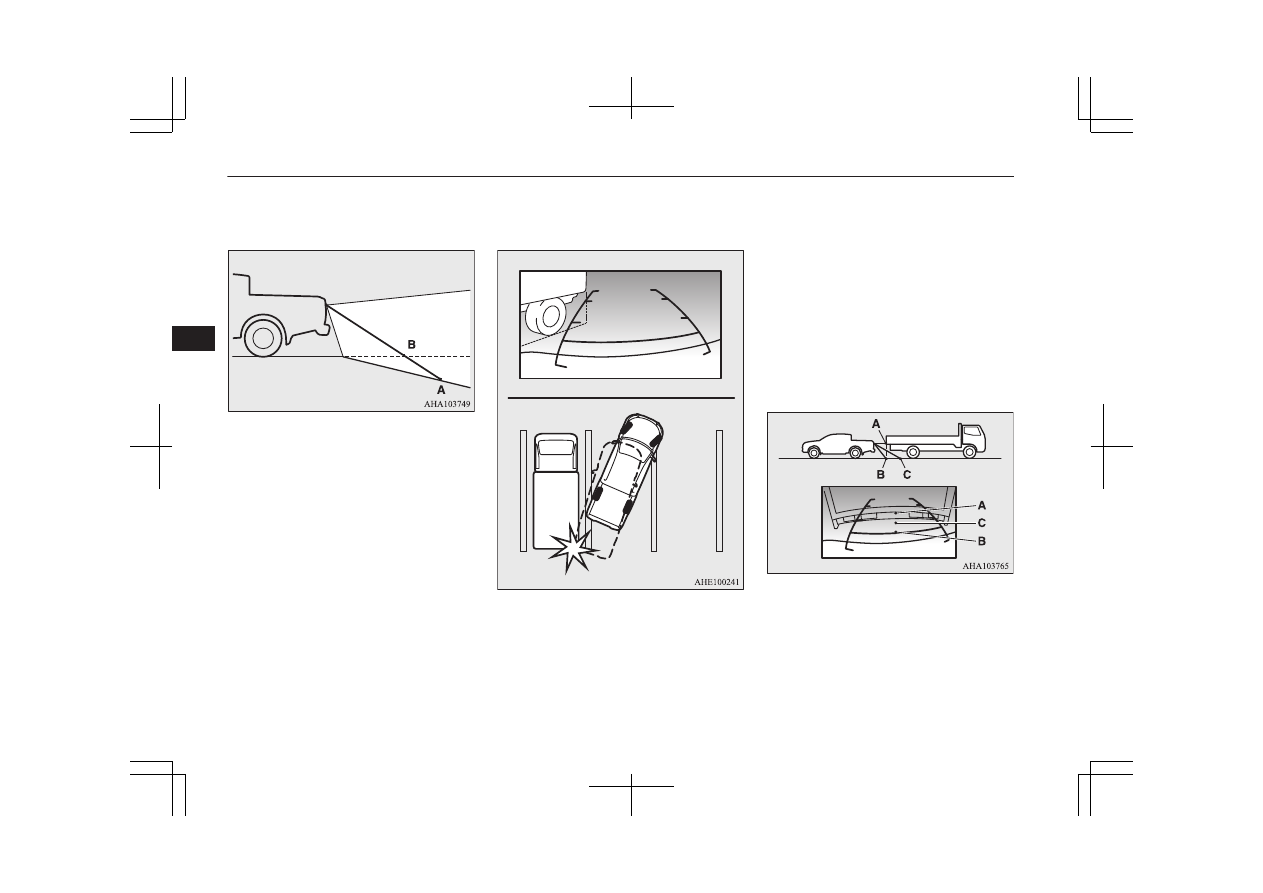

Therefore  when  there  is  an  obstacle  on  the
downward slope, it appears closer than its ac-
tual position.

A- Actual objects

B- Objects shown on the screen

l

When solid objects are located close to
the vehicle

When  solid  objects  are  located  close  to  the
vehicle, the displayed distance on the screen
may differ from the actual distance.
Because the reference lines do not contact the
body of the truck, it looks as if it would not
hit the vehicle in following illustration.

However,  the  vehicle  may  hit  the  truck  be-
cause  the  body  of  the  truck  strays  onto  the
course in reality.

Check surroundings for safety.

l

When approaching to solid objects

The  reference  lines  for  distance  and  vehicle
width are intended to indicate the distance to
a flat object such as a level, flat road surface.
This  may  make  the  distance  to  a  projecting
object  shown  on  the  screen  differ  from  the
actual  distance  to  the  projecting  object.  Do
not use them as a guide for distances to solid
objects.
Example:  On  the  screen  the  point  B  appears
the nearest, then the point C and A in order of
distance. The points A and B actually are the
same  distances  from  the  vehicle,  and  the
point C is farther off than the points A and B.

Check surroundings for safety.

Rear-view camera*

6-82

OKTE18E1

Starting and driving

6

Cargo loads

E00609902830

Cargo loads precautions

CAUTION

l

When loading luggage, be careful to the fol-
lowing.

Stow cargo and luggage in the cargo area
whenever possible.

Distribute cargo or luggage evenly so that
it is not unbalanced.

Do not place cargo or luggage on the in-
strument panel.
Also, do not stack up cargo or luggage on
the front passenger’s seat or the rear seat.
Having  the  driver’s  vision  blocked,  and
your cargo being thrown inside the cabin
if you suddenly have to brake can cause a
serious accident or injury.

Loading a roof carrier

CAUTION

l

Use a roof carrier that properly fits your ve-
hicle. Do not load luggage directly onto the
roof.
For installation, refer to the instruction man-
ual accompanying the roof carrier.

NOTE

l

We  recommend  you  to  use  a  MITSUBISHI
MOTORS GENUINE roof carrier, since the
brackets to be used have a special shape. For
details,  we  recommend  you  to  consult  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.

Roof carrier precaution

CAUTION

l

Make  sure  that  the  weight  of  the  luggage
does not exceed the allowable roof load.
If  the  allowable  roof  load  is  exceeded,  this
may cause damage to the vehicle.
The roof load is the total allowable load on
the  roof  (the  weight  of  the  roof  carrier  plus
the weight of luggage placed on the roof car-
rier).
For  the  specific  value,  refer  to  “Maximum
roof load” on page 11-10

CAUTION

l

When  luggage  is  loaded  onto  the  vehicle,
please  make  sure  to  drive  slowly  and  avoid
excessive manoeuvres such as sudden brak-
ing or quick turning.
In addition, place the luggage on the carrier
so  that  its  weight  is  distributed  evenly  with
the  heaviest  items  on  the  bottom.  Do  not
load items that are wider than the roof carri-
er.
The additional weight on the roof could raise
the vehicle’s centre of gravity and affect ve-
hicle handling characteristics.
As a result, driving errors or emergency ma-
noeuvres could lead to a loss of control and
result in an accident.

l

Before  driving  and  after  travelling  a  short
distance, always check the load to make sure
it is securely fastened to the roof carrier.
Check  periodically  during  your  travel  that
the load remains secure.

NOTE

l

To  prevent  wind  noise  or  reduction  in  fuel
economy,  remove  the  roof  carrier  when  not
in use.

l

Remove the roof carrier before using an au-
tomatic car wash.

Cargo loads

6-83

OKTE18E1

Starting and driving

6

Trailer towing

E00610001863

In  order  to  tow  a  trailer  with  your  vehicle,
when having a trailer towing device mounted
that  meets  all  relevant  regulations  in  your
area, consult a MITSUBISHI MOTORS Au-
thorized Service Point.
Check  that  your  towing  bar  coupling  ball
does not obscure your vehicle’s licence plate
when the trailer or caravan is disconnected. If
it  obscures  the  licence  plate,  please  remove
the towing bar coupling ball. And if the tow-
ing  bar  coupling  ball  is  lockable  by  using  a
key  or  any  kind  of  tools,  please  remove  the
coupling  ball  and  use  a  towing  bar  coupling
ball  which  can  be  removed  or  repositioned
without the use of a key or any kind of tools
instead.
The  regulations  concerning  the  towing  of  a
trailer  may  differ  from  country  to  country.
You  are  advised  to  obey  the  regulations  in
each area.

CAUTION

l

Danger of Accident!
A  towing  bar  should  be  fitted  according  to
MITSUBISHI MOTORS guidelines.

NOTE

l

If you are going to tow a trailer, pay careful
attention to the following points.

Maximum towable weight with

brake and maximum trailer-

nose weight

Never  exceed  the  maximum  towable  weight
with  brake  and  the  maximum  trailer-nose
weight  as  listed  in  the  specifications.  (Refer
to “Vehicle weight” on page 11-10.)
If you tow a trailer at an altitude of more than
1,000 m above sea-level, reduce your weight
by 10 % of the gross combination weight for
every increase of 1,000 m above sea-level, as
the  engine  output  is  lowered  owing  to  de-
crease in atmospheric pressure.

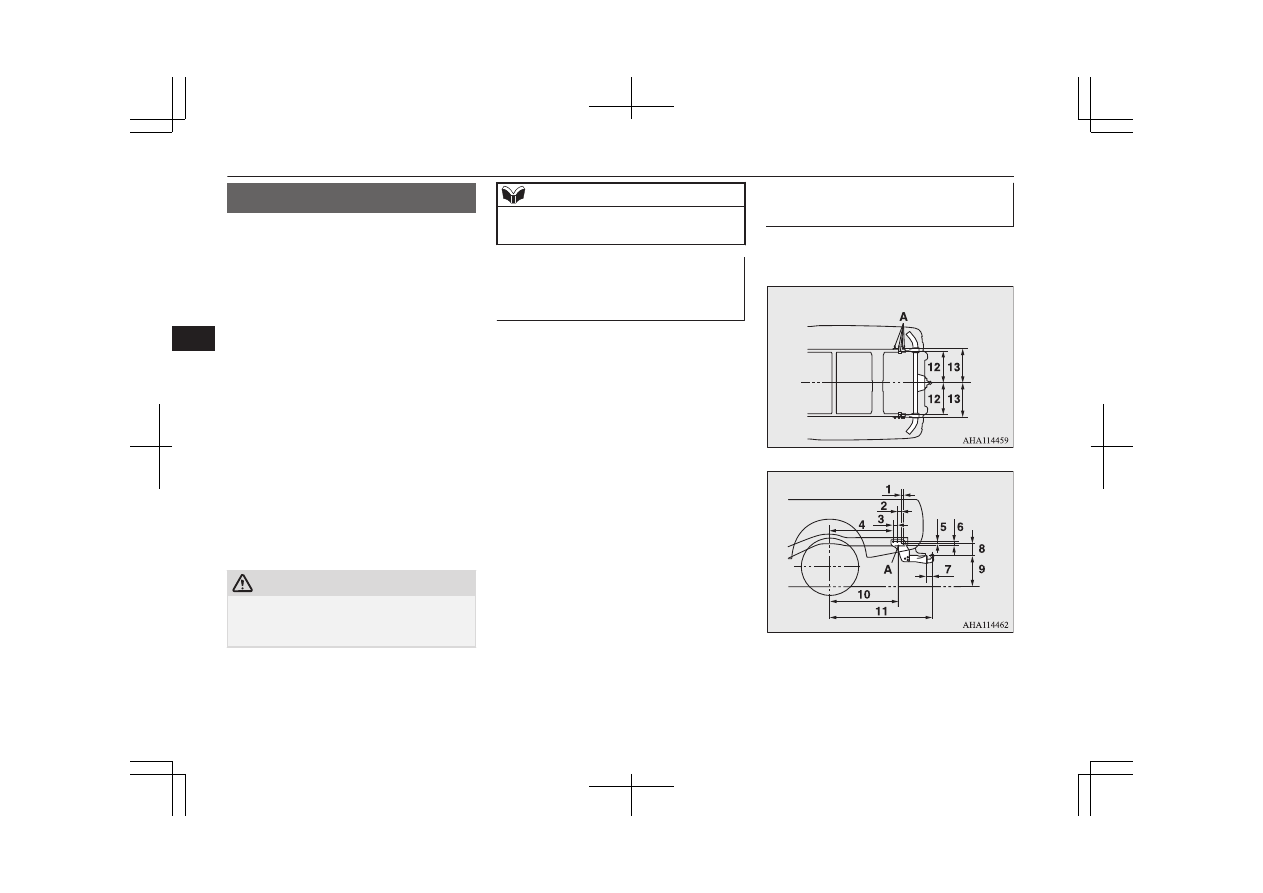

Towing bar mounting specifi-

cations

See the following table for fixing points (A)
for the towing bar.

Trailer towing

6-84

OKTE18E1

Starting and driving

6



Single cab Club cab

Double

cab

1

30 mm

30 mm

30 mm

2

55 mm

55 mm

55 mm

3

60 mm

60 mm

60 mm

4

810 mm

925 mm

925 mm

5

19.5 mm

19.5 mm

19.5 mm

6

47.5 mm

47.5 mm

47.5 mm

7

88 mm

88 mm

88 mm

8

184 mm

148 mm

*1

184 mm

*2

148 mm

*1

184 mm

*2

9

494 mm

494 - 544

mm,

546 mm

*3

494 - 534

mm,

505 - 536

mm

*4

10

895 mm

1,010 mm

1,010 mm

11

1,367 mm

1,482 mm

1,482 mm

12

502.5 mm

502.5 mm

502.5 mm

13

541 mm

541 mm

541 mm

*1

: Vehicles without heavy duty suspension

*2

: Vehicles with heavy duty suspension

*3

: Vehicles equipped with 17 inch tyres

*4

: 2WD vehicles equipped with 245/70R16

tyres, 4WD vehicles equipped with 17 inch
tyres

Item 9: at kerb weight

NOTE

l

The value under item 9 is applicable to unla-
den  vehicles.  This  value  can  also  be  varied
depending  on  the  tyre  size,  optional  equip-
ment and suspension conditions.

Operating hints

l

Have your vehicle serviced prior to tow-
ing a heavy trailer, taking particular care
of the state of engine tune, the condition
of brakes, steering and tyres.
Adjust tyre pressures to those specifica-
tions at trailer towing.
(Refer  to  “tyre  inflation  pressures”  on
page 10-12.)
Check  the  tyres,  wiring  and  brakes  (if
fitted) on the trailer.

l

Leave plenty of room between the front
of  your  vehicle  and  the  preceding  vehi-
cle.
If the trailer begins to sway or becomes
difficult to handle, gently slow down or
apply  the  independent  trailer  brakes  (if
fitted) NOT the vehicle brakes. Stop the
vehicle and trailer in a safe location.
One cause of swaying is poor trailer bal-
ance  and  until  this  has  been  overcome
the  swaying  will  recur.  Relocated  the
load  in  your  trailer  and  re-assess  the
problem.

l

Be  sure  that  the  driving  speed  does  not
exceed 100 km/h (62 mph) for trailer op-
eration.
It is also recommended that you obey the
local  regulations  in  case  driving  speed
with  a  trailer  is  limited  to  less  than
100 km/h (62 mph).

l

To prevent the clutch from slipping (ve-
hicle  with  a  M/T  only),  do  not  rev  the
engine more than is required when start-
ing off.

l

To  prevent  shocks  from  the  overrun
brake, depress the brake pedal lightly at
first and then more strongly.

l

To  make  full  use  of  engine  braking,
change  to  a  lower  gear  before  descend-
ing a slope.

l

The  body,  brakes,  clutch,  and  chassis
will  be  under  additional  strain  when
towing a trailer.

l

The  heavier  weight  and  higher  rolling
and air resistance will increase fuel con-
sumption.

Additional precautions for vehi-

cles equipped with A/T

It  is  recommended  to  use  a  lower  gear  in
sports mode on slopes or at low speed, taking
care  to  keep  the  engine  speed  below  the  red
zone.

Trailer towing

6-85

OKTE18E1

Starting and driving

6



























































OKTE18E1

Ventilators...........................................................................................7-02
Heater/Manual air conditioning*........................................................ 7-04
Automatic climate control air conditioner*........................................ 7-09
Important operation tips for the air conditioning................................ 7-17
Air purifier*........................................................................................ 7-17
AM/FM radio/CD player with AUX*.................................................7-18
Handling of Discs................................................................................7-19
Audio Files (MP3/WMA/AAC)..........................................................7-20
Important Points on Safety for the Customer......................................7-24
Operation Keys................................................................................... 7-25
Listen to Radio.................................................................................... 7-28
Listen to CDs...................................................................................... 7-29
Listen to MP3s/WMAs/AACs............................................................ 7-30
Listen to an iPod*............................................................................... 7-31
Listen to Audio Files on a USB Device*............................................7-33
Using AUX*....................................................................................... 7-34
Display Indicator.................................................................................7-35
Audio Quality and Volume Balance Adjustment............................... 7-36
Time Setting........................................................................................7-36
Troubleshooting.................................................................................. 7-38
LW/MW/FM radio/CD player*.......................................................... 7-39
Handling of Discs................................................................................7-42
Audio Files (MP3/WMA/AAC)..........................................................7-43
Important Points on Safety for the Customer......................................7-47
Operation Keys................................................................................... 7-48
Listen to Radio.................................................................................... 7-51
Listen to DAB*................................................................................... 7-52
Listen to Traffic Messages..................................................................7-54
Listen to CDs...................................................................................... 7-54

Listen to MP3s.................................................................................... 7-55
Listen to an iPod................................................................................. 7-56
Listen to Audio Files on a USB Device..............................................7-58
To play iPod/USB memory device tracks via voice opera-

tion (vehicles with Bluetooth

®

 2.0 interface)................................. 7-60

Listen to Bluetooth Audio*.................................................................7-63
Display Indicator.................................................................................7-66
Audio Quality and Volume Balance Adjustment............................... 7-67
System Settings................................................................................... 7-68
Troubleshooting.................................................................................. 7-72
Antenna............................................................................................... 7-75
Link System*...................................................................................... 7-76
Bluetooth

®

 2.0 interface*....................................................................7-76

USB input terminal*........................................................................... 7-95
HDMI terminal*..................................................................................7-98
Sun visors............................................................................................7-99
Vanity mirror*...................................................................................7-100
Ashtray.............................................................................................. 7-100
Cigarette lighter.................................................................................7-100
Accessory socket...............................................................................7-101
Digital clock*....................................................................................7-101
Interior lamps.................................................................................... 7-102
Storage spaces................................................................................... 7-104
Cup holder.........................................................................................7-106
Bottle holder......................................................................................7-107
Convenient hook*............................................................................. 7-107
Assist grip......................................................................................... 7-108
Coat hook*........................................................................................ 7-108
First-aid kit and warning triangle securing bands*...........................7-108

For pleasant driving



OKTE18E1

7

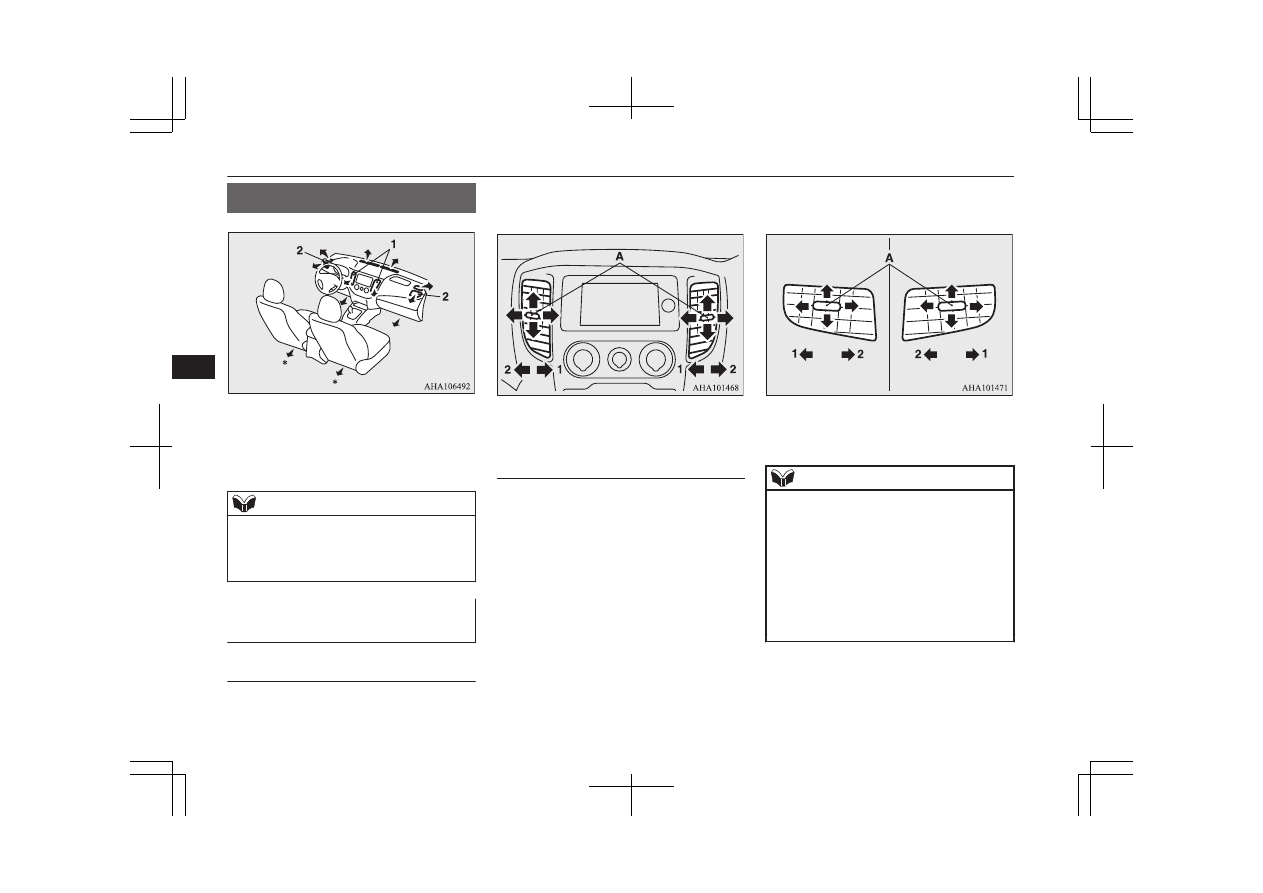

Ventilators

E00700102104

*:

Optional equipment

1- Centre ventilators
2- Side ventilators

NOTE

l

Do not place beverages on top of the instru-
ment panel. If they splash into the air condi-
tioning  ventilators,  they  could  damage  the
system.

Air flow and direction adjust-

ments

E00700202264

Centre ventilators

Move the knob (A) to adjust the air flow di-
rection.

To close the vent, move the knob (A) to the
inside as far as possible.

1- Close
2- Open

Side ventilators

Move the knob (A) to adjust the air flow di-
rection.

To close the vent, move the knob (A) to the
outside as far as possible.

Left

Right

1- Close
2- Open

NOTE

l

On  vehicles  with  air  conditioning,  the  cool
air  from  the  ventilators  may  appear  as  a
mist.
This  is  due  to  moist  air  being  suddenly
cooled  by  the  air  conditioning.  This  will
clear after a few moments.

l

Be  careful  not  to  spill  beverages,  etc.,  into
the ventilators.
Doing so might cause the air conditioner not
to function normally.

Ventilators

7-02

OKTE18E1

For pleasant driving

7

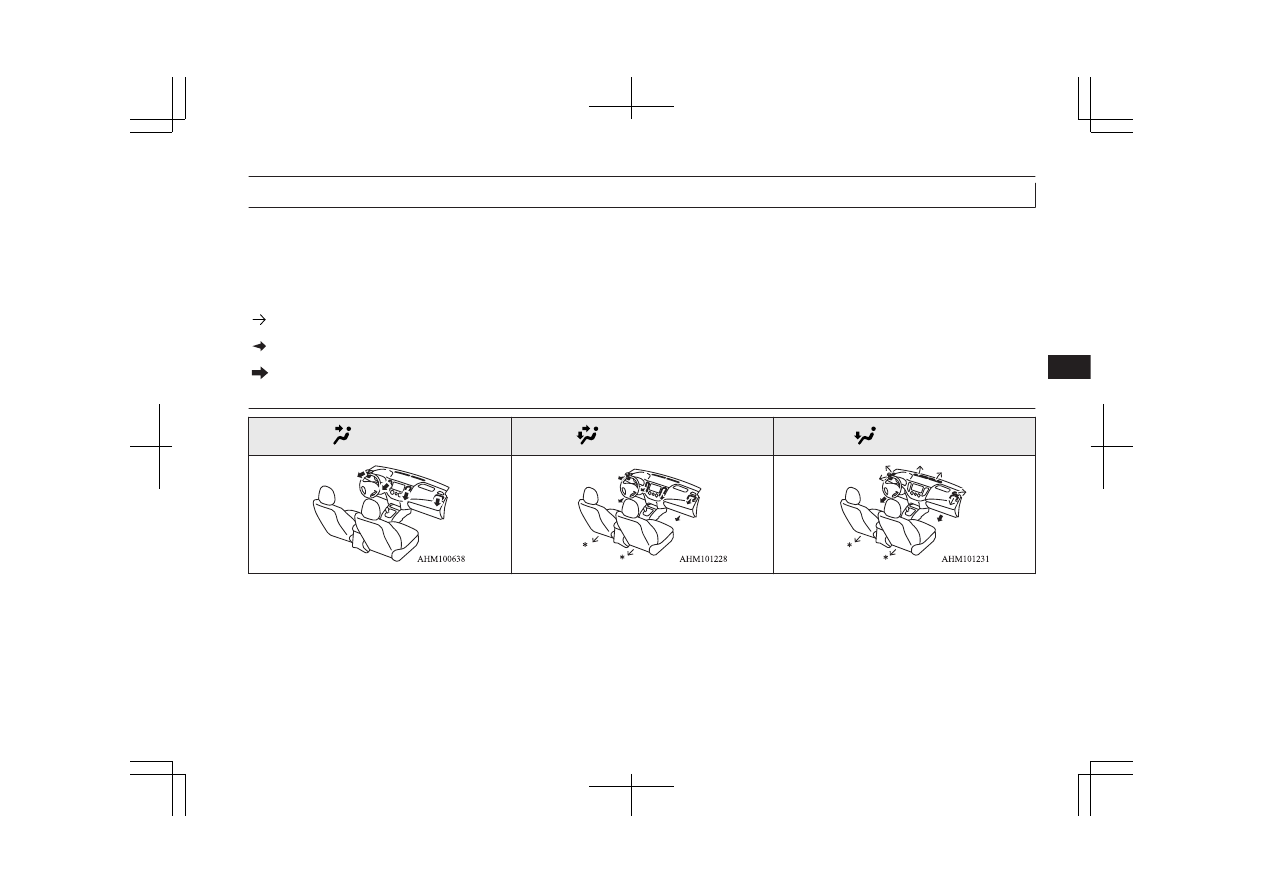

Mode selection

E00700302669

To change the position and amount of air flowing from the ventilators, turn the mode selection dial. (Refer to “Mode selection dial” on page
7-05.)
On vehicles with the automatic climate control air conditioner, press the MODE switch or demister switch. (Refer to “MODE switch” on page
7-15, “Demister switch” on page 7-15.)
These symbols are used in the next several illustrations to demonstrate the quantity of air coming from the ventilators.

: Small amount of air from the ventilators

: Medium amount of air from the ventilators

: Large amount of air from the ventilators

The mode selection and air flowing from the ventilators

 Face position

 Foot/Face position

 Foot position

Ventilators

7-03

OKTE18E1

For pleasant driving

7

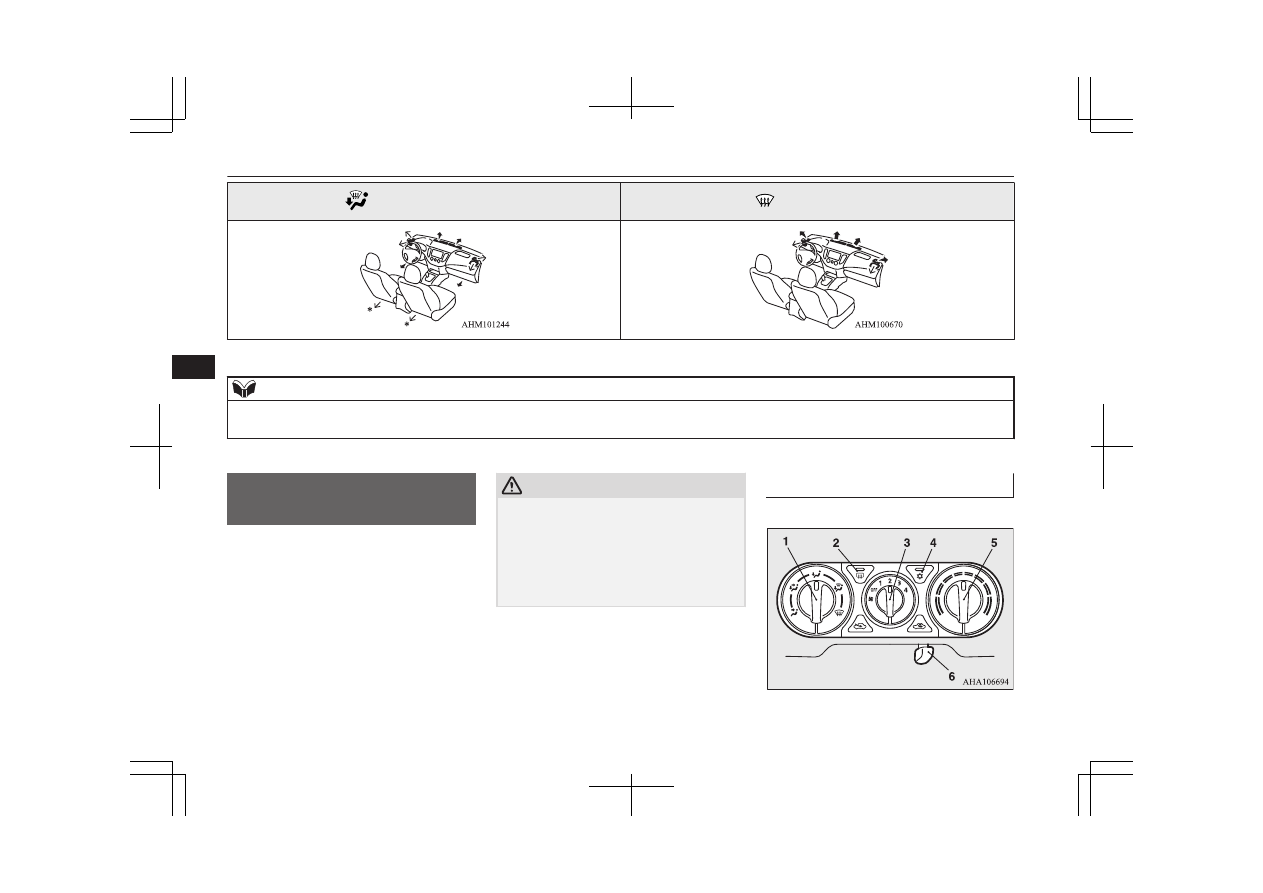

 Foot/Demister position

 Demister position

*: Optional equipment

NOTE

l

For vehicles with the Auto Stop & Go (AS&G) system, the windows may start to fog up while the Auto Stop & Go (AS&G) system is operating. If this
occurs, press the demister switch to remove fog from the windows.



Heater/Manual air
conditioning*

E00700501680

The heater/air conditioning can only be used
while the engine is running.

CAUTION

l

The engine speed may increase when the air
conditioning is operating.
With an increased engine speed, an A/T ve-
hicle will creep to a greater degree than with
a  lower  engine  speed.  Fully  depress  the
brake  pedal  to  prevent  the  vehicle  from
creeping.

Control panel

E00700601753

Heater/Manual air conditioning*

7-04

OKTE18E1

For pleasant driving

7

1- Mode selection dial
2- Rear window demister switch

® p. 5-27

3- Blower speed selection dial
4- Air conditioning switch*
5- Temperature control dial
6- Air selection lever

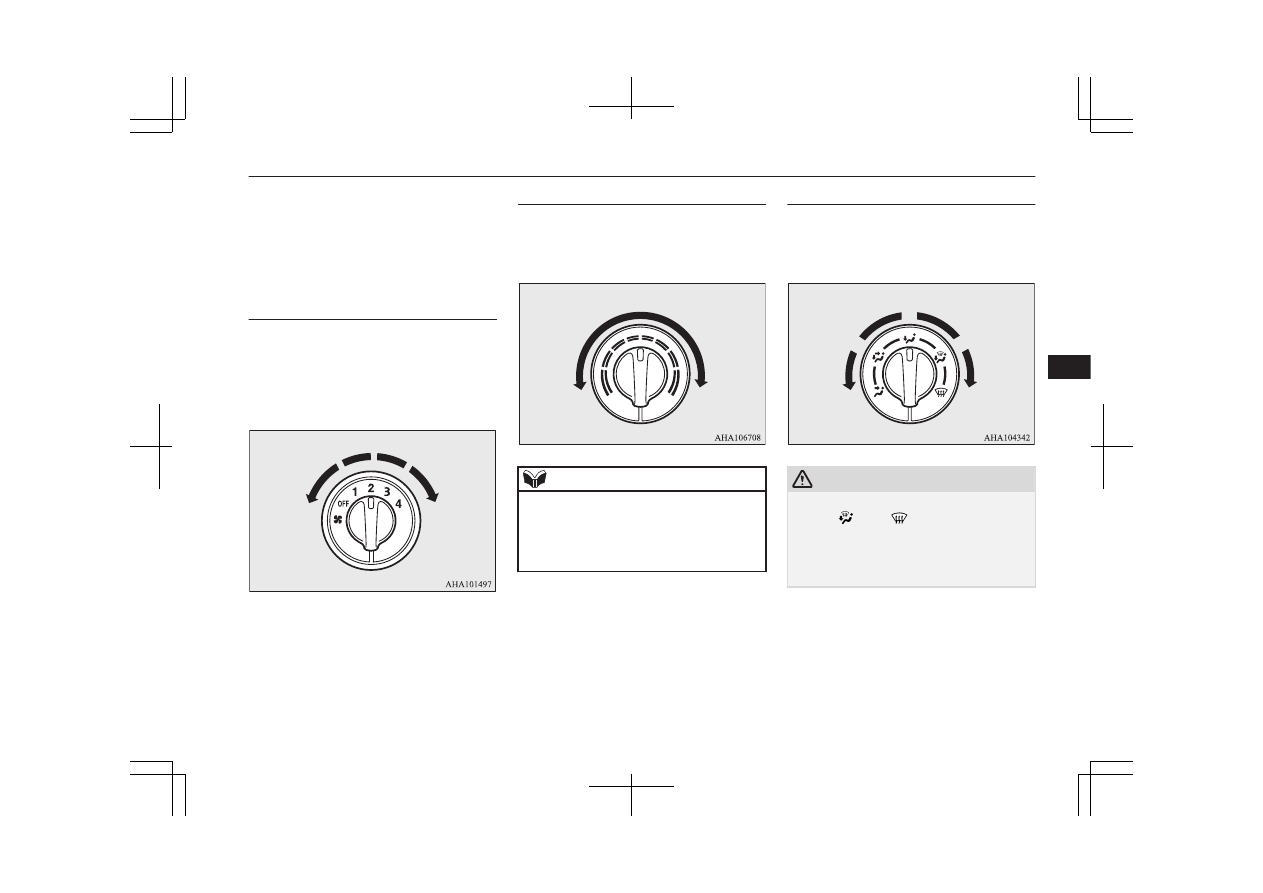

Blower speed selection dial

E00700701321

Select the blower speed by turning the blower
speed  selection  dial  clockwise  or  anticlock-
wise.
The  blower  speed  will  gradually  increase  as
the dial is turned to the right.

Temperature control dial

E00700901730

Turn  the  temperature  control  dial  clockwise
to make the air warmer. Turn it anticlockwise
to make the air cooler.

NOTE

l

While the engine coolant temperature is low,
the  temperature  of  the  air  from  the  heater
will be cool/cold until the engine warms up,
even if you have selected warm air with the
dial.

Mode selection dial

E00701101364

To  change  the  position  of  air  flowing  from
the  ventilators,  turn  the  mode  selection  dial.
(Refer to “Mode selection” on page 7-03.)

CAUTION

l

When using the mode selection dial between
the  “

”  and  “

”  positions,  prevent  fog-

ging by moving the air selection lever to se-
lect outside air.
(Refer  to  “Air  selection  lever”  on  page
7-06.)

Heater/Manual air conditioning*

7-05

OKTE18E1

For pleasant driving

7

NOTE

l

With  the  mode  selection  dial  between  the

”  and  “

”  positions,  air  flows  mainly

to  the  upper  part  of  the  passenger  compart-
ment. With the mode selection dial between
the  “

”  and  “

”  positions,  air  flows

mainly to the leg area.

l

With  the  mode  selection  dial  between  the

”  and  “

”  positions,  air  flows  mainly

to the leg area. With the mode selection dial
between  the  “

”  and  “

”  positions,  air

flows  mainly  to  the  windscreen  and  door
windows.

Air selection lever

E00701401035

To change the air selection, use the air selec-
tion lever.

l

” Outside air

Outside air is introduced into the passen-
ger compartment.

l

” Recirculated air

Air  is  recirculated  inside  the  passenger
compartment.

CAUTION

l

Use of the “

” (recirculation) position for

extended time may cause the windows to fog
up.

NOTE

l

Normally,  use  the  “

”  (outside)  position

to  keep  the  windscreen  and  side  windows
clear  and  quickly  remove  fog  or  frost  from
the windscreen.
If high cooling performance is desired, or if
the outside air is dusty or otherwise contami-
nated, use the “

” (recirculation) position.

Switch  to  the  “

”  (outside)  position  peri-

odically  to  increase  ventilation  so  that  the
windows do not become fogged up.

Air conditioning switch*

E00701502277

Push  the  switch  to  turn  the  air  conditioning
on, indication lamp (A) will come on.

Push the switch again to switch it off.

Operating the air conditioning

system

E00701801576

Select dials and levers as shown in the illus-
tration according to your purpose.

Heater/Manual air conditioning*

7-06

OKTE18E1

For pleasant driving

7

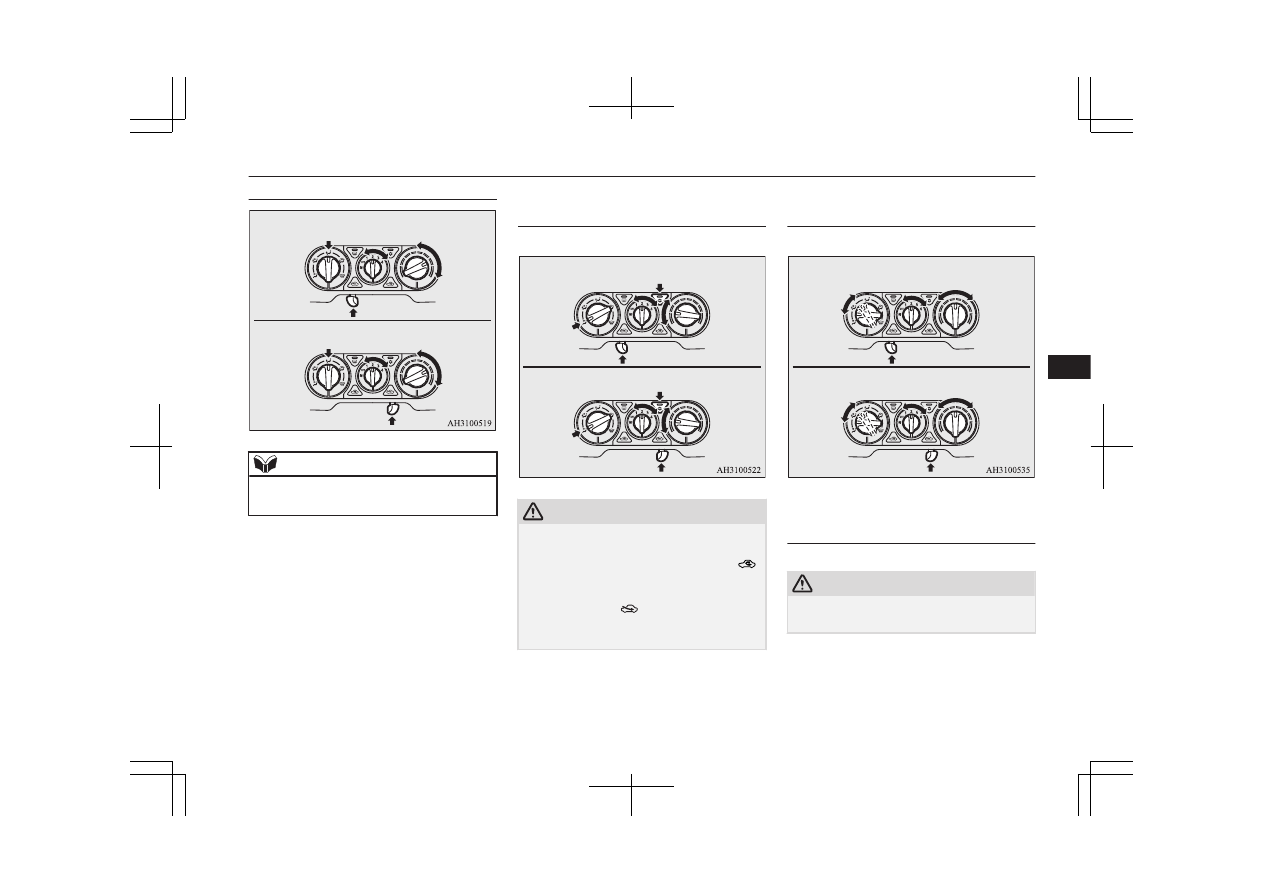

Heating

LHD

RHD

NOTE

l

For  maximum  heat,  set  the  blower  speed  at
the 3

rd

 position.

Cooling (Manual air condition-
ing)

E00701901870

LHD

RHD

CAUTION

l

If the outside air is dusty or otherwise conta-
minated,  or  if  high  cooling  performance  is
desired,  set  air  selection  lever  to  the  “

(recirculation)  position  and  the  temperature
control dial all the way to the right.
Switch  to  the  “

”  (outside)  position  peri-

odically  to  increase  ventilation  so  that  the
windows do not become fogged up.

Combination of unheated air
and heated air

E00702001605

LHD

RHD

Demisting of the windscreen
and door windows

E00702102007

CAUTION

l

For safety, make sure you have a clear view
through all the windows.

Heater/Manual air conditioning*

7-07

OKTE18E1

For pleasant driving

7















Content   ..  11  12  13  14   ..
