Mitsubishi Outlander XL. Manual - part 958

ZC600279

MB992102

Connection

Deployment wires

Insulator tape

6 m (20 ft) or longer

0000

Connect deployment wires, each 6 meters (20 feet) or longer,
to the two leads of special tool MB992102, and cover the
connections with insulator tape. The other ends of the
deployment wires should be connected to each other (short-
circuited), to prevent sudden unexpected deployment of the
air bag module.

NOTE:

This prevents the air bags from being

unintentionally deployed because of the static and
others.

Connect the special tool MB992102 to the driver’s air bag
module.

To the torx screw installation hole located at the backside of
air bag module, tie a thick wire for fixing the wheel.

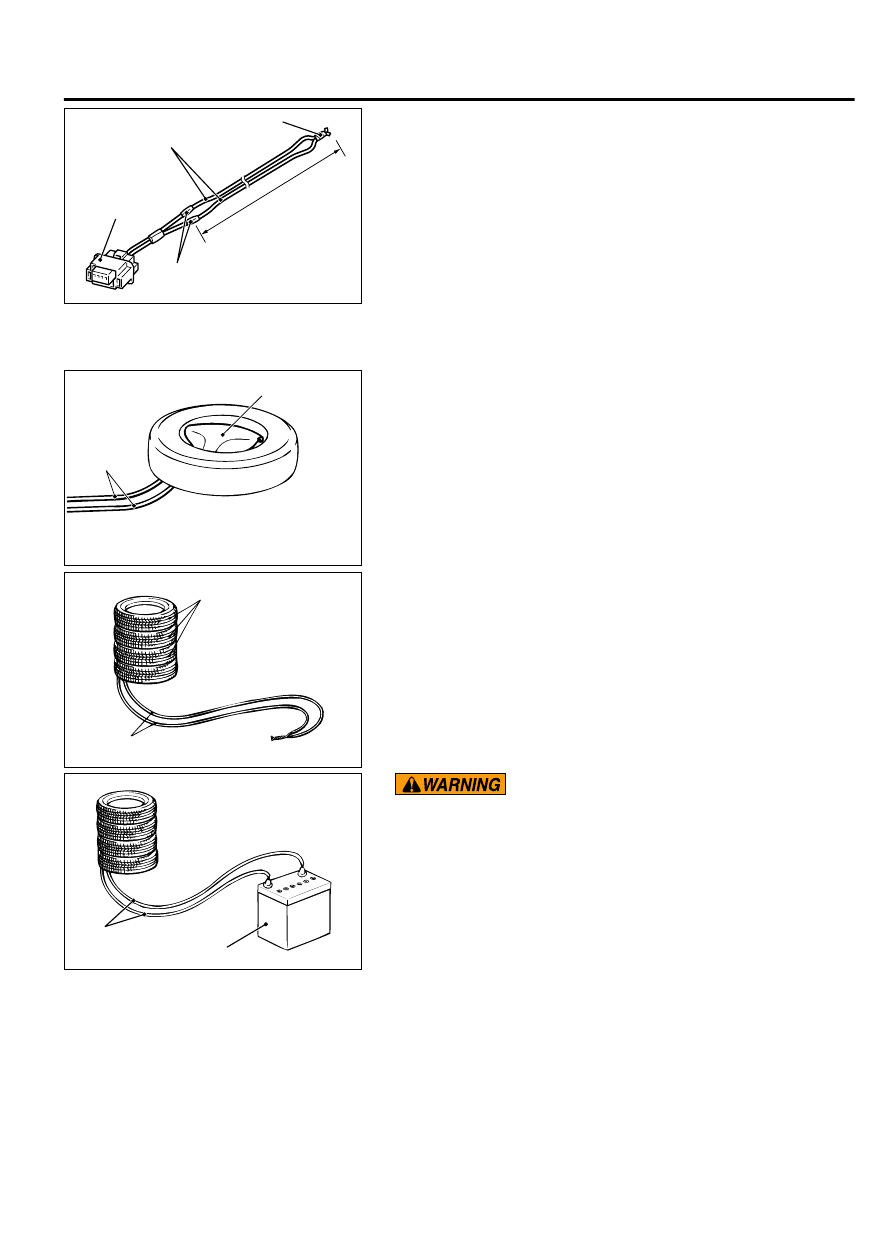

ZC500633

Driver's air bag module

Deployment
wires

0000

Route the deployment wires connected to the driver’s air bag
module beneath an old tire and wheel assembly. Then, using
the wire tied to the bolt, secure the driver’s air bag module to
the tire and wheel assembly with the deployment surface
facing up.

ZC500634

Old tires
without wheels

Deployment wires

0000

Place three old tires without wheels on the tire secured with
the driver’s air bag module.

ZC500635

Deployment wires

Vehicle battery

0000

｠

Before deployment, check carefully to be sure that no one
is nearby.

｠

The  inflator  will  be  quite  hot  immediately  following  the
deployment, so wait at least 30 minutes to allow it to cool
before attempting to handle it. Although not poisonous,
do not inhale gas from air bag deployment. See Deployed
Air  Bag  Module  and  Operated  Seat  Belt  Pre-tensioner
Disposal  (Refer  to  P.52B-371)  for  post-deployment
handling instructions.

｠

If the air bag fails to deploy, do not go near the module.

At a location as far away from the air bag module as possible,
and from a shielded position, disconnect the two connected
wires from each other, and connect them, to the two terminals
of the battery (which has been removed from the vehicle) to
deploy the air bag.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-363

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

Discard the deployed air bag module as specified in Deployed
Air Bag Module and Operated Seat Belt Pre-tensioner
Disposal (Refer to P.52B-371).

DEPLOYMENT OUTSIDE THE VEHICLE <PASSENGER'S
(FRONT) AIR BAG MODULE>

Wait at least 60 seconds after disconnecting the battery
cables before doing any further work (Refer to P.52B-28).

｠

Battery posts, terminals and related accessories contain
lead and lead compounds. WASH HANDS AFTER
HANDLING.

｠

Deploy the air bag in a wide, flat area at least 6 meters (20
feet) away from obstacles and other people.

｠

Do not perform deployment outside if a strong wind is
blowing. If there is a slight breeze, place the air bag
module downwind from the battery.

Disconnect the negative (-) and positive (+) battery cables
from the battery terminals, and then remove the battery from
the vehicle.

Once disconnected, both electrodes of the front
passenger’s air bag module connector short automatically
to prevent accidental deployment caused by static etc. Still,
in consideration of possible accidental deployment, store
the air bag module on flat place with deployment surface
facing up. Do not put anything on it.

Remove the air bag module from the vehicle (Refer to P.
52B-329).

ZC600279

MB992102

Connection

Deployment wires

Insulator tape

6 m (20 ft) or longer

0000

NOTE:

This prevents the air bags from being

unintentionally deployed because of the static and
others.

Connect the special tool MB992102 to the passenger’s (front)
air bag module.

52B-364

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

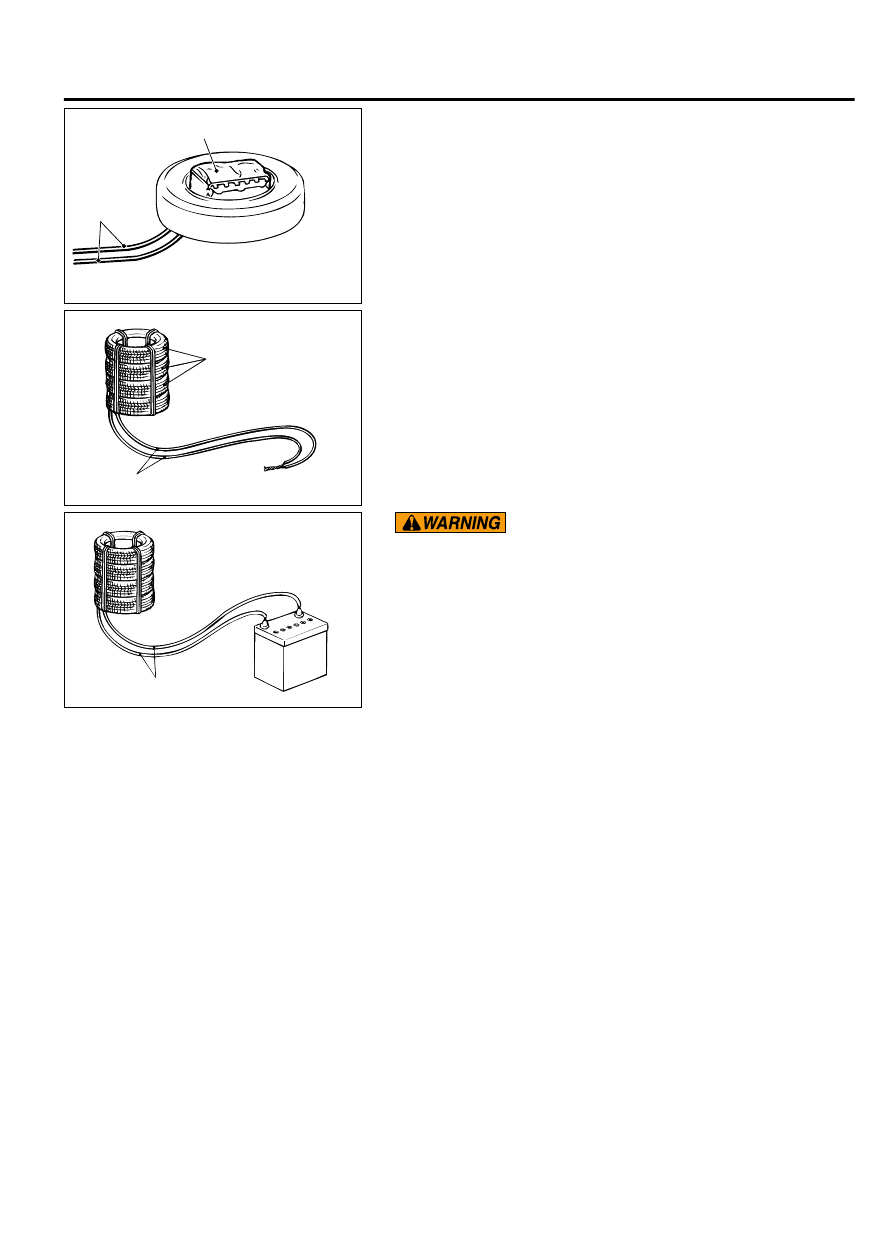

ZC500636

Passenger's (front) air bag module

Deployment
wires

0000

Pass the thick wire through the hole of air bag module
mounting bracket. When, with the air bag module deployment
surface facing upward, fit the module to the old tire with wheel.

ZC500637

Old tires
without wheels

Deployment wires

0000

Place three old tires without wheels on top of the tire secured
to the air bag module, and secure all tires together with ropes
(four locations).

ZC6018370000

Deployment wires

｠

Before deployment, check carefully to be sure that no one
is nearby.

｠

If the air bag fails to deploy, do not go near the module.

At a location as far away from the air bag module as possible,
and from a shielded position, disconnect the two connected
wires from each other, and connect them to the two terminals
of the battery (which has been removed from the vehicle) to
deploy the air bag.

Discard the deployed air bag module as specified in Deployed
Air Bag Module and Operated Seat Belt Pre-tensioner
Disposal (Refer to P.52B-371).

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-365

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

DEPLOYMENT OUTSIDE VEHICLE< SIDE-AIRBAG
MODULE>

Wait at least 60 seconds after disconnecting the battery
cables before doing any further work (Refer to P.52B-28).

｠

Battery posts, terminals and related accessories contain
lead and lead compounds. WASH HANDS AFTER
HANDLING.

｠

Deploy the air bag in a wide, flat area at least 6 meters (20
feet) away from obstacles and other people.

｠

Do not perform deployment outside if a strong wind is
blowing. If there is a slight breeze, place the air bag
module downwind from the battery.

Disconnect the negative (-) and positive (+) battery cables
from the battery terminals, and then remove the battery from
the vehicle.

Once disconnected, both electrodes of the side-airbag
module connector short automatically to prevent accidental
deployment caused by static etc. Still, in consideration of
the accidental deployment, store the air bag module on flat
place with deployment surface facing up. Also, do not put
anything on it.

Remove the side-airbag module from the front seat assembly
incorporated in the side-airbag. (Refer to GROUP 52A-
FRONT SEAT ASSEMBLY P.52A-18.)

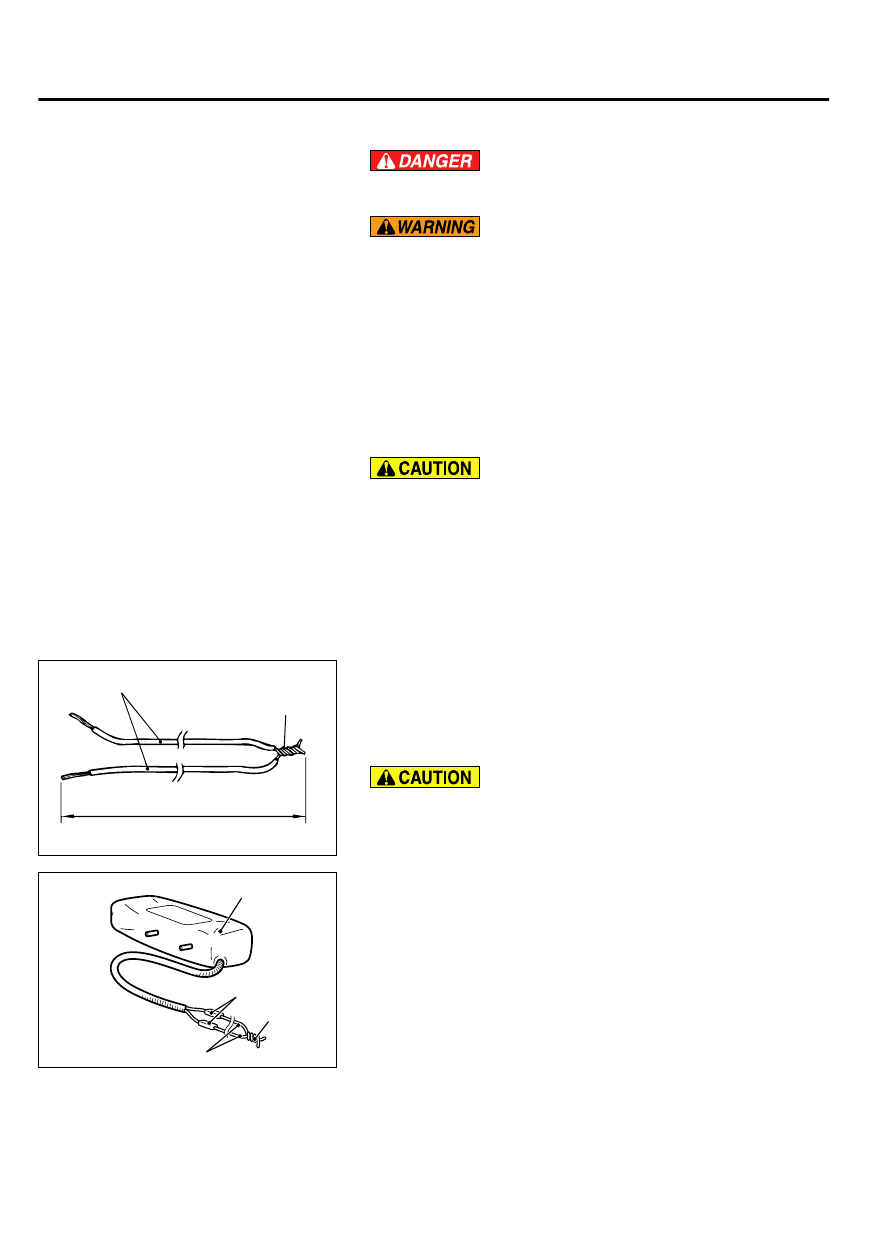

ZC500628

Connection

Deployment wires

6 m (20 ft) or longer

0000

Obtain two suitable wires, which are 6 meters (20 feet) or
longer, as deployment wires. Then connect the wires at one
end to short.

NOTE:

This prevents the air bags from unintentional

deployment caused by static electricity, etc.

Never fail to do Step 4 in order to prevent accidental
deployment caused by static.

Touch the vehicle body with bare hands to release the charged
static.

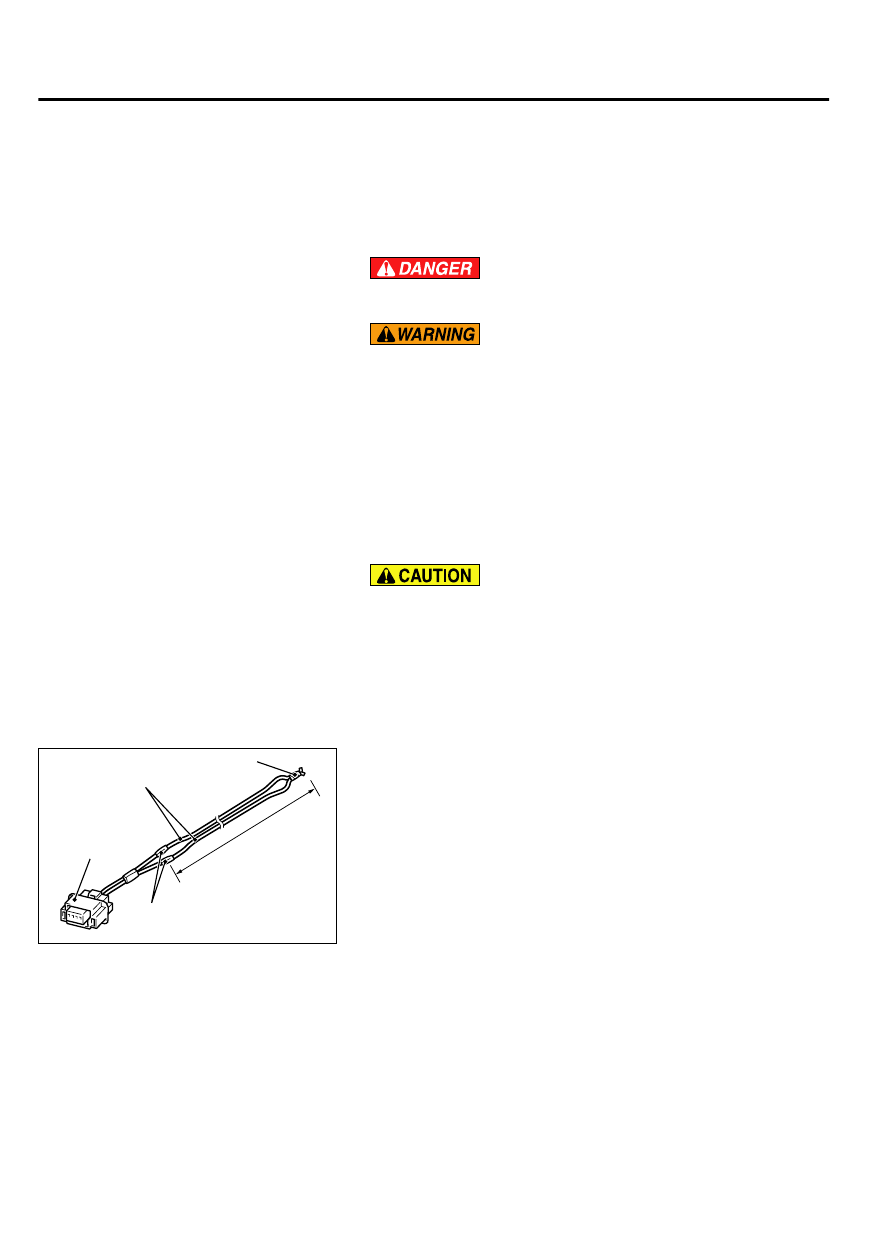

ZC6018420000

Connection

Deployment wires

Insulator tape

Side-airbag module

Cut off the side-airbag module wiring harness connector from
the wiring harness with nippers. Connect the deployment wire
to each of the two cut wiring harnesses, and cover the
connection areas with insulation tape.

52B-366

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES
