(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the SRS-ECU.

NO:

 There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to GROUP 00,
How to use Troubleshooting/inspection Service Points P.
00-15).

DTC U1414: Defective Coding Data

M15204001011USA0000010000

｠

If the DTC U1414 is set, diagnose the CAN main
bus lines.

｠

When replacing the ECU, always check that the
communication circuit is normal.

DIAGNOSTIC FUNCTION
If the vehicle information data is not registered to the
SRS-ECU, the SRS-ECU sets the DTC U1414.

JUDGEMENT CRITERIA
When  the  coding  data  (vehicle  information)  from
ETACS-ECU is not received, SRS-ECU determines
that the abnormality is present.

TROUBLESHOOTING HINTS

｠

The CAN bus line may be defective

｠

The ETACS-ECU may be defective

｠

The SRS-ECU may be defective

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-303

SRS AIR BAG DIAGNOSIS

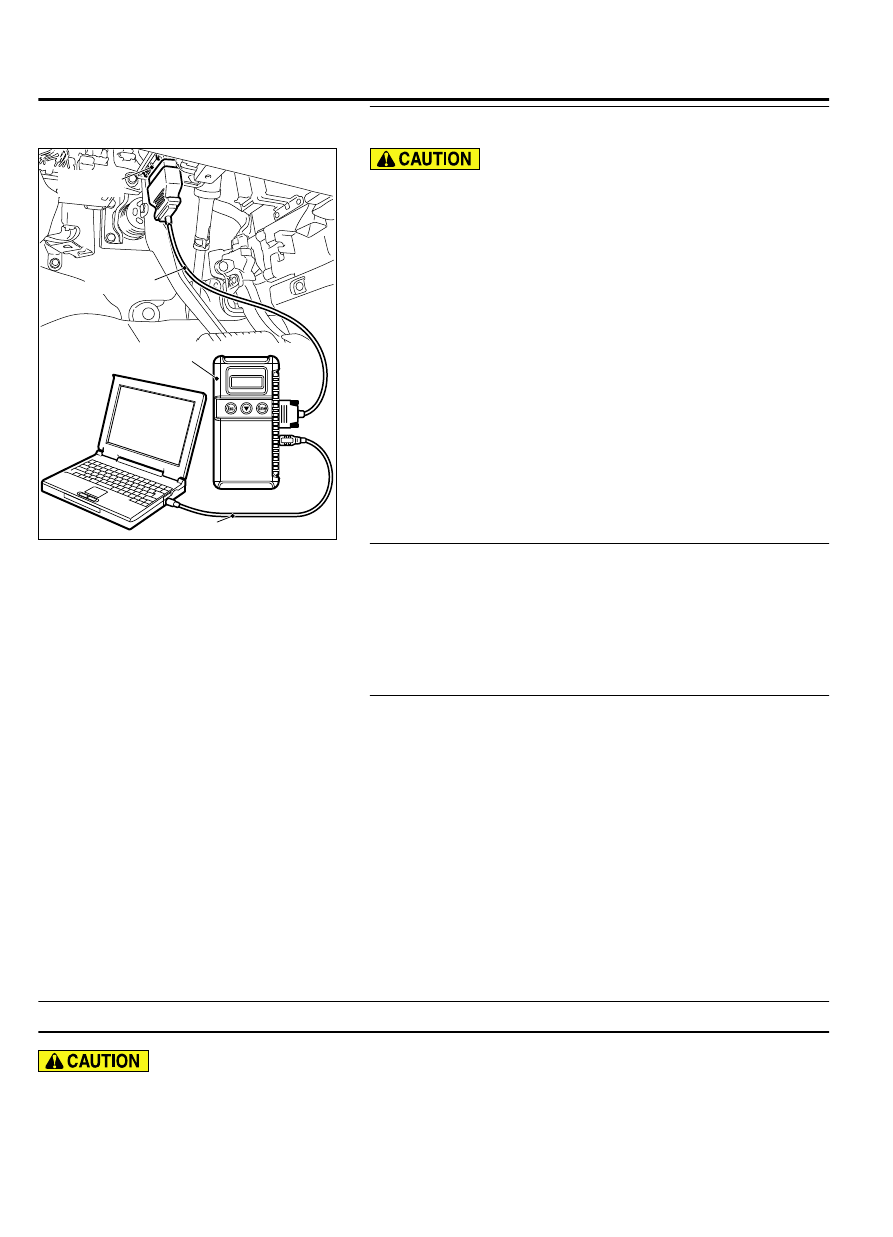

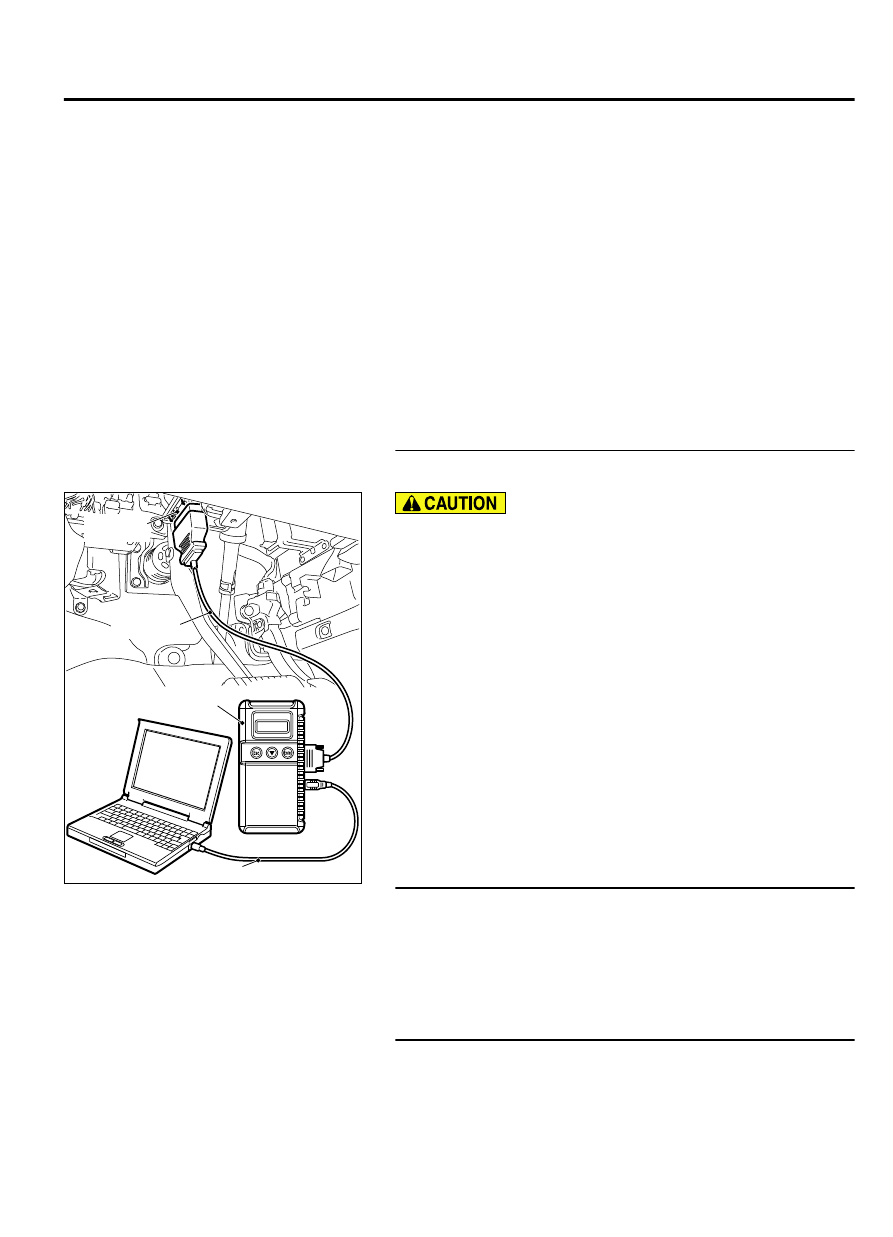

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
scan tool P.52B-31."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the ETACS-ECU
diagnostic trouble code
Check if DTC is set to the ETACS-ECU.

Q:Is the DTC set?

YES:

 Troubleshoot the ETACS-ECU (Refer to GROUP 54Ad,

Diagnosis P.54Ad-8).

NO:

 Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the SRS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the SRS-ECU.

NO:

 There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to GROUP 00,
How to use Troubleshooting/inspection Service Points P.
00-15).

DTC U1415: Coding not Completed/Data Fail

M15204001012USA0000010000

｠

If the DTC U1415 is set, diagnose the CAN main
bus lines.

｠

When replacing the ECU, always check that the
communication circuit is normal.

52B-304

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS

DIAGNOSTIC FUNCTION
If the vehicle information data is not registered to the
SRS-ECU, the SRS-ECU sets the DTC U1415.

JUDGEMENT CRITERIA
With  the  global  coding  counter  value  "0",  if  all  the
global  coding  data  (vehicle  information)  are  not

stored, the SRS-ECU determines that a problem has
occurred.

TROUBLESHOOTING HINTS

｠

The CAN bus line may be defective

｠

The ETACS-ECU may be defective

｠

The SRS-ECU may be defective

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
scan tool P.52B-31."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the ETACS-ECU
diagnostic trouble code
Check if DTC is set to the ETACS-ECU.

Q:Is the DTC set?

YES:

 Troubleshoot the ETACS-ECU (Refer to GROUP 54Ad,

Diagnosis P.54Ad-8).

NO:

 Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the SRS-ECU.

(1)

Erase the DTC.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-305

SRS AIR BAG DIAGNOSIS

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the SRS-ECU.

NO:

 There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to GROUP 00,
How to use Troubleshooting/inspection Service Points P.
00-15).

TROUBLE SYMPTOM CHART

M15204000034USA0000010000

During  diagnosis,  a  DTC  code  associated  with
another  system  may  be  set  when  the  ignition
switch

 is

 turned

 on

 with

 connector(s)

disconnected.  After  completing  the  repair,
confirm all systems for DTC code(s). If DTC code
(s) are set, erase them all.

SYMPTOM

INSPECTION PROCEDURE No. REFERENCE PAGE

Communication between the scan tool and the
SRS-ECU is not possible.

1

 P.52B-307

Power supply circuit system

2

 P.52B-309

The SRS warning light does not illuminate.

3

 P.52B-311

The SRS warning light does not go out.

4

 P.52B-311
